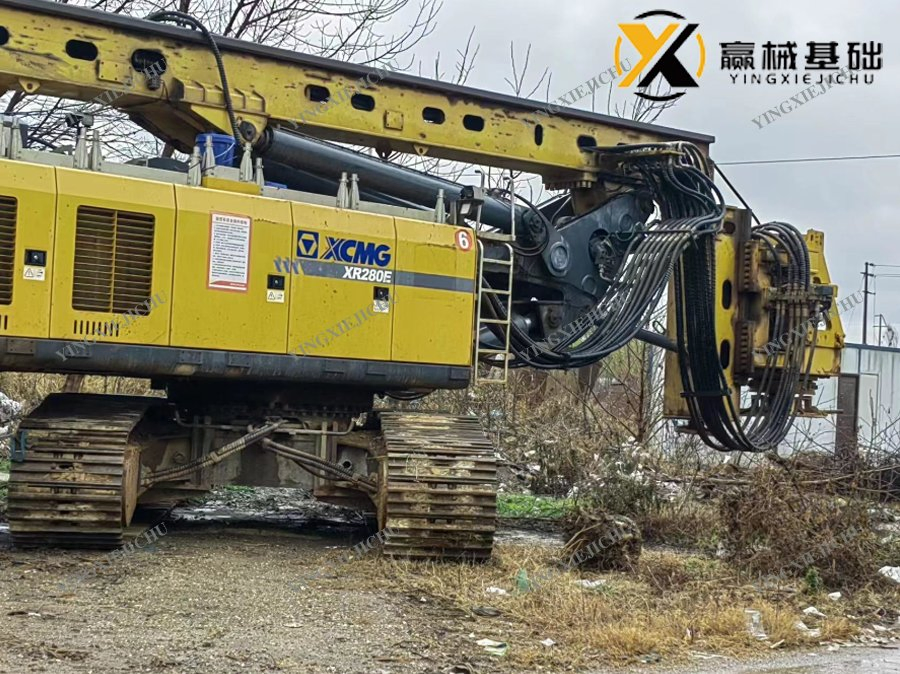

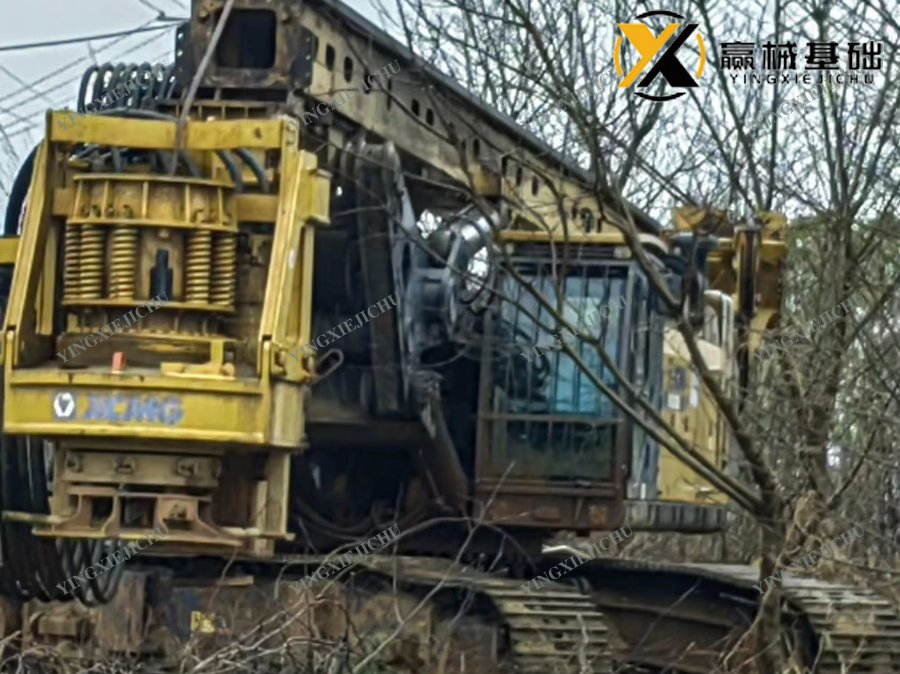

Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma
Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma
Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma
Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma
Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma
1 / 5
Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma
Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma
Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma
Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma
Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma

Used Xr280e Rotary Drilling Rig Machine 94m Depth Hydraulic Crawler Drill Rig Hammer Drill Ma

Customization: Available
After-sales Service: Provide After Sale
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
XR280E
Certification
ISO 9001:2008
Condition
Used
Drill Hole Diameter
>300mm
Drill Hole Depth
70-100m
Bit Type
Diamond Bit
Drilling Way
Rotary
Type
Crawler
Weight
106t
Drilling Diameter
2500mm
Working Hours
3000 - 5000 hours
HS Code
8401309000

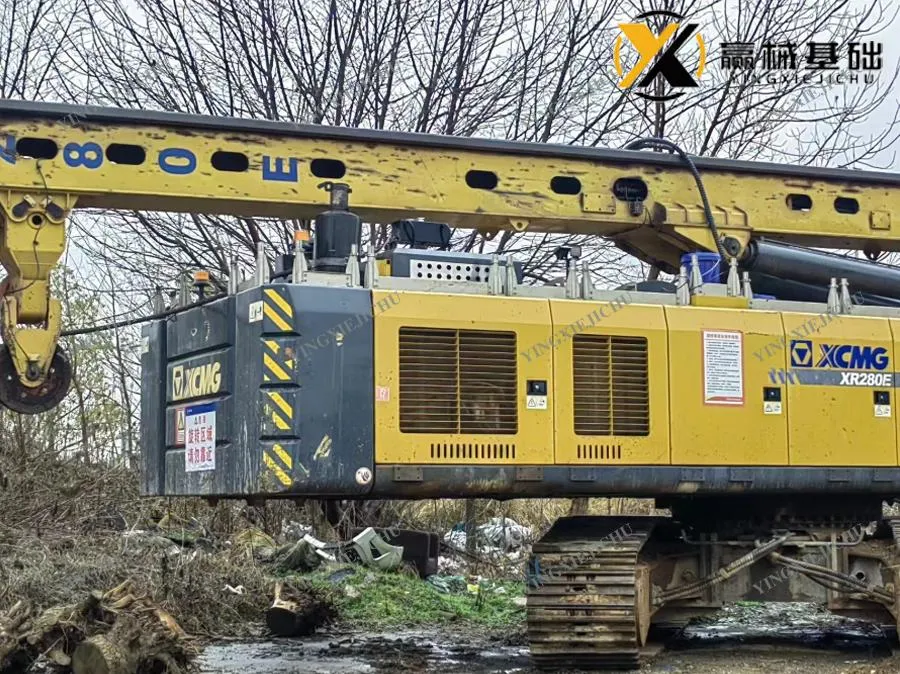

Rotary Drilling Rig Machine
⚙

Technical Specification

Type Unit Parameter
Max. drilling diametermφ2.5
Engine Model/TAD1352VE
Engine PowerkW315
Rotary Drive Max. Output TorquekN·m300
Rotary Speedr/min6-27
Max. Pull-down Piston PushkN260
Max. Pull-down Piston PullkN330
Main Winch Max. Pulling ForcekN330
Main Winch Max. Speedm/min75
Max. Traveling Speedkm/h1.5
Track Shoe Widthmm800
Overall Weightt106
Working Dimensionsmm10825×4800×25200
★

Performance Characteristics

  • Optimally designed double swing arm luffing mechanism for construction stability and transportation convenience.
  • Equipped with H-type hydraulic retractable crawler chassis and large-diameter slewing bearing.
  • Imported high-power engine effectively reduces fuel consumption and operational costs.
  • Hydraulic system adopts load sensing technology and independent radiator system for high heat dissipation efficiency.
  • Proprietary single-row rope main winch solves the "biting rope" problem and extends wire rope service life.

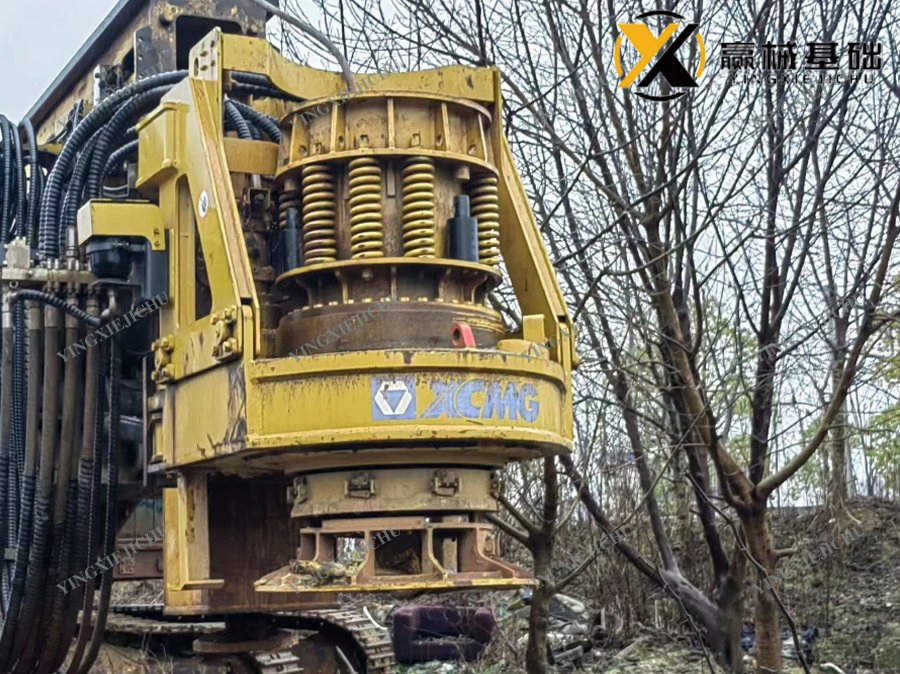

  • Rotary drive features normal mode for soil layers and rock-entering mode for rock formations.
  • Standard centralized lubrication system for easier maintenance and improved working reliability.

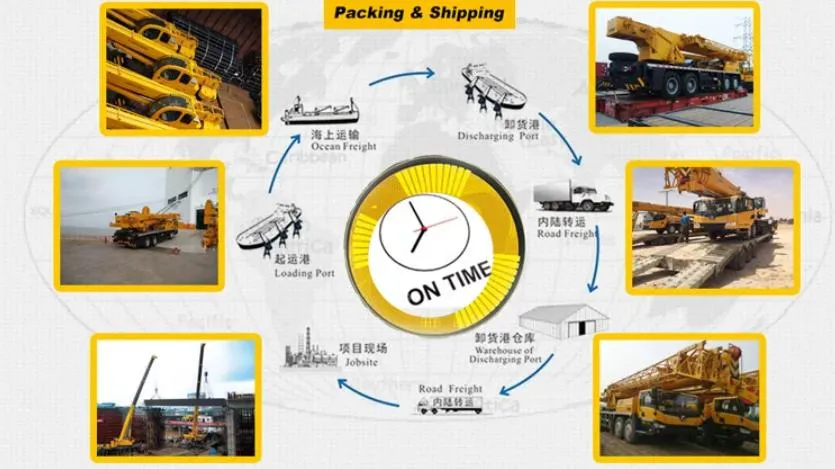

Packaging and delivery

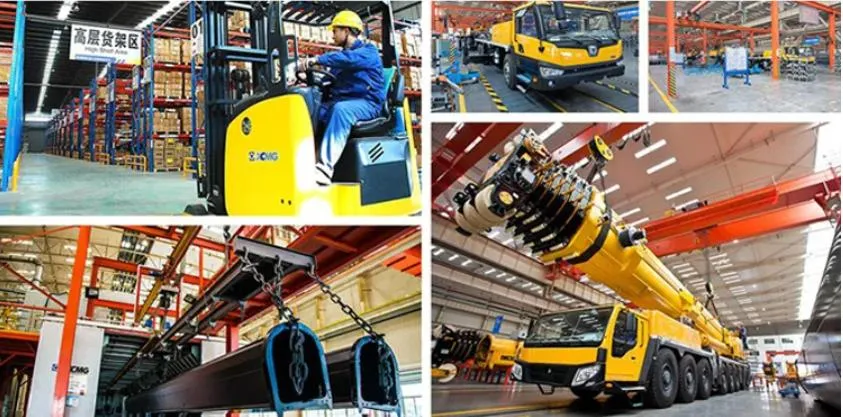

Export Packaging
✈

Export & Logistics Services

Expert supervision is provided from the factory to any designated port in China to ensure compliance with all export packaging requirements, safe delivery, and minimized risk of damage during transportation.

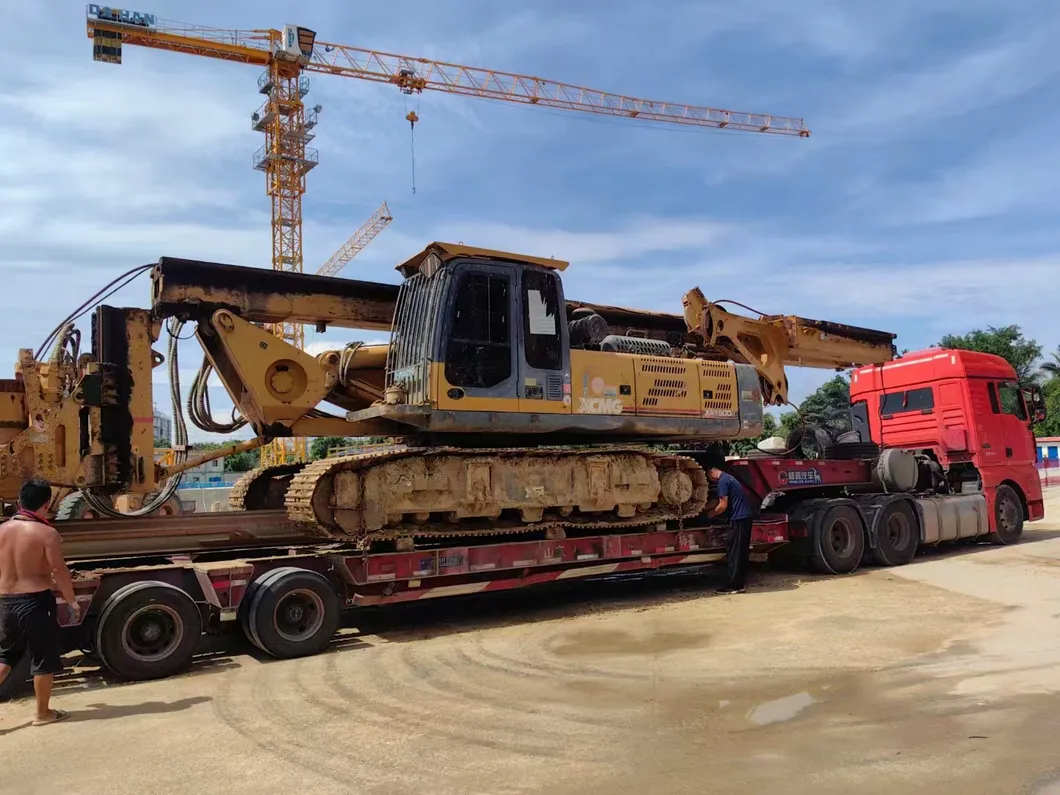

Rig Site 1

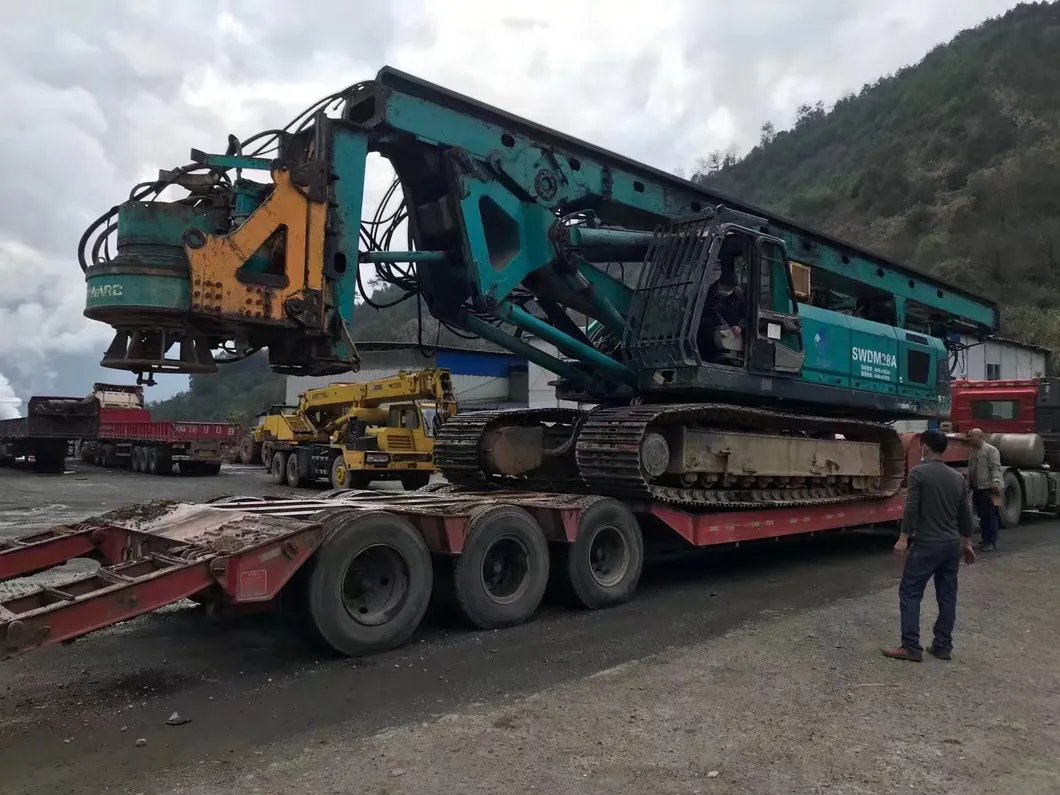

Rig Site 2

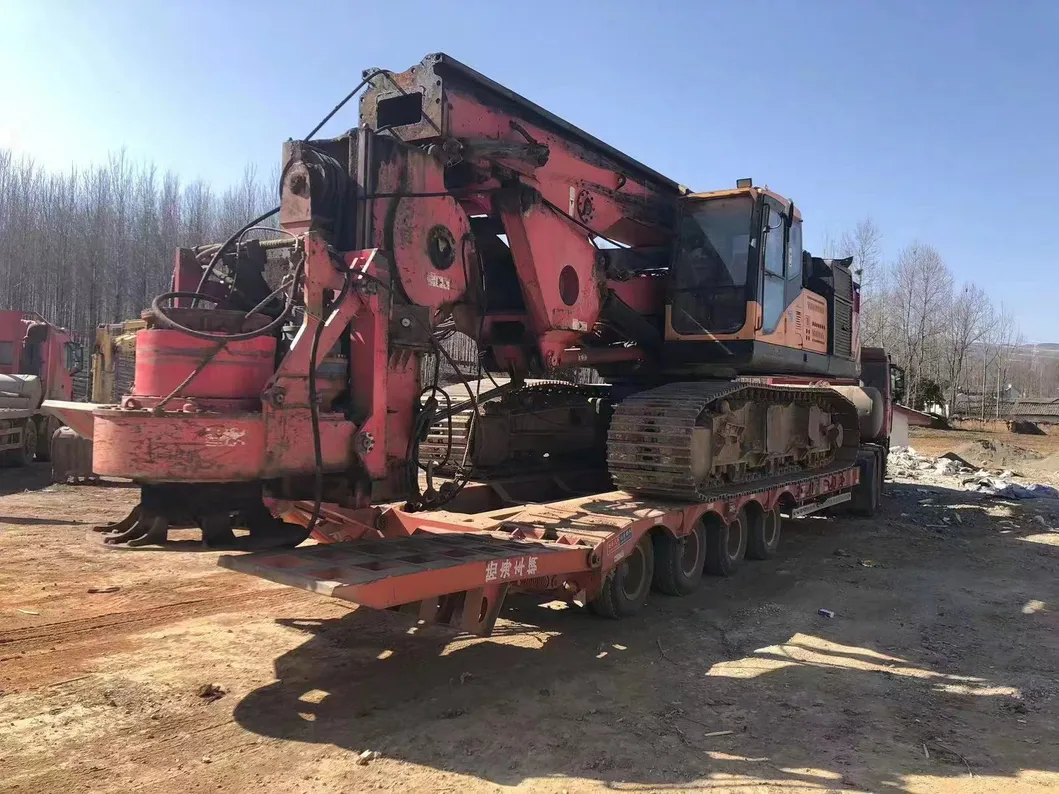

Rig Site 3
🌍

Global Export Destinations

Asia
India, Philippines, Thailand, Vietnam, Kazakhstan, etc.
Middle East
Saudi Arabia, UAE, Jordan, Oman, Qatar, etc.
Africa
South Africa, Kenya, Nigeria, Algeria, Egypt, etc.
South America
Brazil, Peru, Chile, Mexico, etc.
Certifications
Trade Show
?

Frequently Asked Questions

1. What is the maximum drilling depth and diameter of the XR280E? The XR280E rotary drilling rig supports a maximum drilling depth of up to 94 meters and a maximum drilling diameter of 2500mm.
2. What type of engine is used in this rig? This model is equipped with a high-performance TAD1352VE engine providing 315kW of power, known for fuel efficiency and reliability.
3. How does the single-row rope winch design benefit operations? The proprietary single-row rope main winch effectively prevents "rope biting," which significantly extends the service life of the wire rope and reduces maintenance costs.
4. Is the chassis suitable for heavy-duty construction? Yes, it features a special H-type hydraulic retractable track chassis with a large-diameter slewing bearing, ensuring superior stability during drilling and convenience during transport.
5. What quality certifications does the equipment hold? The equipment meets international quality standards including ISO 9001:2008, CE, and GHOST certifications, ensuring safety and performance compliance.
6. What are the transport dimensions for this unit? Under transportation conditions, the dimensions are approximately 19750mm × 3500mm × 3790mm, allowing for roll-on/roll-off shipping methods.
