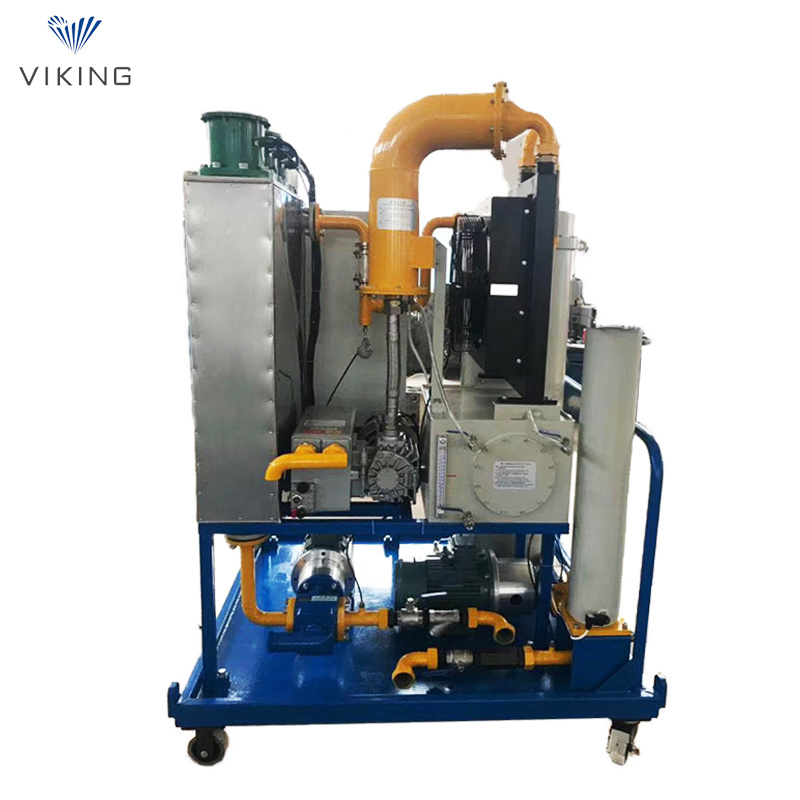

Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil
Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil
Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil
Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil
Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil
1 / 5
Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil
Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil
Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil
Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil
Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil

Insulating Used Engine Oil Recycling Machine for Lube and Hydraulic Oil

Customization: Available
Certification: TüV, CE
Application: Turbine Oil, Lubricant Oil, Transformer Oil, Engine Oil
Send Inquiry

Product Description

Overview

Basic Specifications
Model NO.VKVP
VoltageOptional
Flow Rate70 / 100 / 200 L/Min
Inlet Pressure-0.4bar ~ 1bar
Outlet PressureLess Than 8 Bar
Working Vacuum-0.6bar ~ -0.9bar
Total Power18.25 - 43.5 kW
Viscosity Range32/46/68/100/220/320/460 cst
Application OilHydraulic Oil, Lubricating Oil
Net Weight980kg

Product Description

Providing expert solutions for hydraulic and lubricating oil filtration, separation, and purification. We design high-performance oil purifiers tailored for industrial manufacturing and oil & gas sectors.

Our Filtration Series:

  • Coalescence and Separation Turbine Oil Purifier
  • Light Diesel Fuel Oil Purifier
  • Vacuum Hydraulic Oil Purifier
  • Vacuum Lube Oil Purifier
  • Heavy Duty Gear Oil Purifier
  • Double Stage High Vacuum Transformer Oil Purifier
  • Vacuum Centrifugal Oil Purifier
  • Portable / Mobile Oil Filter Cart
✓
VKVP Series Advantage: Excellent water removal capacity and effective bypass filtration auxiliary equipment.
✓
Functionality: Removes 100% free water, 90% dissolved water, 100% free gas, and various sediment/contaminative particles.

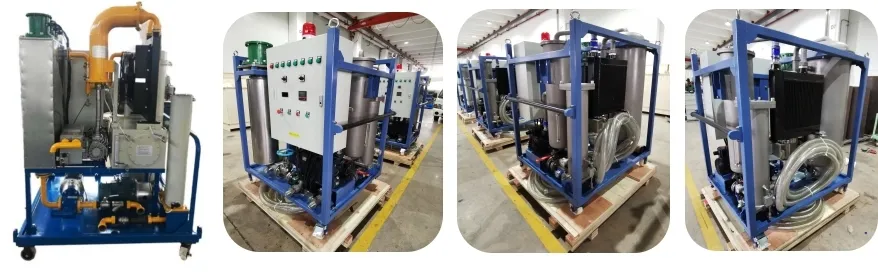

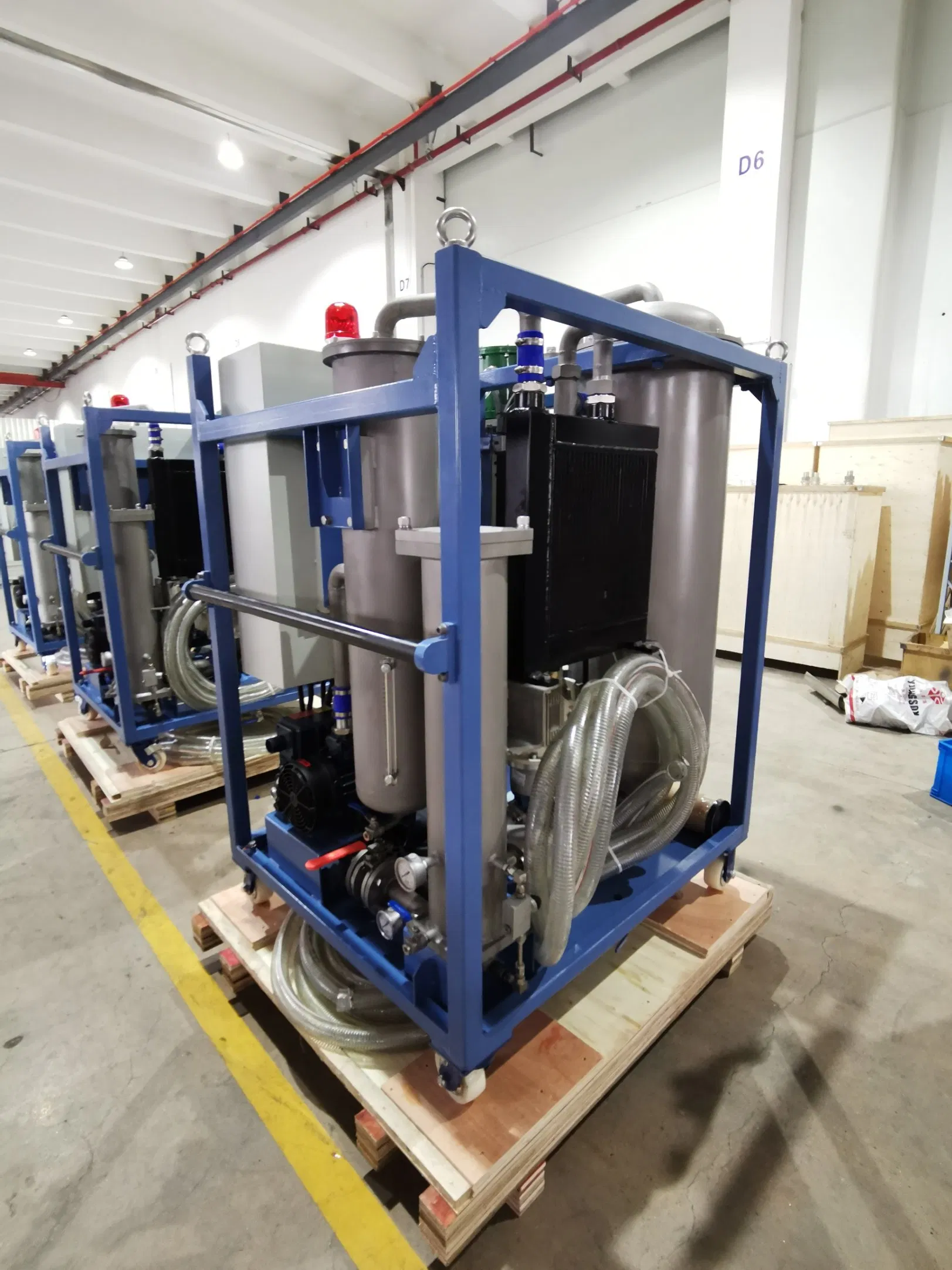

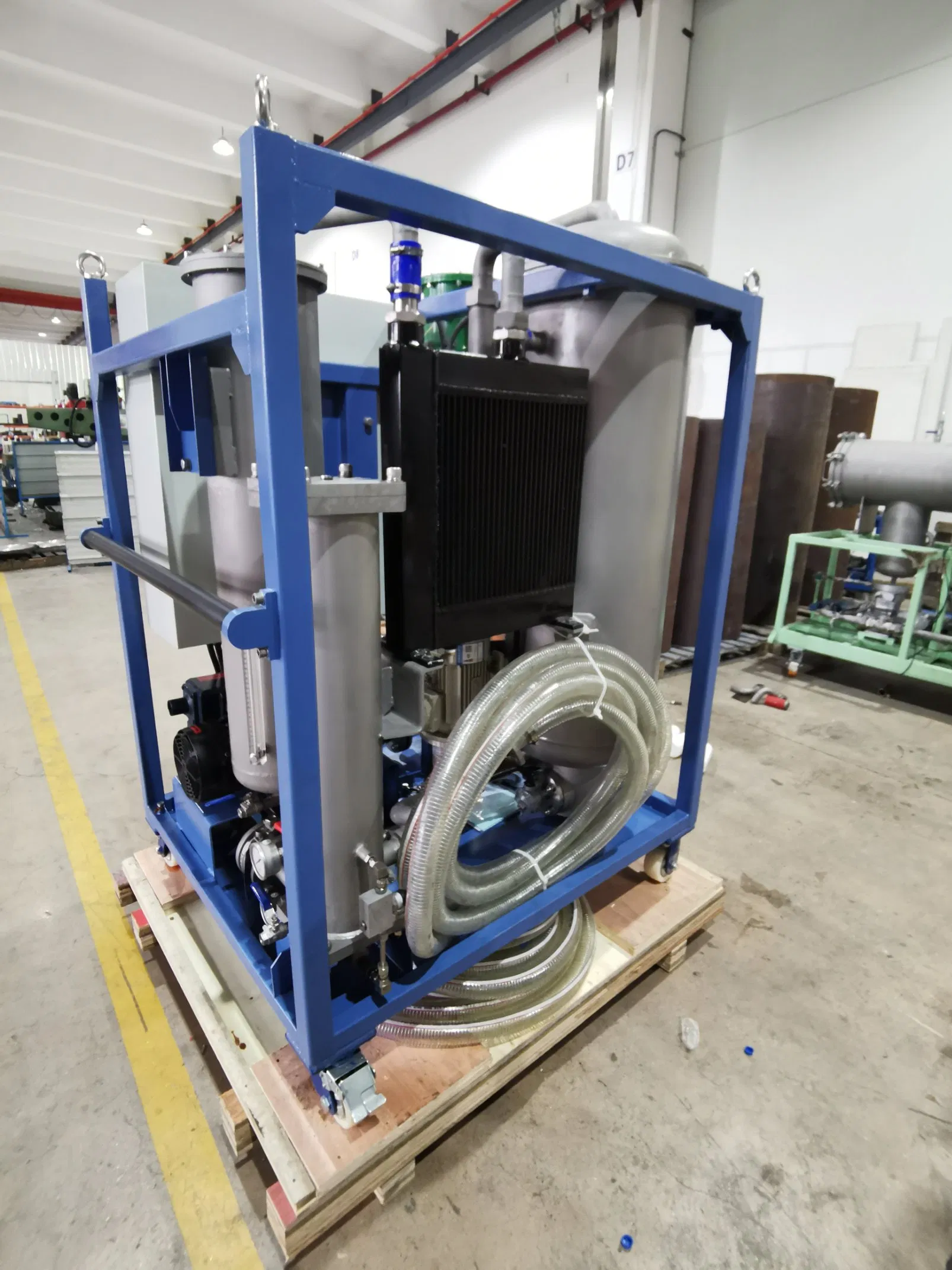

VKVP Vacuum Oil Purifier

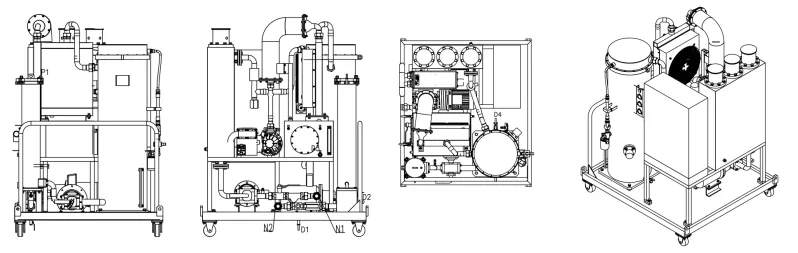

VKVP Outline Drawing
Technical Parameters VKVP70 VKVP100 VKVP200
Treatment capacity (L/min) 70 100 200
Total power (kw) 18.25 - 25.35 25.95 - 36.05 38 - 43.5
Net weight (kg) 790 980 1100
Dimensions (mm) 1550*1250*2000 1600*1450*2200 1750*1450*2300

VKCP Coalescence & Separation Series

Combining precision filtration and efficient dehydration in one unit, designed for large flow continuous processing with low energy consumption.

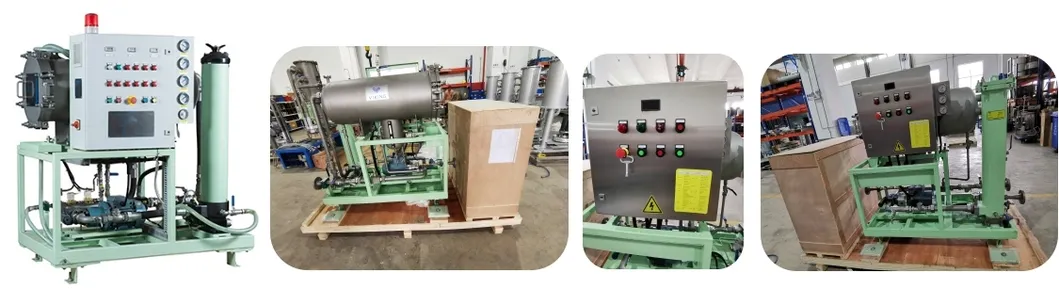

VKCP Real Picture

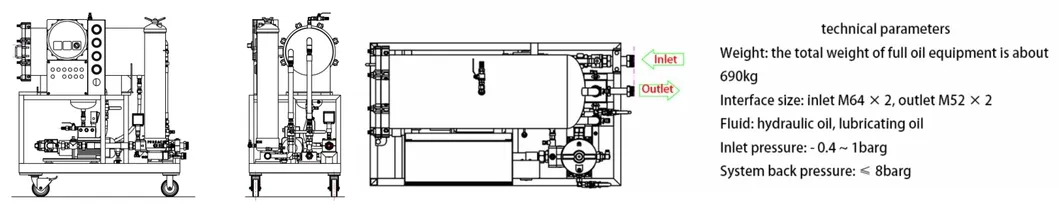

VKCP Outline
★
Performance: Final oil cleanliness reaches NAS1638 grade 6, with free water content less than 100 PPM.

VKLP Vacuum Centrifugal Oil Purifier

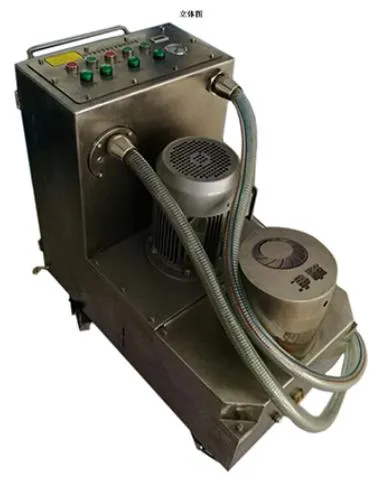

VKLP Centrifugal Oil Purifier
  • No Filter Consumables: Uses centrifugal vacuum compound principle.
  • High Capacity: Sewage carrying capacity > 500g.
  • Long Intervals: Extended operation time before maintenance is required.
  • Versatile: Works normally with oil viscosity ranging from 3-1000cst.

Our Advantages

1
Independent product design departments and state-of-the-art laboratories.
2
Technical team with over 10 years of R&D experience from international industry leaders.
3
ISO9001 and SGS Qualification with multiple Patent Certificates.
4
Compatible replacements for well-known brands such as PALL, HYDAC, and PARKER.
5
Strict Quality Control System: IQC-IPQC-FQA-OQC.

Application Cases

Our filtration and purification series are widely applied in gas & oil, industrial manufacturing, metallurgy, petrochemical, electric power, engineering machinery, and mining enterprises.

Global Cooperators

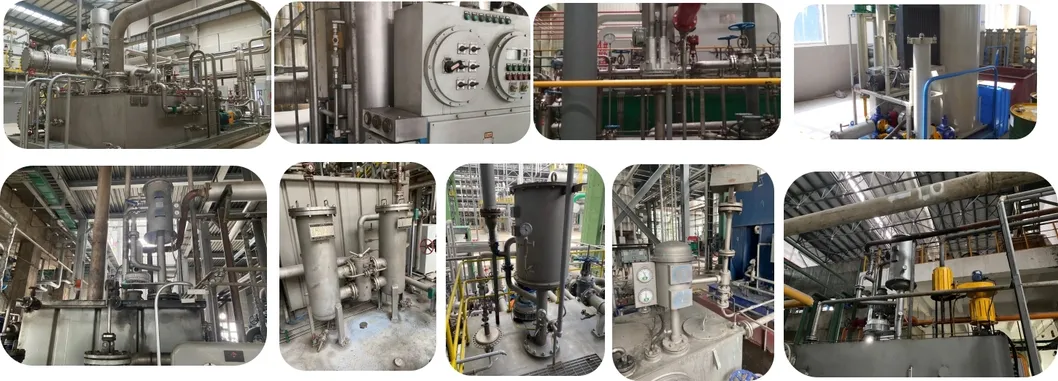

Application Case 1

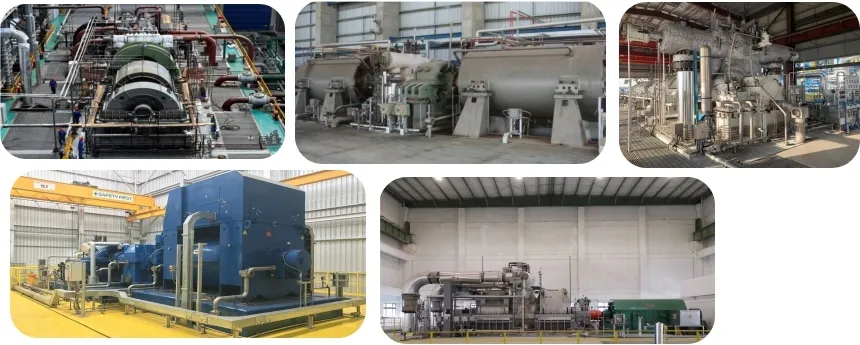

Application Case 2

Our Capability & Main Products

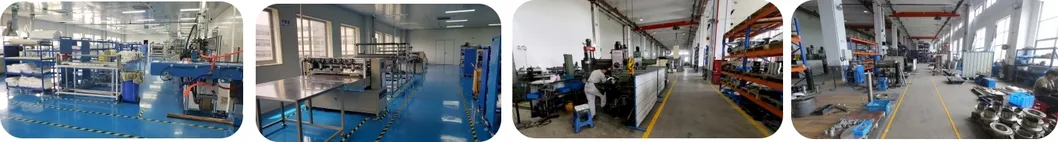

Capability Workshop

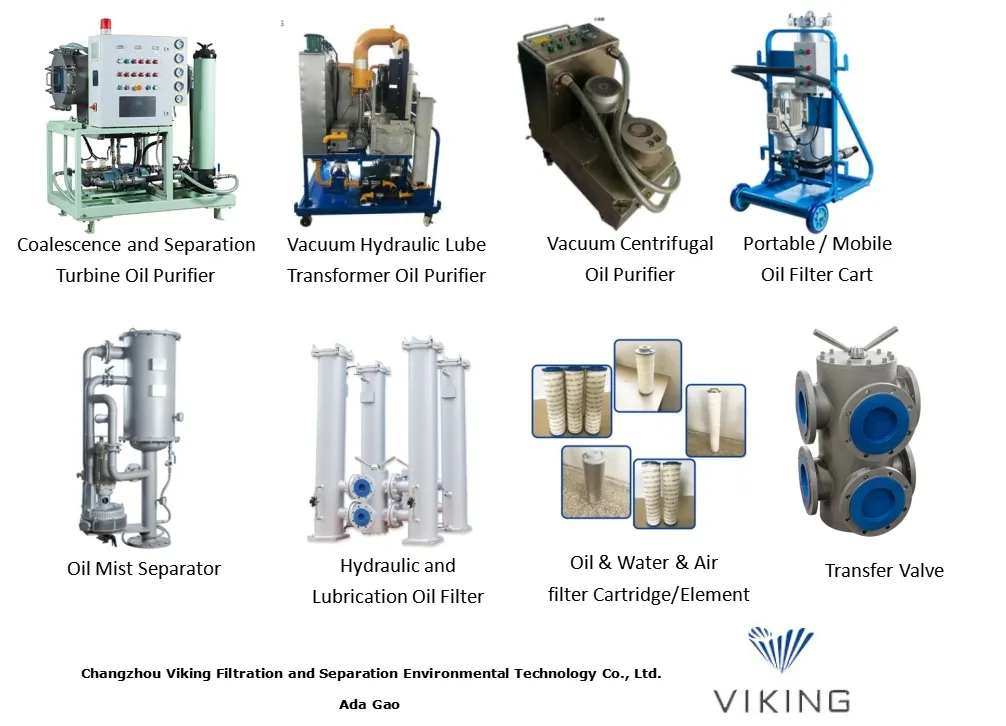

Main Products Catalog
Filter Elements

Frequently Asked Questions

What types of industrial oil can these machines process?
Our purifiers are suitable for a wide range of oils including hydraulic oil, lubricating oil, turbine oil, light diesel, gear oil, and transformer oil.
How efficient is the water removal process?
Depending on the model, our machines can remove 100% of free water and up to 90-95% of dissolved water.
Does the centrifugal oil purifier require filter elements?
The VKLP Vacuum Centrifugal series operates on a compound centrifugal principle and does not require consumable filter materials, reducing long-term costs.
What is the maximum oil viscosity the equipment can handle?
Standard vacuum units handle up to 460cst, while the VKLP centrifugal units can handle up to 1000cst.
Are the filter elements compatible with international brands?
Yes, our filter elements are designed to fully replace well-known brands like PALL, HYDAC, PARKER, and others with equivalent performance.
What quality standards do the products meet?
All products follow a strict IQC-IPQC-FQA-OQC quality control process and are compliant with ISO9001 and SGS standards.
