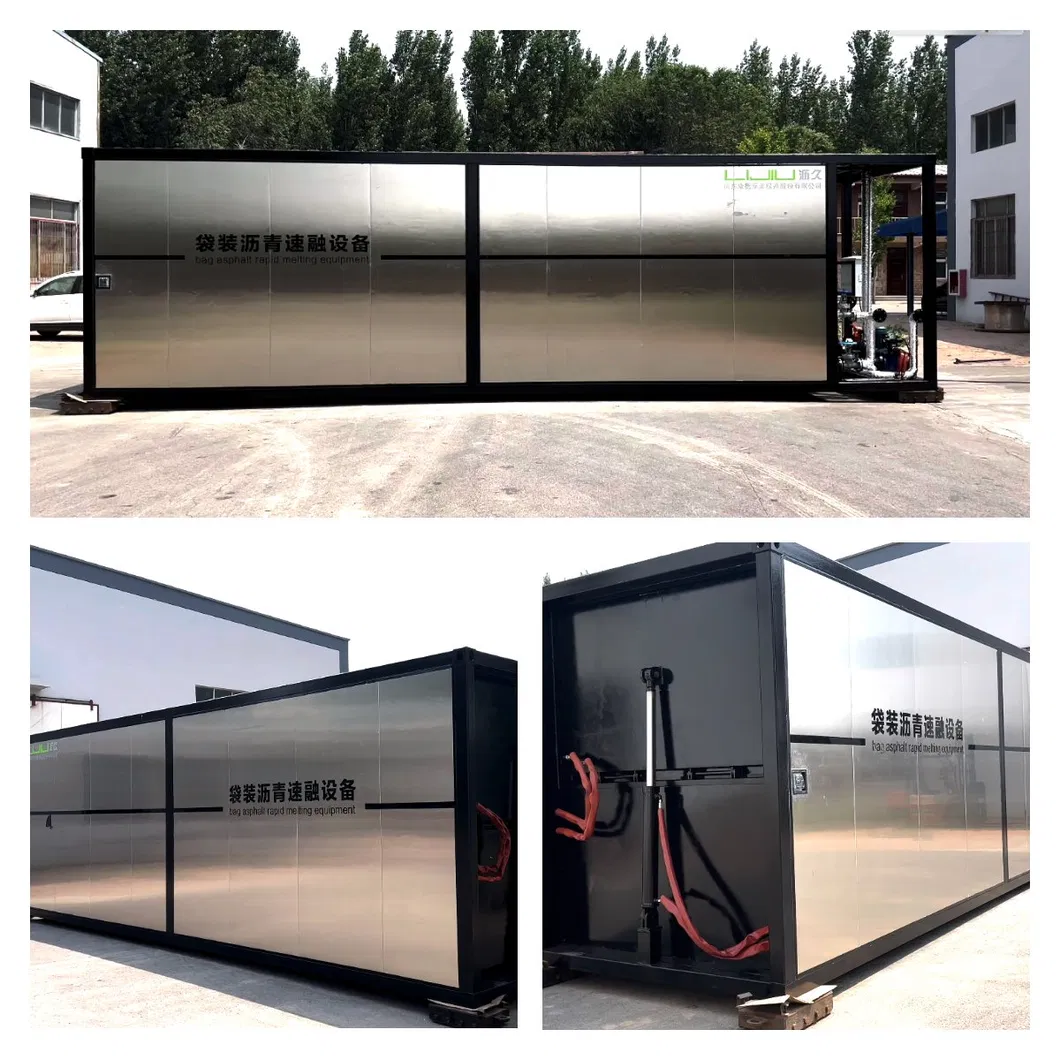

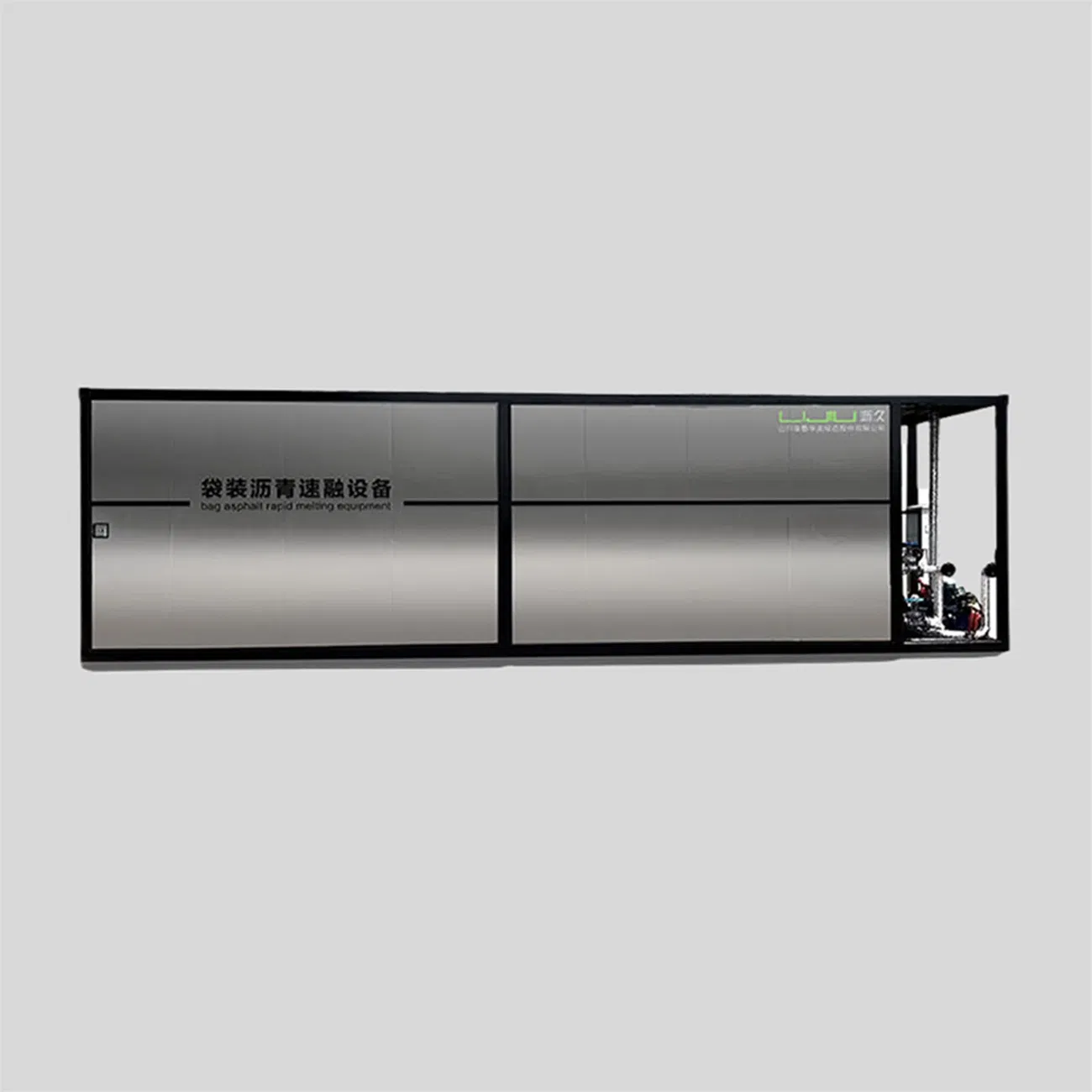

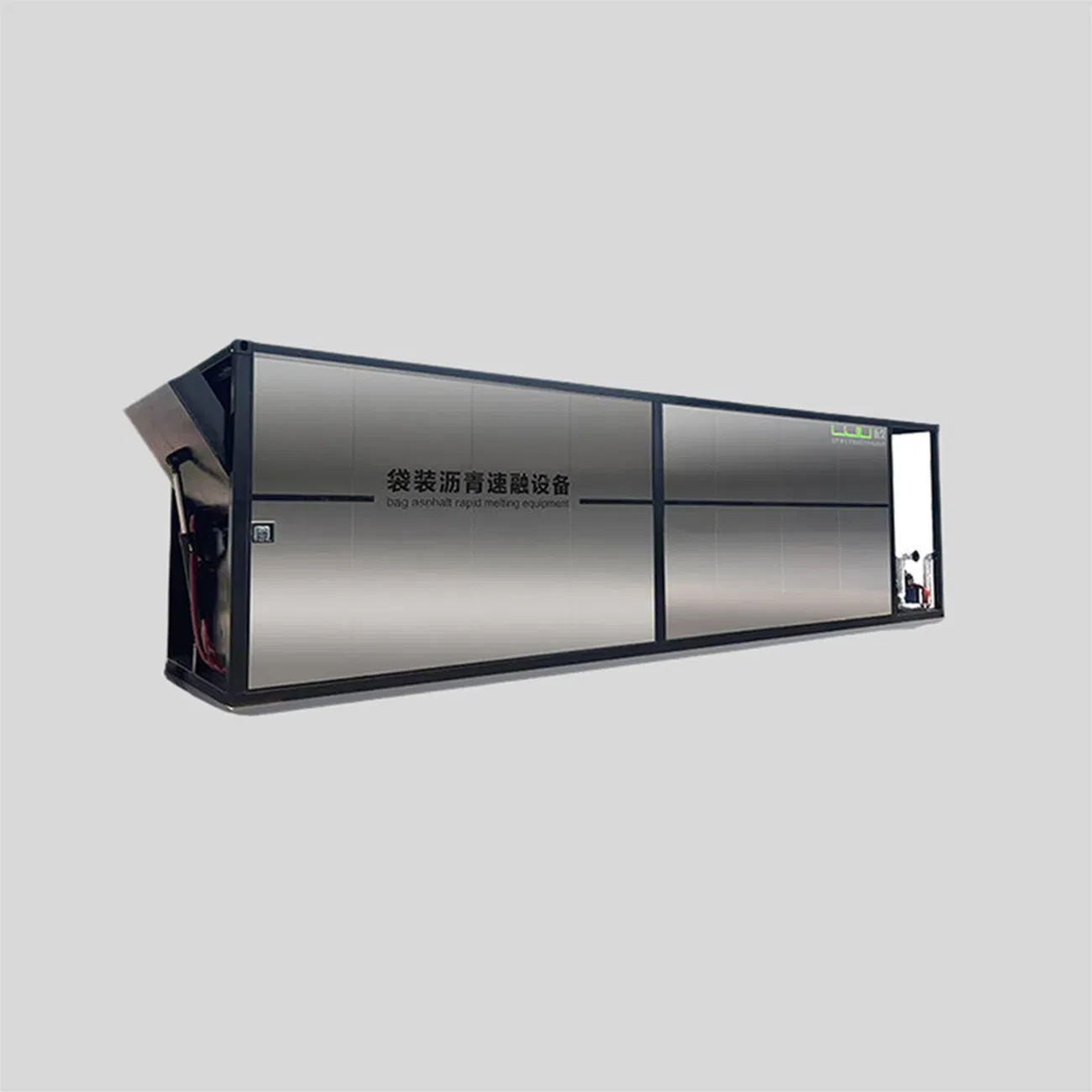

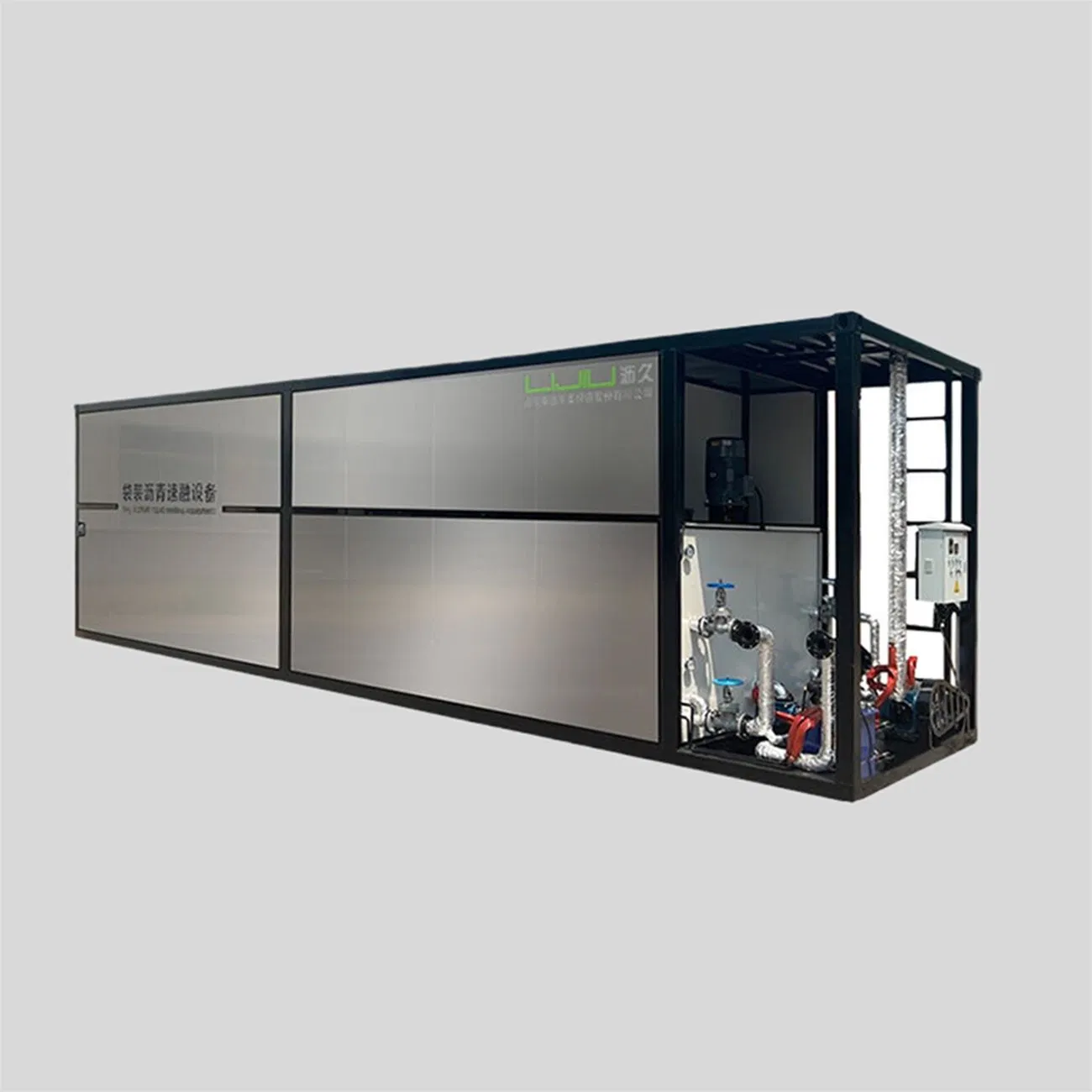

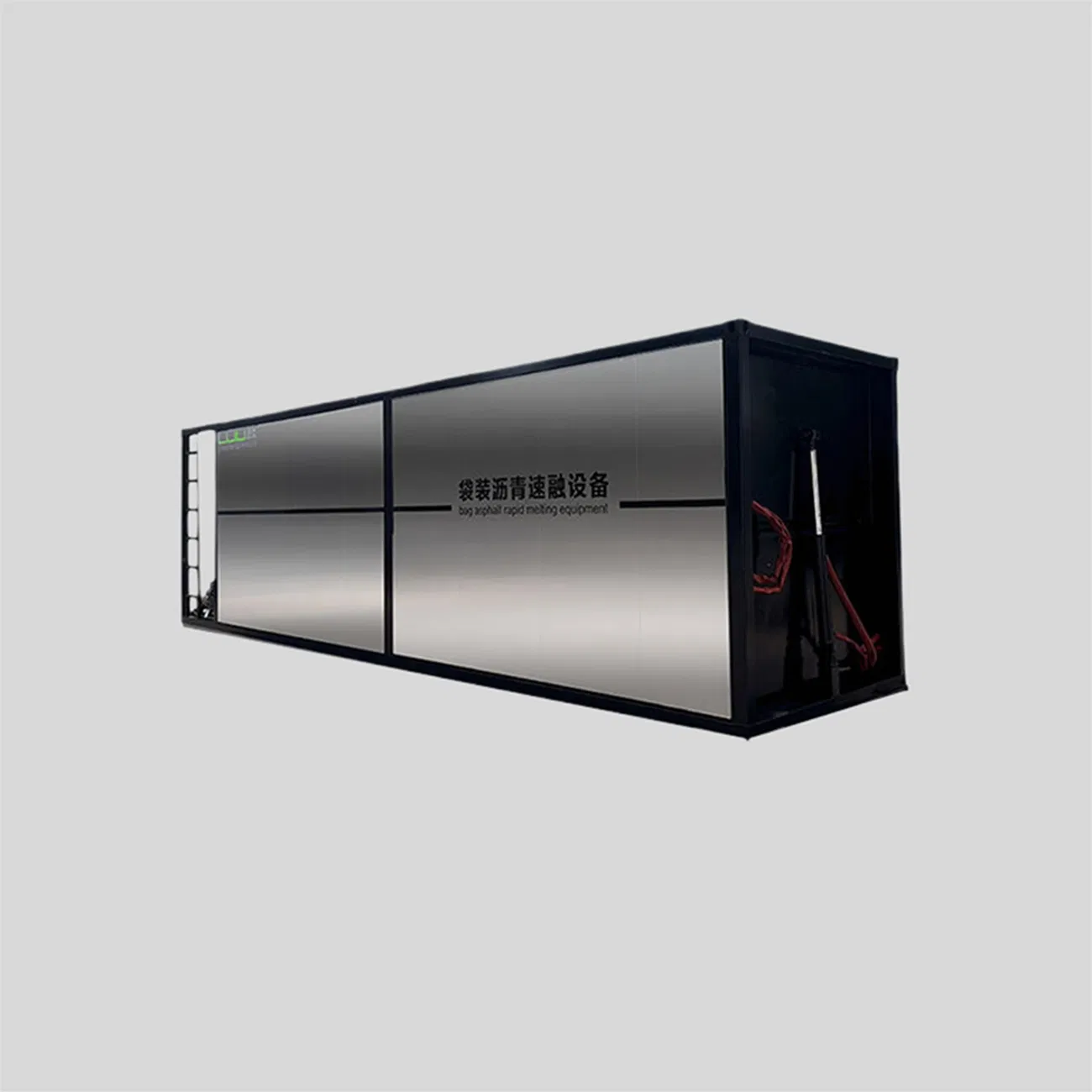

Widely Preferred Asphalt Melting Equipment for Road Construction

This equipment is designed for the rapid melting of massive and bagged asphalt. It solves common issues such as uneven heating aging, slow melting rates, and high energy consumption typical of traditional oil tanks.

• 1. Rapid Heating Up System Provides 900,000 calories per hour with over 90% heat conversion. The main system uses direct heating (no thermal conduction medium) for primary melting, while the secondary system uses a heat conduction medium (300,000 kcal/h) for auxiliary heating and tank cleaning.
• 2. Solid Asphalt Constant Temperature Thermal Cutting System An adjustable thermostatic carrier system that quickly divides large volumes of solid asphalt into 5-10 cm pieces. This increases the heating area and initiates the preheating process for flowable melting.

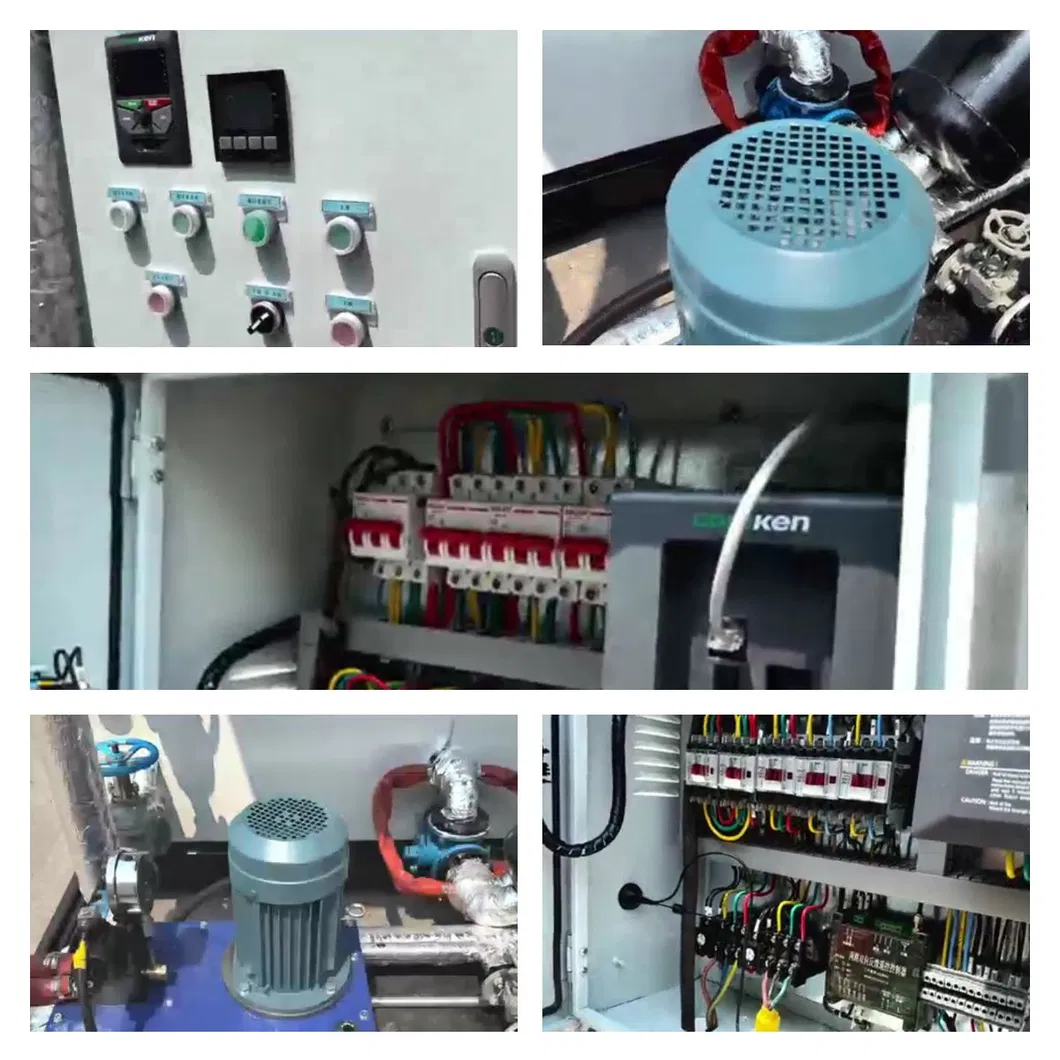

• 3. Horizontal Mixing System Features an 11 kw frequency conversion control. It employs low-speed mixing for high-viscosity materials to prevent local overheating and high-speed mixing once the asphalt is fully melted.

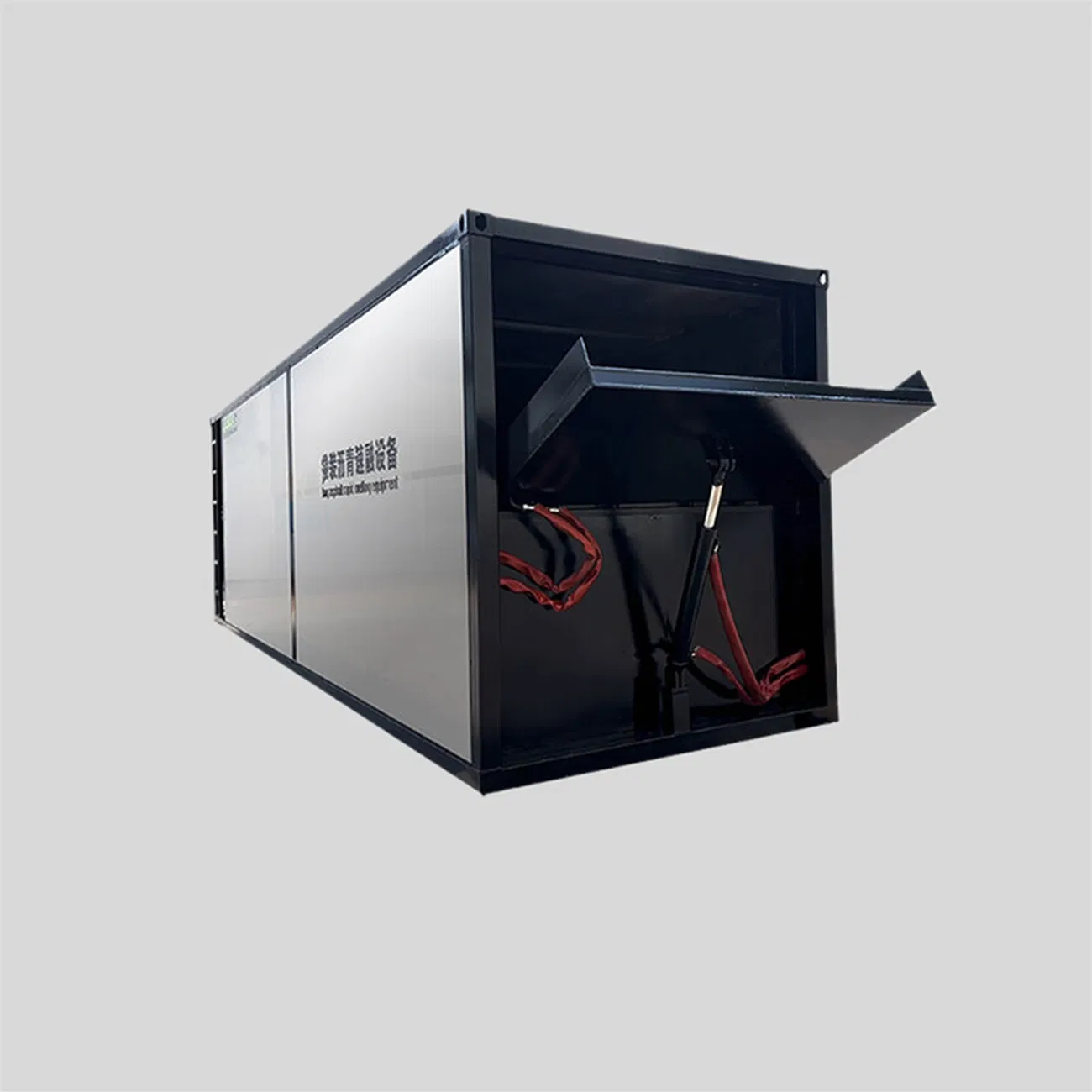

• 4. Hydraulic Flap Feeding System Utilizes a heating plate working at 120ºC, allowing ton bags of asphalt to enter the cutting system smoothly. The confined space reduces heat loss and enables continuous production.
