| Model NO. | JYC-P16 |

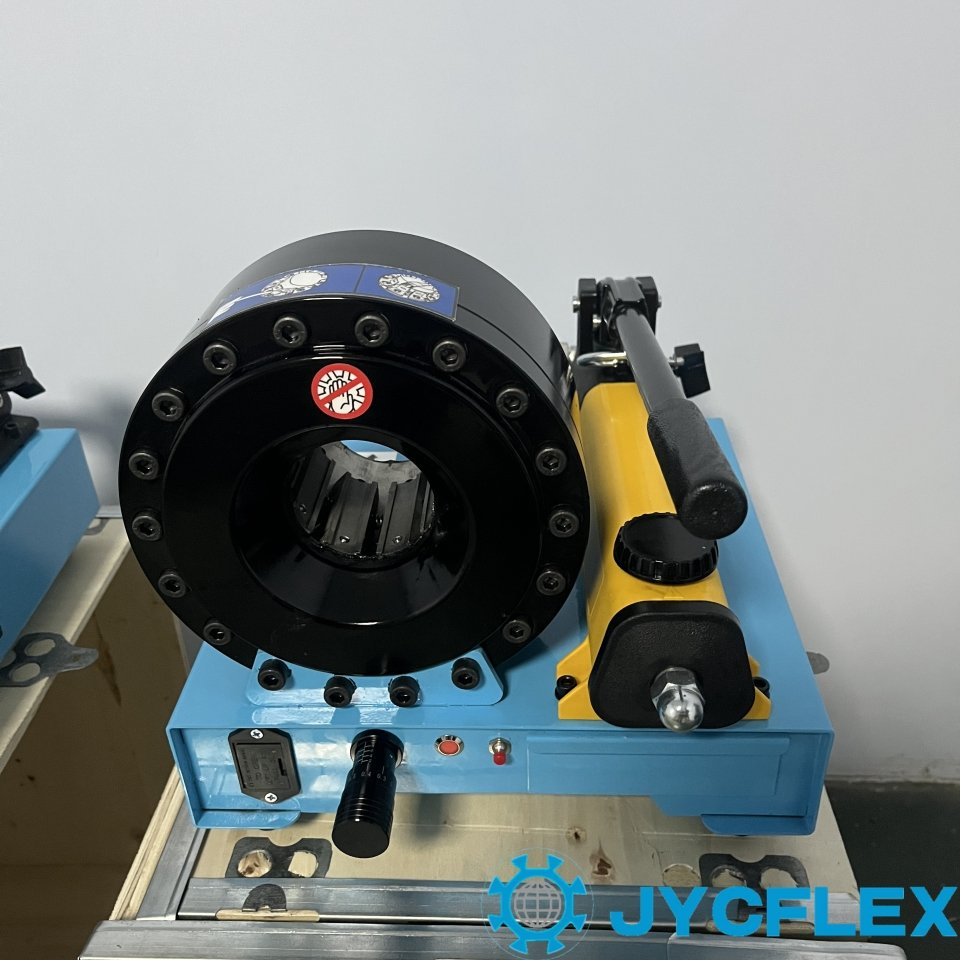

| Product Name | Hose Crimping Machine |
| Certification | CE, ISO |
| Crimping Range | 6-25mm |
| Crimping Force | 100ton |
| System Pressure | 31.5MPa |
| Automatic Grade | Automatic |
| Voltage | 220V/380V |
| Core Components | Motor, Dies, Quick Change Tool |
| Dimensions | 565*480*400mm |
| Technical Specifications | |
|---|---|
| Crimping Range | 6mm to 51mm (1/4" to 1") |
| Quantity of Dies | 6 Sets |
| Accuracy | 0.01mm |
| Oil Tank Volume | 5L |
| Net Weight | 35kg |

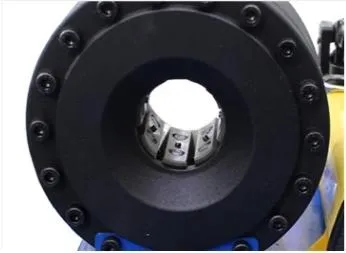

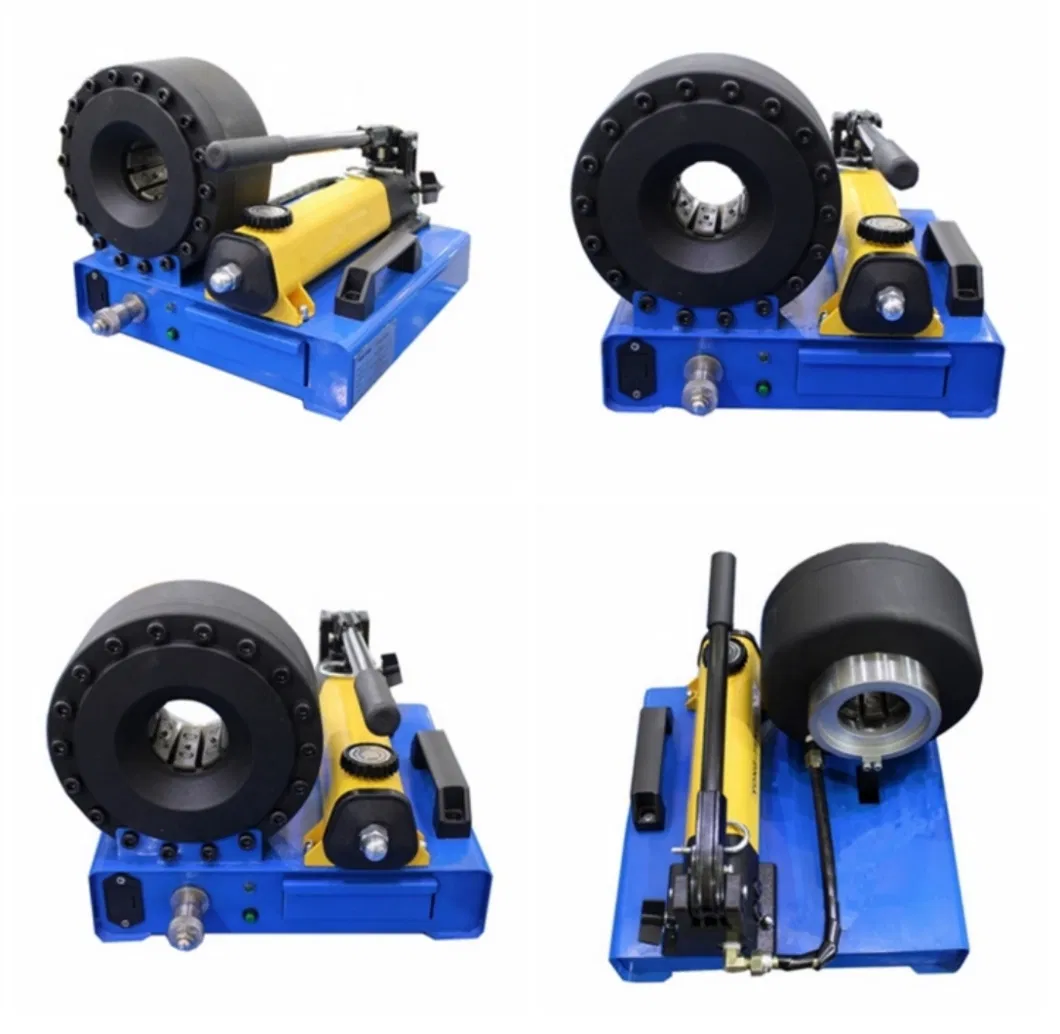

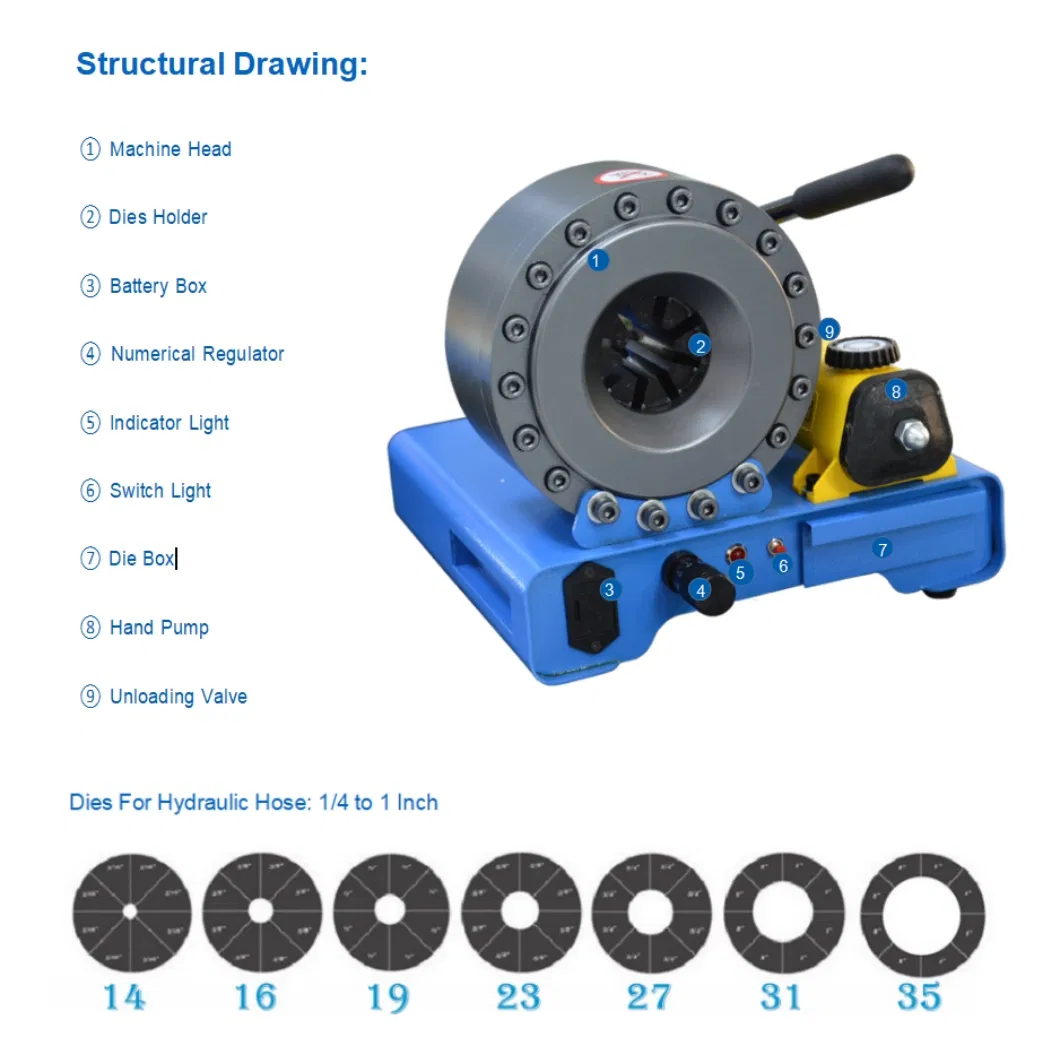

Crimping Head: Uses 40CrV material, Hardness of the cylinder and front cover HRC59-63.

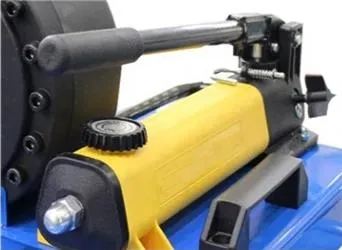

Operating Arm: Manual control for 1/4 to 1 inch hydraulic hose crimping.

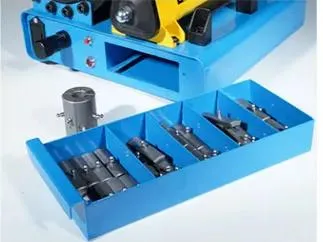

Mould Dies: Die set with High Hardness of 59-63 HRC. No deformation after long-term use.

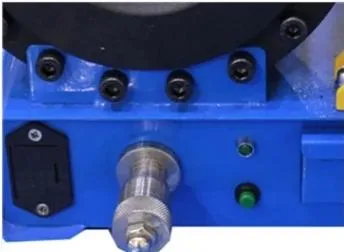

Micrometer: Limit valve for rotary positioning, scale adjustment, and high-pressure precision.
1) Hydraulic cylinder and piston are made of integrative precise steel casting, ensuring stability and avoiding mould locking.
2) Dual overflow valve system: High pressure for crimping quality and low pressure for mold opening to extend seal life.
3) Slope base design ensures homogeneous pressure and equal gaps on finished products.
4) Ideal for 51mm 4-spiral hoses with high accuracy and durable performance components.
CE Certified: Verified by world-leading inspection standards for quality and safety.
