Road Bridge Construction Widely Used Wheel Type Mobile Stone Crushing and Screening Equipment Station

1 / 5

Road Bridge Construction Widely Used Wheel Type Mobile Stone Crushing and Screening Equipment Station

Customization:	Available
Type:	Mobile Crusher
Motor Type:	AC Motor

Send Inquiry

Product Description

Overview & Basic Info

Motor Power

Varies Based on Model

Application

Construction

Materials

All Types of Ore and Stone

Outlet Size

Can Be Customized

Inlet Size

According to Customer's Raw Material

Condition

New

Warranty

2 Years

After-sales Service

Spare Parts for Free

Movable Type

Wheel

Key Words

Mobile Crushing Machine

Certification

ISO

Installation

Under Engineer's Guidance

Specification

3~1000 TPH

Production Capacity

1~10,000t/H

Product Description

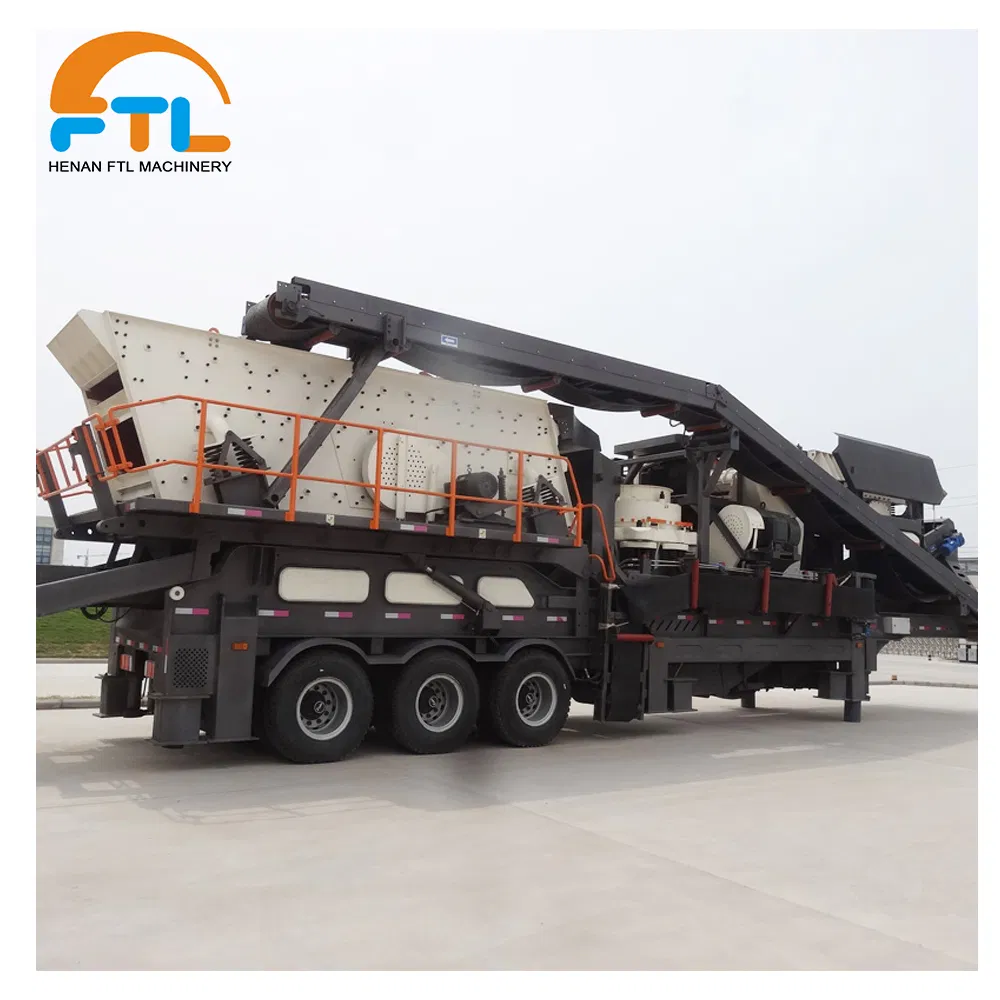

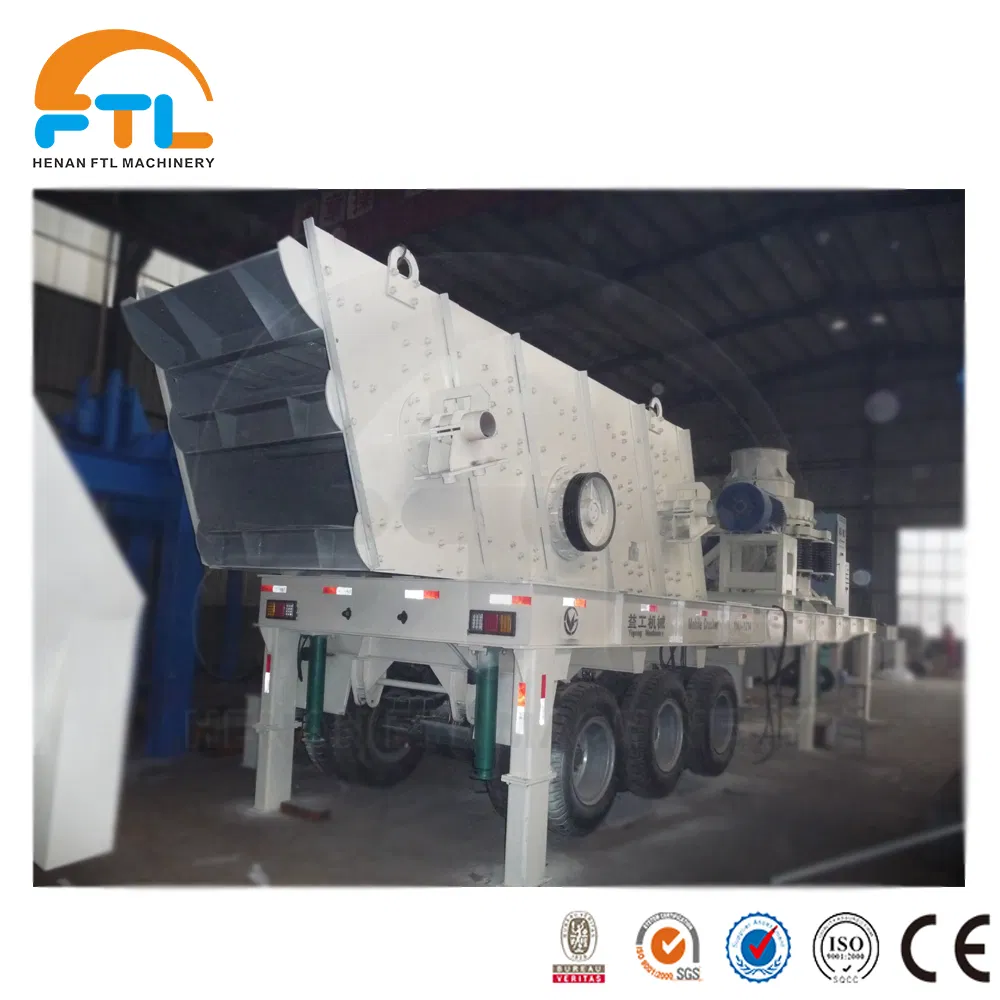

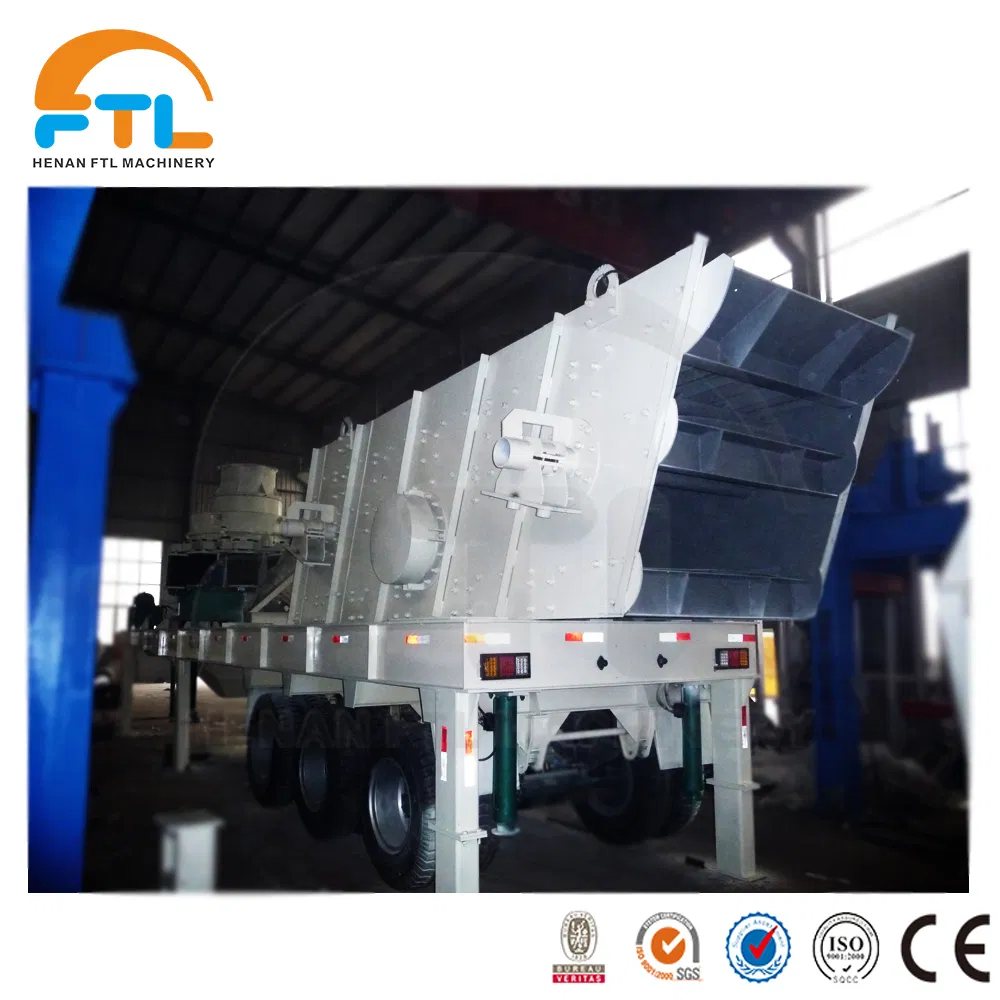

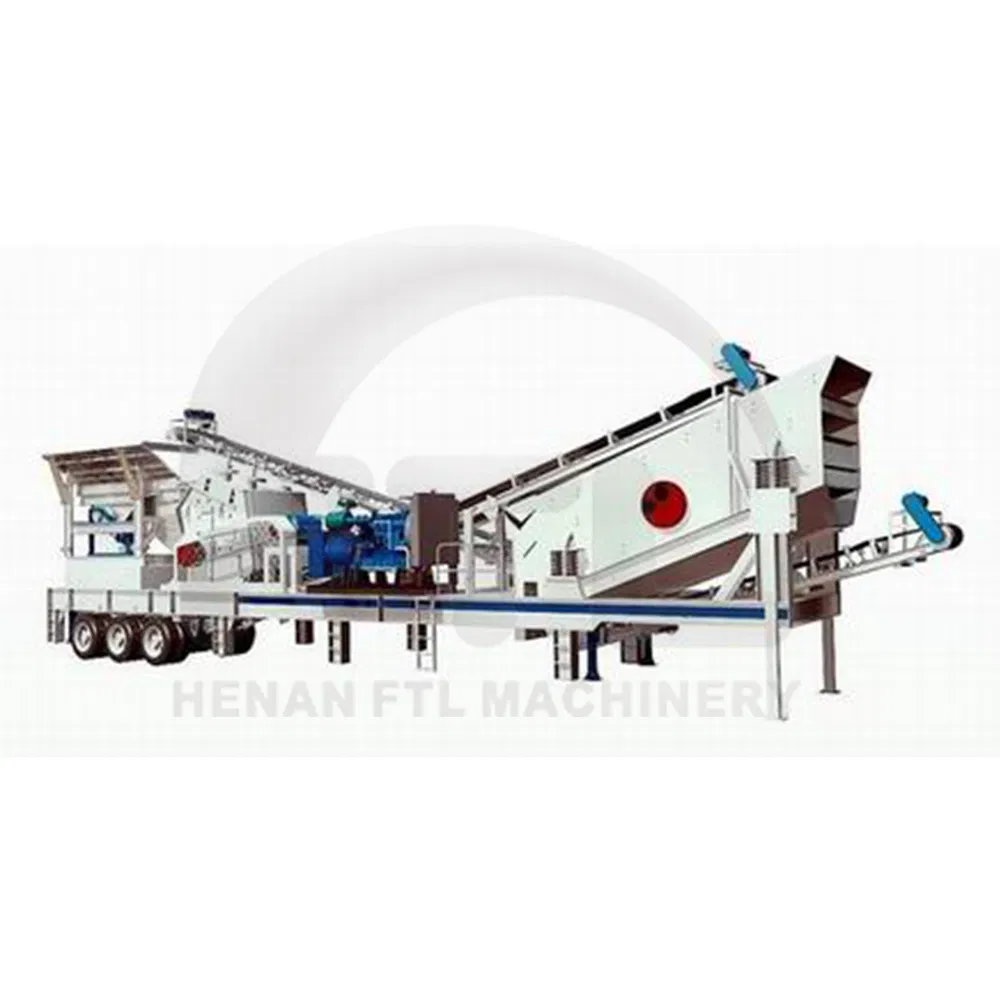

Road Bridge Construction widely used Wheel Type Mobile Stone Crushing And Screening Equipment Station

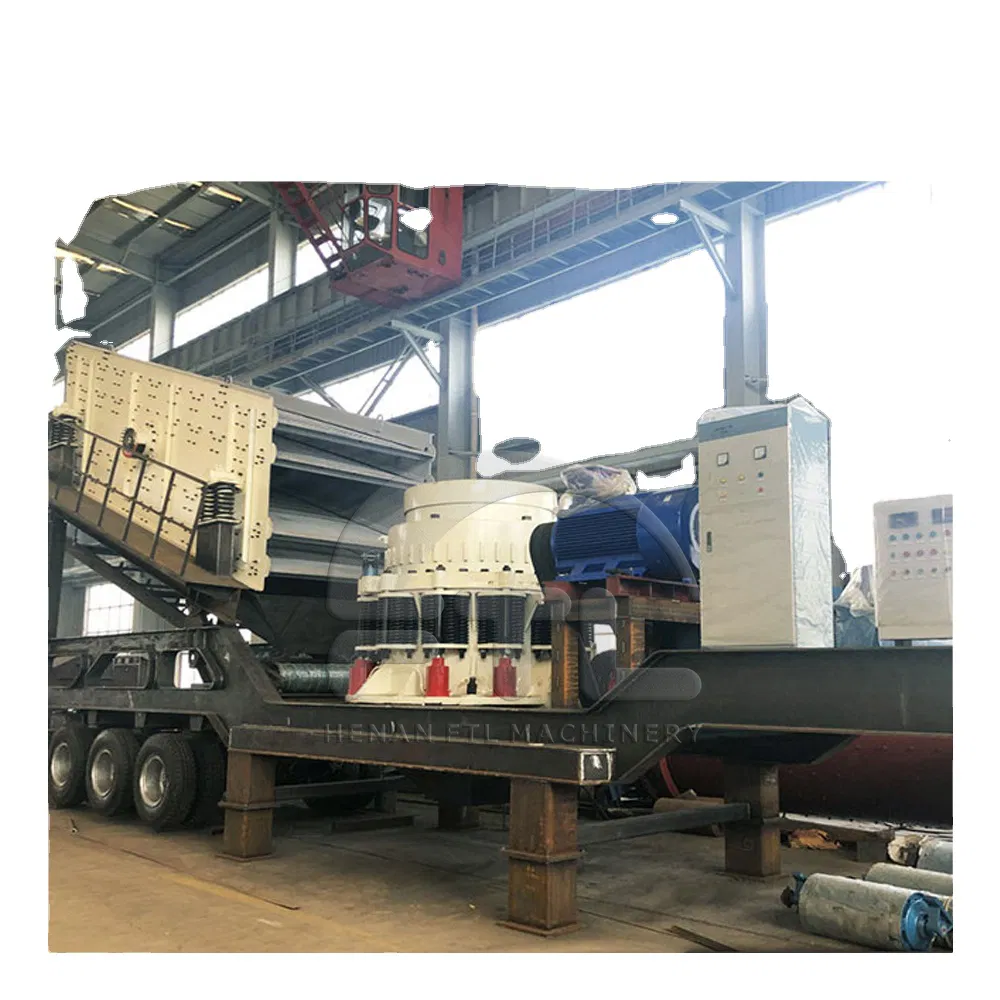

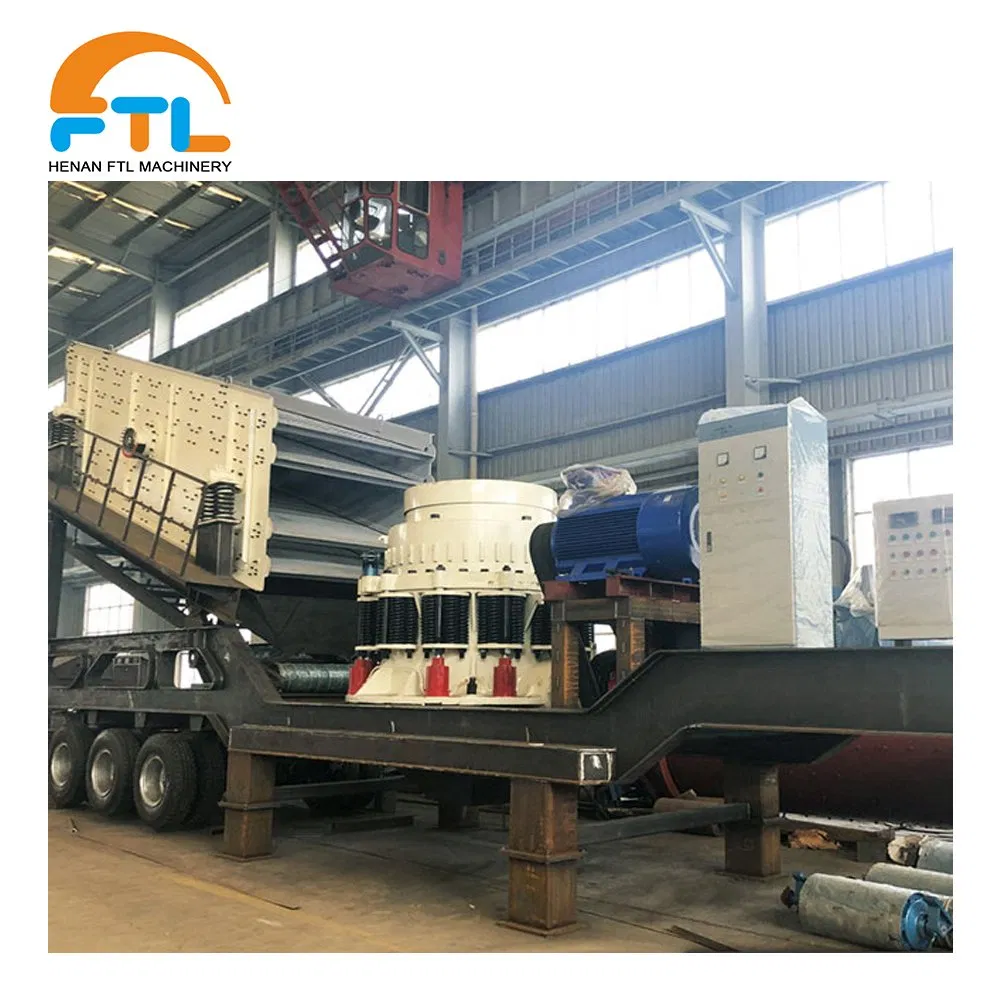

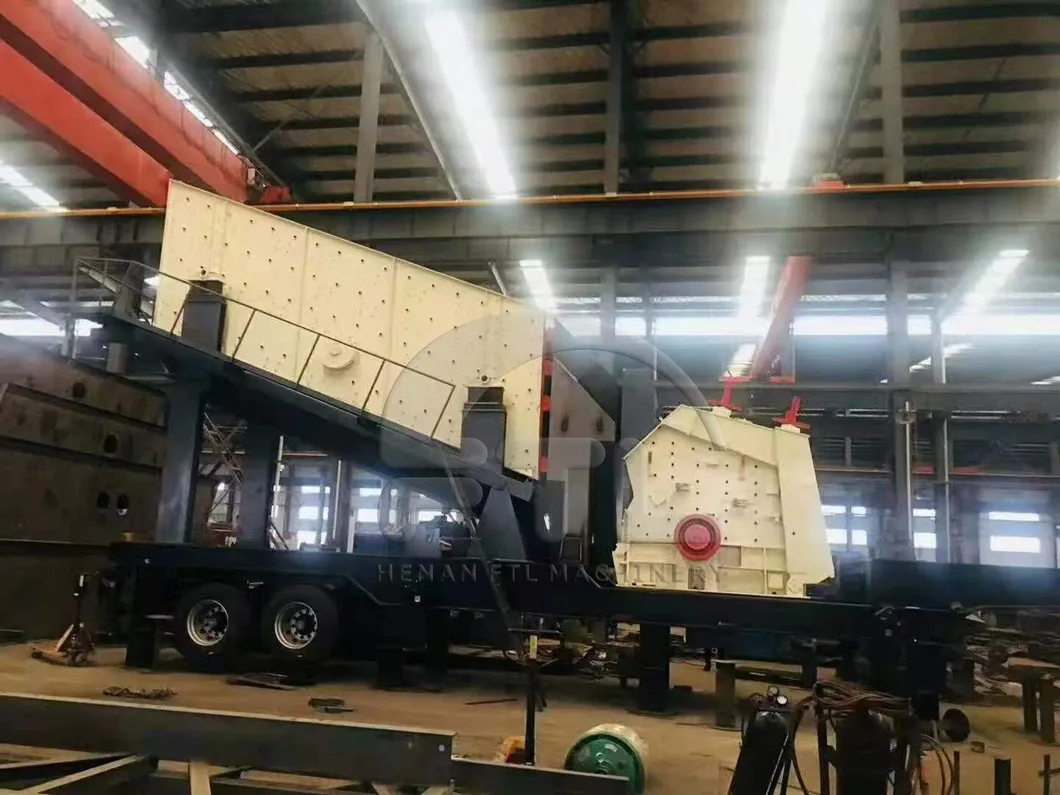

Mobile crushing plant is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; It is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.

Product Parameters

Parameter / Model		YM60	YM75	YM90	YM106
Output (t/h)		40-60t/h	60-100t/h	80-150t/h	150-250t/h
Primary Crushing Unit	Max. Feeding (mm)	340mm	425mm	500mm	630mm
	Vibrating Feeder	GZD600*1600	GZD600*1600	GZD960*3600	GZD1100*3800
	Jaw Crusher	PE400*600	PE500*750	PE600*900	PE750*1060
	Belt Conveyor	B500	B500	B650	B800
	Motor Power (KW)	37	62	84.9	104.9
Secondary Crushing Unit	Vibrating Screen	3YK1235	3YK1545	3YK1548	3YK1860
	Impact Crusher	PF1010	PF1210	PF1214	PF1315
	Motor Power (KW)	60.5	125	178.5	202

Our Advantages

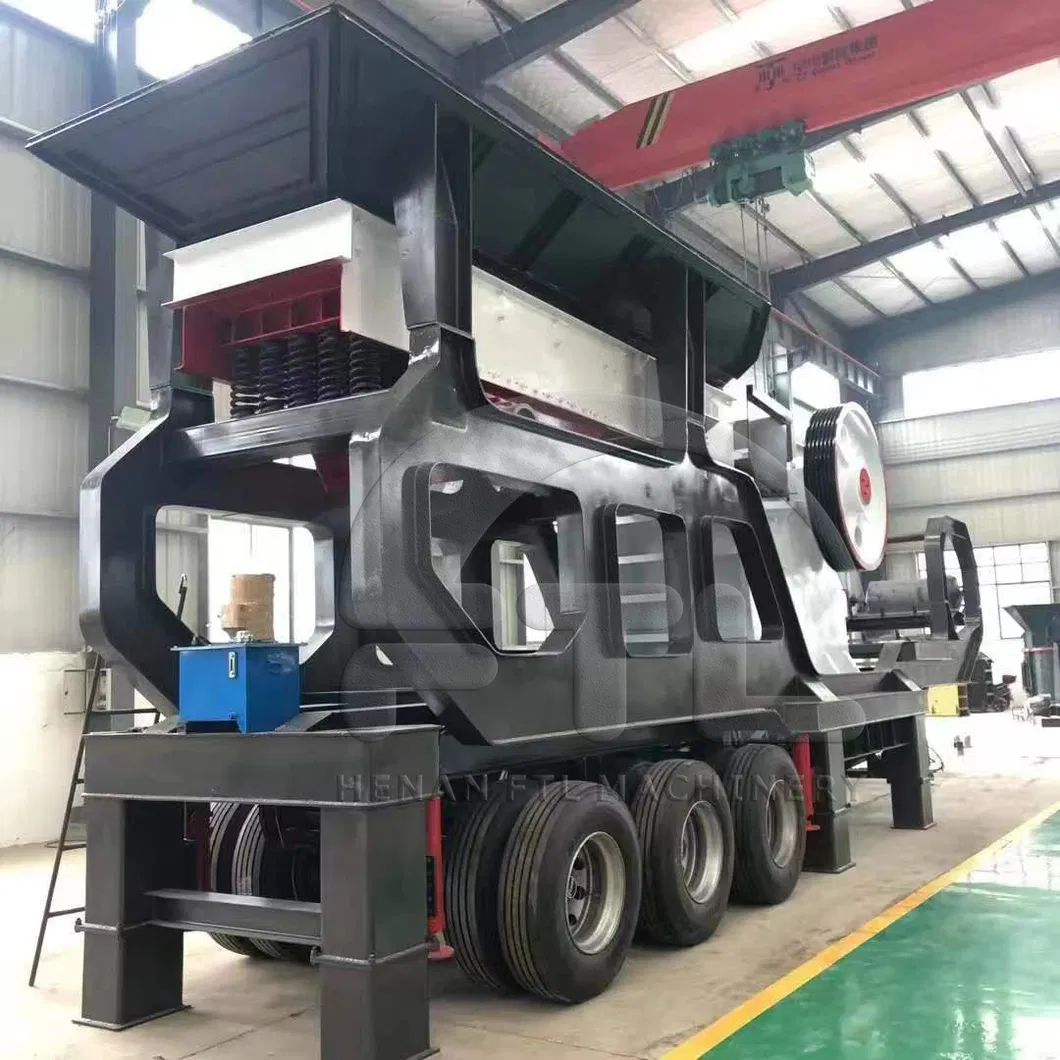

Move easily: Best Selling Mobile crushing plant, Wheel Type Mobile Jaw Crusher can go to the crushing place directly. It can move not only on the smooth road, but also on the bumpy road.

Compact structure and simple operation: Integrative equipment group with trailer save the working area. With generator, motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, Mobile crushing plant can be installed quickly and conveniently.

Save the cost: Best Selling Mobile crushing plant, Wheel Type Mobile Jaw Crusher crushes materials on site, the transportation cost is reduced.

Wide applicability: Mobile crushing plant can work as independent unit or work with other units to form a primary-secondary crushing system or primary-secondary-fine crushing system. It can also work as a production line with the screening equipment according to requirement.

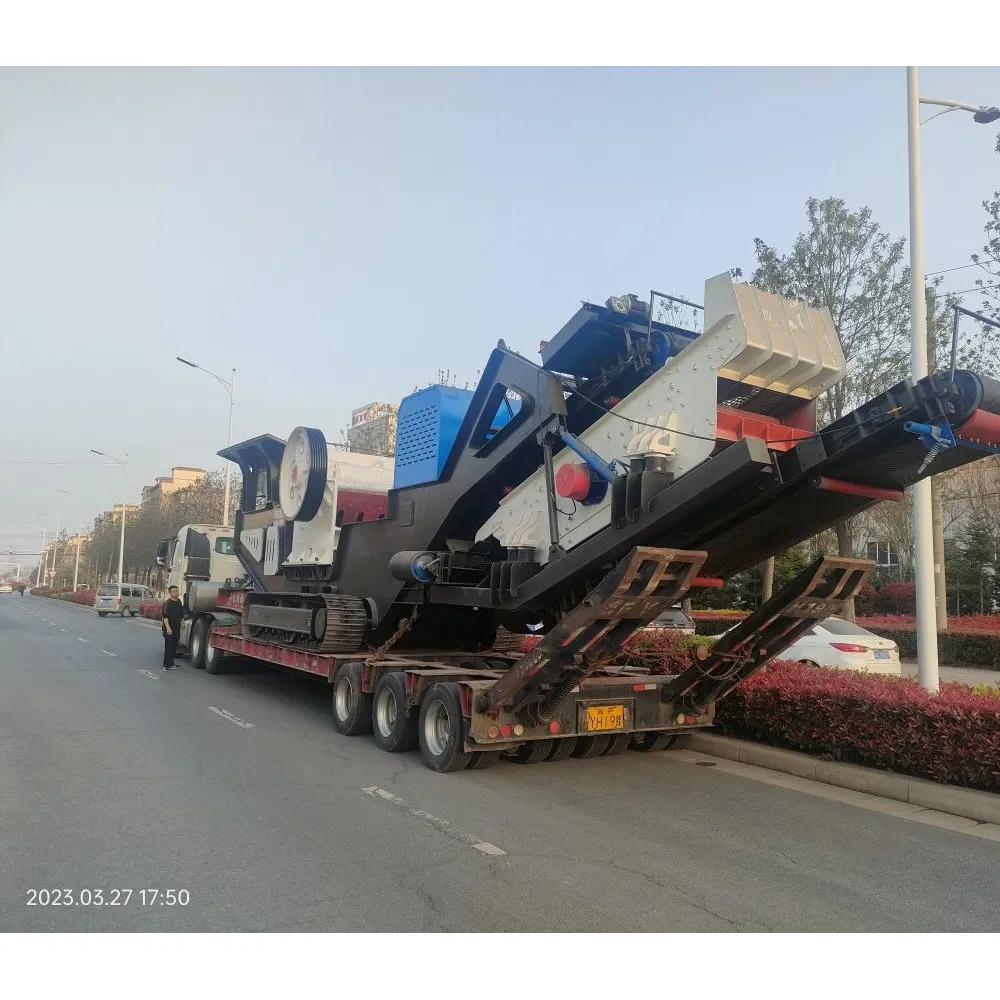

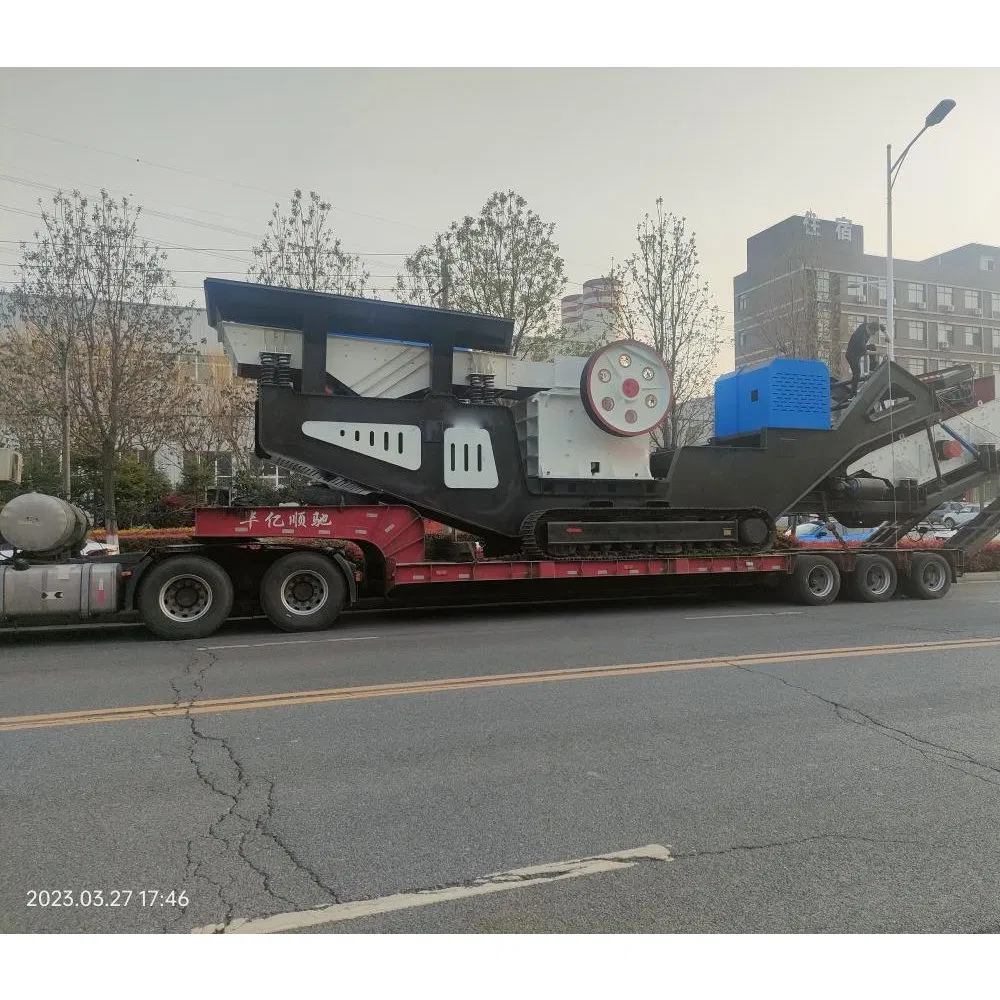

We also have crawler type mobile crusher for sale

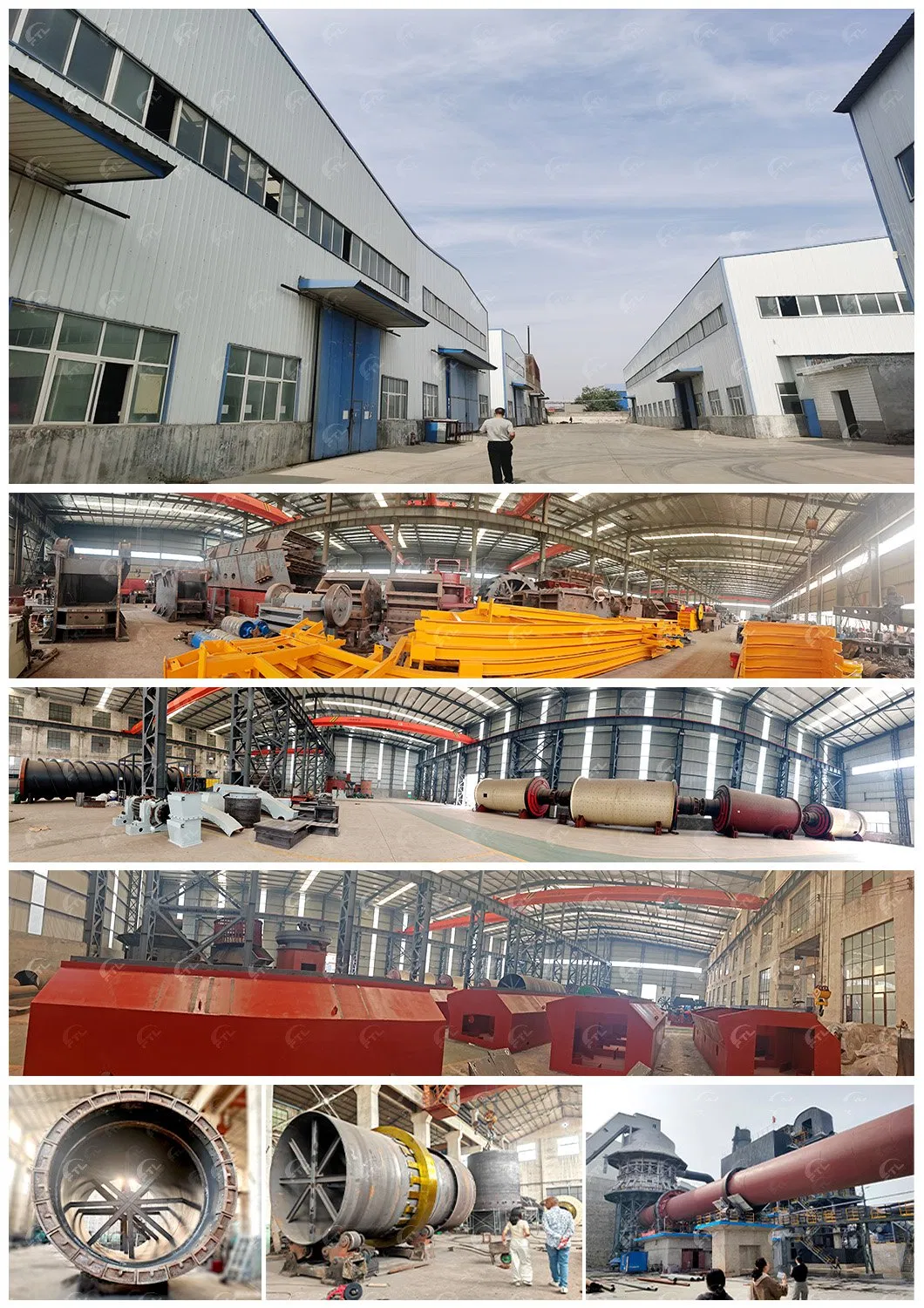

Facility & Quality Control

Frequently Asked Questions

What materials can the mobile crushing plant handle?

The equipment is designed to process all types of ore and stone, making it highly versatile for mining and construction projects.

How does the wheel-type design benefit the operation?

The wheel-type chassis allows the plant to be easily moved directly to crushing sites, even on bumpy roads, significantly reducing material transportation costs.

Is the outlet size of the crushed material adjustable?

Yes, the outlet size can be customized based on your specific project requirements and the type of raw material being processed.

What is included in the complete mobile crushing plant?

A standard setup includes raw material bins, vibrating feeders, primary and secondary crushers, multi-layer vibrating screens, belt conveyors, and an electric control system.

What kind of after-sales support is provided?

We offer a 2-year warranty and provide essential spare parts for free to ensure long-term, reliable operation under engineer guidance.

Can this equipment work as a standalone unit?

Absolutely. It can function as an independent unit or be integrated with other units to form a comprehensive multi-stage crushing and screening production line.
