As a verified integrated manufacturer, we guarantee superior quality control and exceptional value from source to delivery.
Ranked as a top-tier supplier by both sales volume and order value, proven by the global market's trust.
Trusted by a network of hundreds of distributors worldwide, testifying to our proven quality and market appeal.
Proven performance across Europe, the Americas, Southeast Asia, and beyond with high global acceptance.
Our machines are engineered for over a decade of reliable operation without sacrificing core quality.
Responsive service, easy access to critical parts, and custom designs to fit your specific operational requirements.

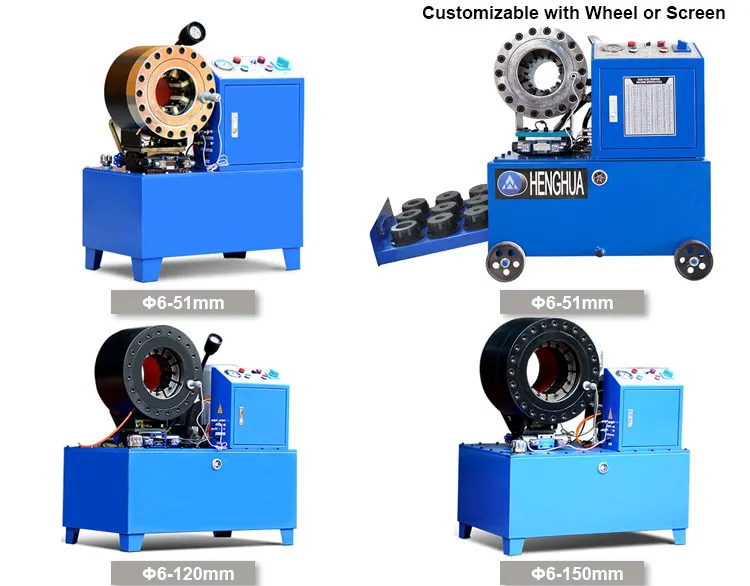

| Model | DX68 | DX76 | DX102 | DX150 |
|---|---|---|---|---|
| Crimping range | 6-51mm (1/4" - 2") | 6-76mm (1/4" - 3") | 6-102mm (1/4" - 4") | 6-150mm (1/4" - 6") |
| Max crimping Force | 449T | 500T | 1400T | 2500T |
| Rated Pressure | 31.5MPa | 50Mpa | 31.5Mpa | 31.5Mpa |
| Weight | 250kg | 300kg | 520kg | 900kg |
| Mold Quantity | 10 sets | 13 Sets | 16 Sets | 17 Sets |
| Power | 3KW/4KW | 4KW | 4KW-7.5KW | 4KW-7.5KW |
| Scale accuracy | 0.01mm | 0.01mm | 0.01mm | 0.01mm |

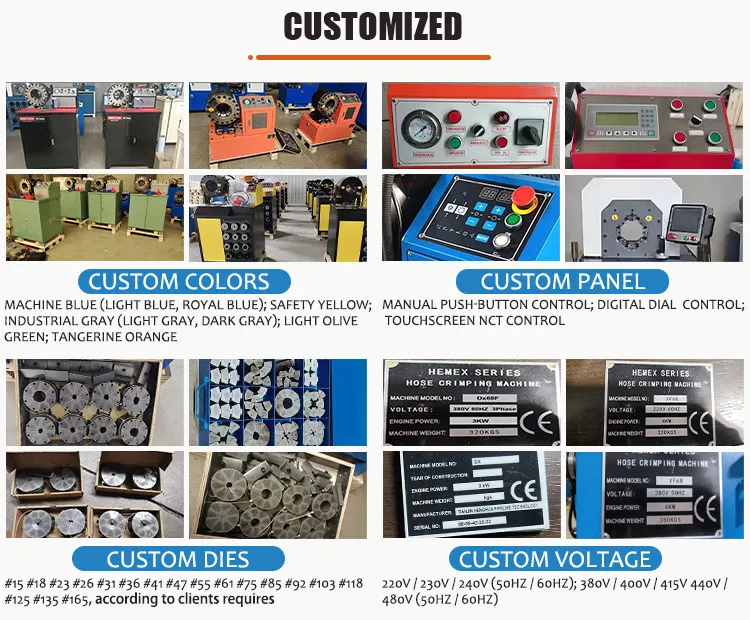

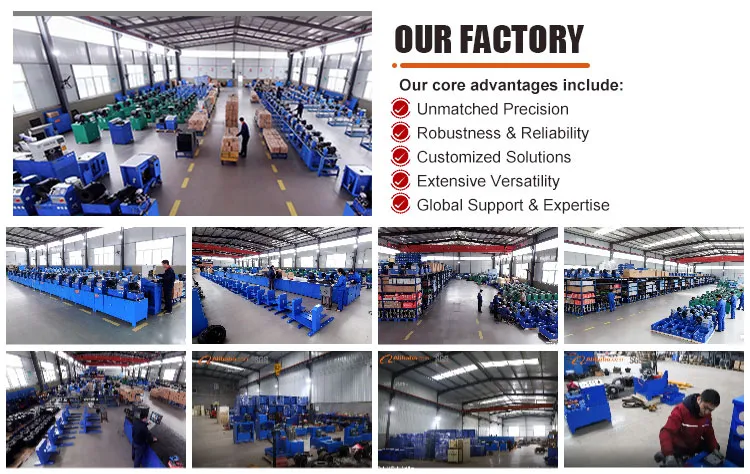

With two specialized manufacturing factories spanning over 20,000 square meters, we provide a true one-stop solution including crimping machines, hydraulic hoses, fittings, and a complete range of hydraulic components.
From manual crimpers for portability to robust industrial automated CNC systems.
Digital readouts or advanced PLC with touchscreen HMI interfaces.
Full range of standard sizes from #15 to #165, and bespoke specifications.
Supporting 220V, 380V, 415V, 480V (50Hz/60Hz) for seamless local grid integration.
1. Preparation: Add 79 liters of 46# anti-abrasion hydraulic oil. Connect the electric source ensuring motor rotation matches the markings.
2. Regulating the Scale: Clockwise rotation decreases buckling; anticlockwise increases it. Ensure the scale base moves flexibly.
3. Test Run: Observe action normality. Use the bleed screw on the cylinder top to exhaust air if crawling occurs.
4. Operation: Select suitable moulds based on hose size. Measure the outside diameter with a vernier caliper after crimping to ensure accuracy.
