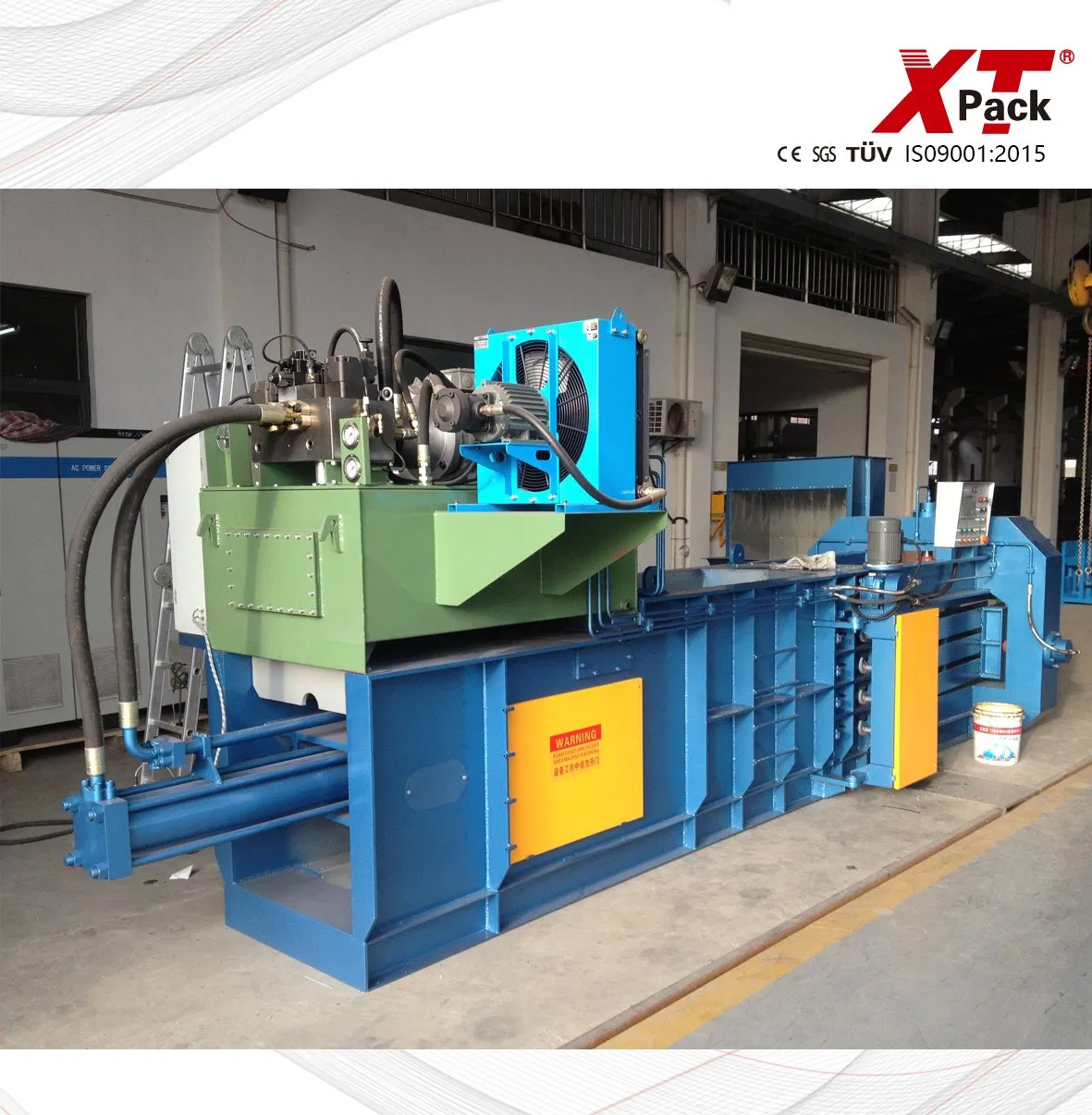

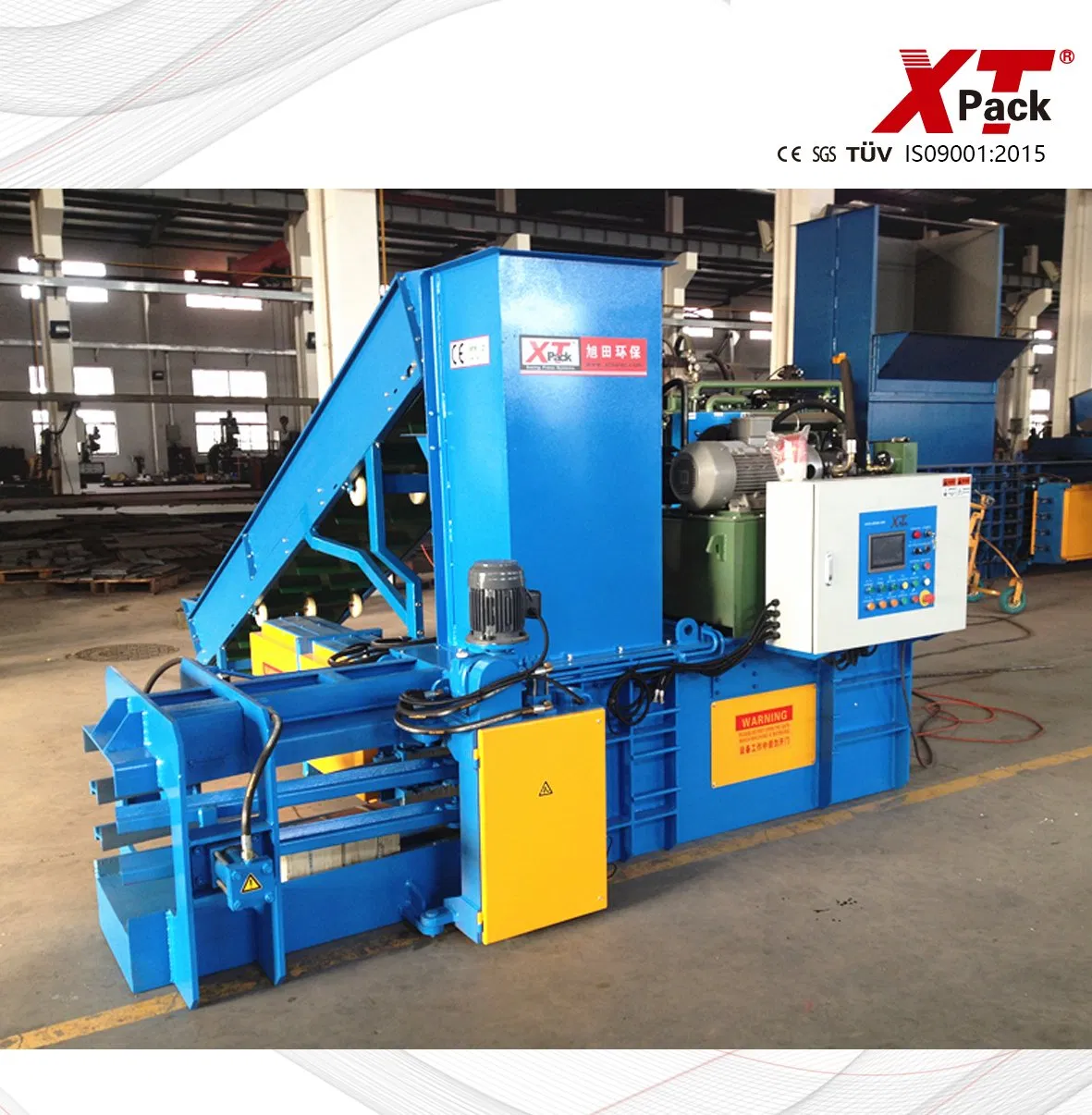

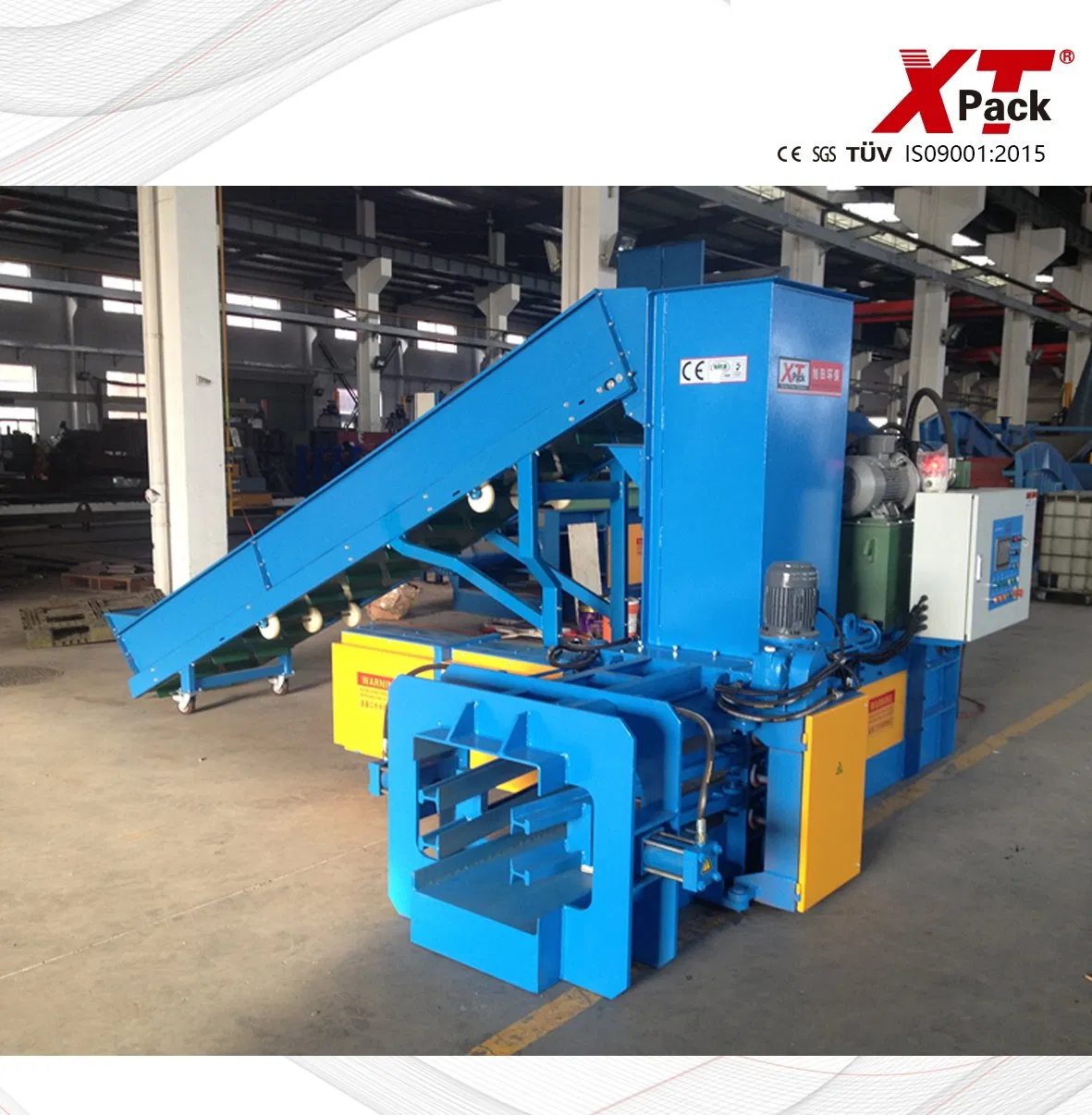

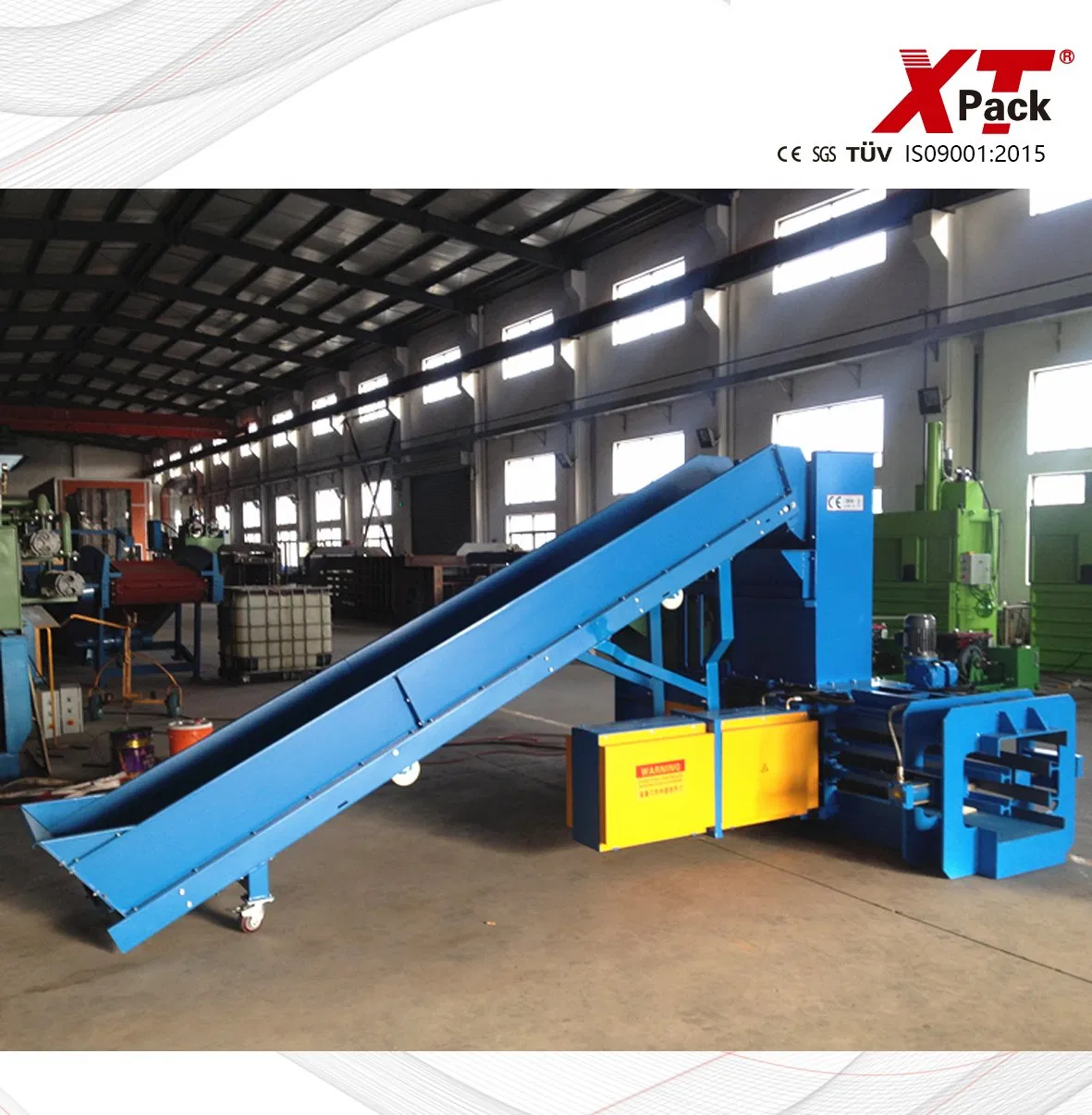

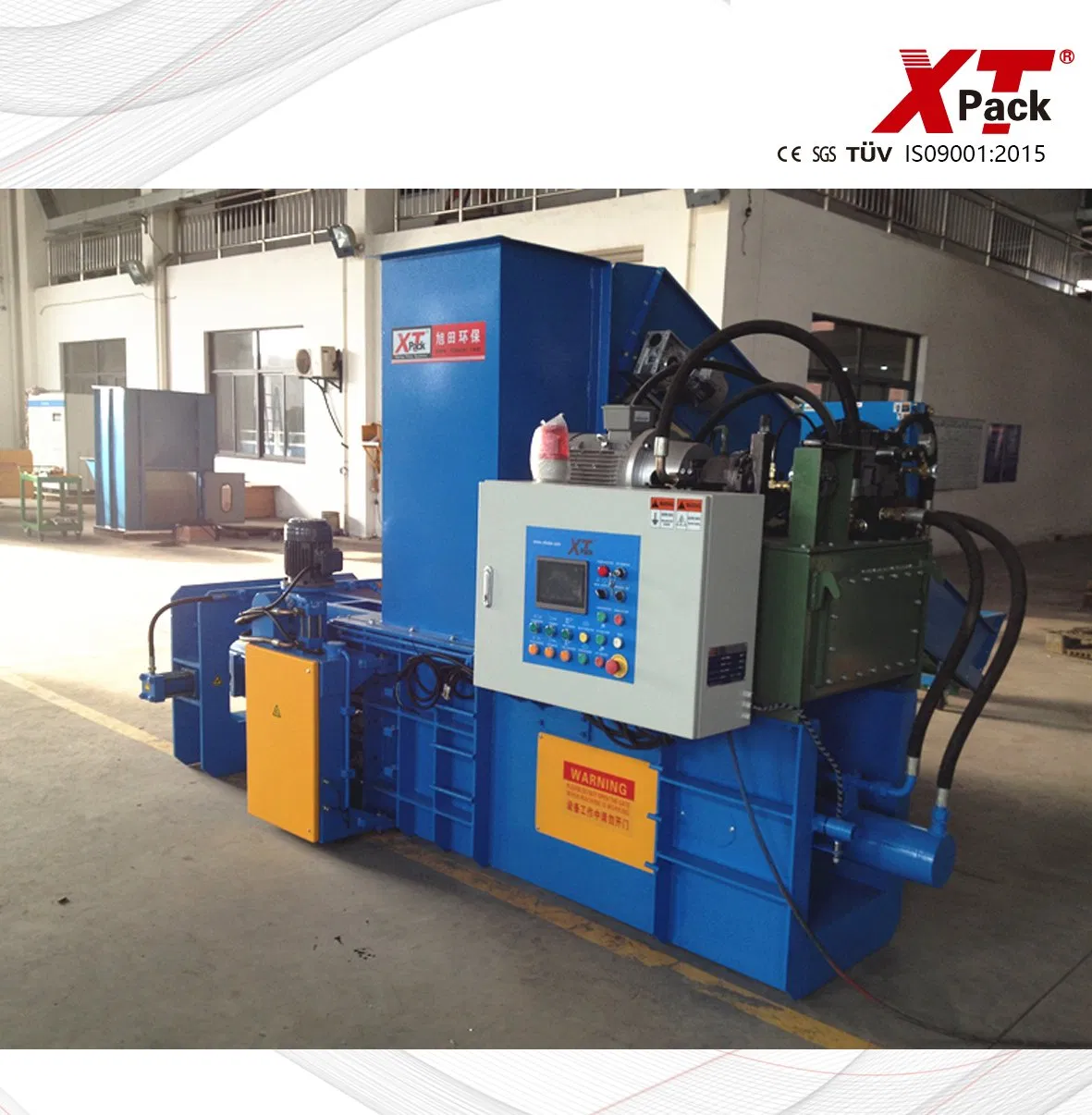

Hydraulic Automatic Square Baling Press Horizontal Waste Paper Cardboard Plastic Cotton Tyre Bottle Cans Film Used Clothes Fabric Scrap Baler Machine

1 / 5

Hydraulic Automatic Square Baling Press Horizontal Waste Paper Cardboard Plastic Cotton Tyre Bottle Cans Film Used Clothes Fabric Scrap Baler Machine

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

XTY-400W7280-20

Bale Ejection

Continuously

Application

Waste Paper, Cardboard, Plastic Film

Door Style

Without Door Style

Hydraulic Power

40tons

Bale Size

L*720*800mm

Feed Opening

1200*690mm

Capacity

1.5-3tons/H

Power

15kw

Cycle Time

240s

Oil Reservoir

540L

Bale Line

Bale Density

350-450kgs/M³

Cooling System

Air Cooler/Water Cooler

Machine Weight

7 Tons

Origin

China

Product Description

Automatic Baler for OCC, Garbage, Waste Paper, Cardboard, Straw, Plastic, Pet

Usage: Specially used for recycling waste paper, cardboards trims/scrapes etc. which are popular in packaging/corrugation industrial, paper/printing plants etc.

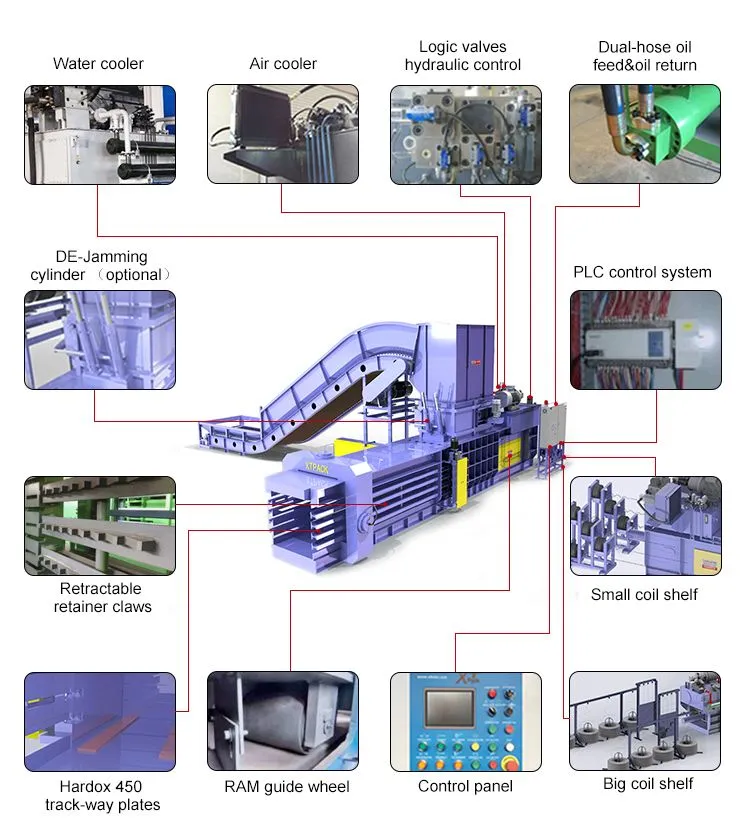

Key Features

Photoelectric switch activates baler when charge box is full

Unique double-cutting design improves efficiency and lifespan

Particular anti-slide design for nicer bales

Trunnion-mounted frame avoids torque on the rod

Rapid automatic tying system for easy maintenance

Differential hydraulic technique saves electricity

Automatic tension system ensures "brick-like" bales

Adjustable bale length and quantity accumulation

Automatic error detection and display

International standard electric circuit layout

Precise ram running processed by planomiller

High quality hydraulic system ensures stable running

Heavy duty body requires only flat ground for installation

"HARDOX" material construction

Technical Specifications

Model	XTY-200W5050-15	XTY-400W7575-20 / 600W7575L-25	XTY-400W7280-20	XTY-600W7585-25
Pressure	20tons	40tons/60tons	40tons	60tons
Main Motor Power	11kW	15kW/18.5kW	15kW	18.5kW
Cooling System	Air/Water Cooler	Air/Water Cooler	Air/Water Cooler	Air/Water Cooler
Cycle Time (Unload)	14s	17s/24s	20s	16s
Oil Reservoir	280L	540L	540L	600L
Number of Belting	3 lines	3lines/4lines	4 lines	4 lines
Wire Size	Ø2.4-3.2	Ø2.4-3.2	Ø2.4-3.2	Ø2.4-3.2
Feeding Opening Size	650×480mm	1200×720mm / 1600×720mm	1200×690mm	1200×720mm
Bale Size (LxWxH)	L×500×500mm	L×750×750mm	L×720×800mm	L×750×850mm
Throughput	1-1.5tons/h	1.5-3 / 2-3.5tons/h	1.5-3tons/h	2.5-5tons/h
Machine Weight	3tons	7tons/8tons	7tons	8tons

Product Gallery

Frequently Asked Questions

What materials can this automatic hydraulic baler process?

This machine is versatile and can process waste paper, cardboard (OCC), plastic film, PET bottles, straw, and various packaging trims or scrapes.

How does the automatic tying system work?

The machine is equipped with a rapid automatic tying system that secures the bales efficiently once they reach the set length, allowing for continuous operation without manual intervention.

Can the bale length be adjusted?

Yes, the bale length is fully adjustable to meet your specific storage or transportation requirements.

What type of cooling system is used for the hydraulic oil?

Depending on your working environment and preference, you can choose between an air cooling system or a water cooling system to maintain optimal hydraulic oil temperature.

Does the machine require a special foundation for installation?

Due to its heavy-duty body design and stable construction, the machine generally only requires a flat, reinforced concrete floor for standard installation.

How is the machine's efficiency optimized?

Efficiency is enhanced through a differential hydraulic technique that reduces cycle times and a photoelectric switch that automatically starts the cycle when the feeding chamber is full.
