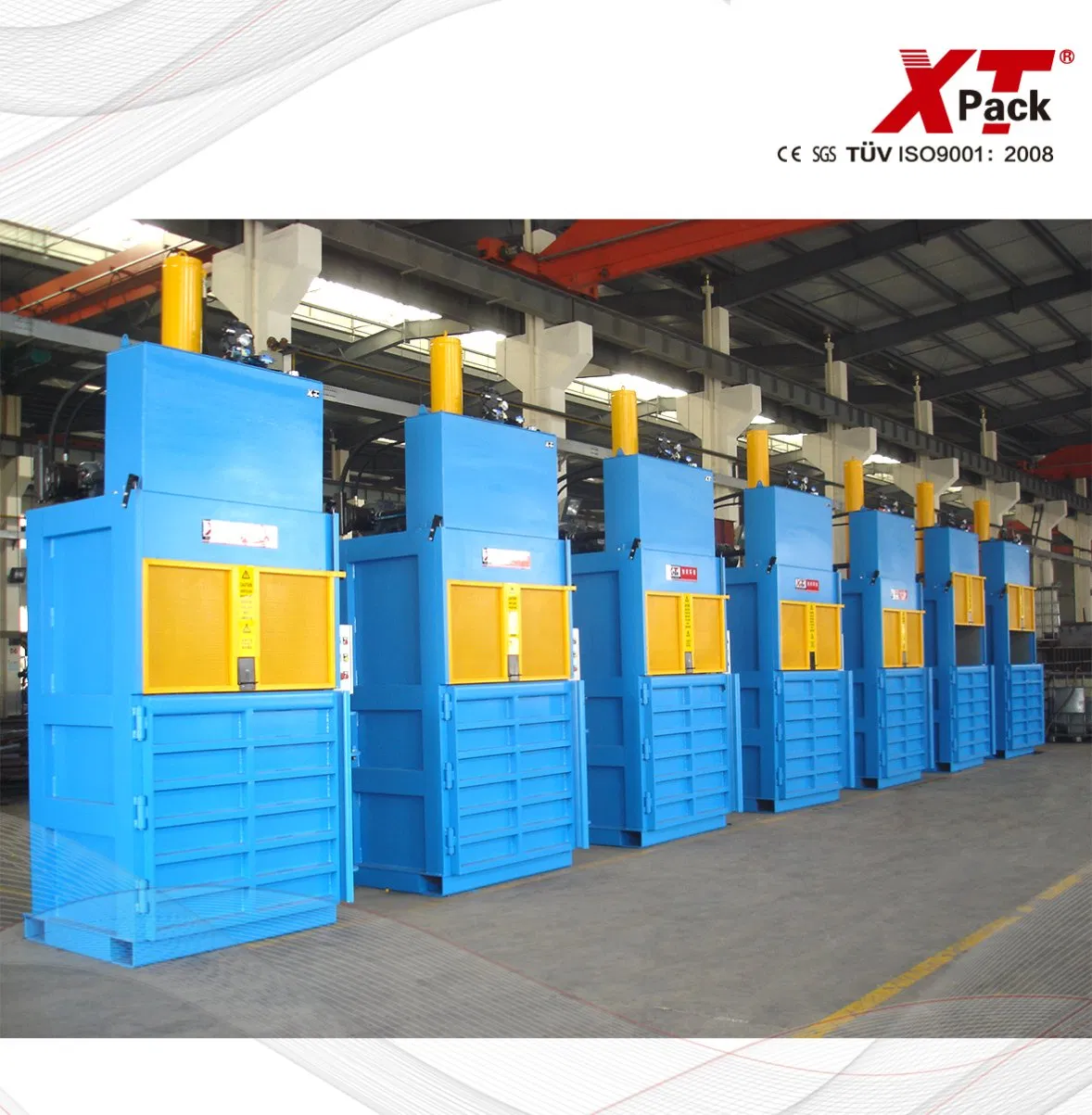

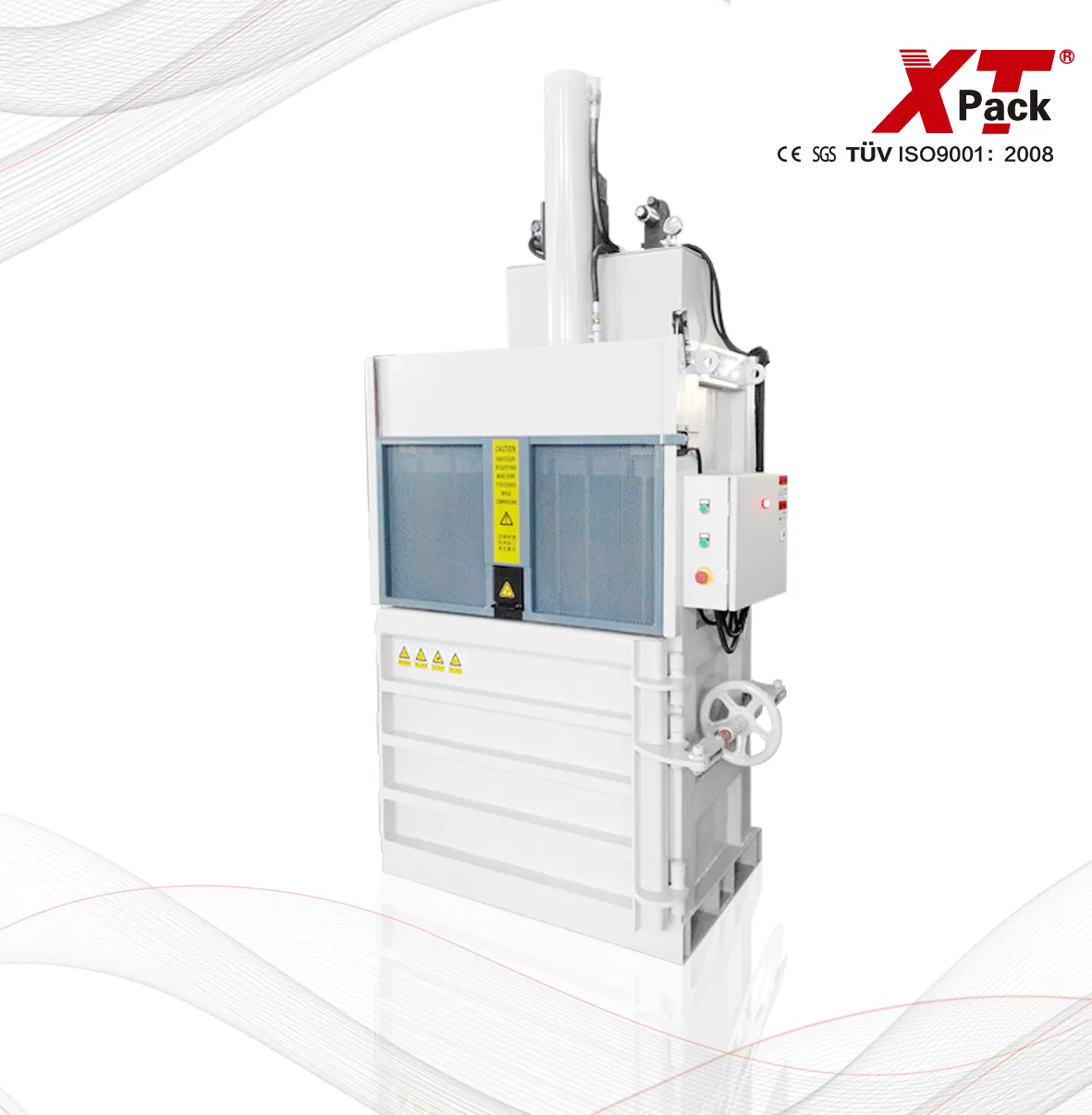

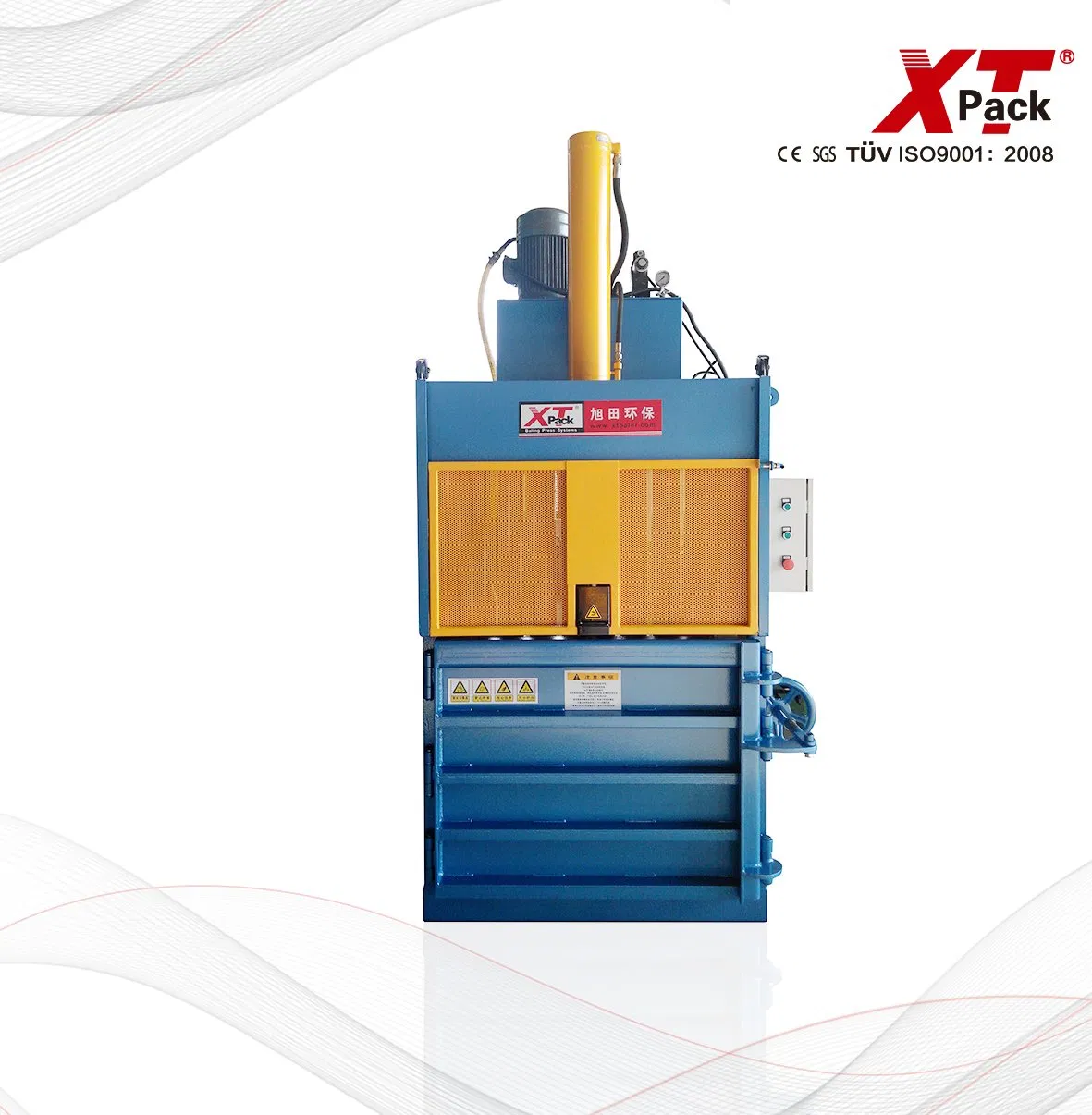

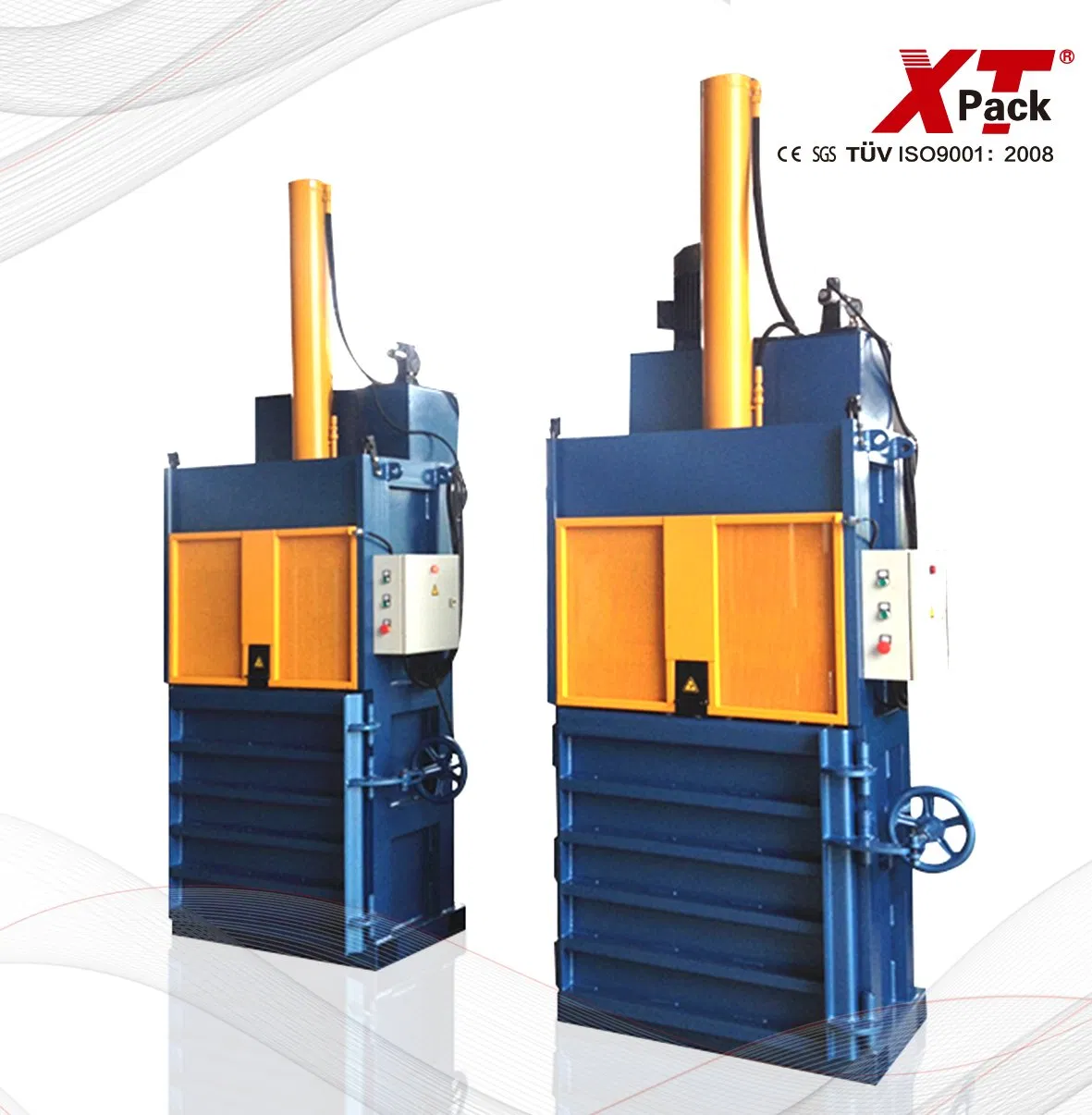

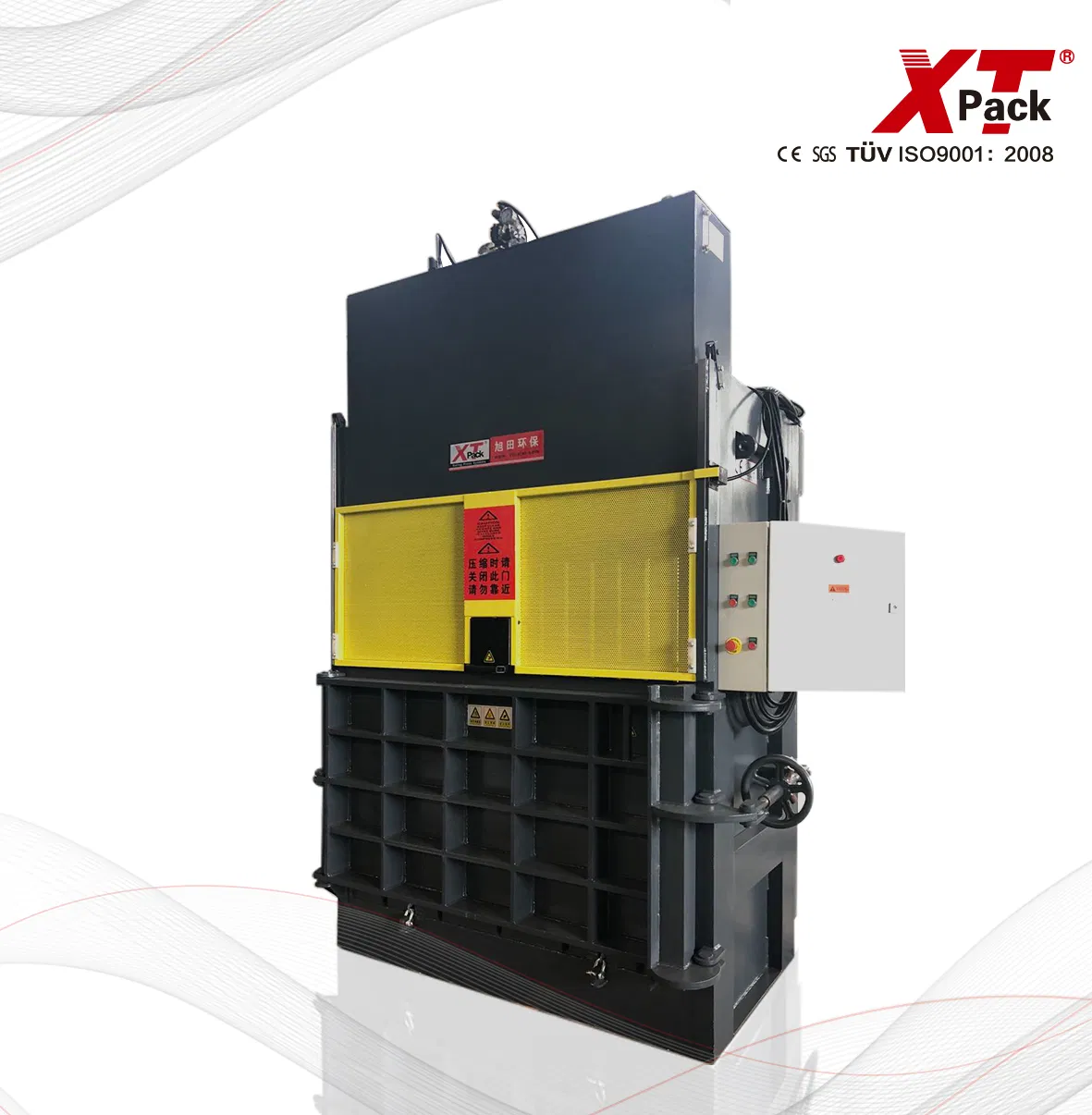

Hydraulic Automatic Square Vertical Waste Paper Cardboard Boxes Plastic Cotton Tyre Bottle Cans Film Used Clothes Recycling Scrap Metal Baler Machine

1 / 5

Hydraulic Automatic Square Vertical Waste Paper Cardboard Boxes Plastic Cotton Tyre Bottle Cans Film Used Clothes Recycling Scrap Metal Baler Machine

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

XTY-400KL10060

Pressure

40tons

Bale Weight

60-180kgs

Feed Opening Size

1000*500mm

Bale Size

1000*600*(300-1000)mm

Tying

Manually

Feeding

by Manual

LCL

Production Time

30-40days

Certificate

CE/ISO/Eac

Hydraulic Oil

46# Anti-Wear Hydraulic Oil

Tying Material

PP Tape/Steel

Transport Package

Film Wrapping

Specification

Machine size: 1480*1000*3400mm

Origin

China

HS Code

8422400090

Product Description

Hot Sell Factory Supply High Quality Wool Bale Press For Sale

Usage: Specially used for recycling the cans, PET bottles, oil tank etc.

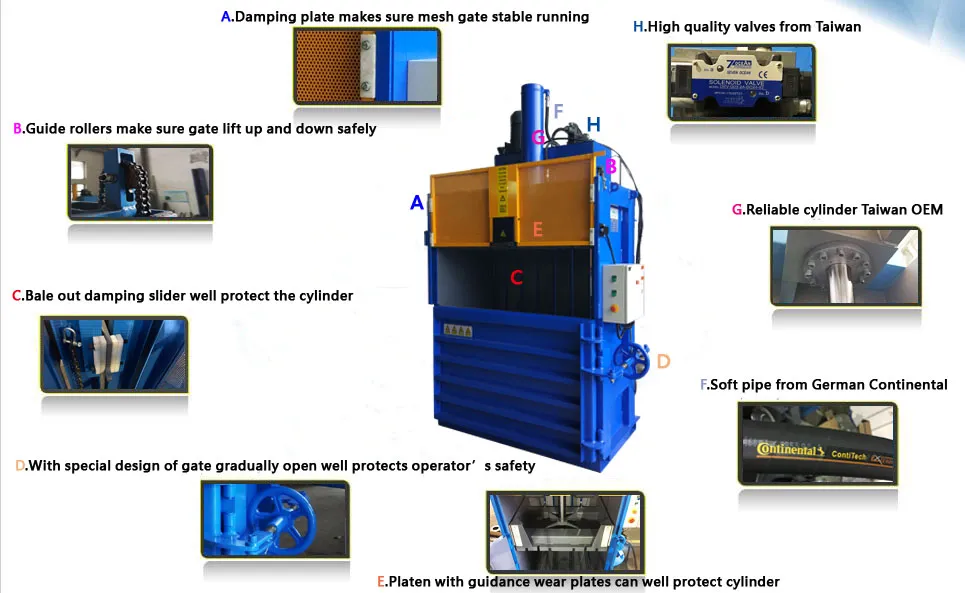

1Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine.

2Wide feed opening door lifts upwards automatically when the platen goes up.

3Safety ram stop sensor: Ram stops running downwards when the feeding gate is opened.

4Equipped with independent emergency stop for safe operation.

5Euro and US Standard anti-rebound gate structure ensures operational safety.

6Special ram guides design prevents platen sloping during uneven compression.

7NOK seals from Japan for longer lifespan of the sealing components.

8A.M.C oil pipe joints (Japan) prevent leakage problems effectively.

9Superimposed valves from Taiwan, requiring less space for installation.

10Motor pump with direct-crossed connection ensures 100% concentricity.

Technical Parameters

Model	XTY-300KL8060	XTY-400KL10060	XTY-500KL11070	XTY-800KL12080
Pressure	30tons	40tons	50tons	80tons
Feed Opening Size(L*H)	800×500mm	1000×500mm	1100×500mm	1200×500mm
Baling Chamber Height	1500mm	1500mm	1500mm	1700mm
Bale size (H adjustable)	800×600×(200-1000)mm	1000×600×(300-1000)mm	1100×700×(300-1000)mm	1200×800×(300-1200)mm
Bale weight	30-120kgs	60-180kgs	90-270kgs	200-380kgs
Power	5.5kW	7.5kW	7.5kW	15kW
Machine Weight	1400kgs	1700kgs	1900kgs	2700kgs
Dimensions	1280×850×3300mm	1480×1000×3400mm	1600×1100×3500mm	1700×1200×3900mm

Product Detail Gallery

Frequently Asked Questions

What materials can this baler machine process?

This machine is specially designed for recycling PET bottles, cans, oil tanks, cardboard, wool, and other similar scrap materials.

How does the automatic chain bale ejector work?

The system is designed for efficiency; it allows for the finished bale to be ejected quickly and easily from the chamber using a built-in chain mechanism.

What safety features are integrated into the machine?

The machine includes an emergency stop button, a safety sensor that stops the ram if the feeding gate is open, and an anti-rebound gate structure following Euro and US standards.

Are the hydraulic components reliable?

Yes, we use high-quality NOK seals and A.M.C oil pipe joints from Japan to ensure a long lifespan and prevent oil leakage issues.

Is the bale size adjustable?

Yes, while the length and width are determined by the model, the height of the bale is adjustable to suit your storage and transport needs.

What is the production lead time?

The standard production time for these baler machines is between 30 to 40 days, depending on specific requirements.
