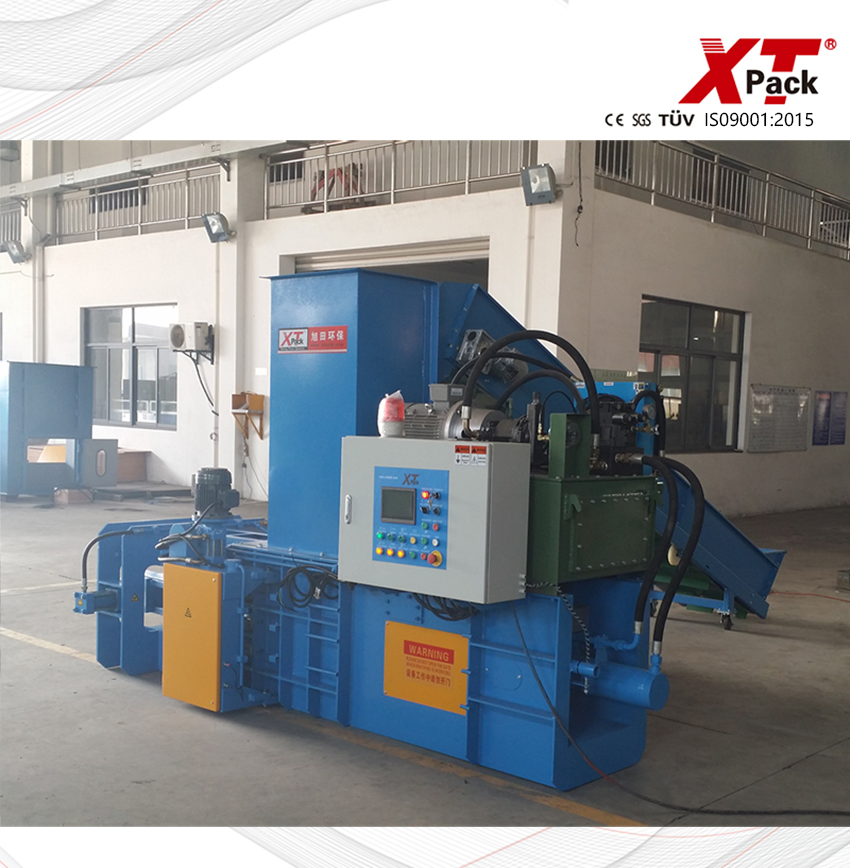

Basic Specifications
Model NO.
XTY-600W7585-25
Bale Ejection
Continuously
Application
Waste Paper, Cardboard, Plastic Film
Product Description & Usage

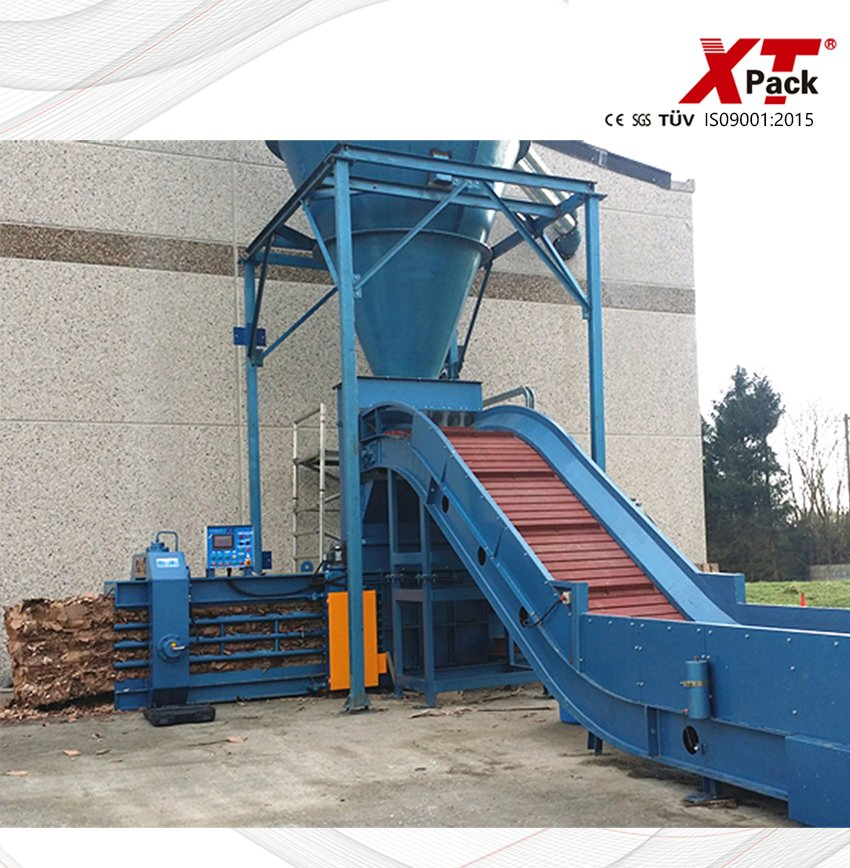

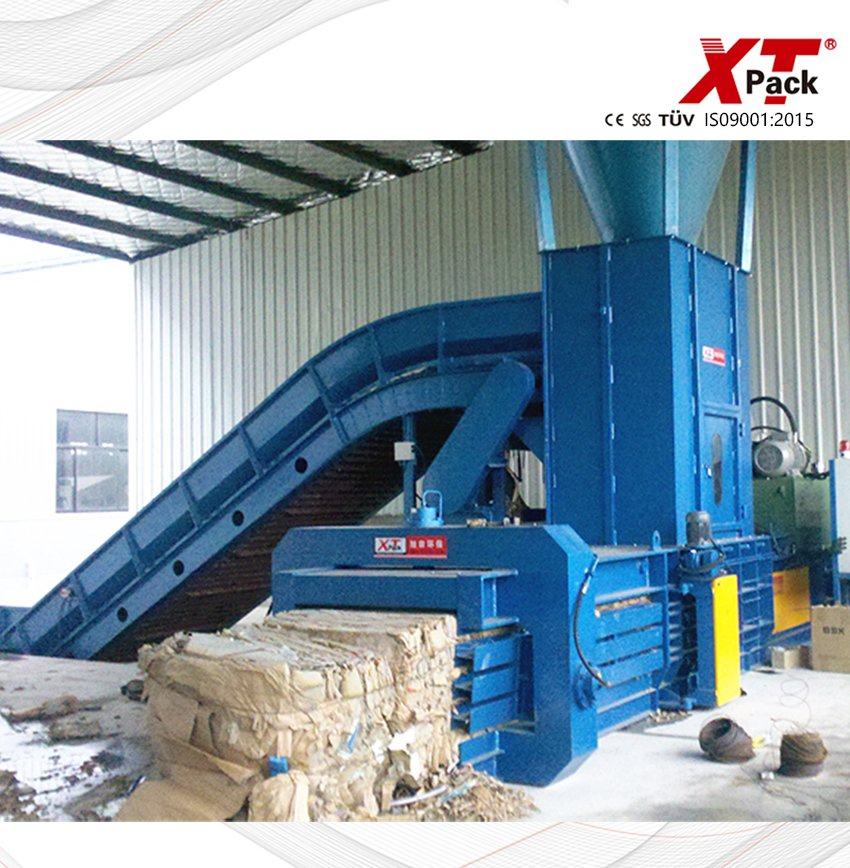

Specially used for recycling waste paper, cardboard trims/scraps etc., which are popular in packaging/corrugation industrial, paper/printing plants etc.
Core Features
- Photoelectric switch activates baler when charge box is full.
- Unique double-cutting design improves efficiency and lengthens cutter lifespan.
- Particular anti-slide design ensures nicer, more stable bales.
- Trunnion-mounted frame and ball-end joint design avoids torque on the rod.
- Equipped with rapid automatic tying system for easy maintenance.
- Differential hydraulic technique for shorter cycle times and energy saving.
- Automatic tension system ensures "brick-like" bales on all loose materials.
- Adjustable bale length and quantity accumulation function.
- Auto-detect system displays errors for improved inspection efficiency.
- International standard electric circuit layout with graphic instructions.
- Press heads processed by planomiller for precise ram running.
- High-quality hydraulic system ensuring stable operation.
- Heavy-duty machine body requires only flat ground for installation.
- Integrated with "HARDOX" wear-resistant materials.
Technical Specification Table
| Model |
XTY-200W5050-15 |
XTY-400W7575-20 / XTY-600W7575L-25 |
XTY-400W7280-20 |
XTY-600W7585-25 |
| Pressure |
20tons |
40tons/60tons |
40tons |
60tons |
| Main Motor Power |
11kW |
15kW / 18.5kW |
15kW |
18.5kW |
| Cycle Time (Unload) |
14s |
17s / 24s |
20s |
16s |
| Oil Reservoir |
280L |
540L |
540L |
600L |
| Feeding Opening Size |
650×480mm |
1200×720mm / 1600×720mm |
1200×690mm |
1200×720mm |
| Bale Size (L×W×H) |
L×500×500mm |
L×750×750mm |
L×720×800mm |
L×750×850mm |
| Throughput |
1-1.5tons/h |
1.5-3tons/h / 2-3.5tons/h |
1.5-3tons/h |
2.5-5tons/h |
| Machine Weight |
3tons |
7tons / 8tons |
7tons |
8tons |

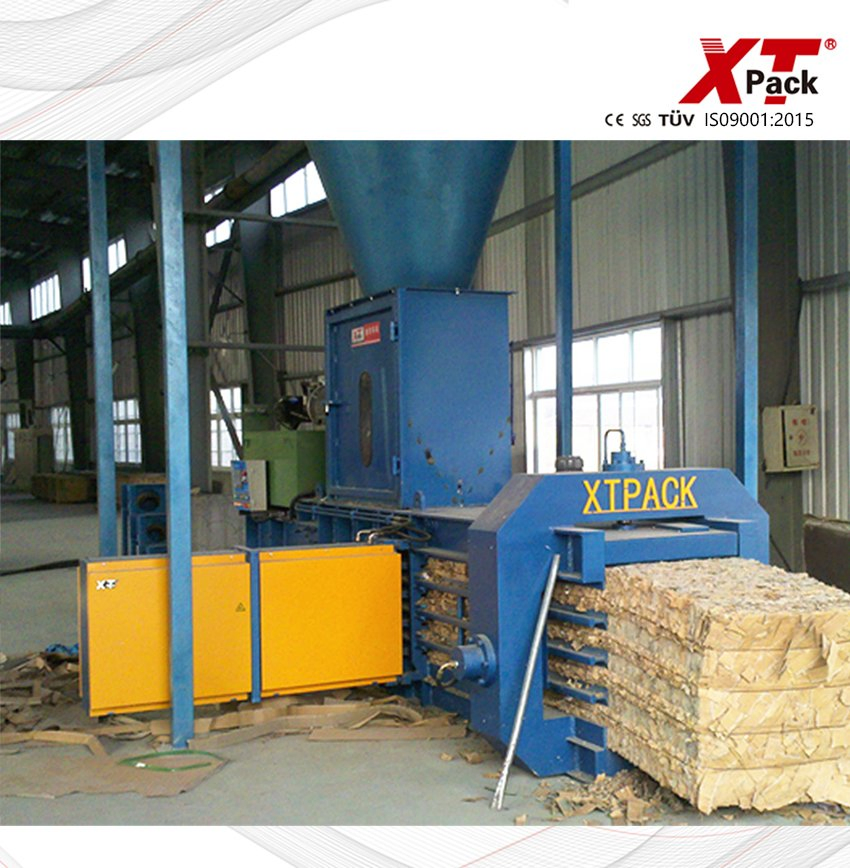

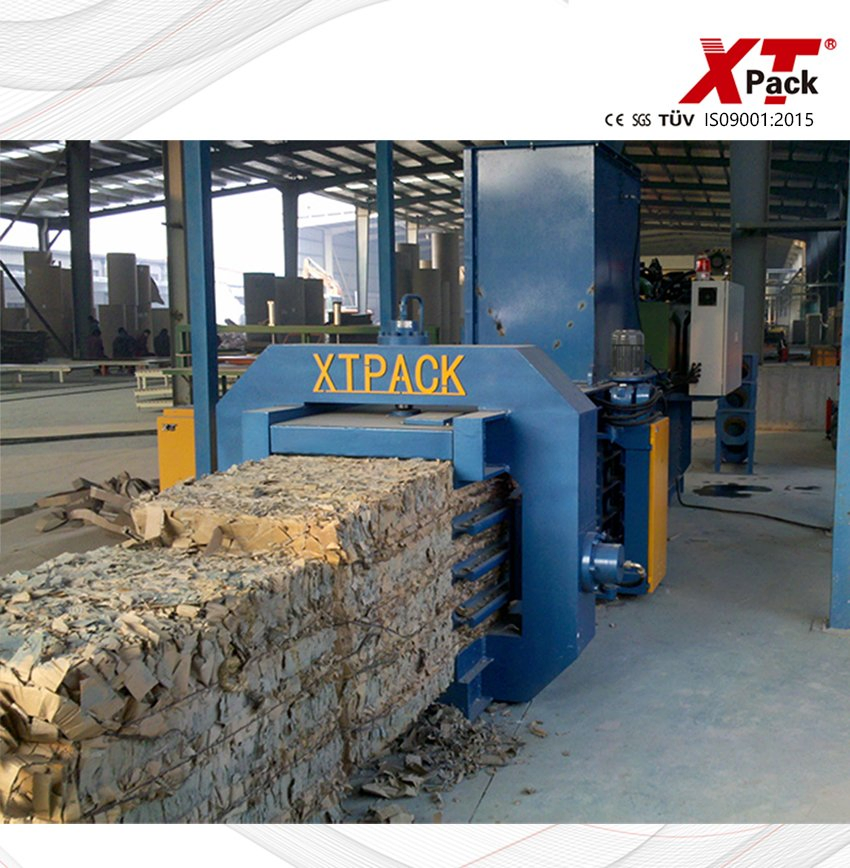

Product Gallery
Frequently Asked Questions
What materials can this hydraulic baler handle?
The machine is specifically designed for recycling waste paper, cardboard trims, scraps, plastic film, and other loose materials common in packaging and printing industries.
How does the automatic tying system work?
The machine is equipped with a rapid automatic tying system that streamlines the baling process, making it easier to clean and maintain while significantly improving production efficiency.
Is the bale length adjustable?
Yes, the machine features adjustable bale length and a quantity accumulating function, allowing operators to customize the output based on specific storage or transport requirements.
What kind of maintenance support is available via the system?
The baler includes an auto-detect system that shows machine errors graphically. Combined with detailed part marks and an international standard circuit layout, troubleshooting and maintenance are highly efficient.
Does the machine require a special foundation for installation?
Due to its heavy-duty body design, the machine only requires flat ground for installation, making it versatile for various factory environments without complex foundation work.
How is the cooling handled during long operation hours?

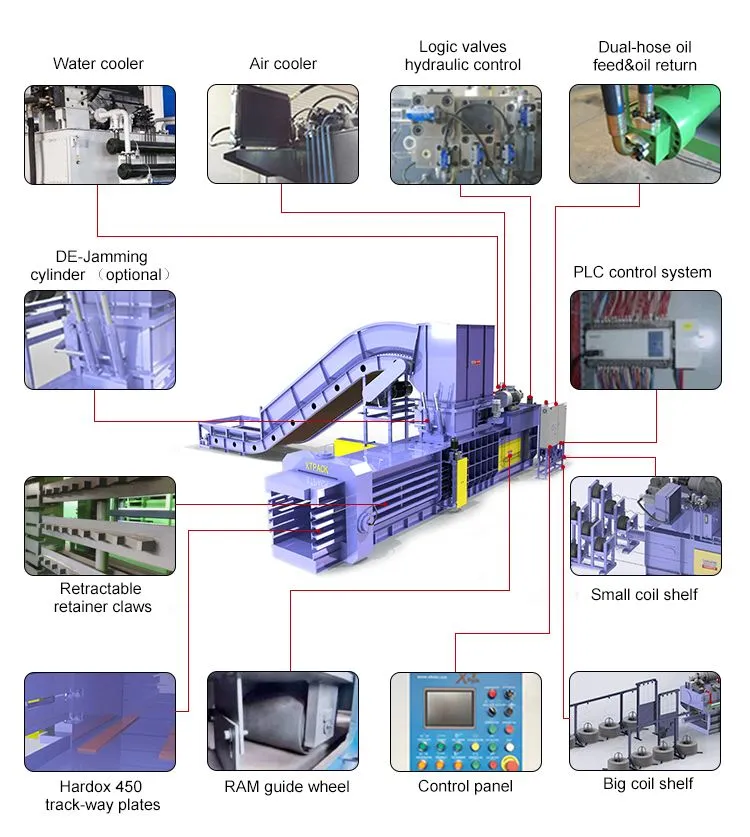

The system offers flexible cooling options, including both Air Cooler and Water Cooler systems, to ensure the hydraulic oil remains at an optimal temperature during continuous use.
