| Basic Info | Details |
|---|---|
| Model NO. | QT4-15 |
| Certification | CE, ISO |
| Automatic Grade | Automatic |
| Type | Vibration Molding |
| Power | Three-Phase 220V-440V |

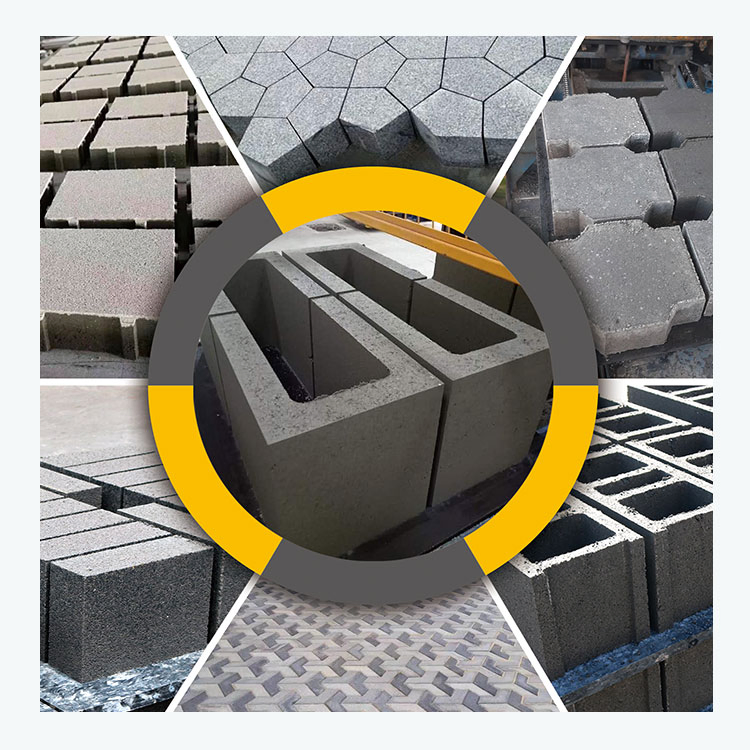

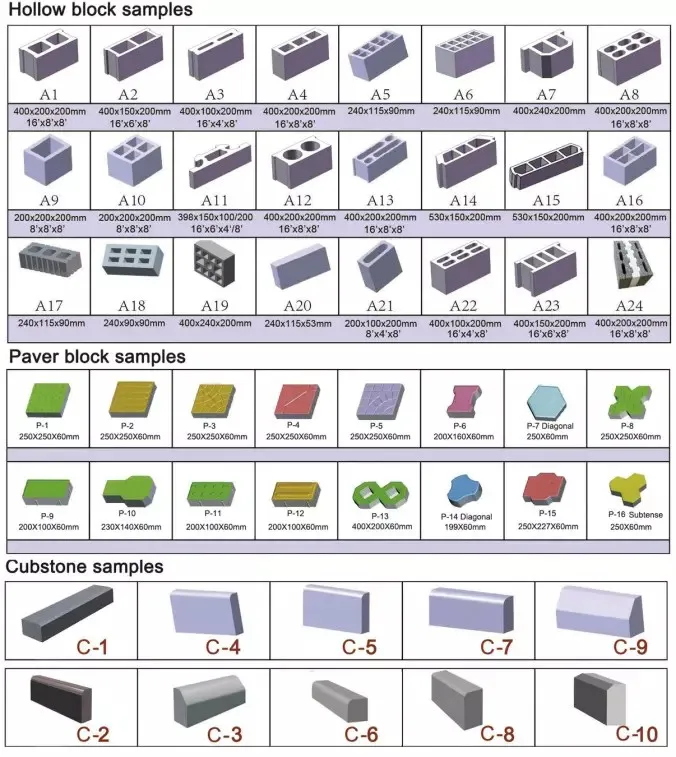

| Block Type | Hollow, Paving, Solid, Kerbstone |

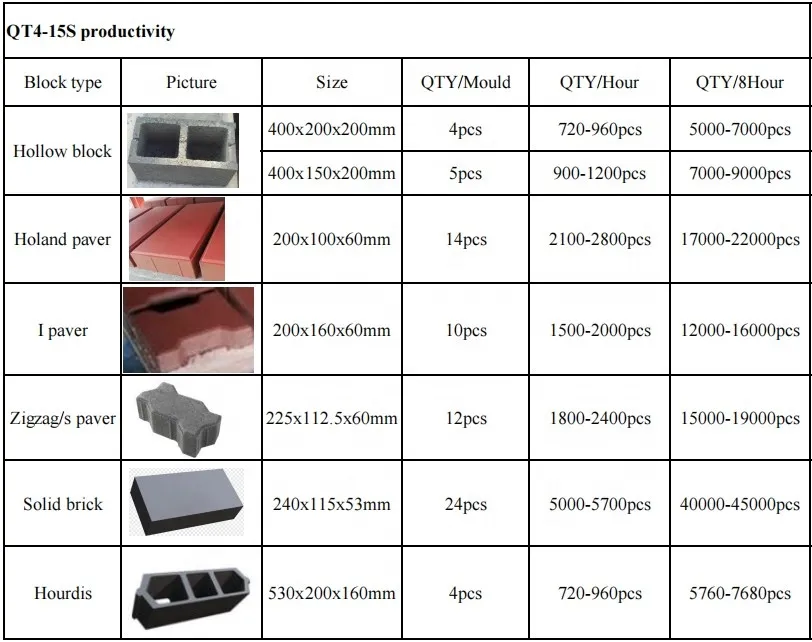

| Output | 7000-40000PCS/8hours |
| Core Components | PLC, Pressure Vessel, Engine |
| Molding Cycle | 15-20s |
| Weight | 4000kg |

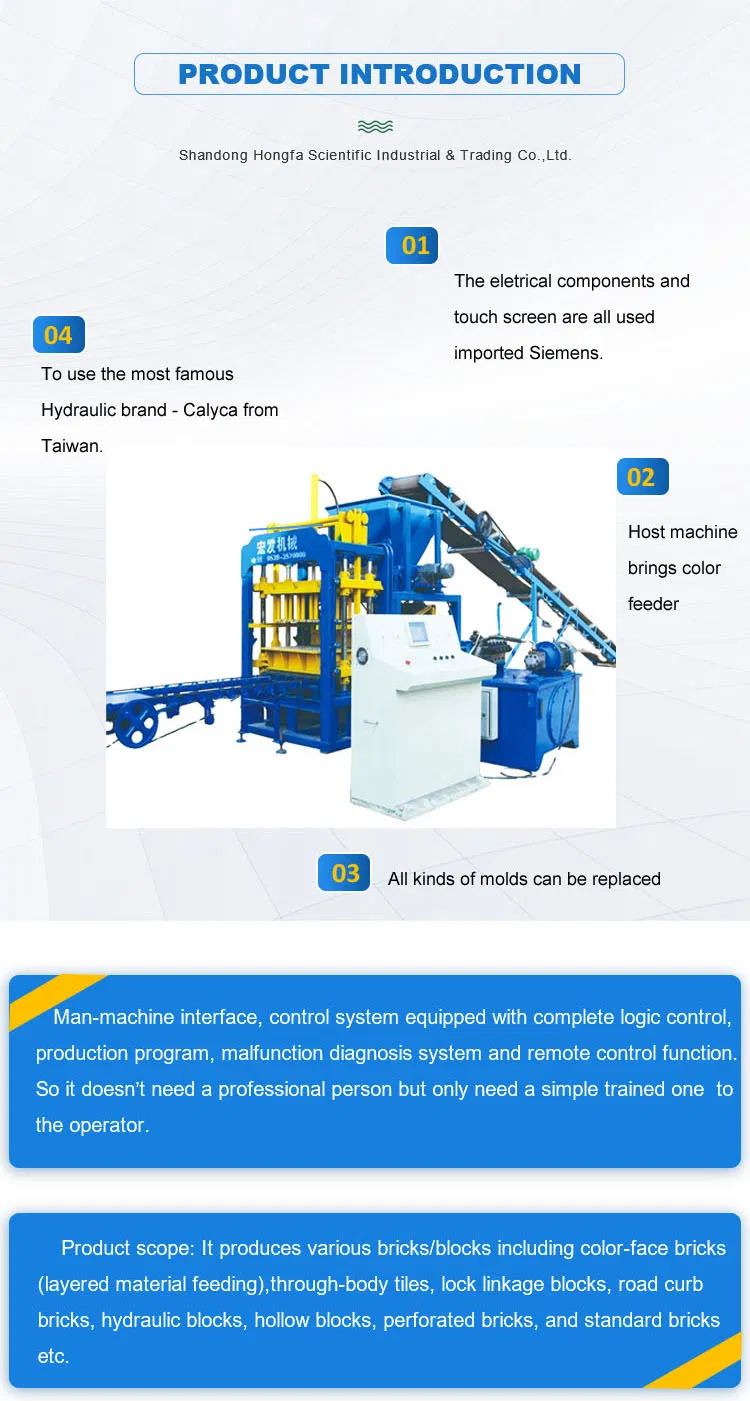

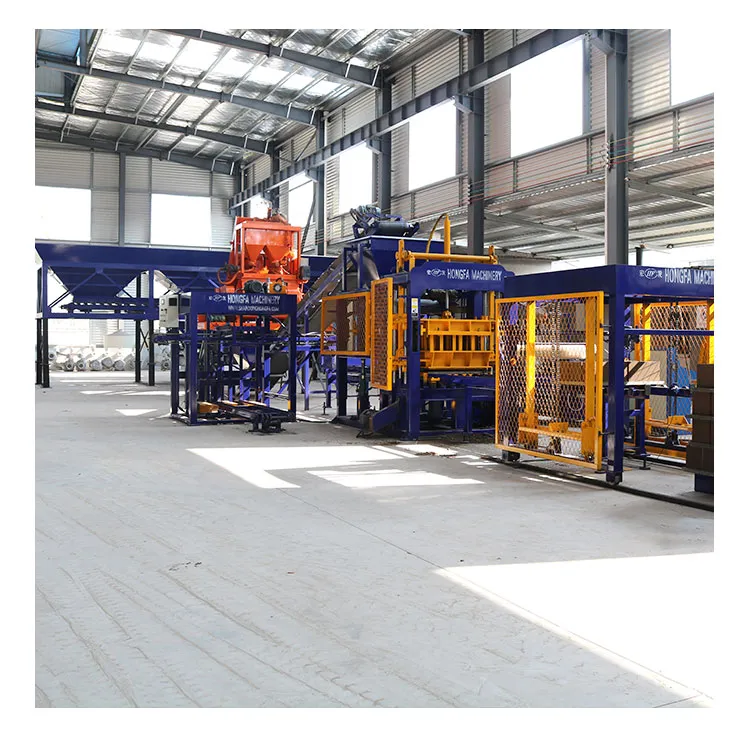

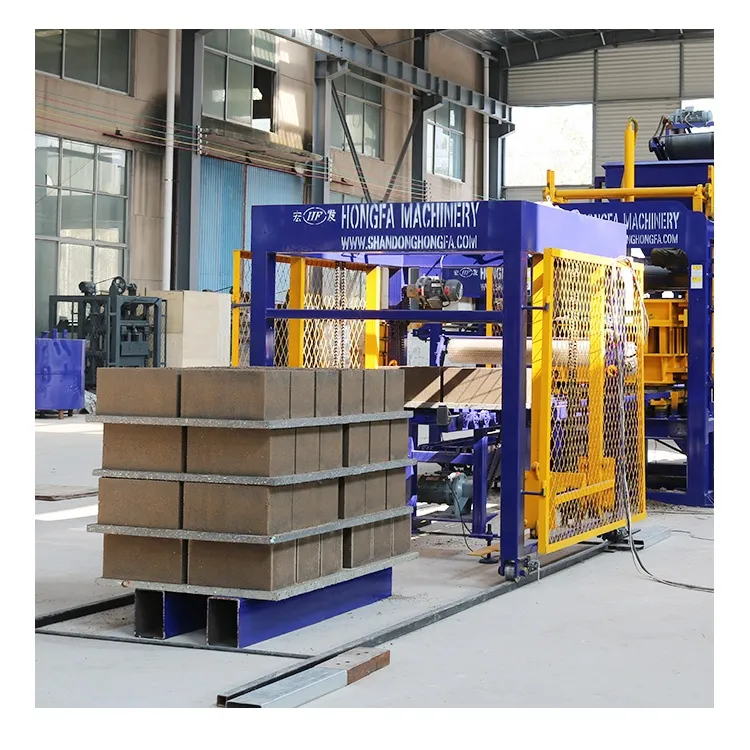

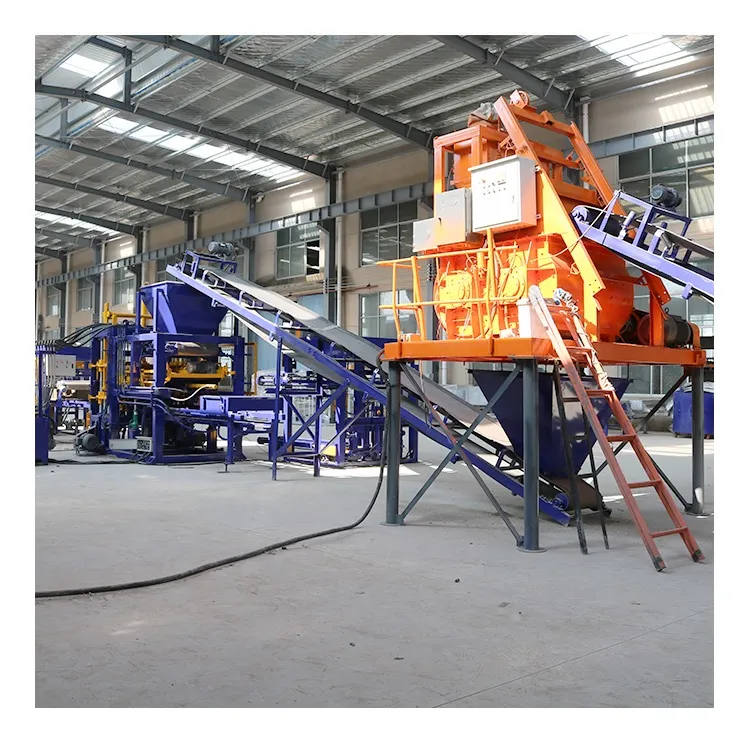

● Comprehensive Production Line: Including cement silo, batching machine, mixer, hydraulic pressing brick machine, and stacker machine.
● Advanced Control: Equipped with a PLC controller for automatic material feeding, pressing, and shaping.
● Key Advantages: Quickest cycle time, small floor space requirements, and high block intensity.
| Parameter | Data |
|---|---|
| Overall Dimension | 7310x2500x2810mm |
| Rated Pressure | 16Mpa |
| Vibration Frequency | 2800-4500r/min |
| Pallet Size | 880x550mm |
| Mould Cycle | 15-20s |
| Overall Power | 28kw |

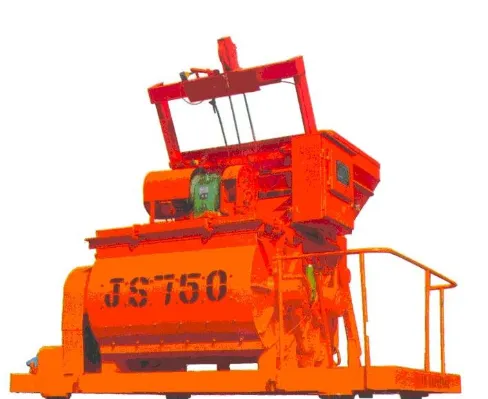

1) Charging capacity: 750L
2) Discharging capacity: 500L
3) Cycle Time: 72s
4) Power: 18.5KW

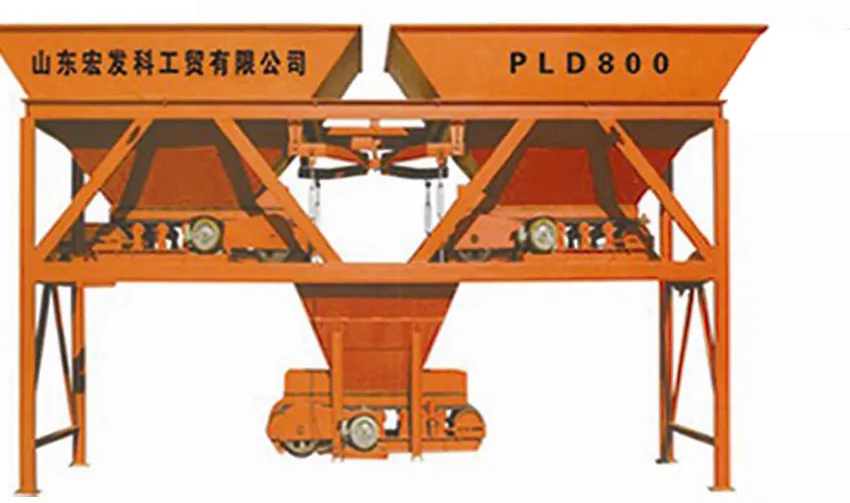

1) Weigh bucket capacity: 800L
2) Batching precision: ±1%
3) Power: 12kw
4) Productivity: 48m3/h
Professional solutions, process flow design, and equipment selection based on customer budget and demand. Factory visits are welcomed with full logistics support.
Comprehensive installation guidance, electrical connection advice, and on-site operator training. Full technical manuals and 24-hour online support are provided.
