■ Basic Information
Object
Asphalt Concrete Pavement
Mixing Method
Continuous Drum
Automatic Grade
Semi-Automatic
Certification
ISO9001: 2000, CE
Used for
Airport, Highway, Asphalt Pavement
Package
Export Wooden Case
Specification
4000*1560*2160 mm
■ Product Description

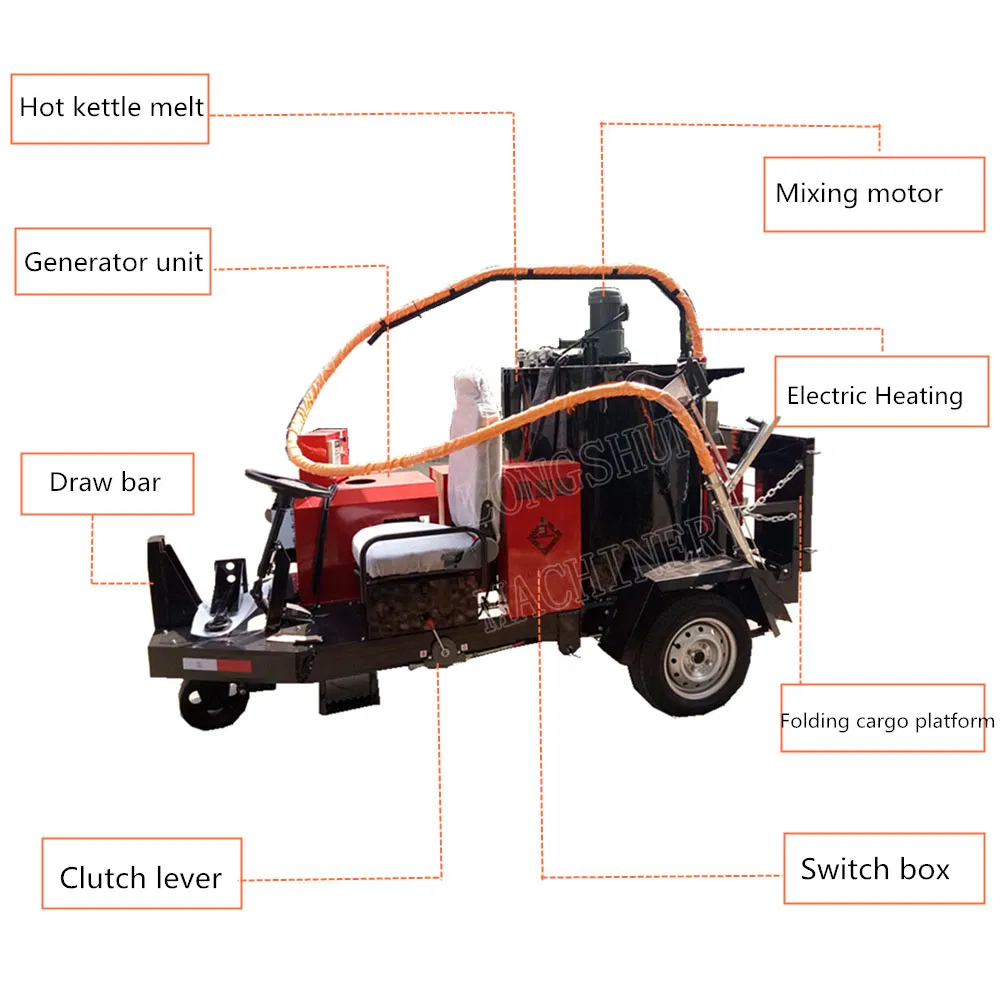

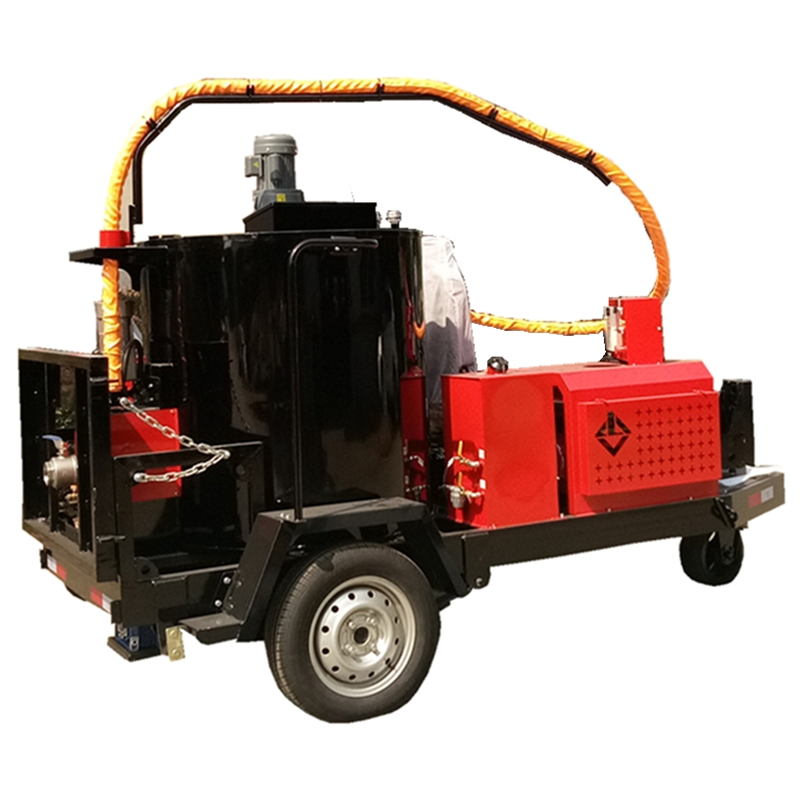

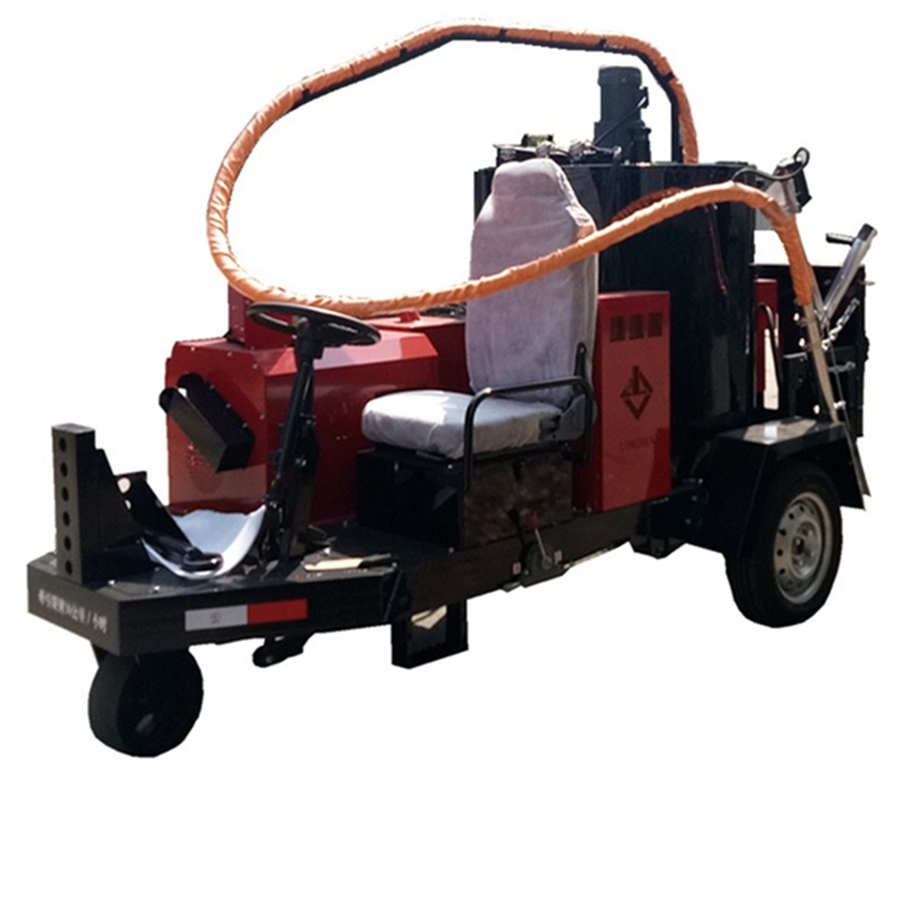

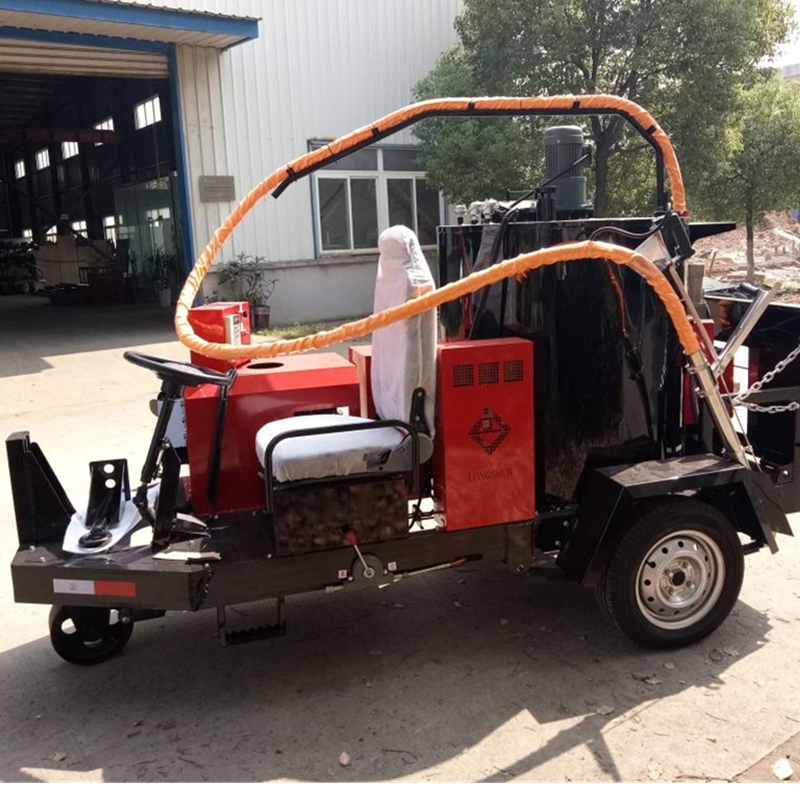

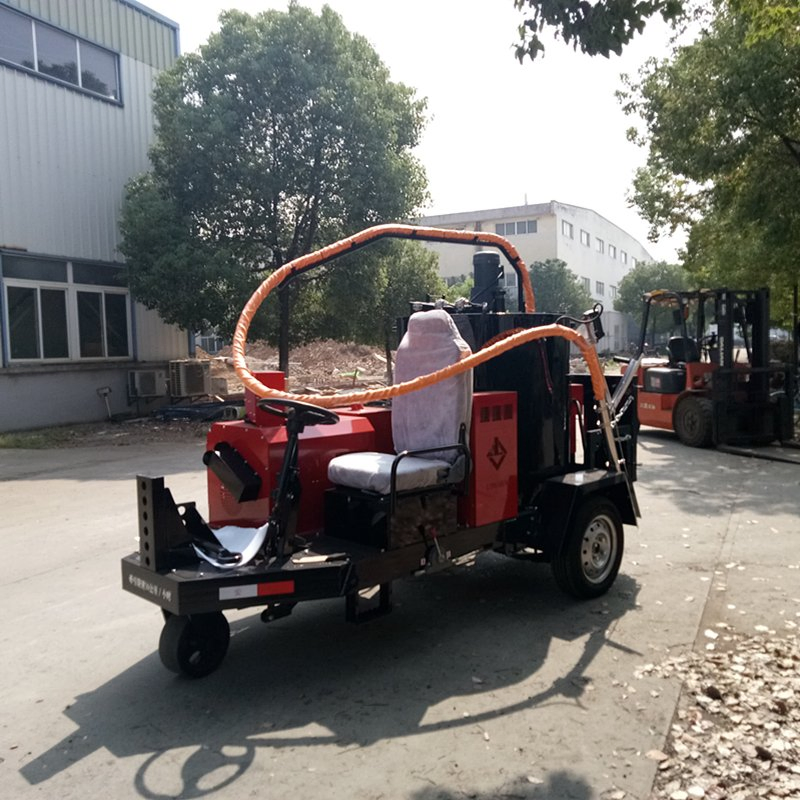

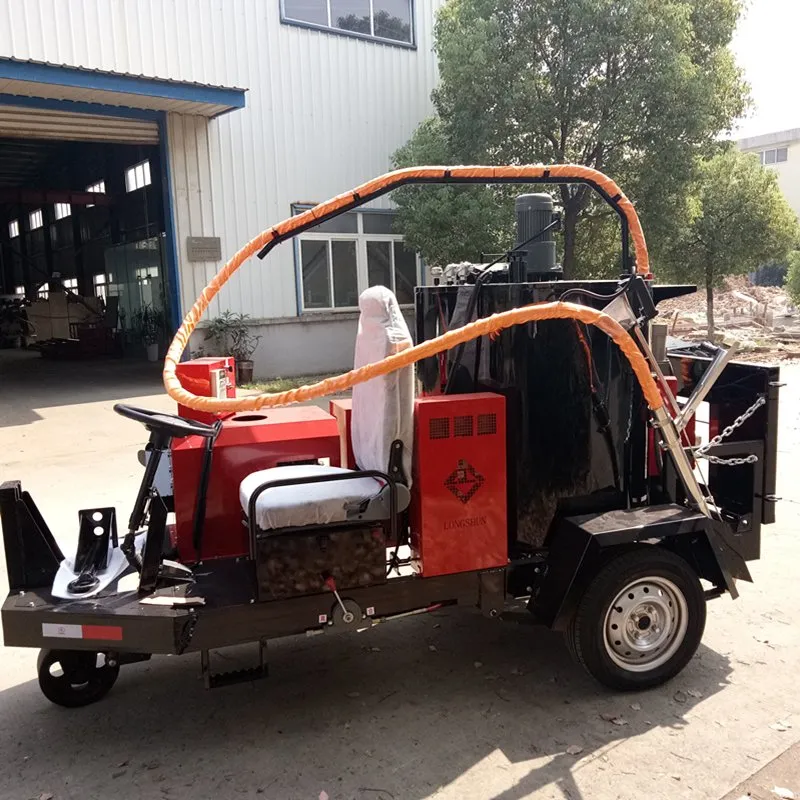

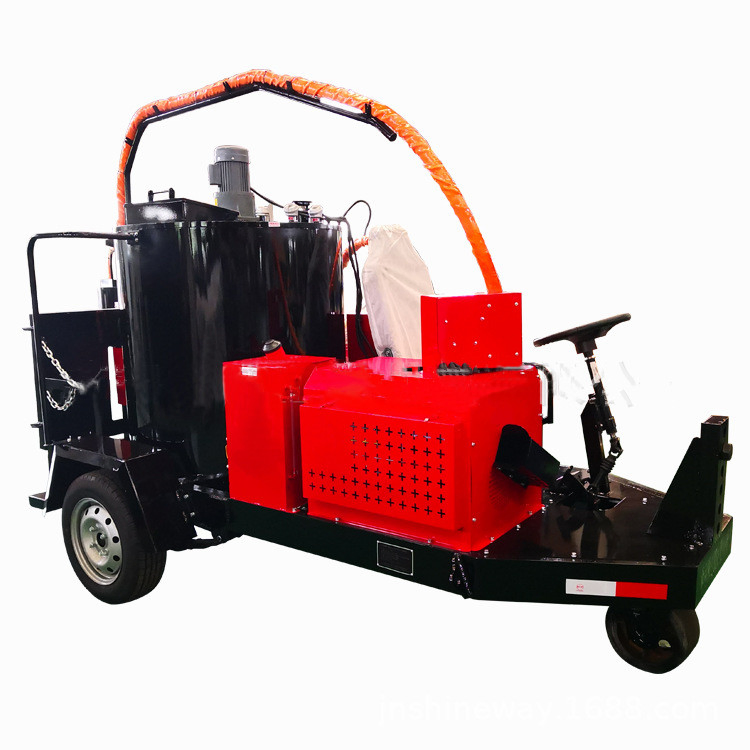

350L Drive Type Asphalt Road Crack Sewing Machine Construction Equipments
●
Advanced Heating System: Diesel burner with automatic temperature control. Precision electronic constant temperature control automatically enters preservation mode once set temperature is reached.
●
Indirect Heating: Heat conduction oil is forced to circulate, avoiding asphalt carbonization through indirect heating.
●
High Durability: Features imported electric heating material tubes and high-temperature resistant coating. Ensures smooth discharge without the need for frequent cleaning.
●
Versatile Application: Ideal for repairing pavements on highways, municipal roads, airport runways, and country roads.
■ Technical Specifications
| Model | LS-350 |
| Generator | Honda 5kw |
| Volts | 220V |
| Output Speed | Adjustable |
| Electric Heating Tube Length | 7m |
| Hot Melt Kettle Volume | 350L |
| Combustor | Italian Riello 445T1 Combustor |
| Filling Material Heating Time | 40-50 mins |
| Temperature Range | 0~280ºC |
| Size | 4000*1560*2160 mm |
| Weight | 1000KG |
■ Applicable Scenario
■ Certifications
Frequently Asked Questions
Q1: What is the heating capacity of the LS-350 kettle?
The LS-350 features a hot melt kettle with a large volume of 350L, suitable for medium to large scale road maintenance projects.
Q2: How long does it take to heat the filling material?
The equipment efficiently heats the material to the required temperature within 40 to 50 minutes.
Q3: What type of engine and burner does this machine use?
The machine is powered by a reliable Honda 5kw generator and uses a high-quality Italian Riello 445T1 combustor.
Q4: Is the discharge speed adjustable?
Yes, the output speed is fully adjustable, allowing for precise material flow control and tidiness during application.
Q5: What is the maximum temperature range?
The temperature can be controlled precisely within the range of 0 to 280ºC, depending on the material requirements.
Q6: Can it handle different types of sealing materials?
Yes, both professional potting and sealing materials as well as ordinary asphalt materials can be used with this equipment.
