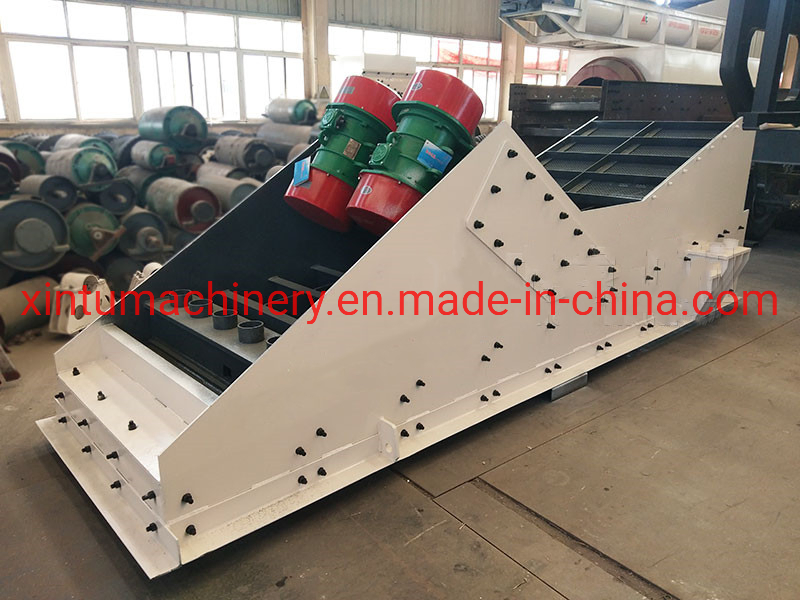

Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine
Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine
Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine
Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine
Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine
1 / 5
Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine
Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine
Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine
Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine
Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine

Widely Used Vibrating Grizzly Feeder Mineral Processing Plant Mining Equipment Vibration Feeder Machine

Customization: Available
Type: Vibrating Feeder
Voltage: Customized
Send Inquiry

Product Description

ℹ

Basic Information

Model NO.
Vibrating Feeder
Material
Carbon Steel
Material Feature
Heavy Duty
Certification
ISO9001:2008, ISO9001:2000
Energy Saving
Energy Saving
Warranty
1 Year
Color
Customized
Condition
New
After-sales Service
Available
Production Capacity
3000sets/Year
📋

Product Description

Vibrating feeder is mainly used to feed raw materials into the primary jaw crusher continuously. Meanwhile, it can separate fine materials previously and make the jaw crusher more efficient. It is widely applied in mining industry, building, metallurgical industry, chemical and grinding industry, etc.
✔ Simple Structure
Easy to be operated and maintained.
✔ Low Noise
Minimized noise pollution during operation.
✔ Stable Operation
Highly reliable and consistent performance.
📊

Specifications

Model Max Feed Size (mm) Capacity (t/h) Motor Power (kw) Installation Slope (°) Double Amplitude (mm) Dimensions (mm) Weight (kg)
GZT-072445030-802*1.5104-62481*1130*9902422
GZT-093256080-1502*2.4104-83298*1512*11953203
GZT-094056080-1802*3.7104-84100*1818*11343700
GZT-1148600150-3002*5.5104-84926*1676*14755060
GZT1256800180-4002*7.5104-85704*1840*14926385
GZT-15601000400-6002*13104-86110*2440*15608900
ZSW-380*9550096-16011104-83882*2224*21214082
ZSW-490*95500120-24015104-84957*2277*21505004
ZSW-490*110580120-28015104-84957*2400*21505320

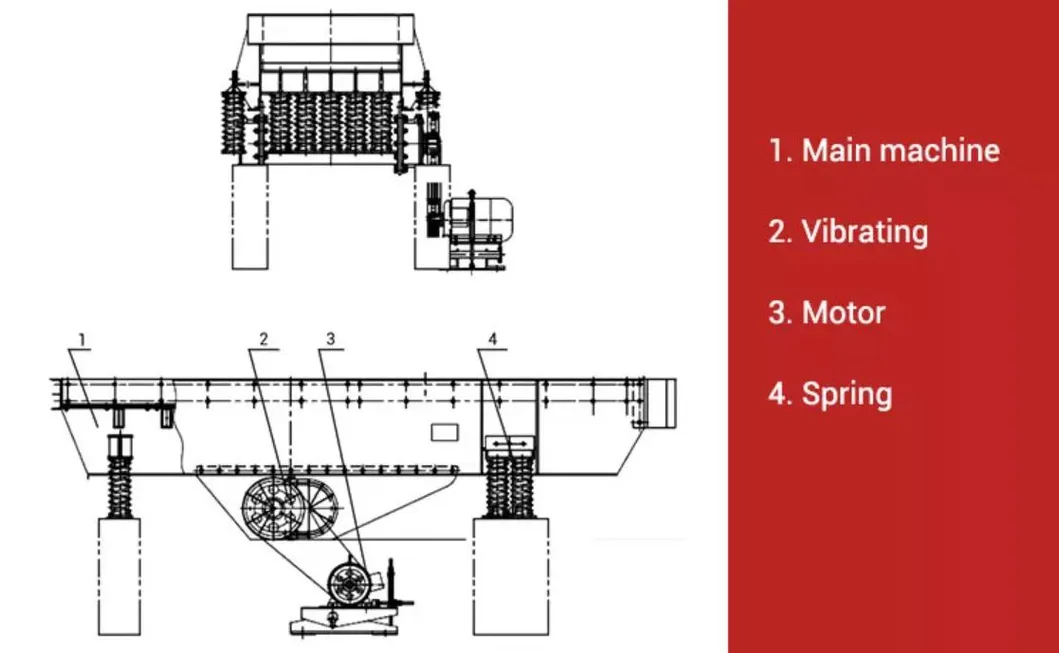

Vibrating Grizzly Feeder

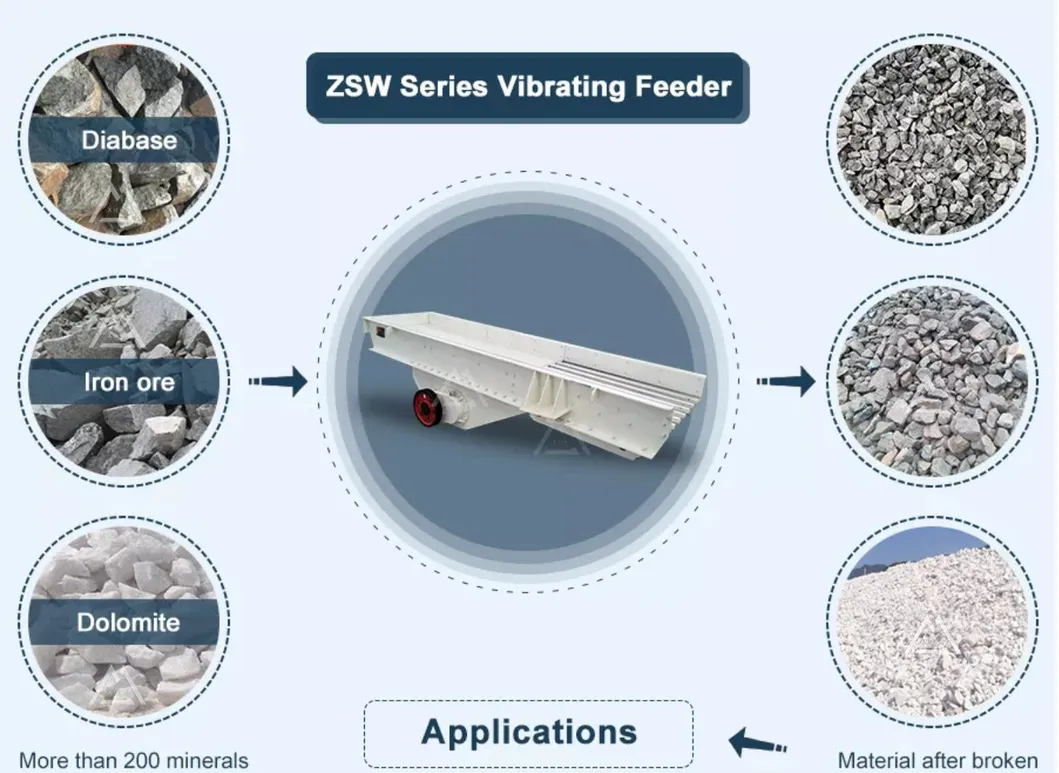

Mineral Processing Vibration Feeder
⚙

Working Principle

Vibrating feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, the materials will slip and sling on the funnel, moving forward. When the materials pass the screening part, smaller material will fall down, avoiding further crushing, thus reaching the screening purpose.

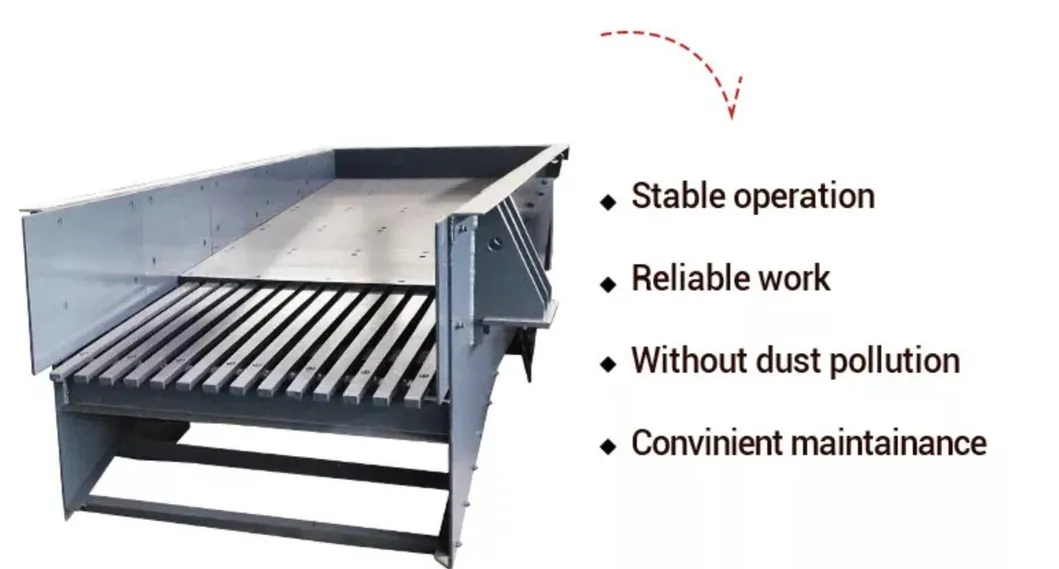

Feeder Mechanism
Vibration Feeder Equipment

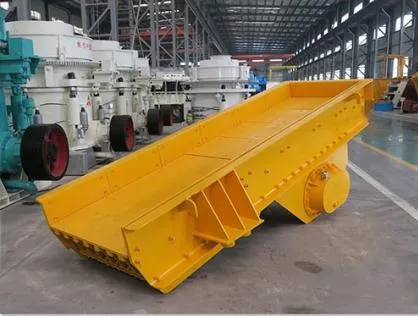

Industrial Feeder Machine

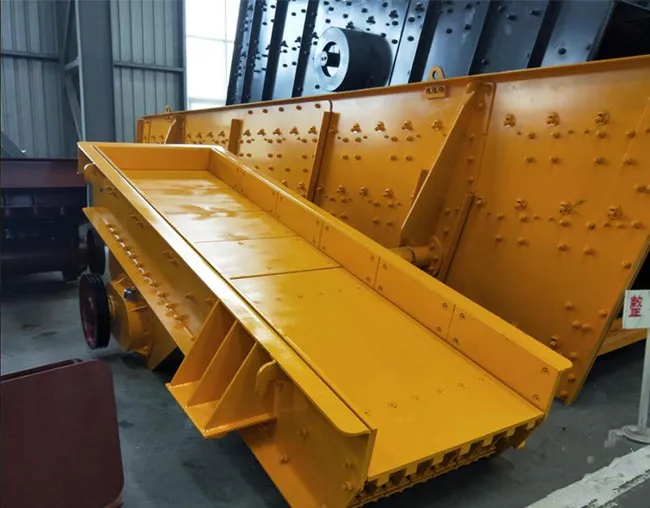

Mining Equipment Feeder

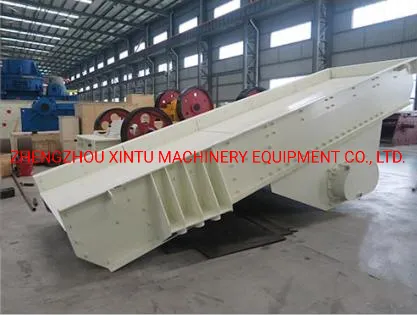

Heavy Duty Vibrating Feeder

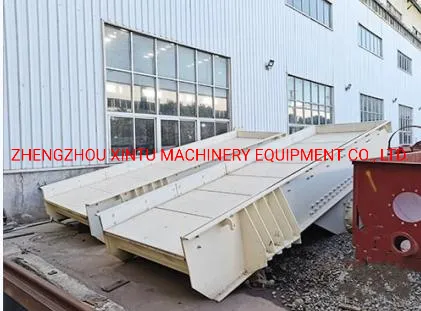

Processing Plant Feeder

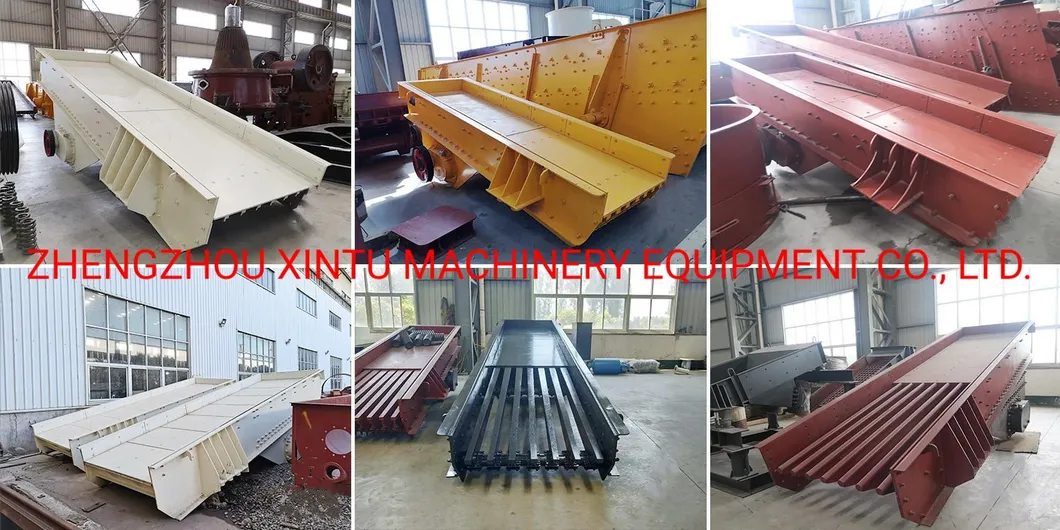

Vibrating Grizzly Design

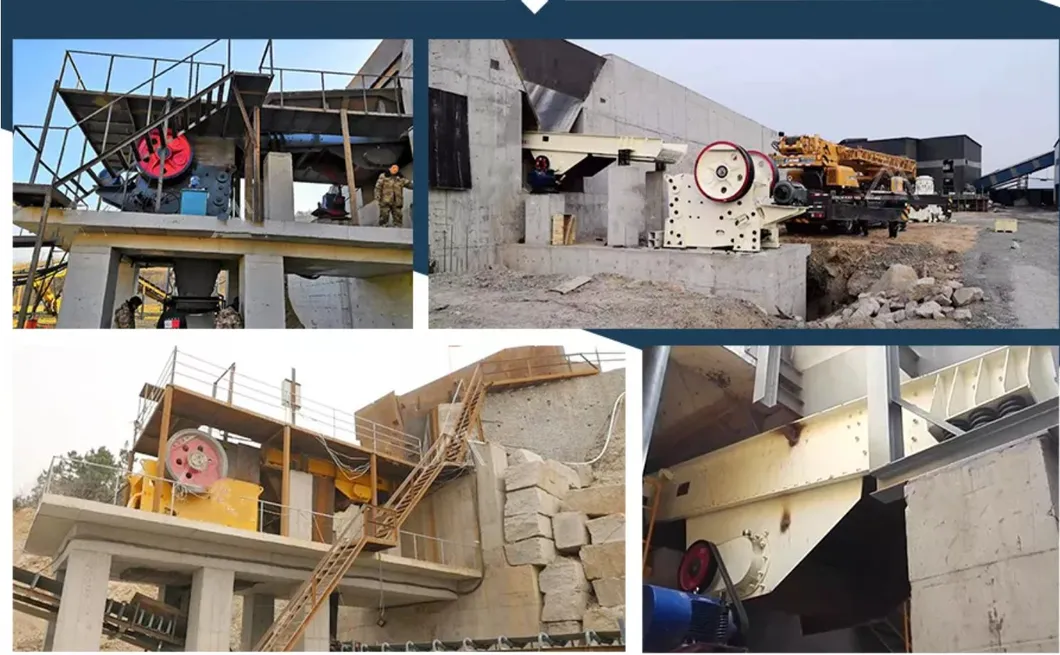

Mineral Feeder Display

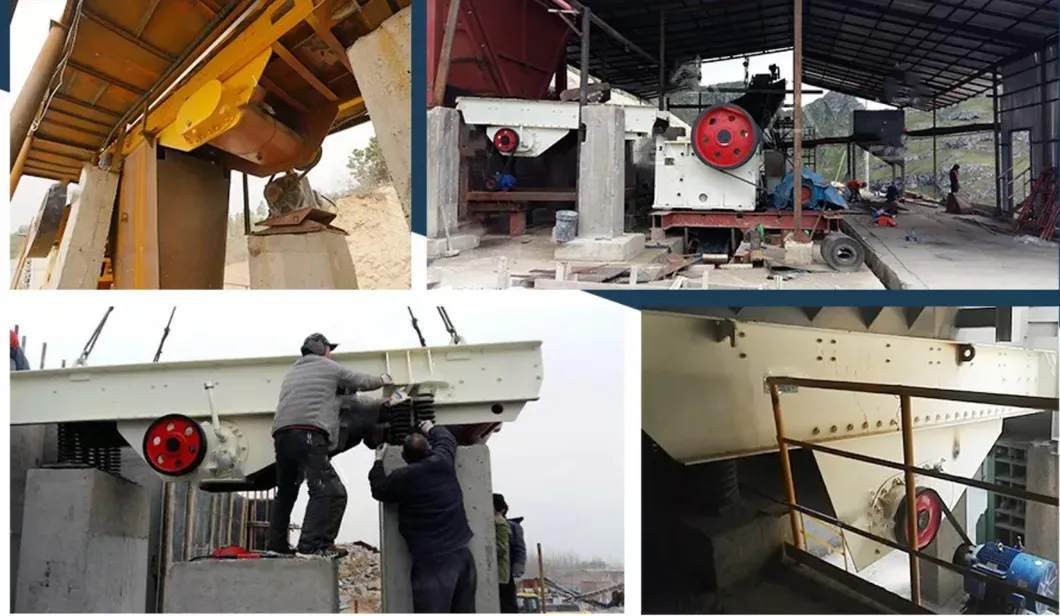

Vibration Feeding Unit
❓

Frequently Asked Questions

What is the main application of a vibrating feeder?
It is primarily used in mining, metallurgy, and construction to feed materials continuously into primary crushers and provide preliminary screening.
Can the size and color of the feeder be customized?
Yes, we offer customized colors and various models to fit specific production capacity requirements.
How does the screening function benefit the crushing process?
By separating smaller, fine materials before they enter the jaw crusher, it prevents unnecessary crushing, thereby increasing the overall efficiency of the plant.
What materials are used for construction?
The equipment is manufactured using heavy-duty carbon steel to ensure durability and a long service life in harsh environments.
What is the warranty period for this equipment?
The standard warranty period is 1 year, and after-sales service is fully available for maintenance and operation support.
Is the operation of the vibrating feeder noisy?
No, the machine is designed for low noise pollution and stable, reliable linear vibration.
