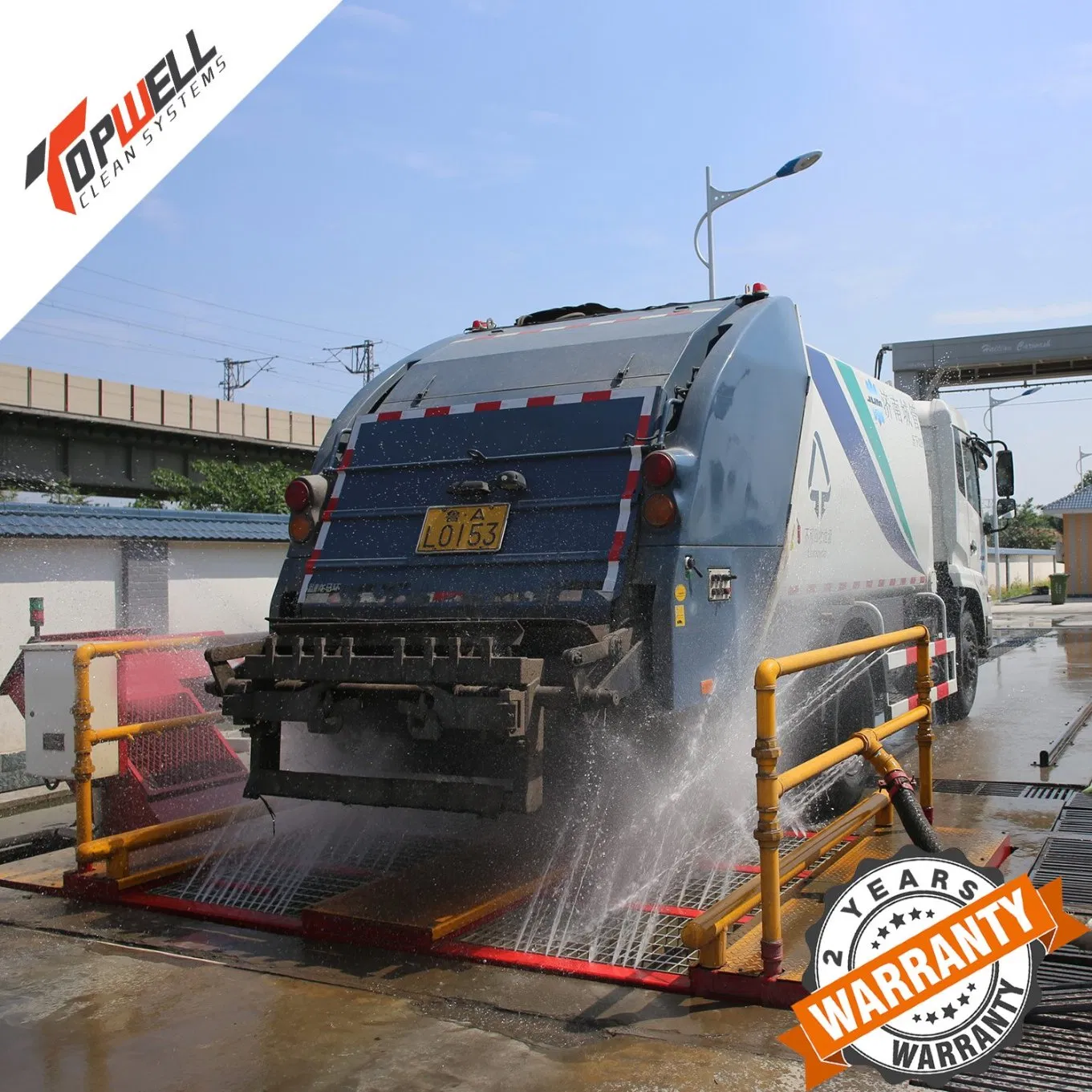

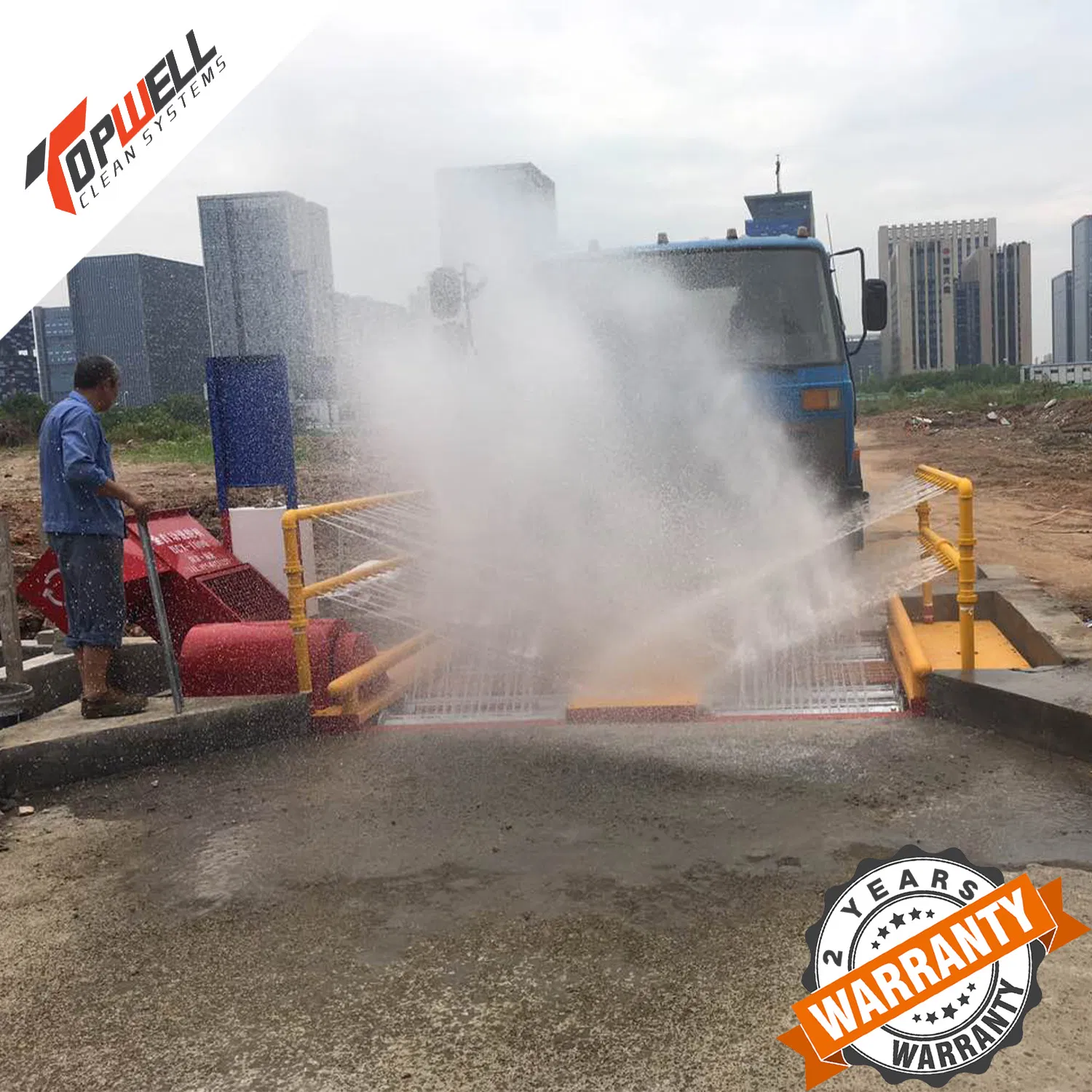

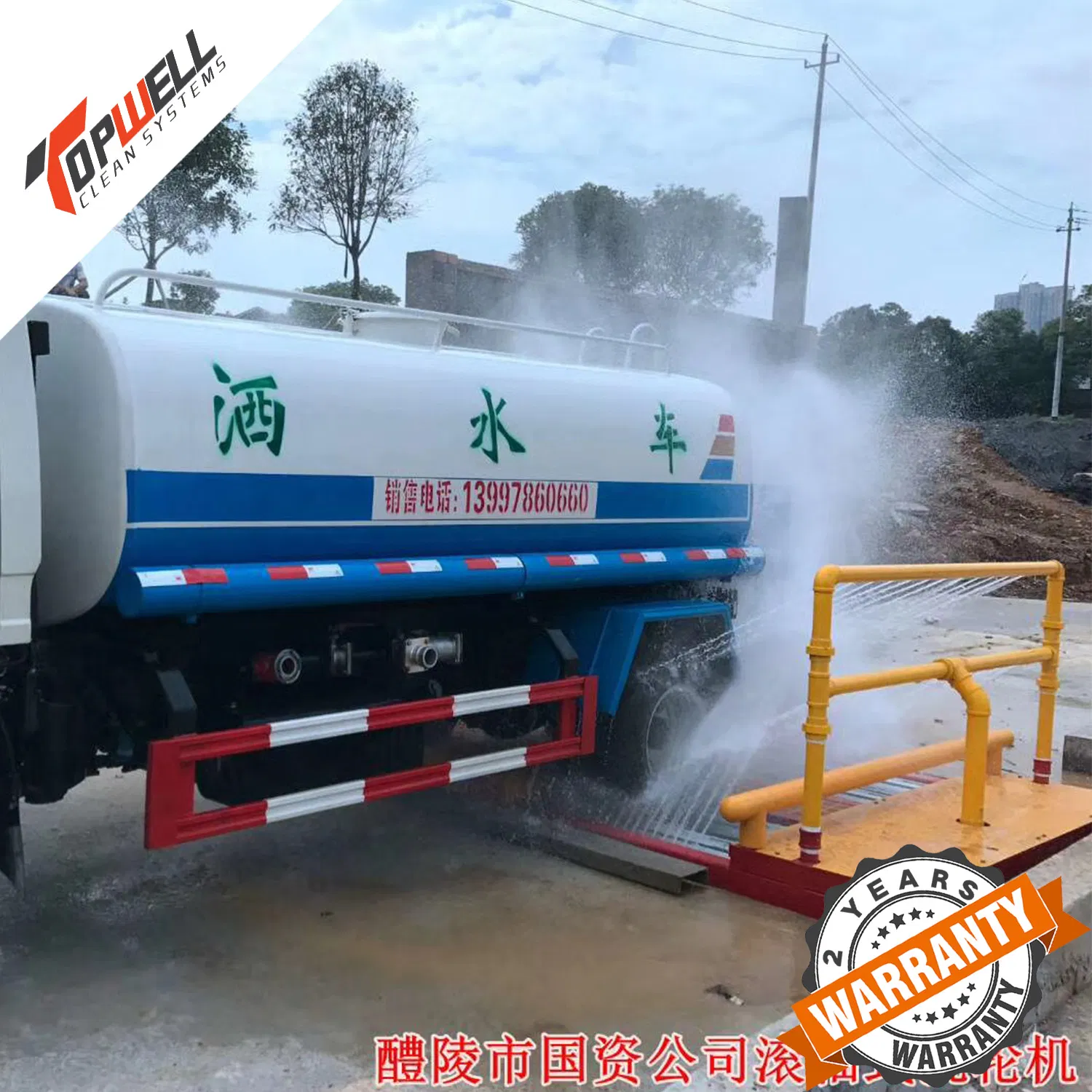

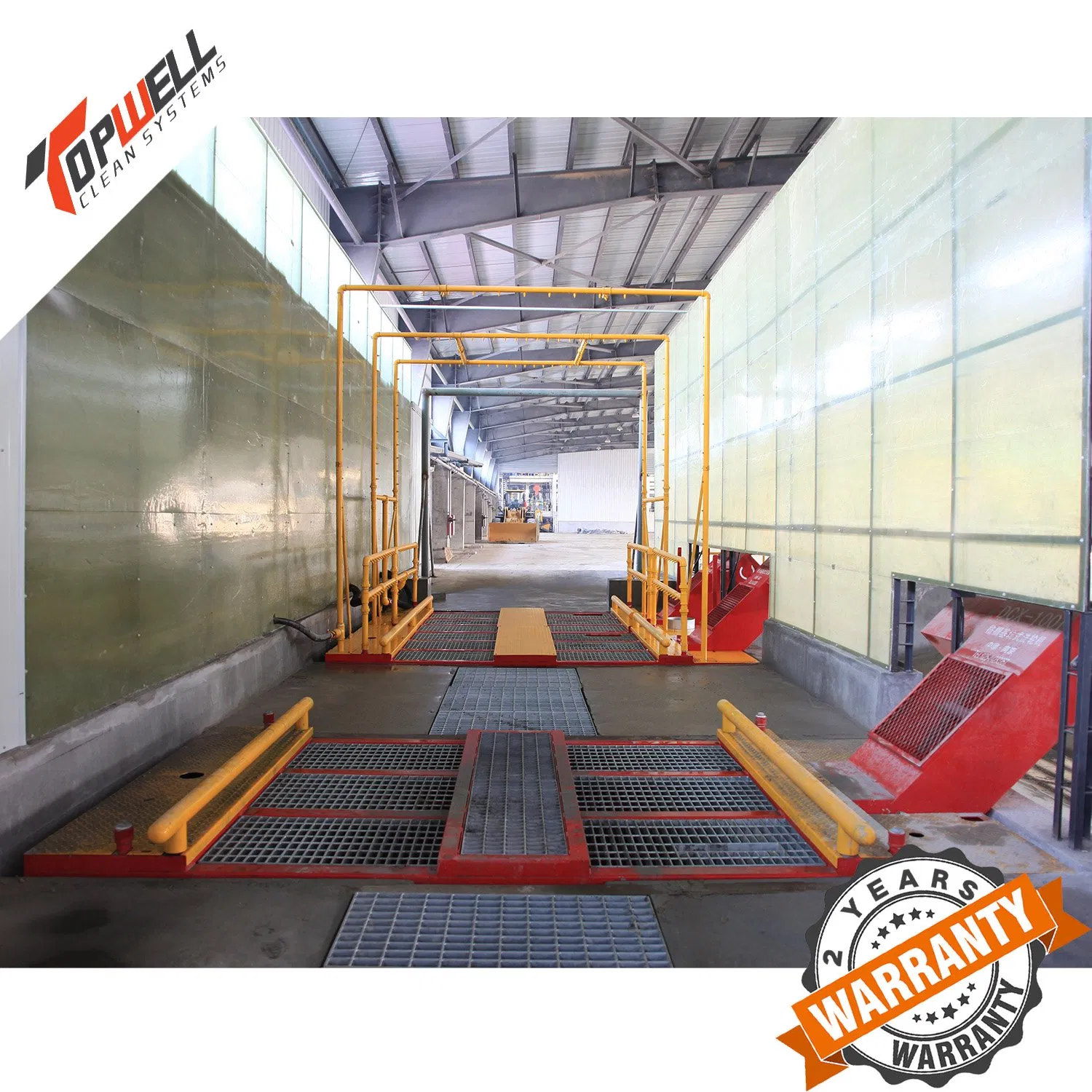

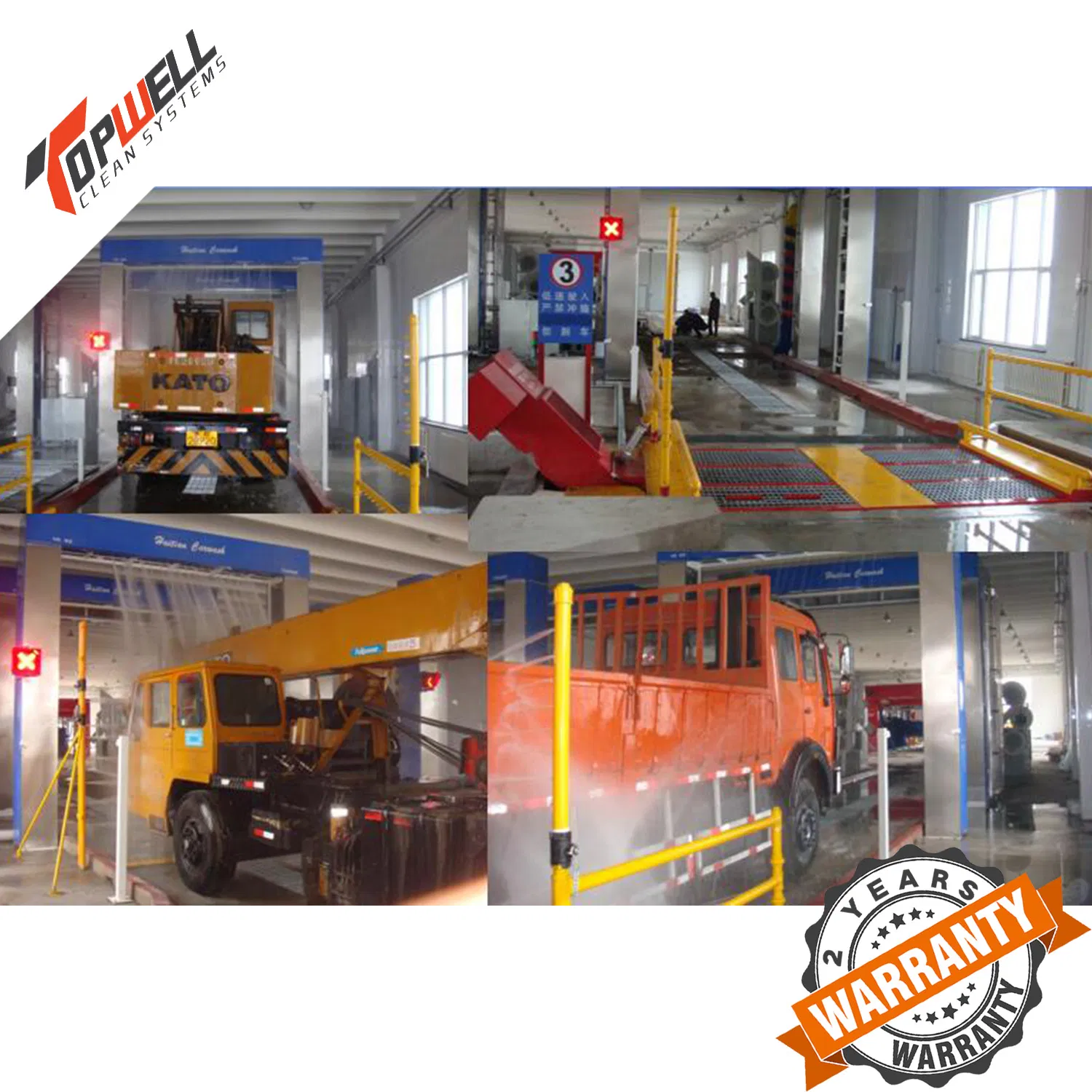

The DCX series foundation pit type wheel washing machine is specially designed for cleaning various heavy load construction vehicles, effectively solving the pollution of construction vehicles to the road.

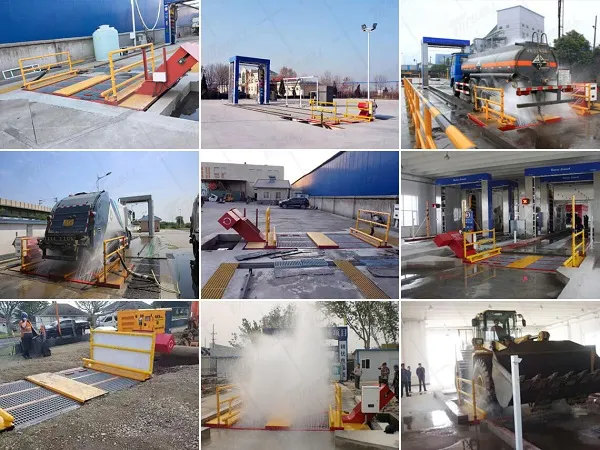

This type of equipment has fast cleaning speed and easy installation. It is suitable for all kinds of places, such as landfills, construction sites, concrete plants, mines, industrial manufacturing, crusher plant, and other places. The average washing time can wash 60 to 80 vehicles per hour.

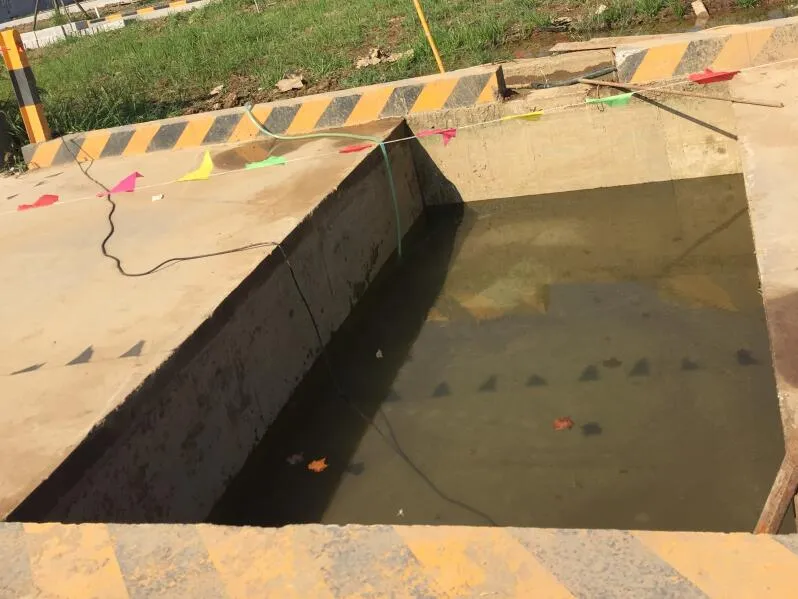

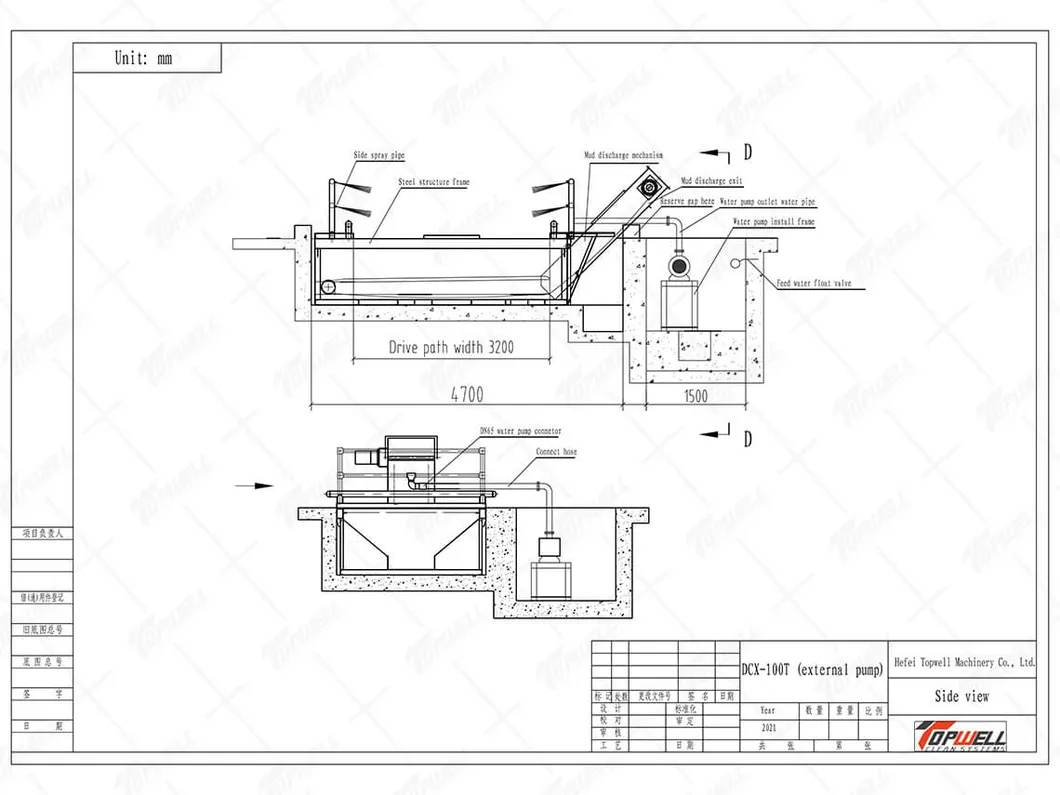

The sewage after the truck wash will return to the foundation pit, and will be reused after the mud is automatically discharged through the mud discharging mechanism, without the need to add clean water, saving a lot of water resources. This series of wheel washing machines are suitable for relatively fixed places. If the wheel washing machine needs to change the place from site to site, it is only necessary to use a crane to lift the equipment from the foundation pit.
| Item | Parameter |
|---|---|
| Model | DCX-100T |
| Equipment Size (mm) | 2250(W)×5350(L)×2100(H) |
| Max truck width (mm) | 2800 |
| Weight | 3200kg |
| Wash way | Drive through type |
| Wash for | <80 tons engineering truck |
| Start way | Mechanical sensing start |
| Wash pressure | 3kg/cm² |
| Water used | 10L/vehicle |
| Machine total power | 16KW |

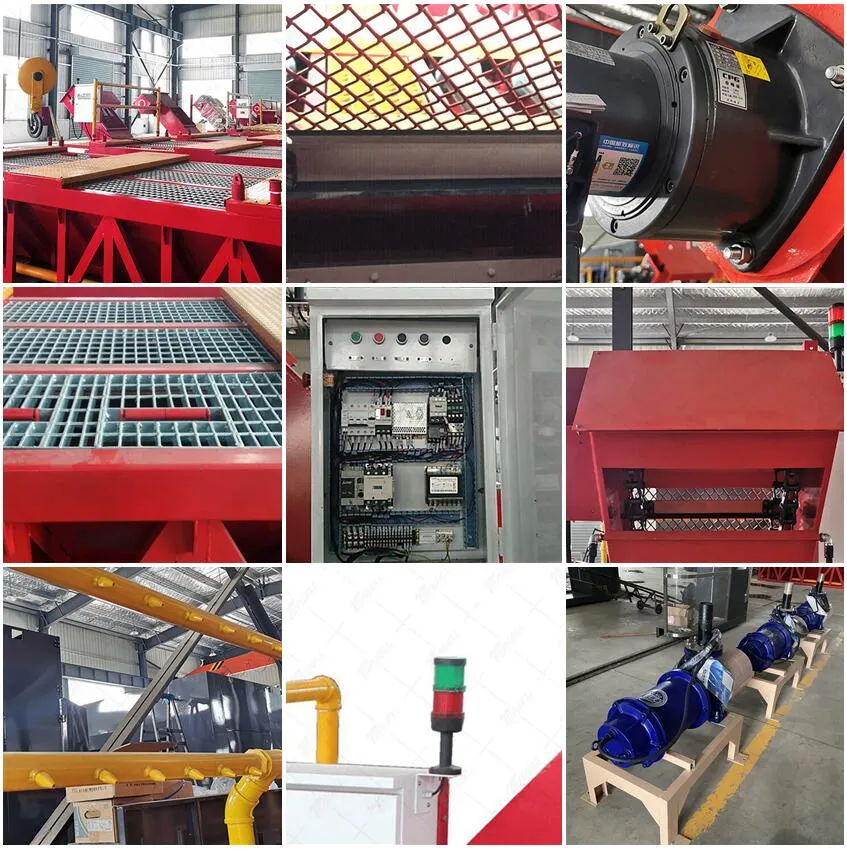

| Side nozzle | Φ4.2, 42pcs |
