Used Mining Dump Trunk Tire Recycling Machinery/Used Tire Recycling Plant

1 / 5

Used Mining Dump Trunk Tire Recycling Machinery/Used Tire Recycling Plant

Warranty:	2 Years
Service Life:	≥15 Years
Certification:	CE, ISO, BV SGS

Send Inquiry

Product Description

Basic Information

Model NO.

XKP-400/XKP-450/XKP-560

Voltage

380V

Structure

Vertical

Type

Tire Machinery

Machine Type

Semi-Auto Rubber Powder Production Line

Application

Rubber and Plastic

Capacity

500kg/H, 1000kg/H

Cooling Type

Water Cooling System

Final Product

Rubber Powder and Granules

After-Sale Service

Engineer Overseas Available

Machine Color

Customized

HS Code

84778000

Used Mining Dump Trunk Tire Recycling Machinery

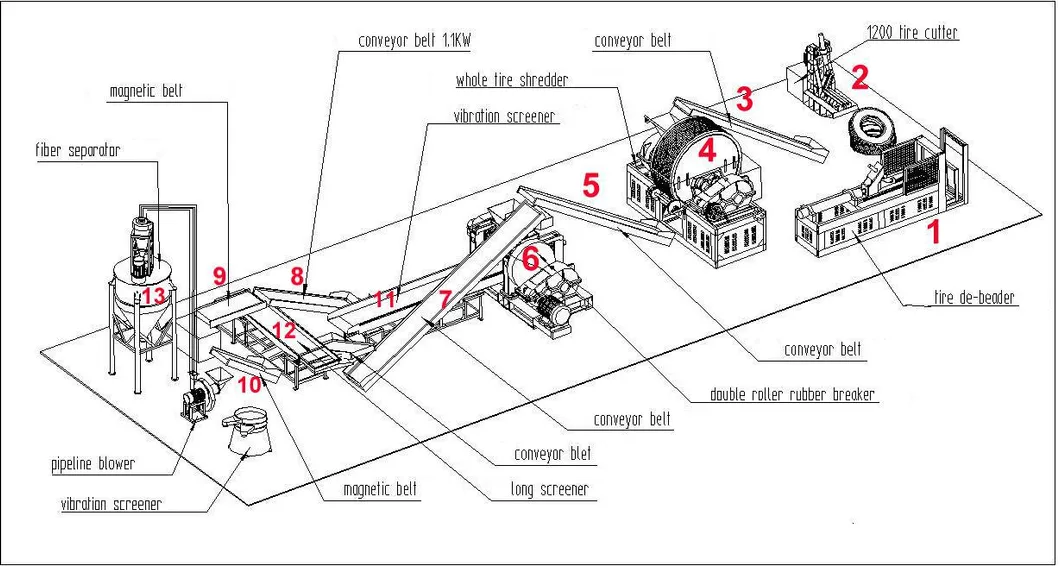

1. Main working process

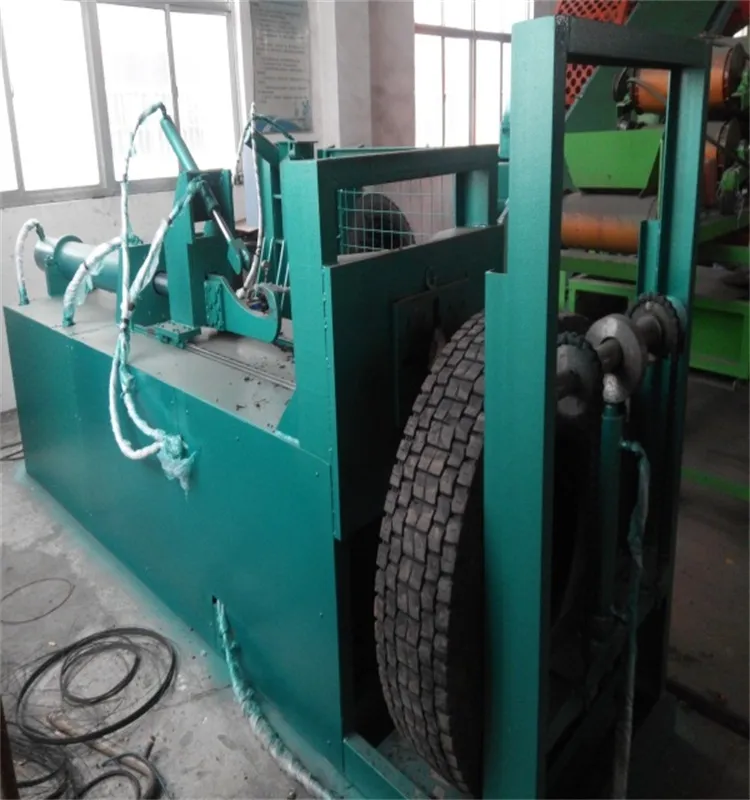

2. Debeader (Oil Hydraulic Type)

Model: LS-1200
Capacity: 20-40 tires/hour
Pulling force(T): 13
Max. tire diameter: 1200mm
Power(KW): 7.5KW
Stroke distance: 1300mm
Weight: 2500KG

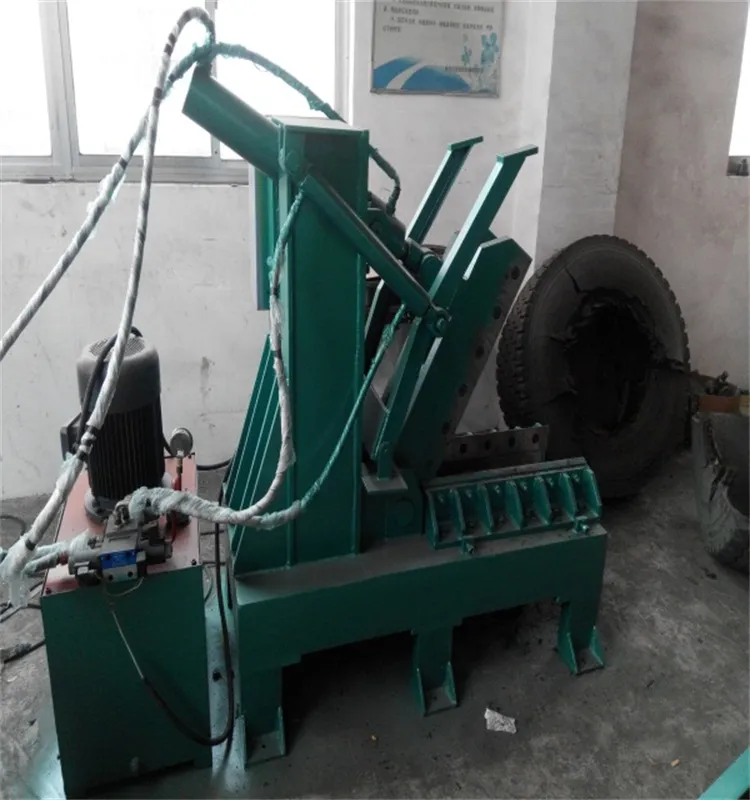

3. Whole Tire Cutter

Model: WTC1200
Capacity: 20-40 tyres/h
Motor power: 5.5kw
Tire range: Max 1200mm
Dimension: 2080*1000*2130mm

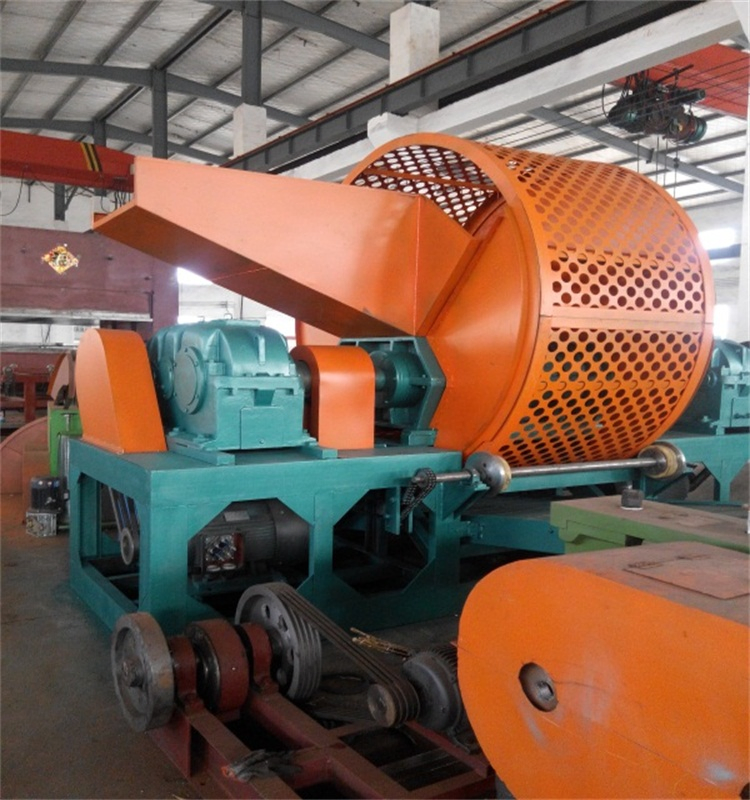

4. Whole Tyre Shredder

Model	ZPS-900	ZPS-1200
Production capacity	1.5-2 Ton/hour	2.5-3 T/h
Size of feeding	≤900 mm whole tyre	≤1200 mm whole tyre
Discharging particles	≤50*50mm	≤60*60mm
Motor powder	60 kw	110 kw
Discharging motor	2.2 kw	4 kw
Weight	9.2 T	14.8 T

Material Note: Knives material is H3 (Germany standard), forged and heat-treated by high frequency for significantly longer life compared to standard 45# steel.

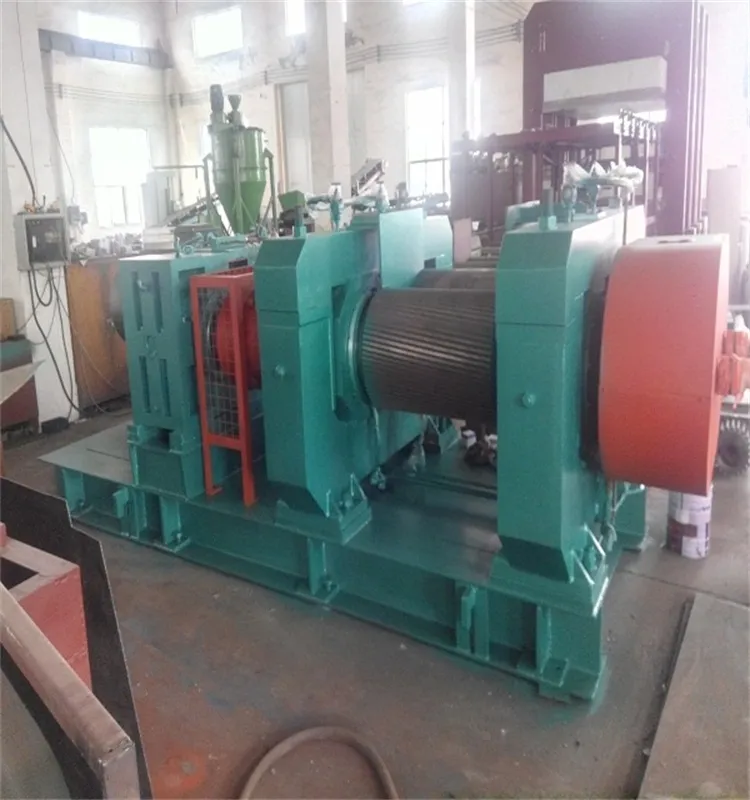

5. Final Products (50x50mm tire blocks) & 6. Tyre Crusher

Type	XKP-400	XKP-450	XKP-560
Front roll diameter(mm)	400	450	560
Rear roll diameter (mm)	400	450	510
Working length of rolls(mm)	600	650	800
Friction ratio	1:1.38	1:1.38	1:1.30
Production capacity(kg/h)	200-300	600-800	Up to 1500
Motor power(kw)	45	55	75
Weight(kg)	7000	12000	18000

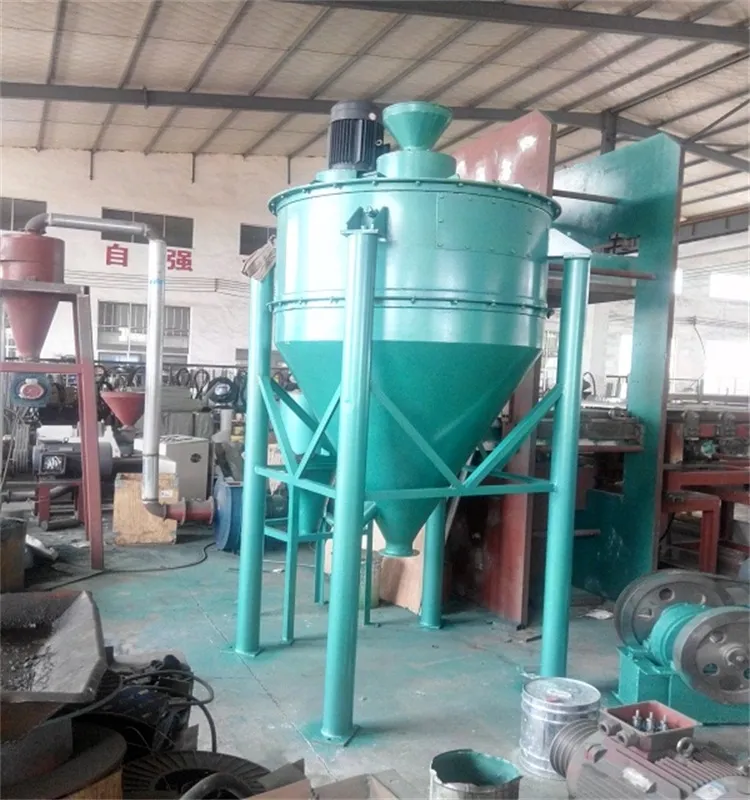

7. Fiber Separator

Capacity: 500-1000kg/h
Motor power: 5.5*2+0.75 kw
Dimension: 1.5*1.5*3.4(m)
Weight: about 1.5T

Frequently Asked Questions

1. What types of tires can this recycling plant process?

The machinery is designed to handle various used tires, including large mining dump truck tires with diameters up to 1200mm.

2. What is the expected production capacity of the line?

The capacity varies by model, ranging from 500kg/h to over 1000kg/h for the full production line, with specific components like the shredder reaching up to 3 tons per hour.

3. What makes the shredder knives durable?

We use H3 Germany standard material for our knives, which are forged and receive high-frequency heat treatment, ensuring a much longer lifespan than standard steel knives.

4. Does the system include a cooling mechanism?

Yes, the production line is equipped with a water cooling system to maintain optimal operating temperatures during the rubber processing.

5. What are the final products of this recycling process?

The system produces high-quality rubber powder, rubber granules, and reclaimed rubber blocks (such as 50x50mm sections).

6. Is technical support available for international customers?

Yes, we provide after-sale services with engineers available for overseas installation, commissioning, and maintenance.
