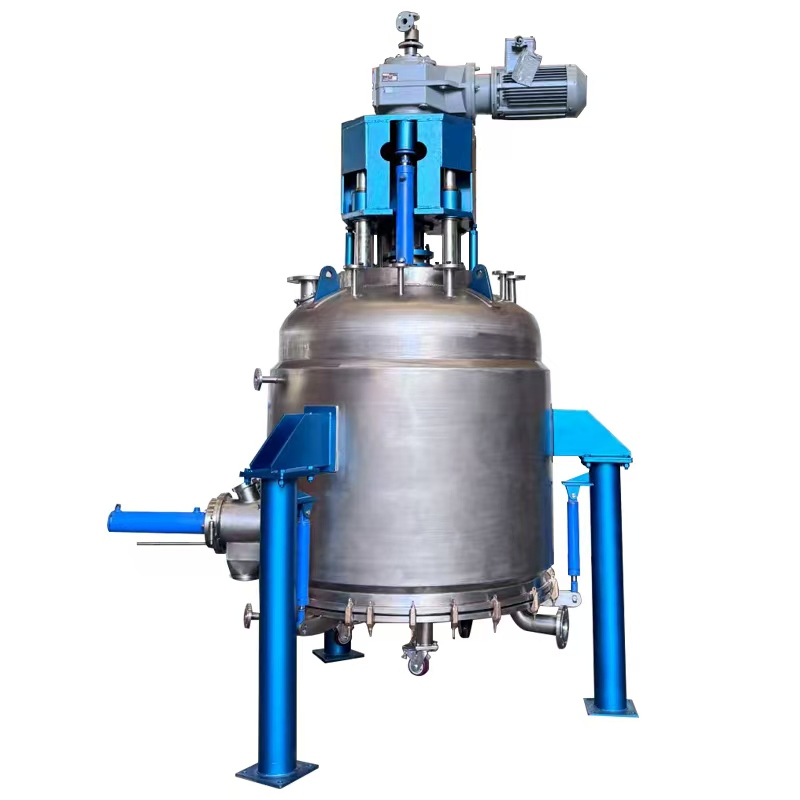

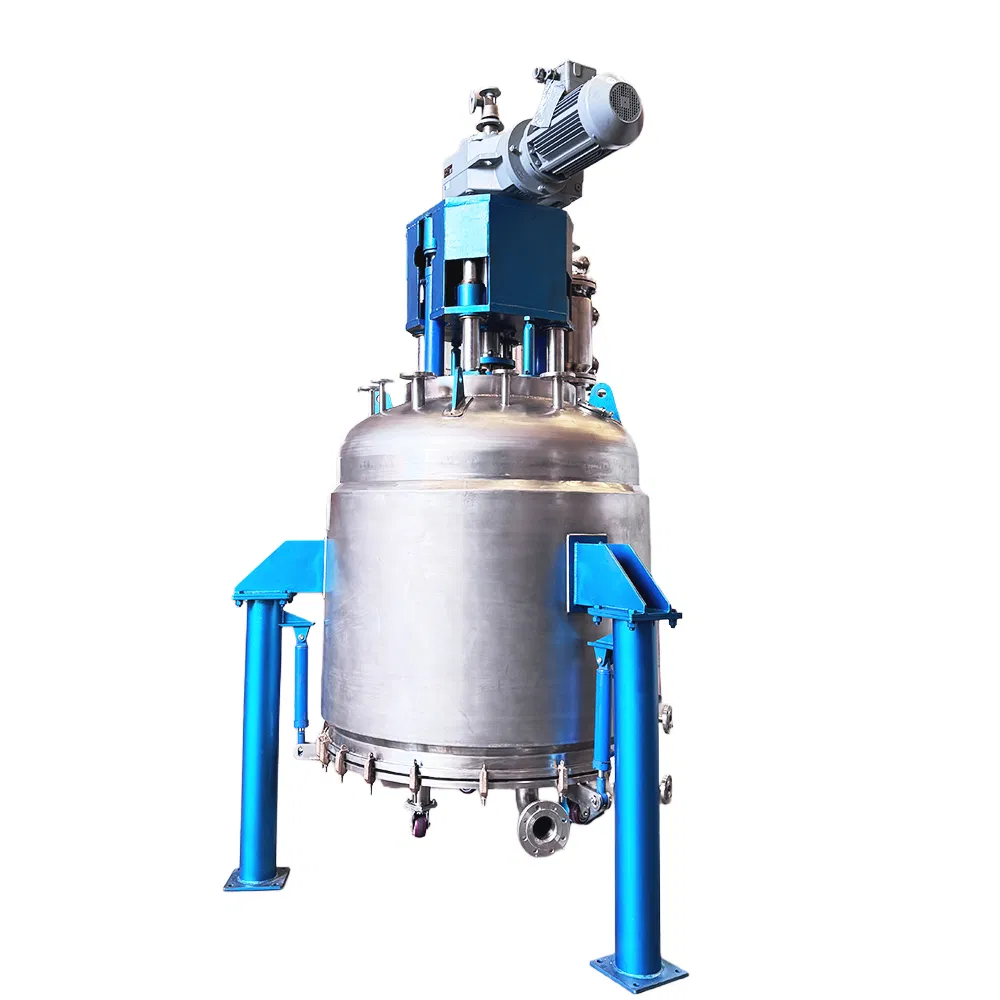

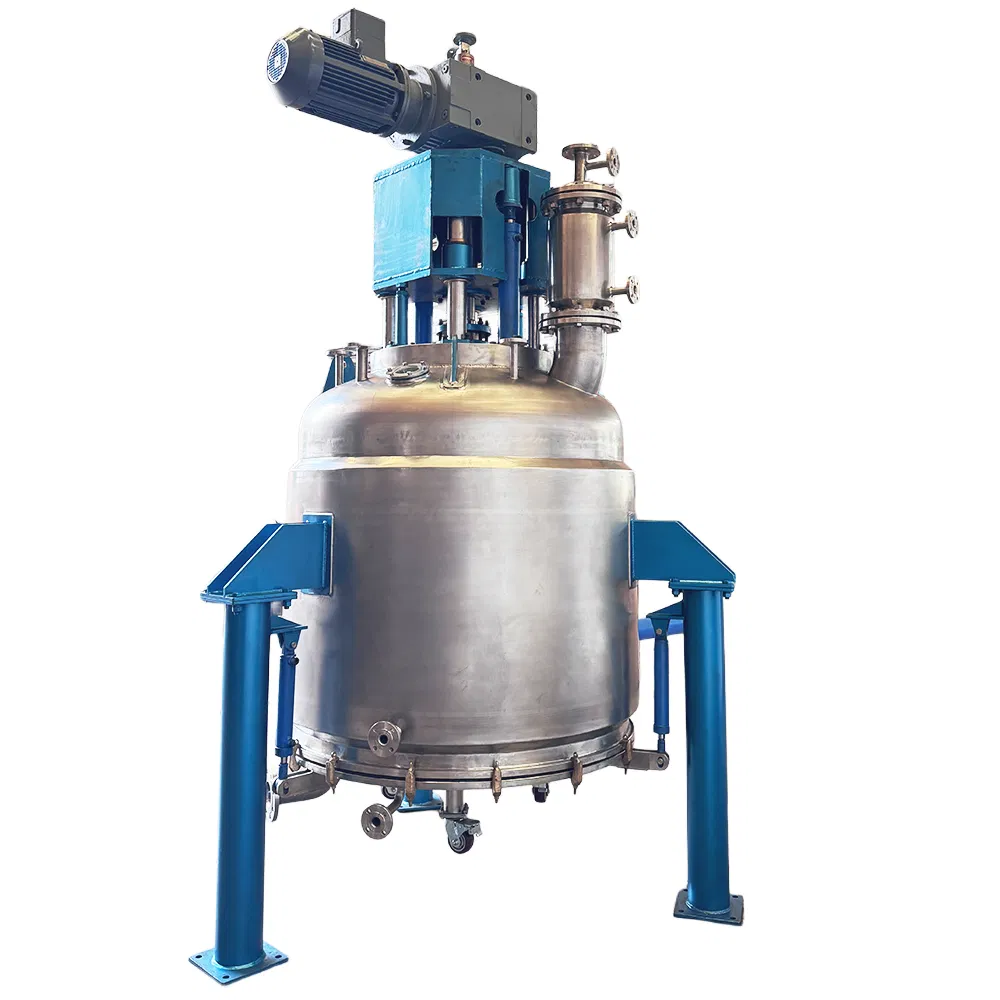

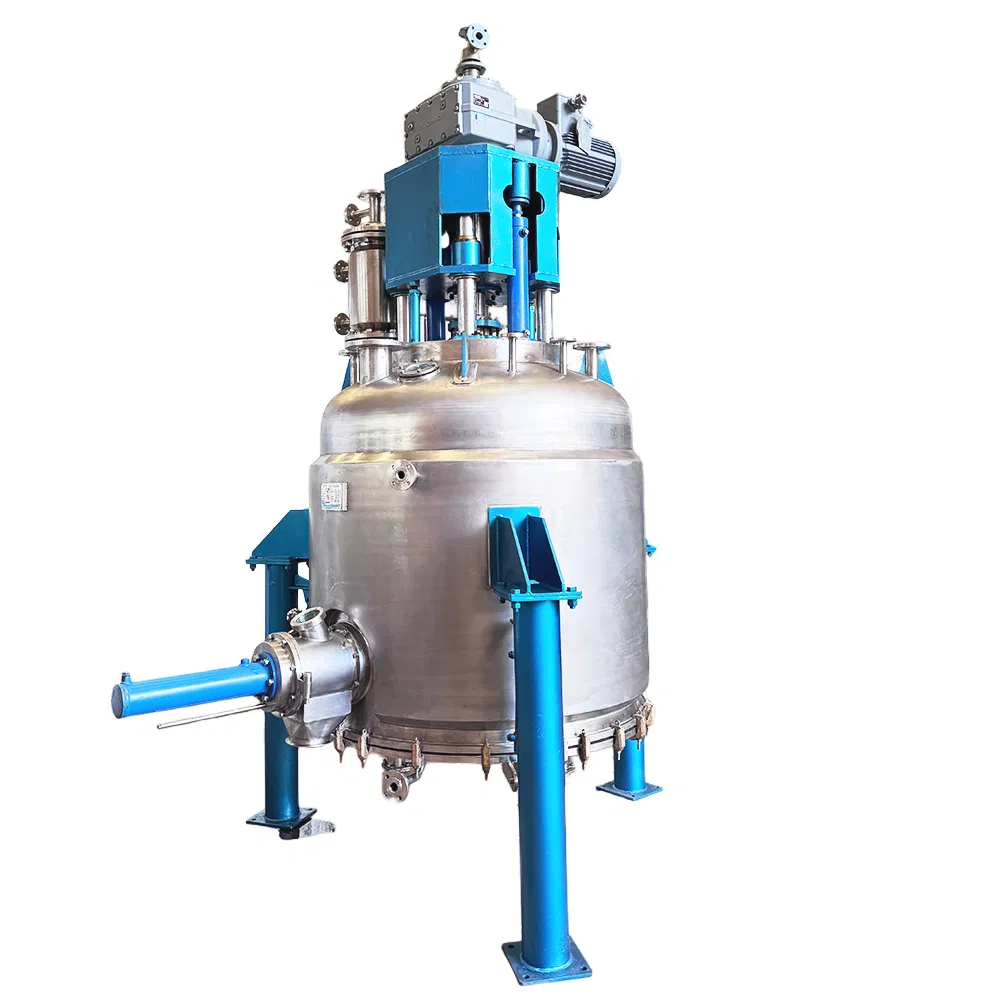

Three-in-one Equipment for Filtering, Washing, and Drying
This multi-functional equipment integrates filtration, washing, and drying processes into a single unit, replacing multiple traditional machines like suction filters, filter presses, and double cone dryers. It enables fully enclosed, continuous operation, making it ideal for pharmaceutical, chemical, and food industries, especially for sterile or toxic product handling.
Filtration Stage: Separation of product filter cake and mother liquor. Supports cake thickness up to 500mm.

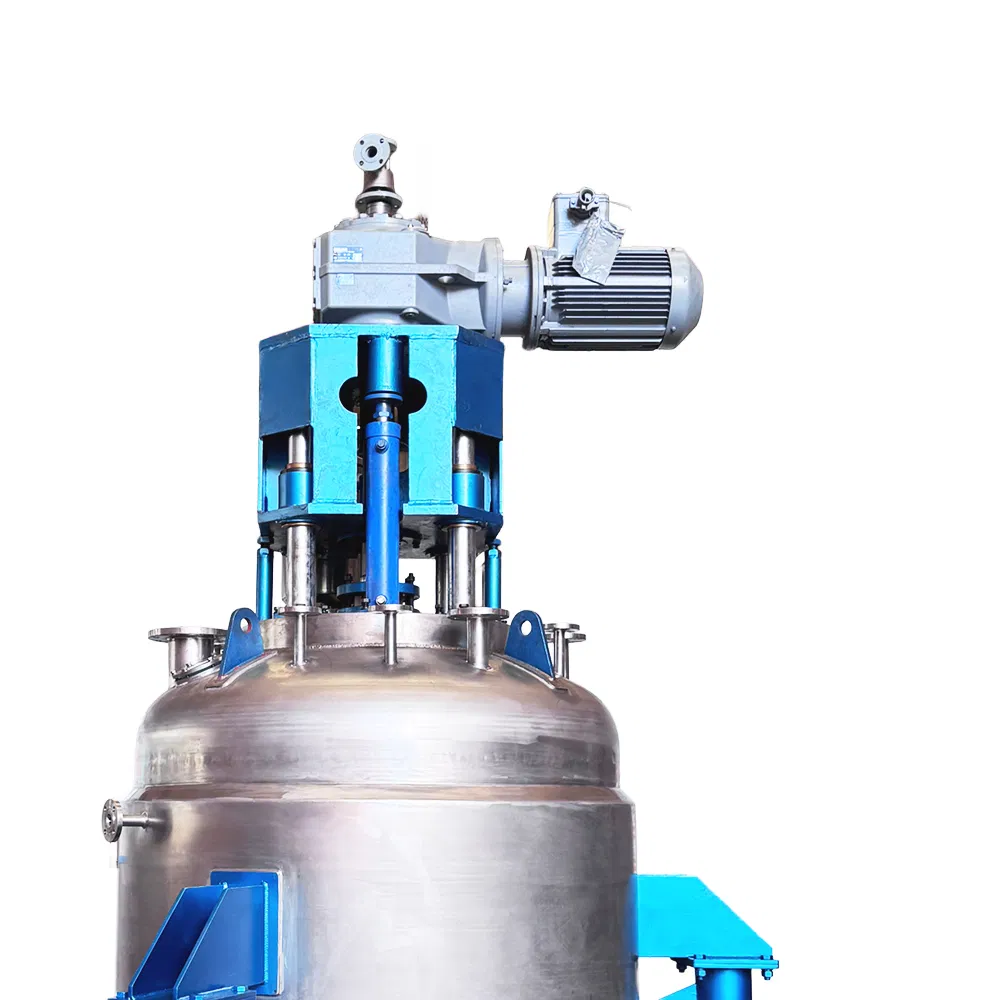

Washing Stage: The filter cake is purified through layer-by-layer mixing using a lifting stirrer, ensuring thorough residual liquor removal.
Drying Stage: Dehydration occurs as the stirrer scrapes and loosens the cake while heated walls and blades accelerate moisture evaporation under vacuum.
| Model (Φ) | Volume (m³) | Filtration Area (m²) | Stirring Stroke (mm) | Motor Power (kw) |
|---|---|---|---|---|
| 1000 | 1.2 | 0.8 | 300 | 5.5 |
| 1200 | 1.5 | 1 | 300 | 5.5 |
| 1400 | 2.2 | 1.5 | 400 | 7.5 |
| 1600 | 3 | 2 | 400 | 7.5 |
| 1800 | 3.5 | 2.5 | 400 | 11 |
| 2000 | 4 | 3 | 400 | 11 |
| 2400 | 6 | 4.5 | 450 | 15 |
| 3000 | 10.2 | 7 | 500 | 22 |

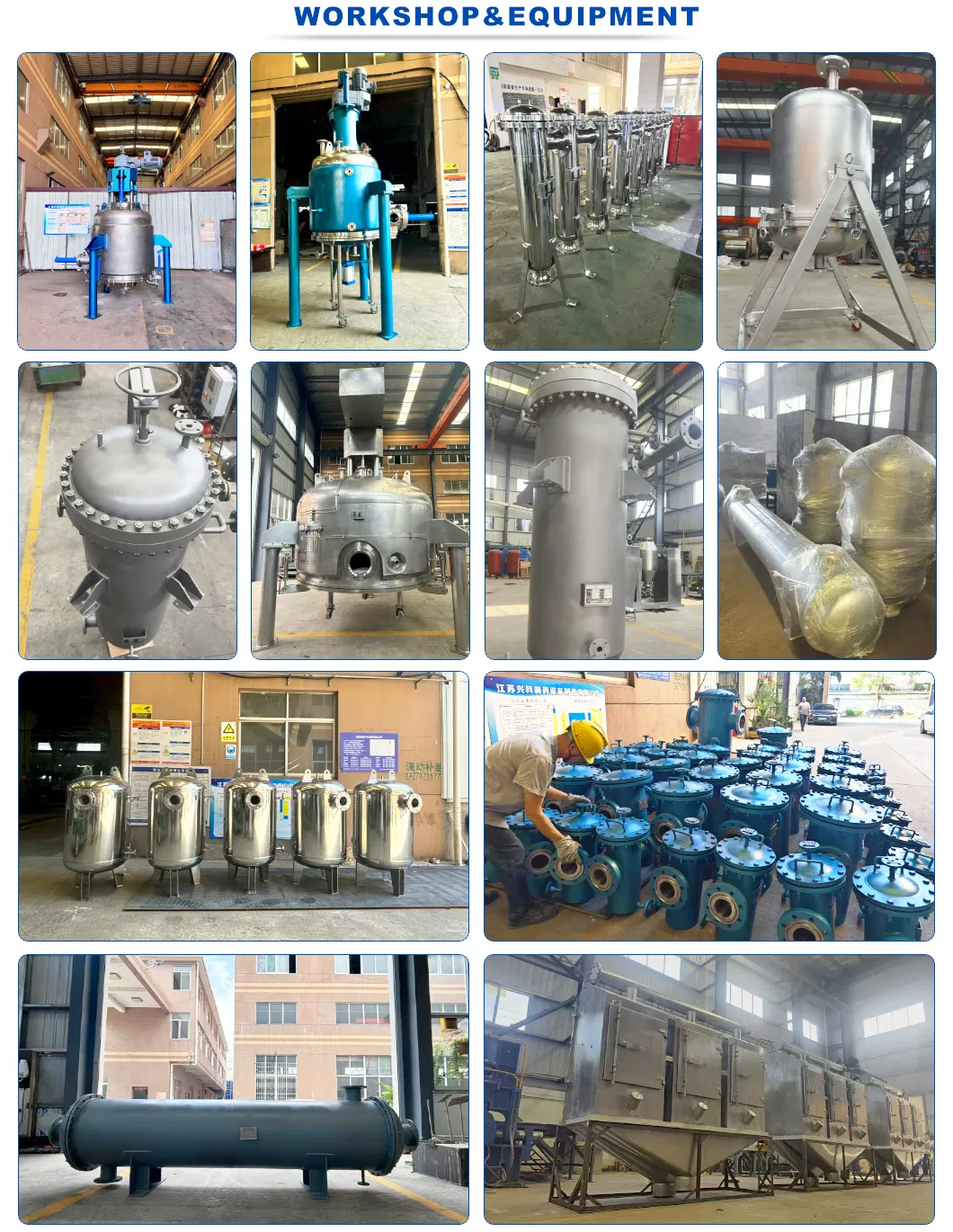

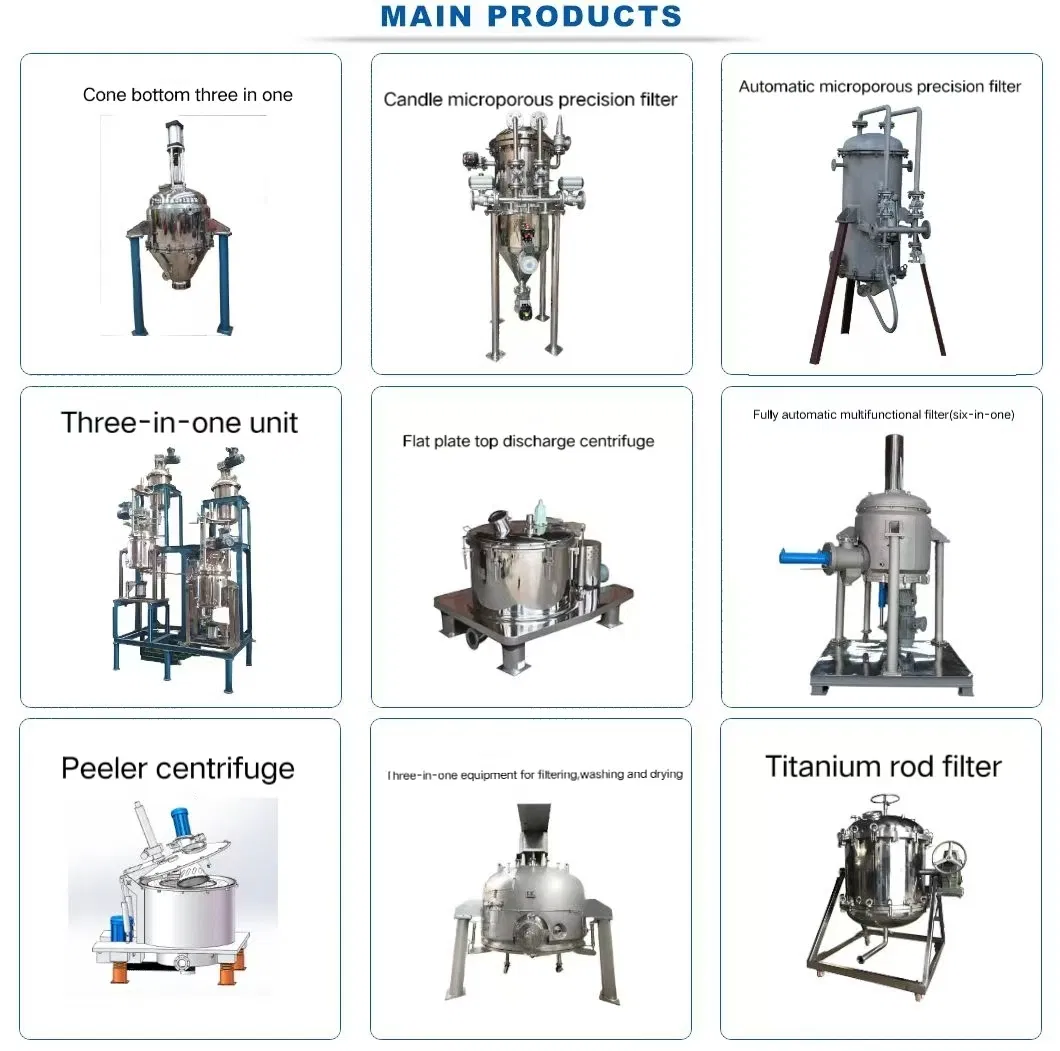

Our portfolio includes: Fully automatic PA/PE microporous precision filters, plate filters, bag filters, membrane cartridge filters, custom-designed filtration solutions, rapid granulators, crushers, and various pressure vessels.

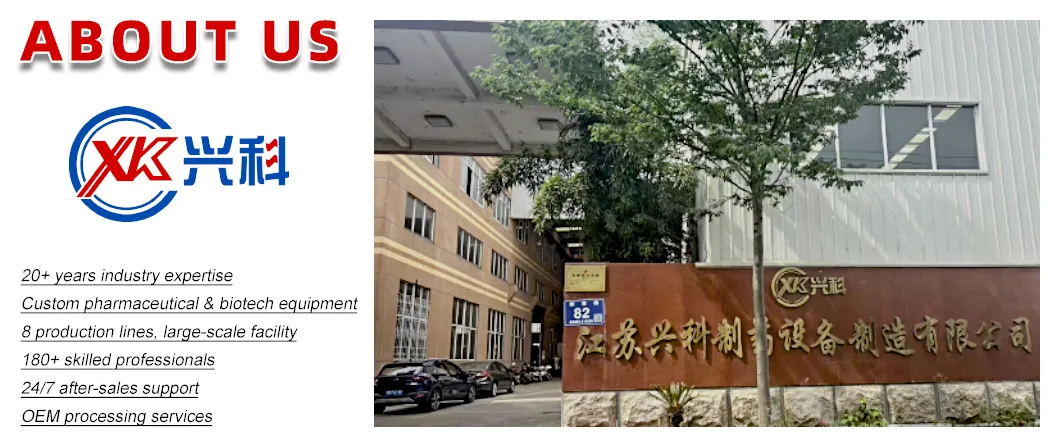

With over two decades of expertise in machinery R&D and production, we specialize in delivering customized equipment for the pharmaceutical, chemical raw material, and biotechnology industries. We ensure superior performance and reliability in every product, adhering to strict quality-first principles.
