| Model NO. | YIF |
|---|---|
| Application | Granules, Liquid with Suspended Solids, Powder, Viscous Fluid |
| Application Area | Agricultural Chemicals, Chemical, Food, Pharmaceutical |
| Certification | CCC, CE, ISO |
| Control System | Touch Screen Control |
| Heating Method | Steam / Electric Heating |
| Main Material | Stainless Steel |
| Mixing Capacity | 10-10000L |
| Mixing Drum Shape | Double Cone |
| Speed Range | 60 R/min & Above (Variable Speed) |

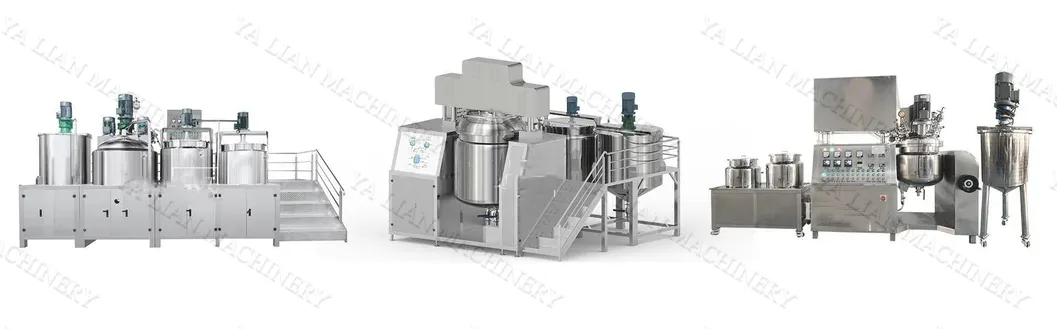

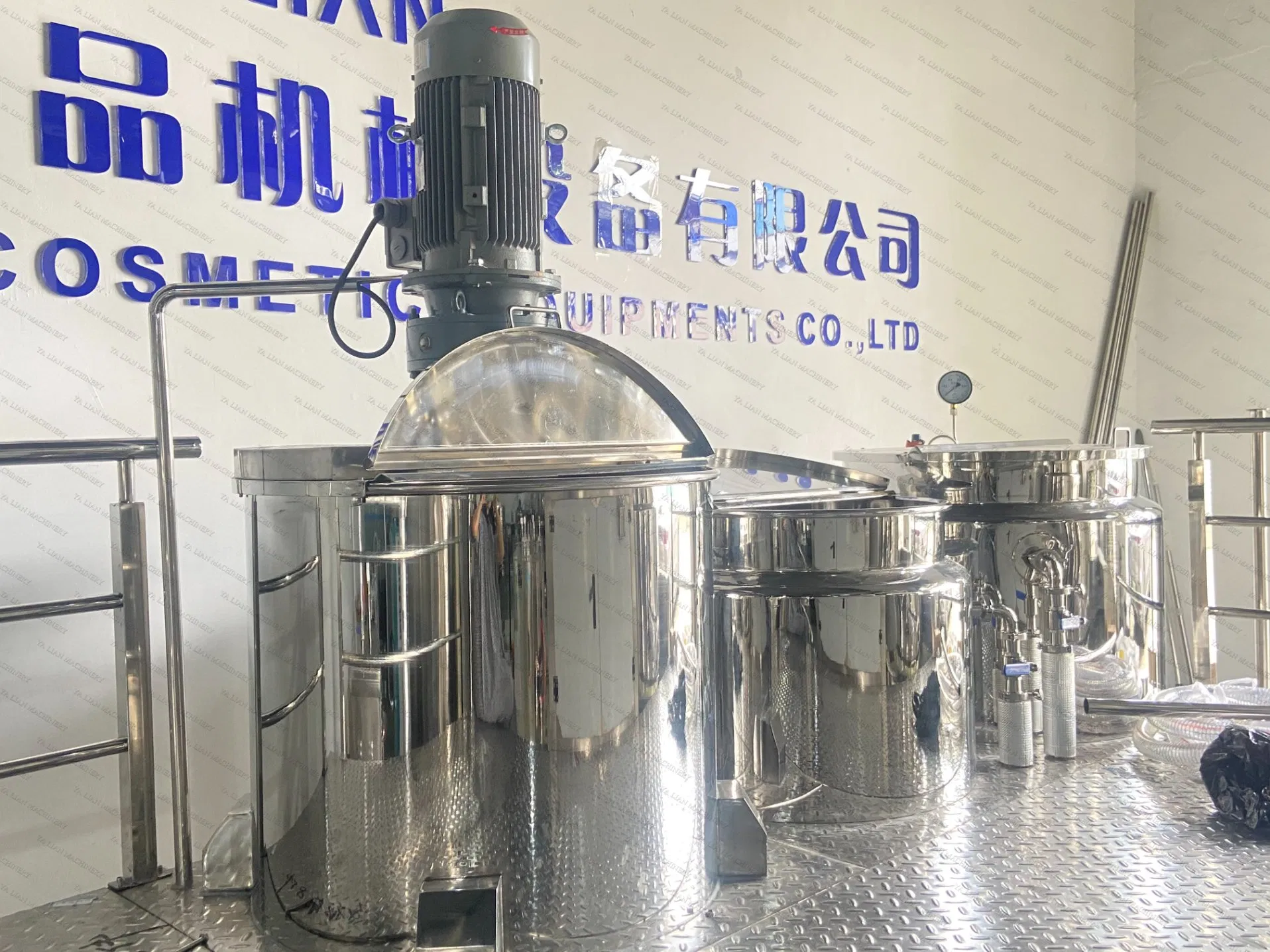

Hydraulic lifting vacuum emulsifier mixer
The vacuum paste making machine is the key process of toothpaste production. The working principle of the equipment is to put various raw materials into the paste making machine in turn according to a certain production process, and through strong stirring, dispersing and grinding, the various raw materials are fully dispersed and mixed evenly. Finally, it becomes a paste by vacuum degassing.
The system has optimized scraping paddles, high-speed dispersion systems, high-shear homogenization systems, and vacuum systems to improve the performance of the overall equipment. It is an ideal toothpaste production equipment, also suitable for the preparation of products with high viscosity and large proportion of powder such as medical anesthesia ointments.

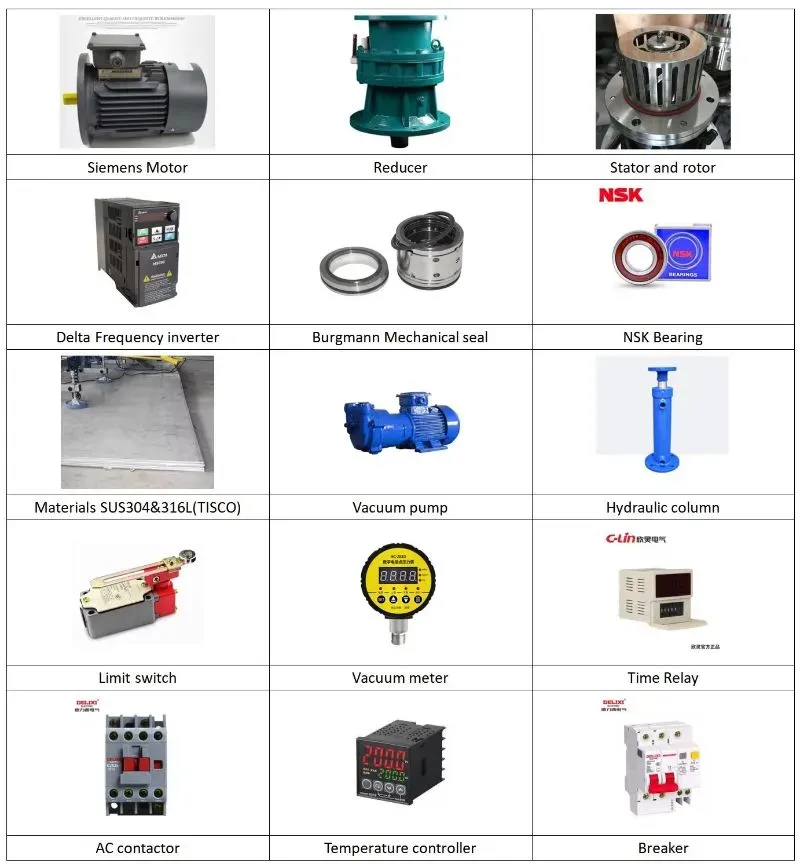

Standard Configuration:
Working Principle:

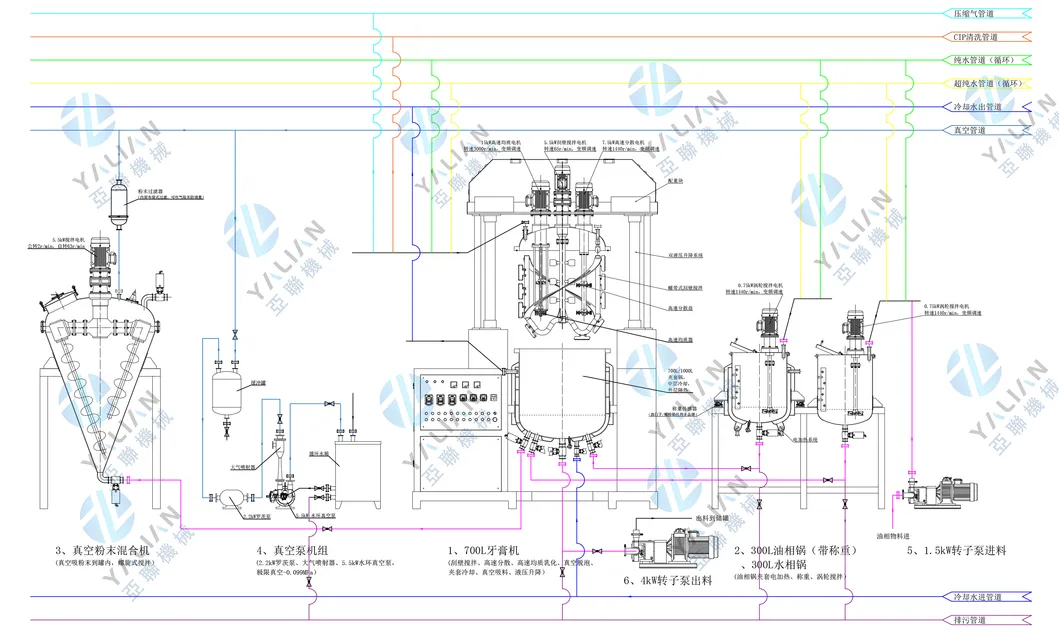

Materials in the water and oil phase tanks are heated and stirred before being transferred to the emulsifying tank via vacuum pump. The central paddle and PTFE scraper sweep the wall, pushing material to the high-speed homogenizer. The material is sheared and cracked into 200nm - 2um particles, with bubbles removed under vacuum status.

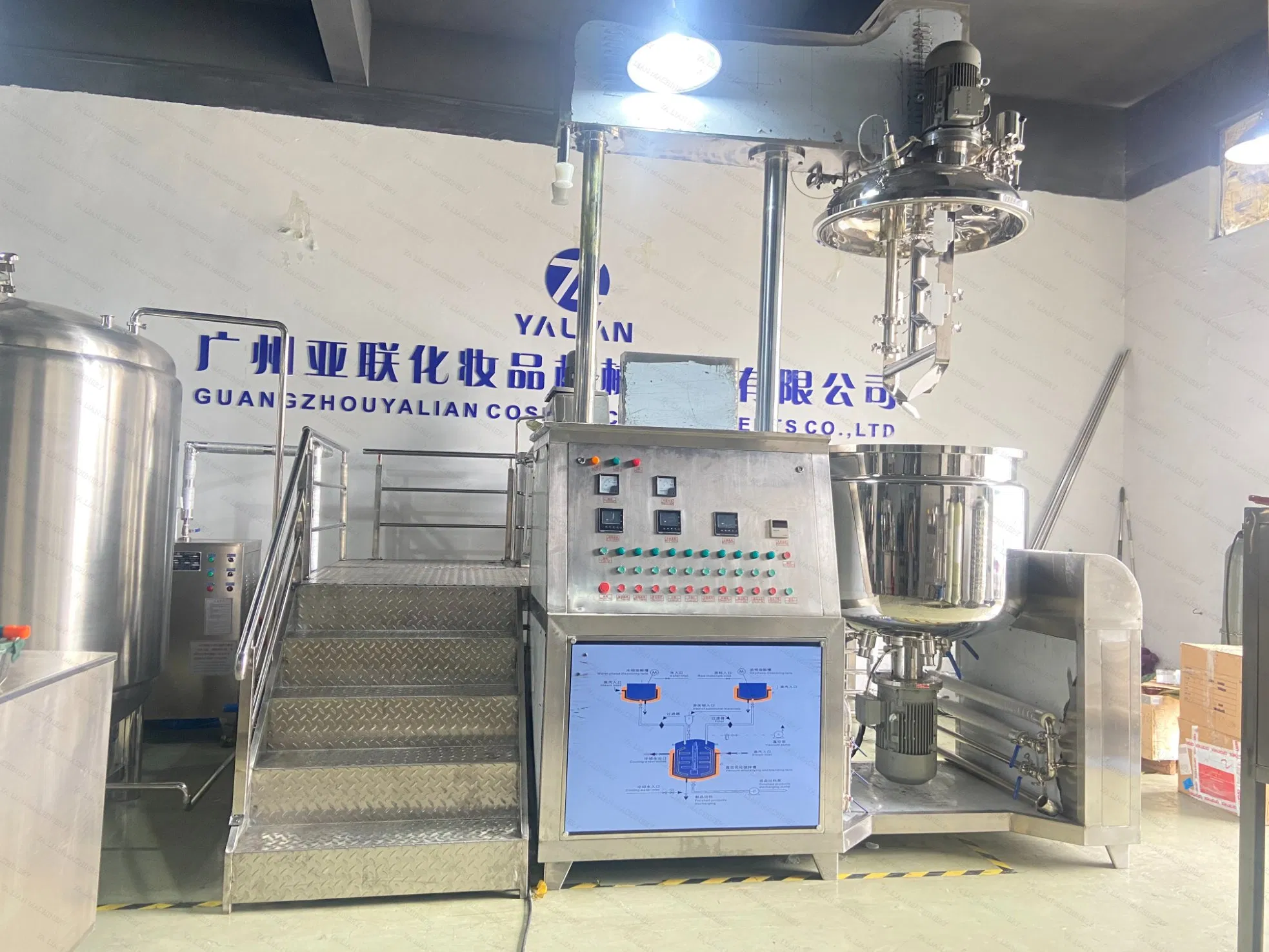

Complete Paste Making System

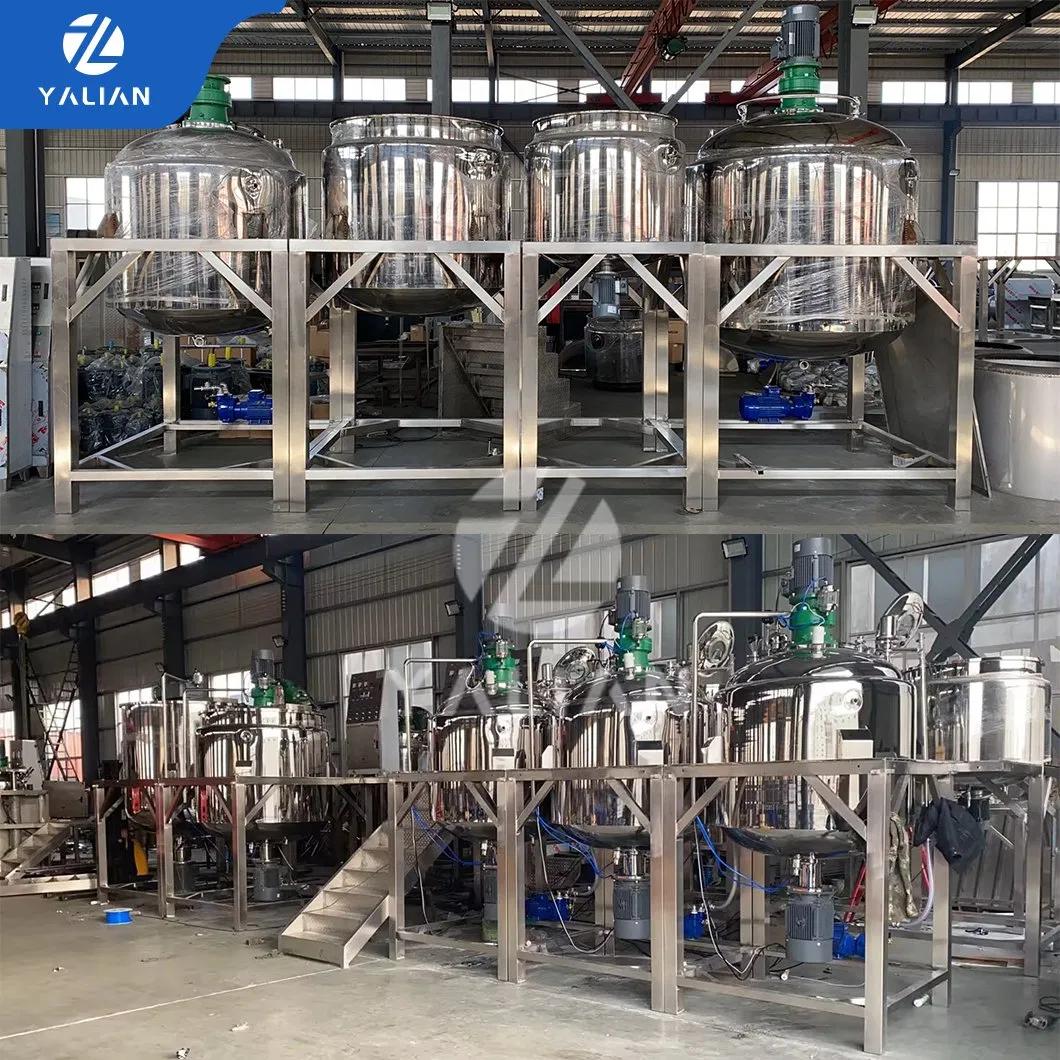

Water & Oil Premixing Tank

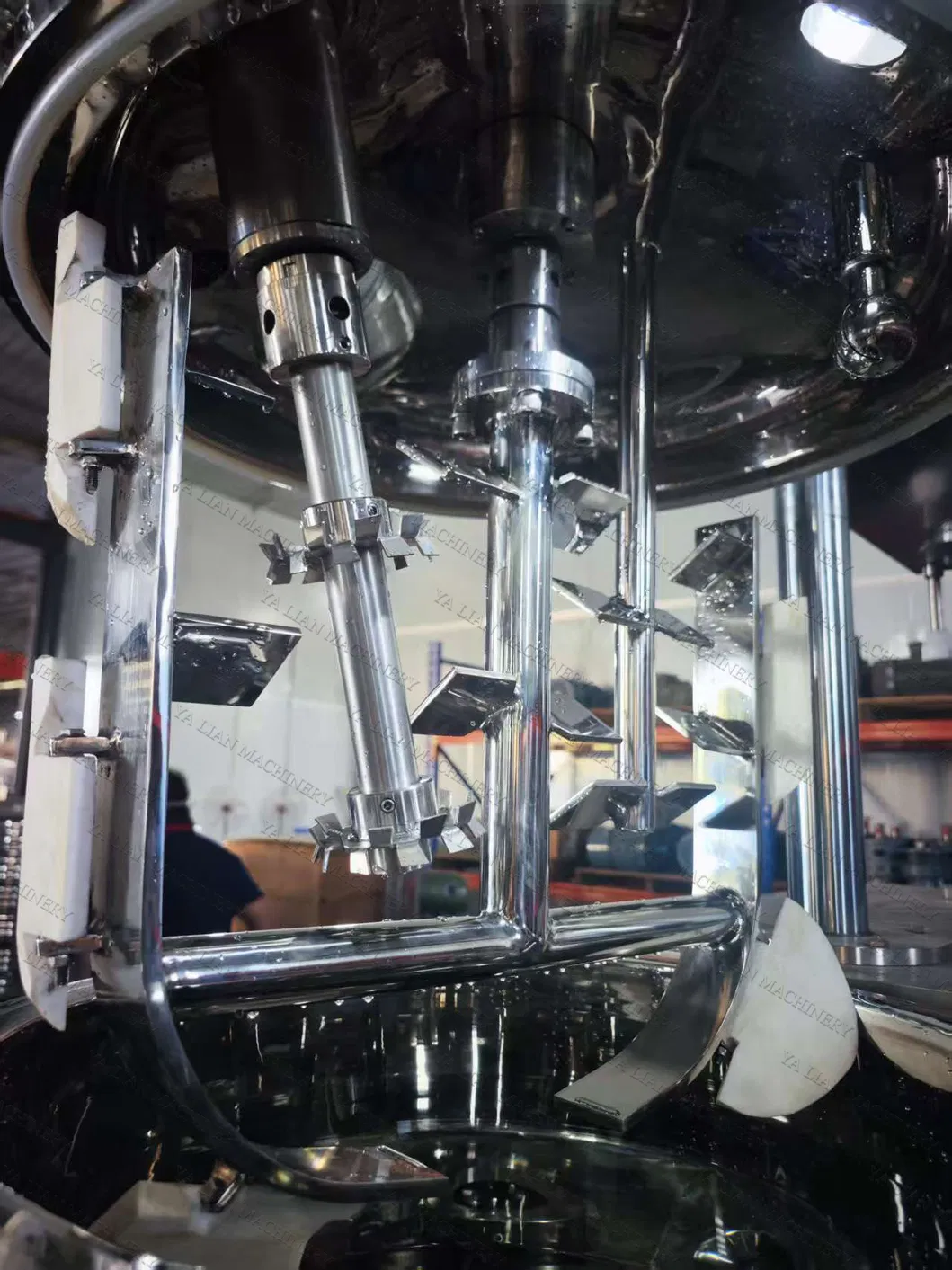

Top Scraper Mixer and Dispenser

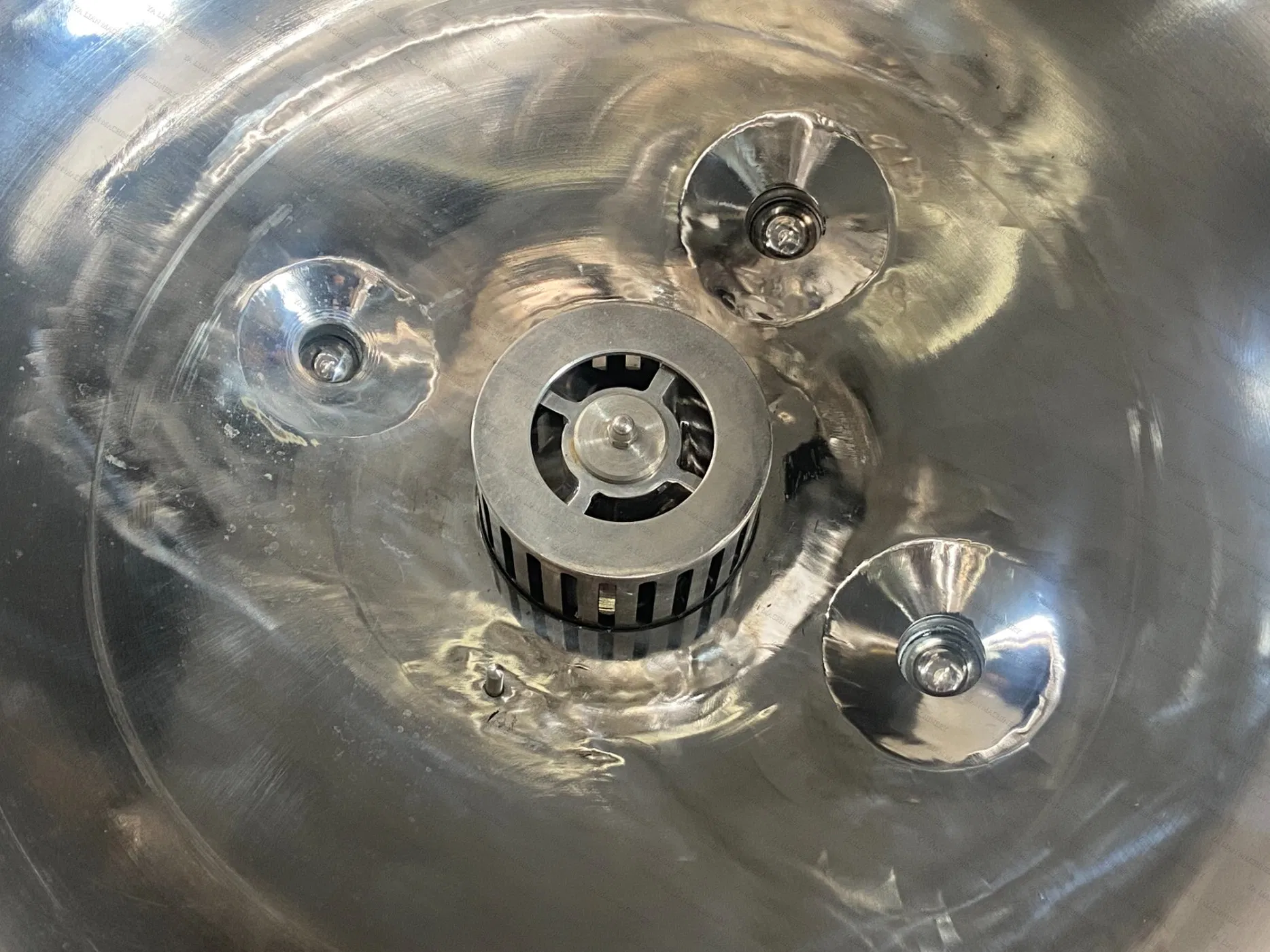

High-speed Homogenizer

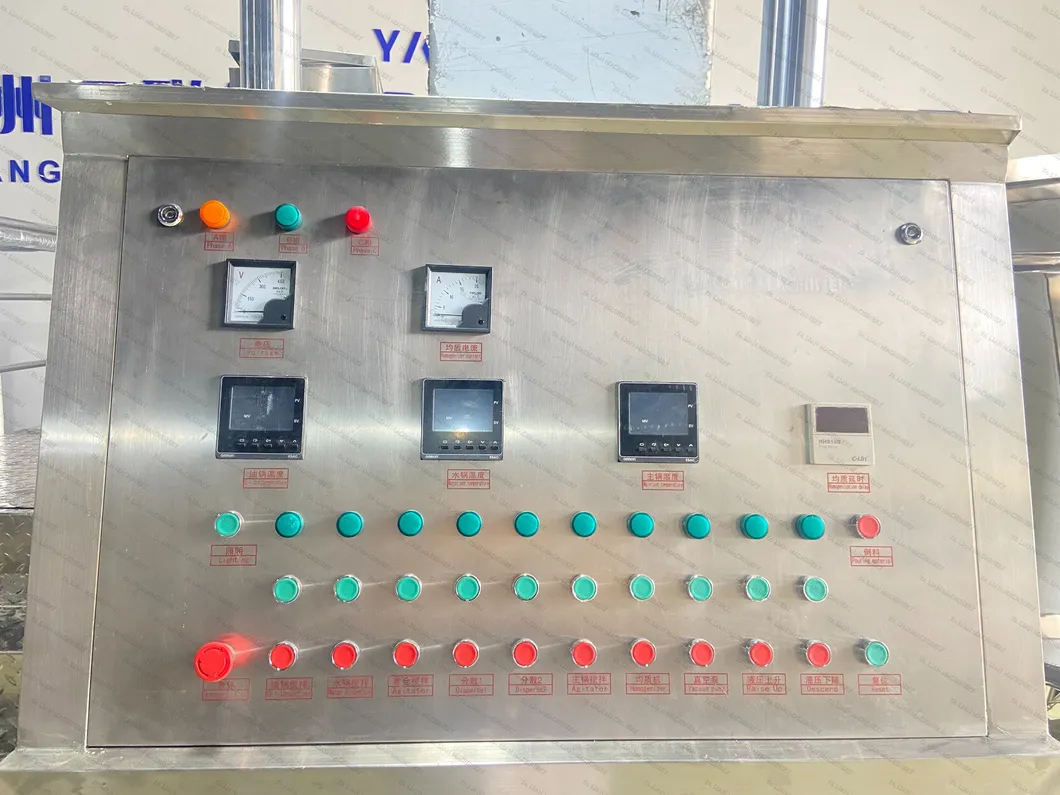

Integrated Control Panel

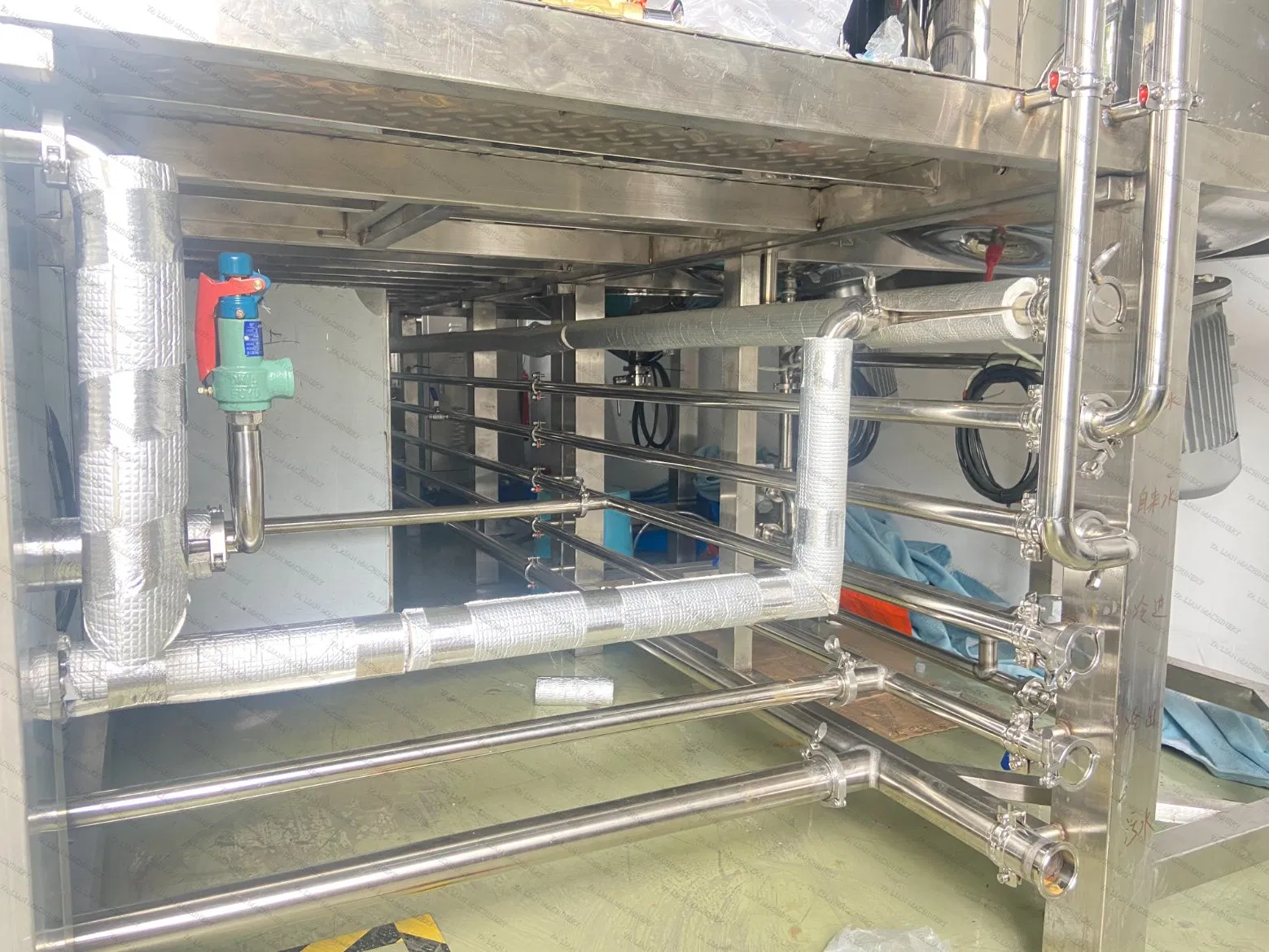

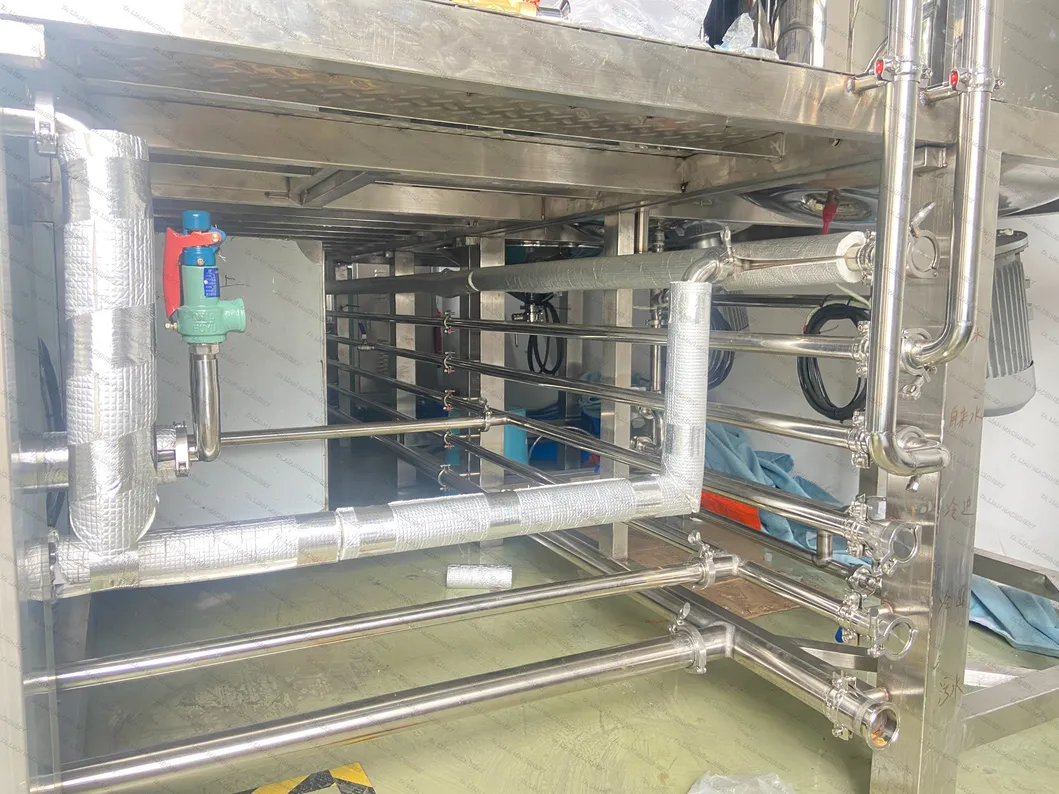

Stainless Steel Pipeline System
| Working Capacity | 300L |
|---|---|
| Heating Method | Steam / Electric |
| Mixing Type | Upper frame oar scraper mixer |
| Mixing Speed | 0-65 rpm |
| High-speed Disperser | 5.5KW (2 sets) |
| Homogenizer Type | Bottom homogenizer with frequency inverter |
| Homogenizer Speed | 0-3000 rpm (50Hz) / 0-3600 rpm (60Hz) |
| Vacuum System | Water cycle vacuum pump (2.2KW) |
| Tank Materials | Inner: SUS316 (8mm); Middle/Outer: SUS304 |
