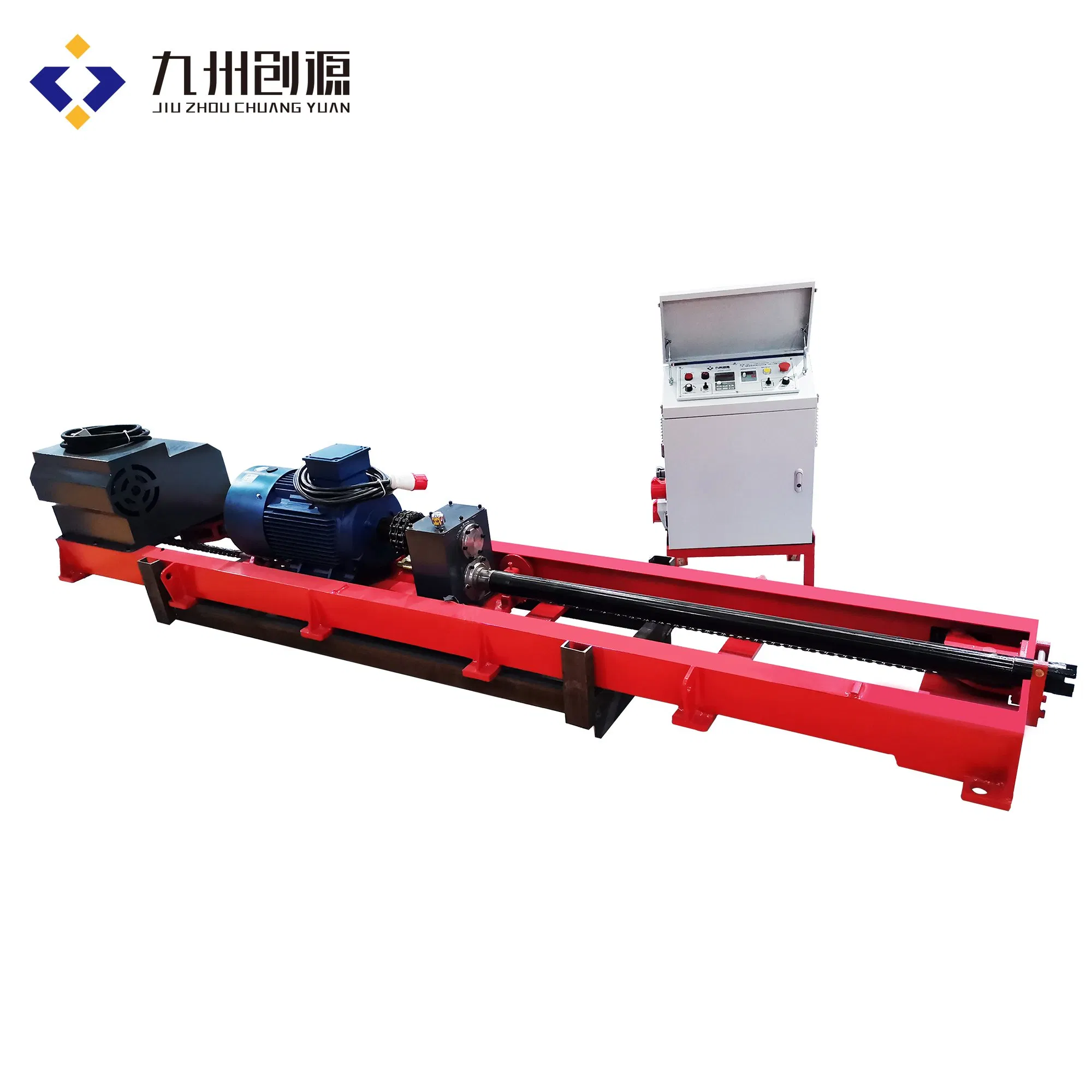

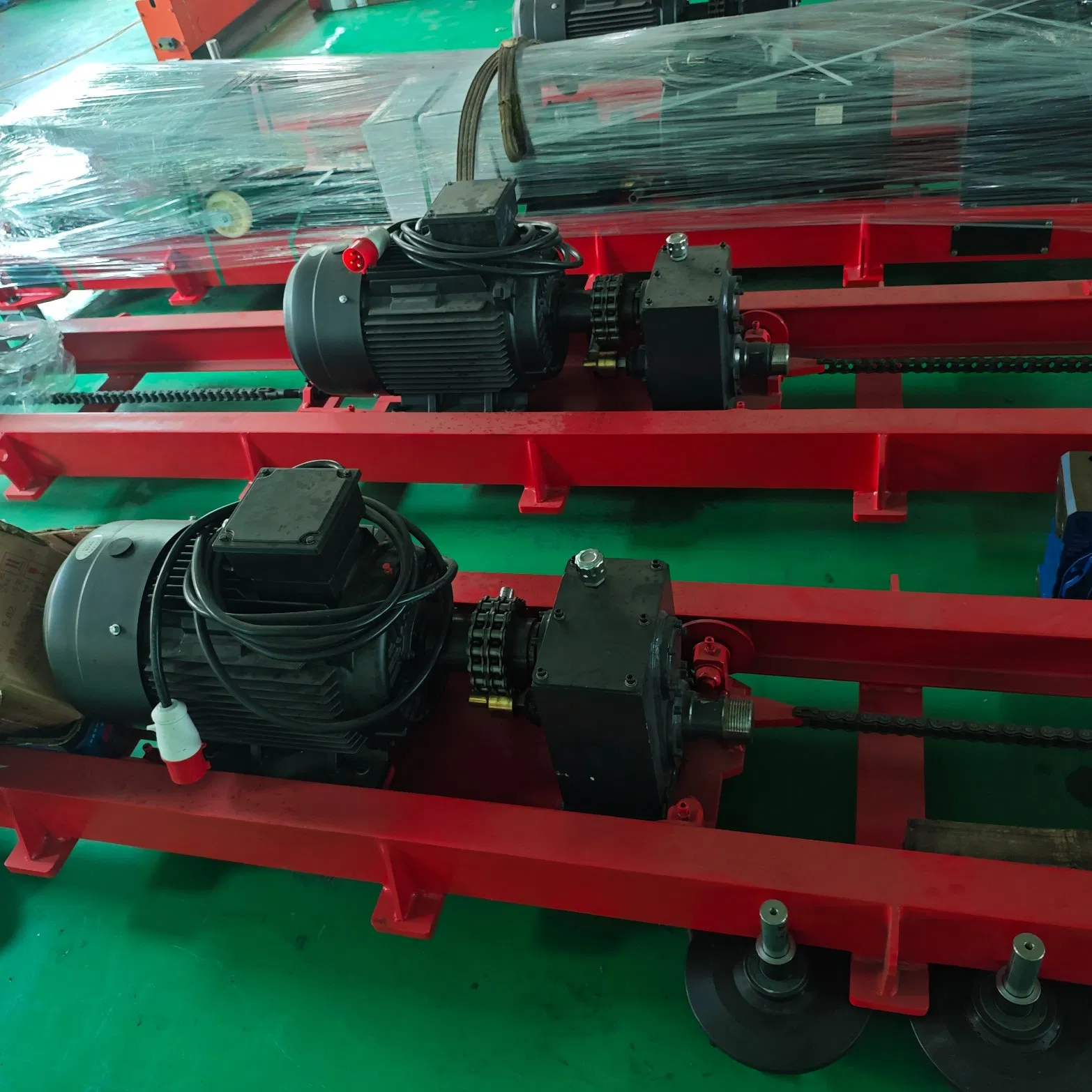

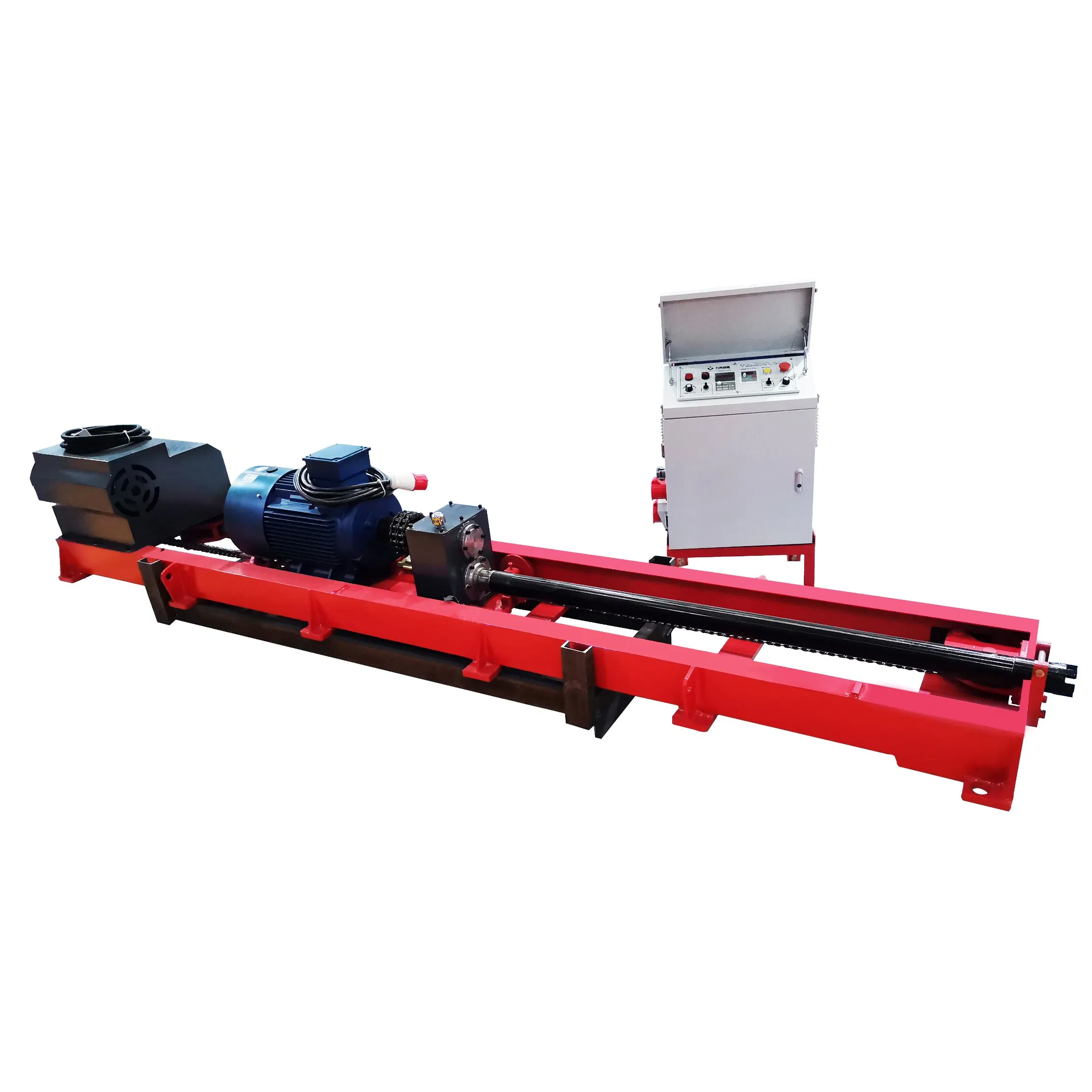

Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine
Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine
Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine
Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine
Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine
1 / 5
Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine
Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine
Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine
Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine
Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine

Stone Mining Quarry Mable Granite Horizontal Diamond Core Drill Machine

Customization: Available
After-sales Service: Online Technician Support/Videos of Training
Warranty: 1 Year
Send Inquiry

Product Description

⚙️

Basic Specifications

Model NO.
CYSZS
Mainmotor Power
15kw
Rotation Mode
Frequency Conversion Speed
Walking Motor Power
0.75kw
Moving Forward Mode
Frequency Conversion Propulsion
Diameter of Drill Hole
76mm
Drilling Rod Spec.
73*1500mm
Single Feeding Distance
1500mm
Speed of Drilling
2-8m/S
Max. Depth of Drill Hole
35m
Power Type
Electric
Voltage
380V
Type
Core Drilling Rig
Production Capacity
800sets/Year
📦

Packaging & Delivery

Package Size
380.00cm * 75.00cm * 75.00cm
Package Gross Weight
1000.000kg
Transport Package
Polywood Export Standard Packing
📊

Product Parameters Comparison

Model Parameter CYSZD CYSZS
Mainmotor power15KW15KW
Rotation modeFixed SpeedFrequency Conversion Speed
Walking motor power0.45KW0.45KW
Moving forward modeConverter controllingConverter controlling
Diameter of drill holeΦ76MMΦ76MM
Drilling rod (dia.*length)Φ73*1500MMΦ73*1500MM
Single feeding distance1500MM1500MM
Speed of drilling2-8M/S2-8M/S
Min pressure for water supply0.1Mpa0.1Mpa
Max depth of drill hole130MM130MM
Net weight1050KG1100KG
🖼️

Product Gallery & Details

Stone Mining Core Drill 1

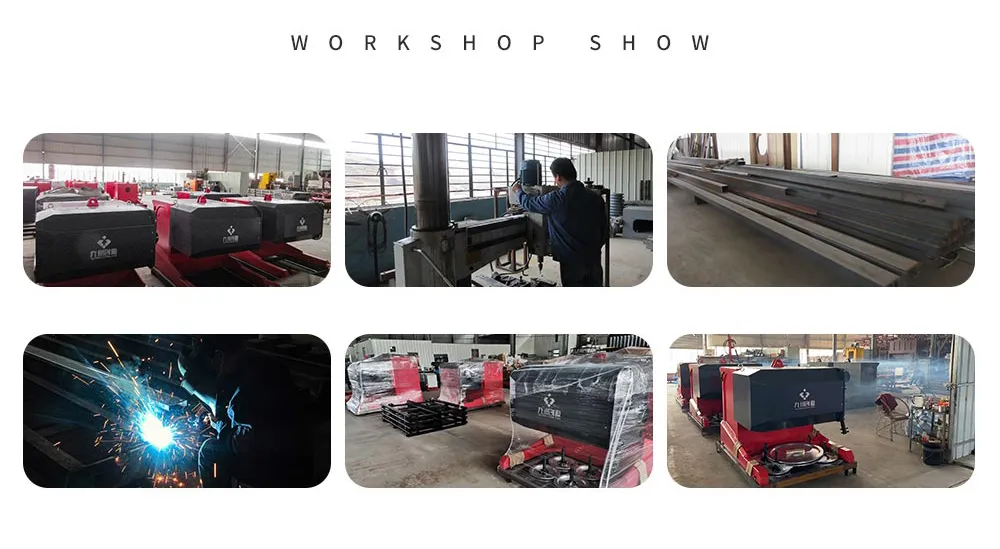

Stone Mining Core Drill 2

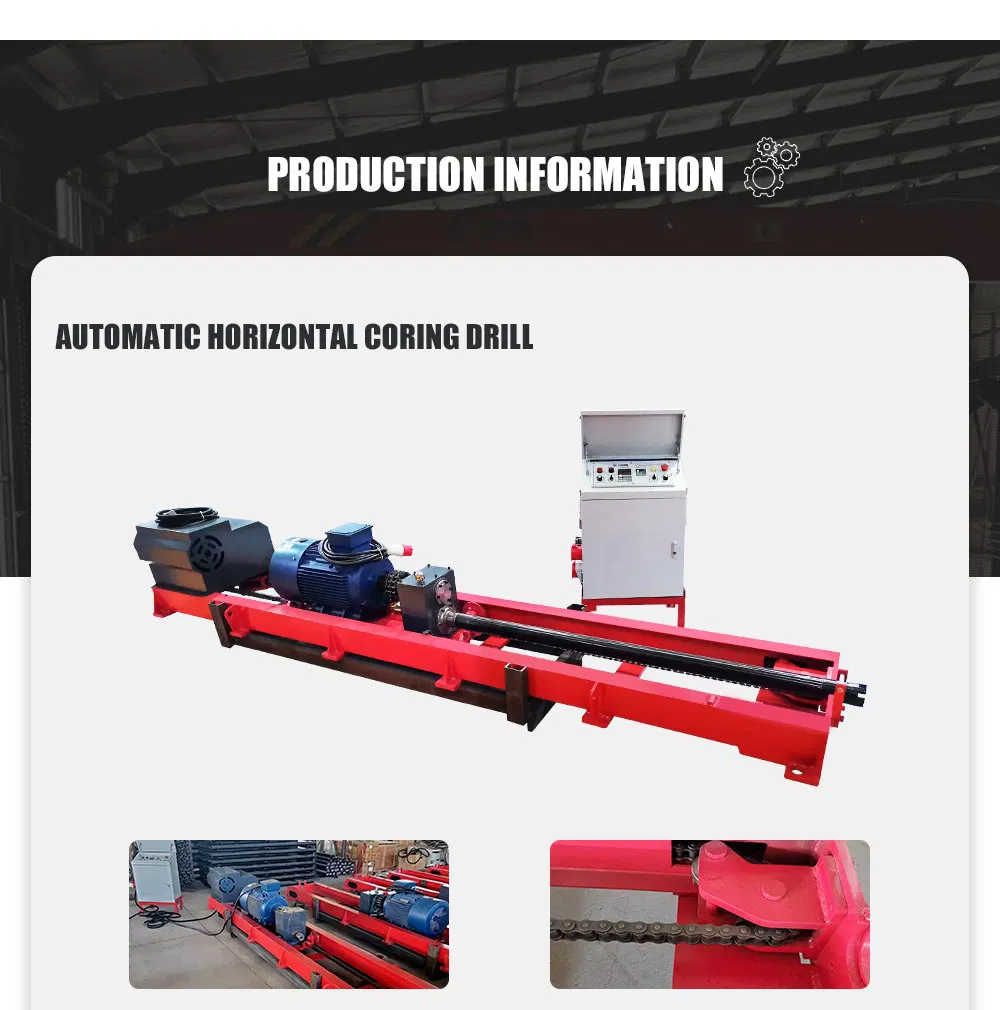

Stone Mining Core Drill 3
Stone Mining Core Drill 4

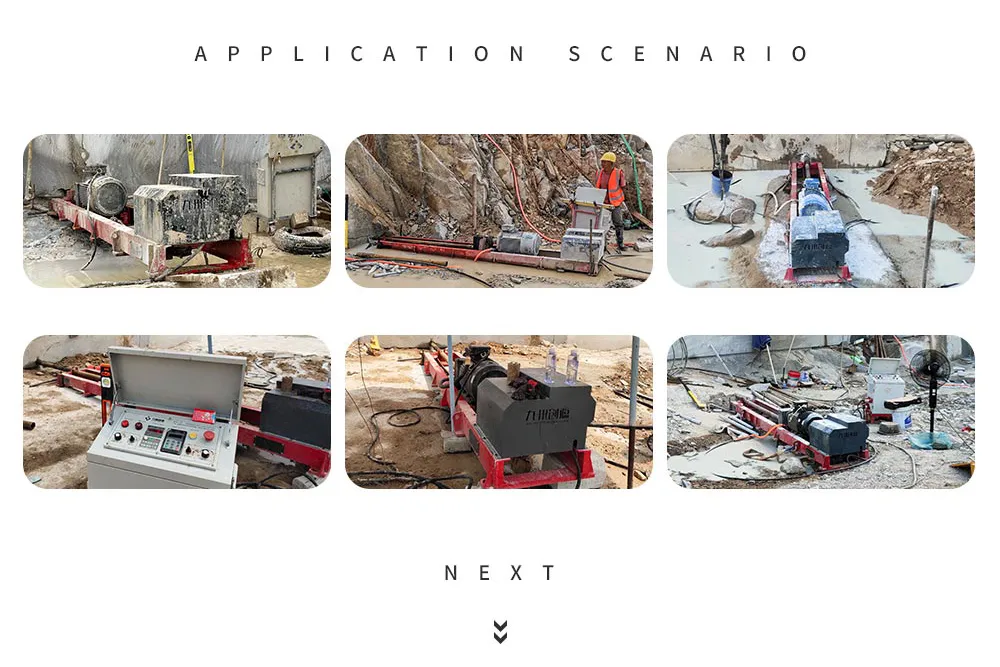

Stone Mining Core Drill 5
Stone Mining Core Drill 6
Stone Mining Core Drill 7
Stone Mining Core Drill 8

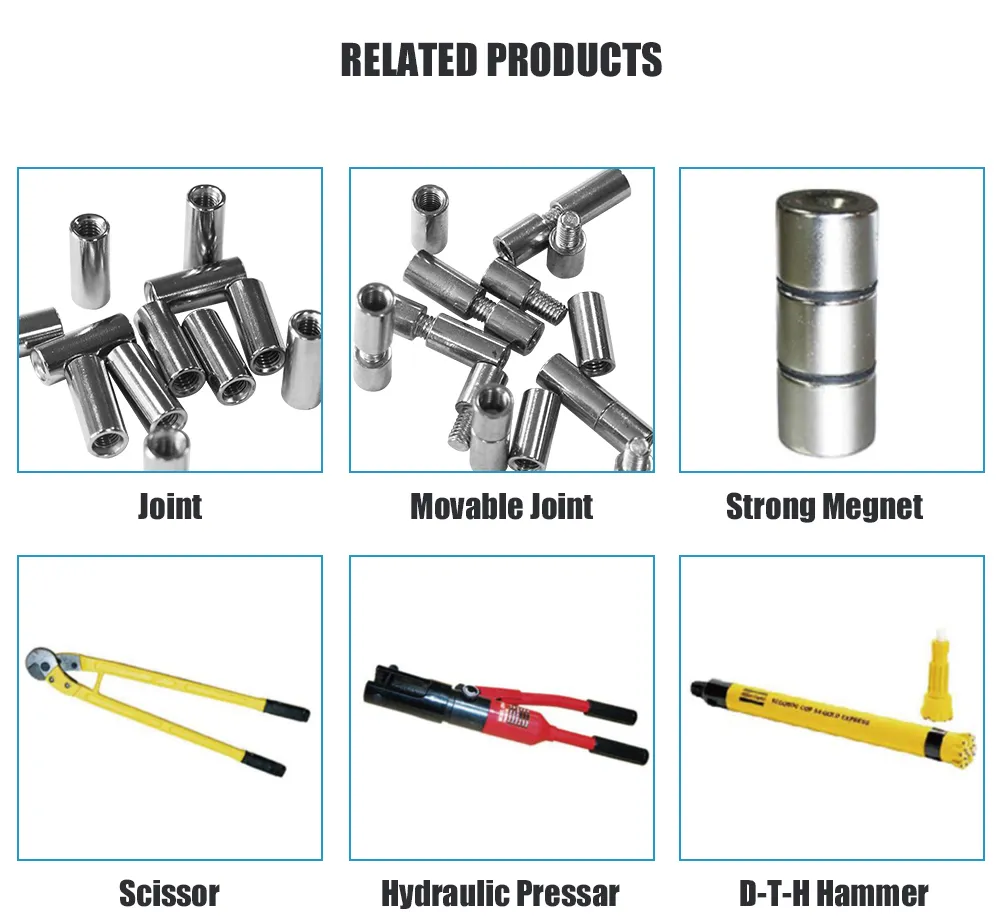

Stone Mining Core Drill 9

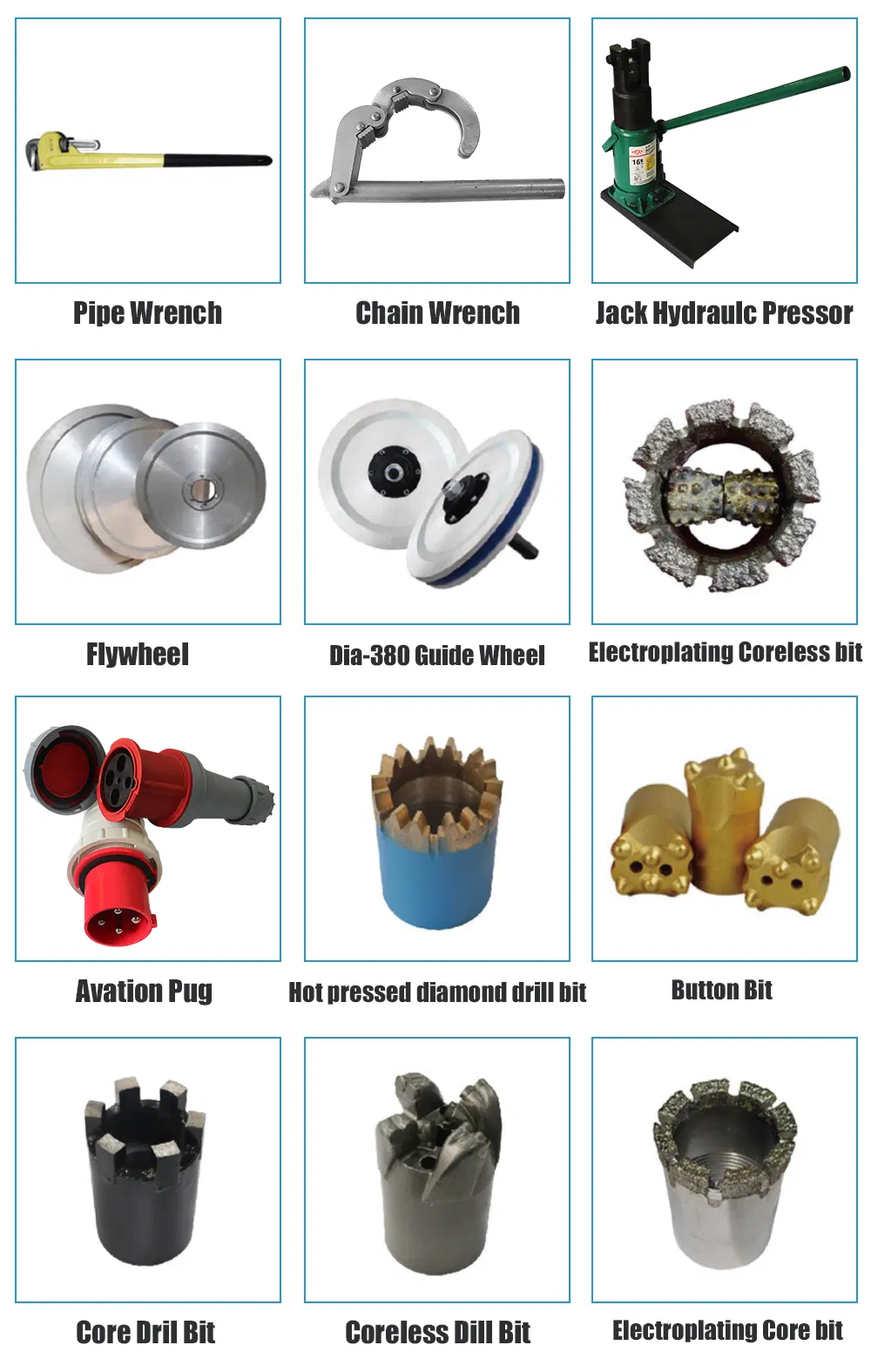

Stone Mining Core Drill 10
❓

Frequently Asked Questions

What is the maximum drilling depth of this machine?
The horizontal diamond core drill machine can reach a maximum drilling depth of 35 meters, depending on the geological conditions.
What power source is required for operation?
This drilling rig operates on an electric power type with a standard voltage requirement of 380V.
Does the machine support variable rotation speeds?
Yes, the CYSZS model features Frequency Conversion Speed rotation mode, allowing for adjustable speeds based on the hardness of the stone.
What are the cooling requirements during drilling?
A cooling water supply with a minimum pressure of 0.1Mpa is required to ensure the longevity of the diamond core bits and efficient operation.
What is the standard specification for the drilling rods?
The machine uses high-quality drilling rods with a diameter of 73mm and a length of 1500mm per section.
Is the propulsion system automated?
The machine utilizes a frequency conversion propulsion system and converter controlling for precise moving forward mode during the drilling process.
