Small Sack Feeding Equipment for Efficient Material Handling

Customization:	Available
Capacity(t/h):	150-300
Feeding Rate Control:	Semi-Automatic

Send Inquiry

Product Description

Basic Specifications

Model NO.

WT100/WT150

Material

Stainless Steel

Motor Power(kw)

1~10

Raw Material

Powder/Granule/Pellet

Usage

Chemical Industry, Metallurgy, Mine

Voltage

220V~600V

Certification

CE, ISO

Control Method

Button / PLC

Production Capacity

5000 Pieces/Year

Package Size

200cm * 200cm * 200cm

Product Description

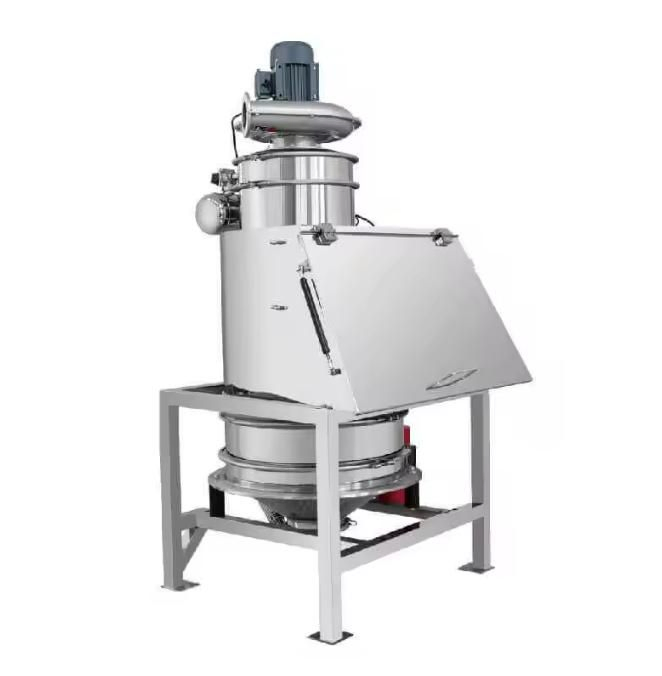

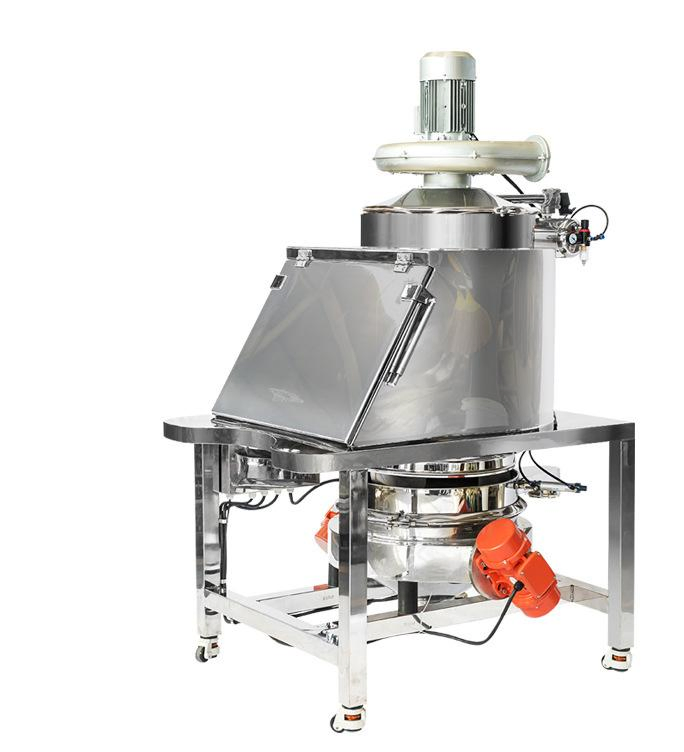

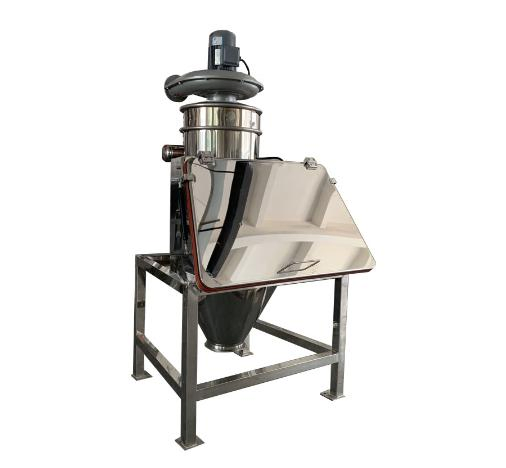

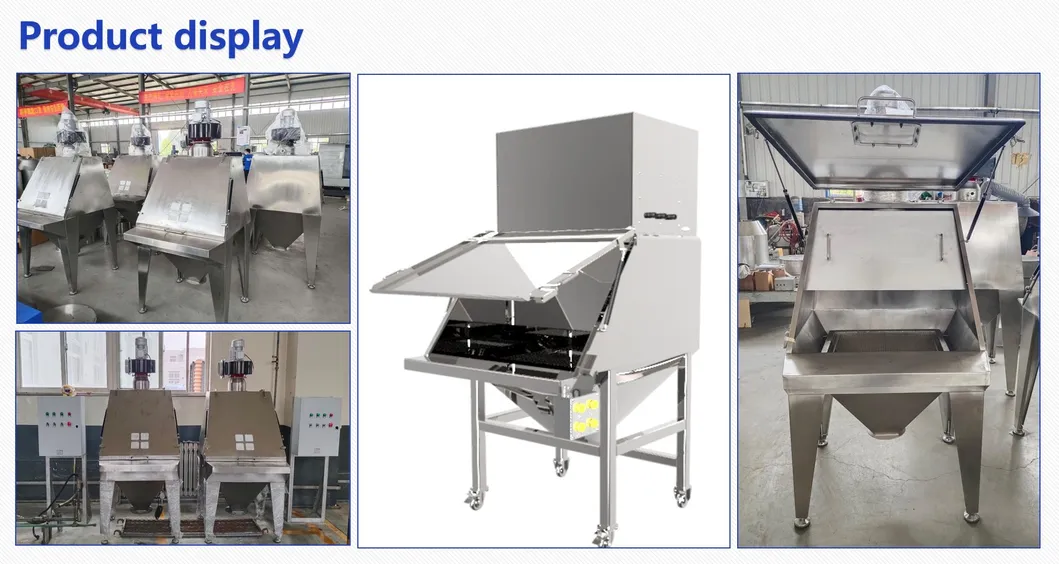

Small Bag Dust-Free Feeding Station: Step into the realm of unparalleled innovation with our meticulously engineered feeding station. Designed with precision, it seamlessly captures and contains dust, forging an oasis of cleanliness. Featuring a state-of-the-art centrifugal fan or exhaust pipe, this system creates a negative pressure environment, expertly separating materials from the air, effectively eliminating dust spread.

During the filter cleaning phase, materials adhering to the filter mesh are deftly rechanneled back into the hopper, minimizing waste and boosting efficiency. Tailored for unpacking, releasing, and unloading small bag materials, this versatile machine integrates seamlessly with material suction machines, pipe chain conveyors, and equipment entrances.

Key Product Features

Dust Control: Contains dust effectively, ensuring a pristine, safe, and efficient working environment, redefining the standards of operational safety.

Efficiency: Automated systems deliver a consistent feed rate, dramatically amplifying operational efficiency and slashing labor costs.

Accuracy: Significantly reduces material loss and guarantees precise dosing, essential for pharmaceuticals and food processing.

Hygiene: Fully enclosed design offers a formidable barrier against external contaminants, upholding the highest standards of cleanliness.

Worker Safety: Reduces dust exposure and inhalation risks, safeguarding your workforce's well-being.

Technical Parameters

Model	WT100	WT150
Volume (L)	100	150
Power (kW)	0.75	1.1
Air Consumption/Pressure	50 (L/min) / 0.6 MPa
Discharge Interface	8-inch quick connector
Dust Removal Interface	Φ100	Φ150
Weight (Kg)	150	200
Dimensions (mm)	1000(L) x 900(W) x 2000(H)

* Power specifications of additional fans and compressed air for backflush devices are calculated based on specific configurations.

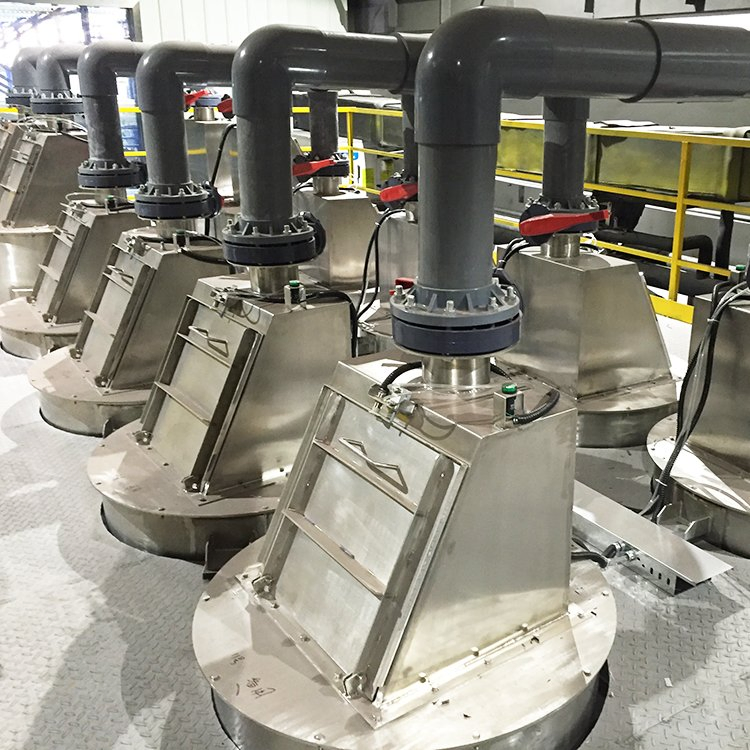

Application & Integration

Frequently Asked Questions

What materials can this feeding station handle?

The system is designed to handle various small bag materials including powders, granules, and pellets commonly used in chemical, food, and pharmaceutical industries.

How does the dust-free system work?

It utilizes a centrifugal fan to create a negative pressure environment. This ensures that dust generated during the bag-opening process is suctioned into the filtration system rather than escaping into the workspace.

Is the filter easy to maintain?

Yes, the station features an independent filter cartridge with a reverse blow (backflush) system that automatically cleans the filter and rechannels materials back into the hopper to minimize waste.

Can this equipment be integrated with other conveyors?

Absolutely. It is designed for seamless integration with material suction machines, pipe chain conveyors, and other pneumatic conveying systems.

What are the main control options?

The equipment can be operated via a standard manual button control or integrated into a more complex PLC (Programmable Logic Controller) system for automated production lines.

Does it meet international safety standards?

Yes, our equipment is manufactured to meet CE and ISO certification standards, ensuring high quality and operational safety in industrial environments.
