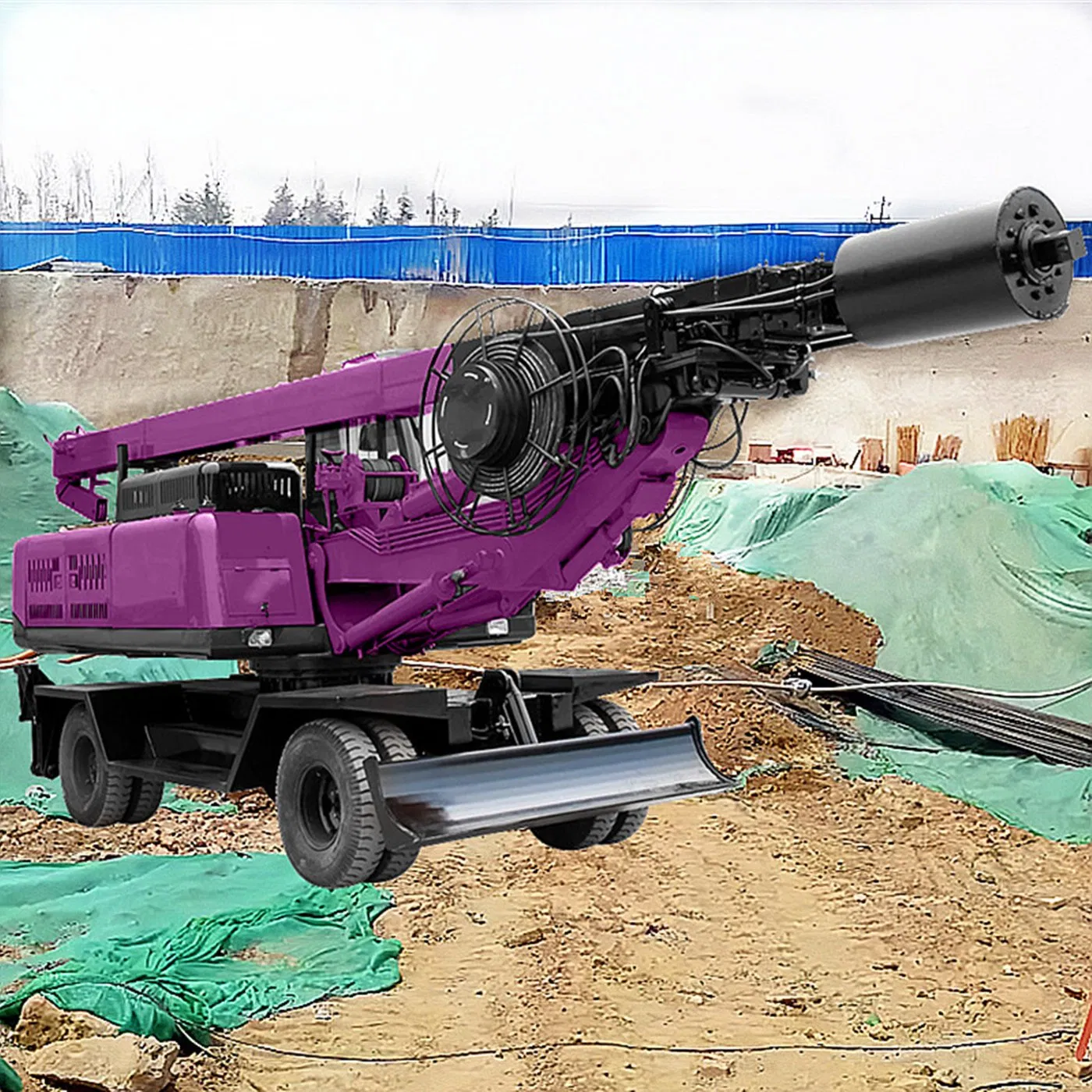

Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale
Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale
Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale
Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale
Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale
1 / 5
Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale
Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale
Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale
Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale
Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale

Small Rotary Drilling Machine Infrastructure Projects Geotachnial Engineering Drilling Rig for Sale

After-sales Service: Online Technical Services
Warranty: 1 Year
Certification: CE, ISO 9001:2015
Send Inquiry

Product Description

Technical Overview
ModelSRP360 Wheel Type
ConditionNew
Drill Hole Diameter1200mm
Drill Hole Depth15m
Bit TypeDiamond Bit
Drilling WayRotary
Weight11.6t
Power110kw
Walking Speed45km/H
Slewing Angle360 Degree
Rotary Drilling Rig Overview

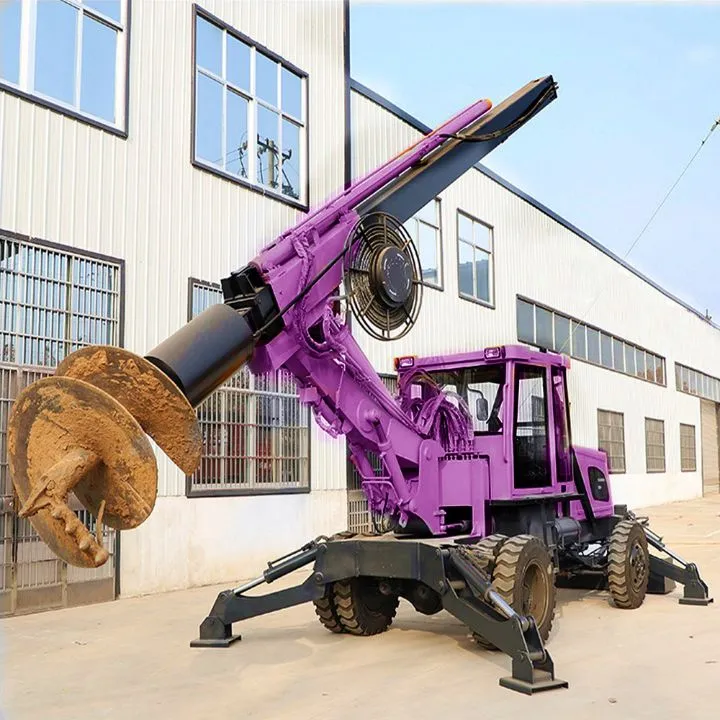

Wheel Type Drilling Machine
Product Description

The SRP360 is a high-efficiency construction machinery widely used in foundation engineering, particularly for bored pile construction. It is applicable to various geological layers including soil, clay, fill, silt, and layers containing pebbles or gravel.

It is extensively utilized in housing construction, high-speed railway contact net support, slope protection piles, and power grid transformation projects.

Drilling Rig Detail 1

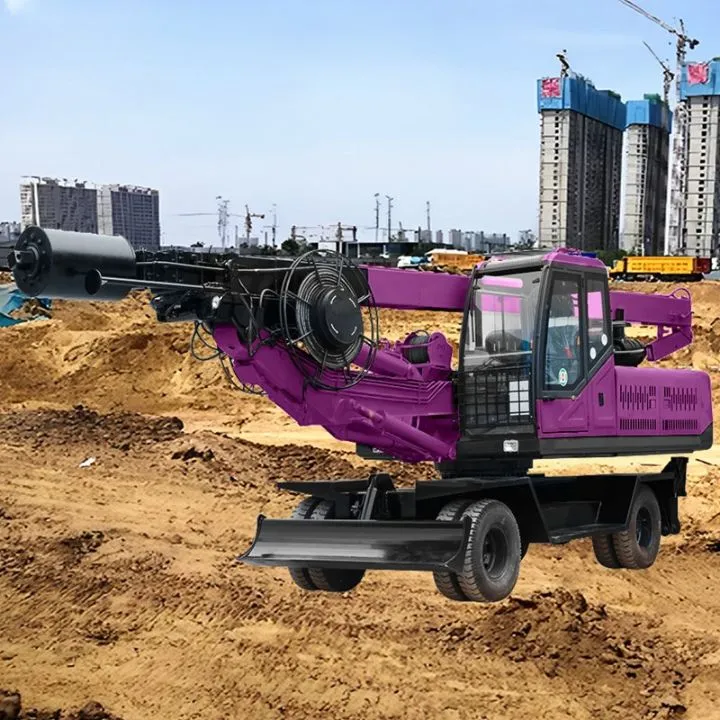

Drilling Rig Detail 2

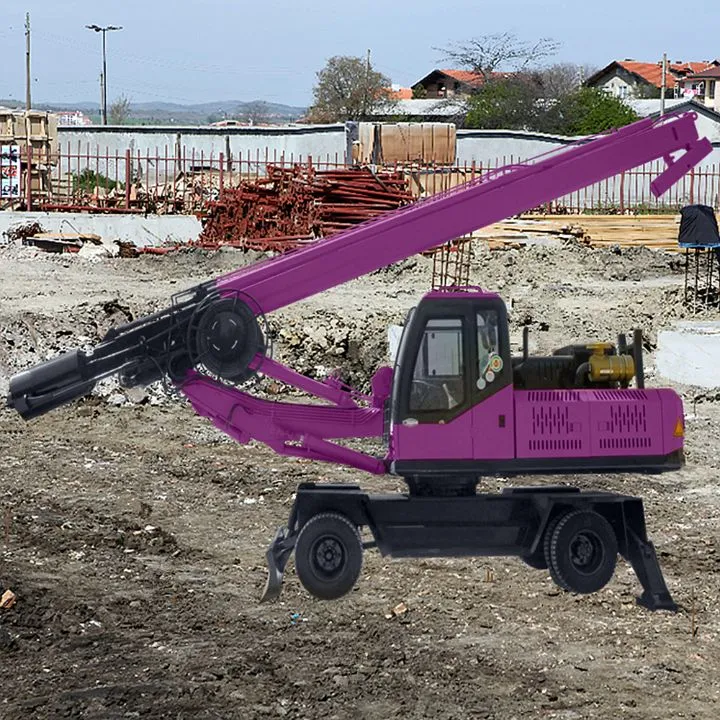

Drilling Rig Detail 3
Core Features
✓
Flexible Construction: Small tonnage and simple operation for versatile use.
✓
Strong Stability: Powerful four-wheel drive system ensures fast movement and convenient transition.
✓
Durable Build: Frame made of 50 manganese steel, thickened and weighted for heavy-duty performance.
✓
High Efficiency: Designed to achieve large pile hole characteristics with a compact machine footprint.
Rotary Drive Mechanism
Hydraulic System
Detailed Specifications
Parameter Specification Details
ModelSRP360
Max. Drilling Diameter1200mm
Max. Drilling Depth15m
Maximum Pulling Force8t
Rotary Table Slewing Angle360°
Rotary Drive Speed20-30r/min
Max. Traveling Speed45km/h
Working Pressure25Mpa
Rotary Drive Max. Output Torque27000Kn.m
Overall Weight11.6t
Engine Model6105 Turbocharge-intercool
Engine Power110kw
Dimensions9.8 * 2.3 * 3.2m
Operation View
Chassis Detail
Drill Bit Detail
Application & Quality
Certification Showcase
Factory Testing
Loading & Shipping
Equipment Components
Final Assembly
Frequently Asked Questions
What types of equipment can I purchase?
We offer a wide range of machinery including DTH drilling rigs, core drilling rigs, highway and solar pile drivers, rotary drill rigs, underground jumbo drills, air compressors (screw and piston), DTH hammers, drill rods, and various spare parts.
What are the available payment methods?
You can make payments through several convenient methods including Credit Card, TT (Telegraphic Transfer), Western Union, and LC (Letter of Credit).
How is the shipping handled and what is the estimated time?
Large or heavy products are typically shipped via sea or land. Shipping time depends on the destination country and city. For smaller items, we use express services like DHL, UPS, Fedex, or TNT. You can also specify your preferred shipping method.
How do you ensure product quality?
We maintain strict quality control through our experienced QC team. Every order undergoes a rigorous inspection and testing process before being dispatched to ensure it meets our performance standards.
Is the SRP360 suitable for hard soil conditions?
Yes, the SRP360 is specifically designed to handle various layers including clay, silt, and layers containing pebbles and gravel, making it ideal for diverse geotechnical engineering projects.
What are the main applications of this rotary drilling rig?
The machine is primarily used for housing construction foundations, high-speed railway contact net supports, slope protection, and power grid transformation projects.
