Shantui SD Series Crawler Bulldozers Models SD13 to SD90 130HP to 900HP, Heavy Duty Construction Equipment

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

SD13/SD16/SD18E/SD20/SD22/SD26/SD32/SD60/SD90

Transmission

Hydraulic Transmission

Walking Mode

Crawler

Engine Power

105kw~708kw (130HP~900HP)

Certification

CE, ISO9001: 2000

Condition

New

Emission Standard

China-I/China-II/China-III

Operating Weight

13700~106260 Kg

Blade Capacity

2.5~39 Cbm

Production Capacity

50 Unit/ Month

Product Overview

Crawler Bulldozers Models SD13 to SD90 (130HP to 900HP) Heavy Duty Construction Equipment

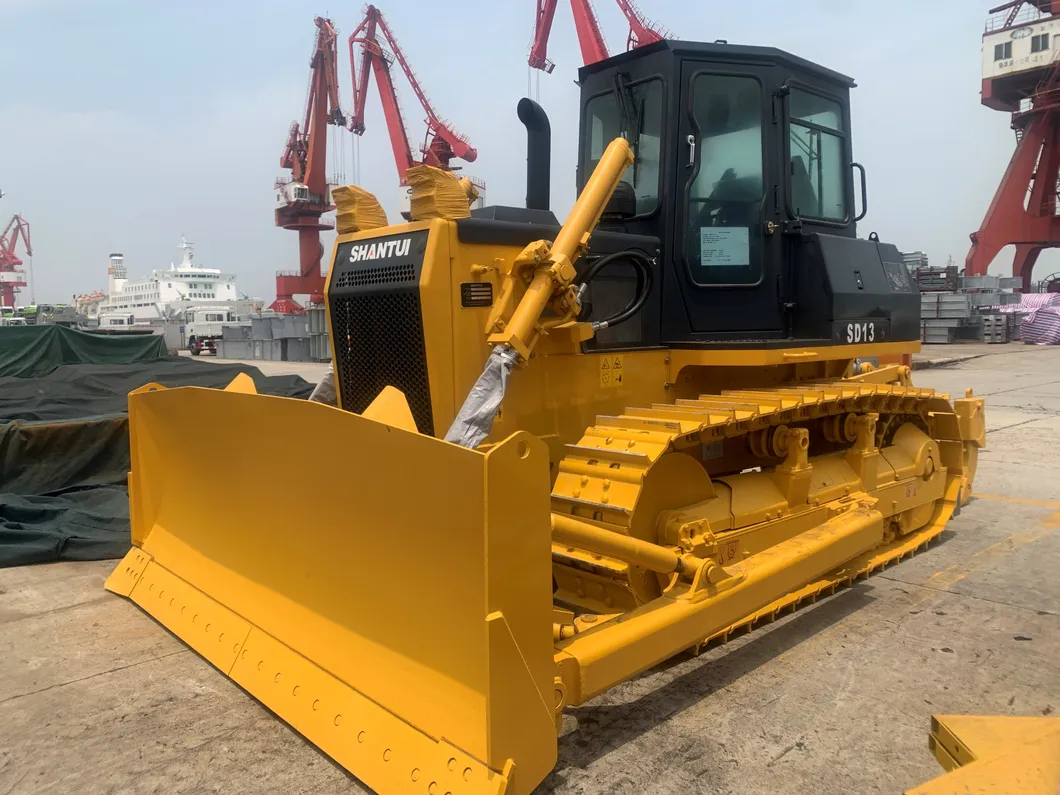

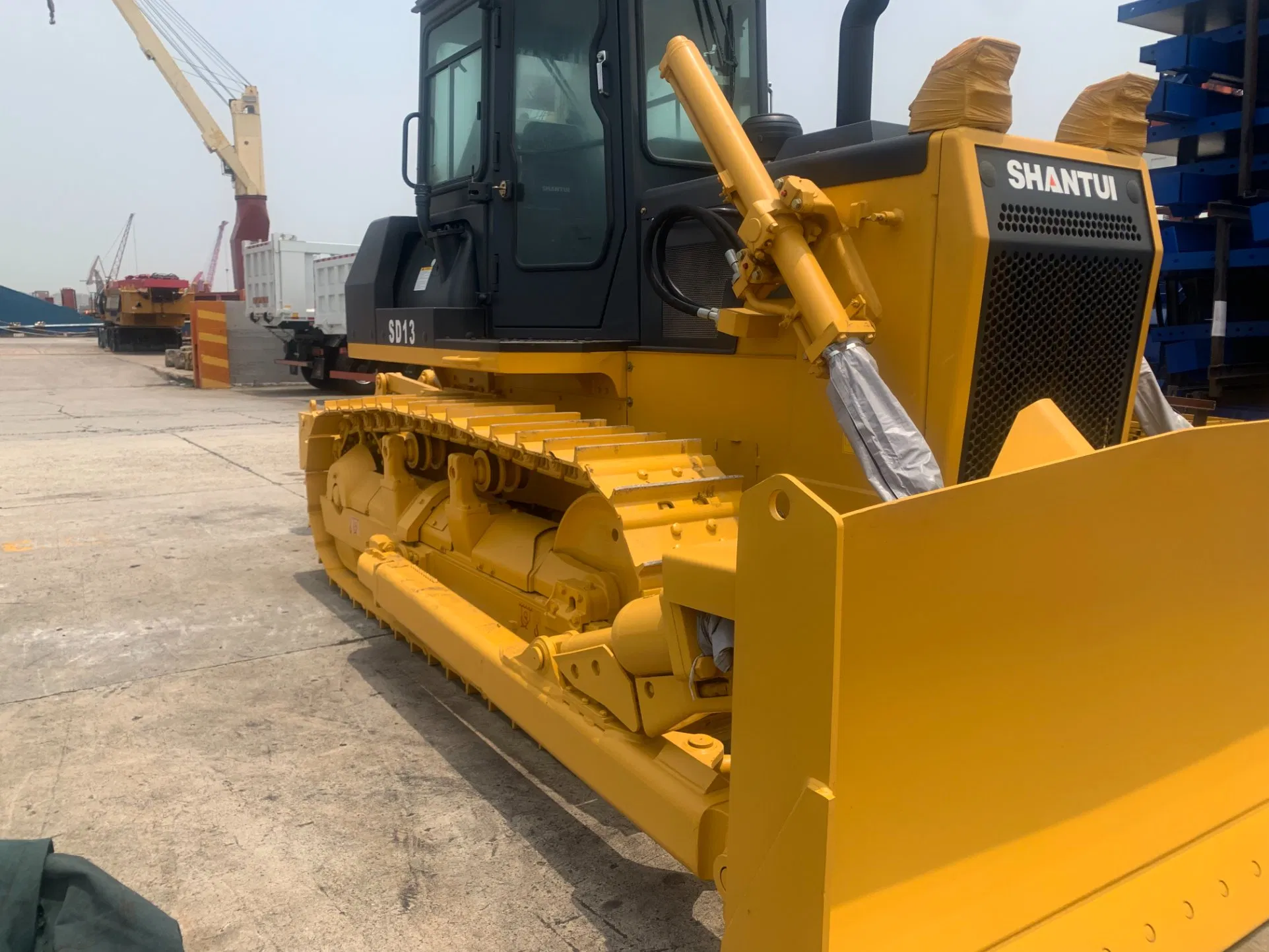

SD13 Series: Mid-range volume efficiency. Features a turbocharged engine with large-torque reserve. Extended track ensures low ground pressure and strong traction.

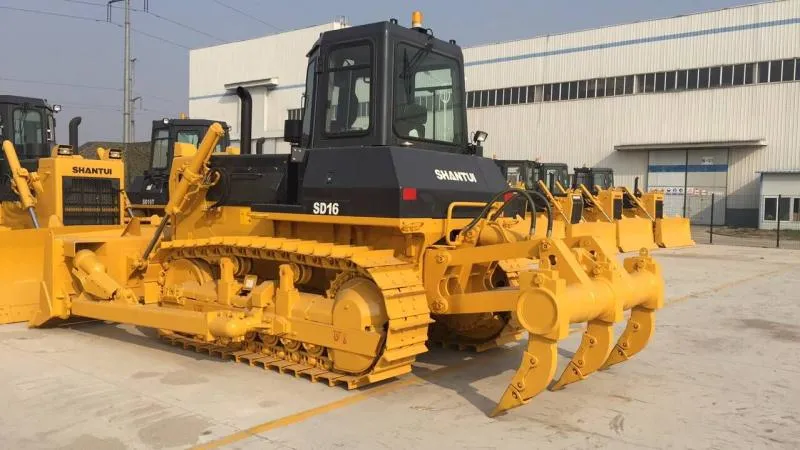

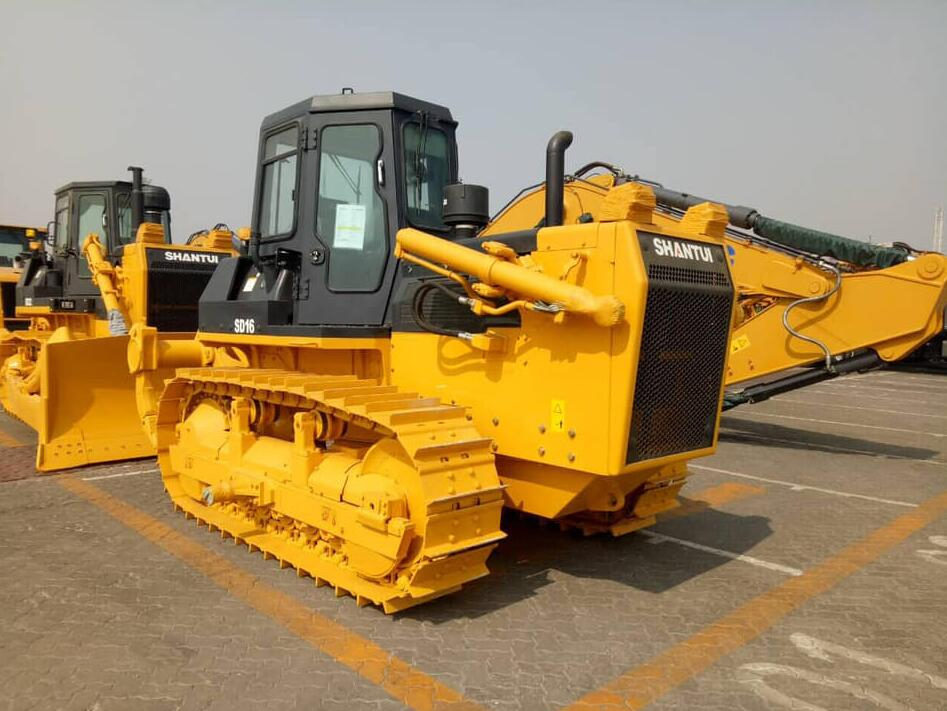

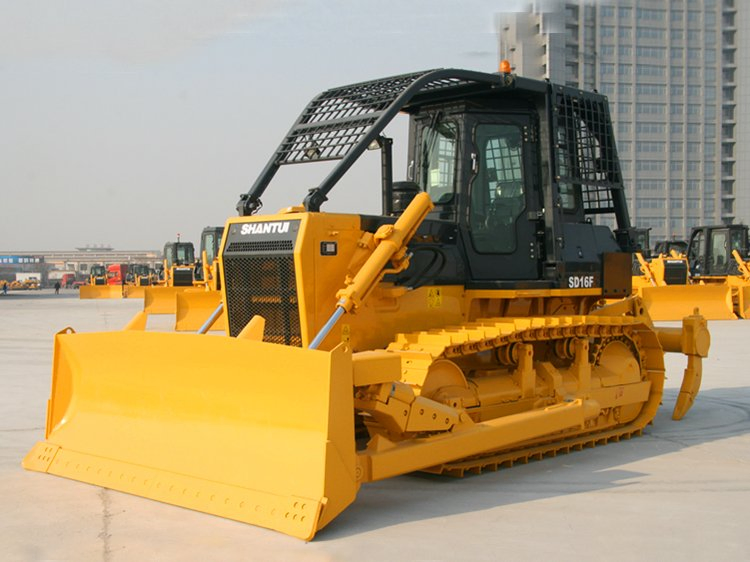

SD16 Series: 160HP earthmoving essential. Excels in tough terrains with precise hydraulic blade control for leveling and grading.

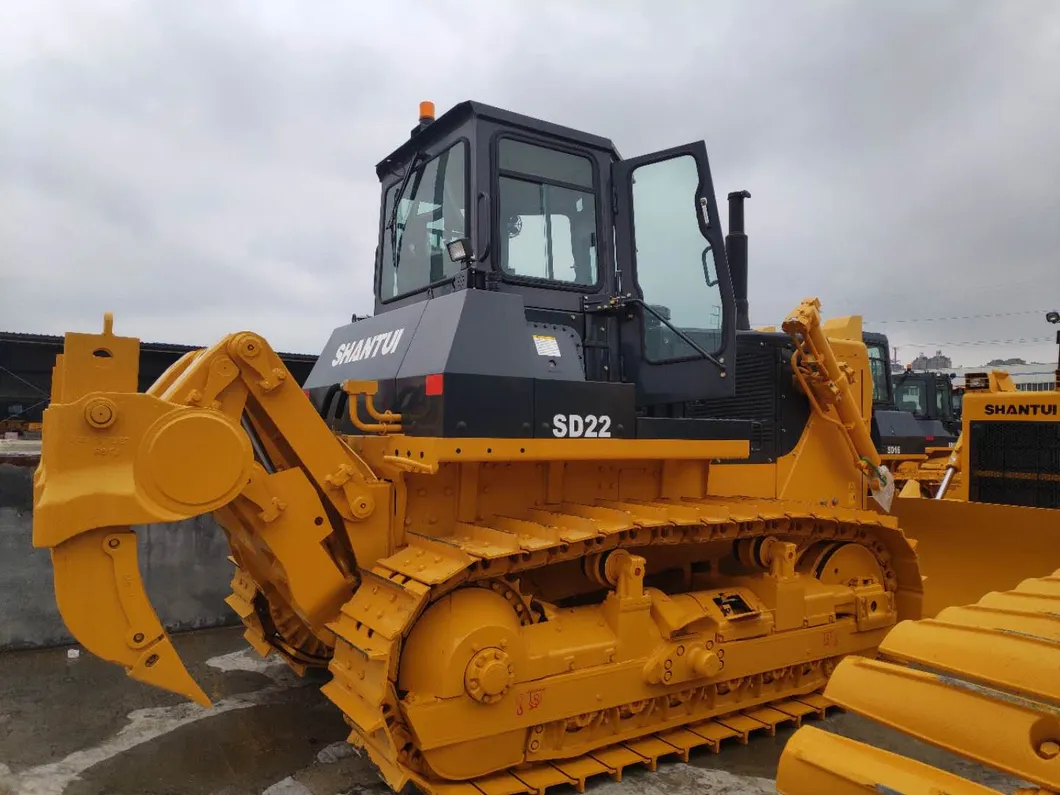

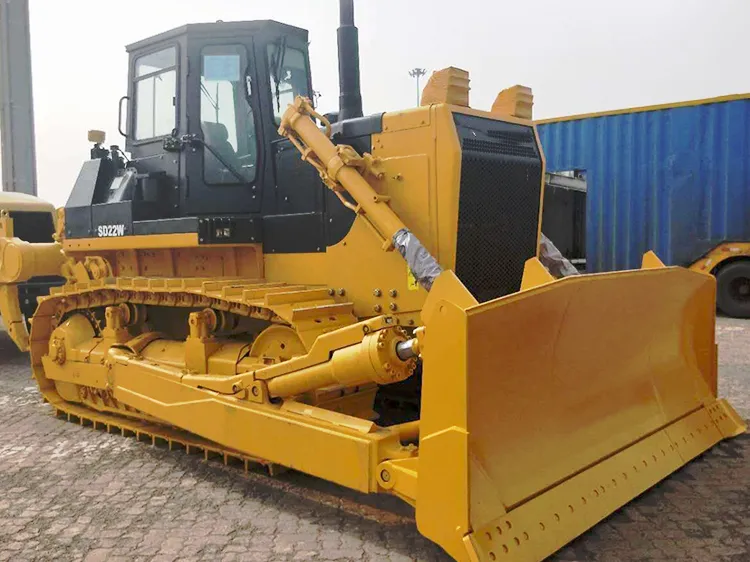

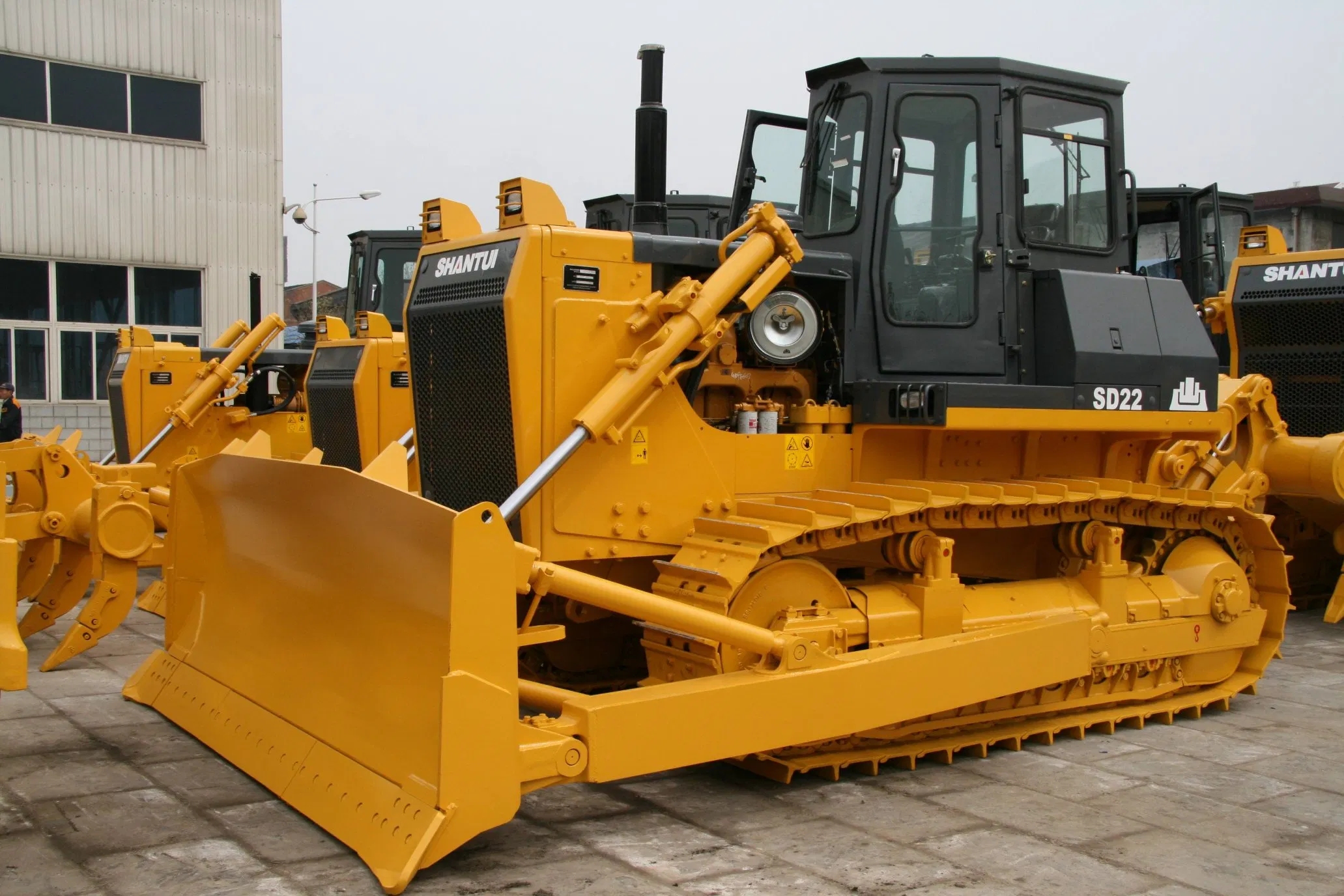

SD22 Series: Robust 220HP engine with a three-shank ripper. Built for durability in mining and land development.

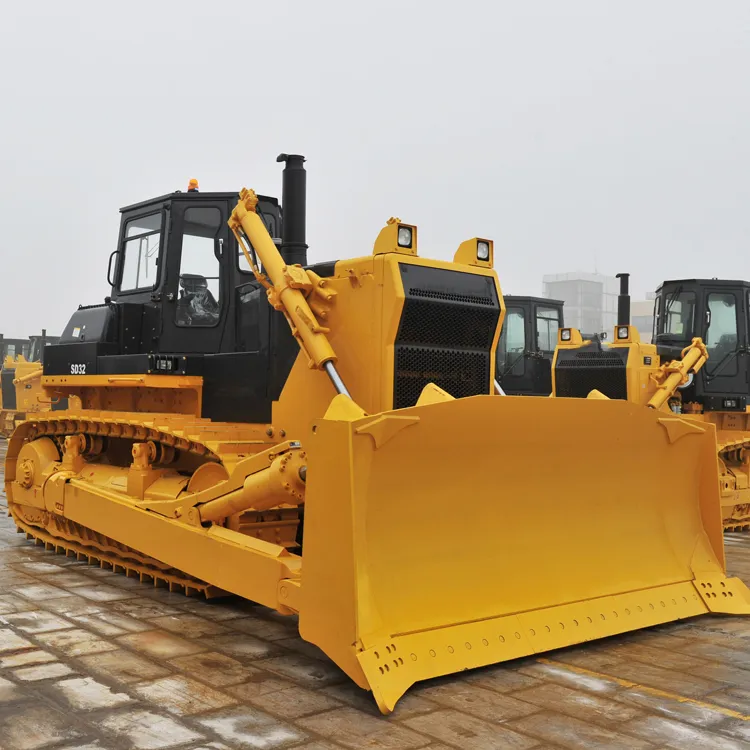

SD32 Series: 37.2-ton powerhouse with a 320HP engine. Designed for massive dozing capacities (6 to 11 cubic meters).

Advanced Safety & Control: Double-module controller architecture for higher reliability. Malfunction self-diagnosis indicates causes accurately to shorten downtime. Features ROPS/FOPS international standard cabs with excellent sealing and low noise levels.

Technical Parameters

MODEL	SD13	SD16	SD22
Operating weight (kg)	13700	17500	23400
Rated power (kw/rpm)	95.5/1900	120/1850	162/1800
Dozing capacity (m3)	3.158	4.5	6.4
Dimensions (LxWxH)	4492x3185x2950	6174x3388x3180	5750x3725x3395

MODEL	SD32	SD60-C5	SD90-C5 RS
Operating weight (kg)	37200	70630	106260
Engine Model	--	QSK19	QST30
Rated power (kw/rpm)	235/2000	450/1800	708/2100
Ripping Depth (mm)	--	1435	1670

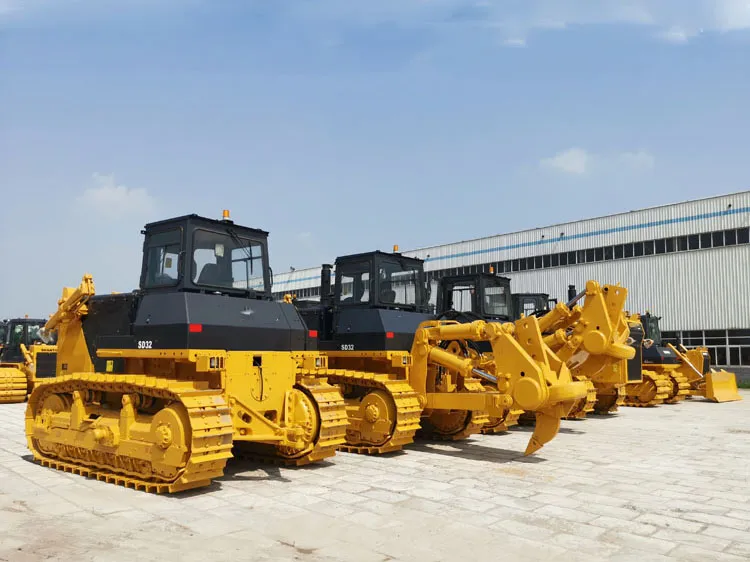

Product Visuals

Factory & Production

Frequently Asked Questions

What is the power range of the SD series bulldozers?

The SD series covers a wide power range from 130HP (SD13) up to 900HP (SD90), catering to both light earthmoving and heavy-duty mining operations.

What types of blades are available for these models?

Depending on the model, we offer Straight-tilt blades, Angle blades, U-blades, Semi-U blades, and PAT blades to suit different working conditions.

Are the cabins equipped for operator comfort and safety?

Yes, the machines feature heptahedral or hexahedron cabs with ROPS/FOPS certification, integrated A/C, heating systems, and low-noise upholstery for maximum safety and comfort.

How is the maintenance simplified for these machines?

The SD series features openable large-space side hoods and centralized lubrication points directed to the outer side of the body for rapid and convenient maintenance.

What engines are typically used in the heavy-duty models?

High-performance engines like Cummins (QSK19, QST30) and Weichai are utilized to ensure large torque reserves and high fuel efficiency.
