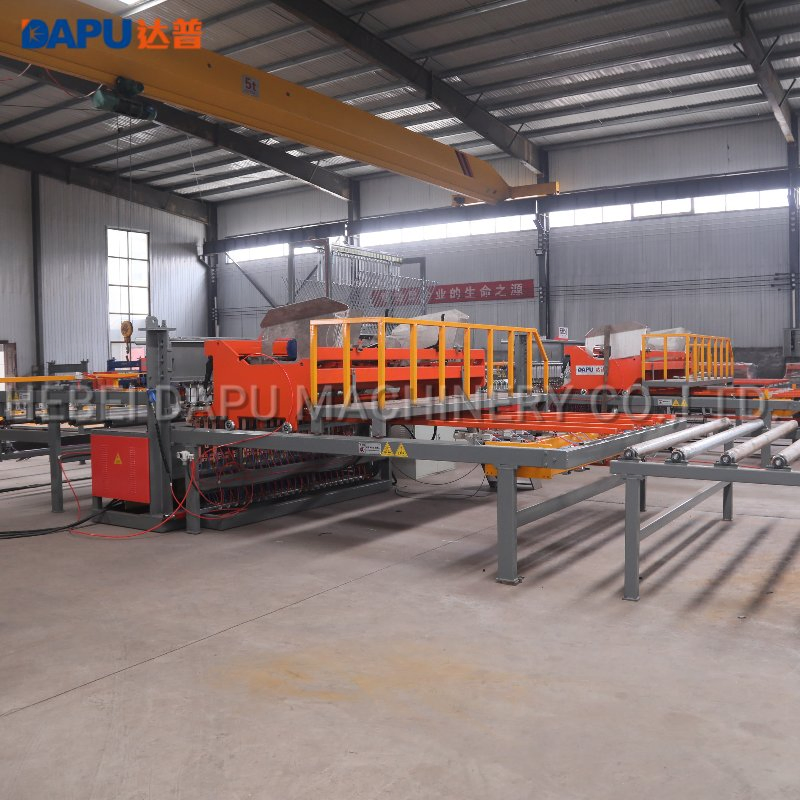

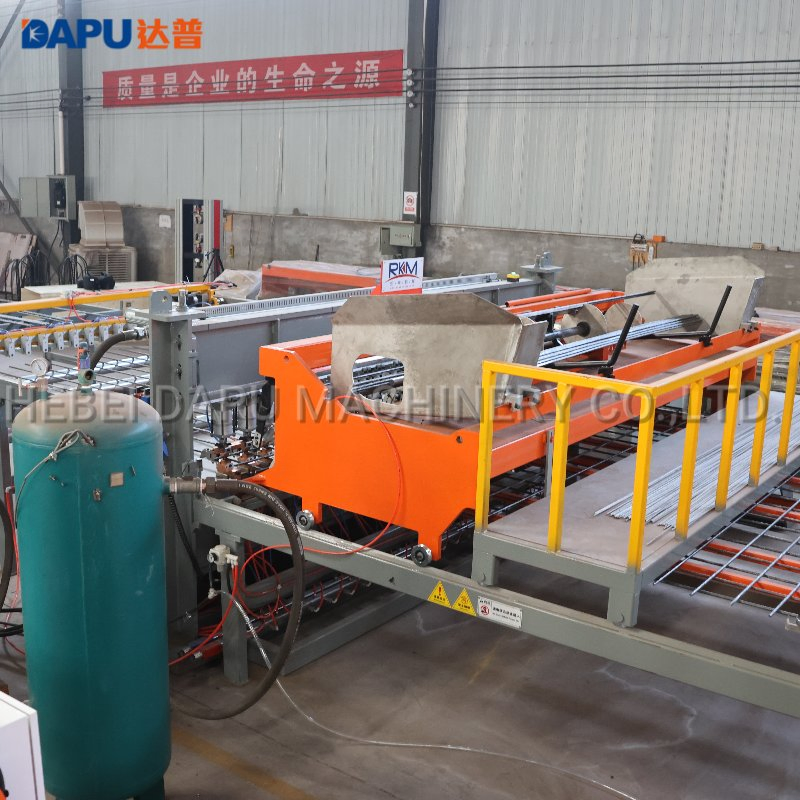

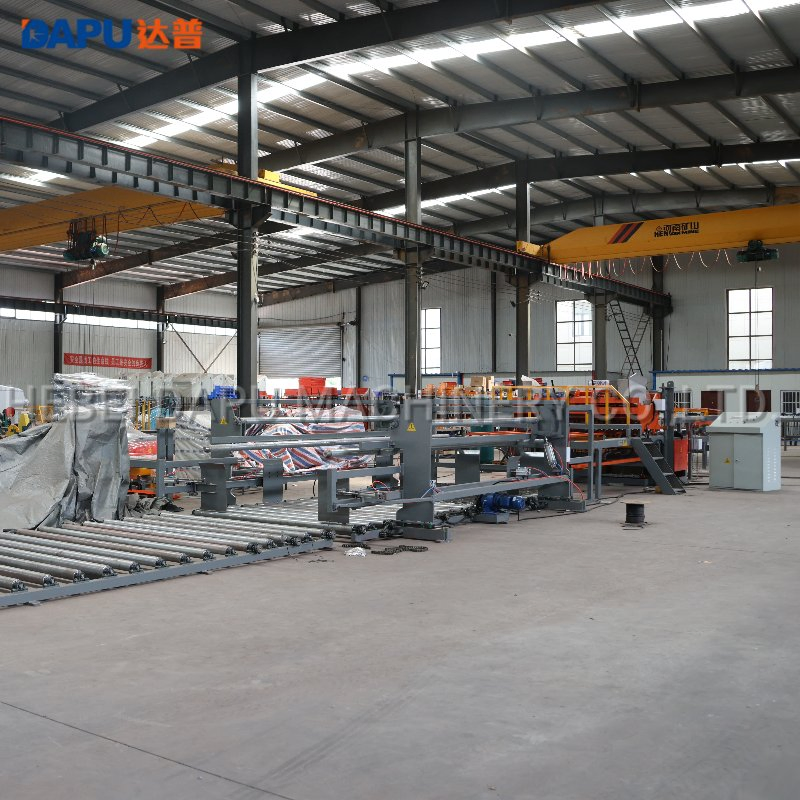

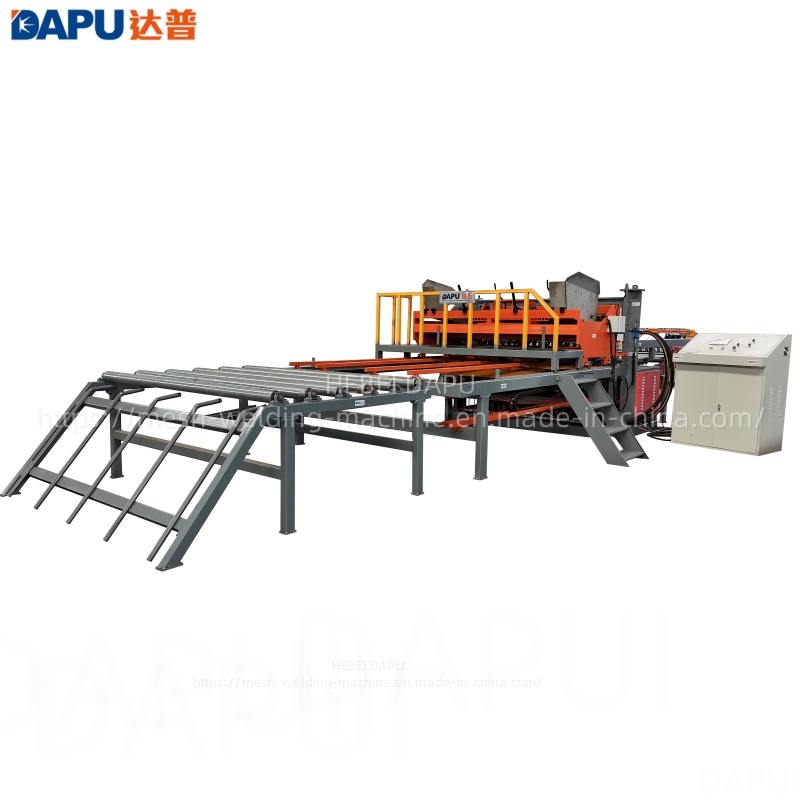

Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects
Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects
Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects
Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects
Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects
1 / 5
Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects
Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects
Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects
Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects
Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects

Reinforcing Mesh Welder Machine with Servo Motor Control for Infrastructure Projects

Customization: Available
After-sales Service: Local After-Sales Service
Type: Welded Wire Mesh Machine
Send Inquiry

Product Description

Basic Specifications
Model NO.
DP-GW-2500A
Style
Horizontal
Warranty
1 Year
Max Mesh Width
3000mm
Wire Diameter
4-12mm
Line Wire Space
100-300mm
Cross Wire Space
50-300mm
Welding Speed
80-100 times/Min
Product Description
Reinforcing Mesh Welder Machine
💡
Reinforcing wire mesh welding machine: Automatically welds steel wires into mesh for construction. Controlled by PLC, it precisely clamps and welds wire intersections using electric current and pressure. Features high welding speed, accurate sizing, and energy-saving operation.

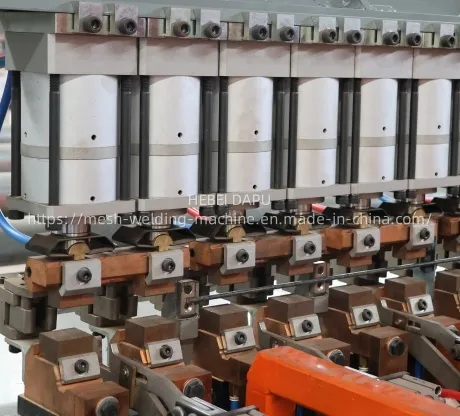

Multi force air cylinders

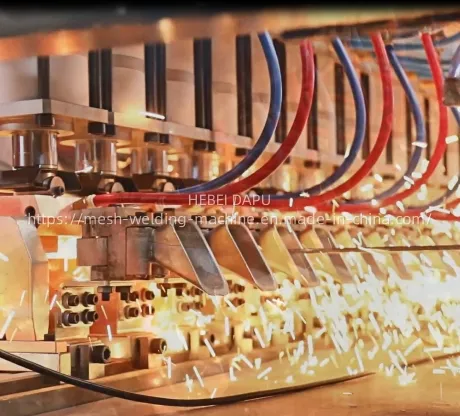

Welding mesh

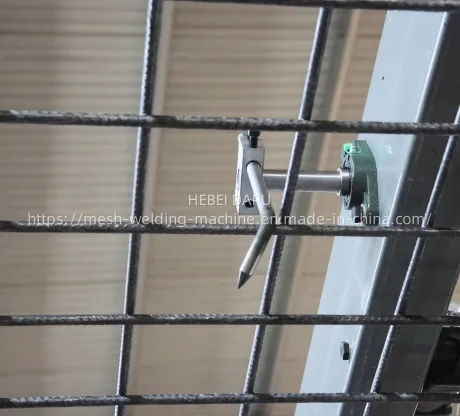

Automatic collection
Technical Parameters
Model Comparison DP-GW-2500B DP-GW-3000B
Line wire dia (Pre-cut)2500mm3000mm
Cross wire dia (Pre-cut)4-12mm
Line wire space100-300mm
Cross wire space50-300mm
Max. welding speed80-100 times/min
Welding electrodes24pcs30pcs
Welding transformer150kva*12pcs150kva*15pcs
Machine Weight10T12T
Key Components & Advantages

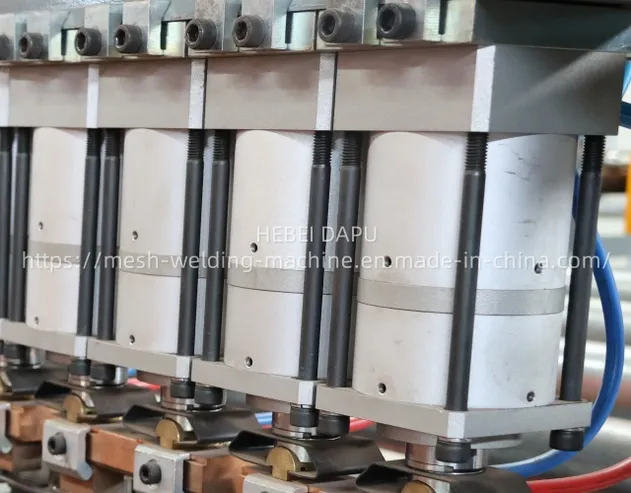

Air cylinders

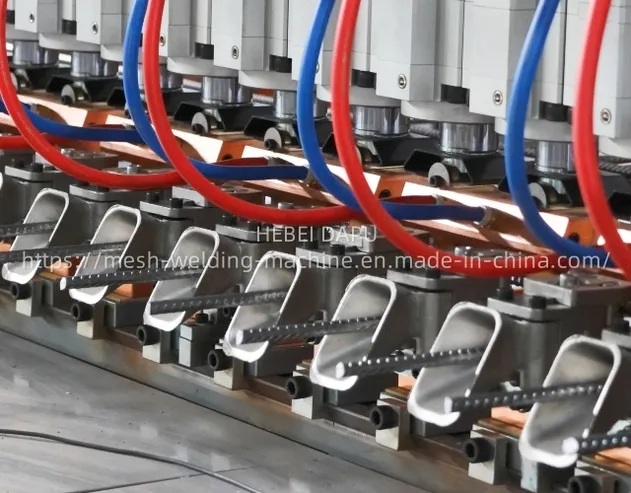

Longitude feeding

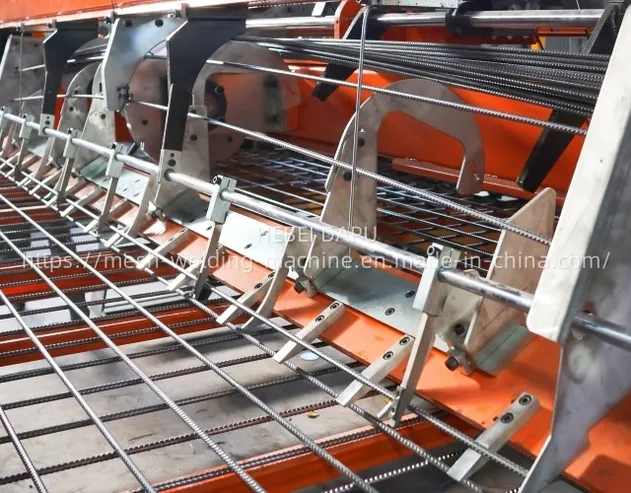

Cross feeding

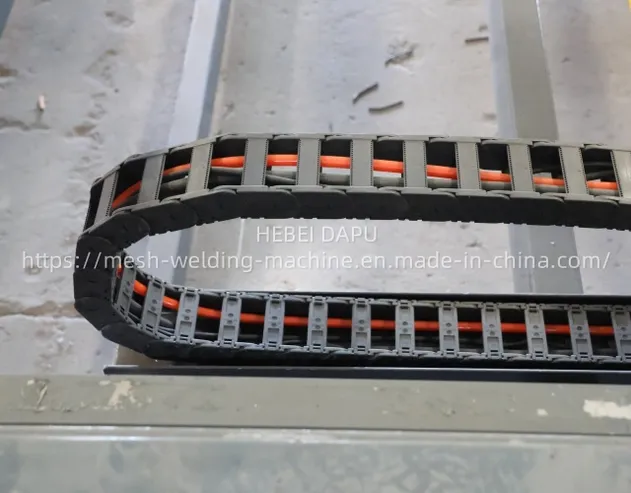

Mesh pulling

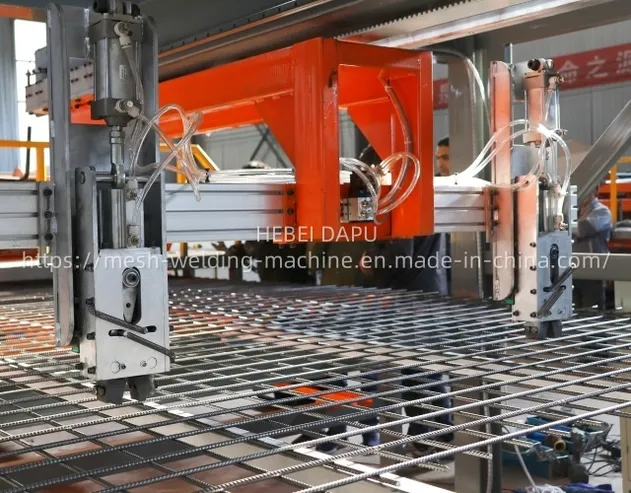

Mesh turning

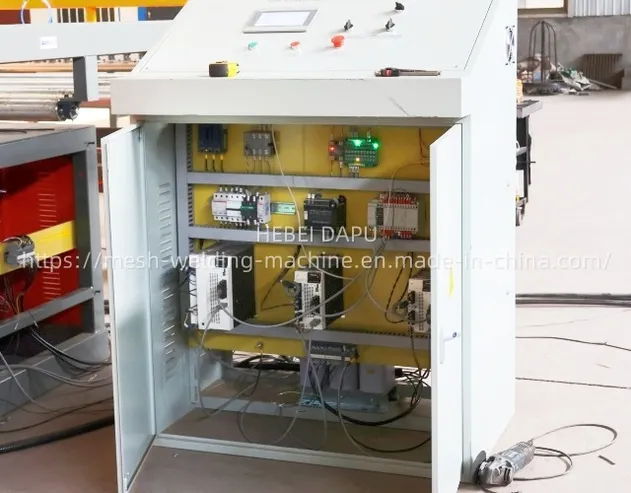

PLC Control
✅
System Features: Driven by Panasonic servo motors and SMC cylinders. PLC control ensures precise wire spacing, automated mesh turning, and real-time monitoring via touch screen.
Ancillary Equipment

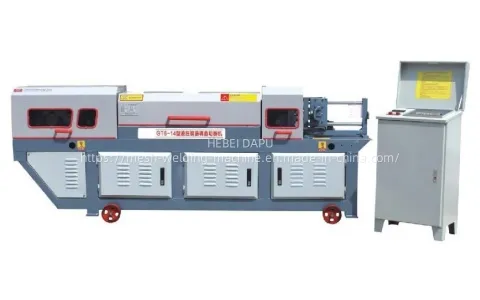

CNC Straightening

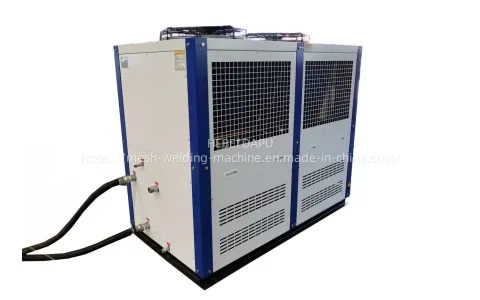

Cooling device

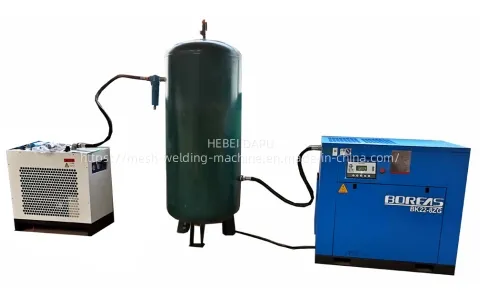

Air compressor

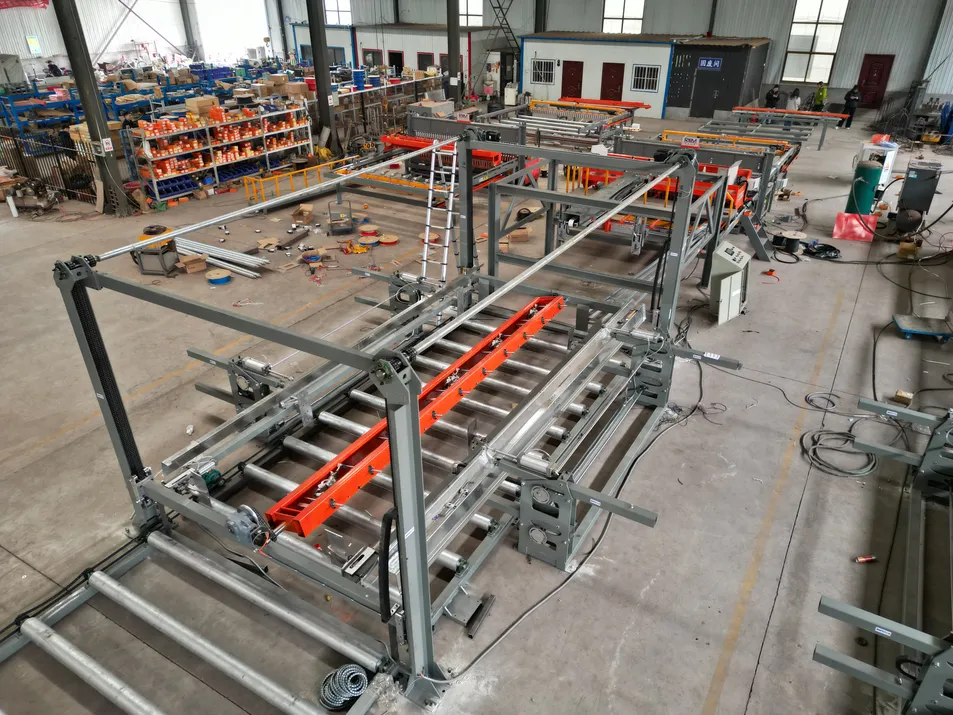

Mesh falling
Applications & Finished Mesh

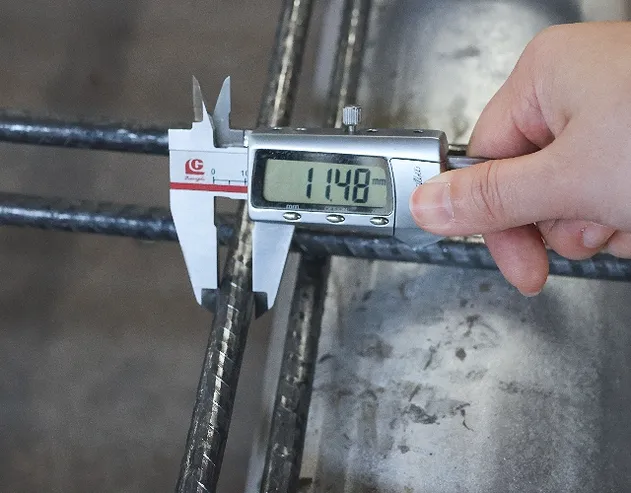

Mesh Product 1

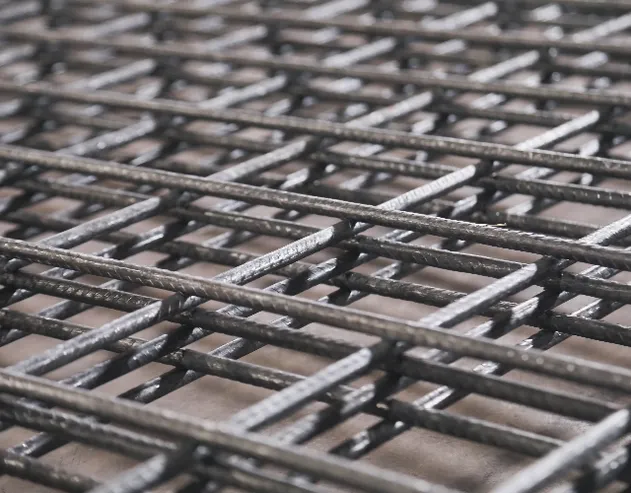

Mesh Product 2

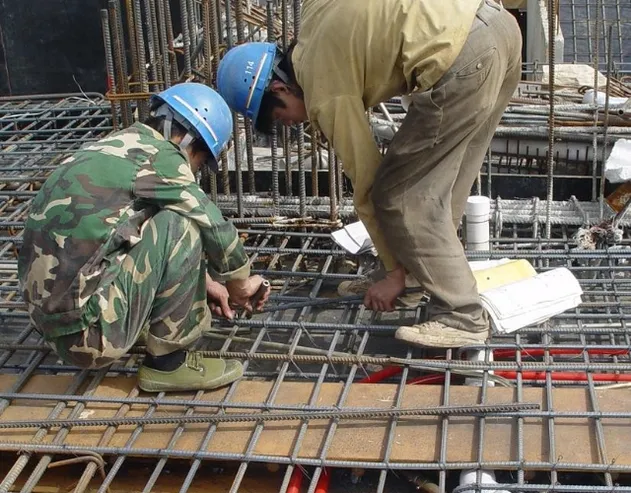

Mesh Product 3
🏗️
Wide Range of Uses: Reinforcement for floors, walls, and roofs; highways, bridges, and tunnels; dams and reservoirs; mining support; industrial flooring and precast components.
Production Gallery
Production Facility 1
Production Facility 2
Production Facility 3
Production Facility 4
Frequently Asked Questions
What is the maximum welding speed of this machine?
The machine can reach a maximum welding speed of 80 to 100 times per minute, ensuring high production efficiency.
What range of wire diameters can the machine handle?
This equipment is designed to handle pre-cut line and cross wires with diameters ranging from 4mm to 12mm.
How is the welding quality and precision controlled?
The machine uses a PLC control system combined with Panasonic servo motors and SMC air cylinders to ensure precise dimensional control and stable, high-strength welding quality.
What are the main applications of the produced steel mesh?
The mesh is widely used in concrete reinforcement for buildings, roads, bridges, tunnels, subways, and industrial warehouse floors.
Does the machine support custom mesh sizes?
Yes, the line wire and cross wire spacing are adjustable (typically 50-300mm), and the system supports customized requirements for mesh length and width.
What kind of maintenance is required for the welding electrodes?
The machine features a design where slot tunnels lift to protect electrodes, and a closed-loop water cooling system is used to prevent overheating, extending the lifespan of the welding parts.
