📋 Basic Information
Usage
Ceramics, Jadestone, Granite, Marble, Quartz
Application
Machinery & Hardware, Mineral Industry, Stone Industry
Cutting Ability
High Speed
📦 Packaging & Delivery
Package Size
215.00cm * 145.00cm * 165.00cm
🔍 Product Introduction
-
1
Advanced Control: PLC control combined with a touch screen and physical keys. Two modes of operation ensure more accurate control and convenient usage.
-
2
IoT Technology: Utilizes the latest Internet of Things technology for real-time remote monitoring, diagnosis, data collection, and analysis.
-
3
Reliable Components: Electrical components are sourced from well-known brands, ensuring stable and reliable operational quality.

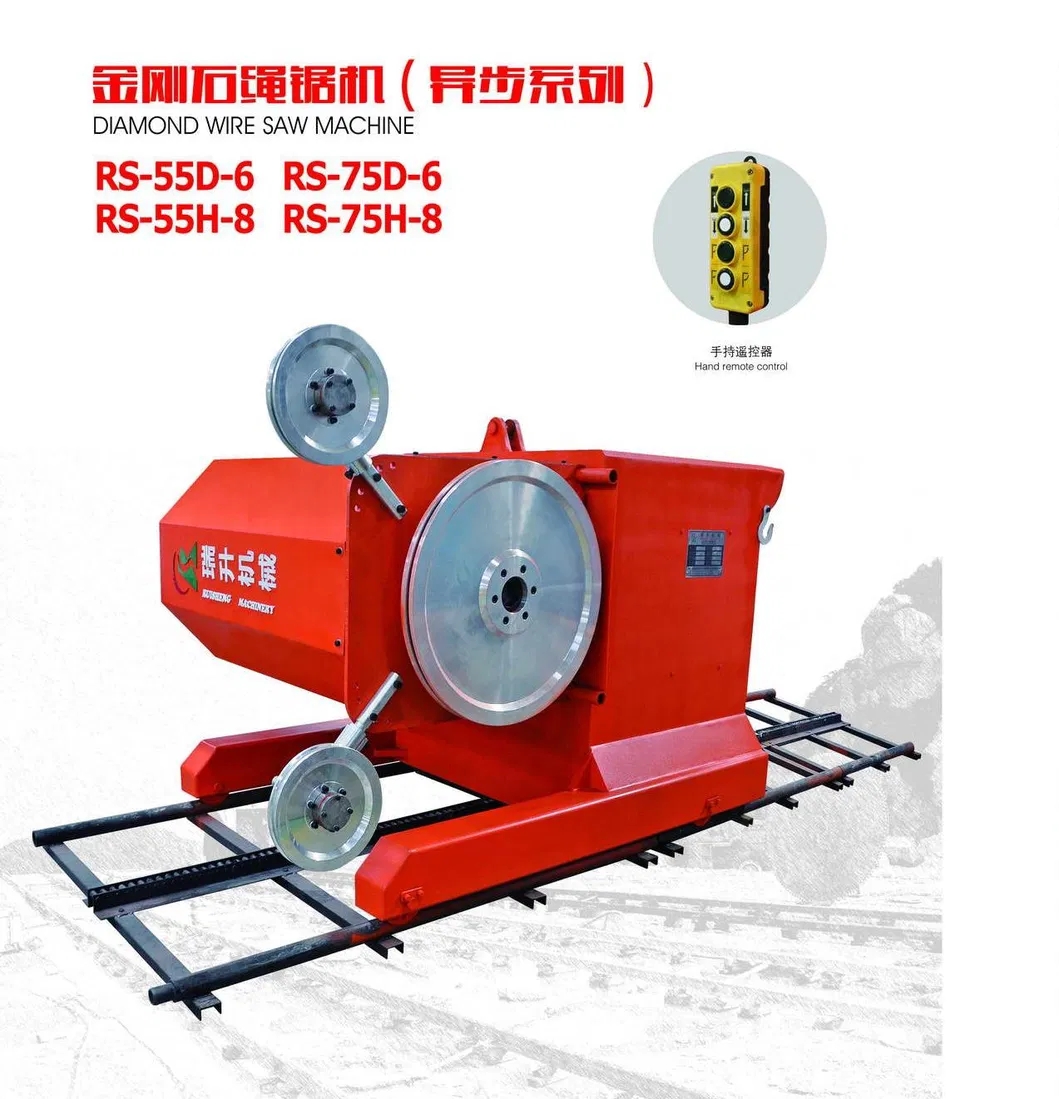

📊 Technical Parameters
| Product Name / Unit |
RS-55D-6 |
RS-750-6 |
RS-55H-8 |
RS-75H-8 |
| Main motor power (kw) |
55 |
75 |
55 |
75 |
| Main flywheel diameter (mm) |
Φ800 |
Φ800 |
Φ800 |
Φ800 |
| Wire speed (m/s) |
0-40 |
0-40 |
0-30 |
0-30 |
| Max. wire length (m) |
20-100 |
20-120 |
20-100 |
20-120 |
| Walking motor power (kw) |
1.5 |
1.5 |
1.5 |
1.5 |
| Max. lateral cutting distance (mm) |
2020 |
2020 |
2020 |
2020 |
| Total power (kw) |
59.5 |
79.5 |
59.5 |
79.5 |
| Working temperature (ºC) |
-15~+50 |
-15~+50 |
-15~+50 |
-15~+50 |
| Net weight (kg) |
3300 |
3500 |
3400 |
3600 |
Pricing Information: The price of stone mine cutting machines varies based on several factors including the specific model, application range, brand positioning, and overall build quality. For precise quotations tailored to your production needs, it is recommended to discuss your requirements with technical experts to select the correct equipment configuration.

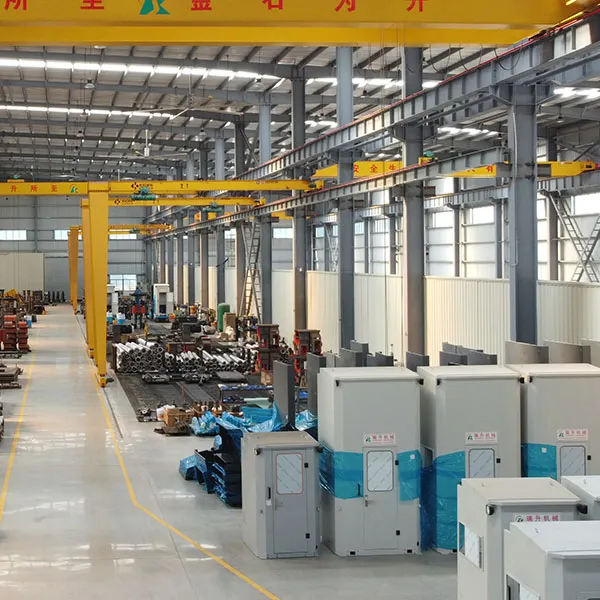

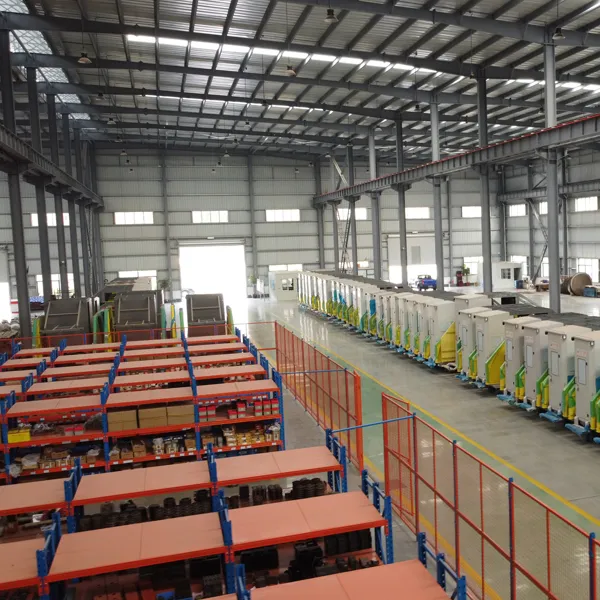

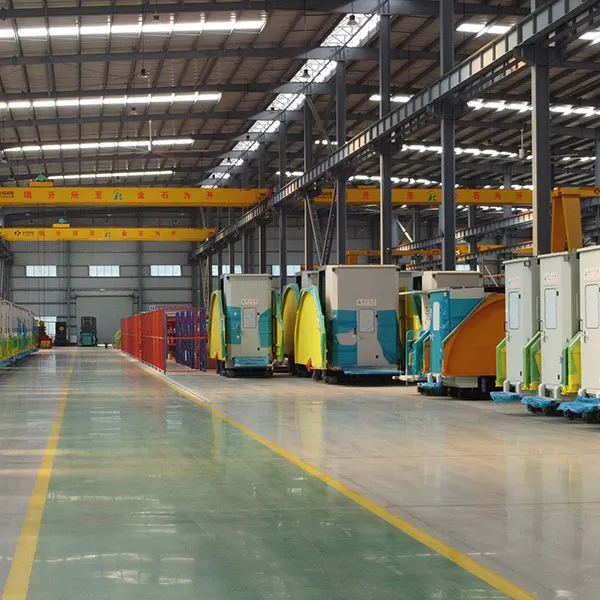

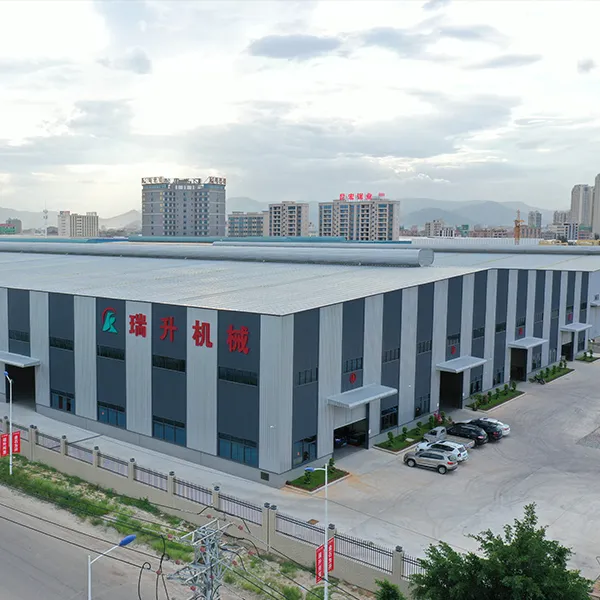

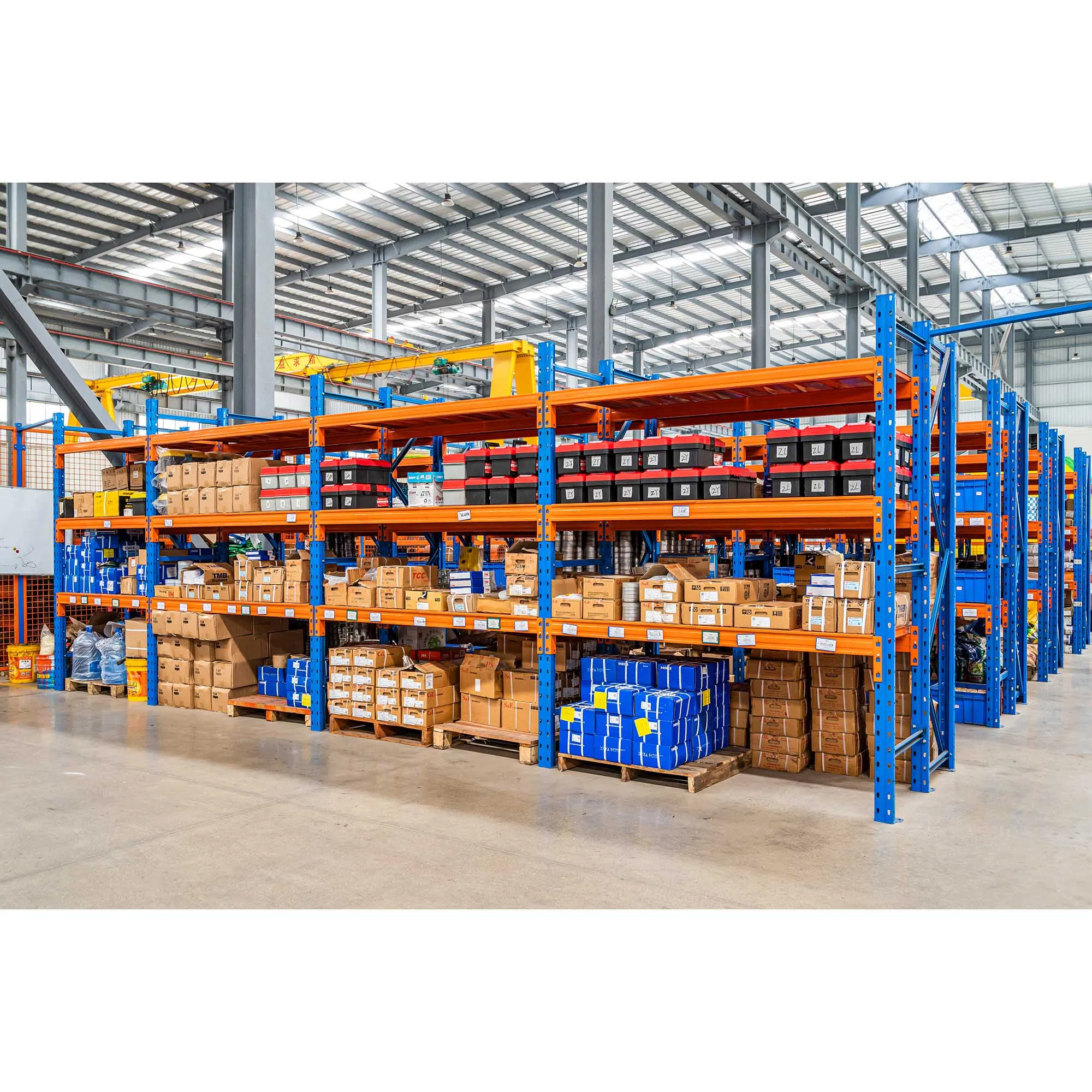

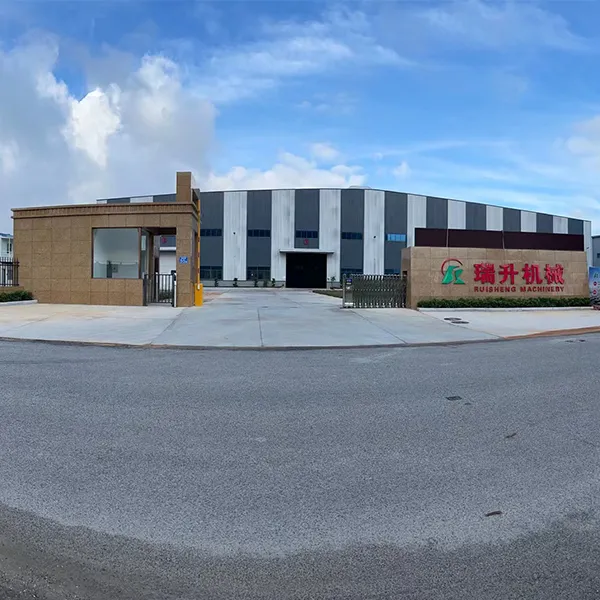

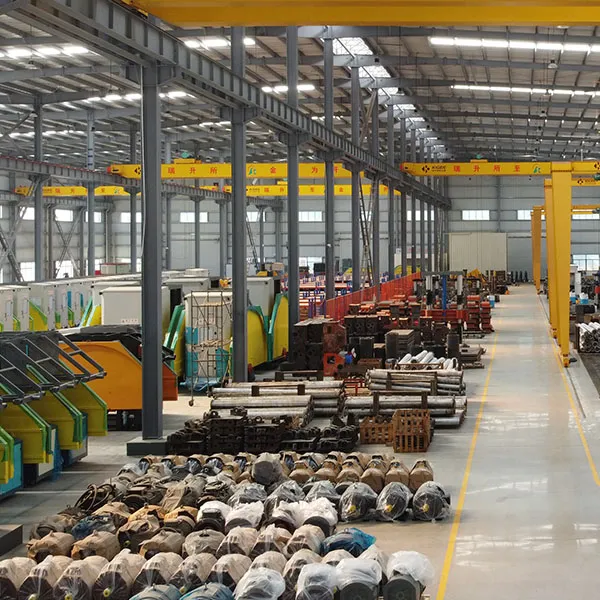

🏭 Production & Equipment Showcase
🎊 Industry Exhibition
❓ Frequently Asked Questions

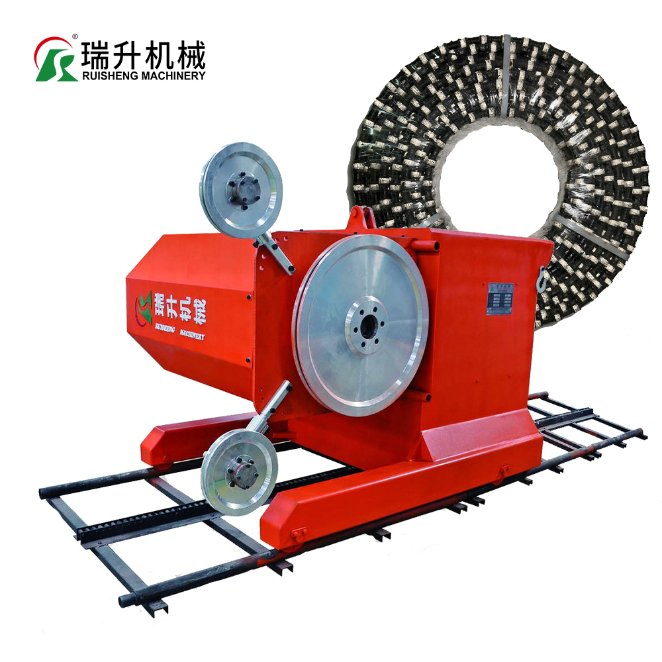

What types of stone can this wire saw machine cut?
This machine is versatile and suitable for mining and processing Granite, Marble, Quartz, Ceramics, and Jadestone.
How does the PLC control system benefit operation?
The dual-mode PLC control (touch screen and physical keys) provides high precision, ease of use, and allows for real-time adjustments during the cutting process.
What is the advantage of the integrated IoT technology?
The Internet of Things (IoT) capability allows for remote monitoring and diagnostics, which helps in predictive maintenance and efficient data collection for performance analysis.
What is the maximum wire speed of the RS-75Y series?
The wire speed is adjustable and can reach up to 40 meters per second, allowing for high-speed cutting efficiency.
Can the machine operate in extreme outdoor environments?
Yes, the machine is designed to withstand harsh quarry conditions, with an allowed working temperature range of -15°C to +50°C.
Is the machine easy to move within the mining site?
The machine features a 1.5kw walking motor and operates on rails (typically 2x4m lengths), providing controlled and stable movement across the cutting face.
