Customization: Available
After-sales Service: 24/7hours
Warranty: 1year of Core Parts
Send Inquiry

Product Description

Basic Specifications
Model:
PDKJ 10-10
Lubrication Style:
Oil-free
Cooling System:
Air Cooling
Power Source:
Diesel Engine
Cylinder Position:
Horizontal
Structure Type:
Closed Type
Installation Type:
Movable Type
Type:
Single Screw Compressor
Engine:
Yuchai 78kw
Pressure:
10bar, 145 Psi
F.A.D:
10m³/Min, 354cfm
Specification:
3116x1806X1887MM
Product Features
1
This series improves machine body strength while focusing on optimized structural layout and innovative technology applications.
2
Equipped with a self-developed cooler and matched speed-ratio fans to ensure stable performance even in high-temperature weather.
3
Diesel engines operate at economic speeds to maximize fuel economy while maintaining peak operational efficiency.
Detailed Gallery

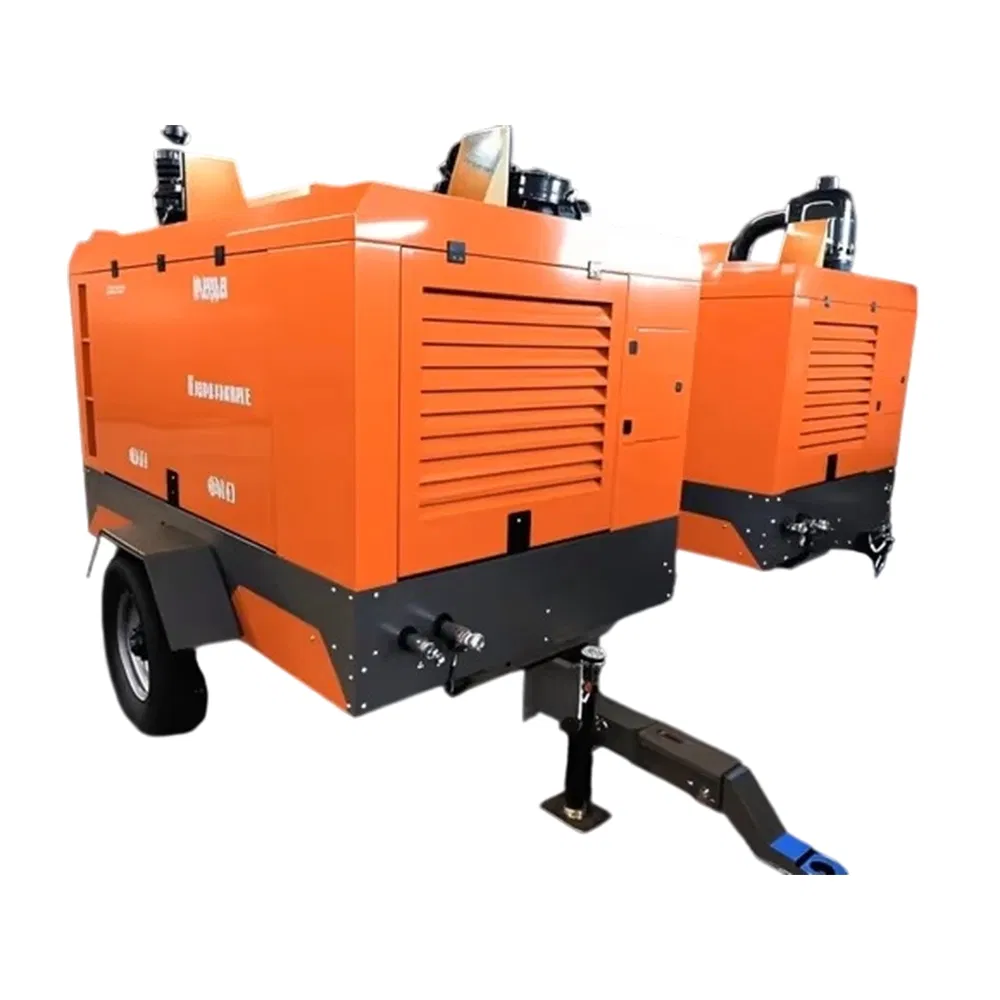

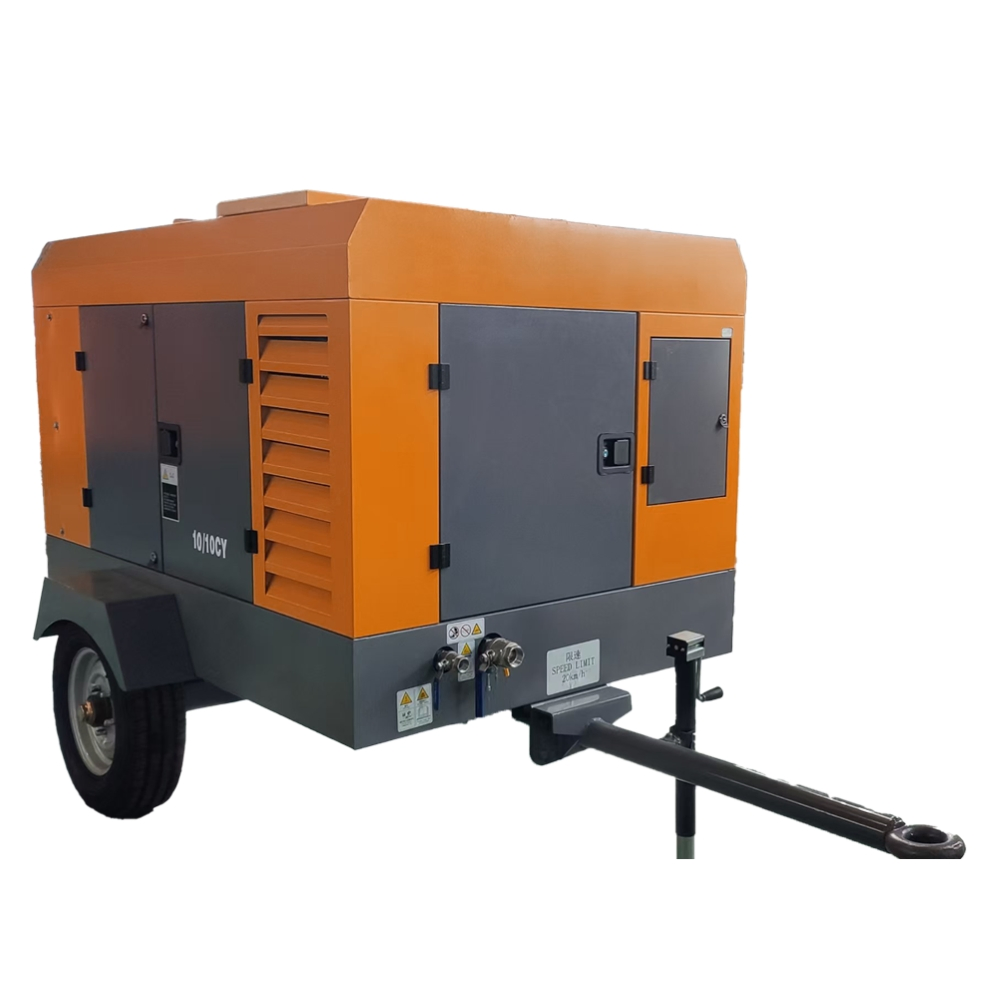

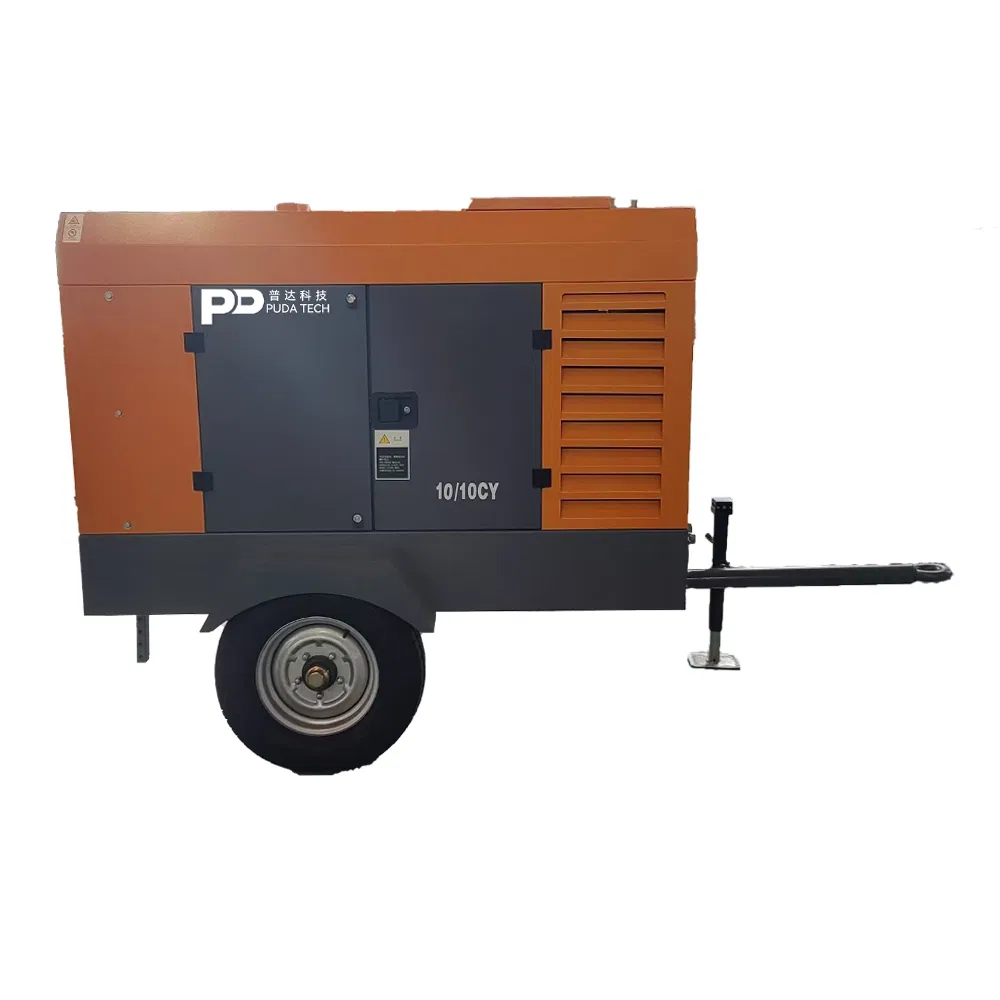

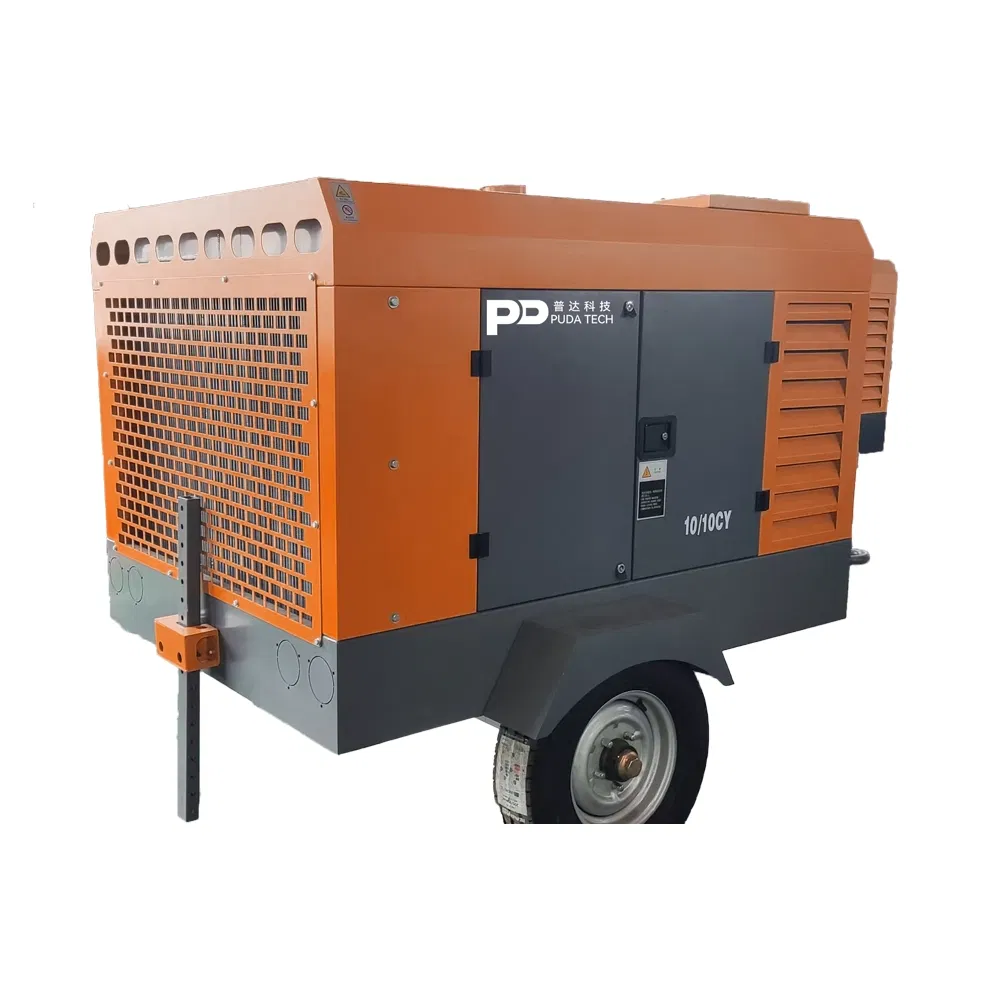

Diesel portable screw air compressor

Free Air Delivery: 10M³/MIN (354CFM)

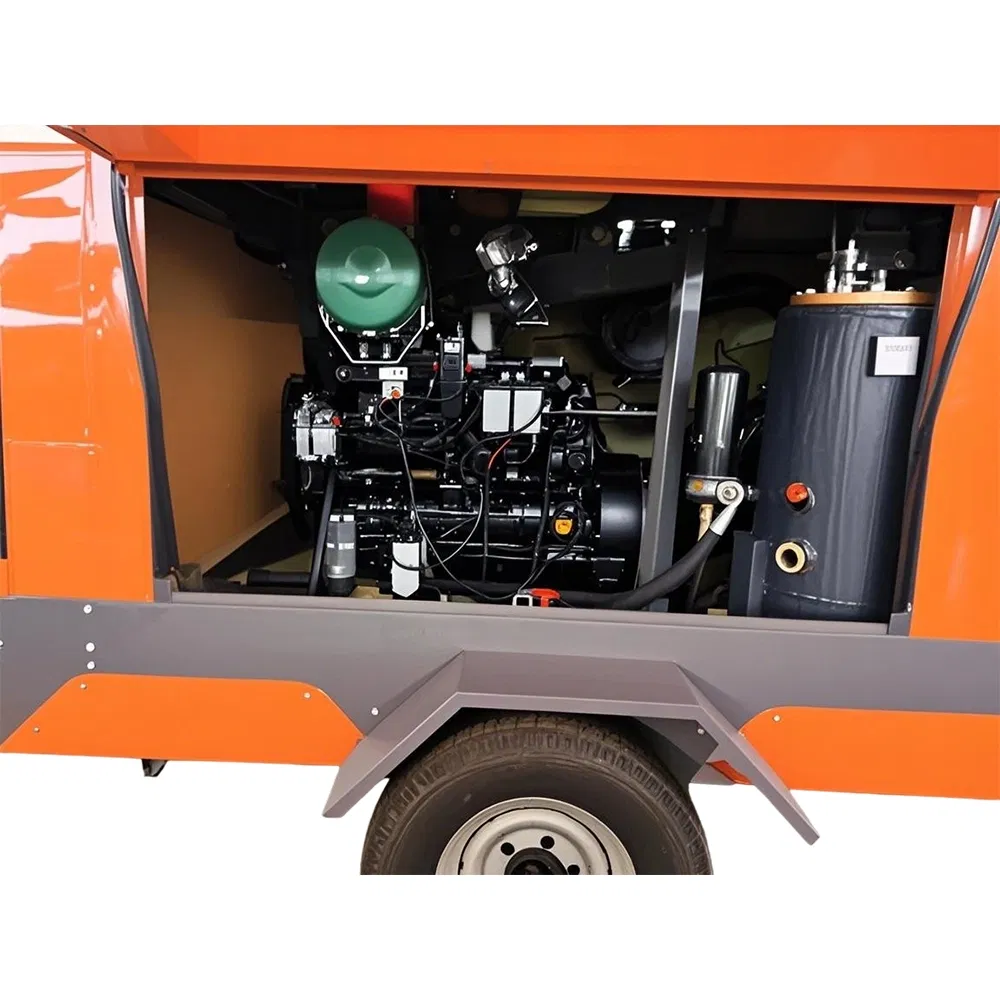

Big oil tank design

78KW YUCHAI Engine & Big Oil Tank

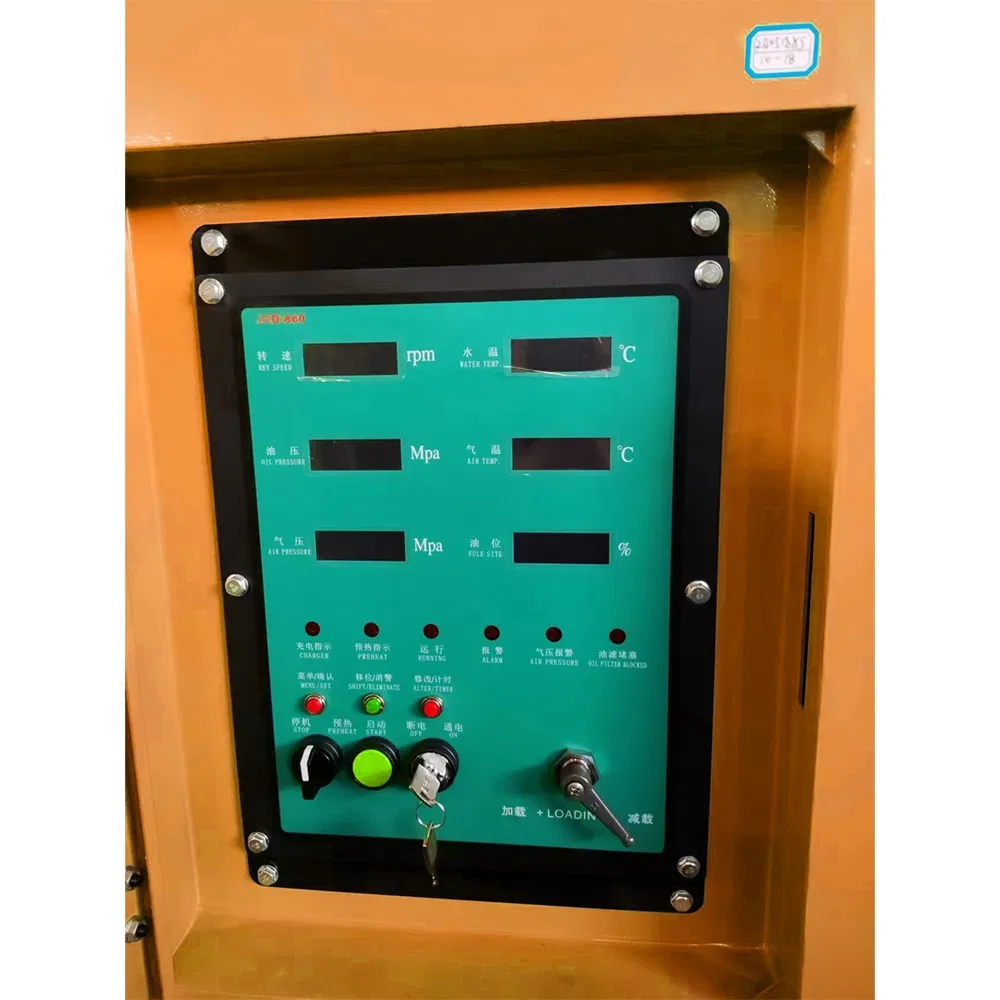

Easy operation monitor

User-friendly monitoring interface and high-quality build.

Technical Parameters
Component Parameter Item Unit Data (PDKJ 10/10CY)
Compressor Free Air Delivery m³/min 10 (354CFM)
Discharge Pressure Bar/PSI 10 / 145
Oil Tank Capacity L 100
Lubricating Oil L 48
Compressor Head - Baosi Brand
Diesel Engine Manufacturer - YUCHAI
Rated Power KW 78
Rated Speed RPM 2200
Fuel Tank Capacity L 90
Dimensions Length x Width x Height mm 3116 x 1806 x 1887
Net Weight kg 1650
Exhaust Valve - G1"x1 & G1 1/2"x1
Production & Certification

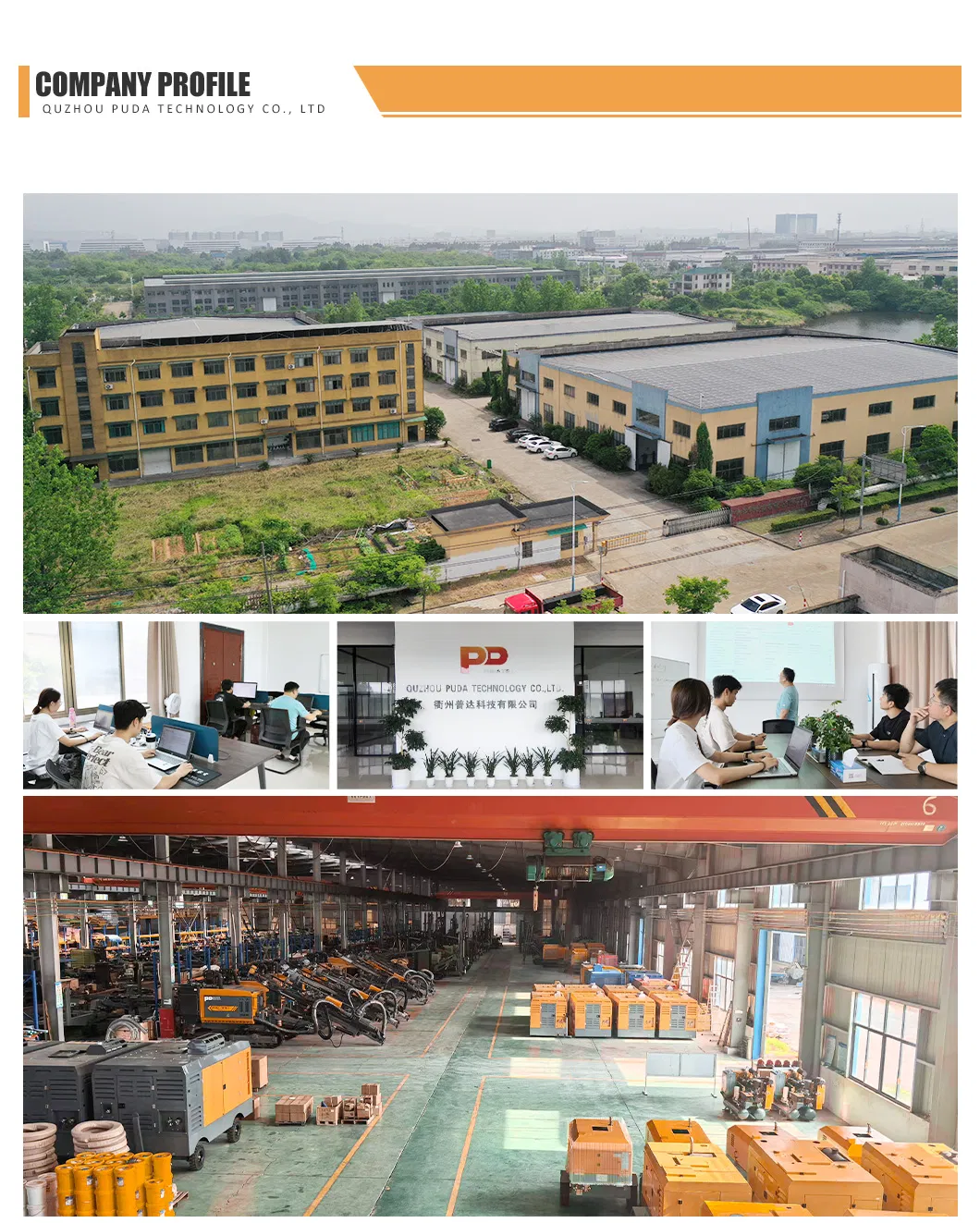

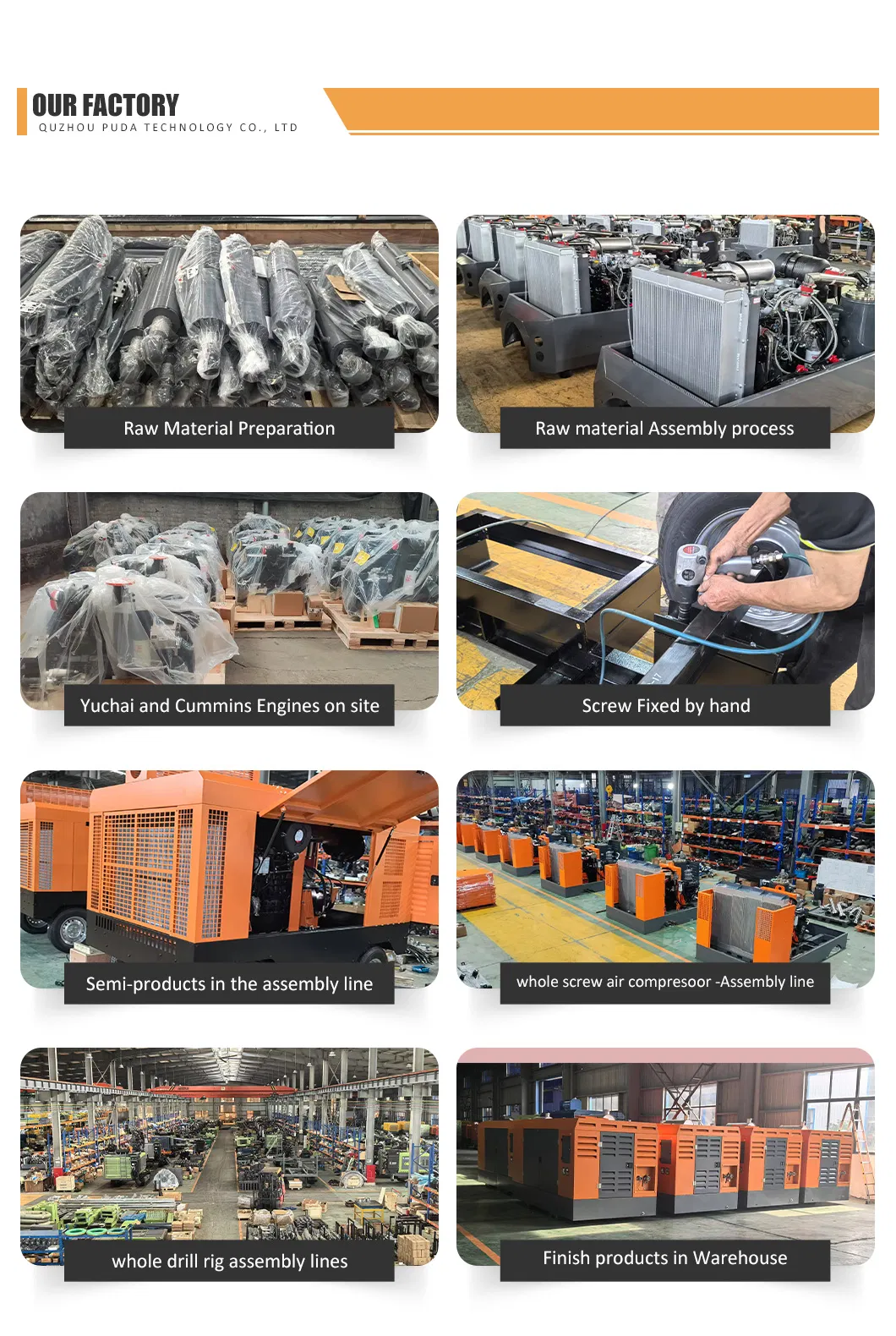

Production Facility
Certifications
Installation & Logistics
Installation 1 Installation 2

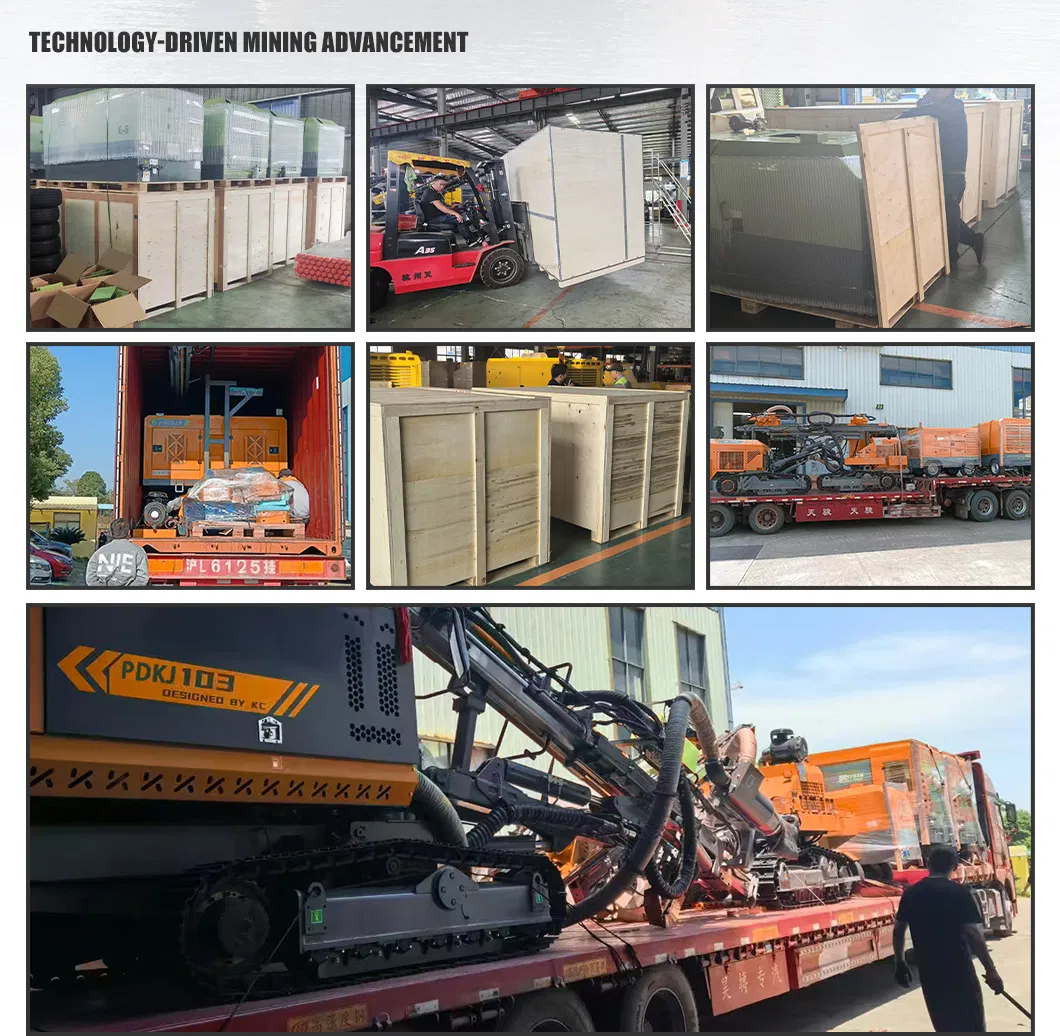

Packaging 1 Packaging 2 Packaging 3
Shipping 1 Shipping 2
Frequently Asked Questions
What is the air delivery capacity of this compressor?
The PDKJ 10-10 offers a Free Air Delivery (F.A.D) of 10m³/min, which is equivalent to 354CFM.
What type of engine is used in this unit?
It is powered by a high-efficiency Yuchai 78kw diesel engine, designed for optimal fuel economy.
What is the maximum working pressure?
The discharge pressure is rated at 10 bar, which is approximately 145 PSI.
Is the compressor suitable for mobile applications?
Yes, it features a movable structure with a compact design and traction support, making it ideal for underground excavation and building projects.
How does the cooling system handle high temperatures?
The unit is equipped with a self-developed air-cooling system and specialized fans with high speed ratios to ensure reliable operation in extreme heat.
What are the fuel and oil capacities?
The fuel tank has a capacity of 90 liters, while the lubricating oil capacity is 48 liters.
