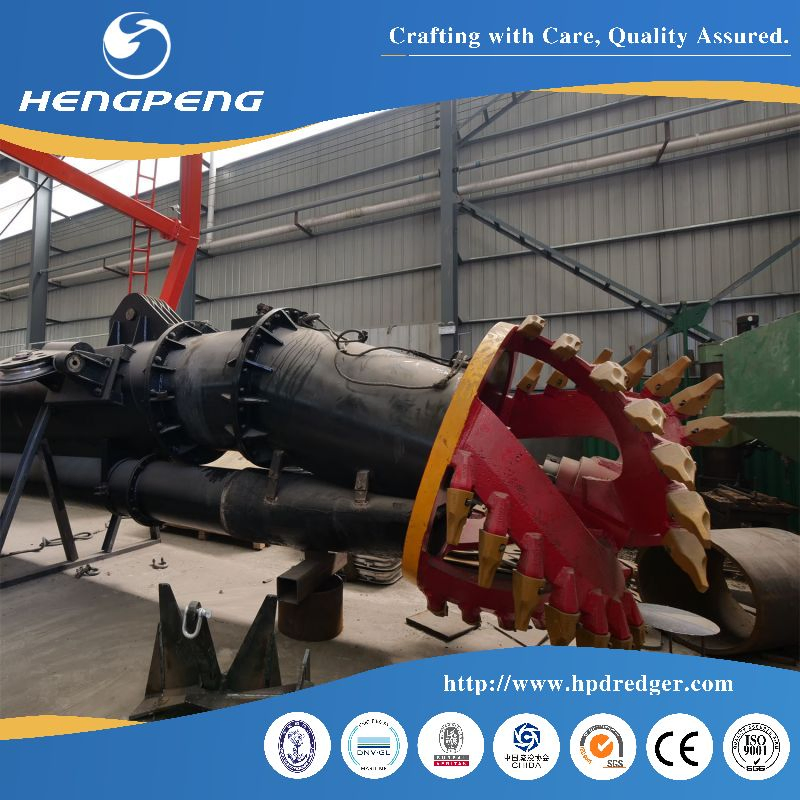

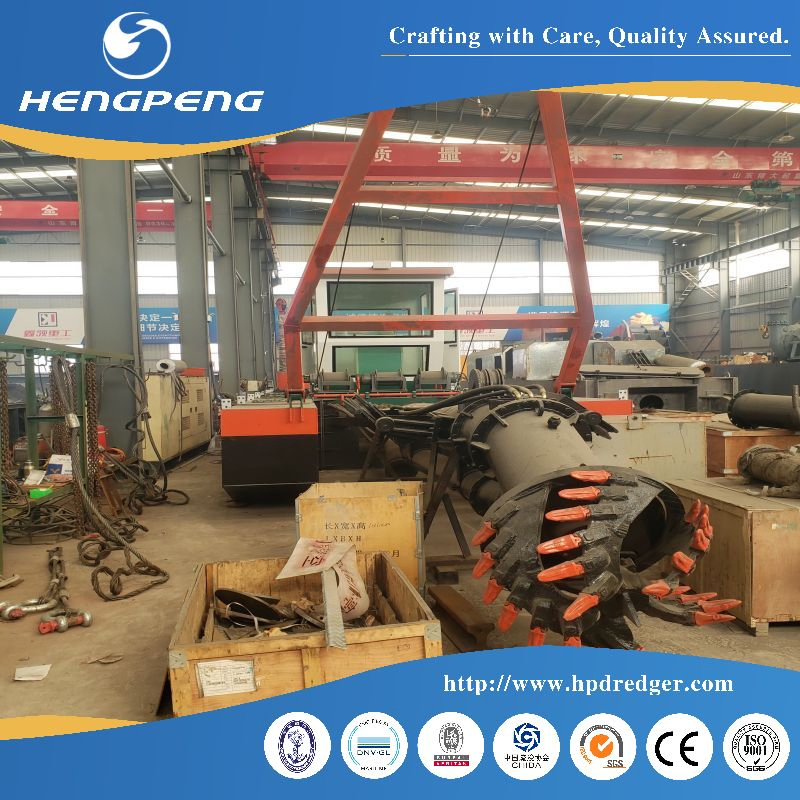

Cutter Head Suction Dredger: Engineered with precision for high-performance dredging operations. This unit features a 1400m³/HR capability, fully hydraulic control, and is perfect for sea engineering projects.

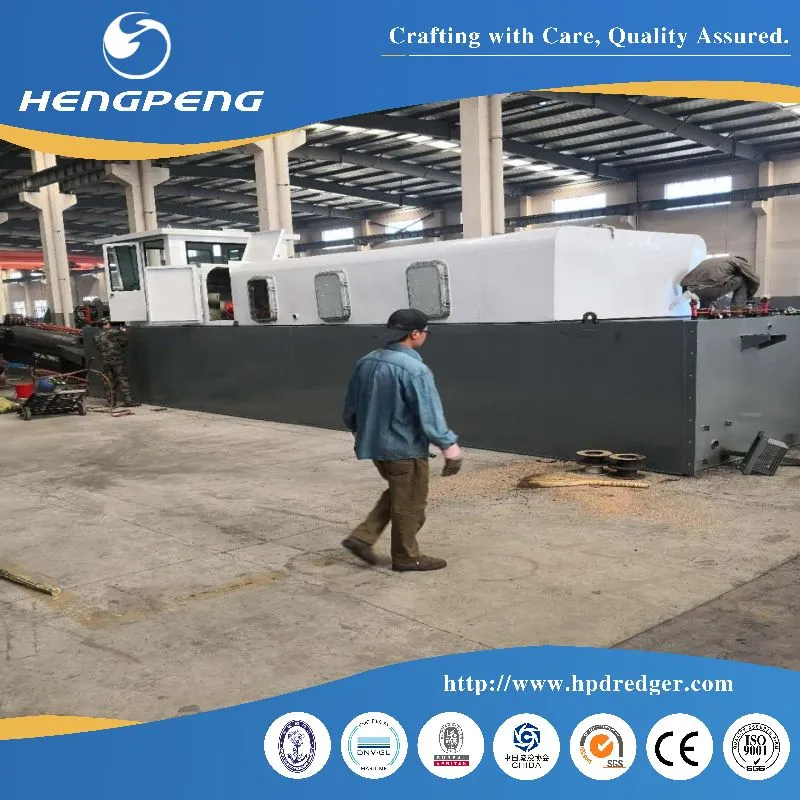

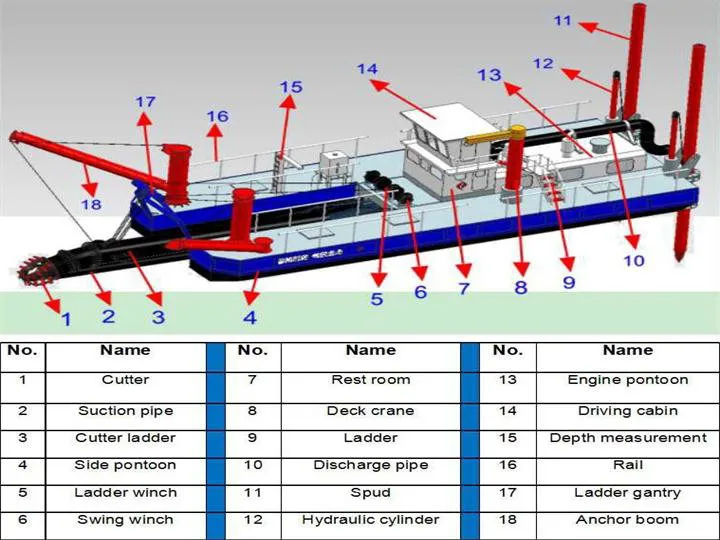

The Cutter Suction Dredger is a non-self-propelled, dismountable vessel designed for cohesive sediment transport. The hull consists of one main pontoon and two side pontoons, optimized for transport by road, rail, or water using a rapid bolt-and-hook connection system.
| Item | Parameter Details | Remark |
|---|---|---|
| Total Length | 25.0m | CCSB Steel |
| Hull Length/Width | 18.0m / 5.2m | CCSB Steel |
| Draft | 1.05m | - |

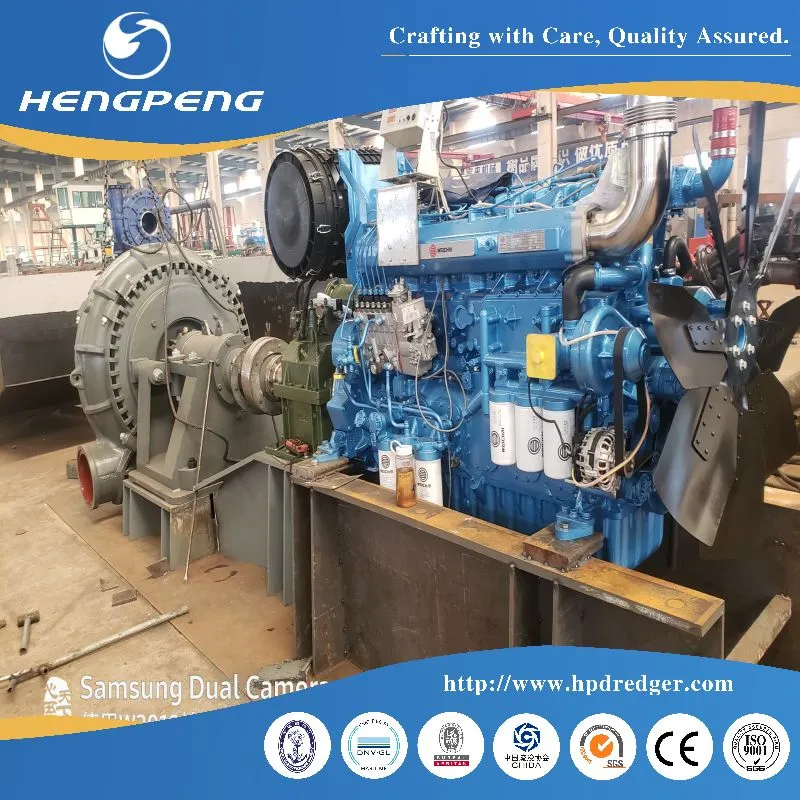

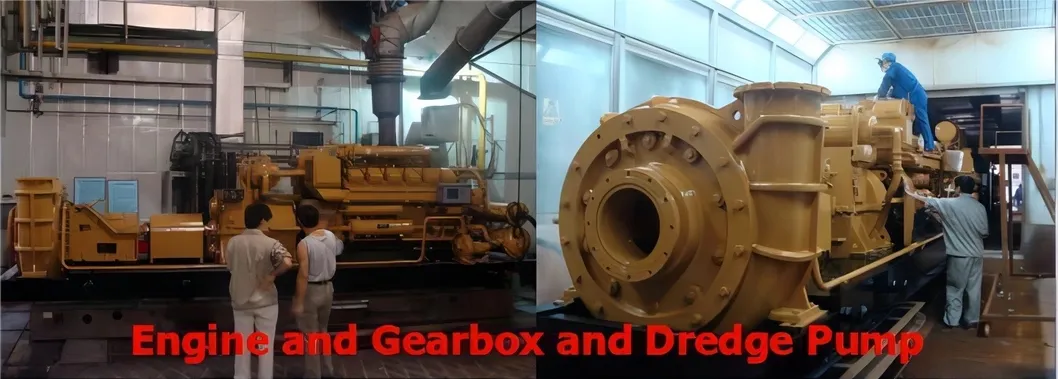

| Main Engine | 450KW (Marine Grade) | Used 1 Year |
| Generator | 24KW | - |
| Dredging Depth | 10m | - |
| Pump Flow | 1400m3/h | Australia Tech |
| Solid Capacity | 280m3/H | - |
| Spud System | Dia 377mm, 13m length | 2 Pieces |

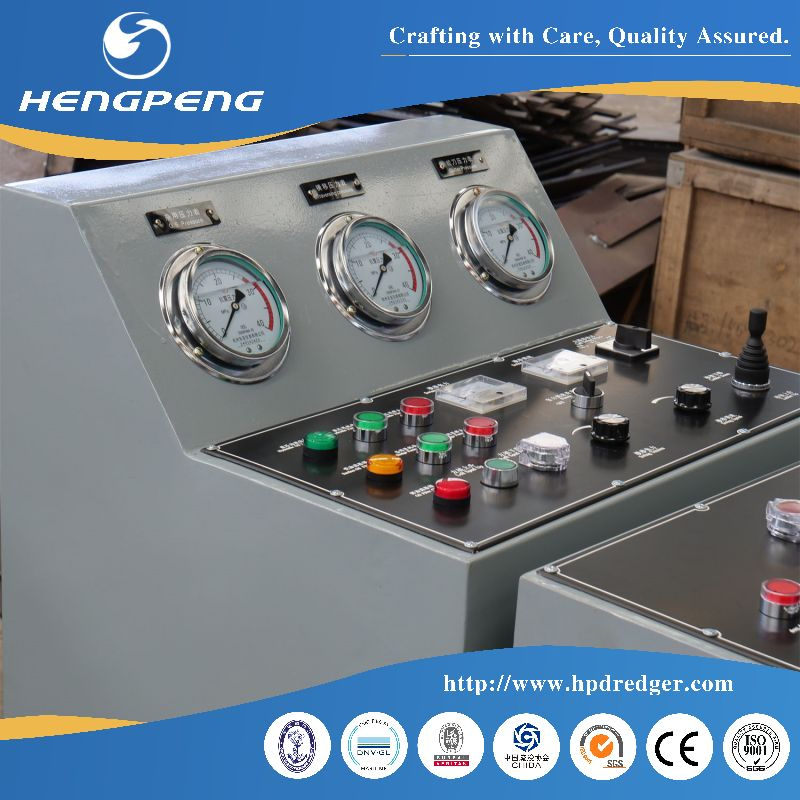

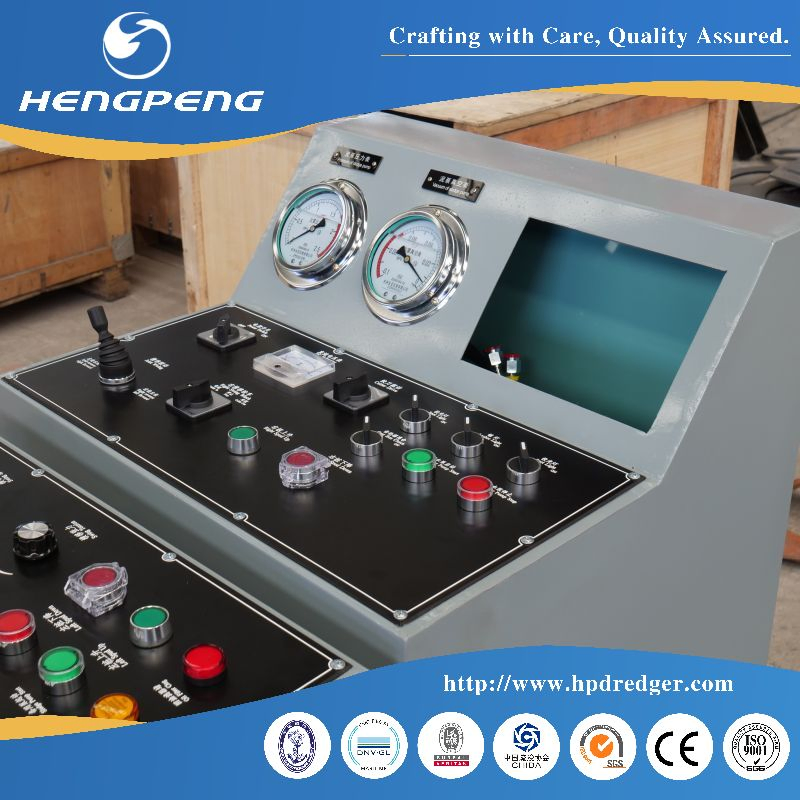

| Operation | PLC & Hydraulic | - |

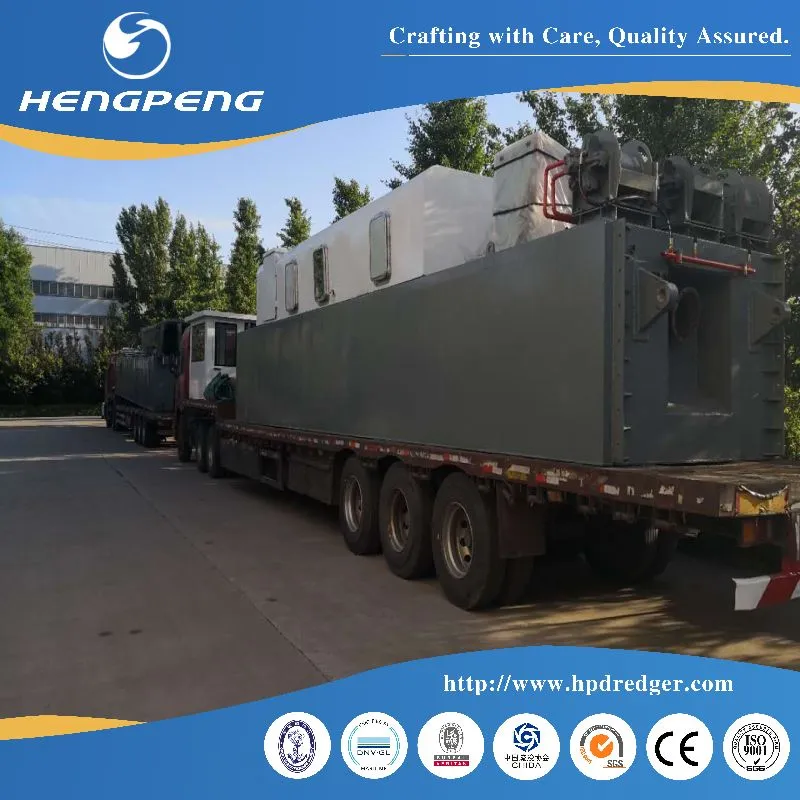

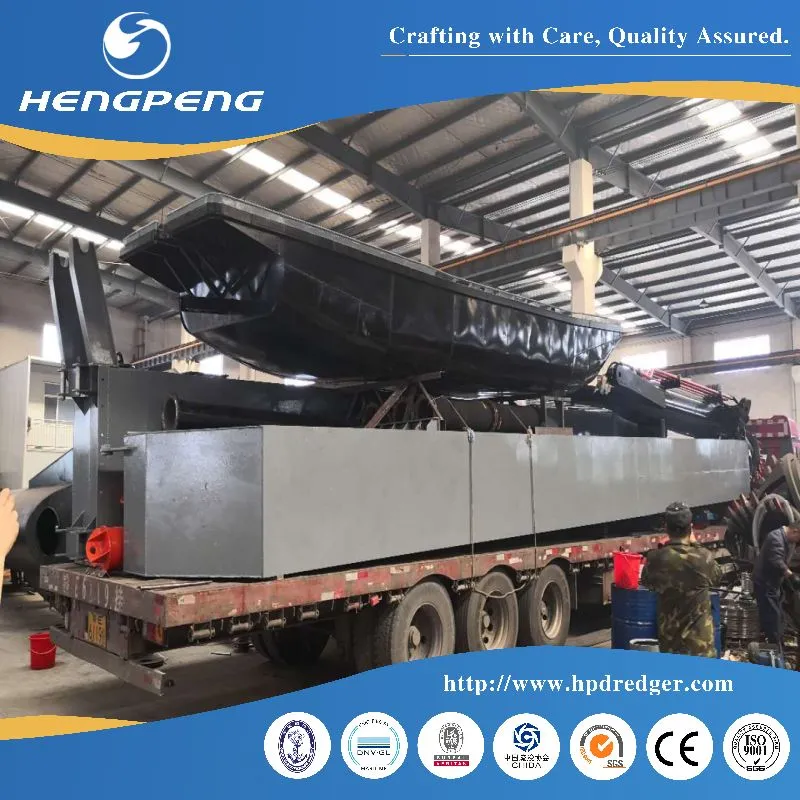

The advanced dredger is designed for seamless transportation via 6*40HQ containers. Components are carefully disassembled for secure fitting. Skilled engineers are available for on-site assembly, testing, and training upon arrival.
We provide an extensive range of standardized and customized dredging vessels, including Amphibious, Jet Suction, and Bucket Wheel types. Solutions incorporate advanced technologies from Germany, Holland, Australia, and Japan.
