Used Tire Cold Retreading Machine
Please provide the size of the product you need and your required production capacity. We will select and tailor the most suitable machine for you!

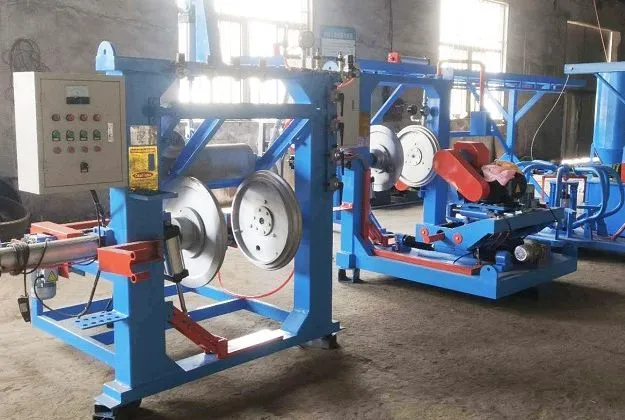

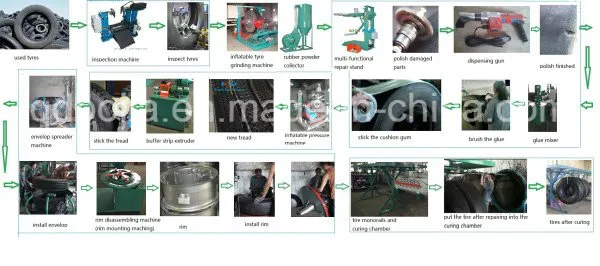

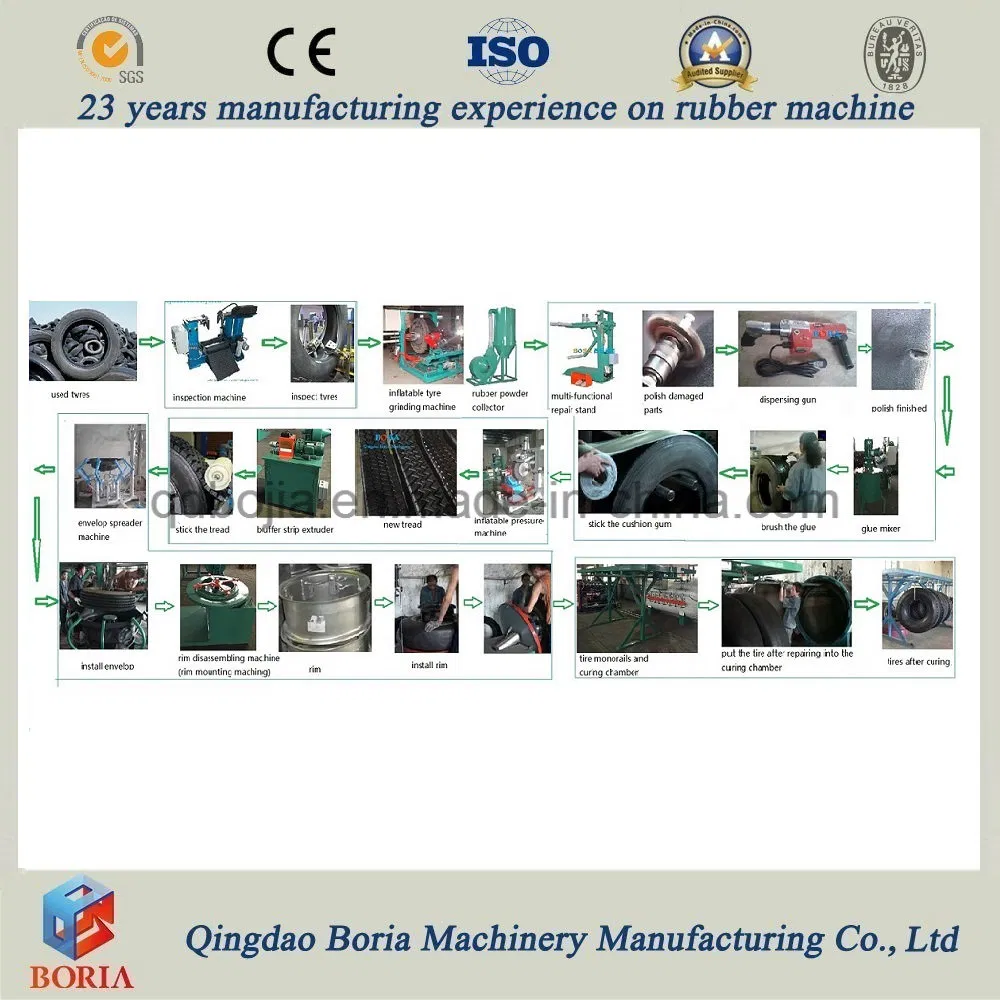

Machine Process Introduction
1Collection of Casings: Worn tyres are collected to select suitable casings for tyre retread.
2Initial Inspection: Each tyre received is subjected to a rigorous visual inspection using non-destructive sophisticated inspection machines.
3Buffing: Old tread is mechanically removed on high-speed buffers, turning the tyre to an exact specified diameter and radius.
4Section Repairs & Skiving: Surface injuries are treated using professional grinding and patching tools.
5Cementing and Filling: Injuries are cleaned with carbide cutters and filled with vulcanizing rubber stems to maximize tyre life.
6Building - Tread Rubber: A thin layer of cushion gum is wrapped around the crown, and pre-cured tread rubber is applied via the building machine.
7Enveloping & Rim Mounting: Tyres are fitted with envelopes and rims to prepare for the curing process.

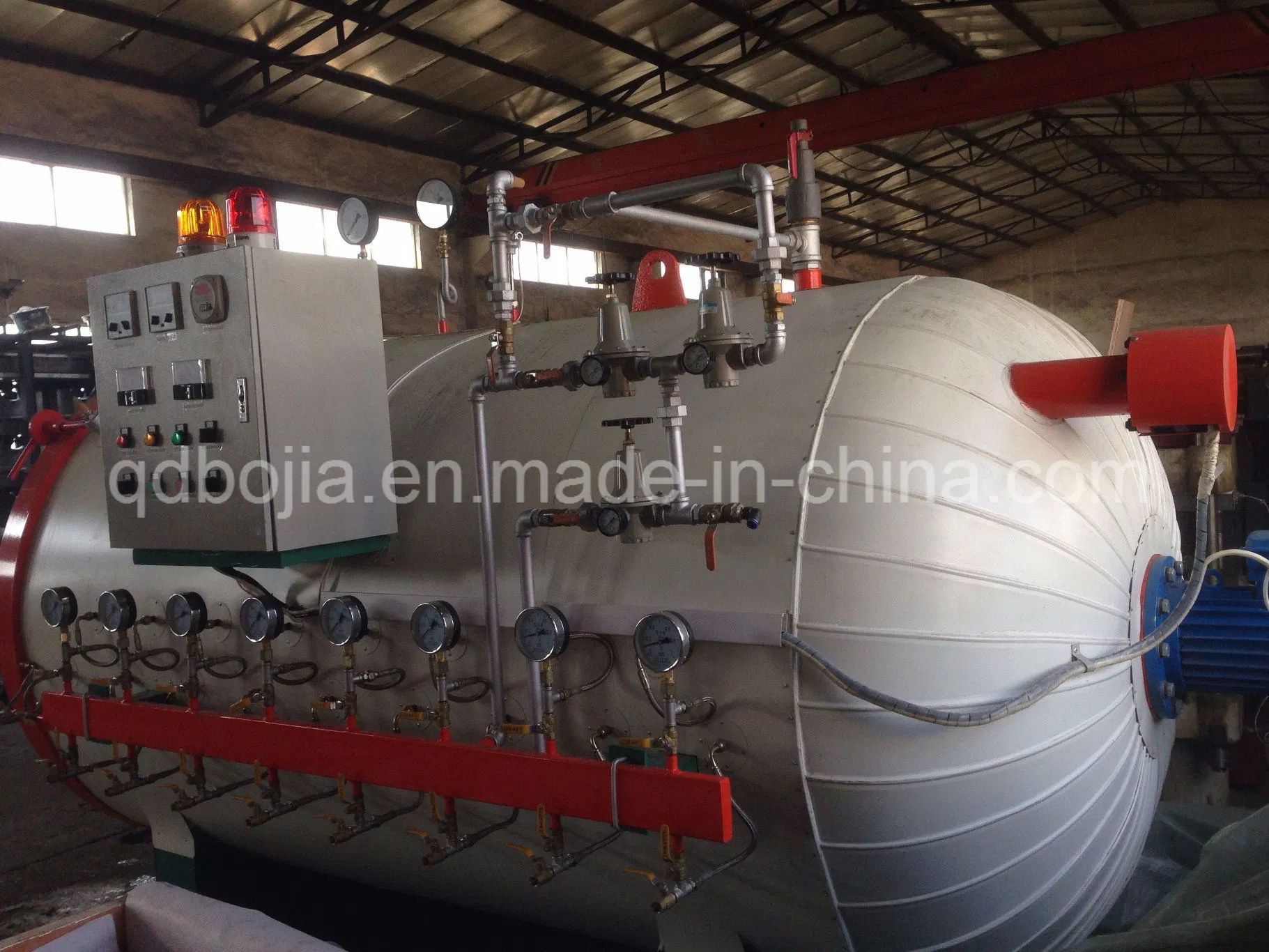

8Curing by Chamber: The tyre is placed in a curing chamber where the tread adheres to the casing through vulcanization.
9Final Inspection: Ensures only tyres meeting industry quality standards leave the plant, often finished with a light coat of black tyre paint.
Technical Specifications

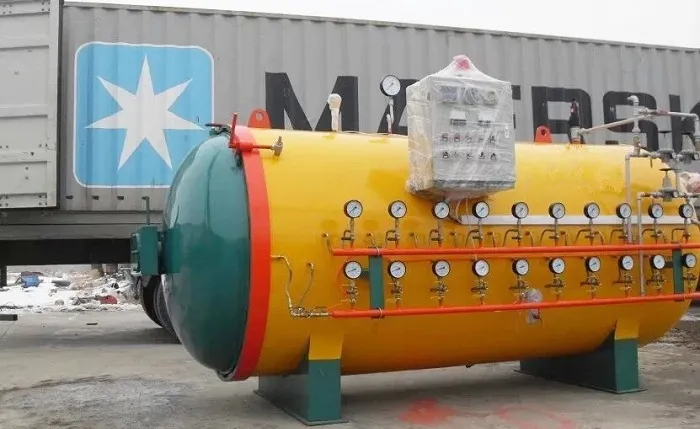

⚙️ 1. Curing Chamber Configuration
| Model/Size (Diameter*Length) |
Capacity (Tire Quantity) |
Heating Method |
Power |
| DN1500*1500 | 4 tires | Electrical, Thermal Oil, or Steam heating | 30kw-90kw |
| DN1500*2000 | 6 tires |
| DN1500*3000 | 8 tires |
| DN1500*3500 | 10 tires |
| DN1500*4000 | 12 tires |
| DN1500*5000 | 16 tires |

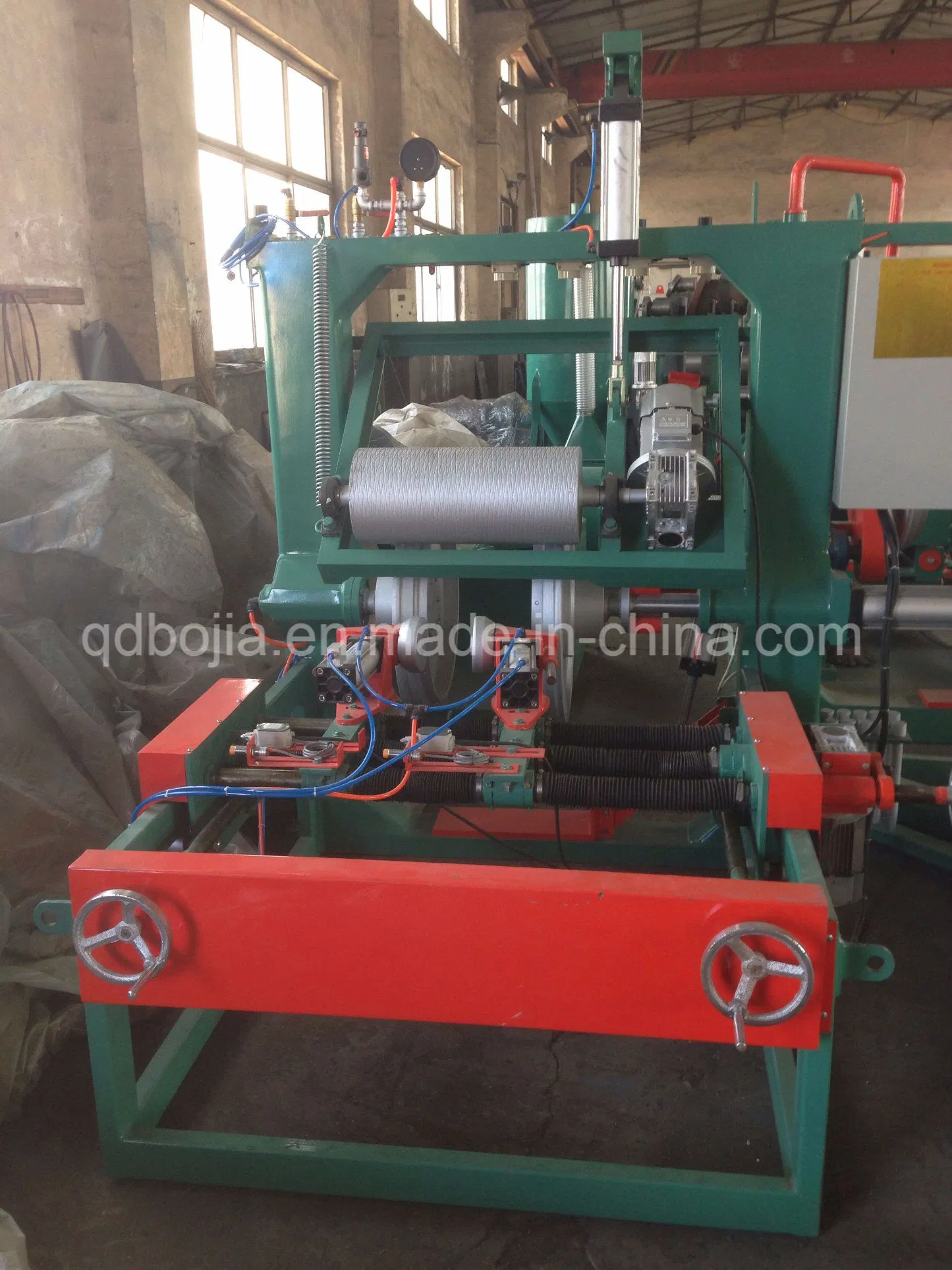

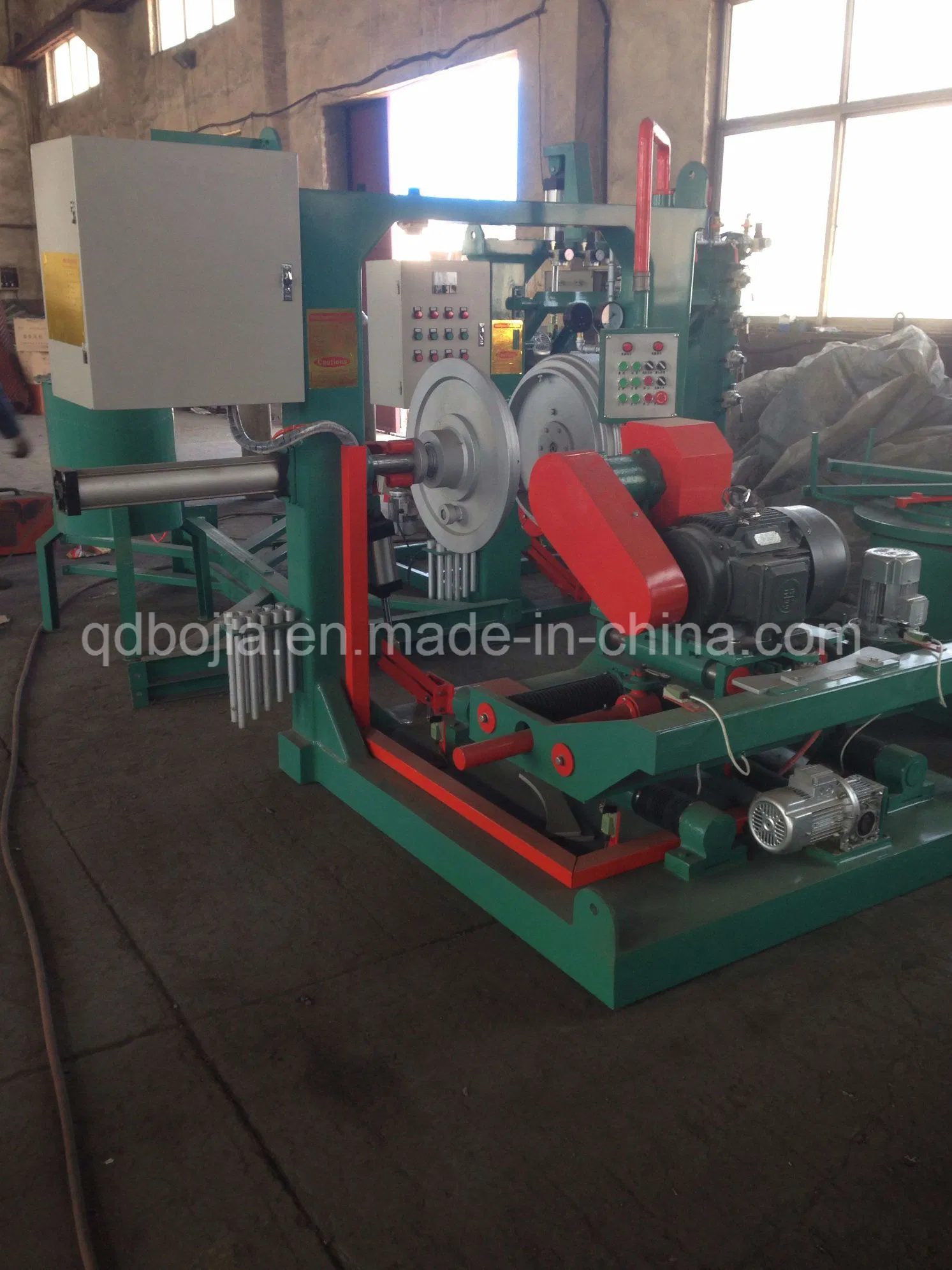

⚙️ 2. Inflatable Tire Buffing Machine
| Model | FXM-C |
|---|
| Application Scope | 15", 16", 20", 22.5" |
|---|
| Dimensions | 1920x2150x1850 mm |
|---|
| Grinding Motor Power | 11KW |
|---|
| Function | For tire tread surface radian grinding with explosion-proof features. |
|---|
⚙️ 3. Tread Building Machine
| Model | TBM-22.5 |
|---|
| Working Pressure | 0.6Mpa |
|---|
| Weight | 900KG |
|---|
| Components | Frame, Tread Press Motor, Ejecting Motor, Pneumatic Components, PLC Control Panel. |
|---|
Professional Equipment Range
We specialize in manufacturing the following professional rubber machinery:
- Rubber vulcanizing presses (Frame type, Four-column type, Lab press)
- Rubber mixing mills
- Batch-off coolers
- Rubber extruders and strip making machines
- Tire recycling equipment
Frequently Asked Questions
What types of tires can be processed with this retreading equipment?
The system is designed for a variety of tires, including light and heavy-duty tires with sizes ranging from 15" to 22.5".
How many tires can the curing chamber handle at once?
Depending on the model selected, the capacity ranges from 4 tires up to 16 tires per vulcanizing cycle.
Which heating methods are supported by the vulcanizing chamber?
Our equipment is versatile and can be configured for electric heating, thermal oil heating, or steam heating systems based on your facility's requirements.
Is the operation of the machines automated?
Yes, the production line utilizes PLC control for high-precision operation and offers semi-automatic or fully automatic chamber options.
What is the main advantage of the cold retreading process?
Cold retreading uses pre-cured tread rubber, which provides high durability and a longer lifespan for the tire while being more energy-efficient than traditional hot retreading.
