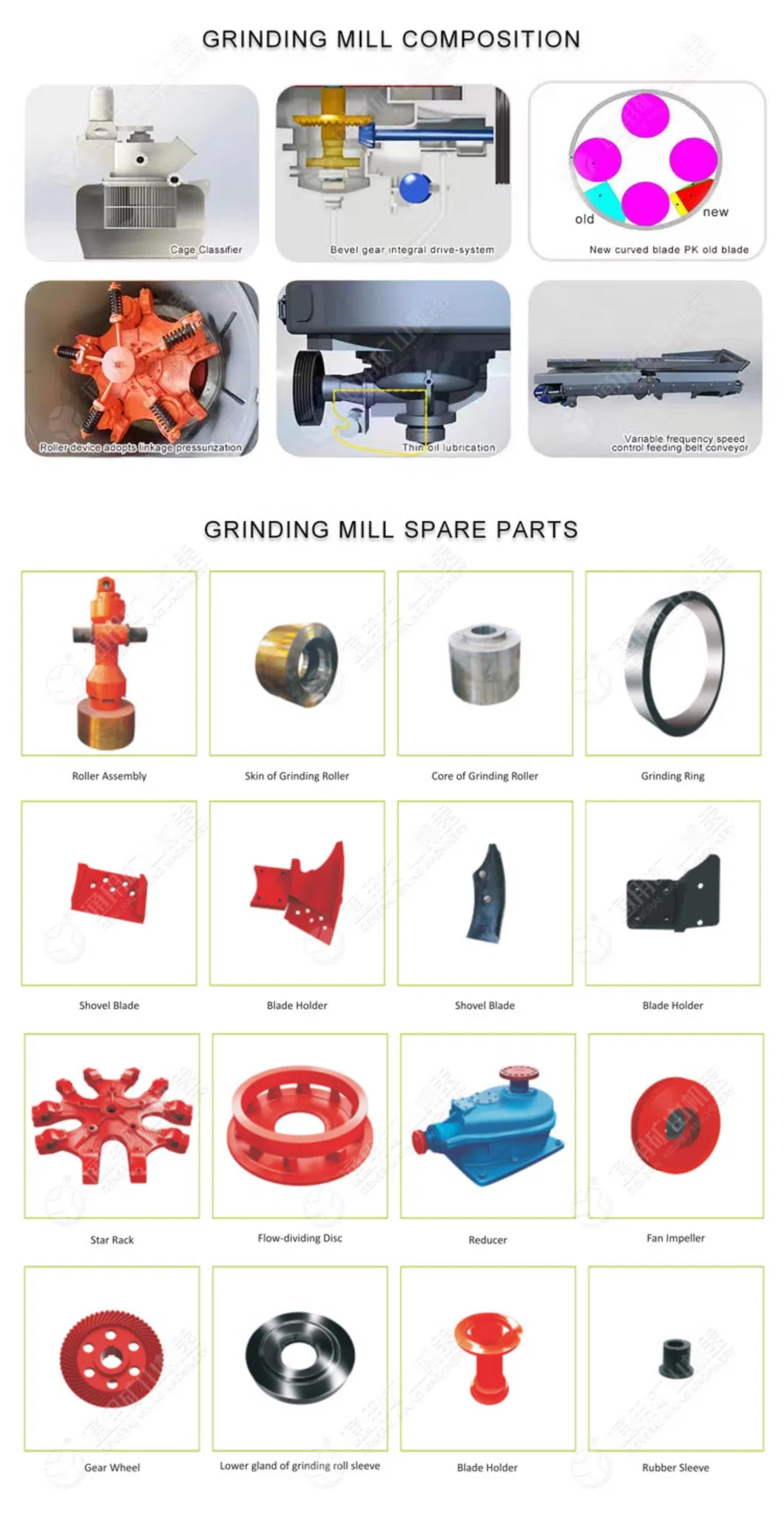

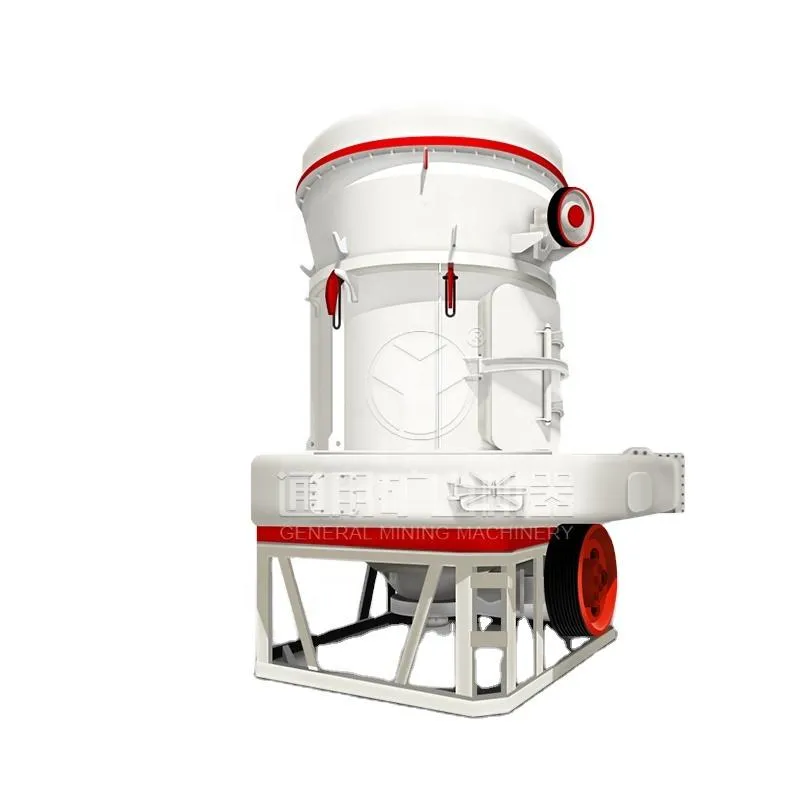

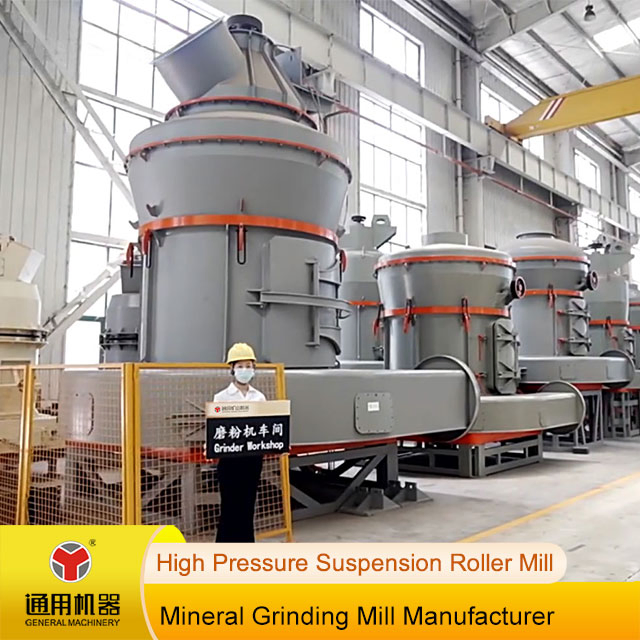

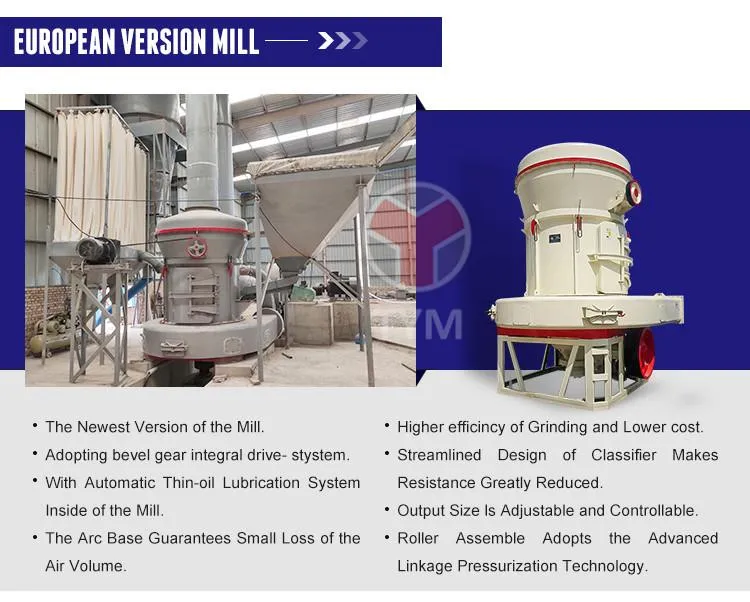

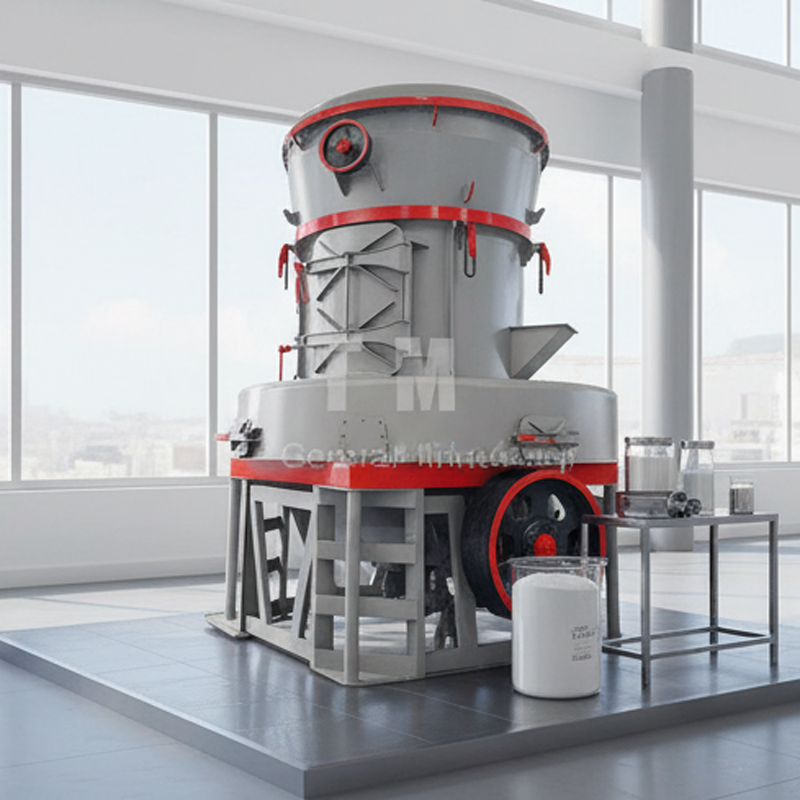

The MTW series European powder machine adopts bevel gear whole driving, an internal thin oil lubrication system, and an arc air duct along with many other technical patents. It ensures stable performance, convenient operation, and low energy consumption while maintaining controlled product granularity.
This mill is mainly utilized in metallurgy, building materials, chemicals, and mining. It is suitable for grinding materials with Mohs hardness below 9.3 and humidity below 6%, such as:

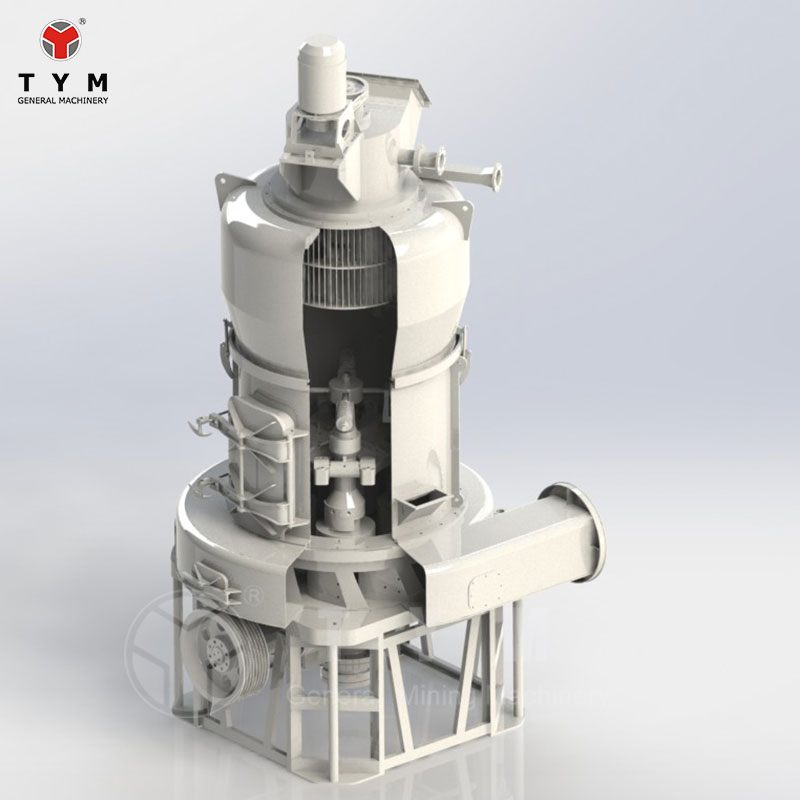

The center axis is driven to rotate by the bevel gear. The grinding roller not only rotates around the central axis but also around the grinding ring. The rotation of blades throws materials into the gap between the ring and rollers, forming a bedding layer which is then ground by the outward centrifugal force.
| Model | Rollers | Ring Dia (mm) | Max Feeding (mm) | Output (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
|---|---|---|---|---|---|---|---|
| MTW-110 | 4 | 1100 | <30 | 1.6-0.045 | 3.5-6.6 | 45 | 13.5 |
| MTW-138 | 4 | 1380 | <35 | 1.6-0.045 | 6.5-15 | 90 | 28.5 |
| MTW-175 | 5 | 1750 | <40 | 1.6-0.045 | 11-25 | 160 | 46 |
| MTW-215 | 5 | 2150 | <50 | 1.6-0.045 | 20-50 | 280 | 66 |
| MTW-1420 | 4 | 1420 | 30 | 1.6-0.045 | 3-10.5 | 75-90 | 22.5 |

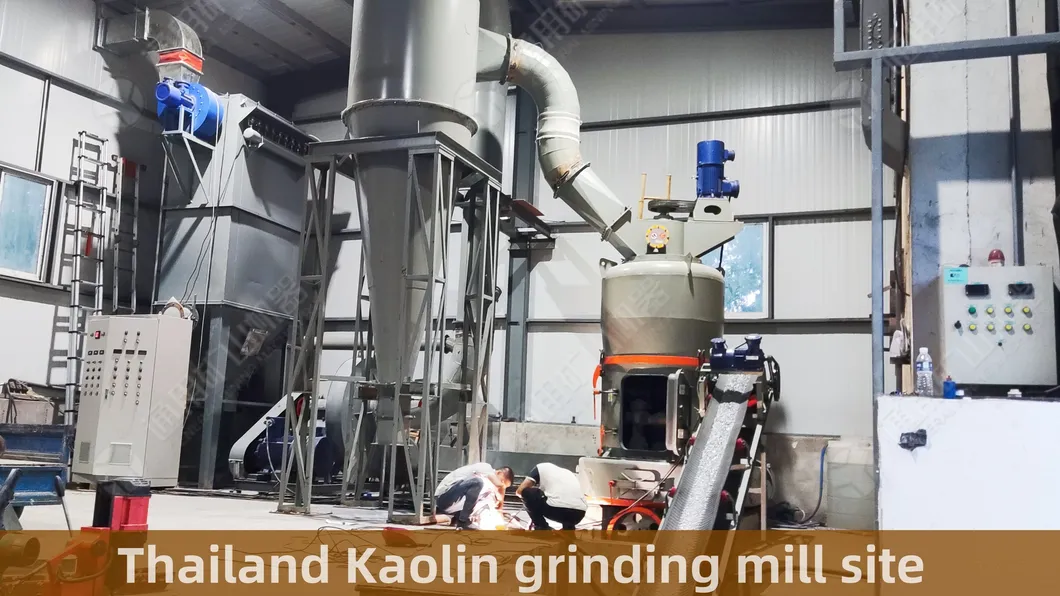

Our machinery has been exported to more than 30 countries worldwide, covering mining, cement, and chemical industries. We provide complete solutions including EPC project general contracting.

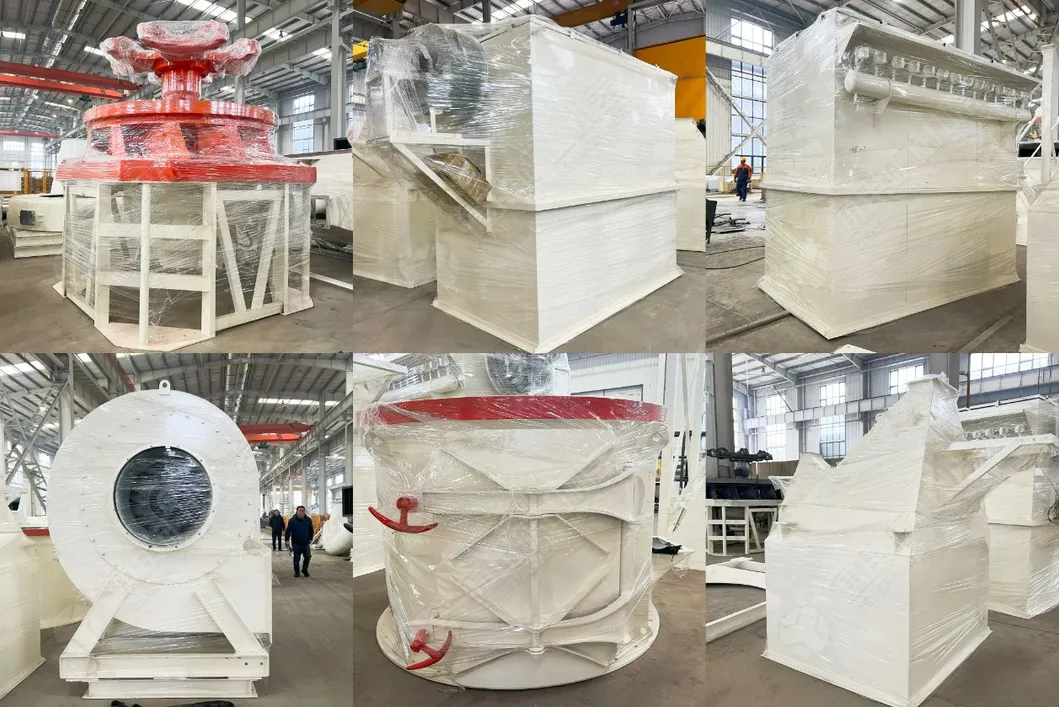

All equipment is packed according to standard protective measures, suitable for long-distance sea transportation. Moisture-proof and rust-proof protections ensure machines arrive safely.
