Product Description

Overview & Basic Info

Model NO.
LD
Forging Method
Mold Forging
Feature
Automation
Certification
ISO9001
Warranty
6 Months
Strength
1470-1770MPa
Heading Force
88.2/165kN
Condition
New
Package Size
120.00cm * 300.00cm * 249.00cm
Gross Weight
15.000kg

Product Description

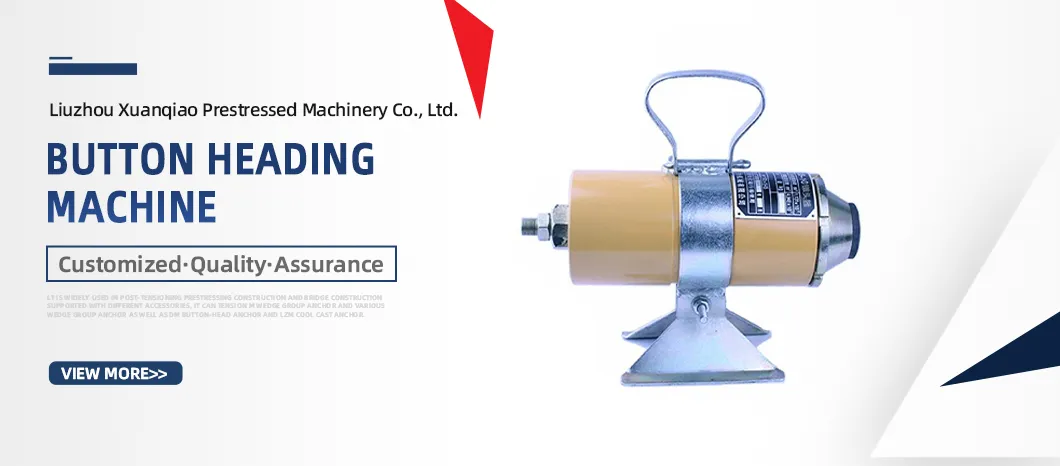

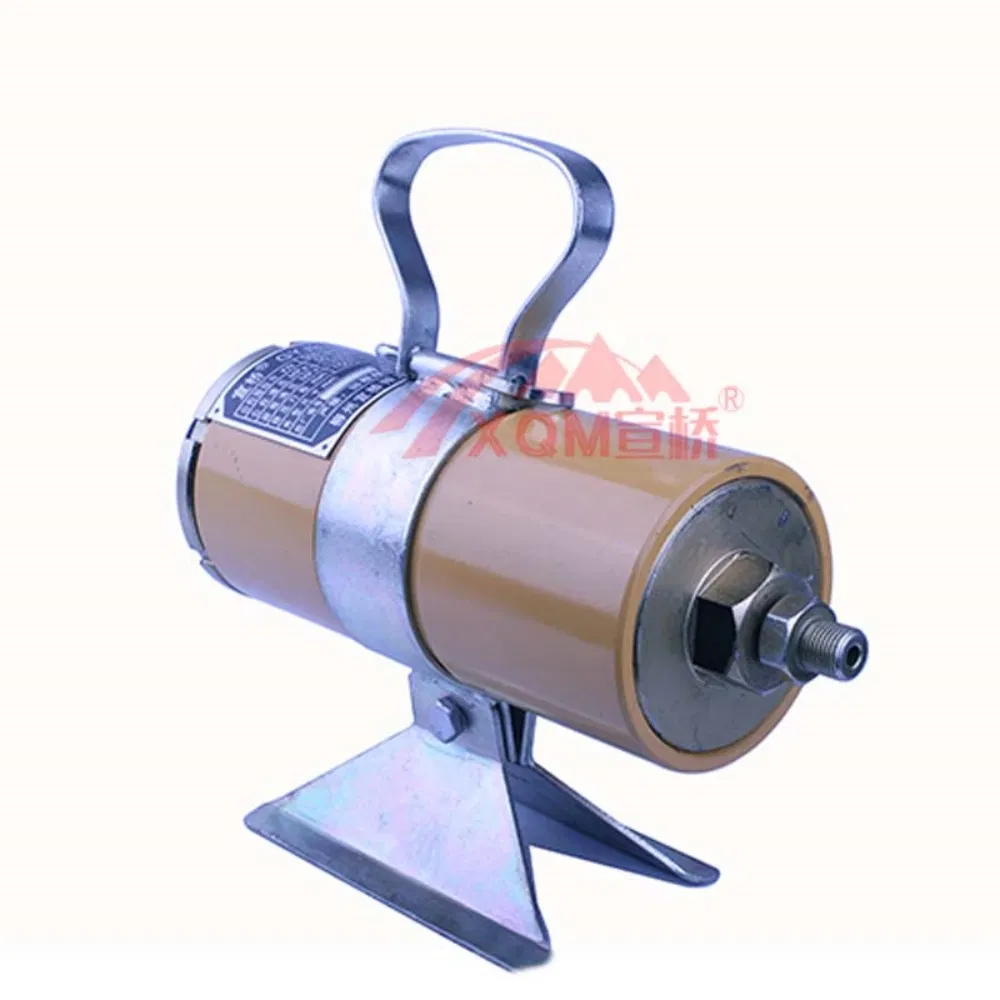

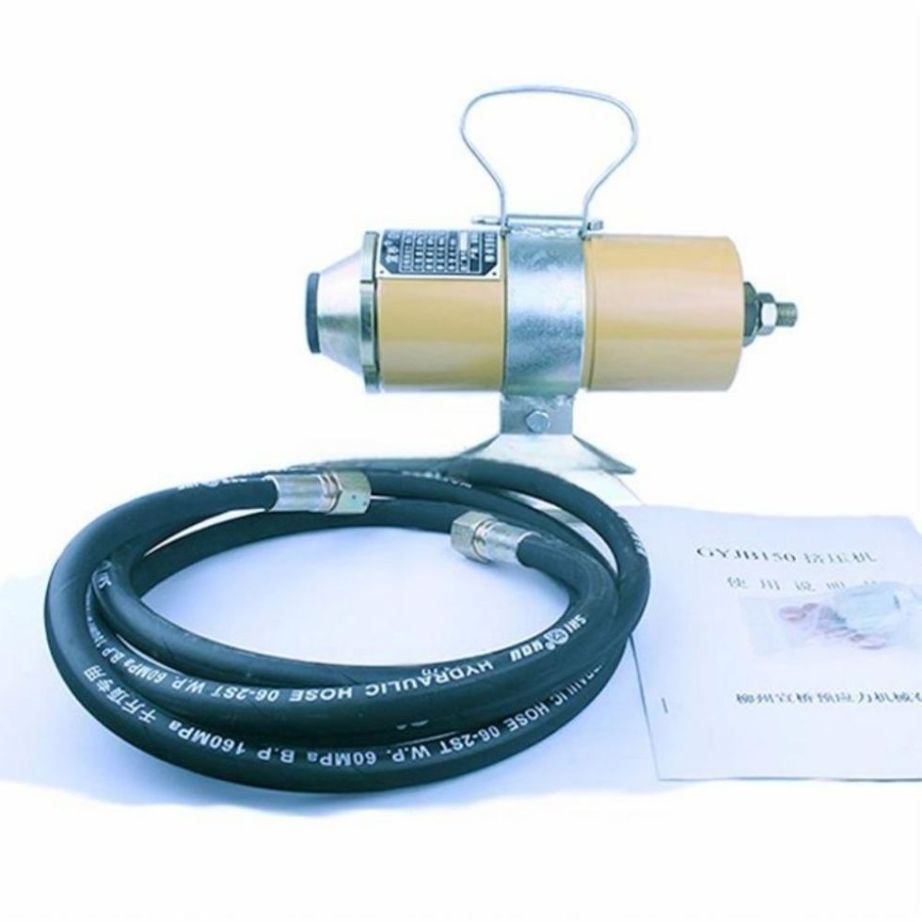

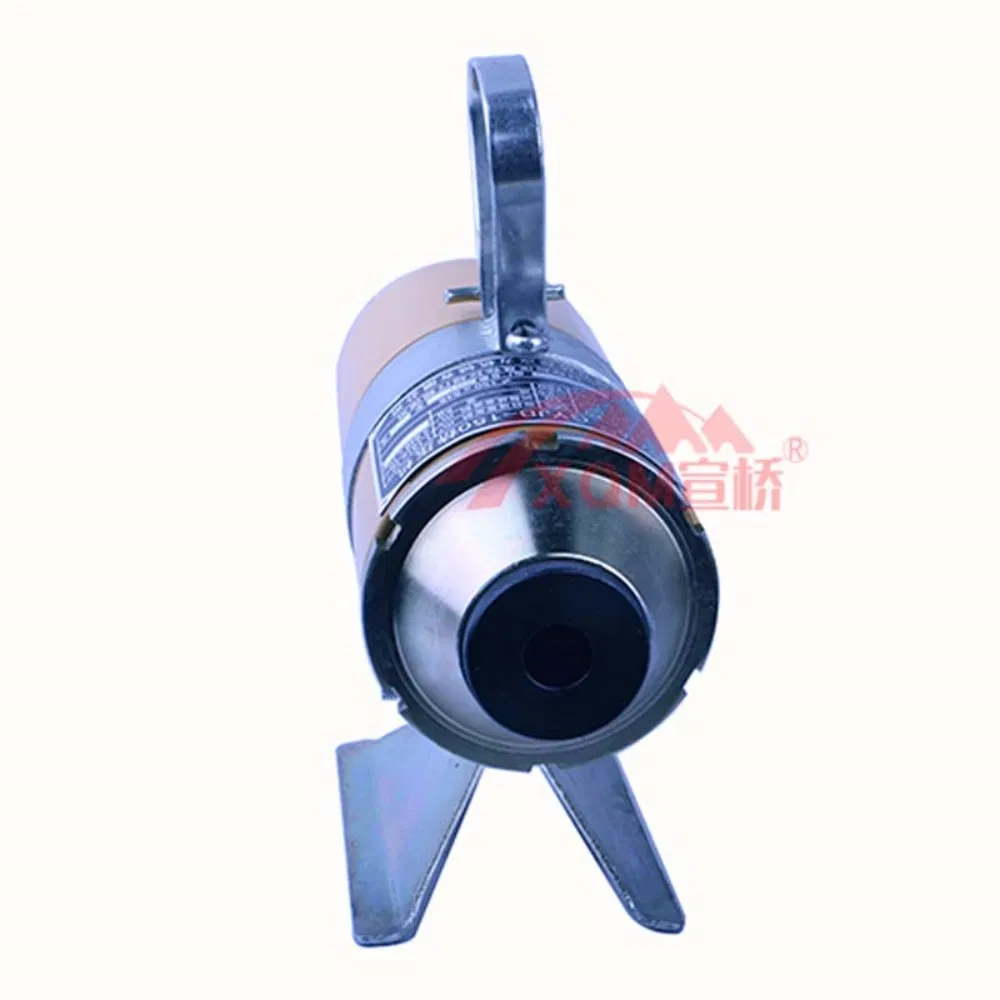

Prestress Hydraulic Button Heading Press Machine

XQV LD Button Heading Machine

The XQV LD Button Heading machine is specialized equipment designed for prestressed concrete components. It is used to upset the ends of steel bars or steel wires to form upset heads, fixing prestressed tendons through anchors. Utilizing cold upsetting forming technology, it applies instantaneous high pressure through hydraulic transmission, causing local plastic deformation.

The internal mold restrains the steel bar ends to ensure a regular shape, meeting anchoring requirements without heating. This preserves the mechanical properties of the steel bars by avoiding high-temperature influence.

Button Heading Machine Operation

Application Scenarios

  • Construction & Bridges: Used for anchoring prestressed tendons in precast components like crane beams, roof trusses, and high-rise floor slabs.
  • Geotechnical Engineering: Ideal for slope support, tunnel reinforcement, and coal mine roadway support via anchor rod/cable upsetting.
  • Water Conservancy: Applicable for dams, aqueducts, and railway sleepers to enhance fatigue resistance.

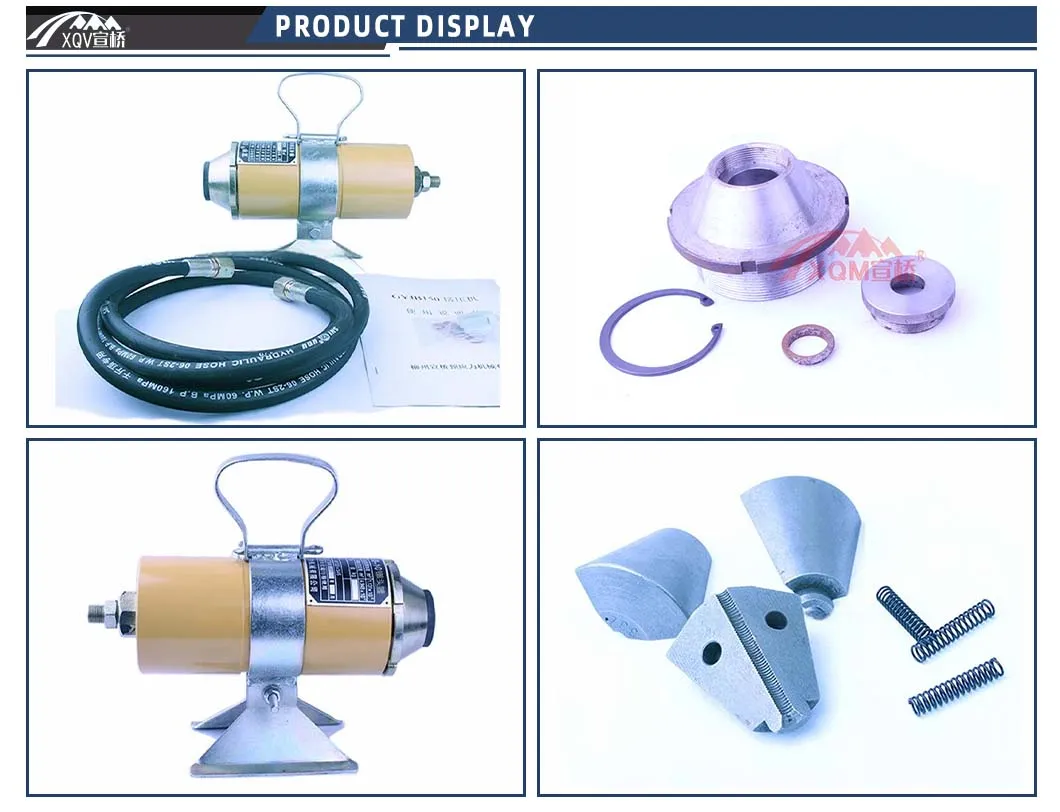

Bridge Construction Application

Technical Specifications

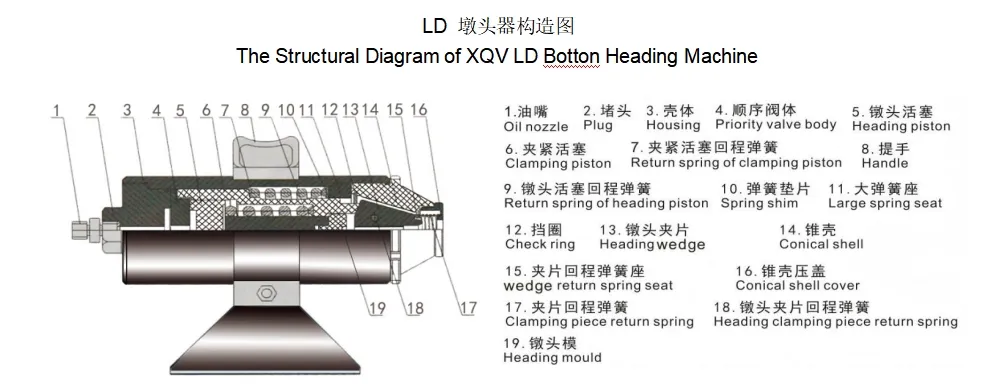

Technical Specifications Chart
Item No Max Heading Force Rated Oil Pressure Applicable Strength Bar Diameter Piston Stroke Weight Dimension
LD-10 88.2KN 39MPa 1470-1770MPa Φ4, Φ5, Φ6mm 6mm 10kg Φ9x279x199mm
LD-20 165KN 39MPa 1470-1770MPa Φ7mm 7.5mm 15kg Φ120x300x249mm

Product Showcase & Certifications

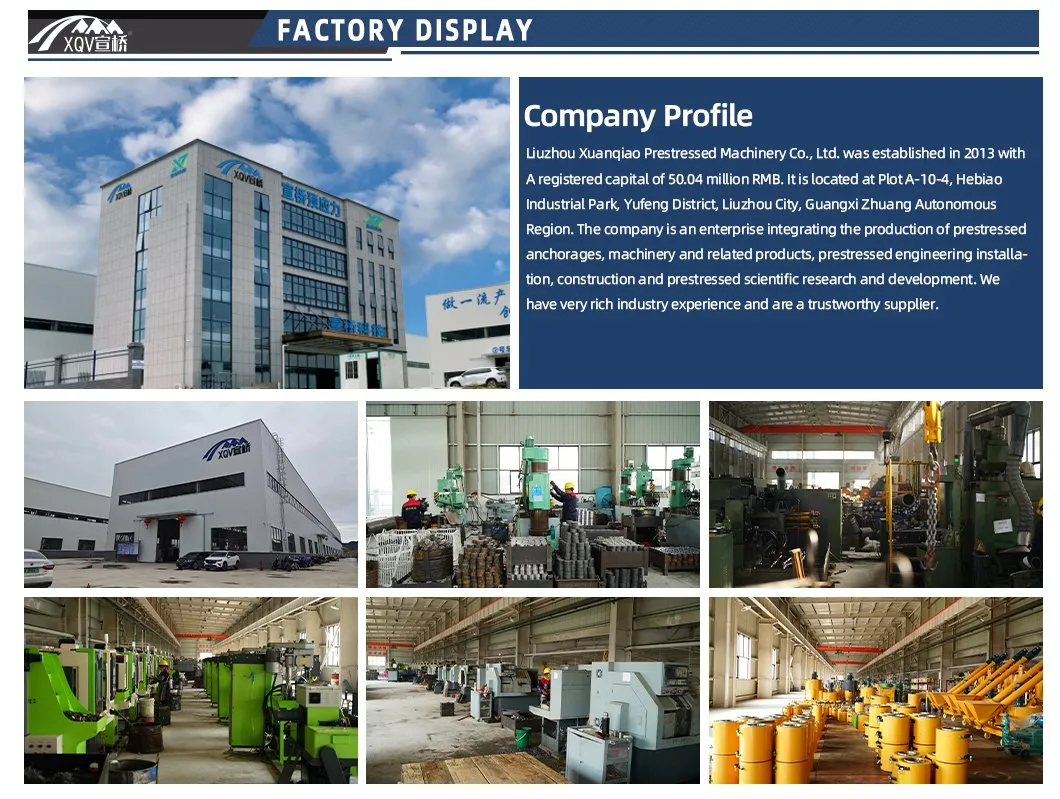

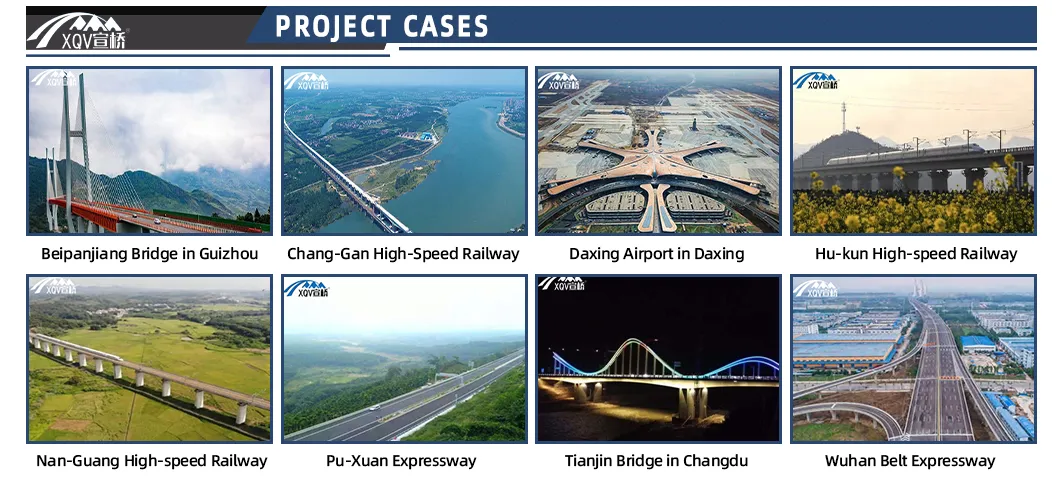

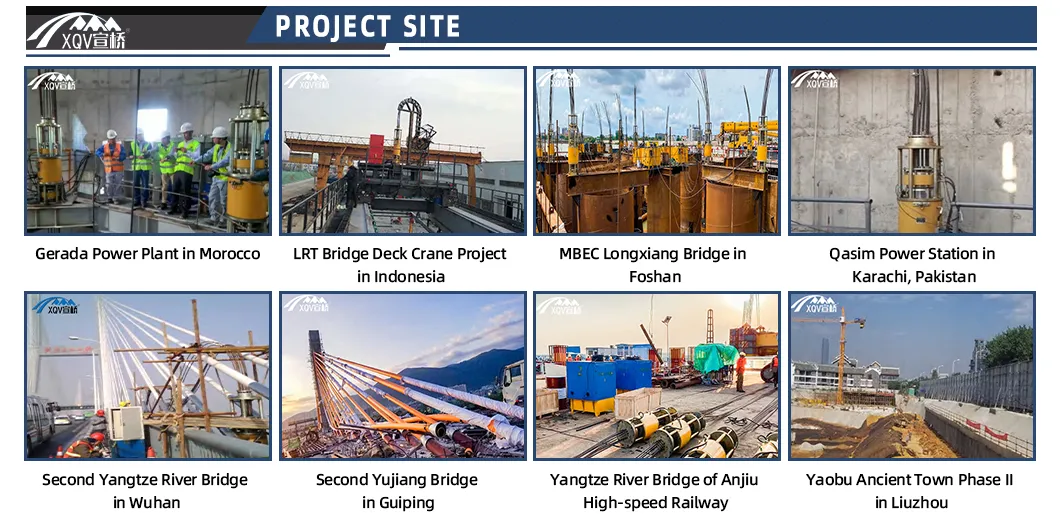

Factory Showcase 1 Factory Showcase 2 Factory Showcase 3 Process Detail Equipment Detail
Product Certifications

Frequently Asked Questions

How do you guarantee your product quality?
Mill Test Certification is supplied with every shipment. We also accept and support professional third-party inspections.
Are all procurement costs transparent?
Yes, our quotations are straightforward and easy to understand, ensuring no additional hidden costs are incurred.
Do you offer OEM or customized anchorage systems?
Yes, we provide OEM services and customization. We have extensive experience cooperating with famous PT suppliers worldwide; simply provide your drawings for custom needs.
Can I request free samples for testing?
Yes, we provide free samples to ensure our products meet your specific testing requirements.
What is the standard delivery lead time?
In-stock goods are typically delivered within 3 days. Out-of-stock items take approximately 7 days, while customized solutions require 10-15 days.
What payment terms do you accept?
We accept TT, LC, Western Union, and Paypal. Other payment terms can be discussed upon request.
