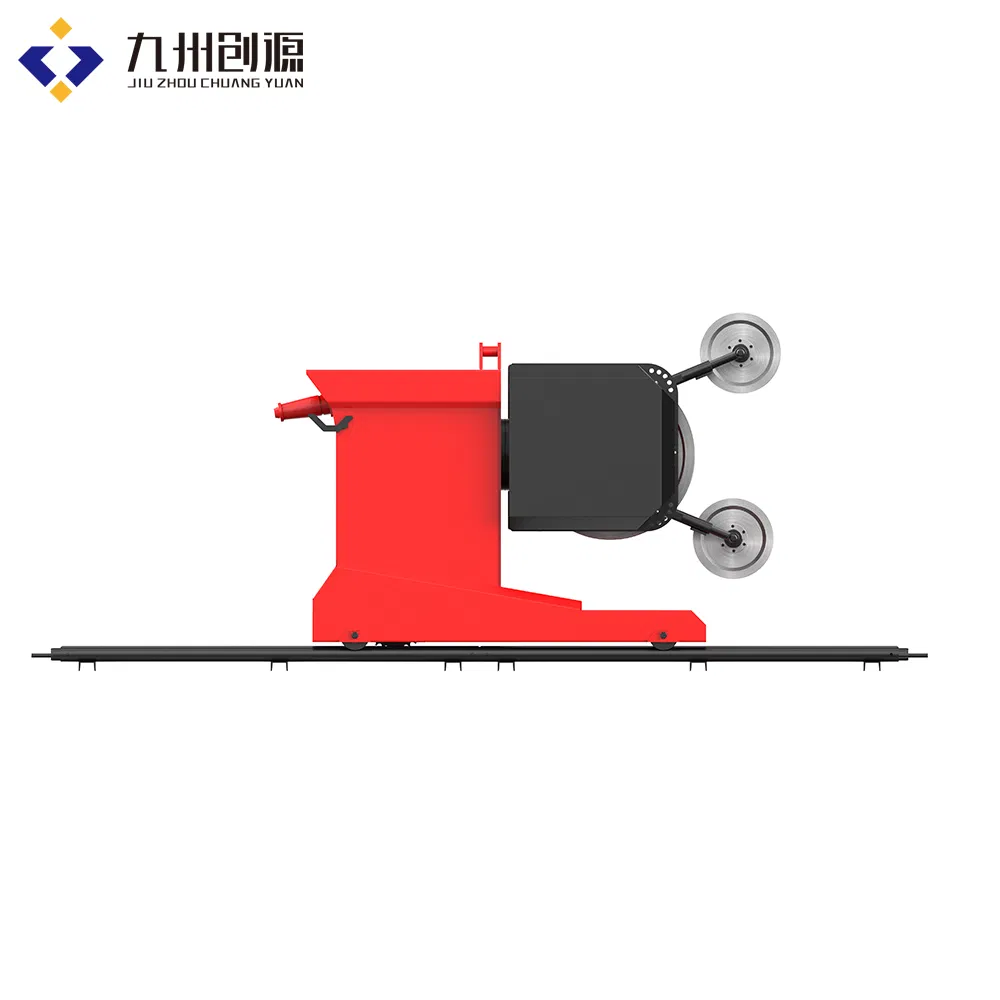

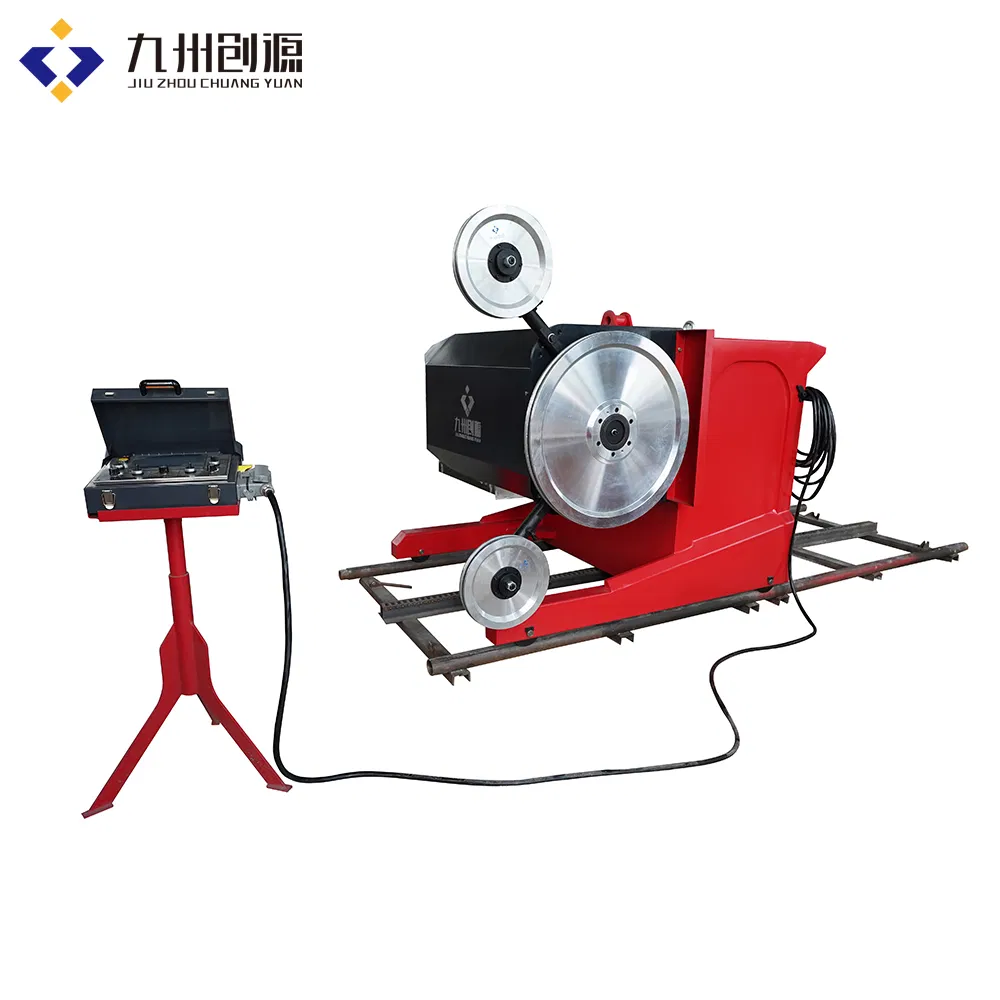

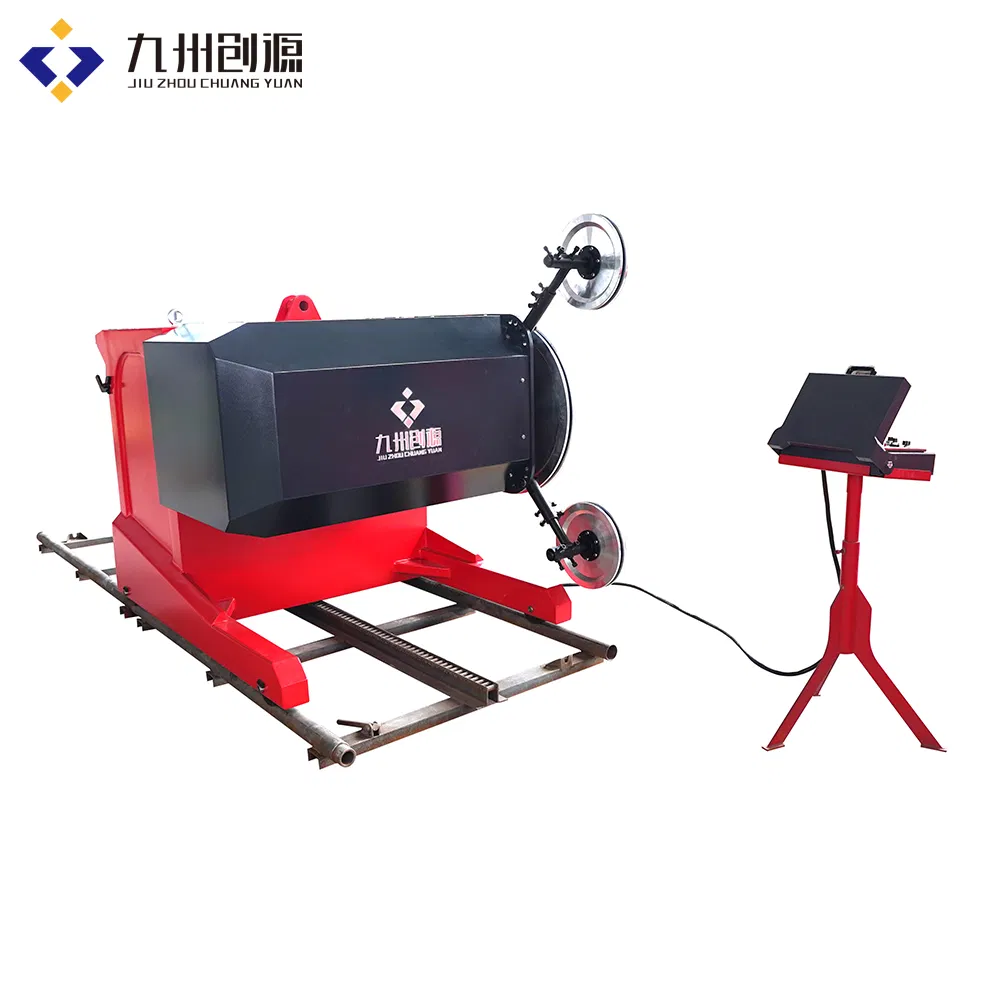

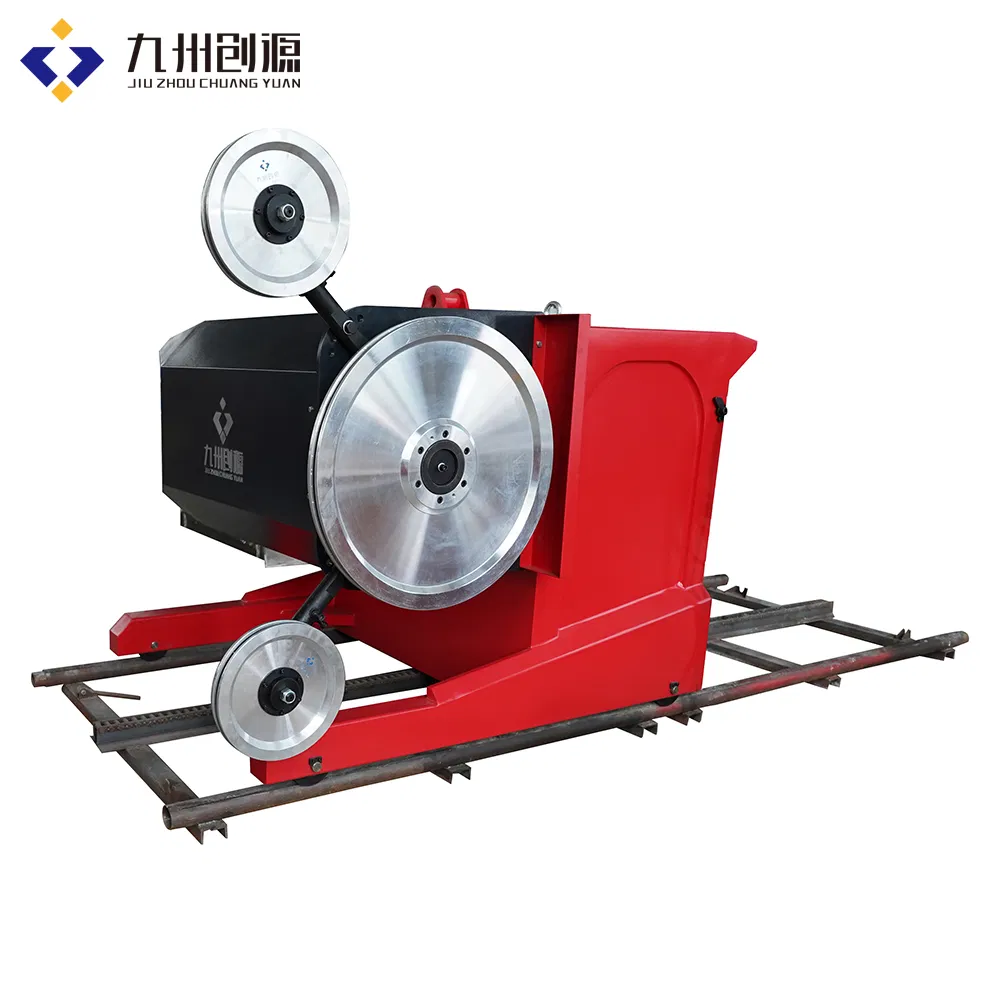

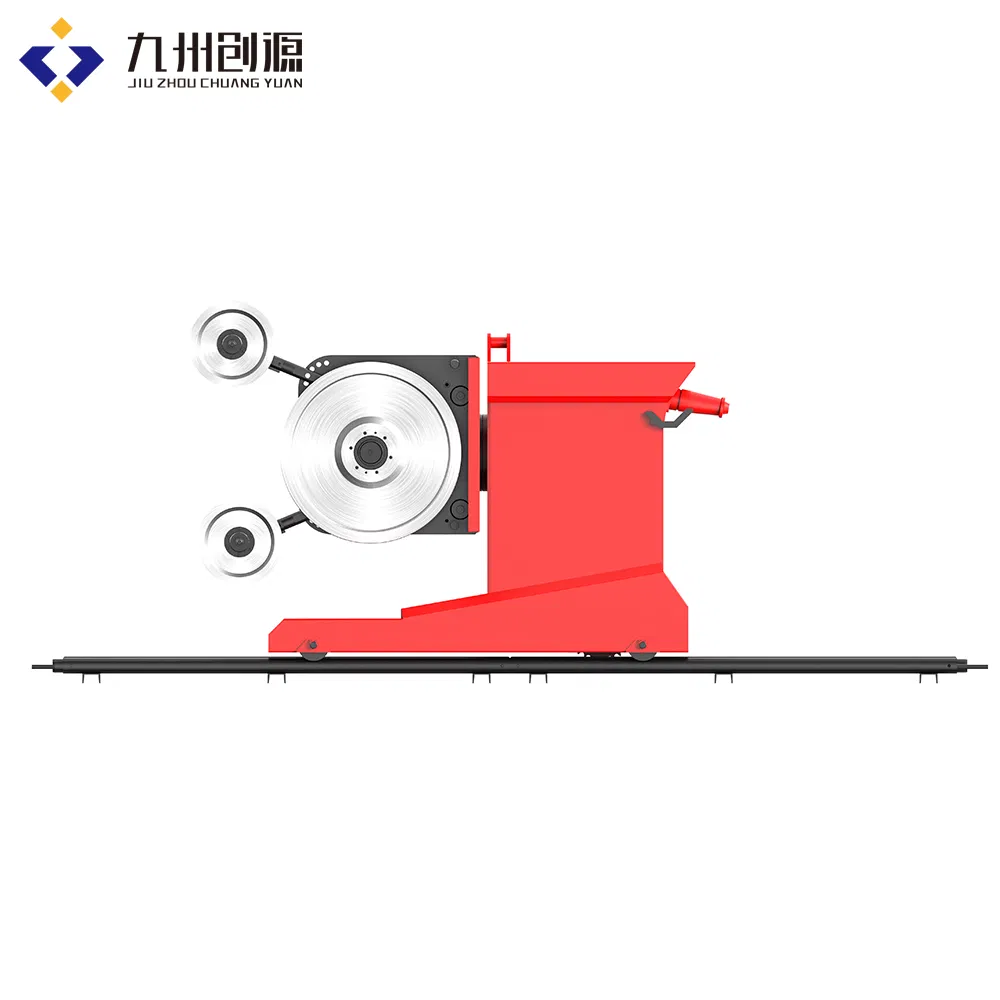

37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine
37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine
37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine
37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine
37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine
1 / 5
37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine
37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine
37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine
37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine
37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine

37kw 55kw 75kw Marble Granite Quarry Permanent Magnet Diamond Wire Saw Machine

Customization: Available
After-sales Service: Online Technician Support/Videos of Training
Warranty: 1 Year
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
CYSJ-37/55/75-12PM
Type
Electrical Driven
Function
Stone Cutting
Usage
Jadestone, Concrete Curb, Granite, Marble
Working Temp
-15ºC to 43ºC
Origin
China
📦 Packaging & Delivery
Package Size
220.00cm * 220.00cm * 170.00cm
Gross Weight
3500.000kg
🚀 Main Product Functions
🔘
Dual Inverter Control: Automatic constant tensioning system keeps the wire in optimal working condition and extends the life span of the diamond wire.
🔄
360° Angle Adjustment: Electric auto adjustment with photoelectric proximity switch for limit protection, allowing horizontal, vertical, and multi-directional cutting.
🖥️
Independent Control Panel: Features easy and safe manipulation, showing real-time voltage, current, and speed information.
↔️
Horizontal Extension: Flywheel shaft position ranges from 0-600mm via electric automatic control.
🤖
Automation: Switch between manual and automatic operation; one operator can manage several machines concurrently.
🛡️
Safety Systems: Safety stop mechanism triggers in case of unexpected wire breakage or technical faults.
📊 Technical Parameters

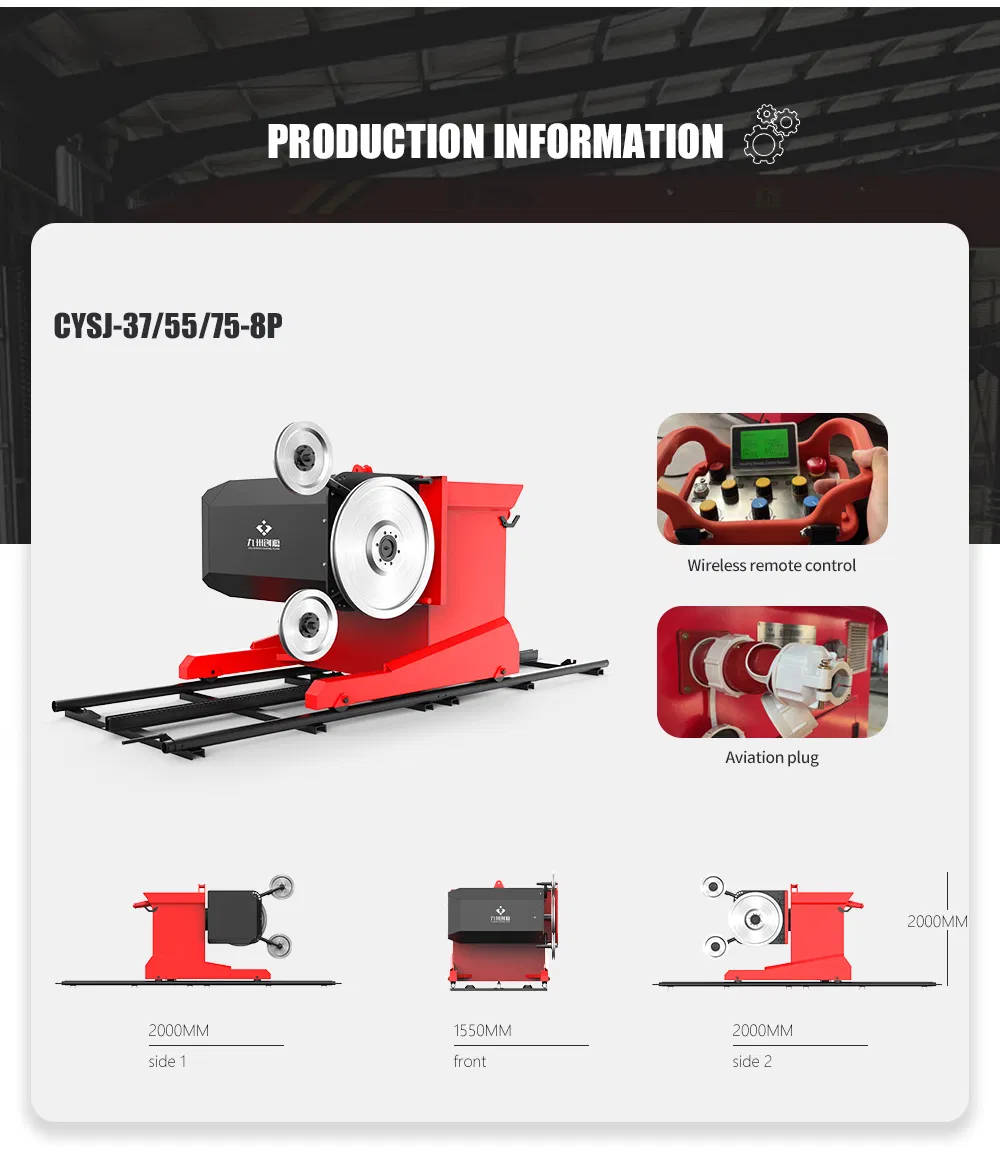

Model CYSJ-37-12PM CYSJ-55-12PM CYSJ-75-12PM
Mainmotor Power 37-12P 55-12P 75-12P
Flywheel Diameter Φ800mm Φ800mm Φ1000mm
Wire Saw Speed 0-40m/s 0-40m/s 0-40m/s
Max. Wire Saw Length 10-70M 10-120M 10-150M
Walking Motor Power 0.75KW 0.75KW 0.75KW
Machine Walking Speed 0-1200 0-1200 0-1200
Rotation Angle (Electric) 360° 360° 360°
Max. Lateral Cutting Distance 1800mm 1800mm 1900mm
Rail Length 2m*3 2m*4 2m*5
Dimension (L*W*H) 2000*1400*1300mm 2000*1450*1300mm 2000*1500*1400mm
Net Weight 2700kg 3000kg 3500kg
🖼️ Product Gallery

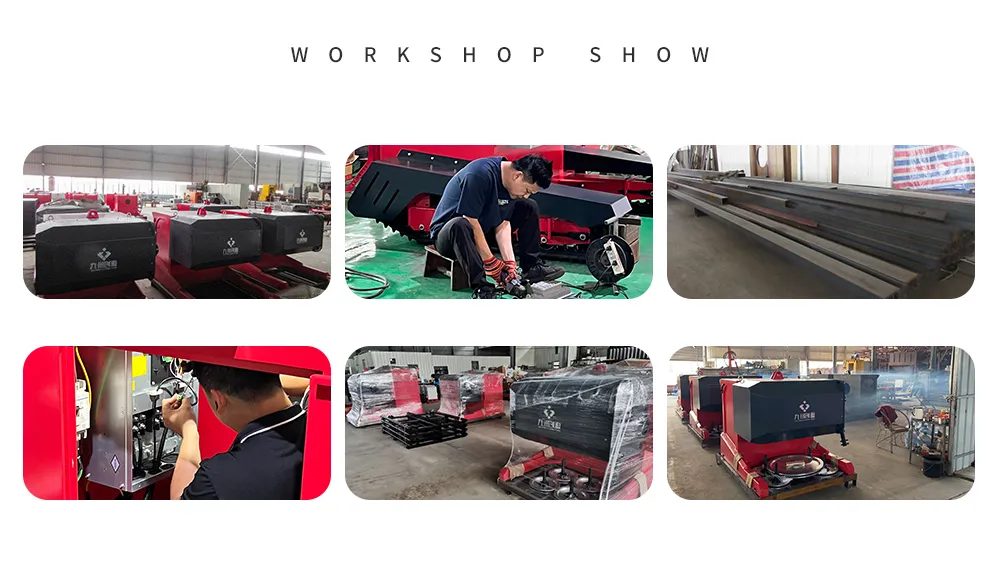

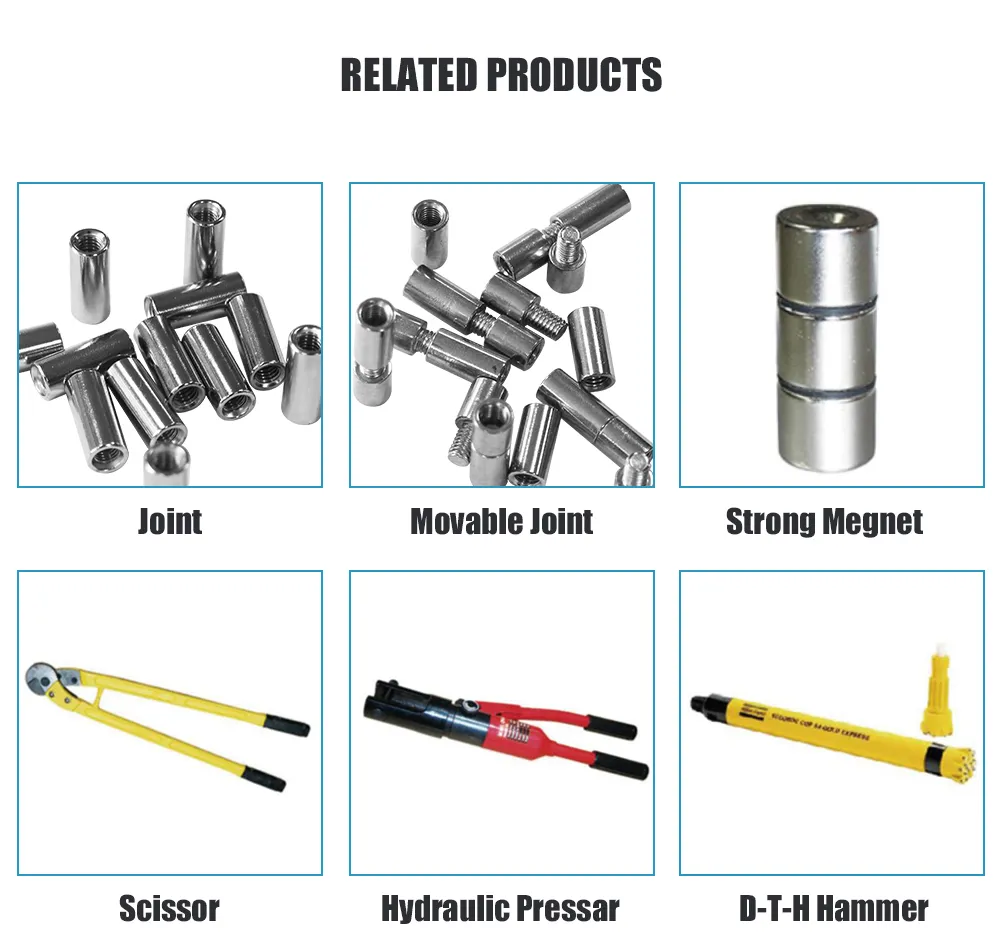

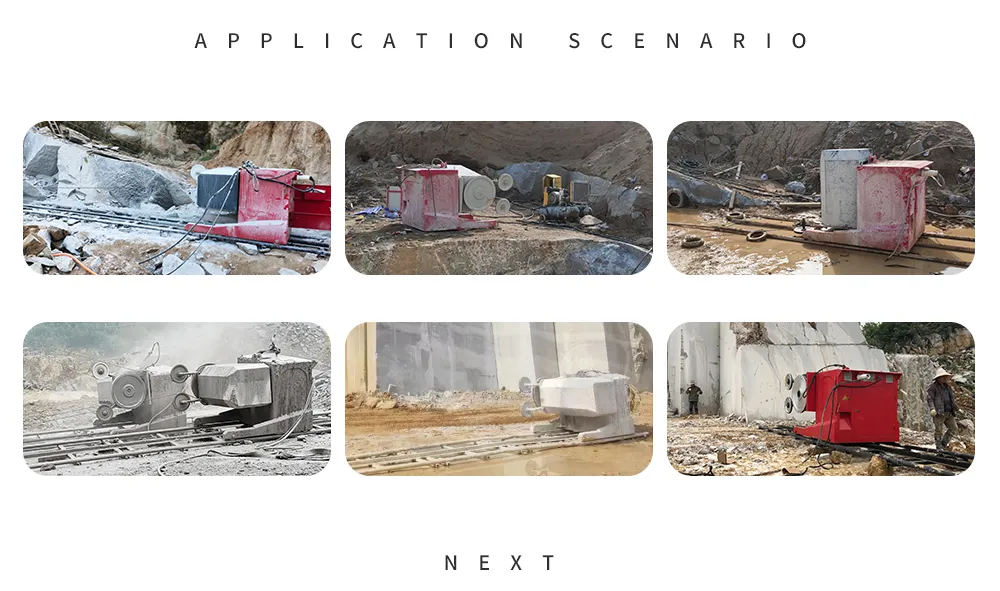

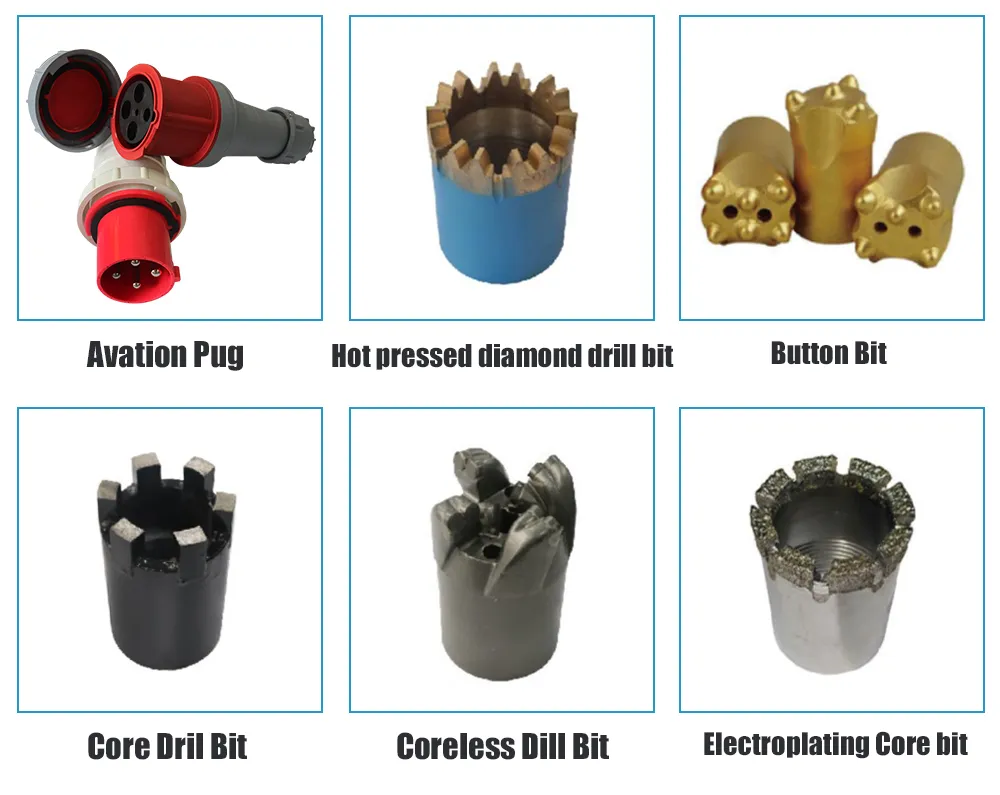

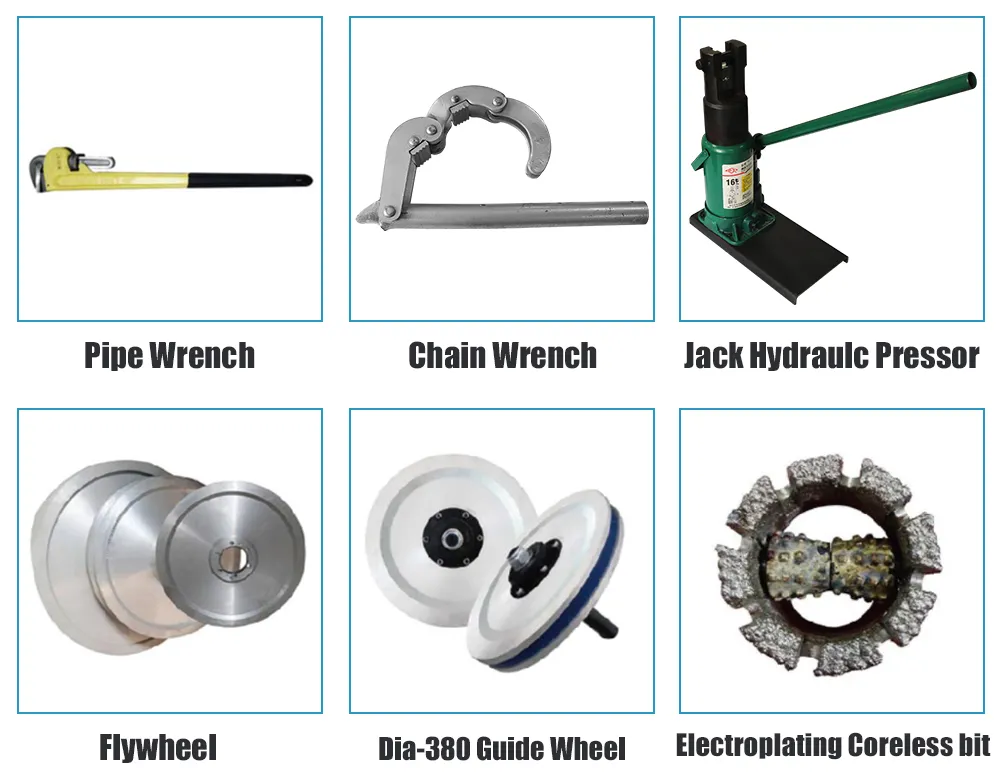

Wire Saw Machine 1 Wire Saw Machine 2 Wire Saw Machine 3 Wire Saw Machine 4 Wire Saw Machine 5 Wire Saw Machine 6 Wire Saw Machine 7 Wire Saw Machine 8 Wire Saw Machine 9 Wire Saw Machine 10
Frequently Asked Questions
What types of stone can this wire saw machine cut?
The machine is versatile and suitable for cutting jadestone, concrete curbs, granite, and marble.
How does the automatic tensioning system work?
It is controlled by two inverters that maintain constant tension, ensuring the diamond wire operates in optimal conditions to extend its service life.
Can the machine perform horizontal and vertical cuts?
Yes, the cutting head has an electric adjustment range of 0-360 degrees, allowing for horizontal, vertical, and any directional cutting.
Is the machine safe to operate if the wire breaks?
Absolutely. The machine is equipped with a safety stop function that immediately halts operation in case of unexpected wire breakage or other technical faults.
Can one operator manage multiple machines?
Yes, thanks to the automatic operation control system, a single operator can concurrently monitor and operate several machines, increasing efficiency.
What is the working temperature range for this equipment?
The machine is designed to operate reliably in environments ranging from -15ºC to 43ºC.
