Introduction

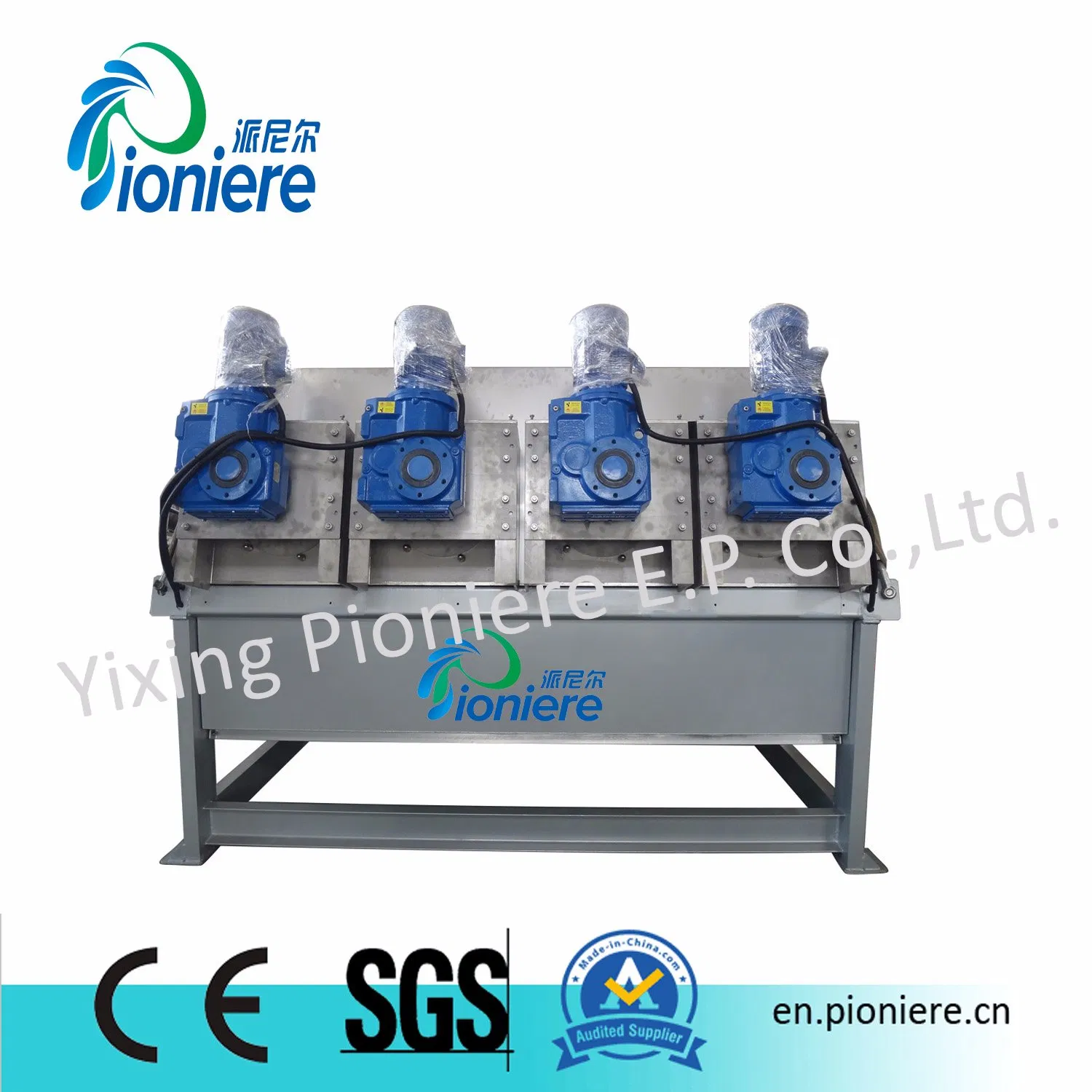

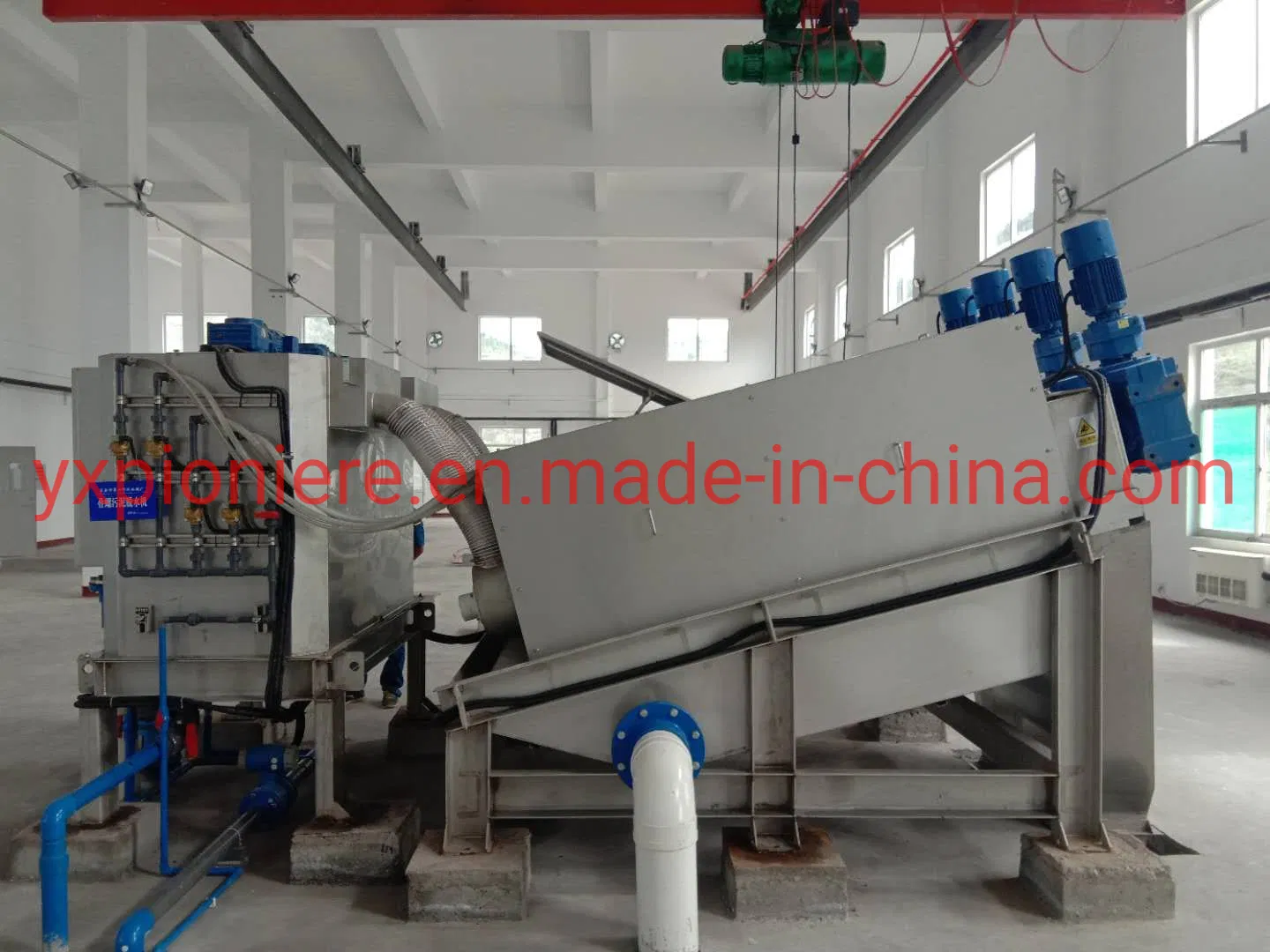

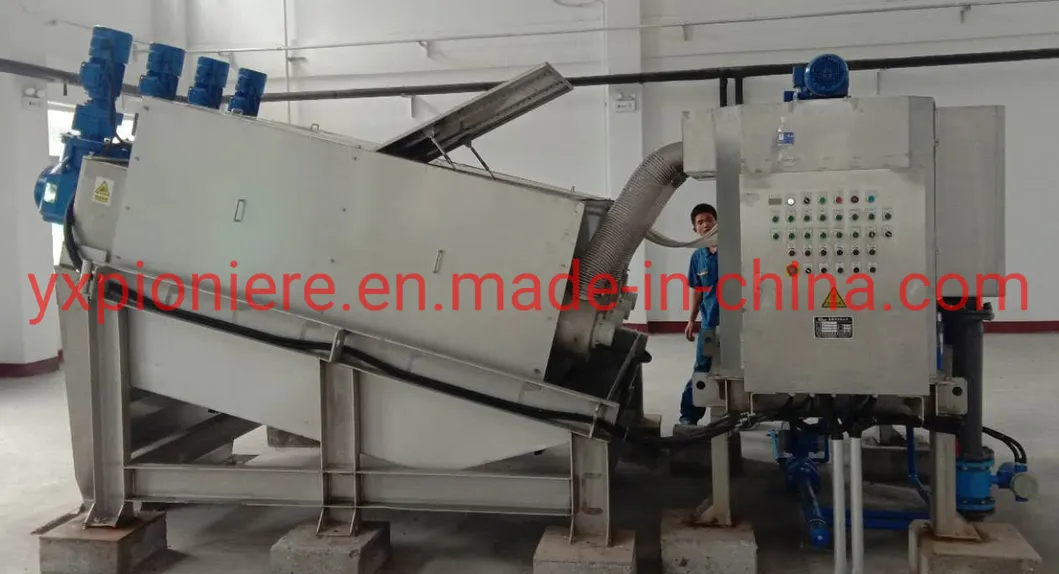

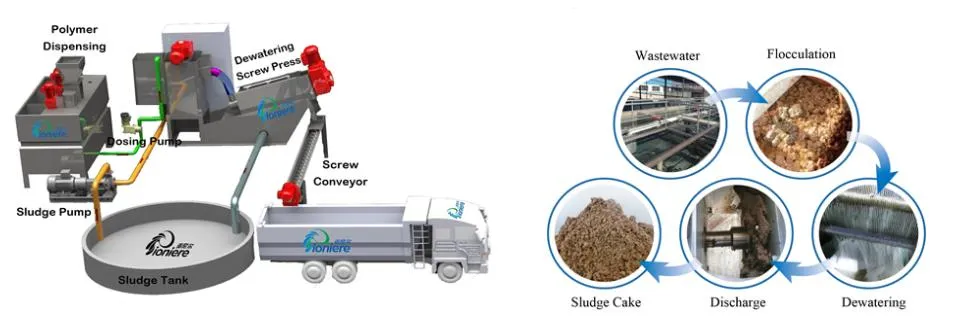

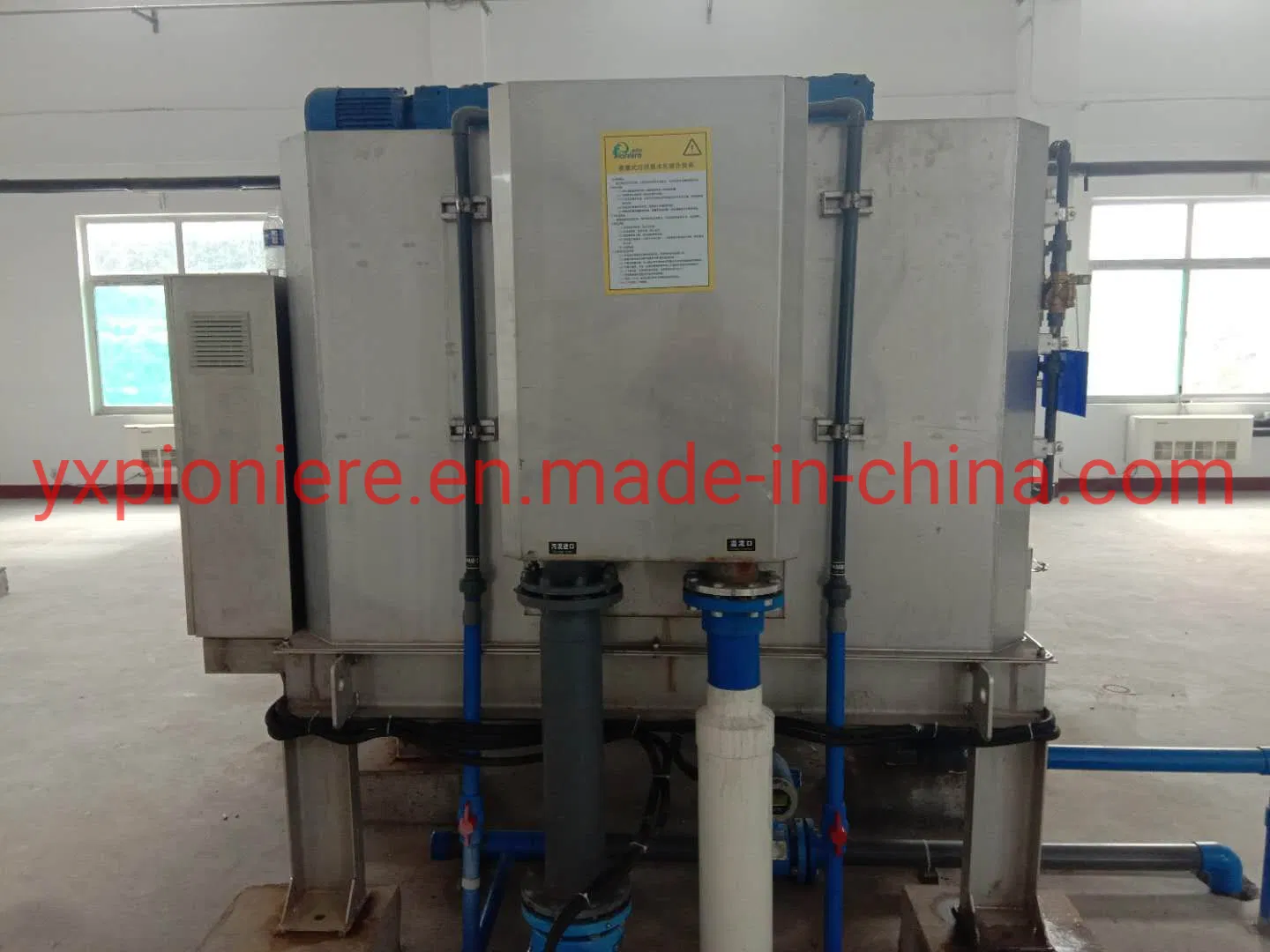

Screw Type Sludge Thickening Equipment is typically utilized for sludge after biological processing and thickening prior to storage, digestion, and further dewatering. In WWTP, sludge concentration is approximately 0.2%-2%. After thickening, the solid content reaches 5% to 9%. This provides stable thickened sludge for further dewatering equipment such as frame presses, significantly improving dewatering efficiency and capacity.
Model Technical Specifications
| Model No. | DS Standard Capacity (Kg/h) | Dimension (mm) | Power (KW) | N.W. (kg) | |||
|---|---|---|---|---|---|---|---|
| Low Conc. | High Conc. | L | W | H | |||
| XF-T401 | 180 | 300 | 4400 | 1010 | 2250 | 2.25 | 2100 |
| XF-T402 | 360 | 600 | 4500 | 1580 | 2250 | 4.1 | 3150 |
| XF-T403 | 540 | 900 | 4590 | 2150 | 2250 | 6.0 | 4100 |
| XF-T404 | 720 | 1200 | 4590 | 2720 | 2250 | 8.2 | 5000 |
Established in 2012, the manufacturer specializes in developing and marketing multi-disc sludge dewatering equipment and wastewater treatment systems. With a commitment to "High Quality, Fast Service," we leverage strong technical expertise and sophisticated equipment to provide comprehensive solutions.
"Product quality is the basis of the enterprise" is the core principle. Strict protocols govern material procurement, manufacturing processes, and finished product inspections to ensure excellence.
Technical Remarks
