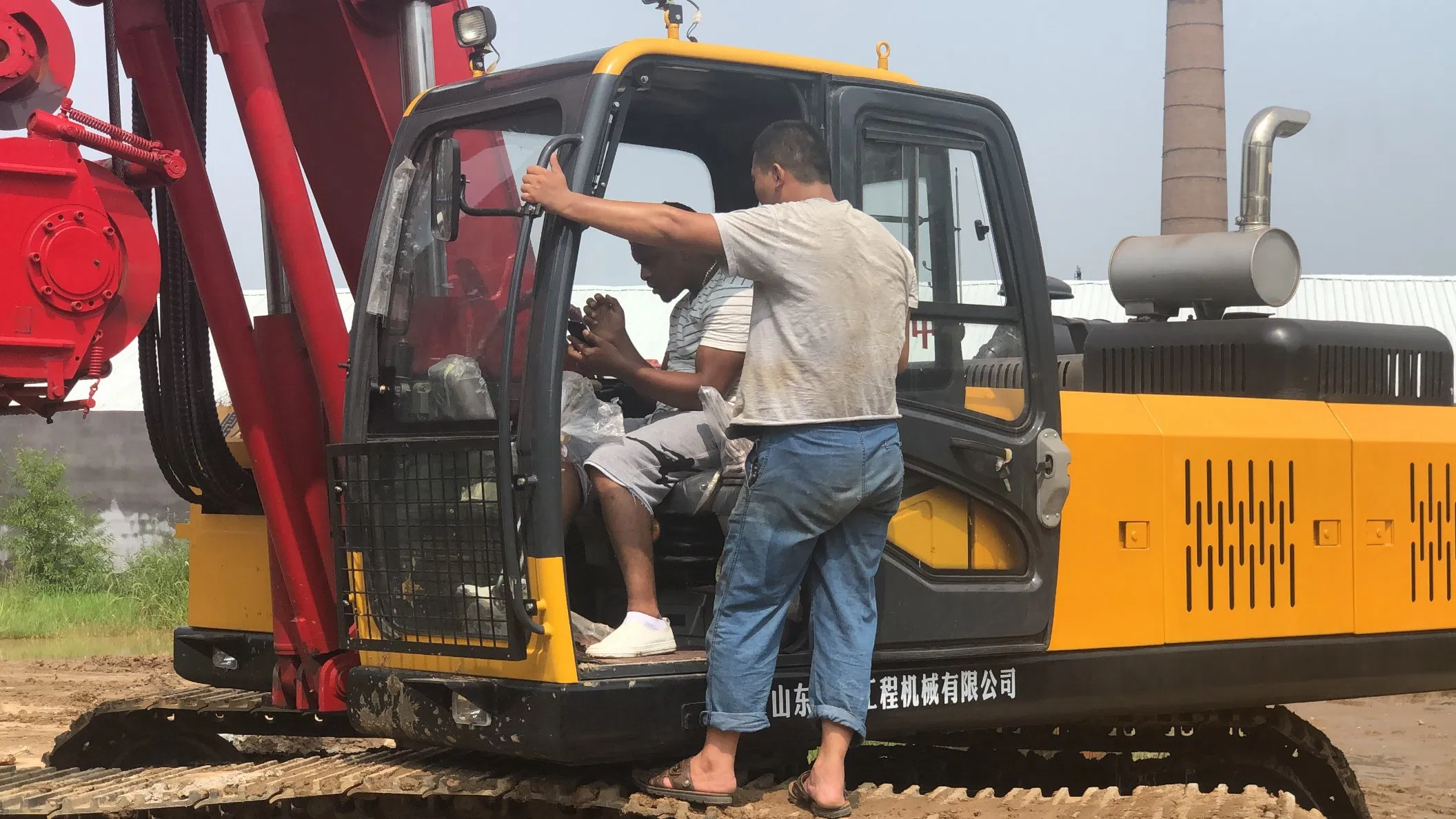

New Mining Rotary Excavation Equipment

Customization:	Available
Certification:	CE, ISO 9001:2008
Condition:	New

Send Inquiry

Product Description

📋 Basic Information

Model NO.

DR-150

After-Sales Service

No Overseas Service Provided

Transport Package

According to Requirements

Origin

Shandong, China

⚙️ Technical Specifications

Product Type	DR-150
Chassis length (mm)	5100
Track width (mm)	6700
Overall height (M)	3.95
Machine weight (t)	36
Maximum drilling depth (M)	45
Drilling diameter (mm)	600-1800
Engine rated power (KW/rpm)	191KW
Maximum torque of power head (N.m)	150000 (optional)
Power head speed (rpm)	50-70
Customized Power Head	YES
Drill mast	±5
Pitch angle	5
Max travel speed (KM/h)	4
Max creep degree of chassis	30
Max travel torque (N.m)	61000
Working state width (mm)	3300
Transport status width (mm)	3000
Transport status height (mm)	3950

🕹️ Operation Instructions

When reaching the destination, finish site preparation, put up the rotary drill pipe, and install the drill bit.
Adjust the drill pipe vertically at the hole position, put down the shovel, and begin drilling work.

⚠️ Safety Precautions

Use the swing lever for vertical adjustments of the drill pipe. Do not push the bit directly to avoid breaking the fixed plate.
In hard geological conditions, apply cylinder pressure slowly. Continuous excessive pressure can cause oil tank damage or bending.
Regularly check the wire rope screws outside the drill pipe mouth. Tighten both top and bottom screws to prevent rope breakage.
When rejecting soil, turn the machine slowly. Excessive speed may cause instability and damage to the steering gear or other components.

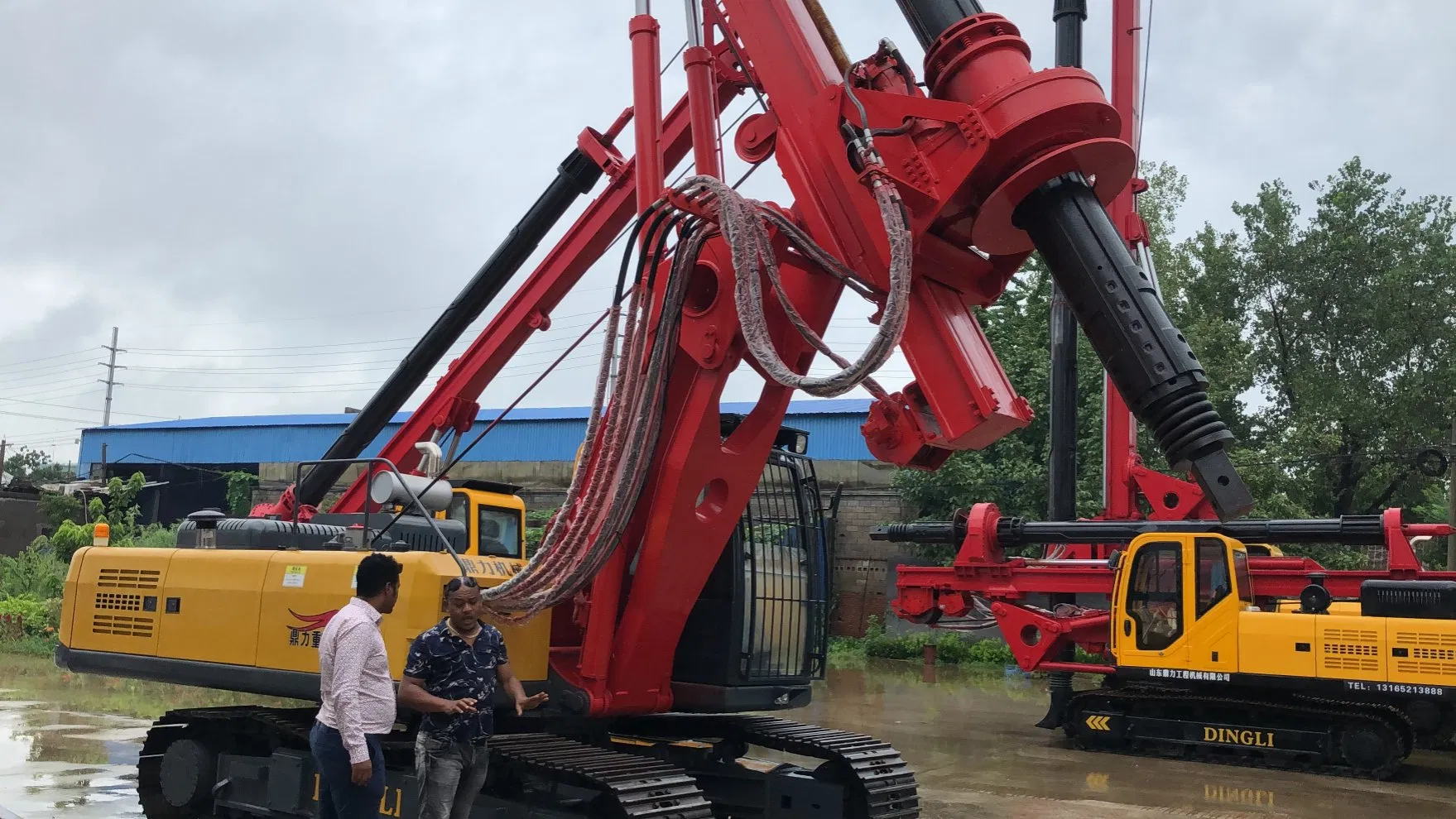

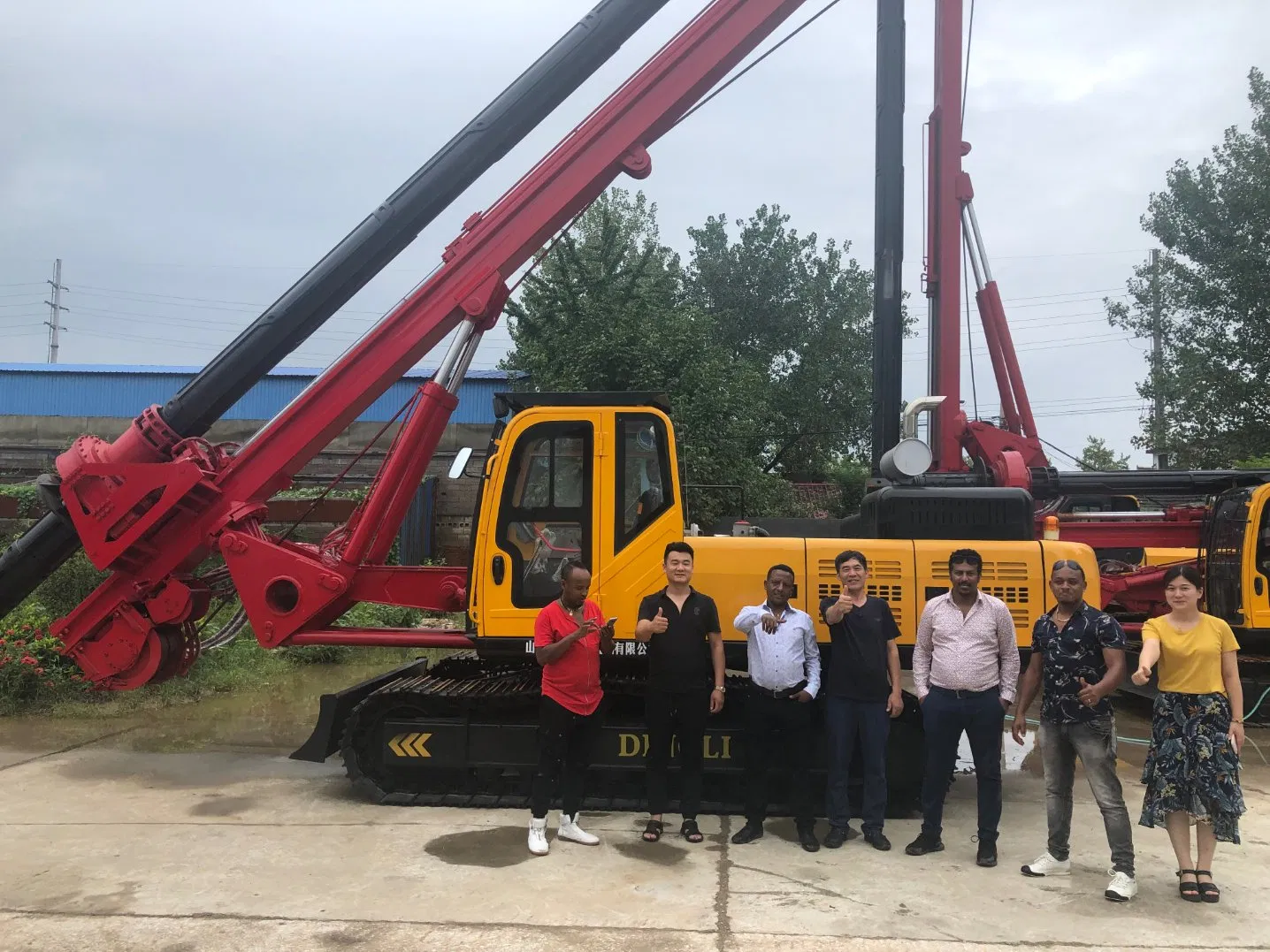

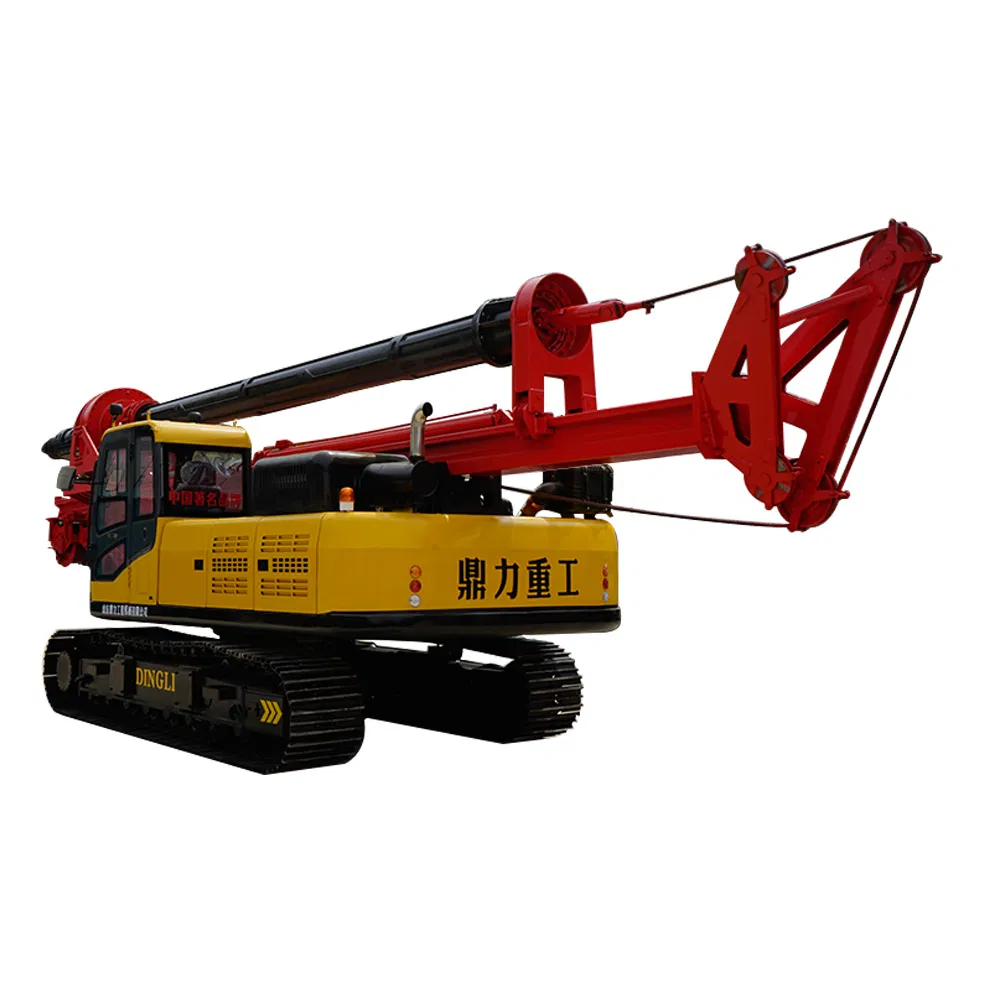

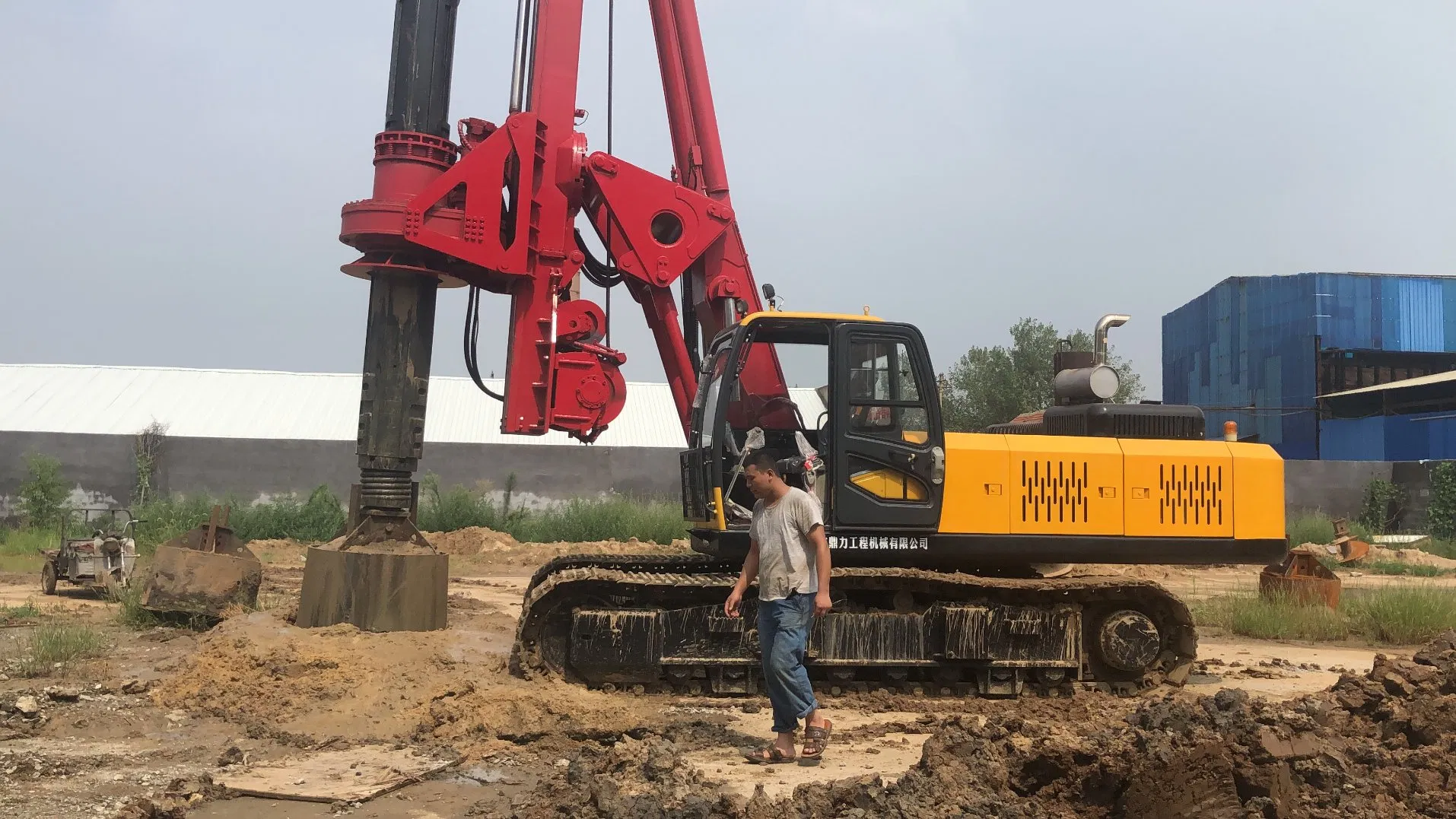

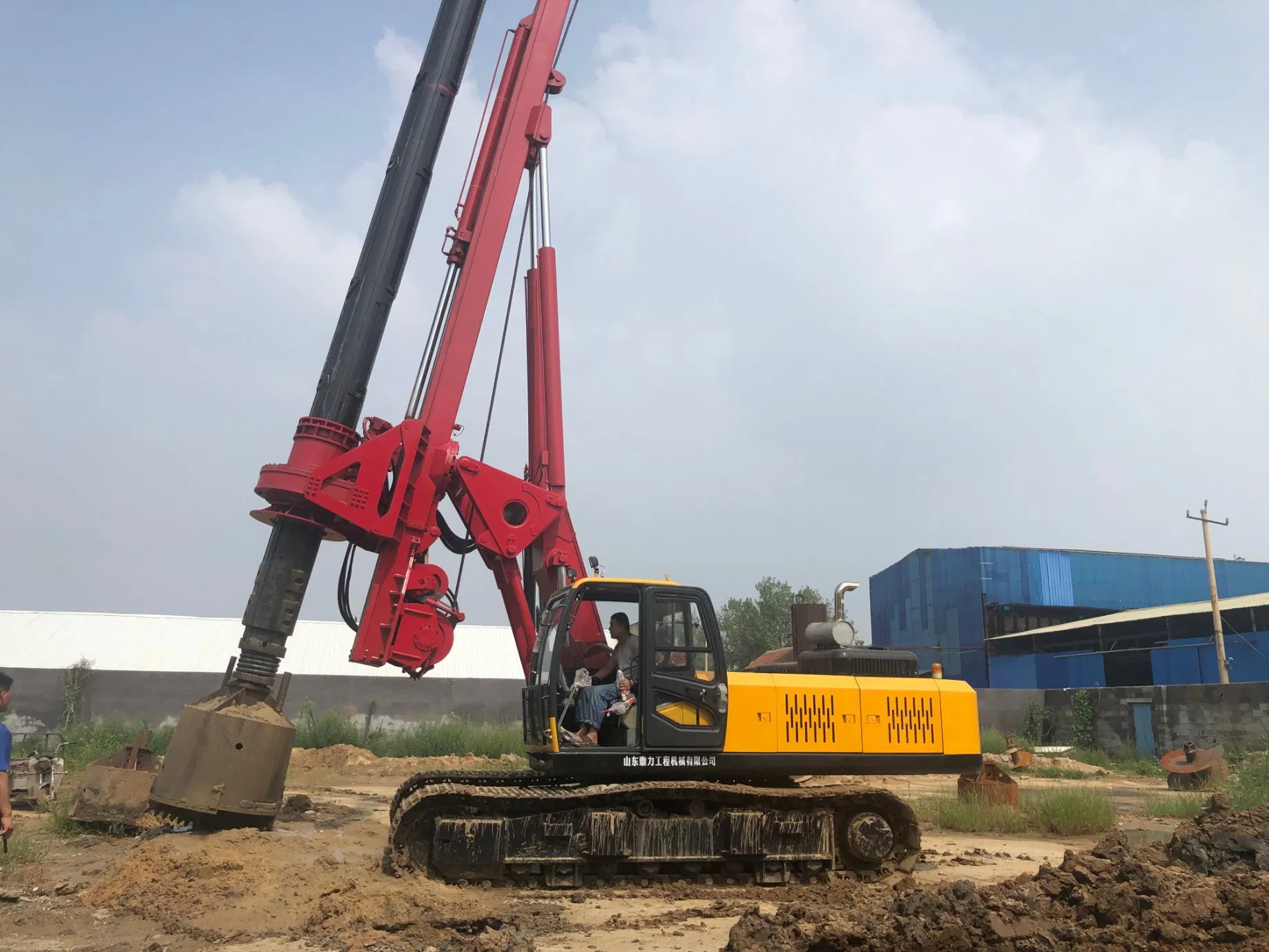

🖼️ Equipment Showcase

❓ Frequently Asked Questions

Q: What is the maximum drilling depth of the DR-150? A: The DR-150 model can reach a maximum drilling depth of 45 meters.

Q: Can the drilling diameter be customized? A: The standard drilling diameter range is between 600mm and 1800mm, suitable for various foundation needs.

Q: What type of engine power does this machine offer? A: It is equipped with an engine providing a rated power of 191KW.

Q: How should I handle hard geological layers during drilling? A: It is recommended to apply cylinder pressure slowly. Continuous excessive pressure should be avoided to prevent mechanical damage.

Q: Is the power head of the DR-150 customizable? A: Yes, the power head can be customized to meet specific project requirements.

Q: What are the transport dimensions for this rig? A: The transport width is 3000mm and the transport height is 3950mm, designed for standard logistics requirements.
