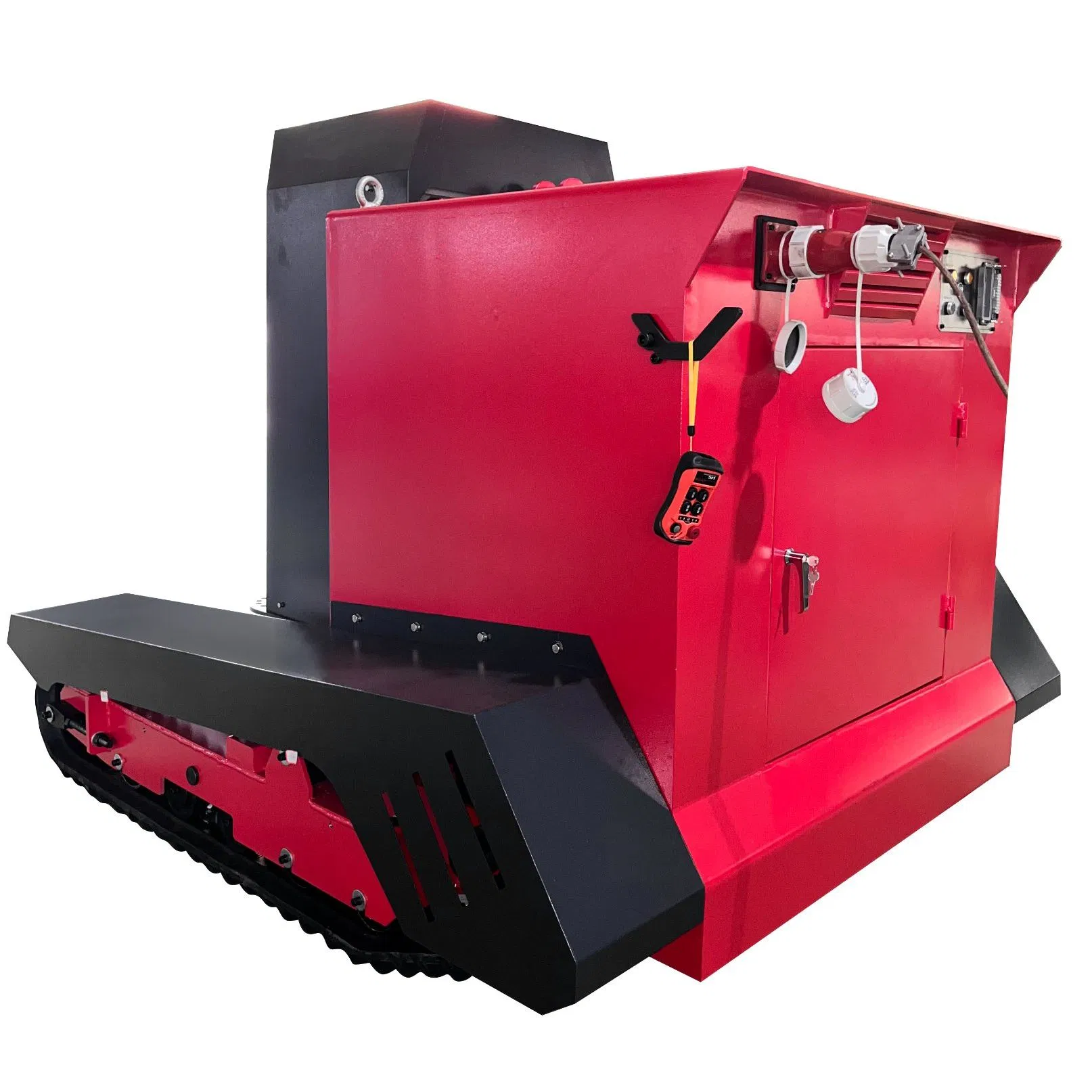

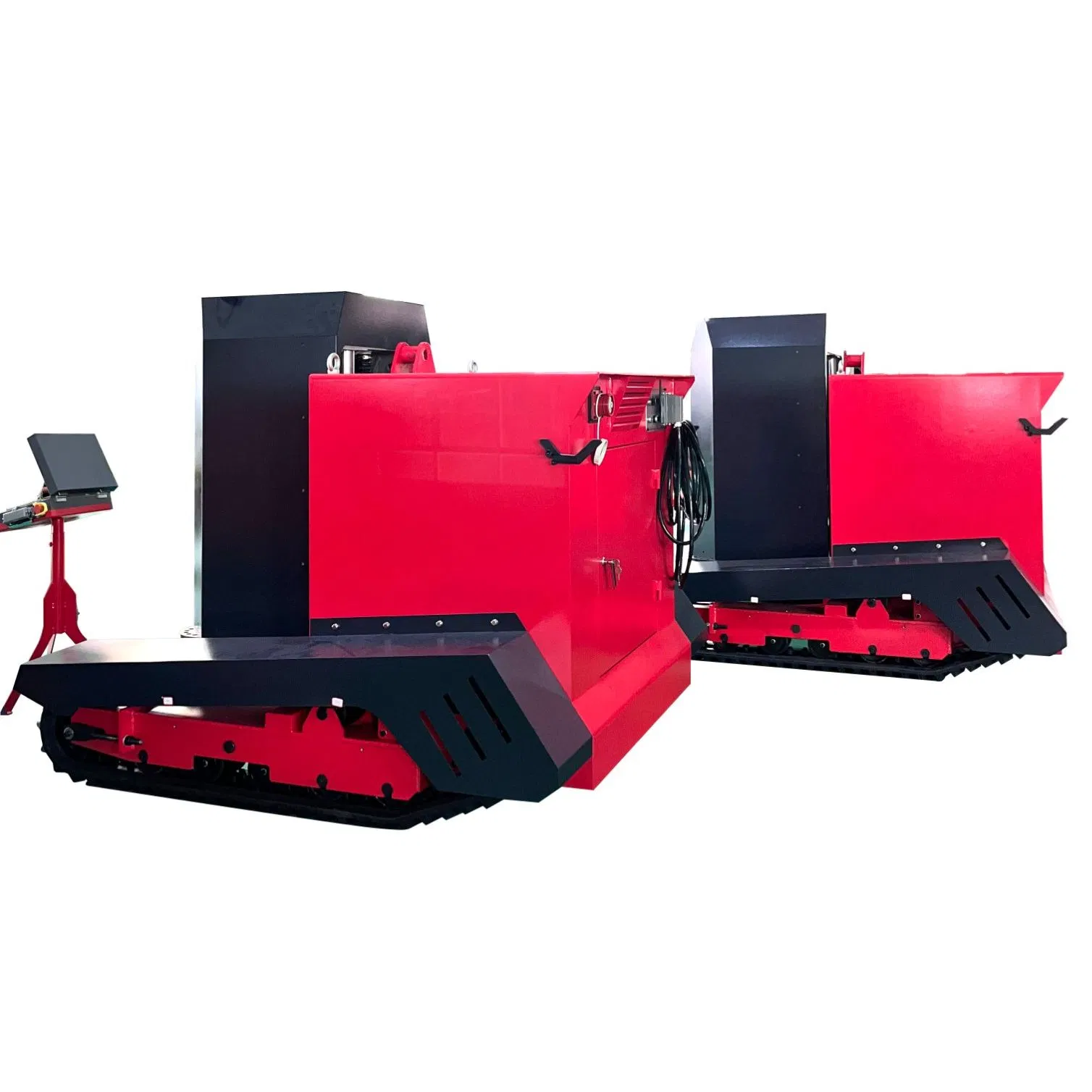

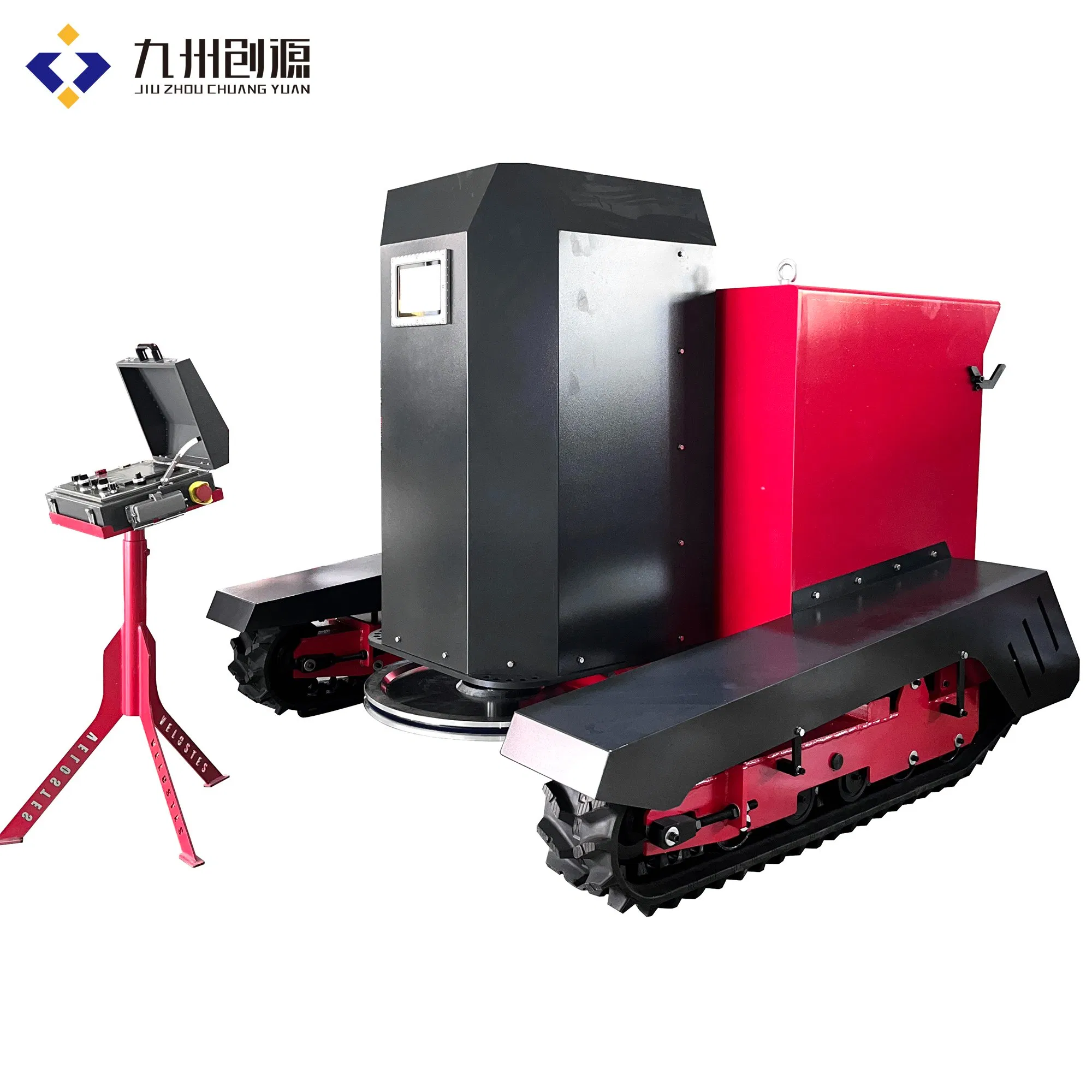

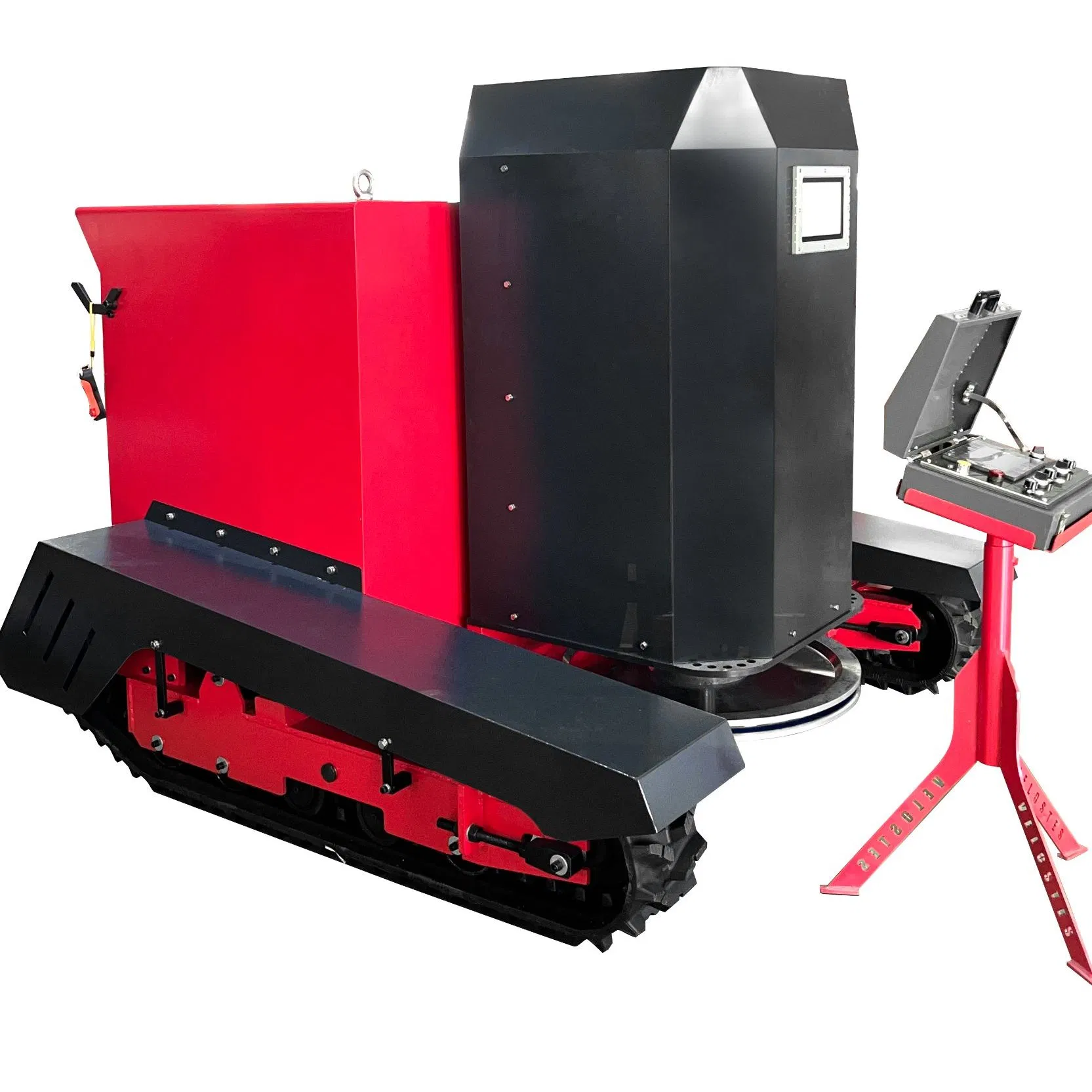

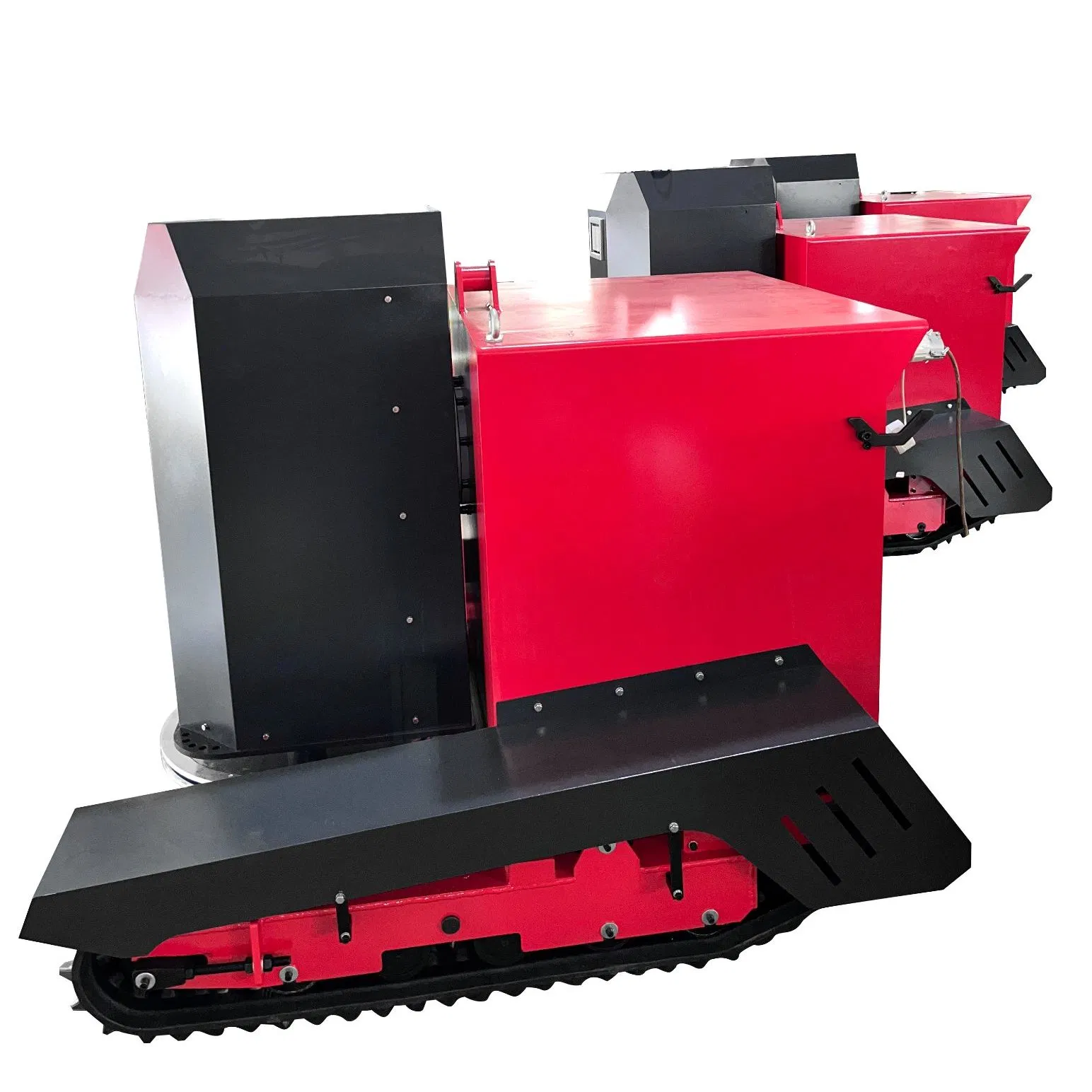

Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers
Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers
Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers
Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers
Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers
1 / 5
Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers
Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers
Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers
Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers
Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers

Maunfacturers Marble Granite Mining Quarry Movable Wire Saw Machine with Crawlers

Customization: Available
After-sales Service: Online Technician Support/Videos of Training
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.

Model NO.LDSJ-55/75-12PM
TypeCrawler Style
FunctionStone Cutting
UsageJadestone, Concrete Curb, Granite, Marble
Working Temp.-15ºC-43ºC
Frequency50Hz
Main Motor Power37kw/55kw/75kw
Voltage380V
Specification2000*2000*1500mm
Production Capacity800sets/Year

Packaging & Delivery

Package Size220.00cm * 220.00cm * 170.00cm
Gross Weight3200.000kg
Package TypePolywood Export Standard Packing

Product Functions

  • Controlled with two inverters, automatic constant tensioning system keeps the wire always in optimal working condition.
  • Angle adjustment range from 0-360 degree (electric auto) with photoelectric proximity switch for limit protection.
  • Separate control panel ensuring easy and safe manipulation for operators.
  • Control panel displays real-time working info: motor setting voltage, current, speed, etc.
  • Horizontal extension system of flywheel shaft position range from 0-600mm (electric auto).
  • Manual and automatic operation control switch; one person can manage multiple machines concurrently.
  • Equipped with 24-core control cable for high reliability and easy failure identification.
  • Safety stop feature in case of unexpected wire breakage or other electrical faults.

Product Parameters

Model CYSJ-55-12PM CYSJ-75-12PM
Mainmotor Power55-12P75-12P
Flywheel diameterΦ800mmΦ1000mm
Wire saw speed0-40m/s0-40m/s
Max.wire saw length10-120M10-150M
Walking motor power0.75KW0.75KW
Walking speed0-12000-1200
Rotation angle(electric)360°360°
Max.lateral cutting distance1800mm1900mm
Rail length2m*42m*5
Dimension(L*W*H)2000*1450*1300mm2000*1500*1400mm
Net weight3000kg3500kg

Product Visuals

Wire Saw Machine 1

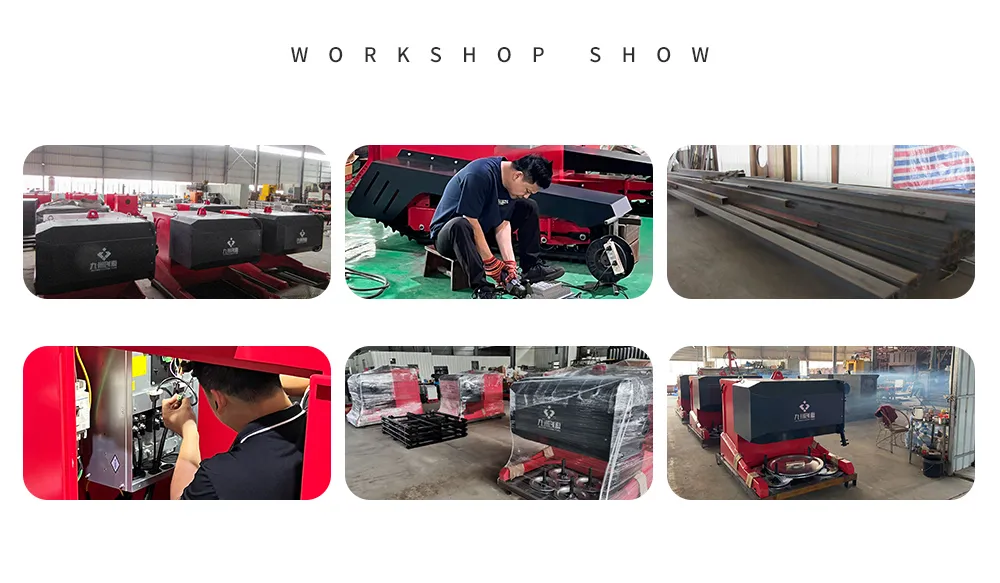

Wire Saw Machine 2
Wire Saw Machine 3

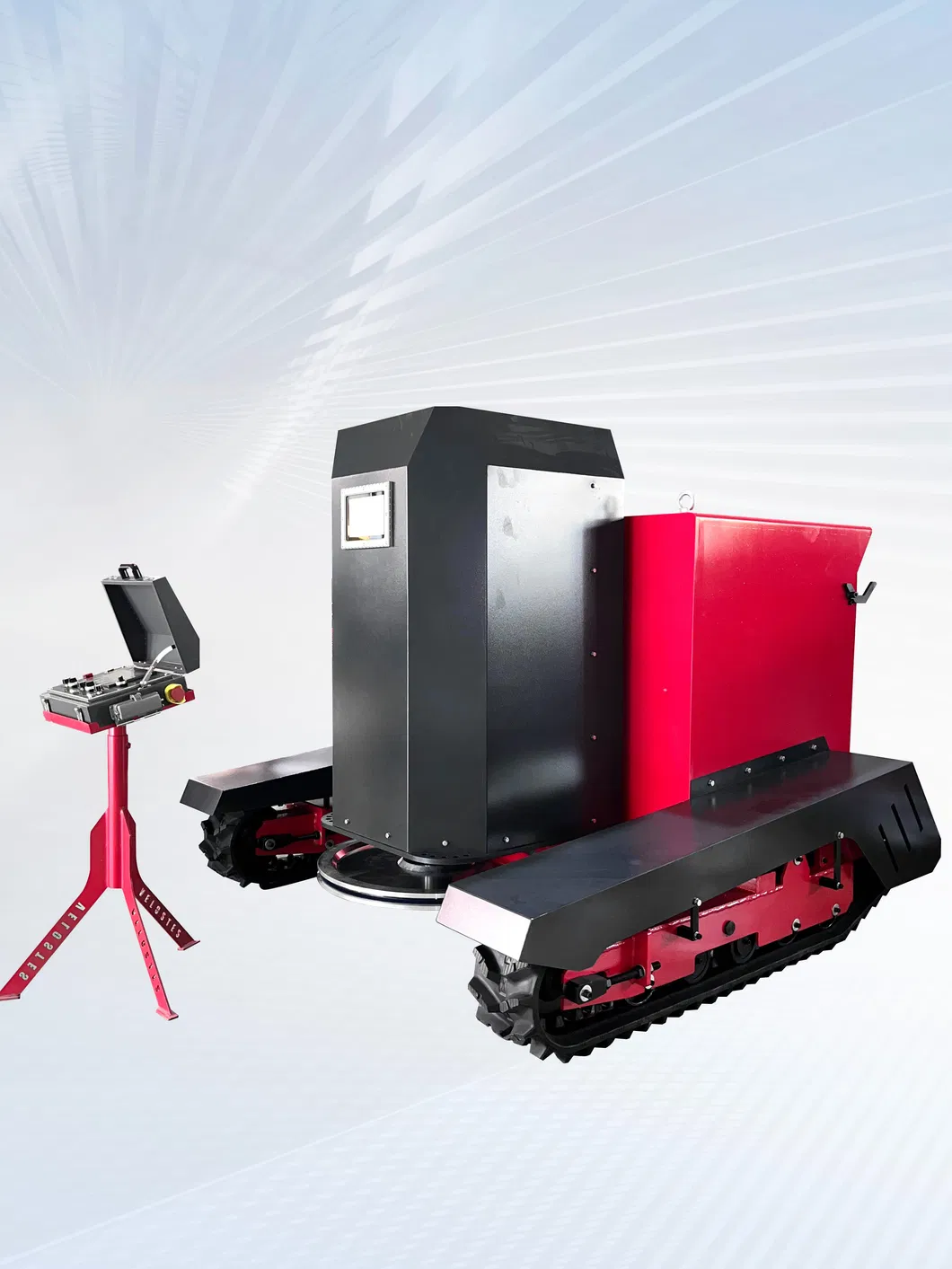

Wire Saw Machine 4

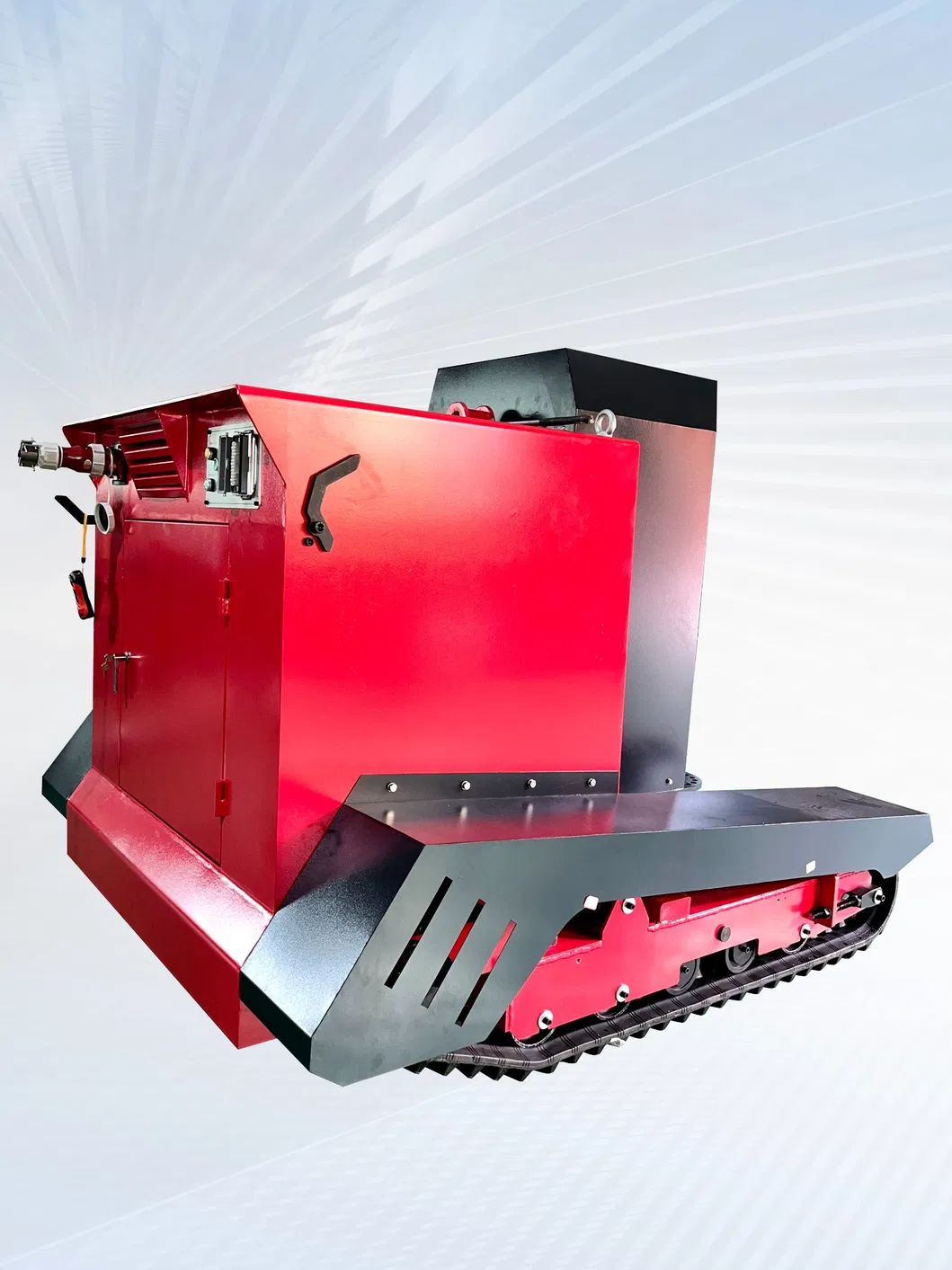

Wire Saw Machine 5

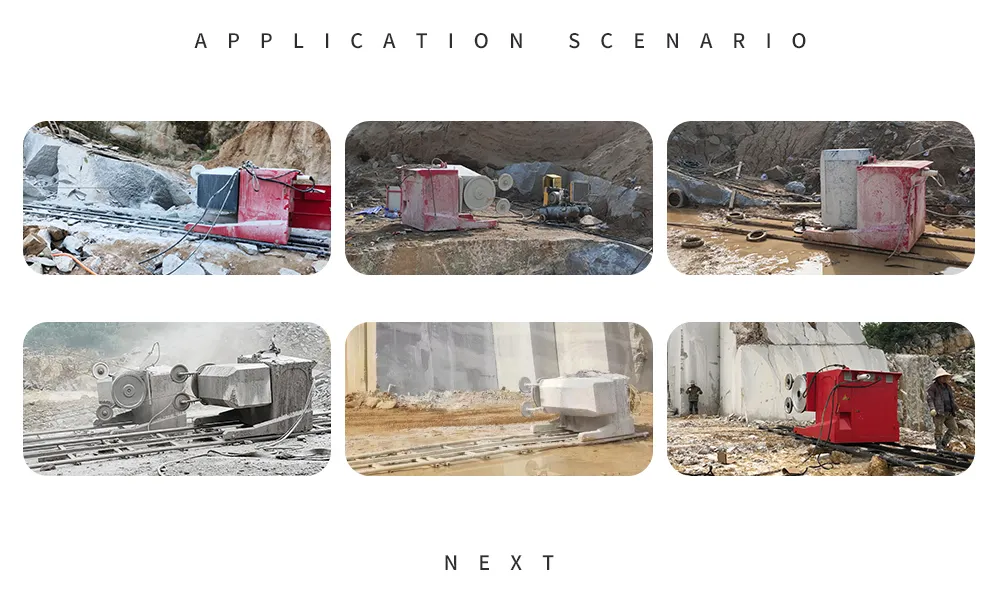

Wire Saw Machine 6
Wire Saw Machine 7
Wire Saw Machine 8
Wire Saw Machine 9
Wire Saw Machine 10

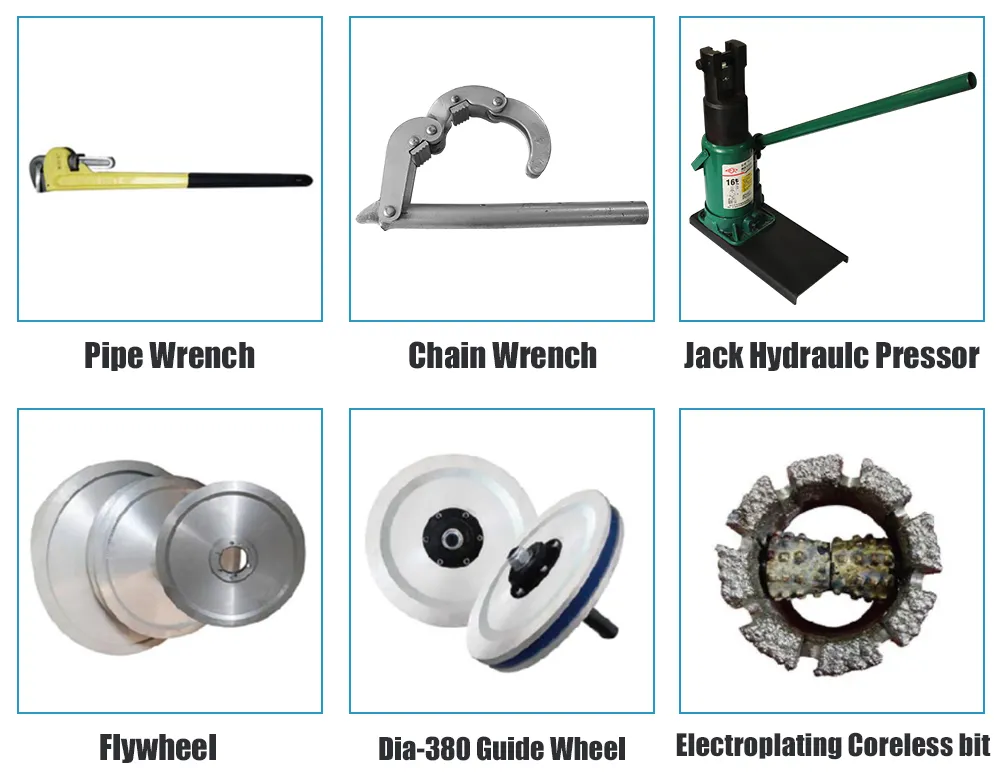

Wire Saw Machine 11

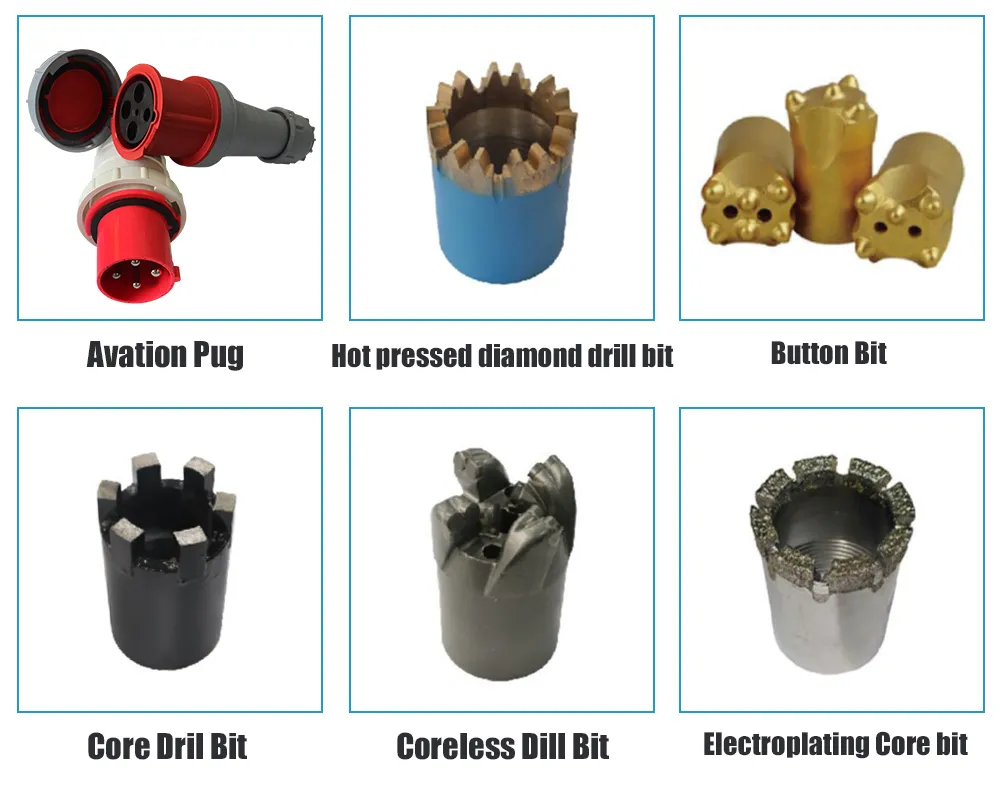

Wire Saw Machine 12

Frequently Asked Questions

What materials can this diamond wire saw machine cut?
The machine is designed for stone cutting, specifically for materials like jadestone, concrete curbs, granite, and marble.
How does the automatic tensioning system work?
It is controlled by two inverters which maintain a constant tension, ensuring the diamond wire operates at optimal conditions to extend its service life.
Is the machine capable of vertical and horizontal cutting?
Yes, the machine features a 0-360 degree electric automatic rotation adjustment, allowing for horizontal, vertical, and any direction cutting.
What safety features are included?
The machine includes a safety stop function for unexpected wire breakage and photoelectric proximity switches for limit protection.
Can one operator manage multiple machines?
Yes, with the automatic operation control switch, one person can concurrently operate several machines safely.
What is the working temperature range for this equipment?
The machine is designed to operate efficiently in temperatures ranging from -15ºC to 43ºC.
