| Model NO. | YSLZ150 | Voltage | 380V |
| Automatic Grade | Automatic | Principle | Large Deformation |
| Certification | TUV, CCC, ISO9001, CE | Warranty | 12 Months |
| Raw Material Diameter | 5-12mm | Max. Rolling Speed | 150-180m/Min |
| Production Capacity | 2000-3000tons/Month | Standard Cut Length | 1.5 -12m |
| Straightness Deviation | ≤3mm | Total Installed Power | 85-150kw |

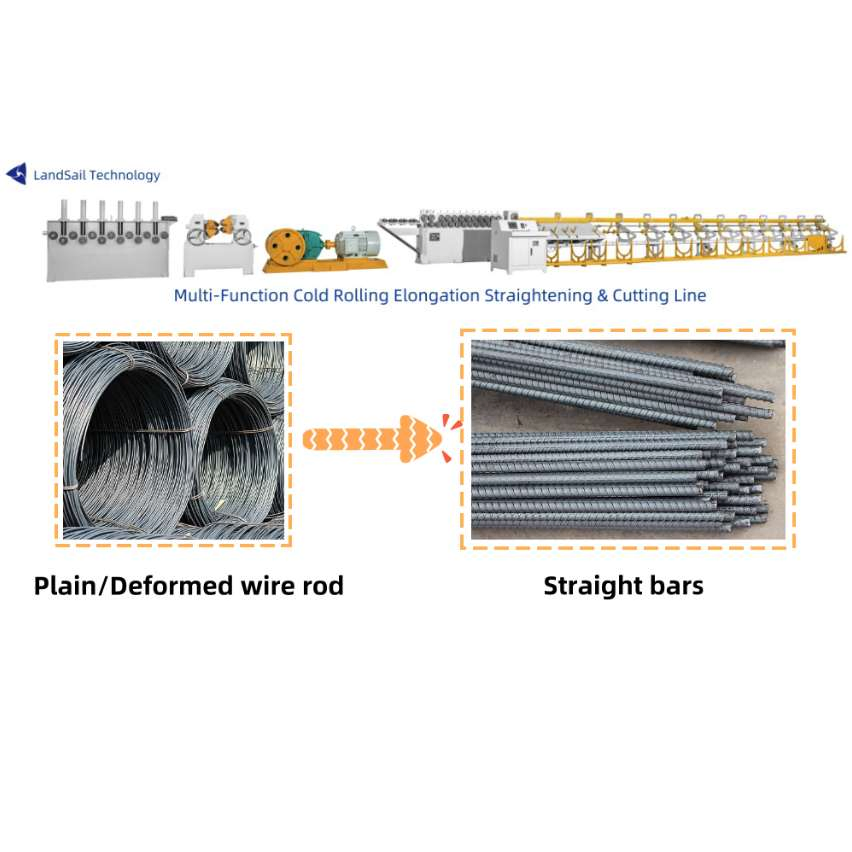

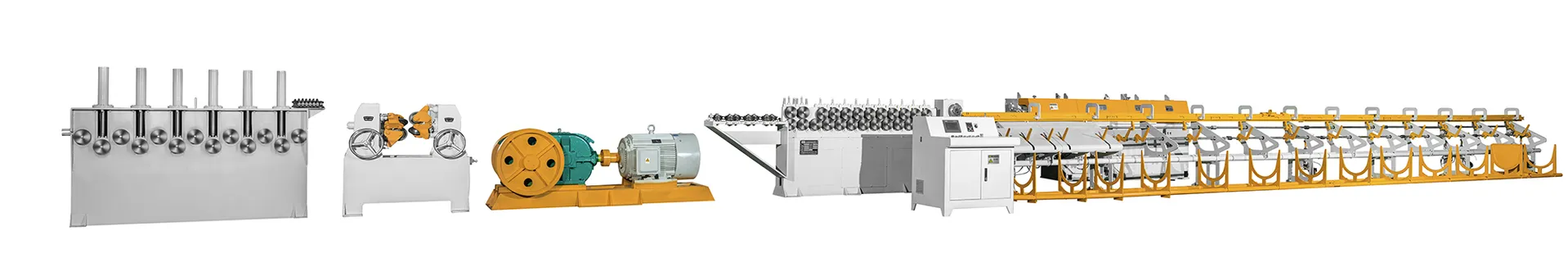

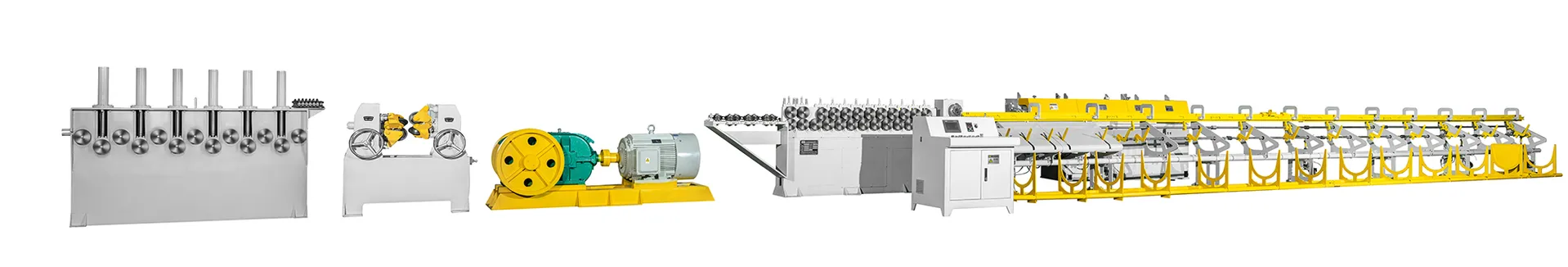

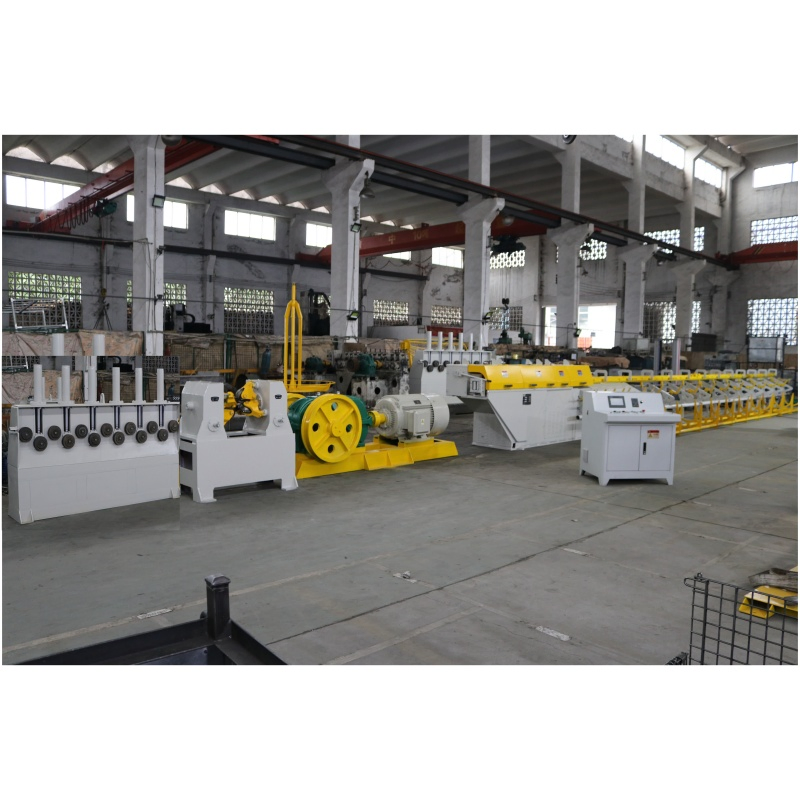

Our advanced production line integrates finishing, straightening, and high-speed cutting without the need for recoiling, maximizing output and minimizing material waste.
| Model Parameter | YSLZ150-1 | YSLZ150-2 | YSLZ150-3 |
|---|---|---|---|
| Raw Material Diameter | 6-10mm | 6-12mm | 6-14mm |
| Finished Diameter | 5-9mm | 5-11mm | 5-12mm |
| Elongation Rate | 8%-14% | 8%-14% | 8%-14% |
| Max. Rolling Speed | 150-160 m/min | 180 m/min | 180 m/min |
| Monthly Capacity | 2000 tons | 2600 tons | 3000 tons |
| Installed Power | 85kw | 130kw | 150kw |
Quality Assured: Products meet international standards including ISO 9001 and GB13788-2024. With over 20 years of industry experience and 1,000+ global clients, we specialize in high-precision rebar machinery and customized engineering solutions.
A: It supports coiled round wire and coiled deformed bar, including CRB550 ribbed rebar and Grade III steel rods.
A: The line uses a CNC high-speed straightening and cutting system, ensuring length errors are kept within ±5 mm.

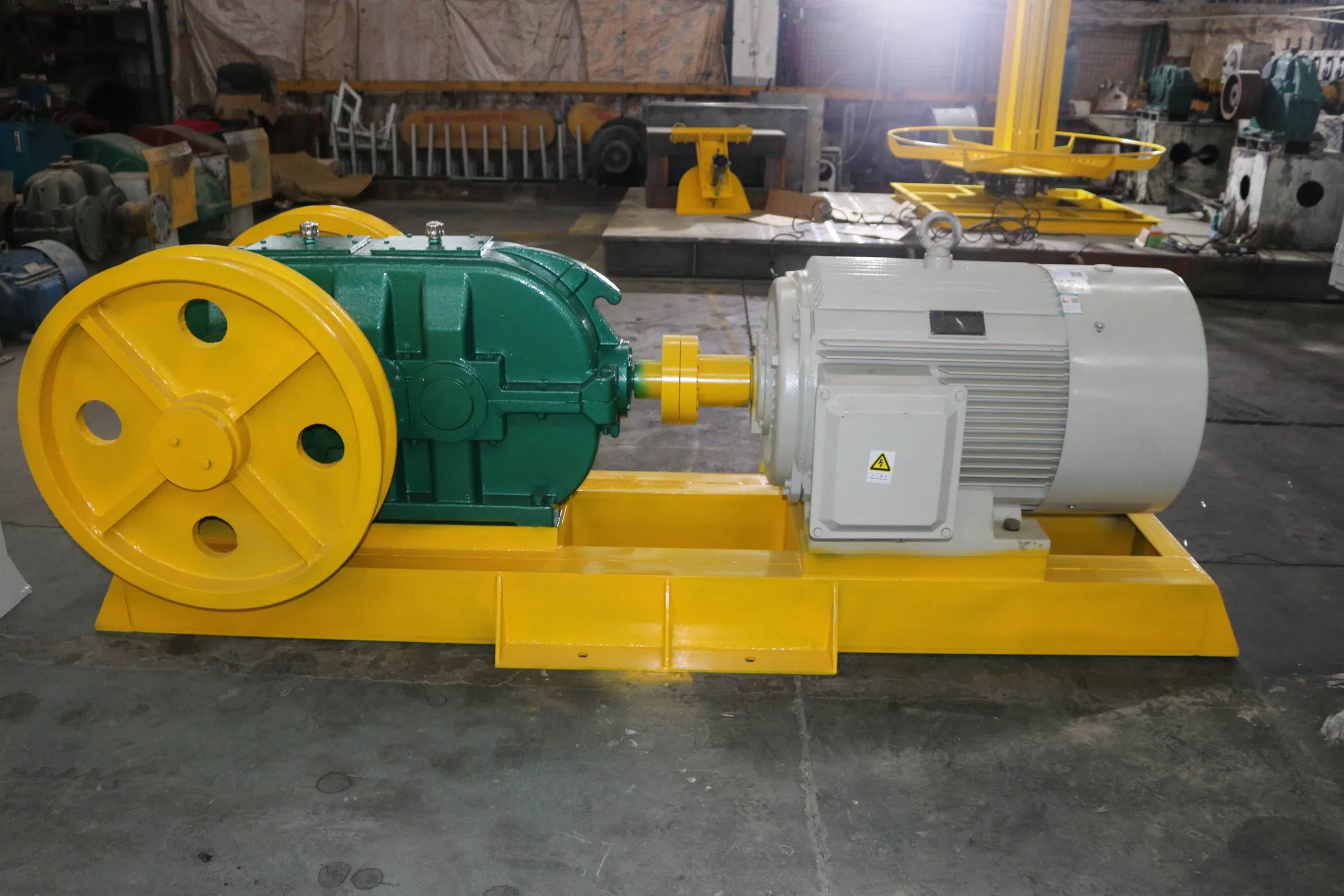

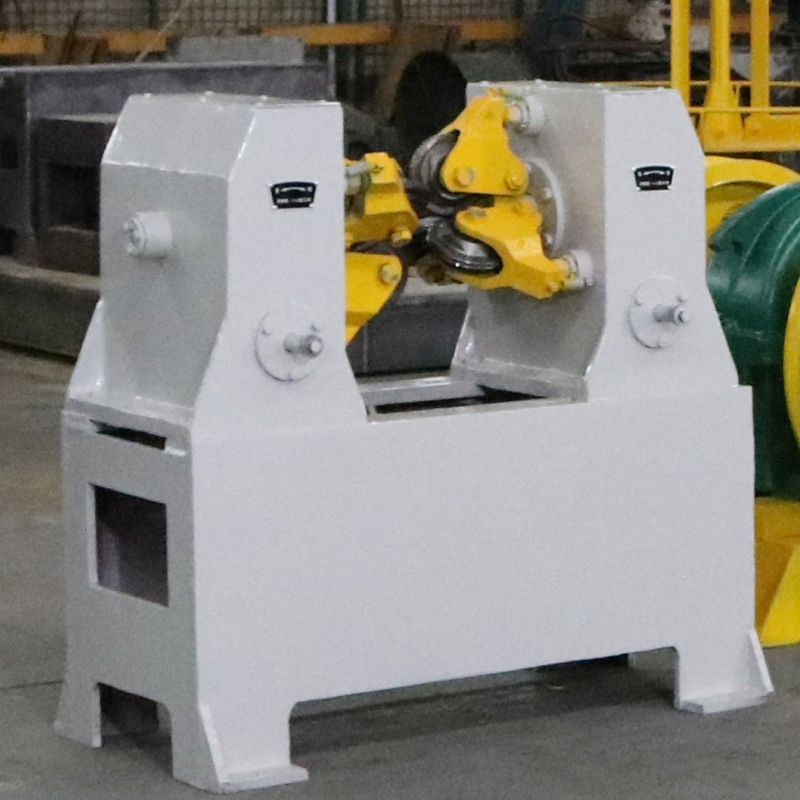

A: Yes. Components like the cold rolling mill and traction units can be configured with 1 or 2 units based on your capacity needs.
A: It is adjustable via a 6-cylinder hydraulic system with servo control, offering high precision and easy operation via PLC.
A: The dual-decoiling and CNC buffer system allows for continuous feeding and discharge, significantly reducing downtime and labor costs.
A: Yes, technical support including operator training, remote assistance, and on-site service is available to ensure smooth operation.
