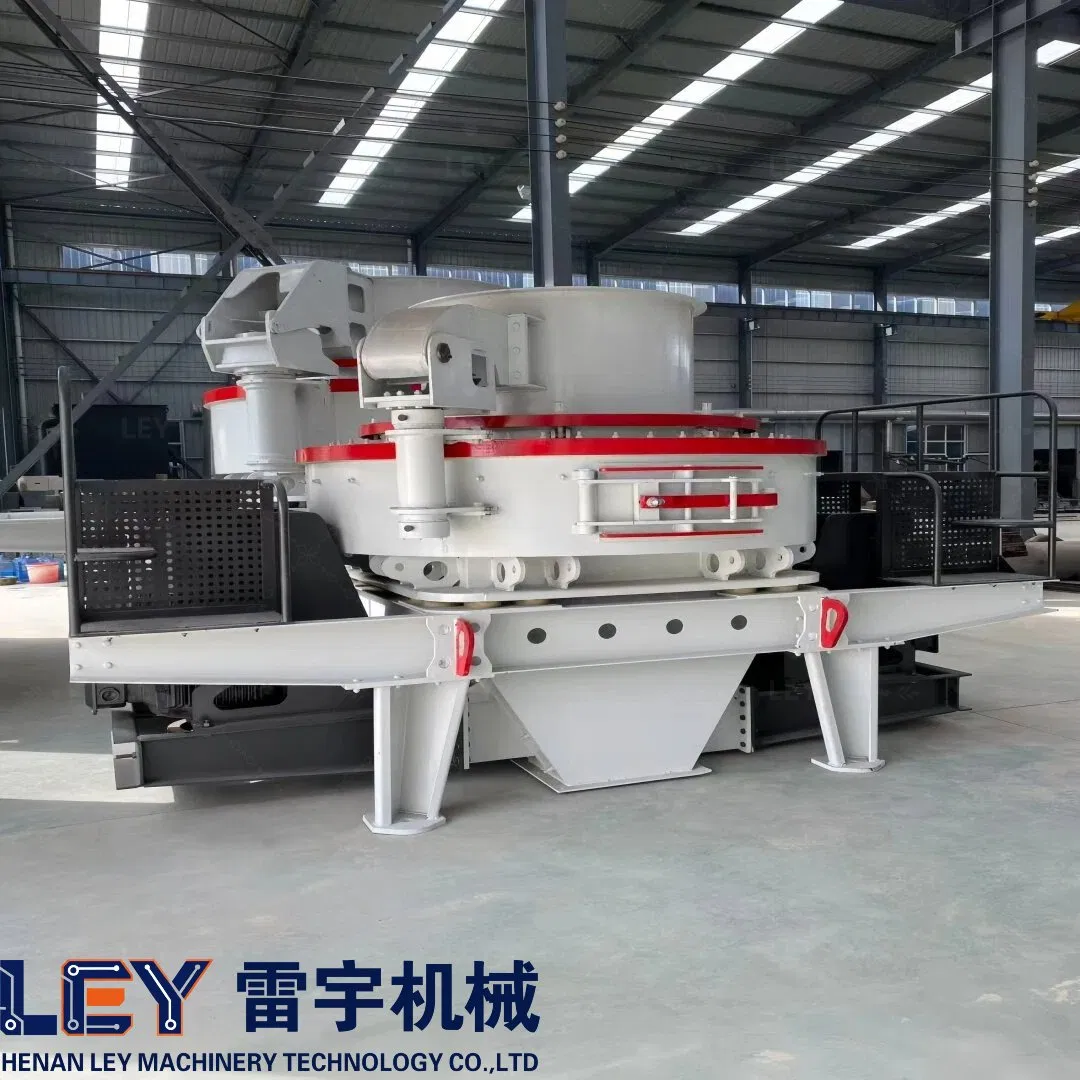

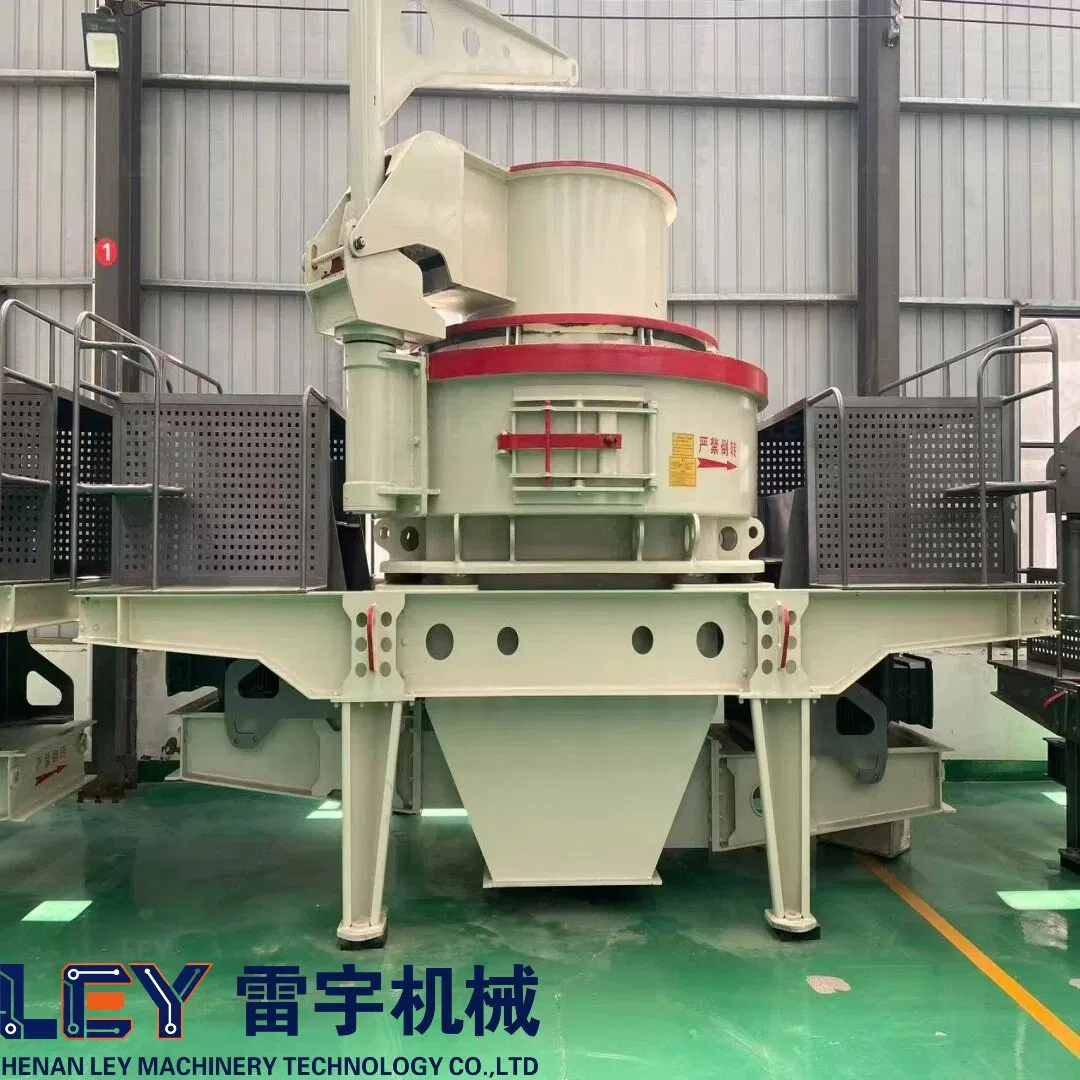

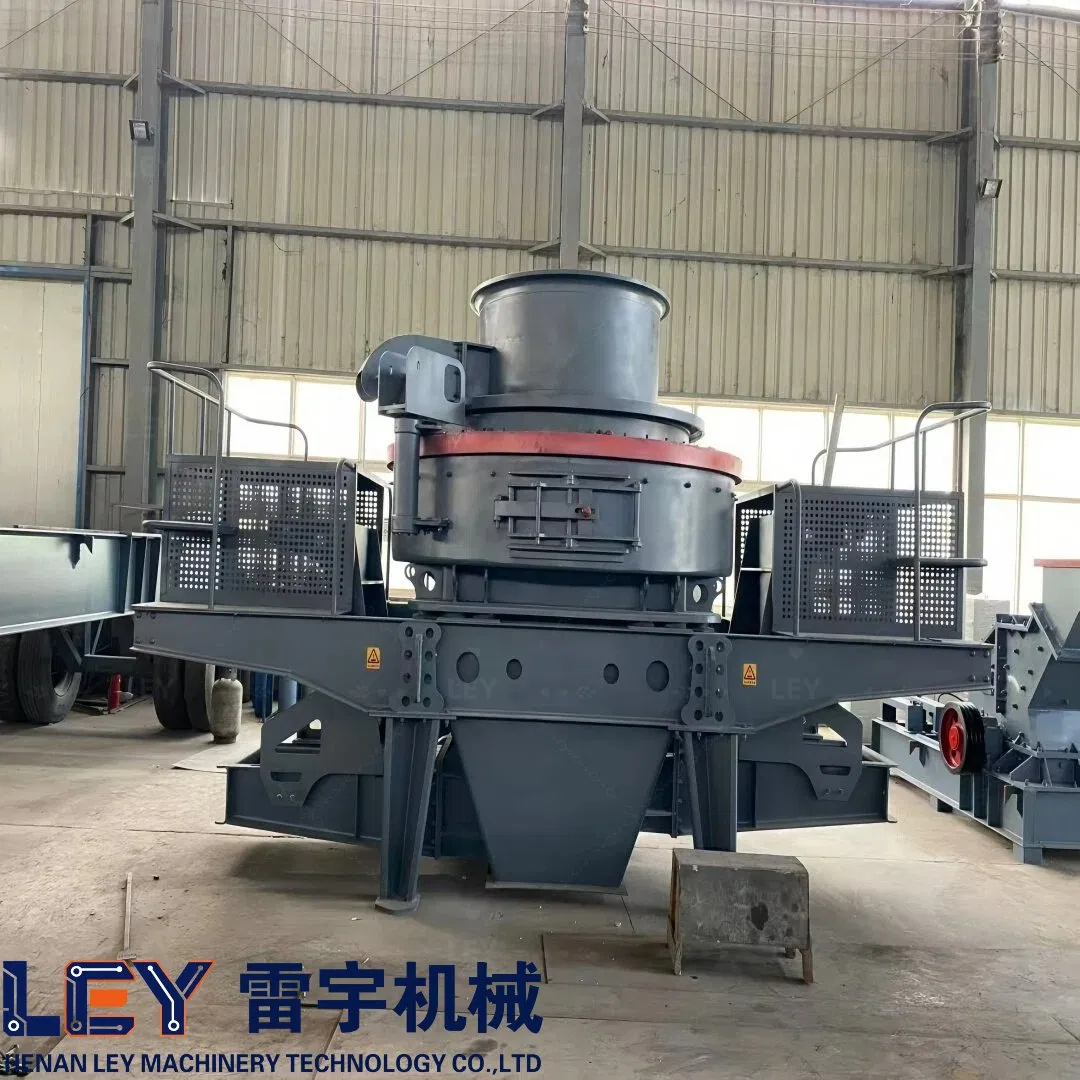

The Impact Sand Making Machine (VSI Crusher) is a highly efficient sand-making and aggregate shaping equipment based on the dual impact crushing principle of "stone-on-stone" and "stone-on-iron". It accelerates the materials to 60-90m/s through a high-speed rotating rotor, realized through multiple actions such as impact, rebound, and vortex grinding.
✔
Application Scenarios

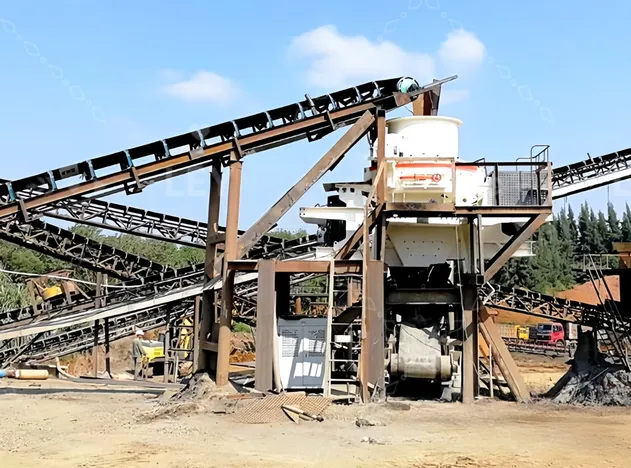

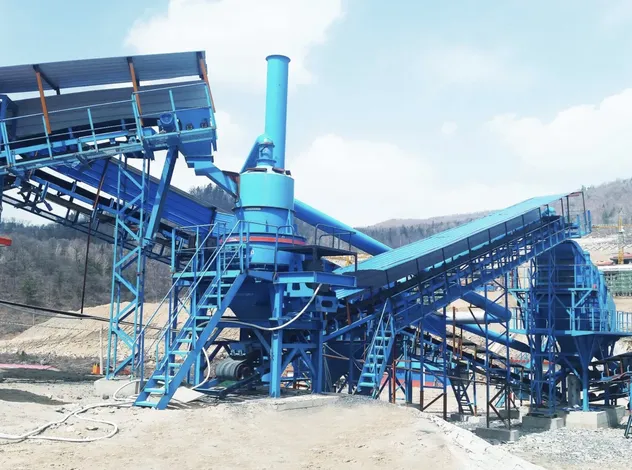

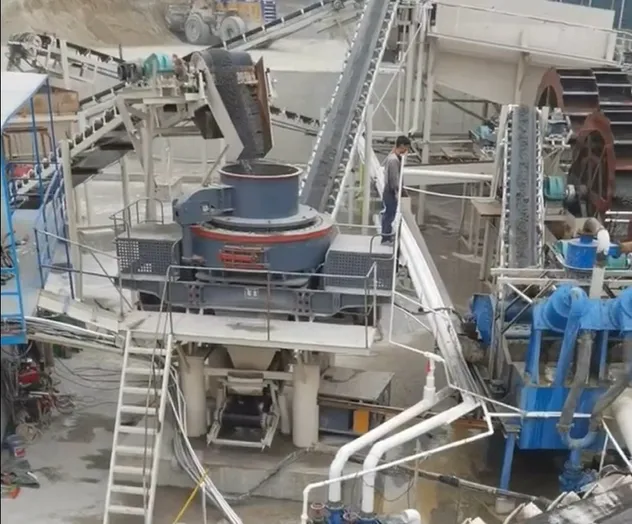

• Sand production lines in sand and gravel plants;
• Aggregate processing for infrastructure projects;
• Tailings recovery in mines;
• Resourceful treatment of construction waste.
⚙

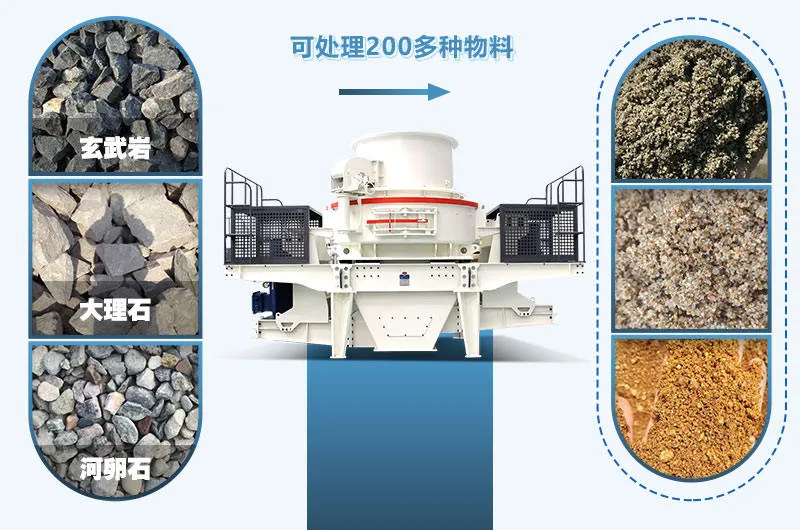

Materials & Configurations
Applicable Materials: Limestone, granite, basalt, bluestone, quartz stone, construction waste, concrete blocks, coal gangue, iron ore and other high hardness materials (Mohs hardness ≤ 10).
Key Configurations:
- Dual motor variable frequency drive
- Deep cavity rotor, dual-mode crushing chamber
- Hydraulic cover opening device
- Heavy-duty steel structure base, fully sealed housing
📊

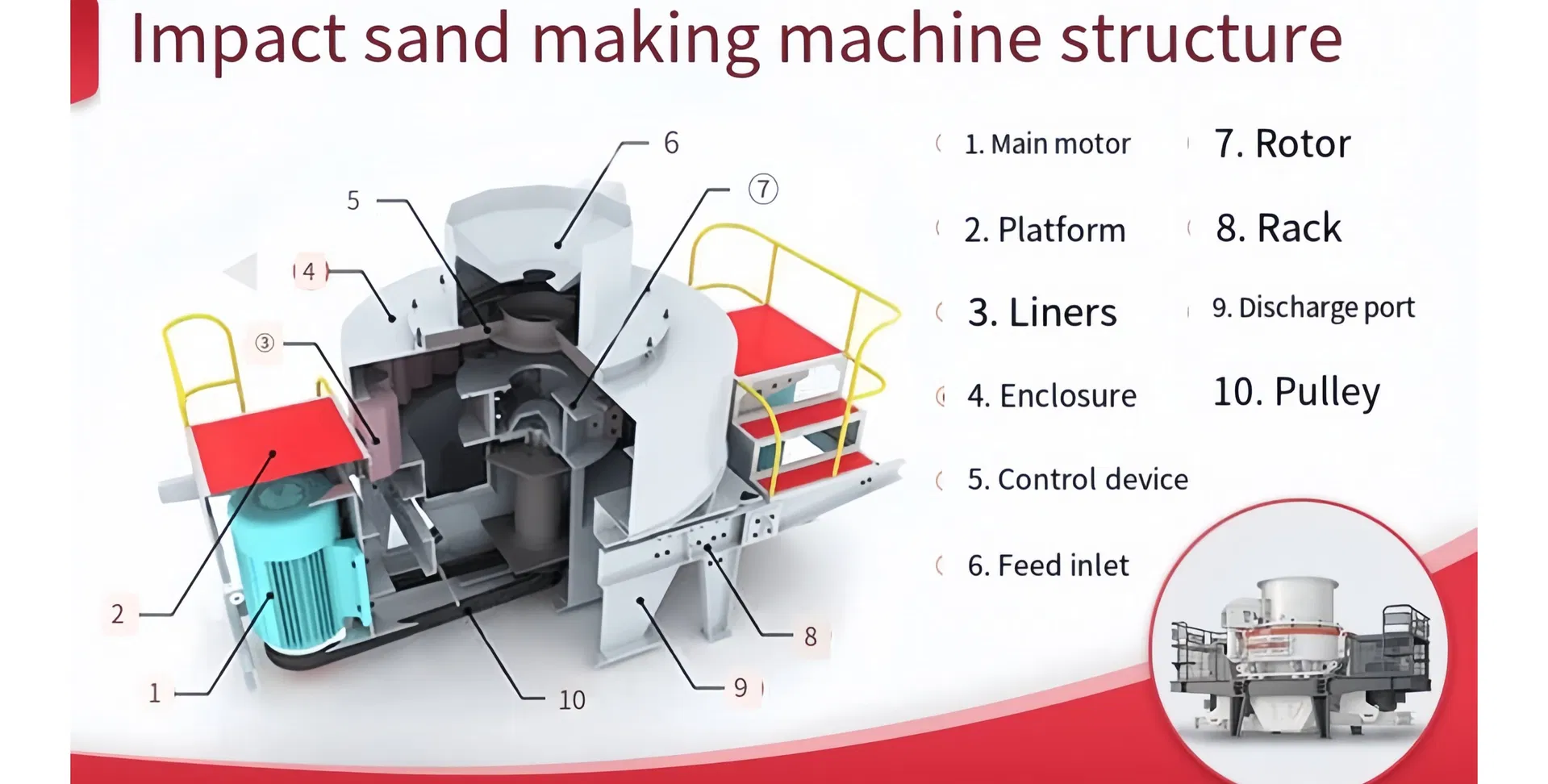

Schematic Diagram
📋
Technical Specifications
Model
Capacity (t/h)
Max Feeding (mm)
Speed (r/min)
Power (kw)
Dimension (mm)
VSI7611
60-180
≤35
1700-1890
2*55
3700*2150*2100
VSI8518
100-260
≤40
1520-1690
2*90
4140*2280*2425
VSI9526
150-380
≤45
1360-1510
2*132
4560*2447*2778
VSI1140
225-520
≤50
1180-1310
2*200
5000*2700*3300
VSI1263
454-850
≤60
900-1200
2*315
5700*2980*4190
🏭
Company Profile & Shipping

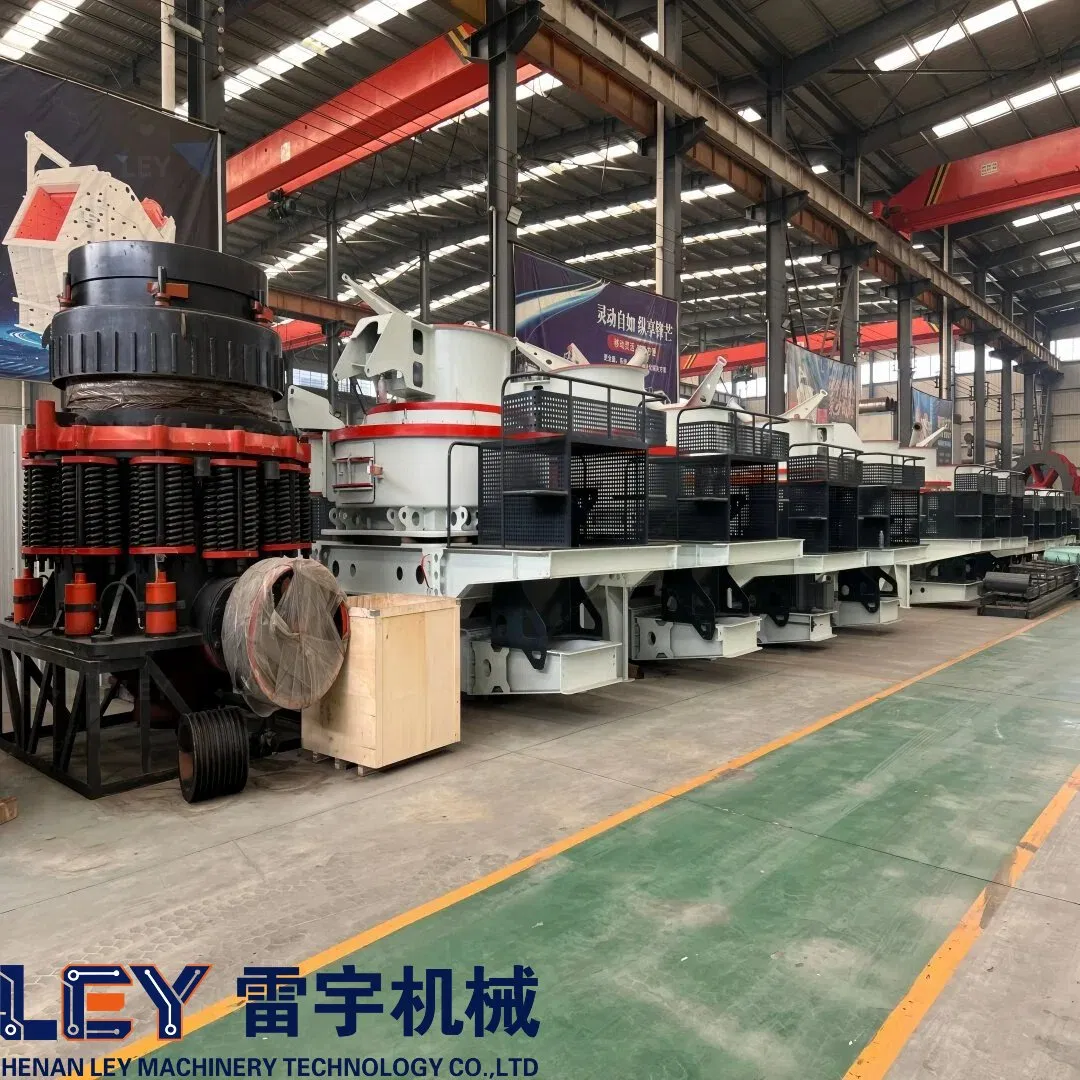

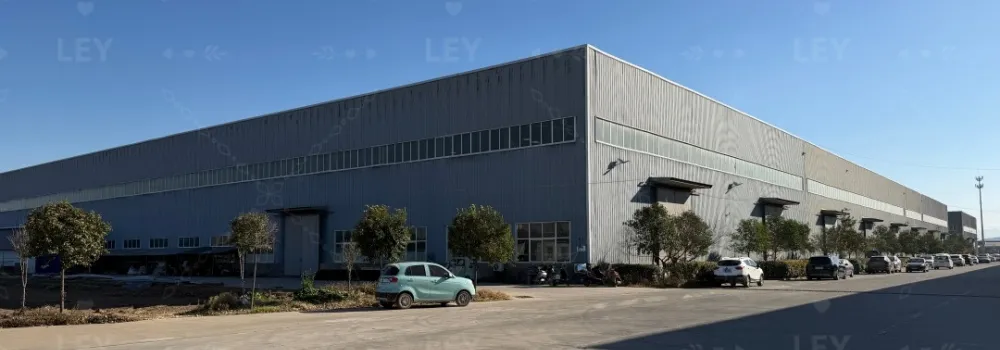

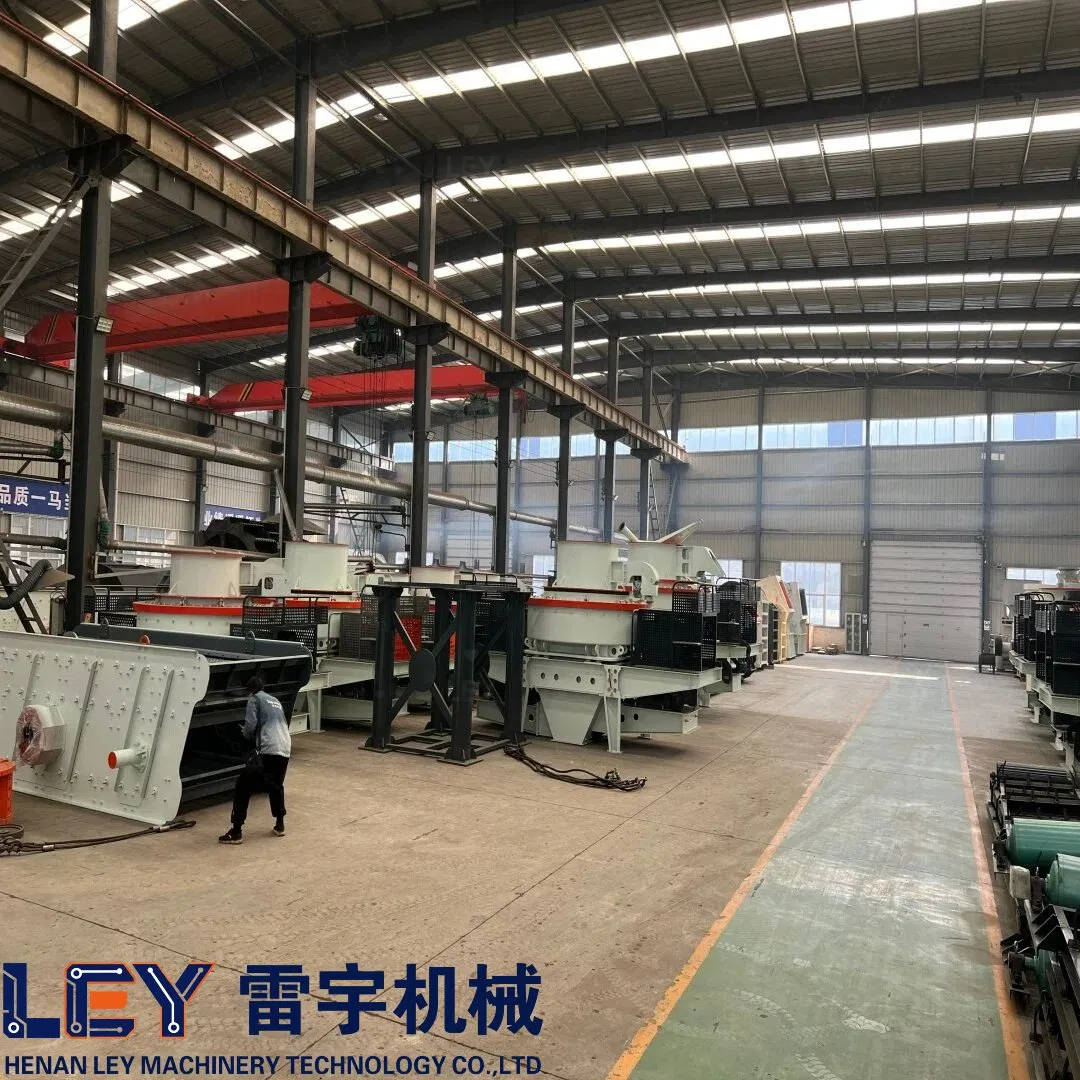

Our facility houses 86 sets of large and medium-sized metalworking lathes, riveting machines, welding equipment, and assembly machinery. We are specialized in four major product series: stone crushers, brick machine, grinding mills, and biomass pellet machines. We offer free site planning, design and installation base plans, as well as post-installation technical training.
Packaging: Large equipment is delivered in the nude, while small equipment and accessories are packed in wooden cases.
📜
Certifications
?
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are a professional manufacturing factory established with years of experience in equipment production.
2. How long is your delivery time?
Typically 7-10 days for items in stock, and 15-30 days for mass production orders.
3. What payment methods do you accept?
We support TT, LC, DP, DA, Western Union, PayPal, and Money Gram.
4. What is the warranty period for your equipment?
We provide a one-year warranty and supply spare parts at the lowest possible cost.
5. Can you help design a complete production line?
Yes, we provide professional site planning, flowchart design, and technical guidance for complete mining projects.
6. Do you support OEM or customization?
Yes, we fully support both OEM and ODM customization to meet specific customer requirements.
