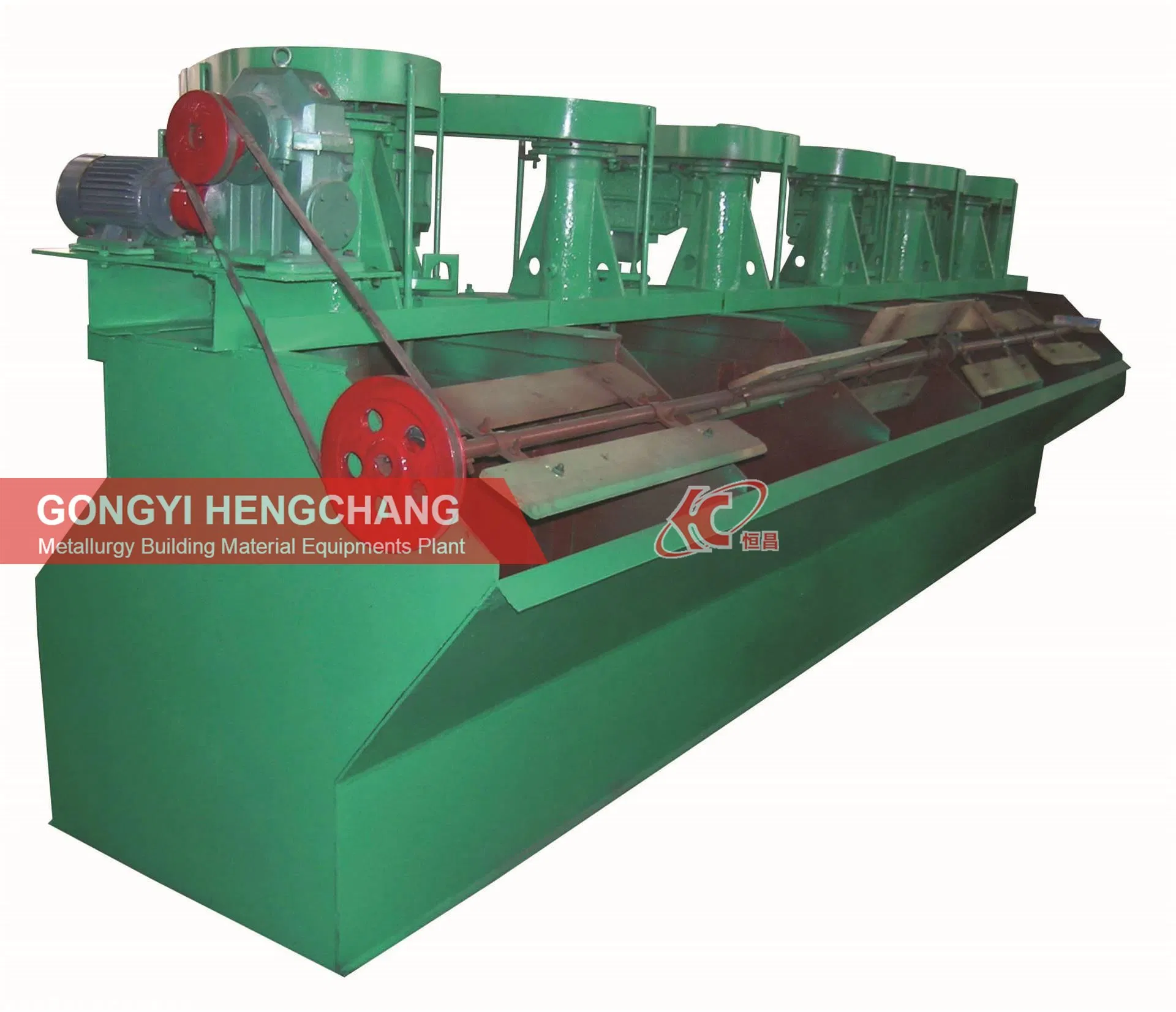

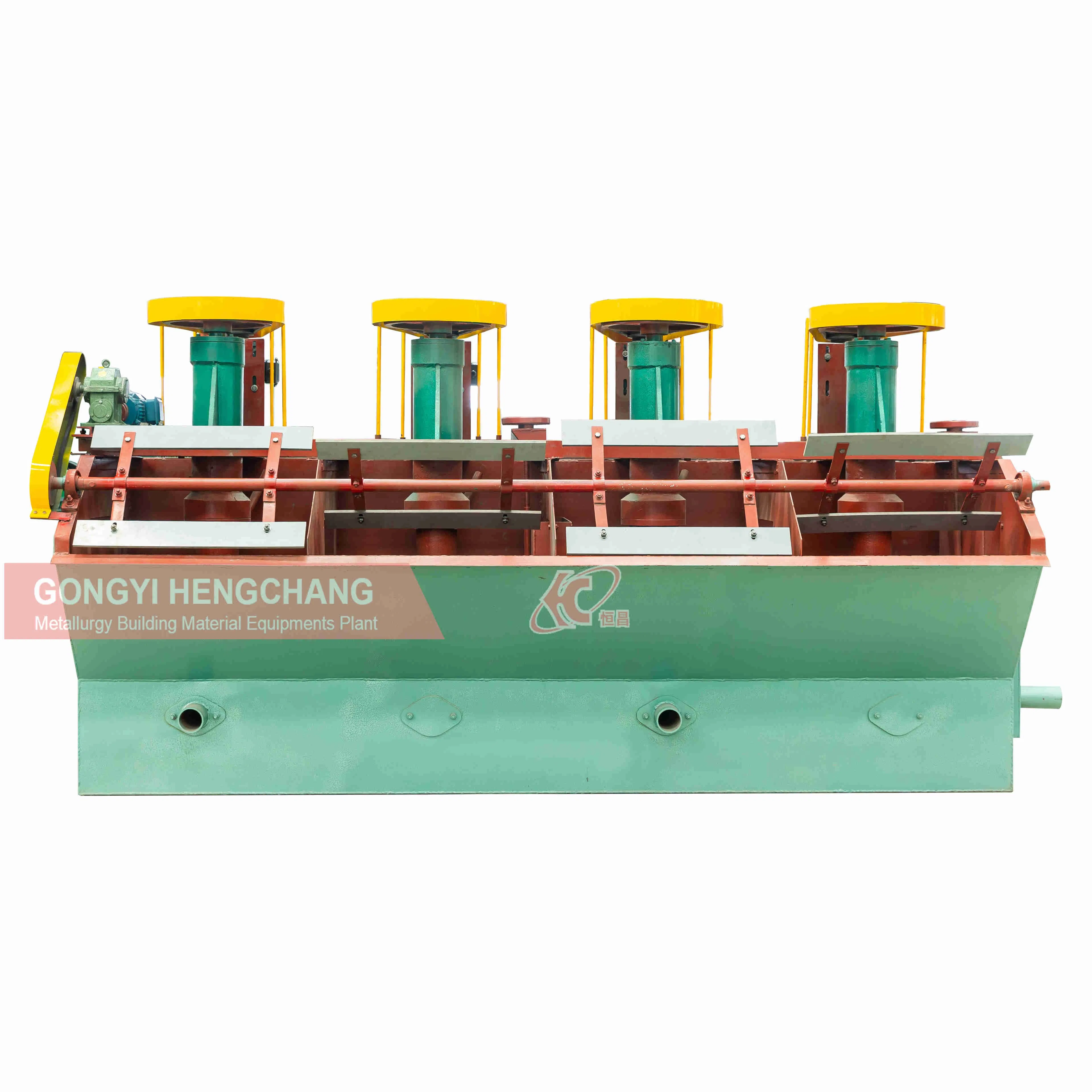

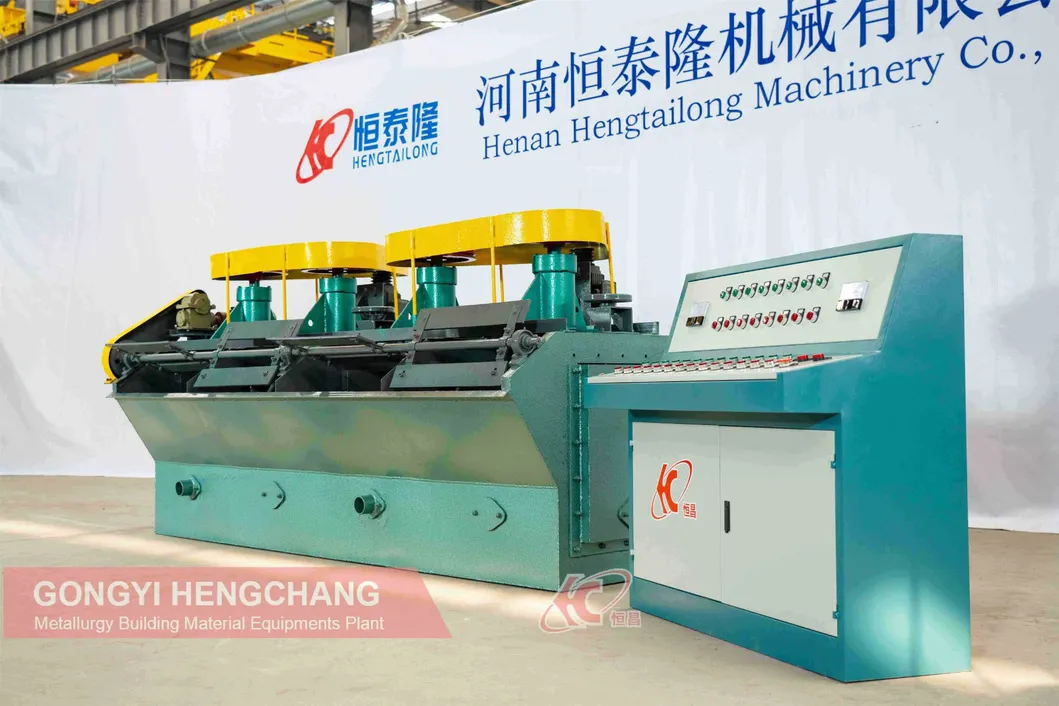

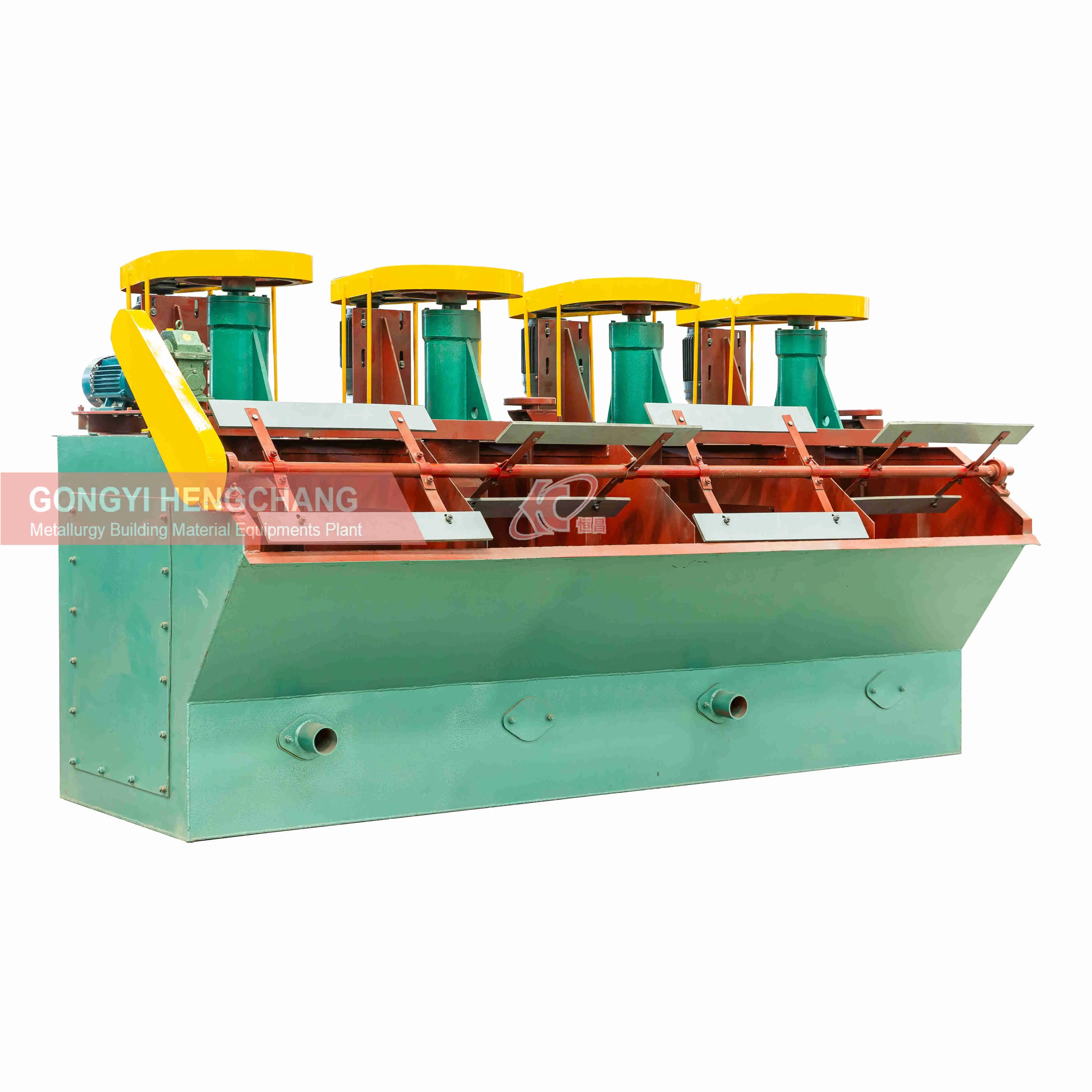

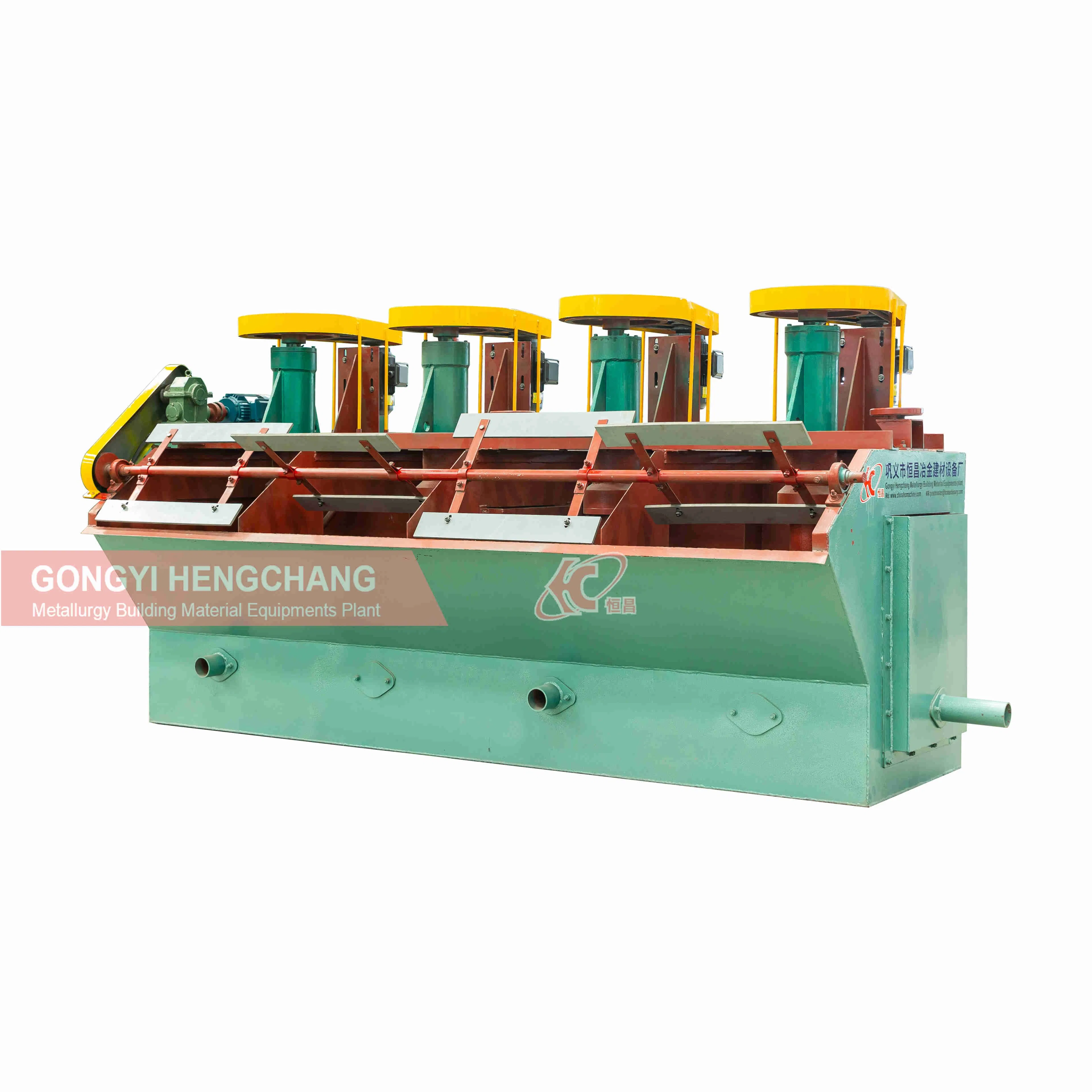

Widely used mining mineral copper ore flotation machine

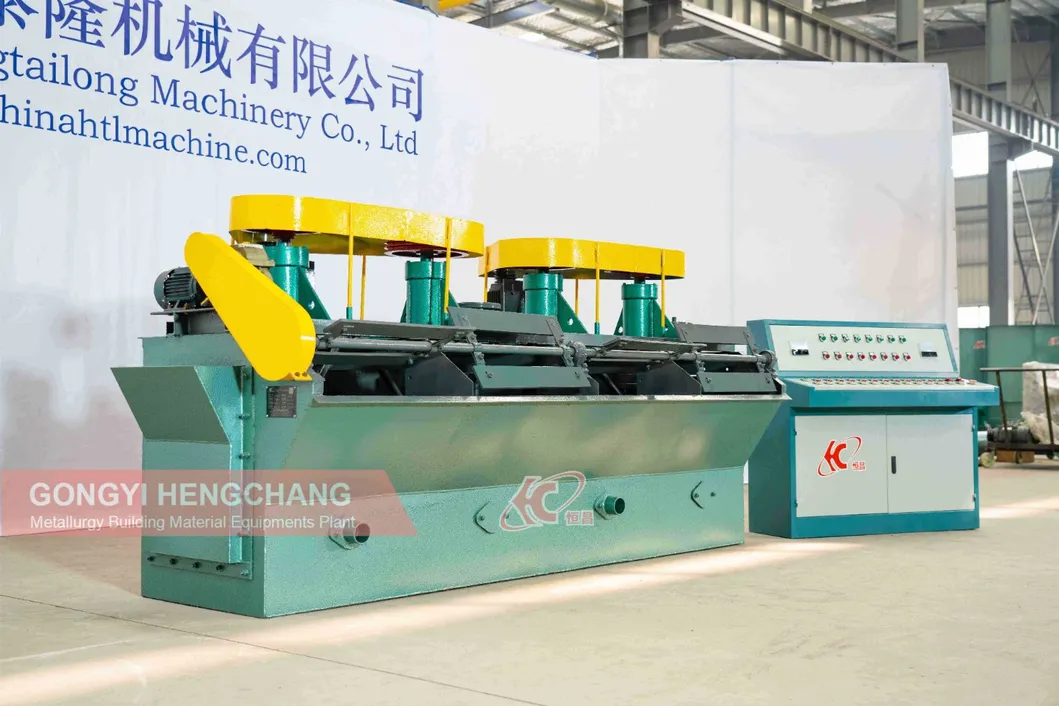

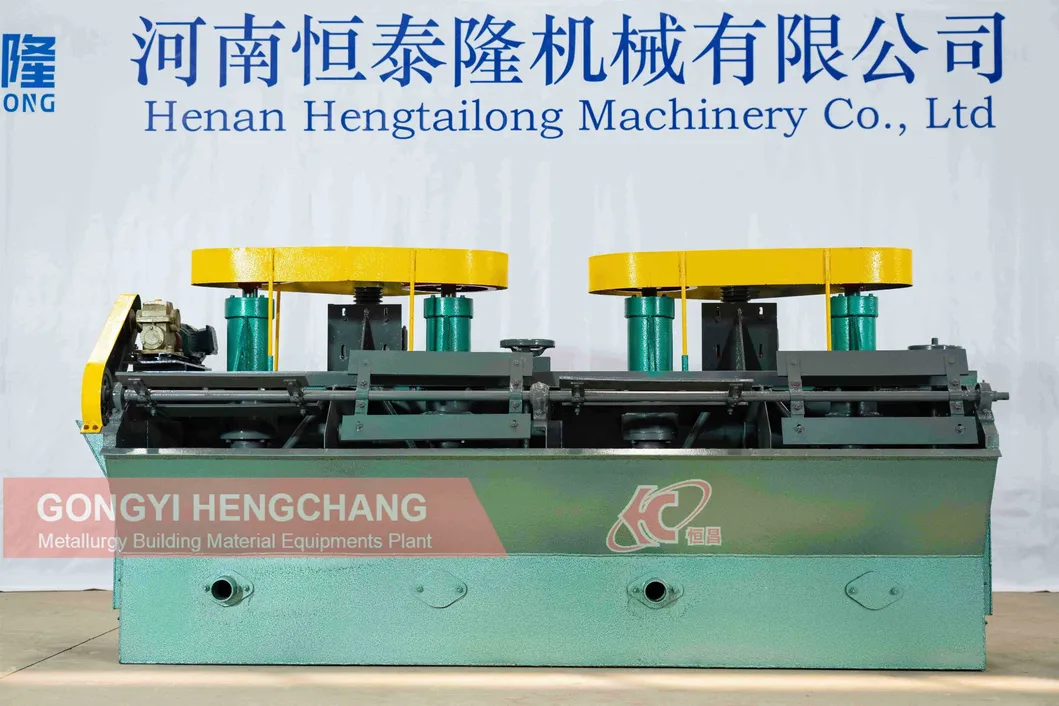

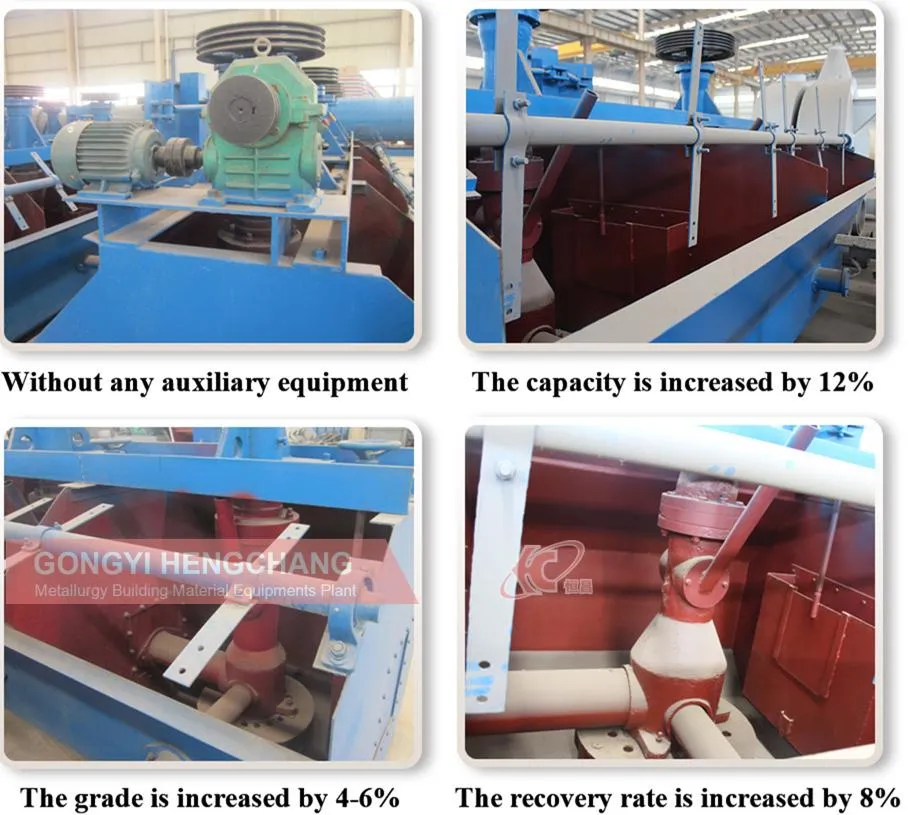

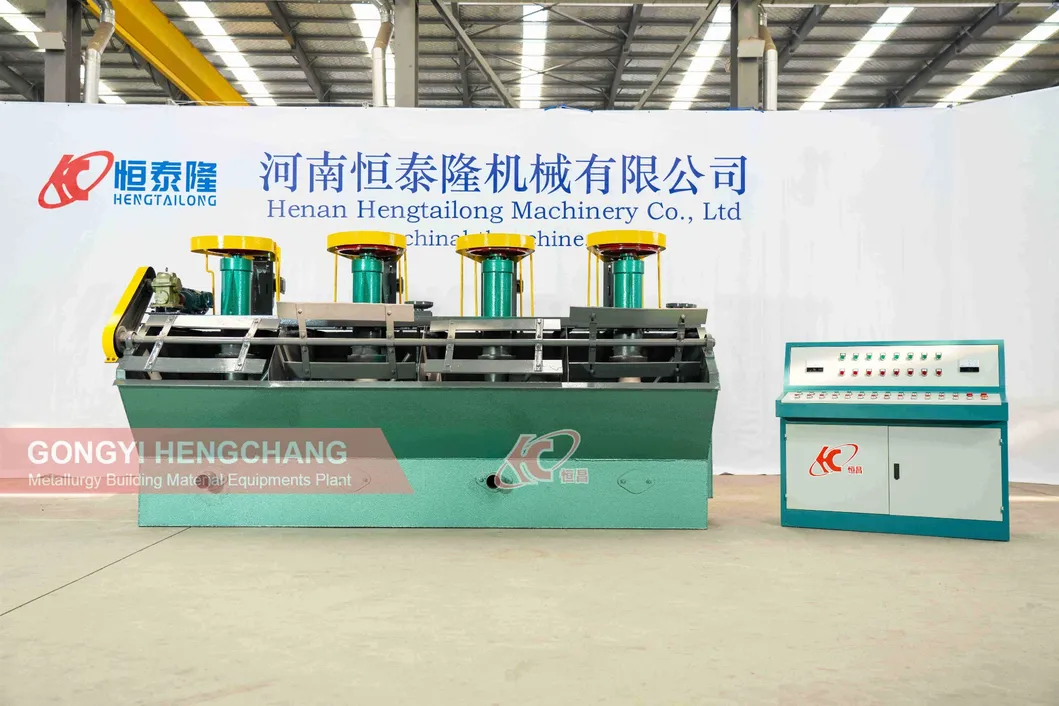

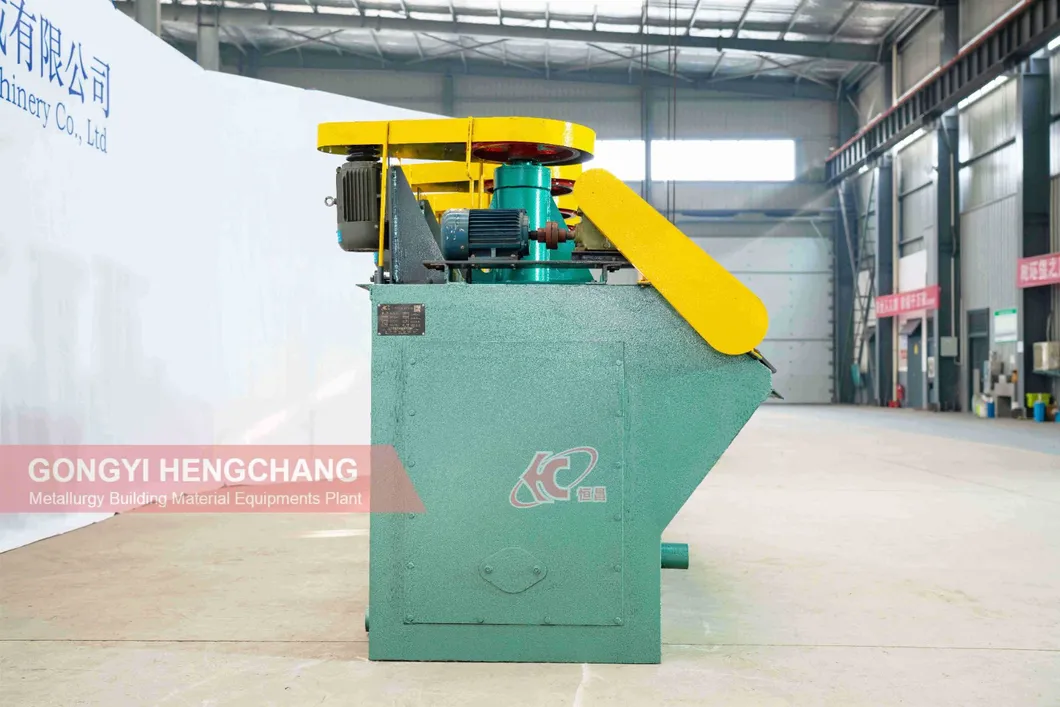

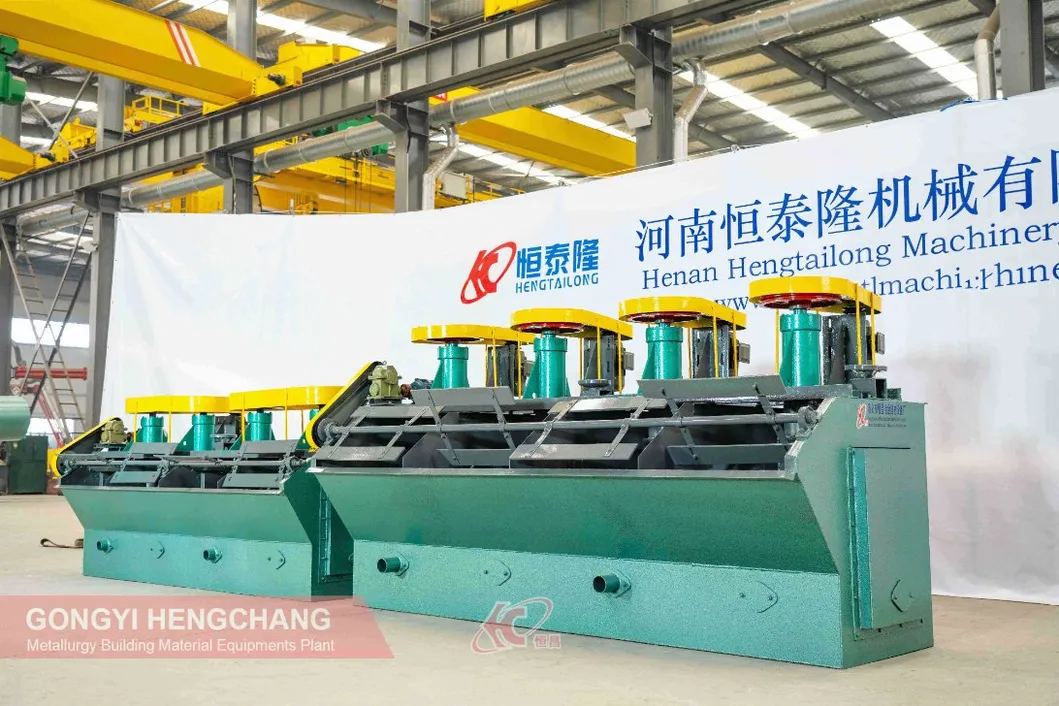

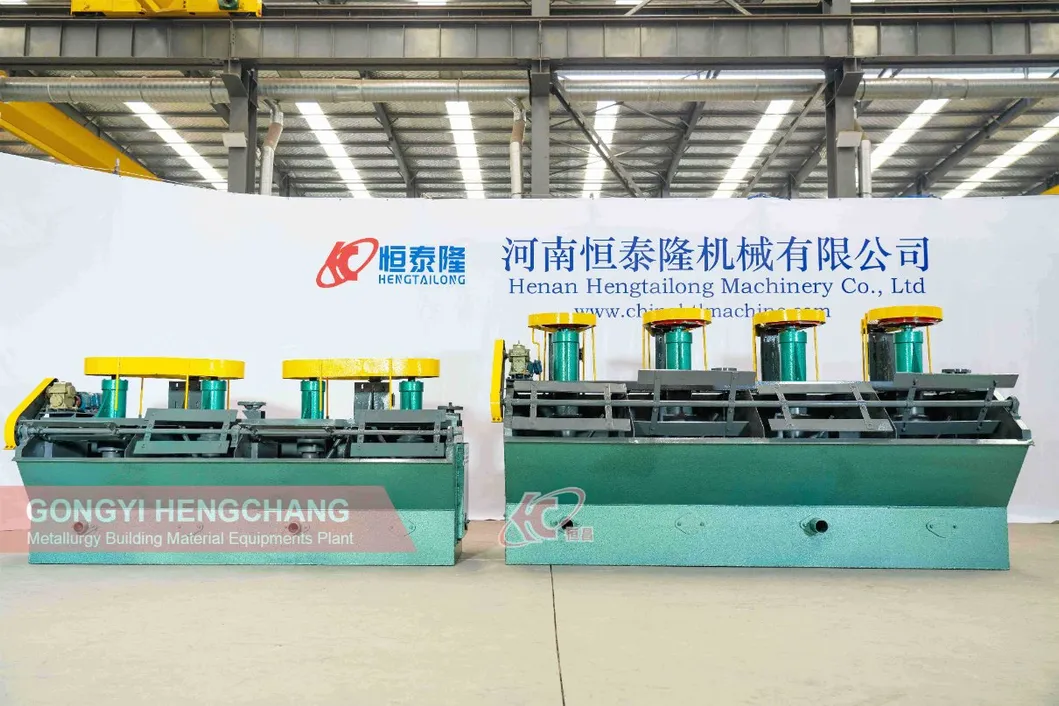

Flotation machine is also called flotation cell, which is the mineral separation equipment based on different physical and chemical properties of mineral particles, difference floating or chemical reaction to separate materials. The flotation machine has air suction, pulp suction and flotation functions, which can form self flotation circuit without any auxiliary equipment. It is horizontally configured, which is easy for process changes. The pulp has reasonable cycle, which can minimize the sand sediments.

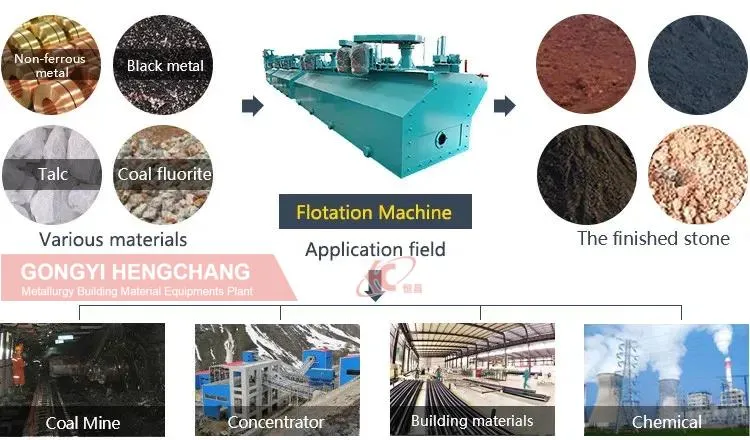

Floatation Device Equipment can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.

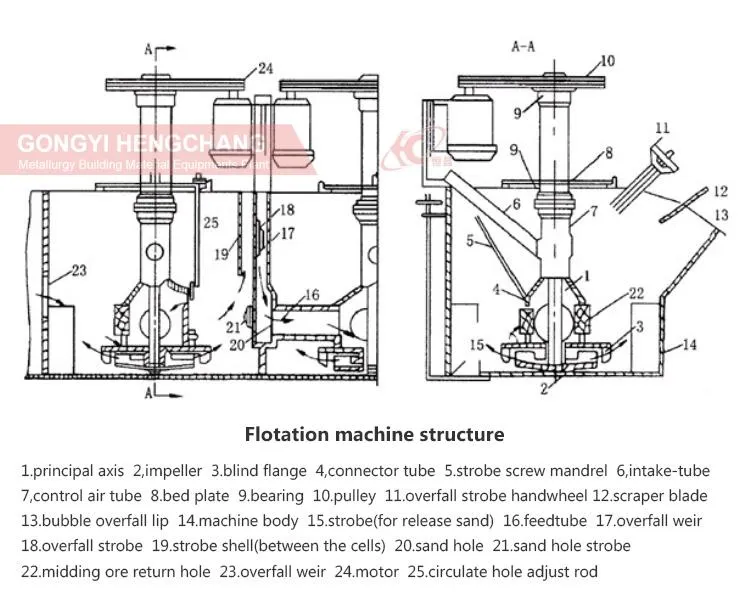

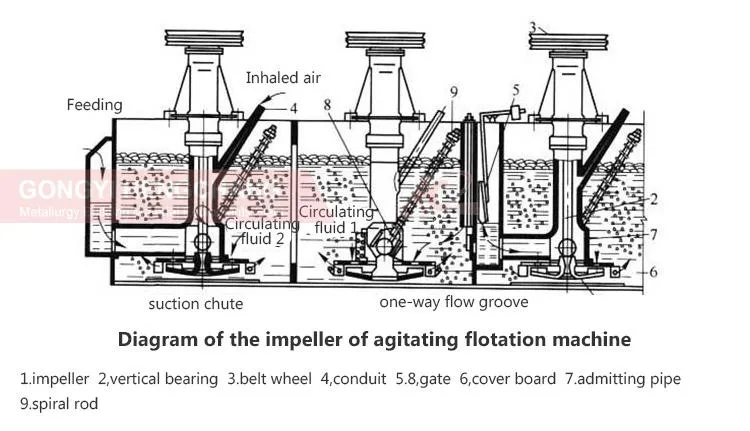

The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface. One or more gas chambers are installed in the bottom of the tub, on the cover of the gas chamber are full of one-way valves. when the one-way valves are open, the pressed air will be fed into the flotation cell.
Types of Gold Ore: Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.

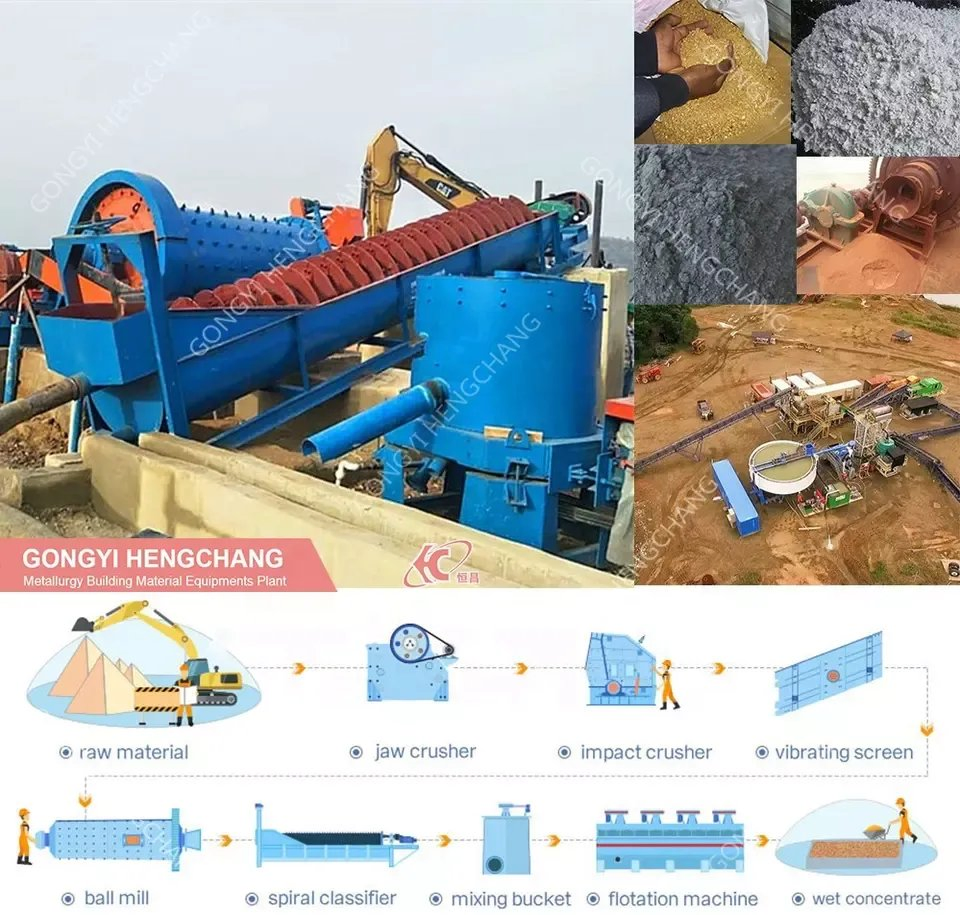

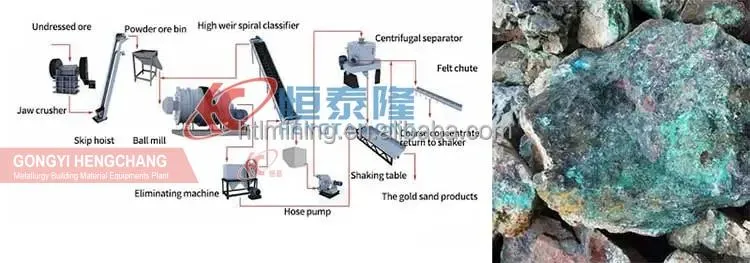

Processing Flow: Placer gold ore with high gold content mostly exists in the form of particles. Therefore, the ideal method to process placer gold ore is gravity separation. According to different physical and chemical properties, flotation separation utilizes various reagents to make the gold attached to the bubbles then scraping these gold particles.
We are a professional supplier integrating industry and trade, specializing in jaw crushers, drying equipment, and mineral processing equipment. With 10 years of export experience, we have provided solutions to Southeast Asia, Australia, Europe, South America, and Africa. Most products have obtained CE certification, and factories maintain ISO9001 and IEC certifications.
Before-sale services: Guiding customers to choose the best device; providing advanced, energy-saving technological processes; site planning and design.
Sale services: Strict inspection before sale; on-the-spot machine testing; arranged delivery according to contract agreements.

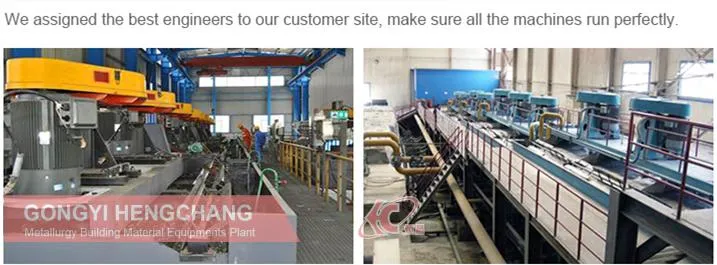

After-sale services: Professional engineers for installation guidance, debugging, and operator training. Quality guarantee for one year (excluding wearing parts).
