Technical Specifications
Model NO.:Ly-Ak-30t-1-2A
Load Capacity:30t
Safety Features:Collision Avoidance, E-Stop, Laser Scanner
Type:AGV (Automated Guided Vehicle)
Product Weight:8.2t
Drive Unit:Superdrive (20t load capacity)
Navigation:Magnetic Stripe / Laser / Natural
Dimensions:L5120*W2730*H850 mm
Environment:Indoor, Outdoor, Offshore
Voltage:96V
Product Description

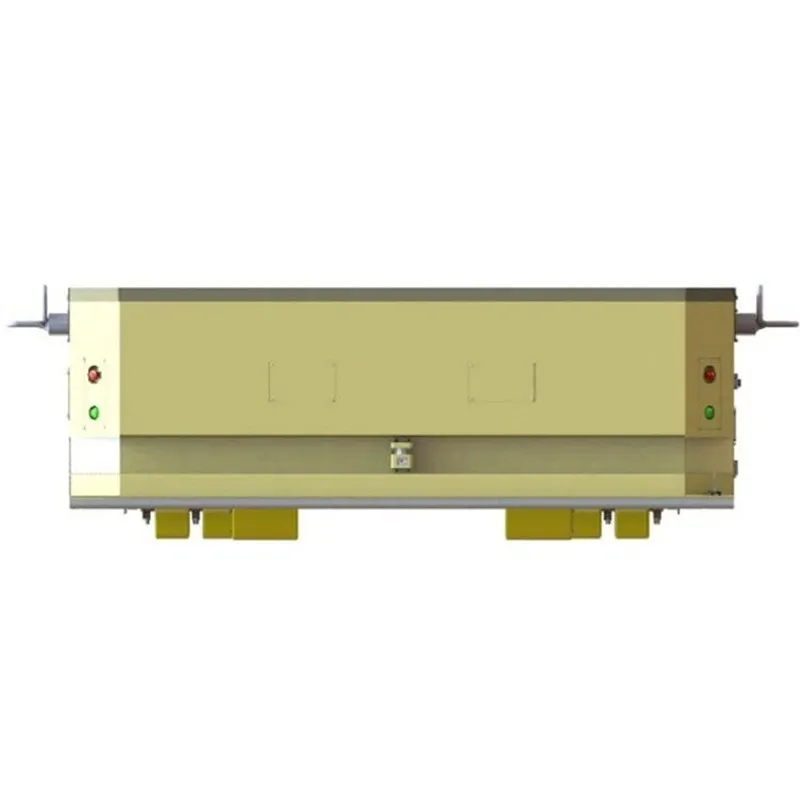

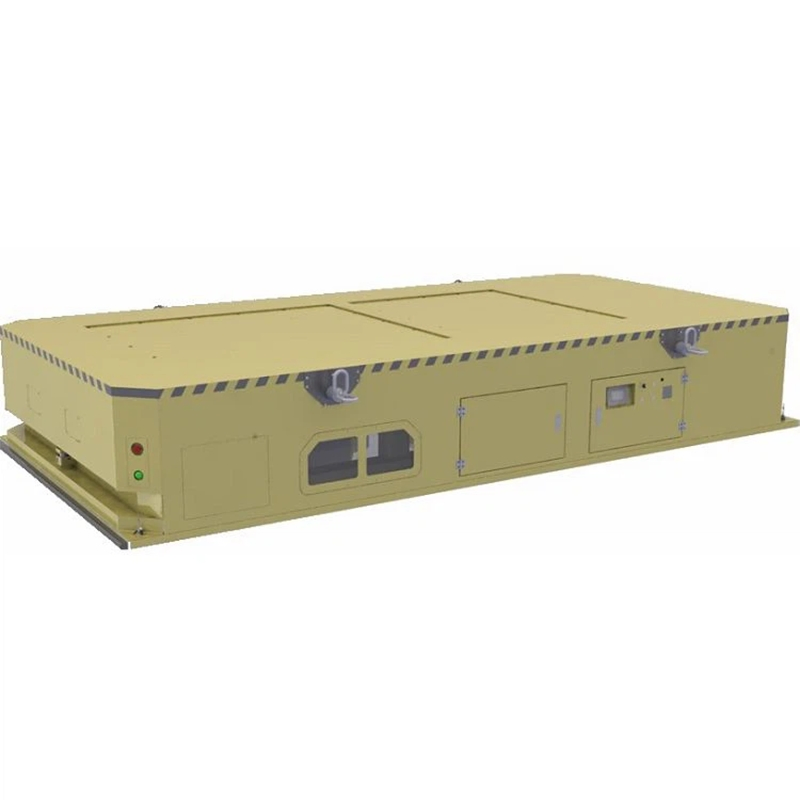

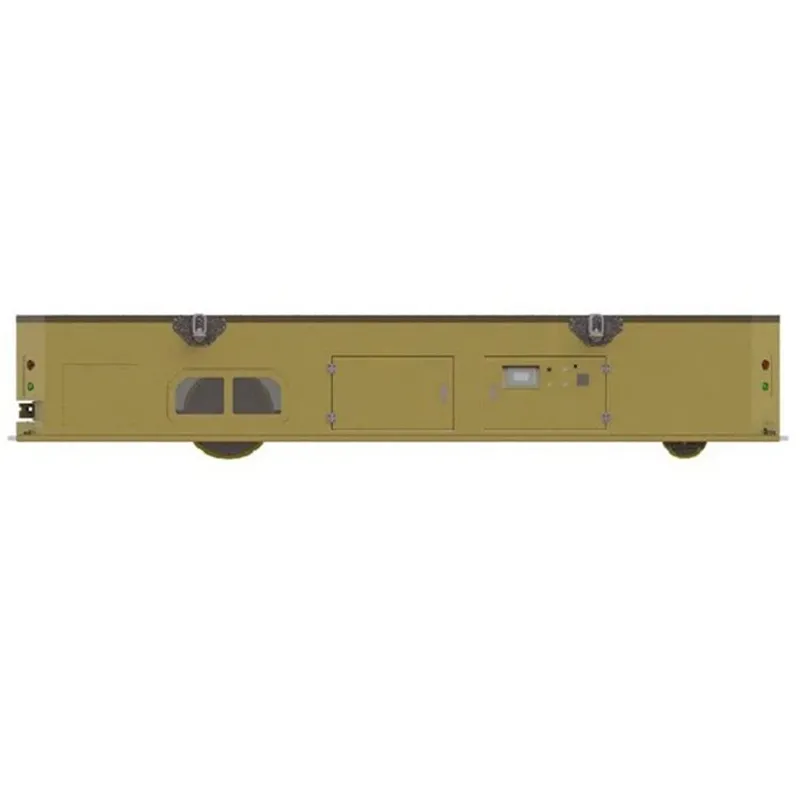

With a single-drive system and four wheels, combined with a robust vehicle structure, this AGV features a straightforward design with wireless remote control. Despite its simplicity, it is capable of transferring up to 30 tons of cargo, making it a prime example of functionality achieved through effective design.
Our professional services focus on the overall needs of customers, providing customized solutions based on specific industrial requirements. We are committed to building long-term relationships and ensuring professional support throughout the project cycle.
| Product Name | Unmanned conveyor AGVs |
| Model Number | LY-AK-30T-1-2A |
| Load Weight | 30T |
| Drive Unit Number | 1-Drive |
| Remote Control | Manual Remote |
| Linkage Mode | Single AGV |
| Frame Structure | Tubesheet |
| Battery Capacity | 450AH (Customized Available) |
Questions & Answers
Q: Would an AGV be a good solution for my facility?
A: An AGV is an excellent choice for moving materials and components horizontally. It is particularly effective for heavy loads and travel requirements where automation can replace manual transport.
Q: What are the benefits of using heavy-duty AGVs?
A: Heavy-duty AGVs are critical for transporting massive components in logistics automation. They offer high safety, stable operation, automatic leveling, and adaptability to uneven ground.
Q: What product handling applications use heavy-duty AGV transfer vehicles?

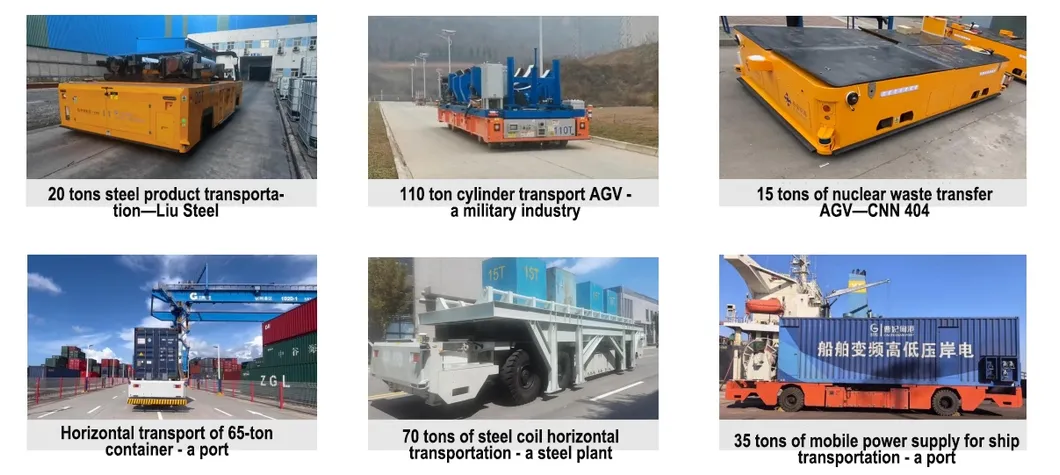

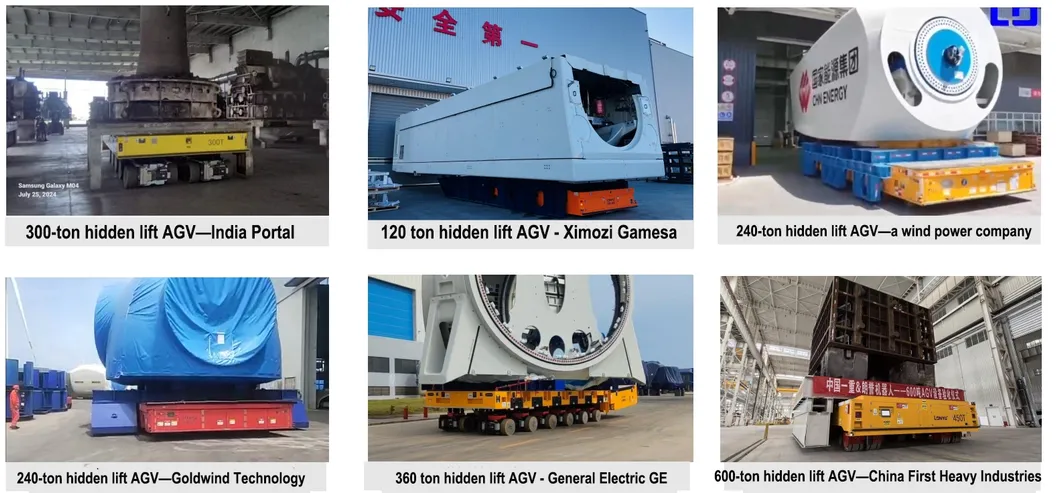

A: They are primarily used in warehousing, manufacturing, ports, and hazardous sites to handle oversized or overweight materials, reducing labor intensity and improving efficiency.
Q: Can this AGV operate in outdoor environments?
A: Yes, this model is designed to be versatile and can operate in indoor, outdoor, and even offshore environments.
Q: What safety systems are integrated into the 30t AGV?
A: It is equipped with a comprehensive safety suite including collision avoidance systems, emergency stop buttons, obstacle detection sensors, and safety laser scanners.
Q: Is the battery system customizable?
A: Yes, while the standard configuration is a 96V 450AH system, customization is available to meet specific project range requirements.
