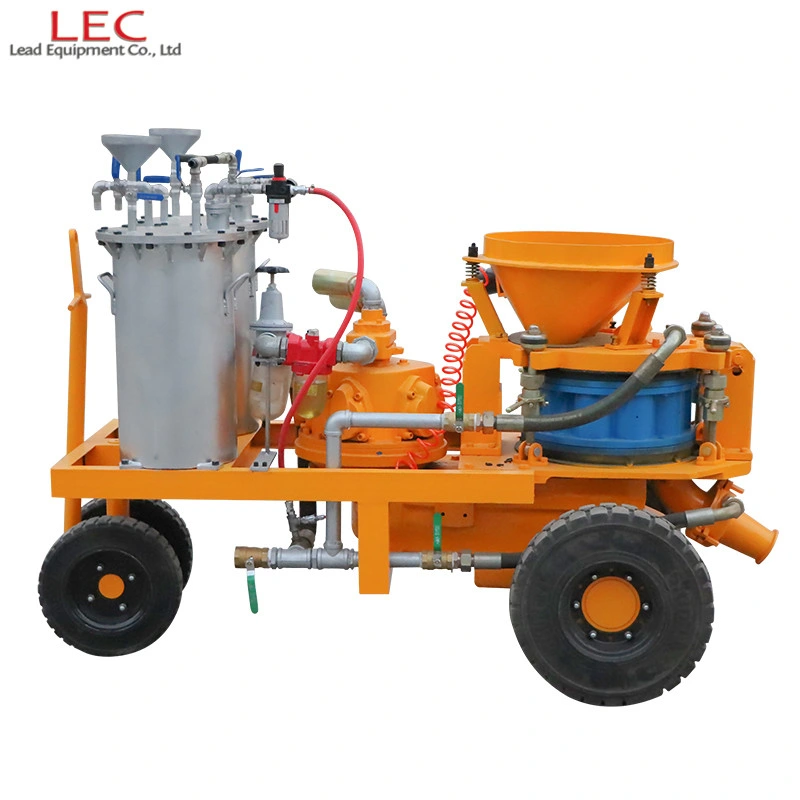

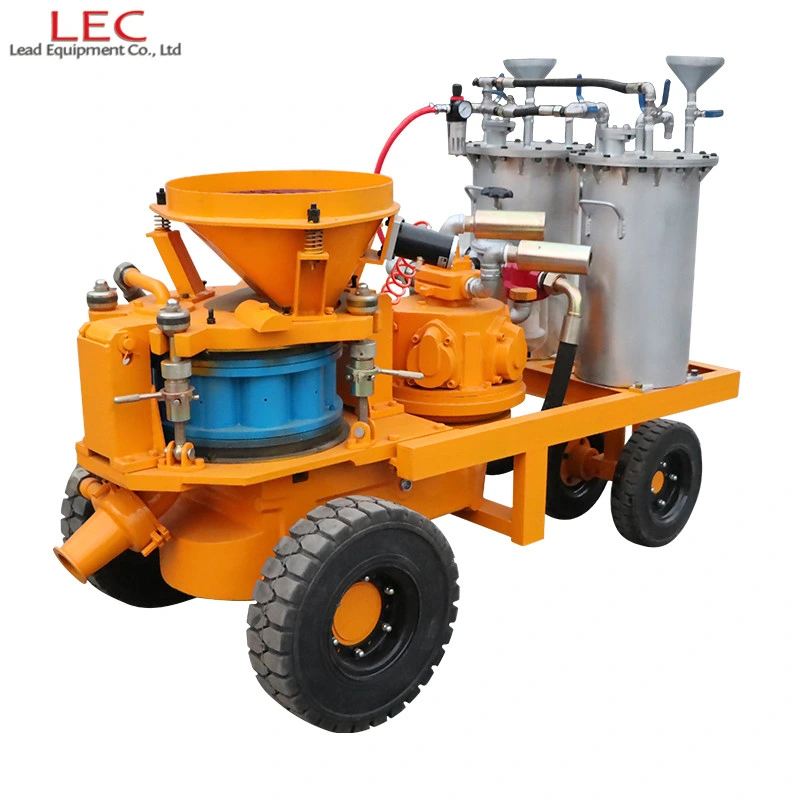

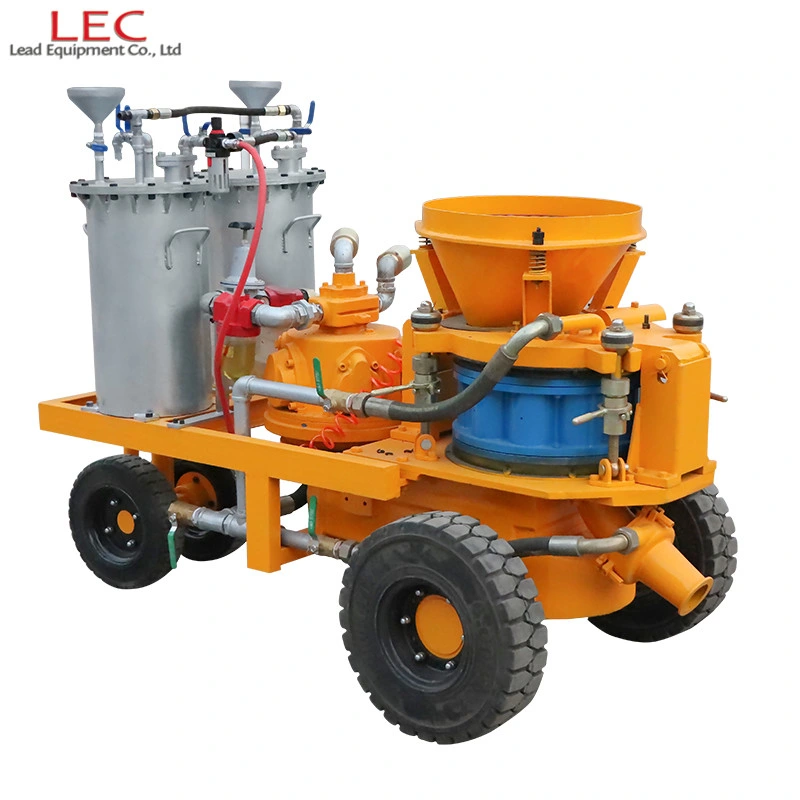

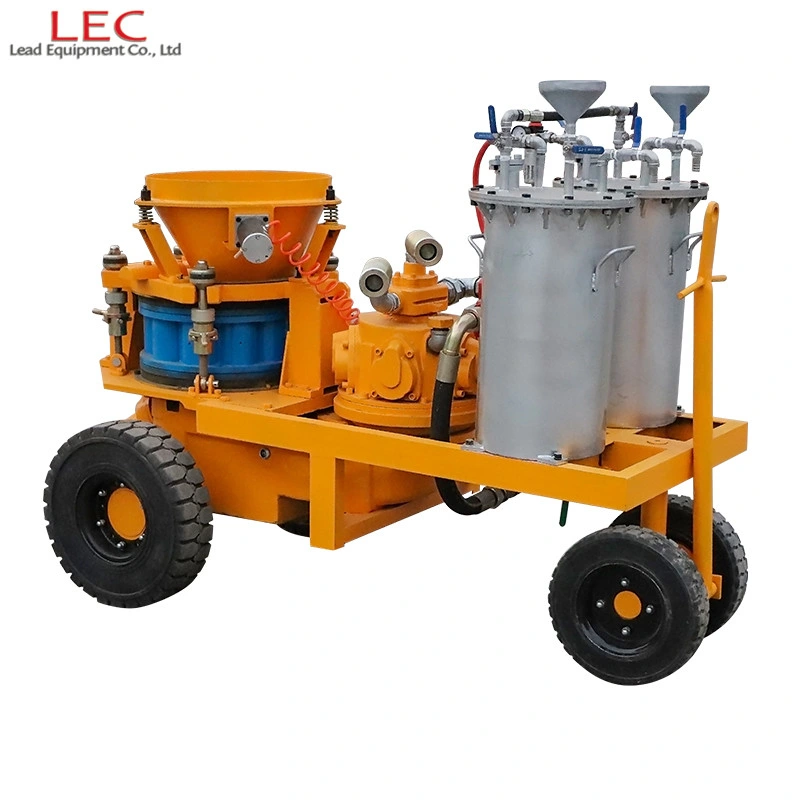

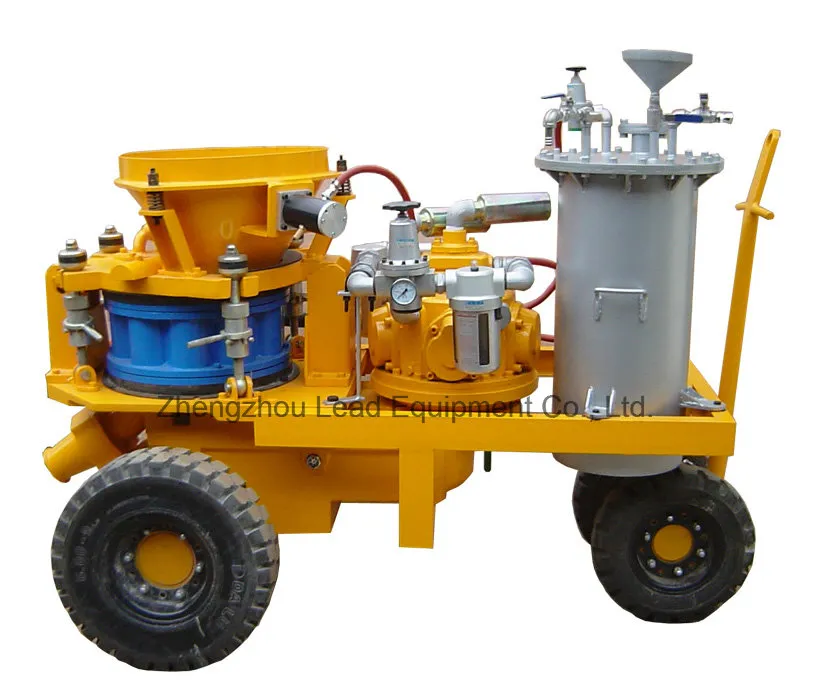

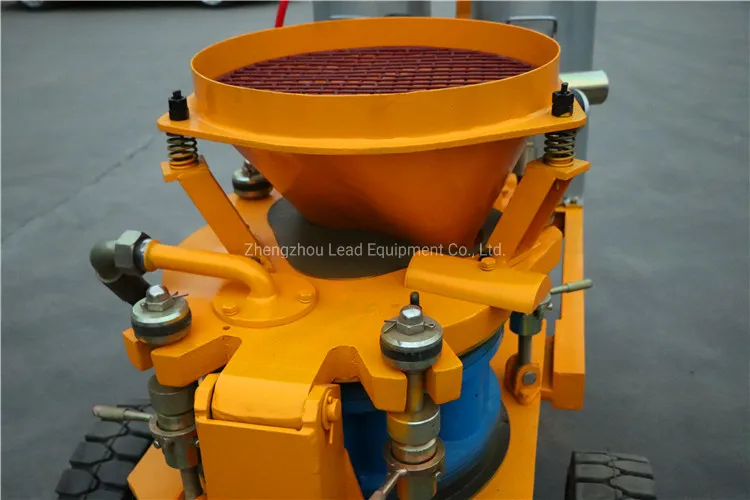

LSZ3000A Anti-explosion Mining Used Pneumatic Wet Shotcrete Concrete Spray Machine
1. Description:
LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A is equipped with a full pneumatic driven unit, specifically designed for required anti-explosion applications, such as coal mining, tunnel, and underground engineering.
The machine is suitable for manual spraying or by means of a robotic arm. Drive options include Electric drive combined with tyre chassis, or Air motor/diesel drive combined with Skid or Rail-wheel.
2. Application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines, and slopes. It is specifically designed for fibre spraying and includes a combined dosing unit.
3. Features:
Capability for both dry and wet shotcrete concrete spraying.
| Drive type | Pneumatic type |
| Rated output | 5m³ /h |
| Max. horizontal conveying distance | 35m |
| Max. aggregate size | Dia.15mm |
| Concrete slump | 8~15cm |
| Conveying hose | Dia.50/65mm |
| Operating air pressure | 0.2~0.6MPa |
| Air consumption | 22m³ /min (12+10) |
| Loading height | 1.17m |
| Rotor Rev. | 11r/min |
| Rebound | ≤10 % |

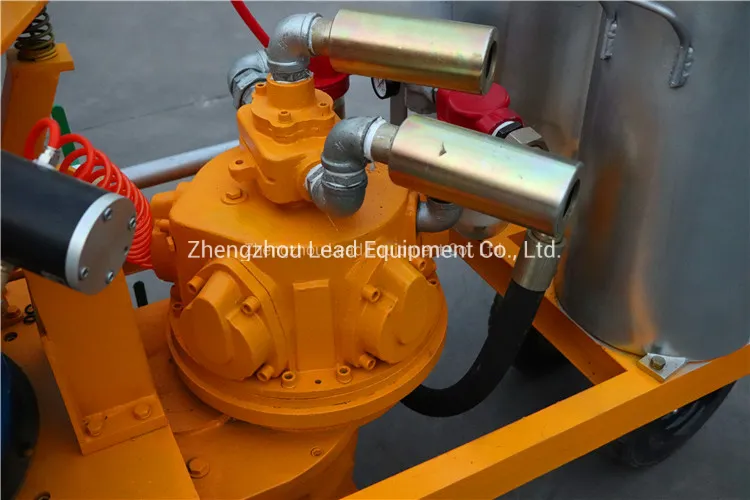

| Air motor power | 8kW |

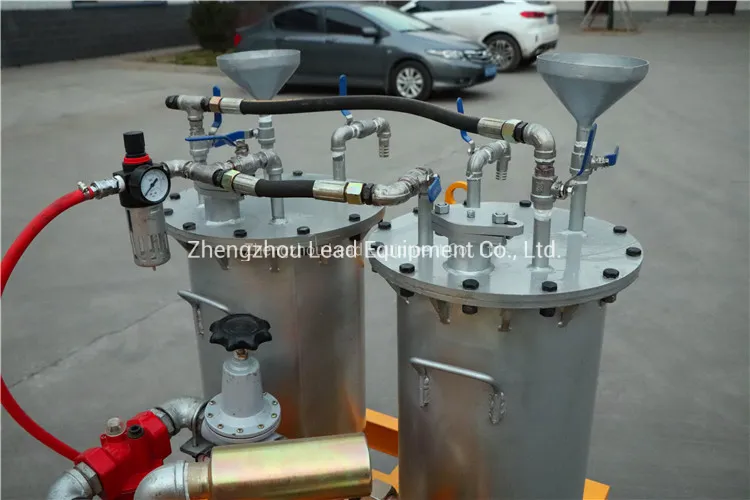

| Dosing pump model | BHA530 Dosing pump |
| Dosing pump rated pressure | 0.5MPa |
| Dosing pump output | 0~100L/h |
| Overall dimension(L×W×H) | 1950×1050×1360mm |
| Weight | 1200Kg |
