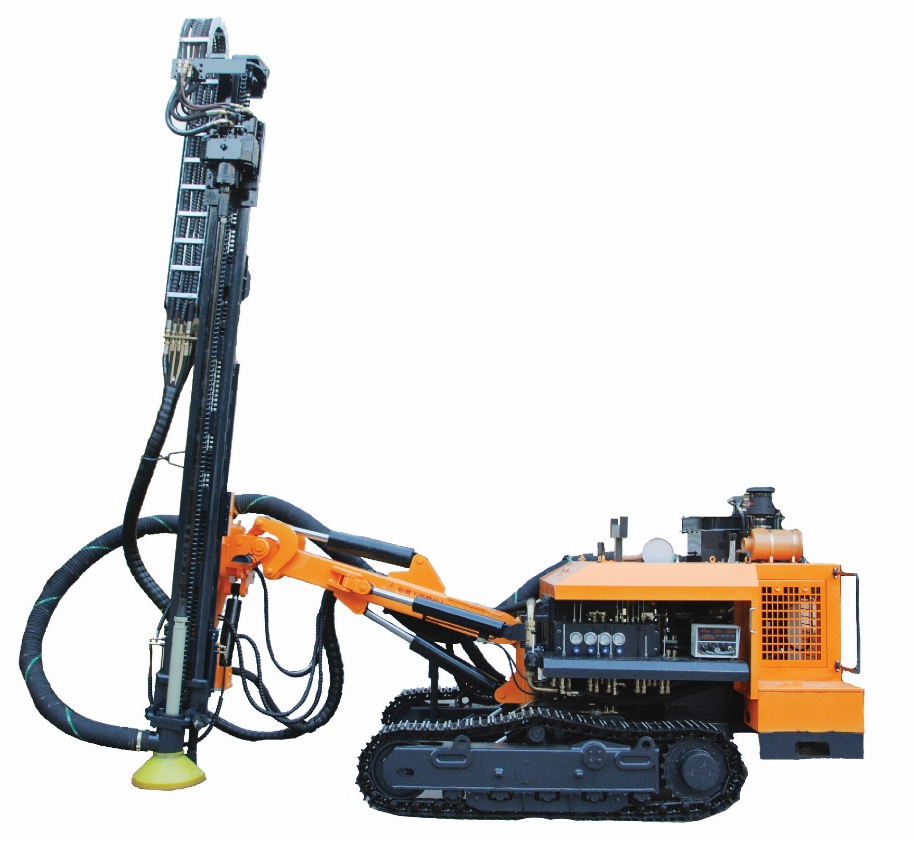

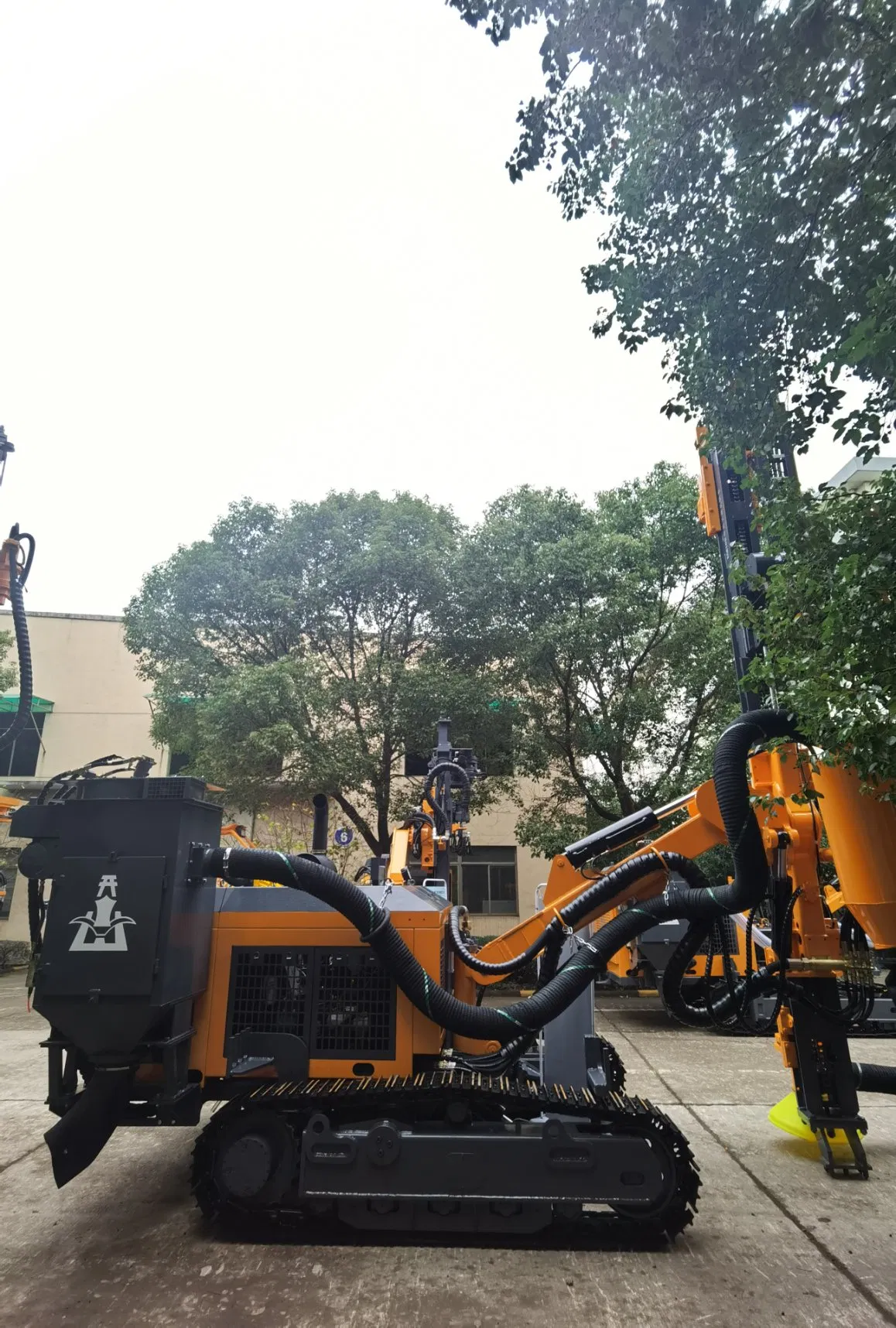

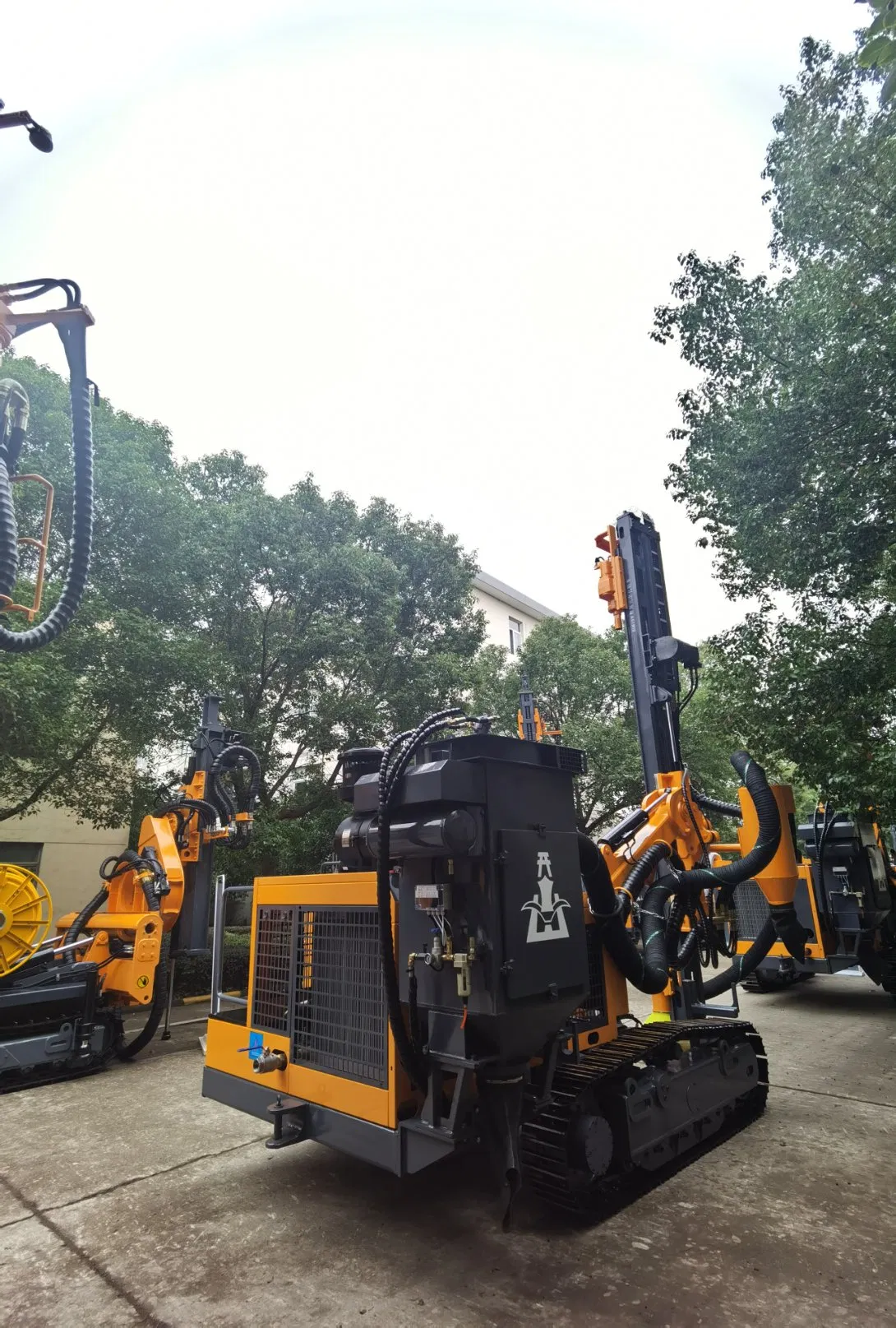

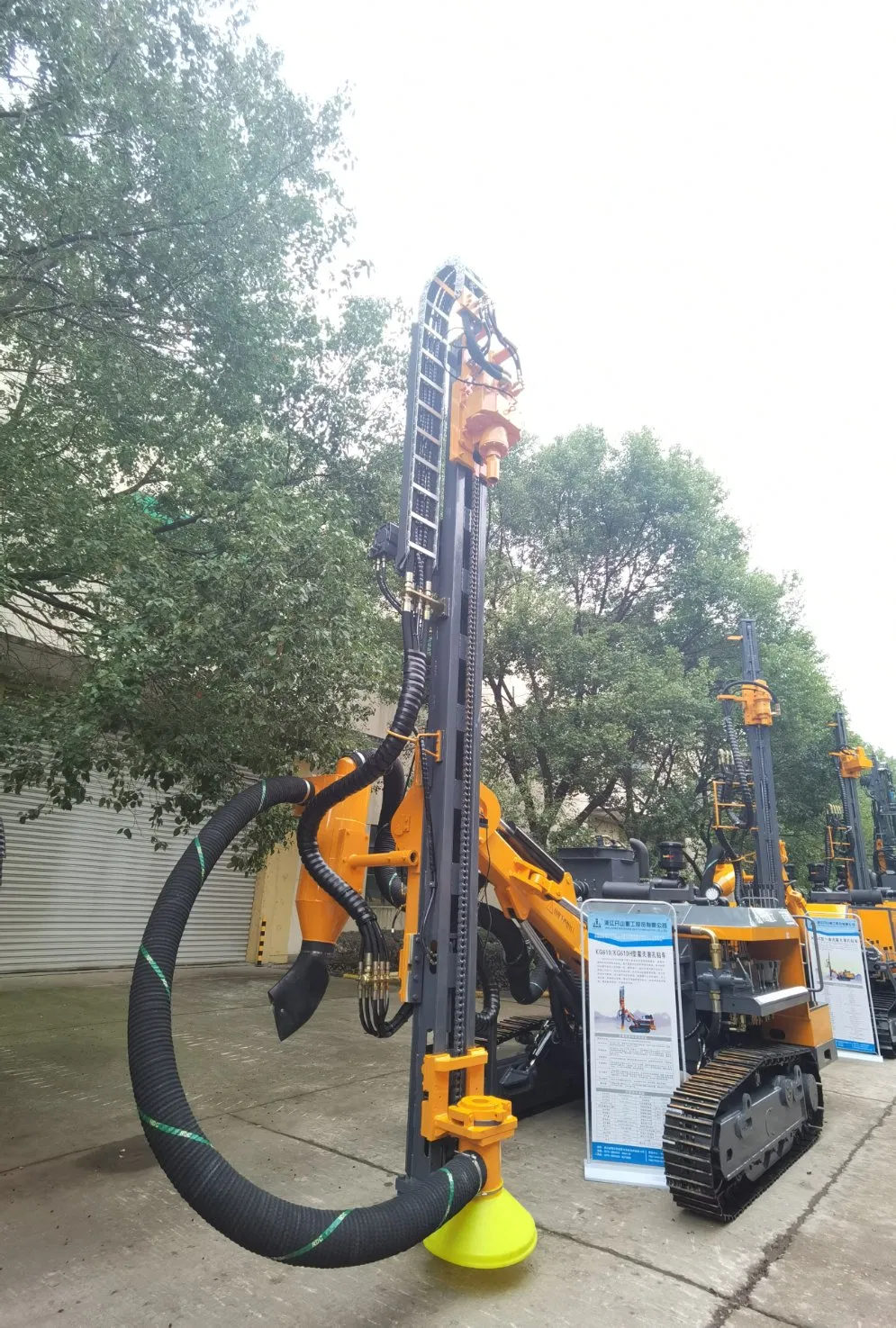

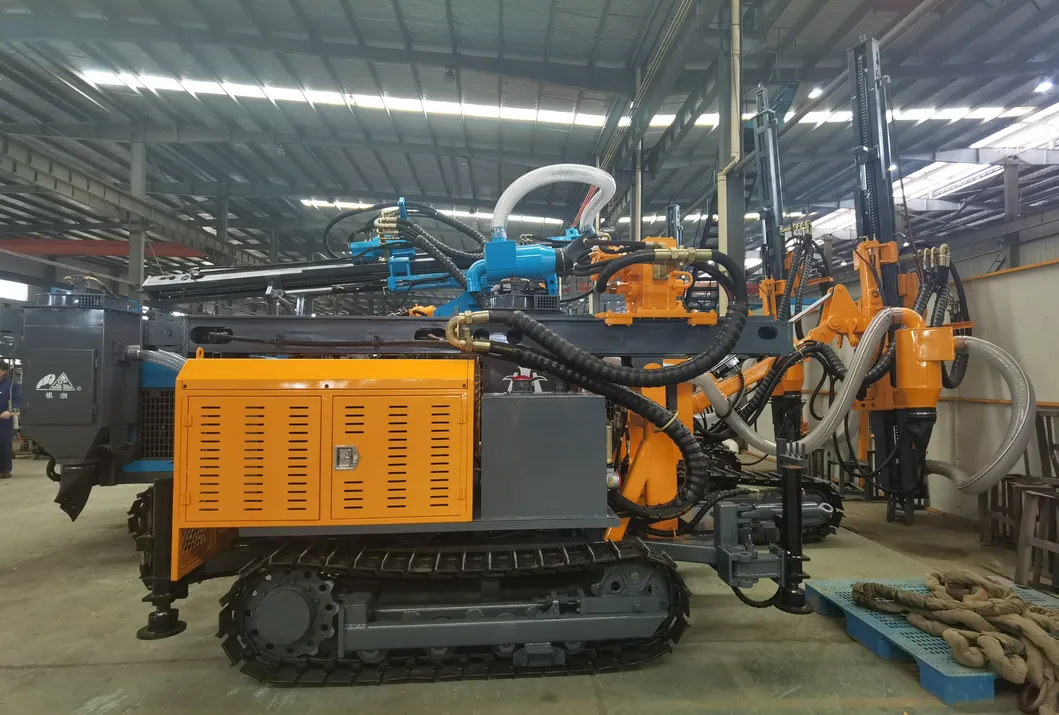

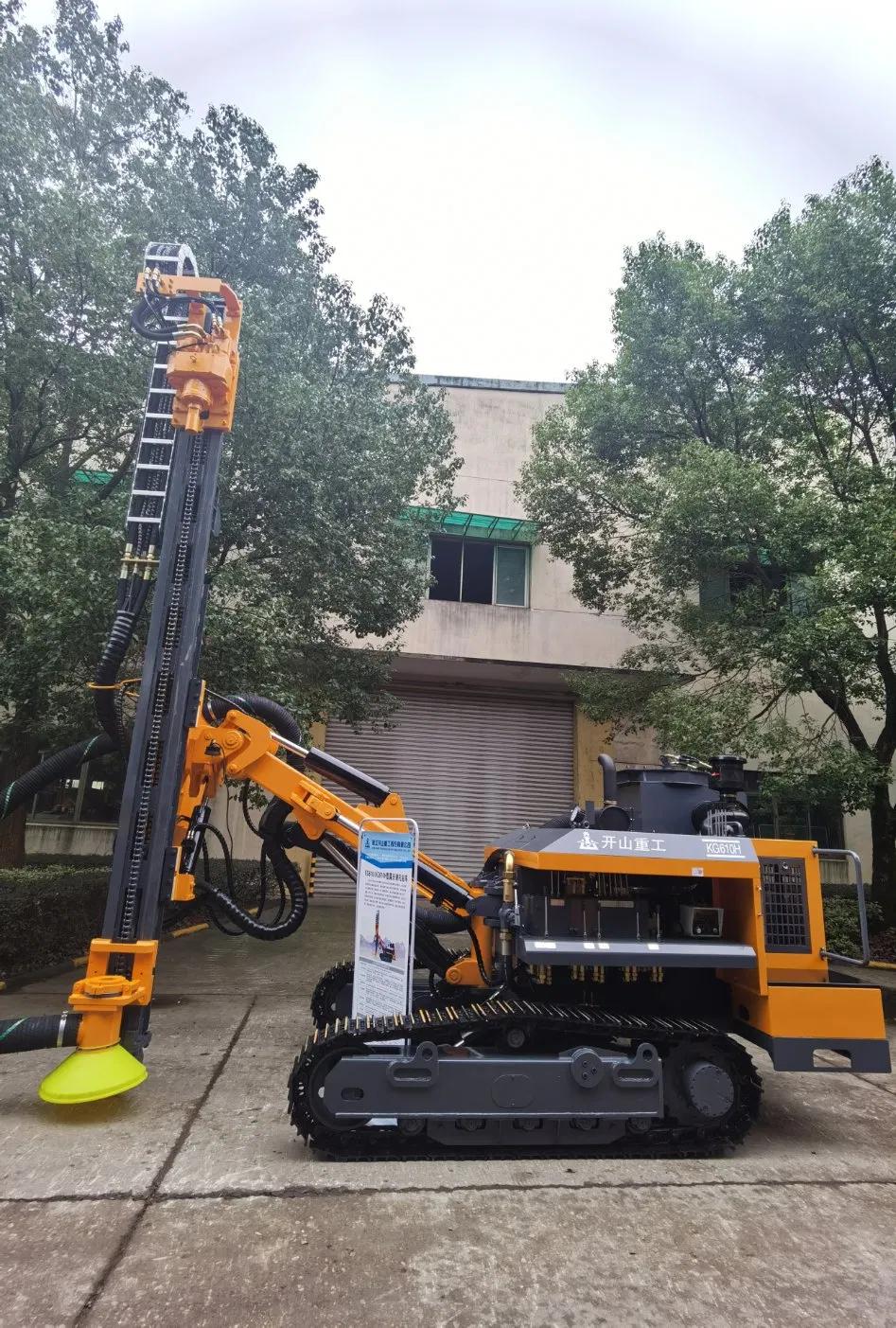

KG610 Blast Hole Drill Rig and Borehole Drilling Machine

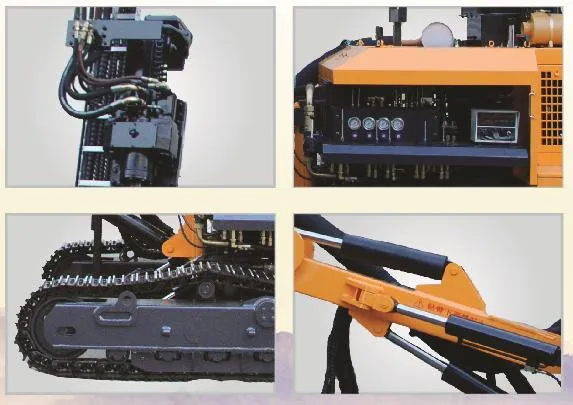

The KG610/KG610H down-the-hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with a powerful four-cylinder engine, the rig meets modern standards for emissions and the environment. The folding frame track and four-wheel drive system, combined with track leveling and an imported plunger piston walking motor, significantly improve working pressure and climbing capacity.
| Technical Specifications | ||
|---|---|---|
| Model of drill rig | KG610 | KG610H |
| Weight of complete machine | 7100KG | 7600KG |
| Outer dimensions | 6700*2250*2850mm | 6700*2800*2850mm |
| Drilling diameter | Φ105-202mm | |
| Depth of economical drilling | 40m | |
| Rotary speed | 0-110rpm | |
| Rotary torque (Max) | 5000N.m | |
| Lifting force | 25KN | |
| Traveling speed | 0-4Km/h | |
| Climbing capacity | ≤30° | |
| Supporting power | 92KW / 2200r / min | |
| Air consumption | 15-26m³/min | |
Our group is a leading large-scale engineering enterprise. Over the decades, we have grown into a diversified manufacturer developing high-value machinery for the global industry. As one of the world's premier rock drill and air compressor manufacturers, we export to over 25 countries.
We provide comprehensive technical support and professional after-sales service, specializing in energy-saving solutions and mining engineering construction machinery to ensure worry-free operations for our clients worldwide.
