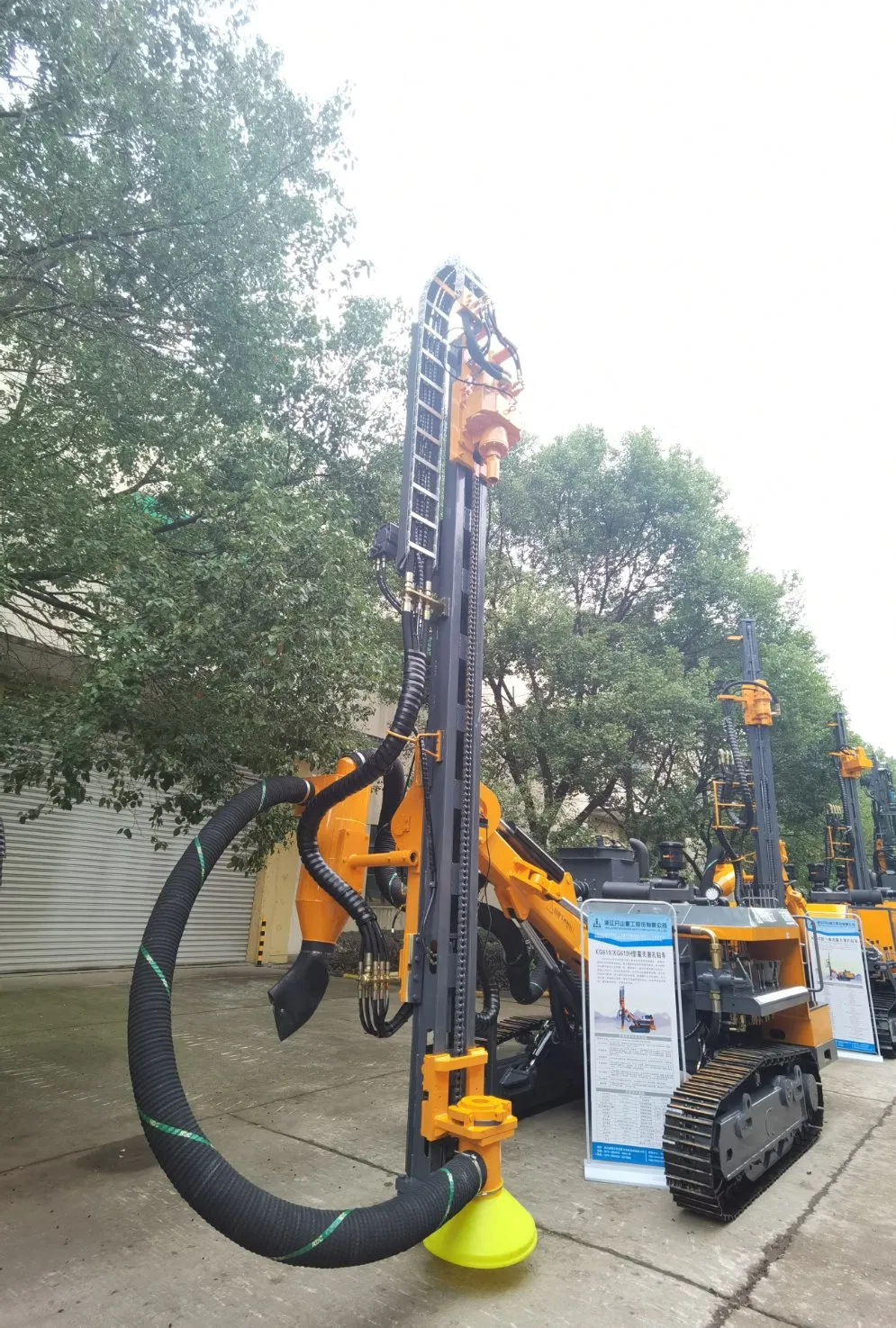

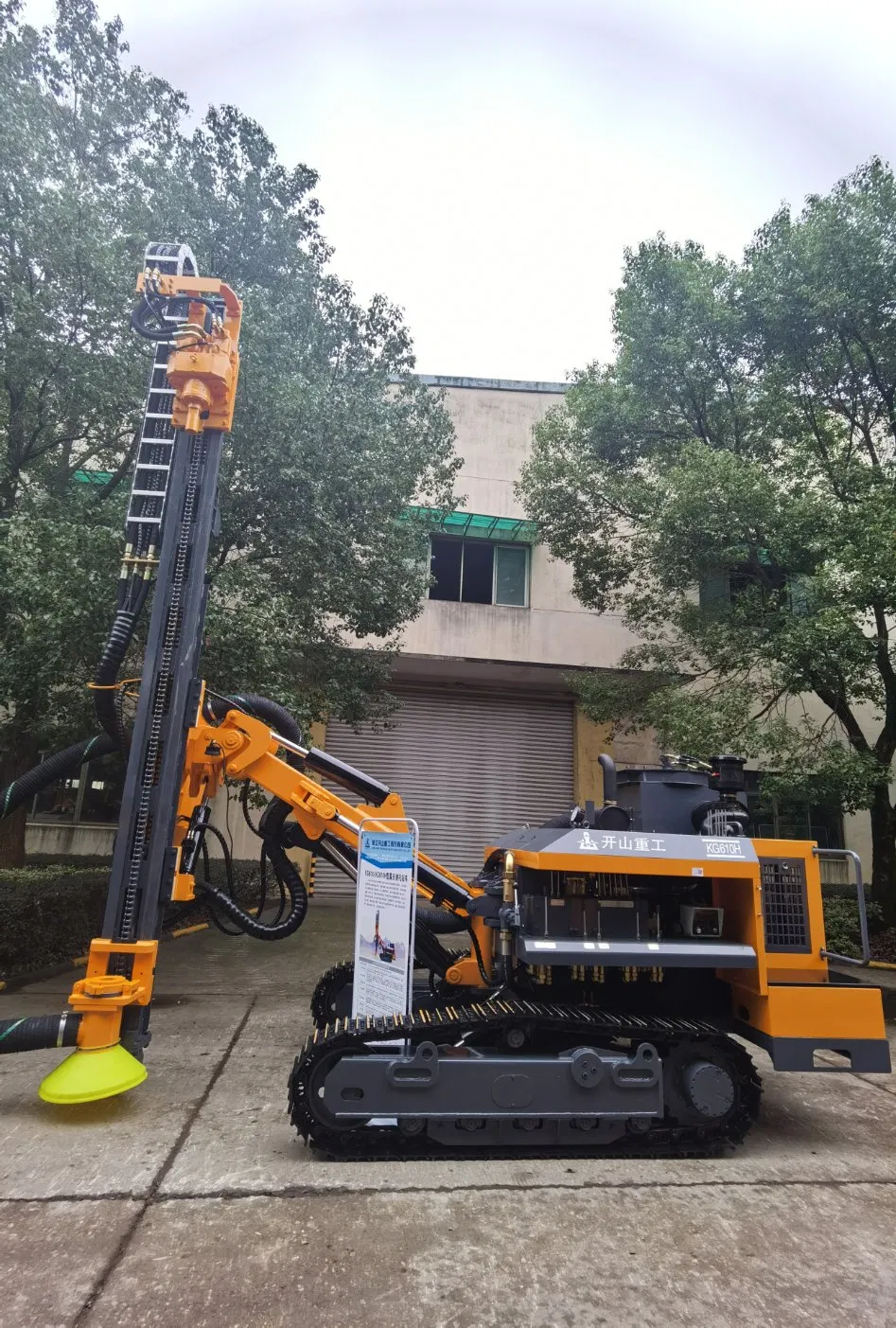

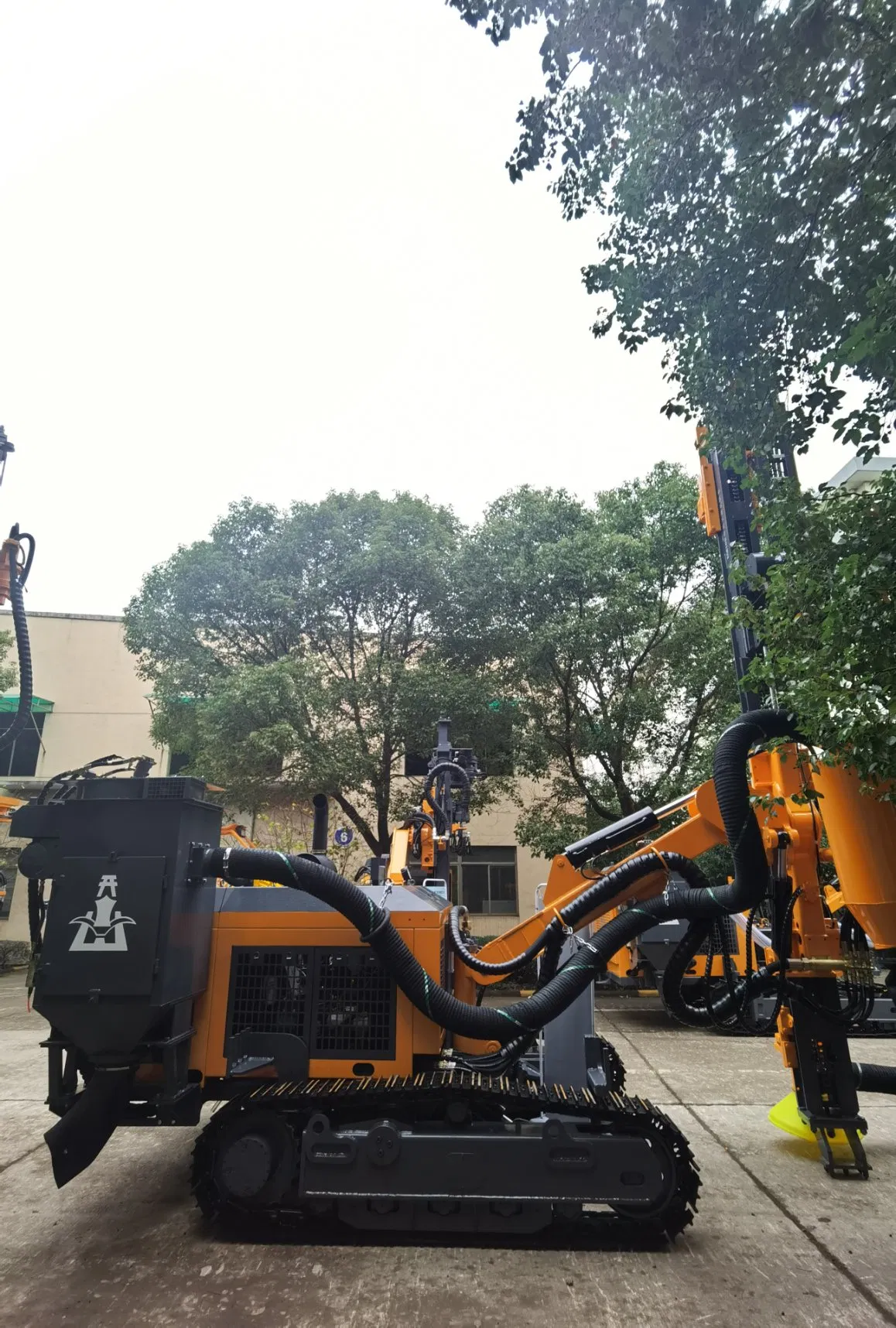

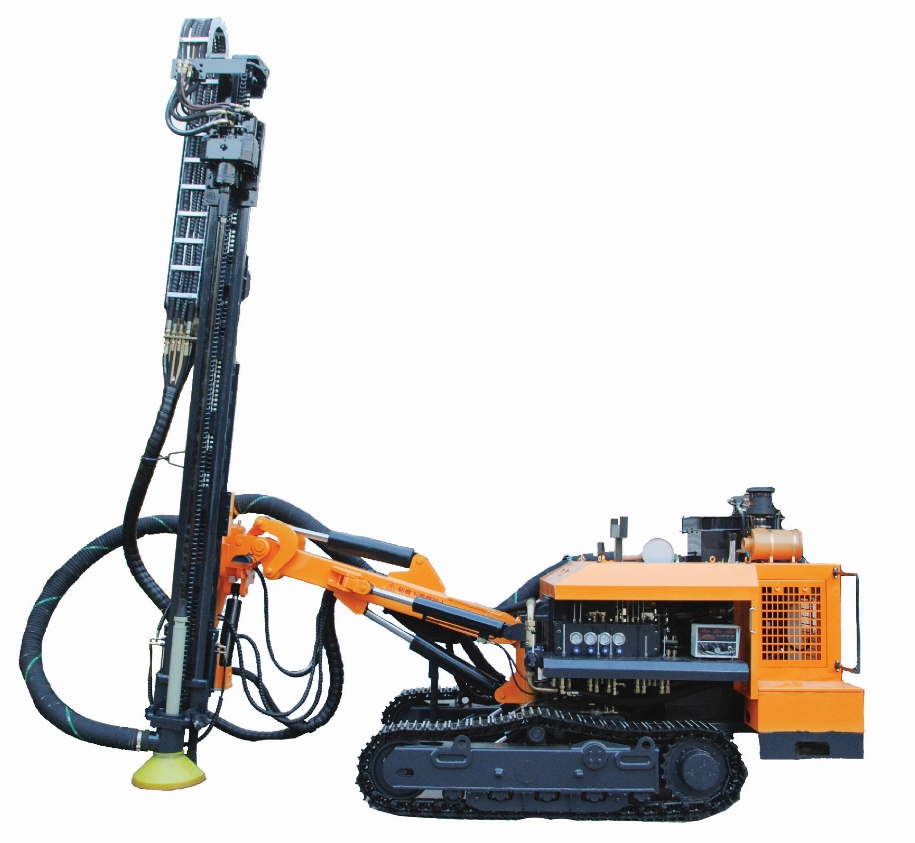

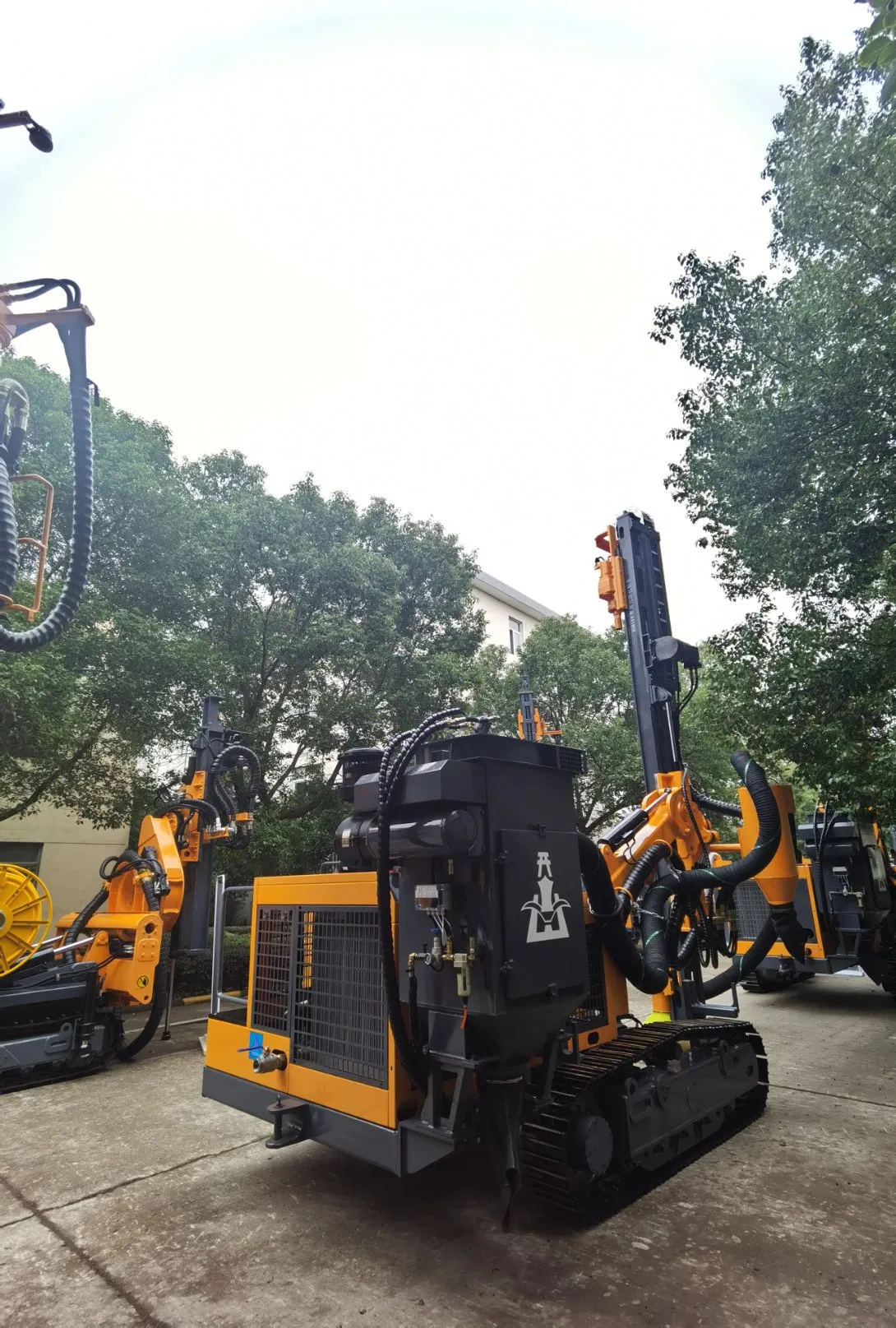

KG610 Rotary Blast Hole Borehole Drilling Rig & Mining Rock Drilling Machine
The KG610/KG610H down-the-hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the four-cylinder engine (China III), the drill rig meets national standards for emissions and the environment. The folding frame track and four-wheel drive are adopted, and track leveling and the imported walking motor of the plunger piston improve the working pressure and climbing capacity.
The lifting hydraulic cylinder and chain are expanded to raise the lifting force and reliability. The dust collector is enlarged to produce a better effect on dust collection. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
| Parameter Item | KG610 | KG610H |
|---|---|---|
| Weight of complete machine | 7100KG | 7600KG |
| Outer dimensions | 6700*2250*2850mm | 6700*2800*2850mm |
| Drilling diameter | Φ105-202mm | |
| Depth of economical drilling | 40m | |
| Rotary speed | 0-110rpm | |
| Rotary torque (Max) | 5000N.m | |
| Lifting force | 25KN | |
| Traveling speed | 0-4Km/h | |
| Air consumption | 15-26m³/min | |
| Drilling rod | Φ89 * 3m | |

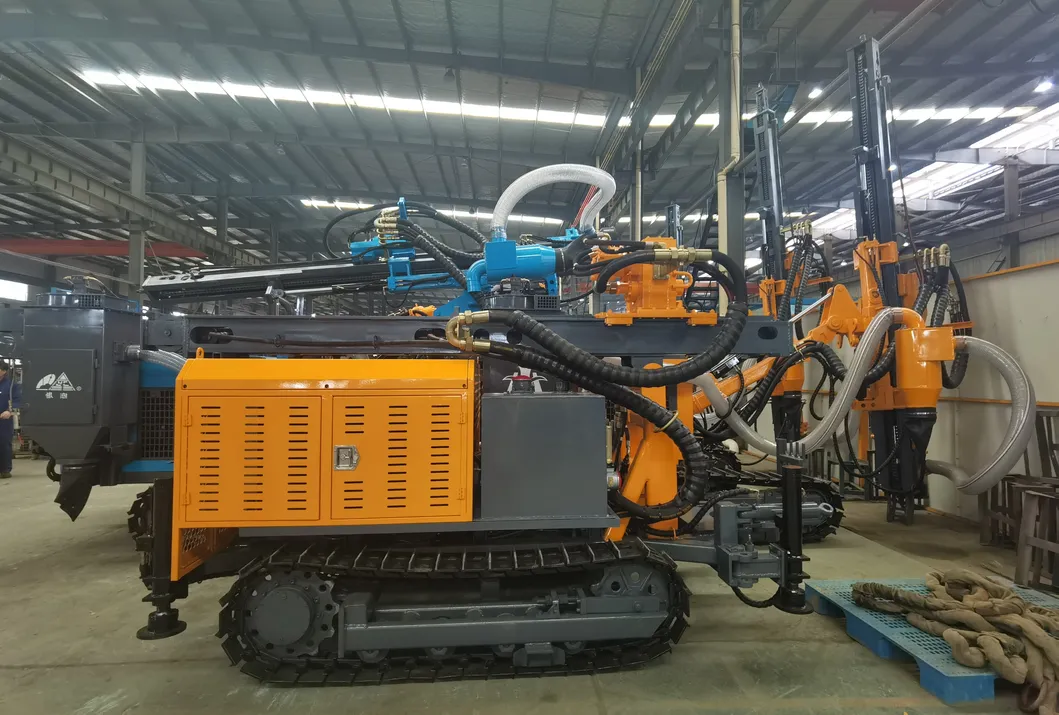

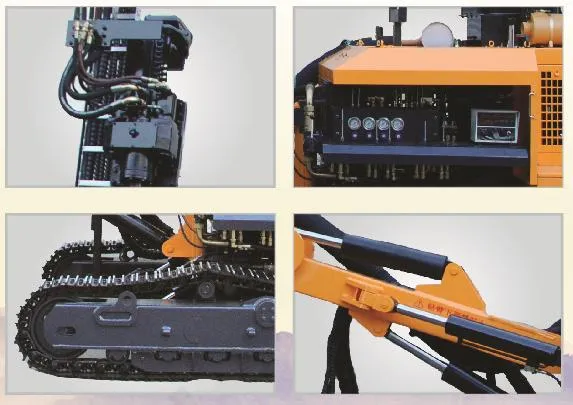

The rotating system is composed of an orbit hydraulic motor and planetary gearbox. This provides the crawler rock drill with strong torque reserve and reduces the sticking drilling rate.
