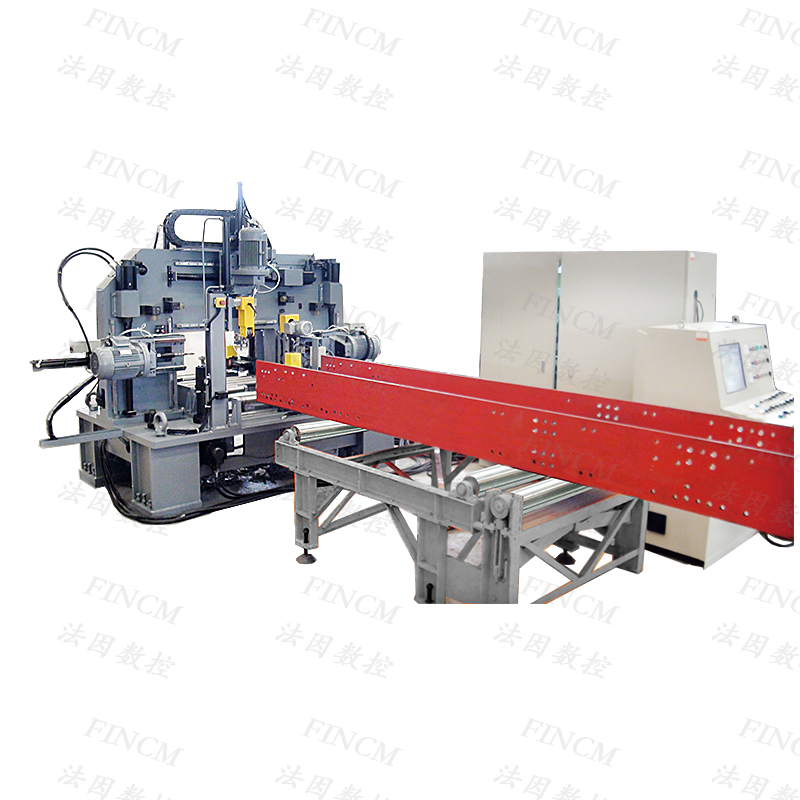

Steel Structure Construction U Channel Beam Drilling Machine

Model: SWZ1250C CNC High Speed Drilling Solution

Basic Information
Model NO.
SWZ1250C
Controlling Mode
CNC
Structure
Three-Dimensional
Number of Shaft
6
Hole Diameter
12mm-33.5mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
H-Beam Range
150*75-1250*600mm
Channel Size Range
126*53-400*104mm
Max Workpiece Length
15000mm
Weight
About 7000Kg
Key Product Features
  • Frame structure welded by high-quality steel with heat aging treatment for maximum stability.
  • 3 CNC slide tables with 2 axes each, guided by precision linear rolling guides and AC servo motors.

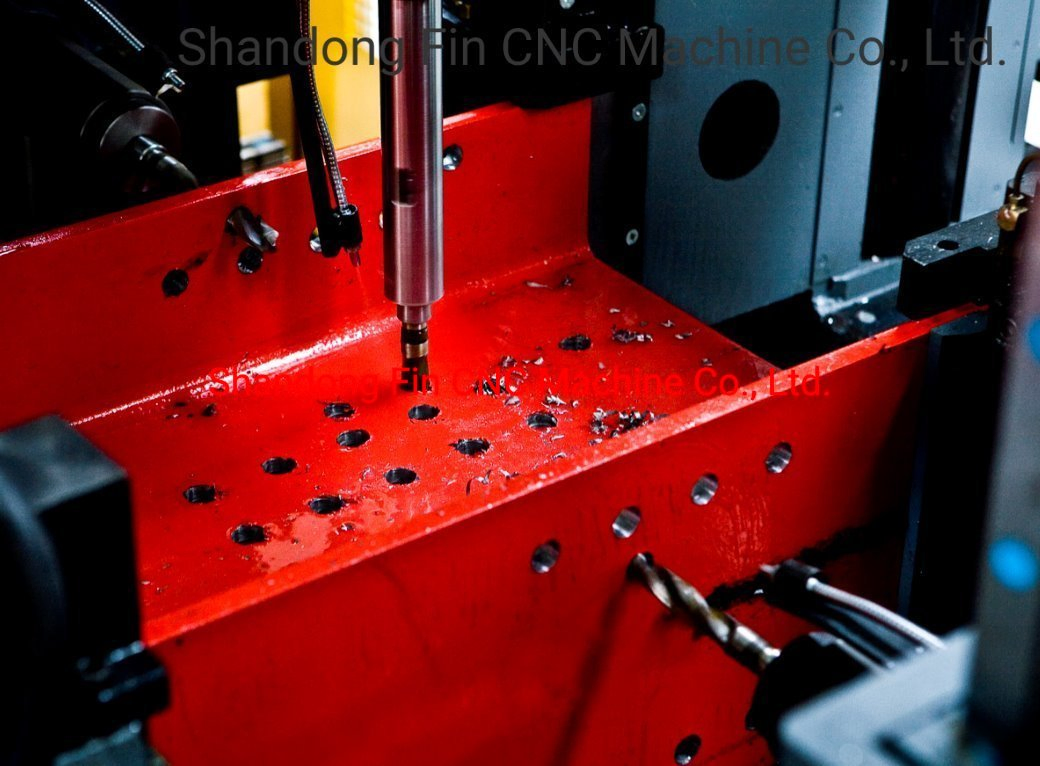

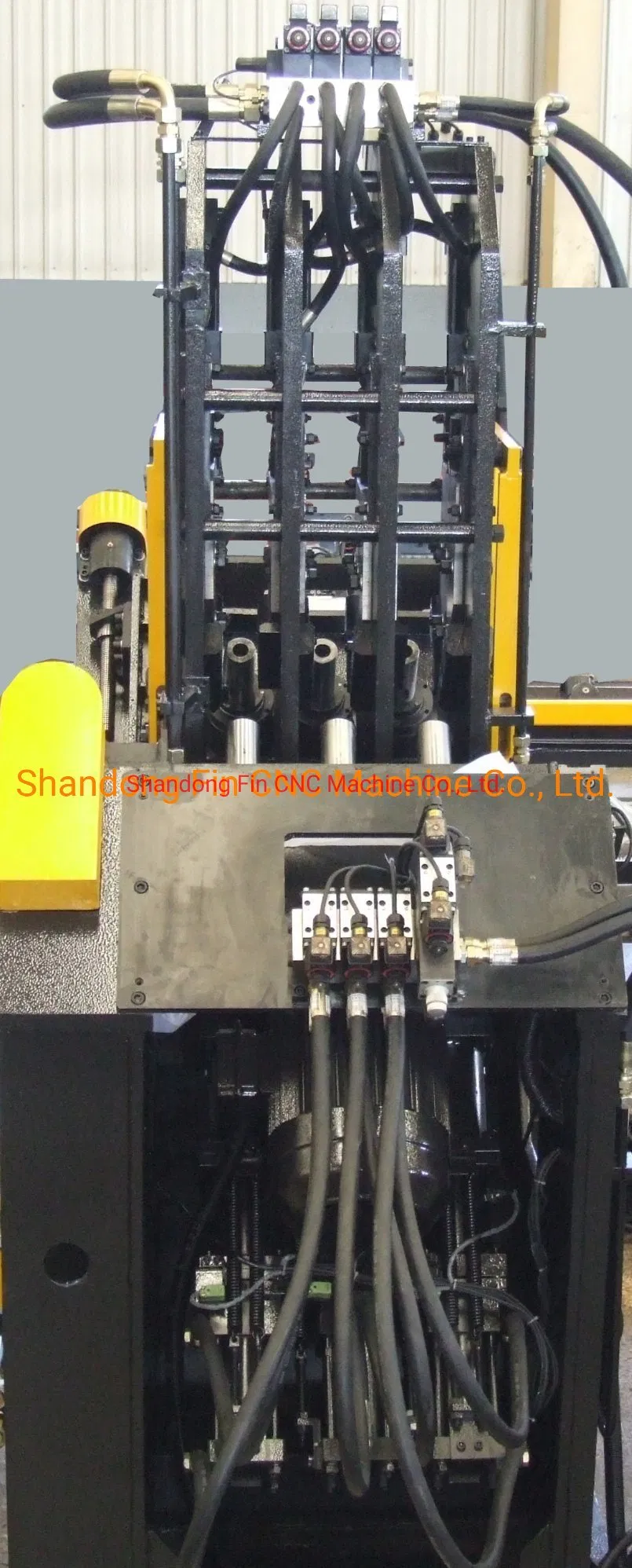

  • Three independent automatic control stroke drilling power heads for simultaneous horizontal and vertical processing.
  • Stepless spindle speed and feed rate adjustment to match various materials and hole diameters.

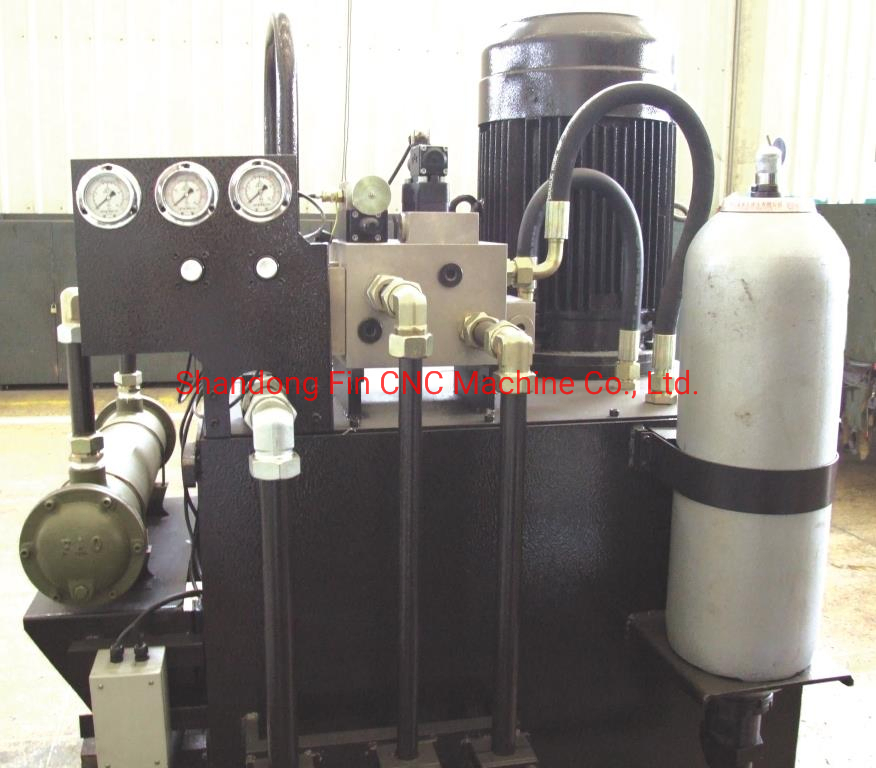

  • Hydraulic clamping mechanism for secure workpiece fixation during high-speed operations.
  • Equipped with detection devices for workpiece width and web height to automatically compensate for irregularities.
  • Aerosol cooling system ensures low coolant consumption and extends drill bit life.

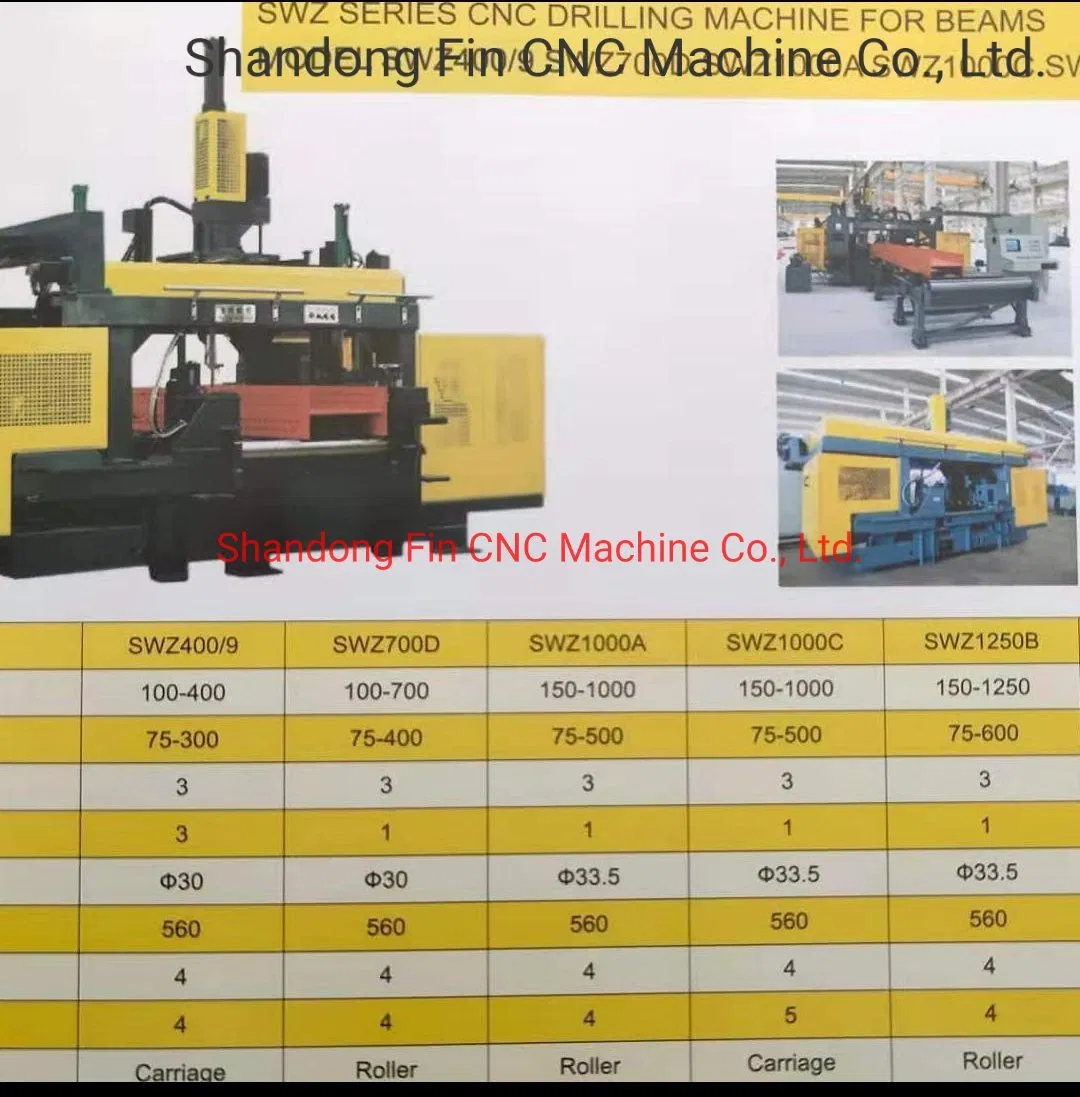

Main Technical Specifications
Parameter Name Unit Parameter Value Remark
Section Steel Sizemm150x75 ~ 1250x600-
Max Thicknessmm≤ 80-
Drilling Spindle Qty-3-
Spindle Speedr/min180 ~ 560-
Fixed/Mobile Side Hole Rangemm¢12 ~ ¢26.5-
Intermediate Unit Hole Rangemm¢12 ~ ¢33.5-
Axial Feed Ratemm/min20 ~ 300-
Positioning Accuracymm≤ ±0.5Adjacent holes
Total Dimensionsmm4800 × 2400 × 3300Approx.
Equipment Presentation
Machinery View 1 Machinery View 2 Detailed View 1 Detailed View 2 Component View 1 Component View 2 Service Support
Key Outsourced Components
Component Name Brand Origin
Linear Guide RailHIWIN/CSKTaiwan
Hydraulic ValveATOS/YUKENItaly/Japan
Servo Motor & DriverPanasonicJapan
PLC Control SystemMitsubishiJapan
Cooling PumpBIJURUSA
Pneumatic Solenoid ValveAIRTACTaiwan
Frequently Asked Questions
What is the typical lead time for shipment?
For machines in stock, shipment can be arranged within 15 days of advance payment. For custom or non-stock models, the typical lead time is approximately 60 days.
How is technical support handled for equipment issues?
We provide 24-hour online service. During the warranty period, replacement components are provided free of charge. If required, technical engineers can be assigned for on-site assistance.
Is operational training provided with the purchase?
Yes, professional engineers can be sent to the working site for installation, commissioning, and comprehensive operator training to ensure smooth production.
How do I choose the correct machine model for my needs?
Please provide your material dimensions (max/min) and specific processing requirements. Our technical team will recommend the most cost-effective solution tailored to your production demands.
What industries are these machines suitable for?
These CNC drilling machines are widely used in steel structure construction, bridge building, iron towers, heat exchangers, and the manufacturing of heavy-duty truck frames.
What are the power requirements for the equipment?
The standard configuration requires 3-phase, 4-wire power at 380V±10% and a frequency of 50Hz.
