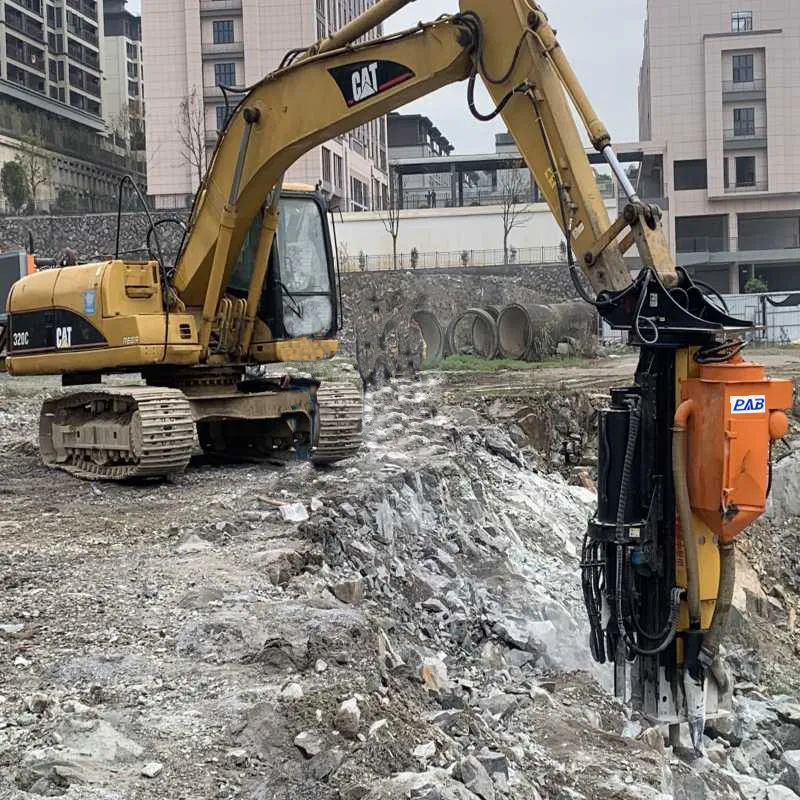

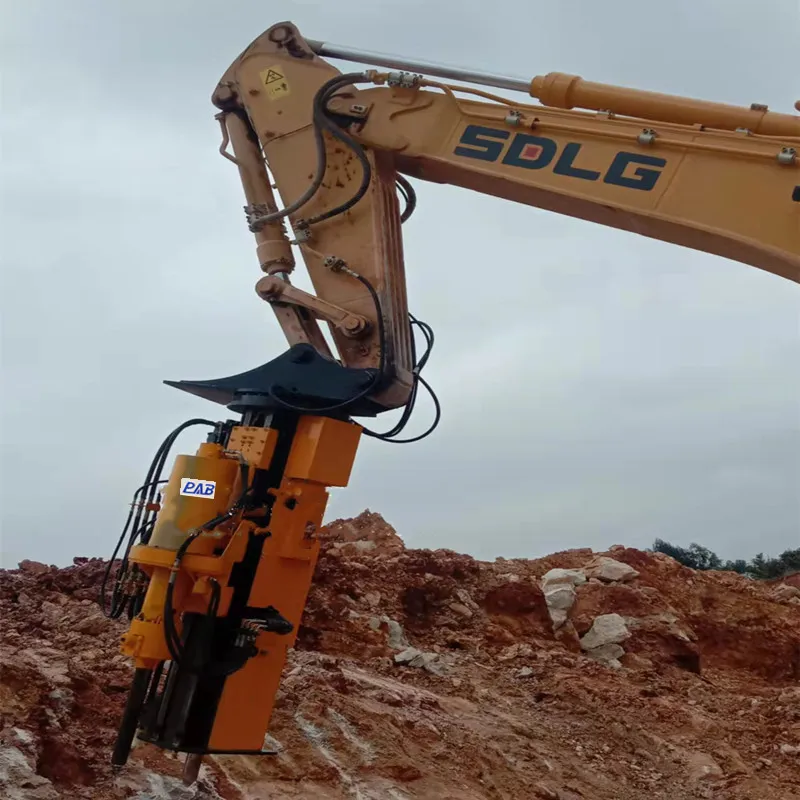

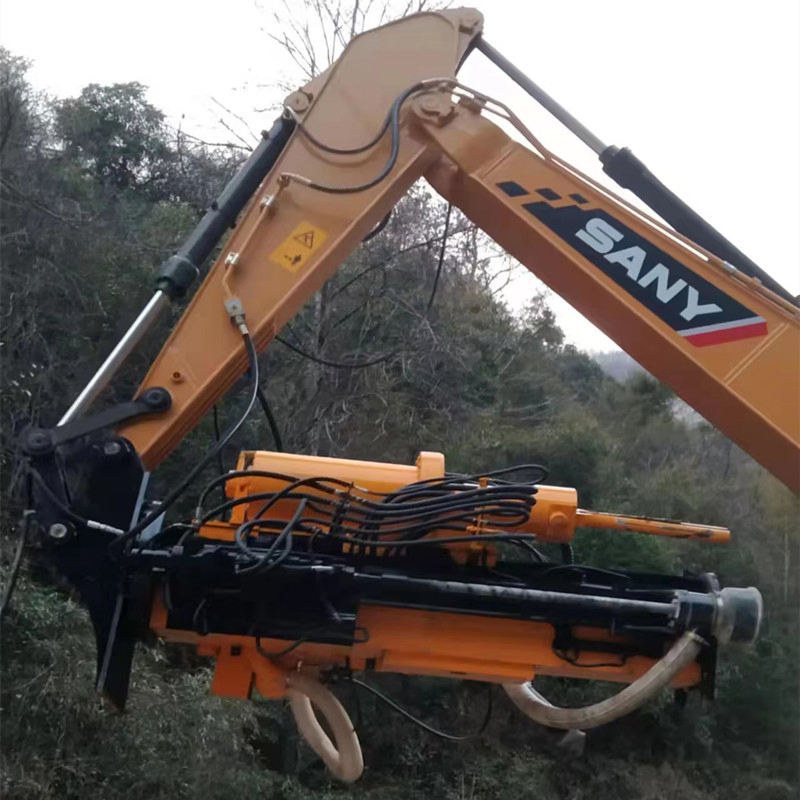

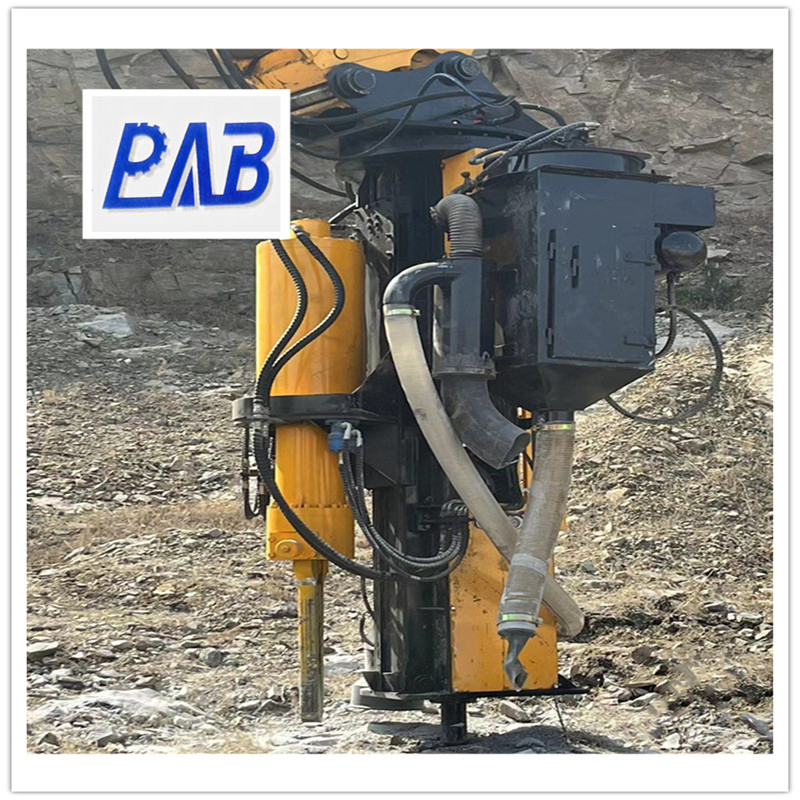

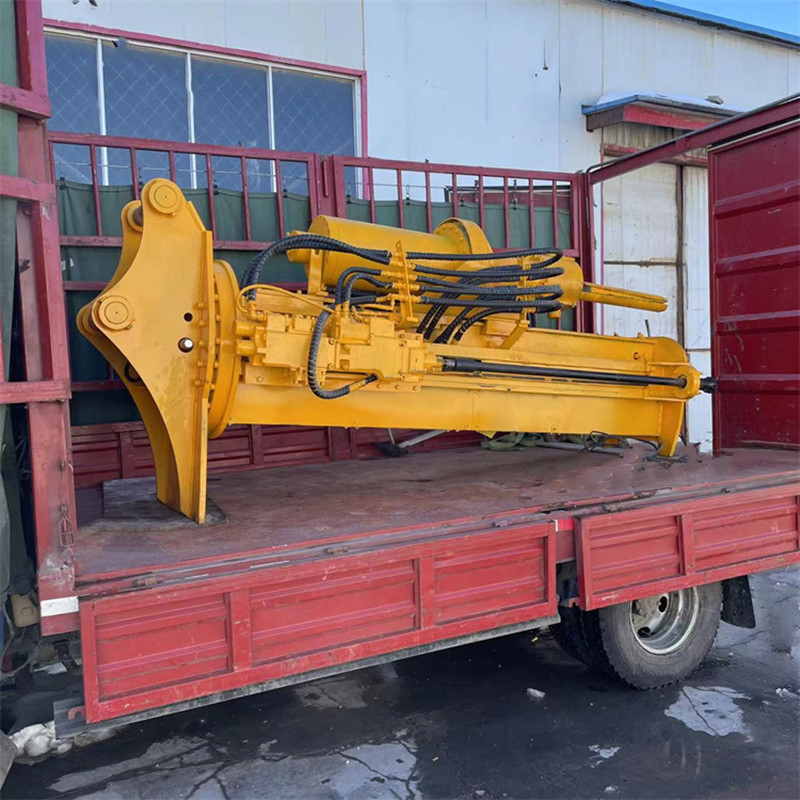

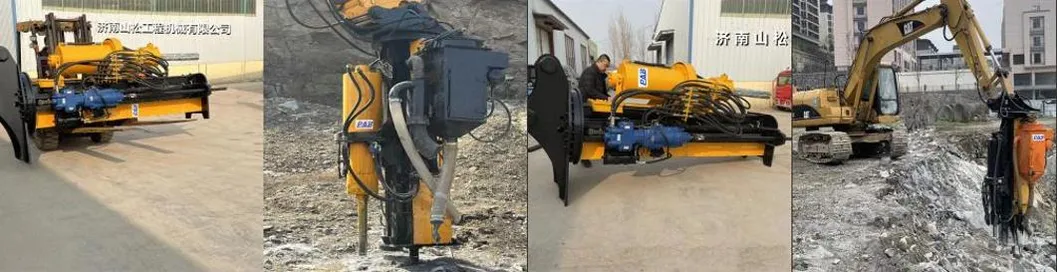

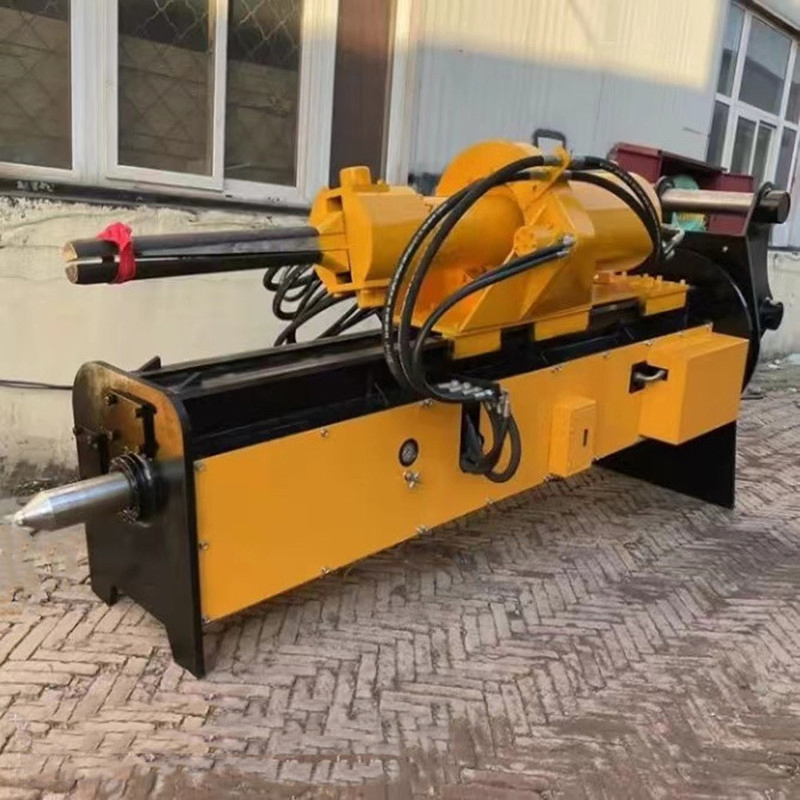

Drilling and splitting machine, set excavator, drill, splitting machine functions in one, easy to move, fast drilling and splitting hard rock, suitable for all kinds of complex construction site.
| Items | ZL-100 | ZL-200 | ZL-300 |
| Applicable excavator(ton) | 25-35 | 35-45 | 45-55 |
| Long*width*height(mm) | 4300*1200*1400 | 5400*1400*1620 | 7200*1620*1800 |
| Hydraulic rock drill power(kw) | 22 | 35 | 45 |
| Bit diameter(mm) | 115 | 152 | 200 |
| Rated splitting force(ton) | 8000 | 12000 | 18000 |
| Splitting width*depth(m) | 1.2*1 | 1.5*1.8 | 2*2.4 |

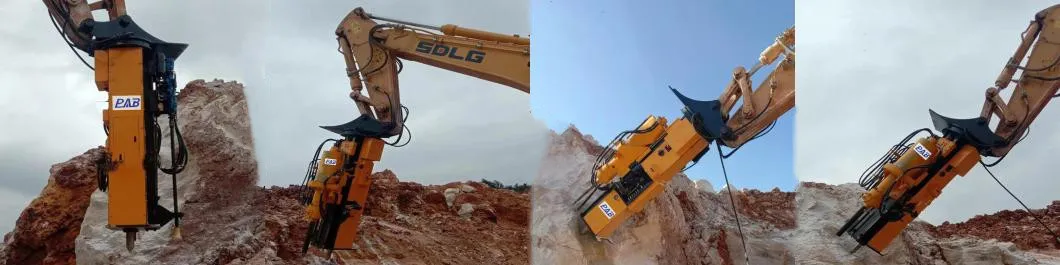

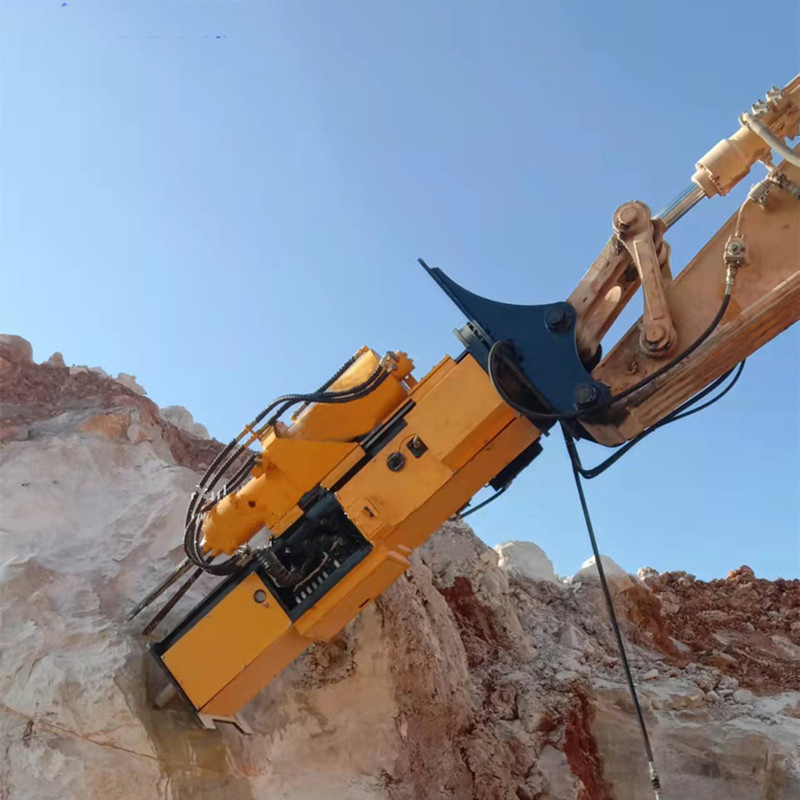

Mining Field: Mining of stones, metal and non-metallic mines, coal mines, and cleaning of waste rocks.
Engineering & Municipal: Earthwork excavation (roads, bridges, foundations), Tunnel excavation (subway, underground pipelines), and Smelting demolition (furnaces, kilns).

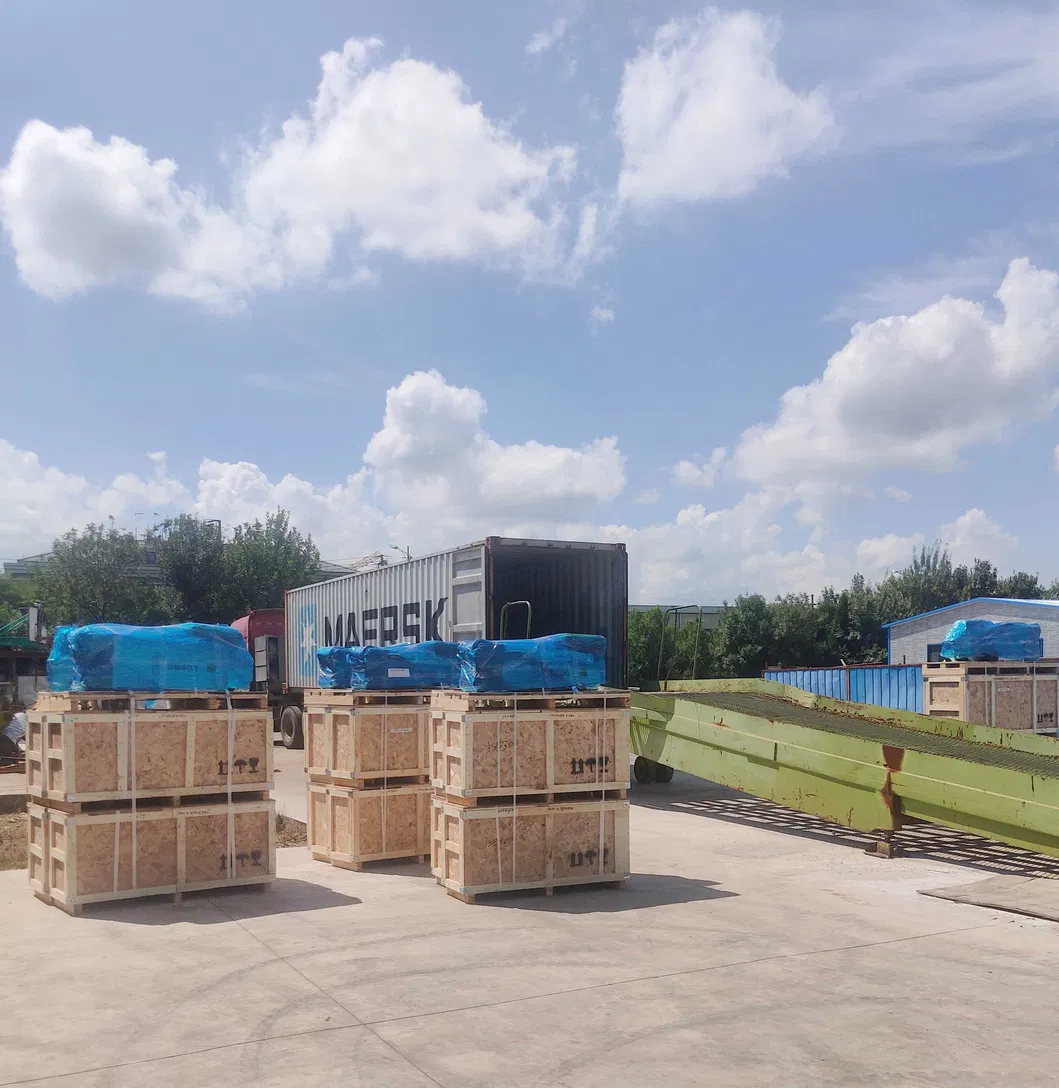

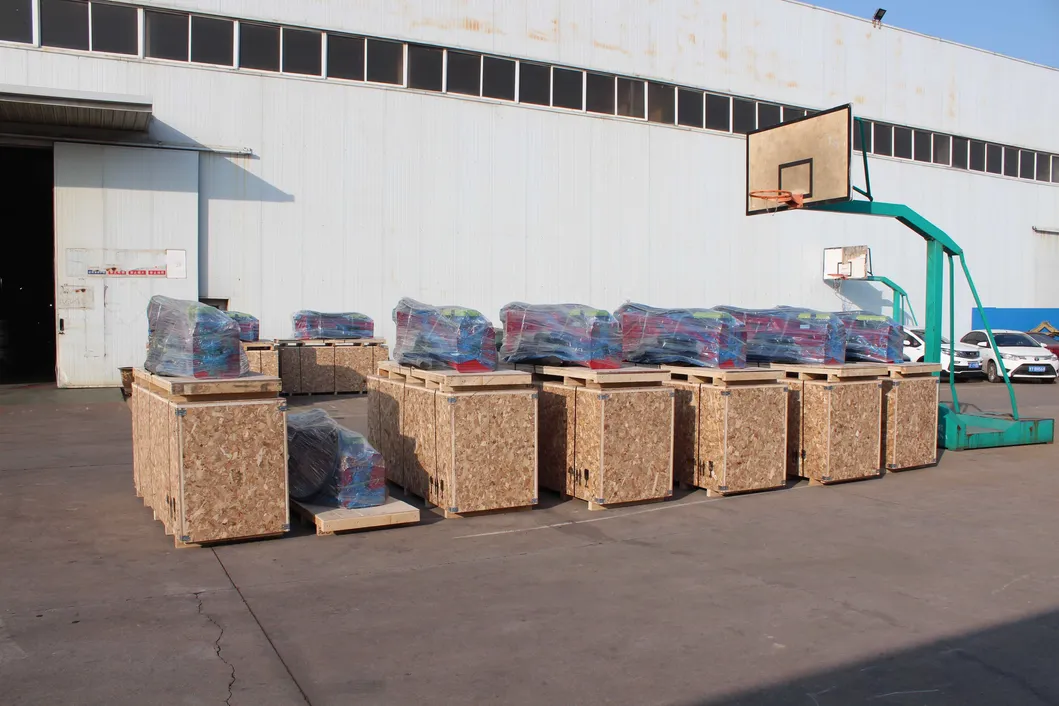

1. Inner is stretch film, outside is export wooden case or as per request.
2. Standard free spare parts: one equipment, hoses, auxiliary arm, repair tools with box, certificate, and brochure.
