Hua Drill Telehandler Hzth7110 Forklift, Multifunctional Crane, Wheel Loader, Construction Machinery, Agricultural Machinery, Material Handling Equipments

Customization: Available
After-sales Service: by Dealer, Online Talk Service, DHL Free Parts
Warranty: 2500 Working Hours or 1 Year

Product Description

📋 Basic Information
Model NO. HZTH7110
Certification ISO, CE, GOST
Rated Load 6-9t (7100kg)
Transmission Hydrostatic
Engine Deutz, Weichai (Stage 3-5, Euro 5 and EPA)
Walking Mode Wheeled 4WD & 4WS
Dimensions L6060mm * W2380mm * H2465mm
🏗️ Product Description

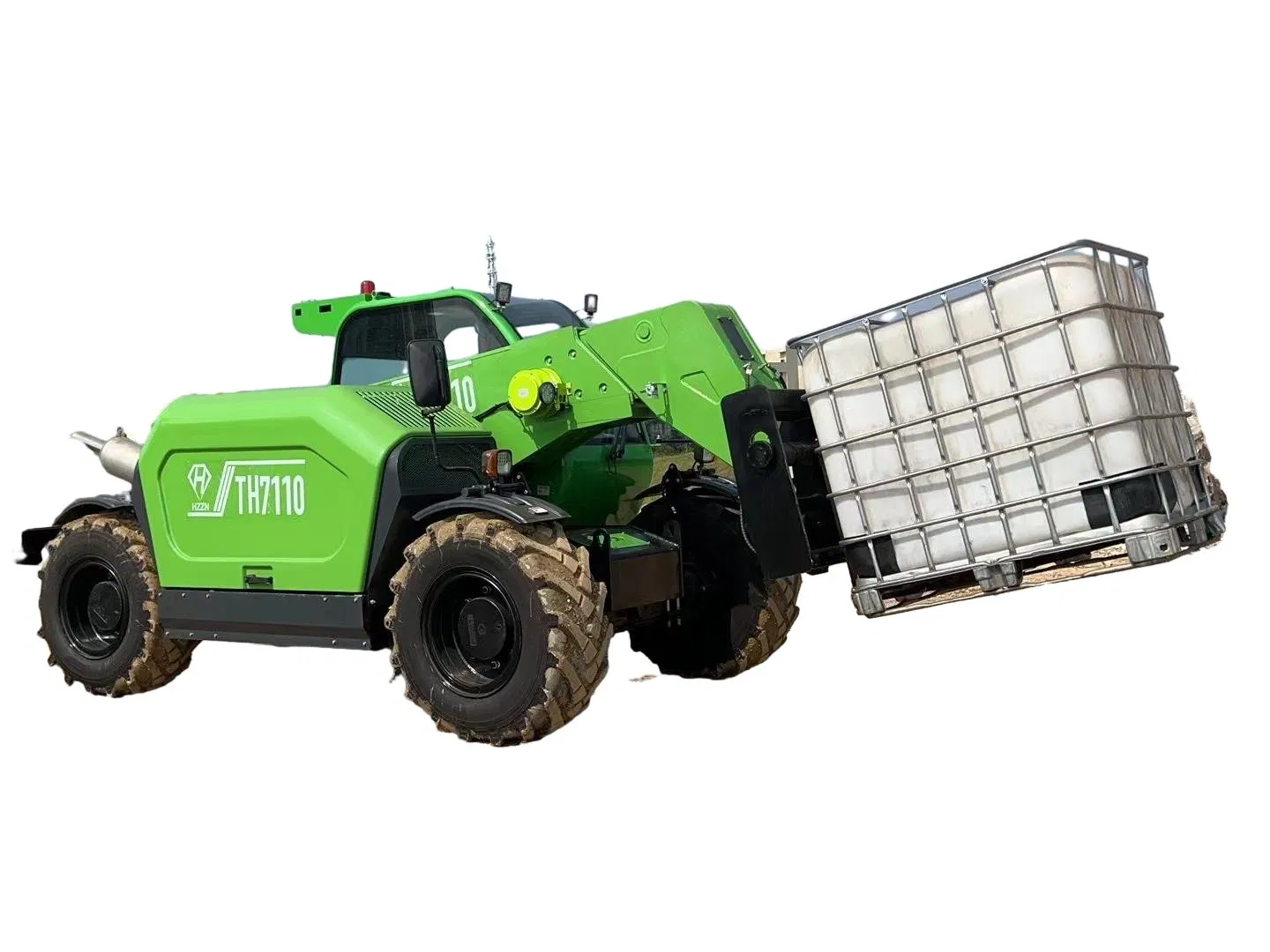

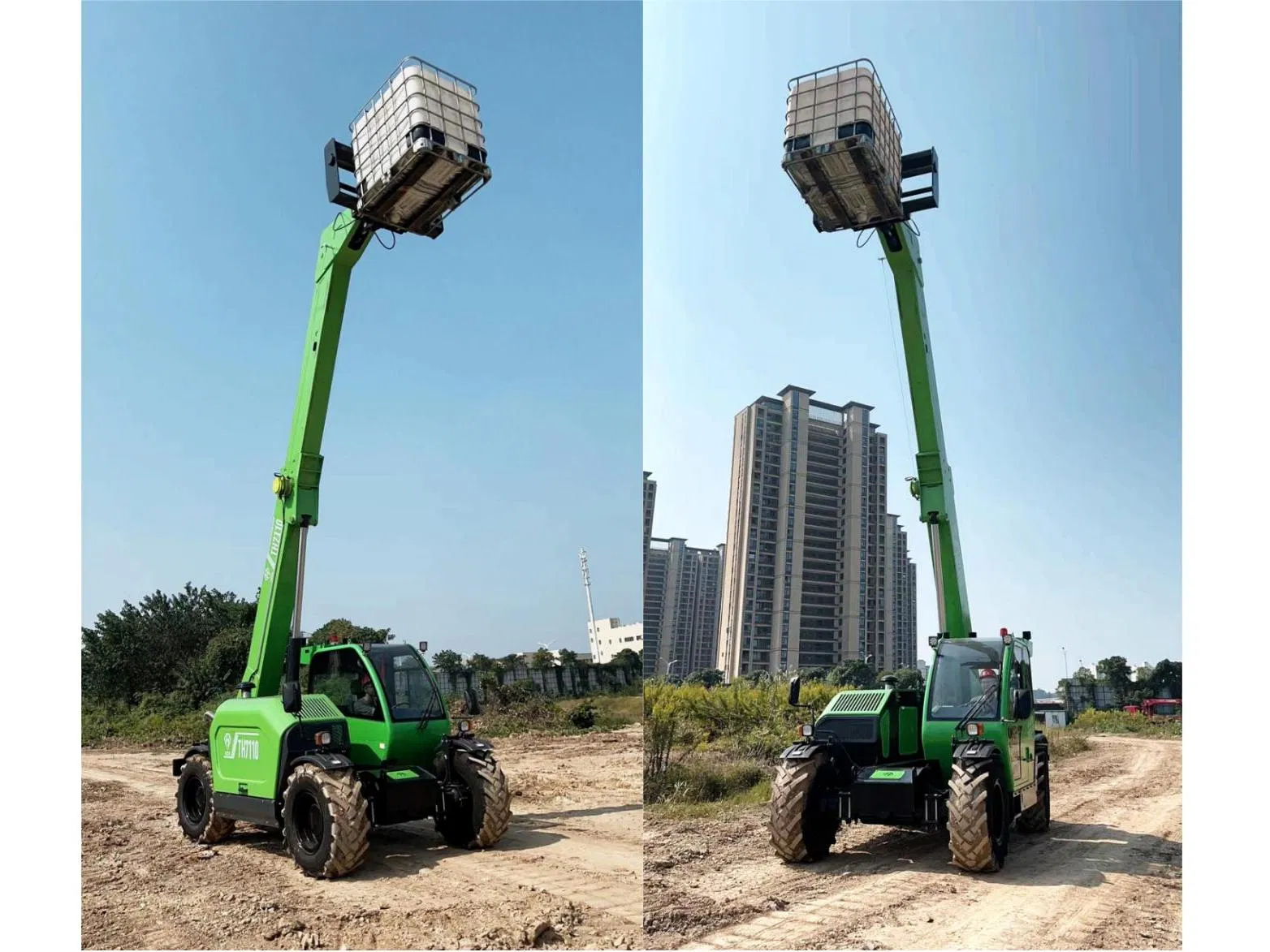

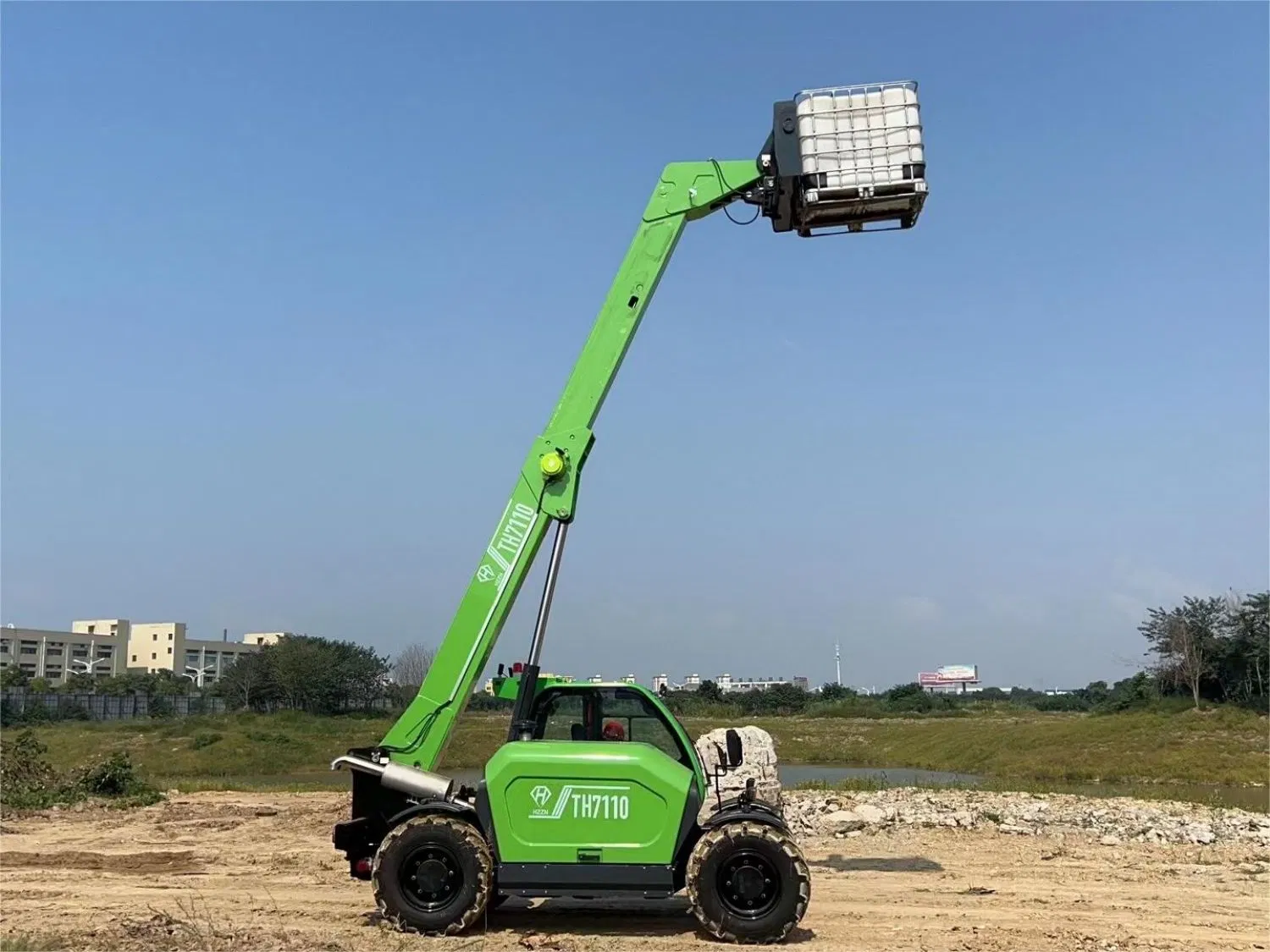

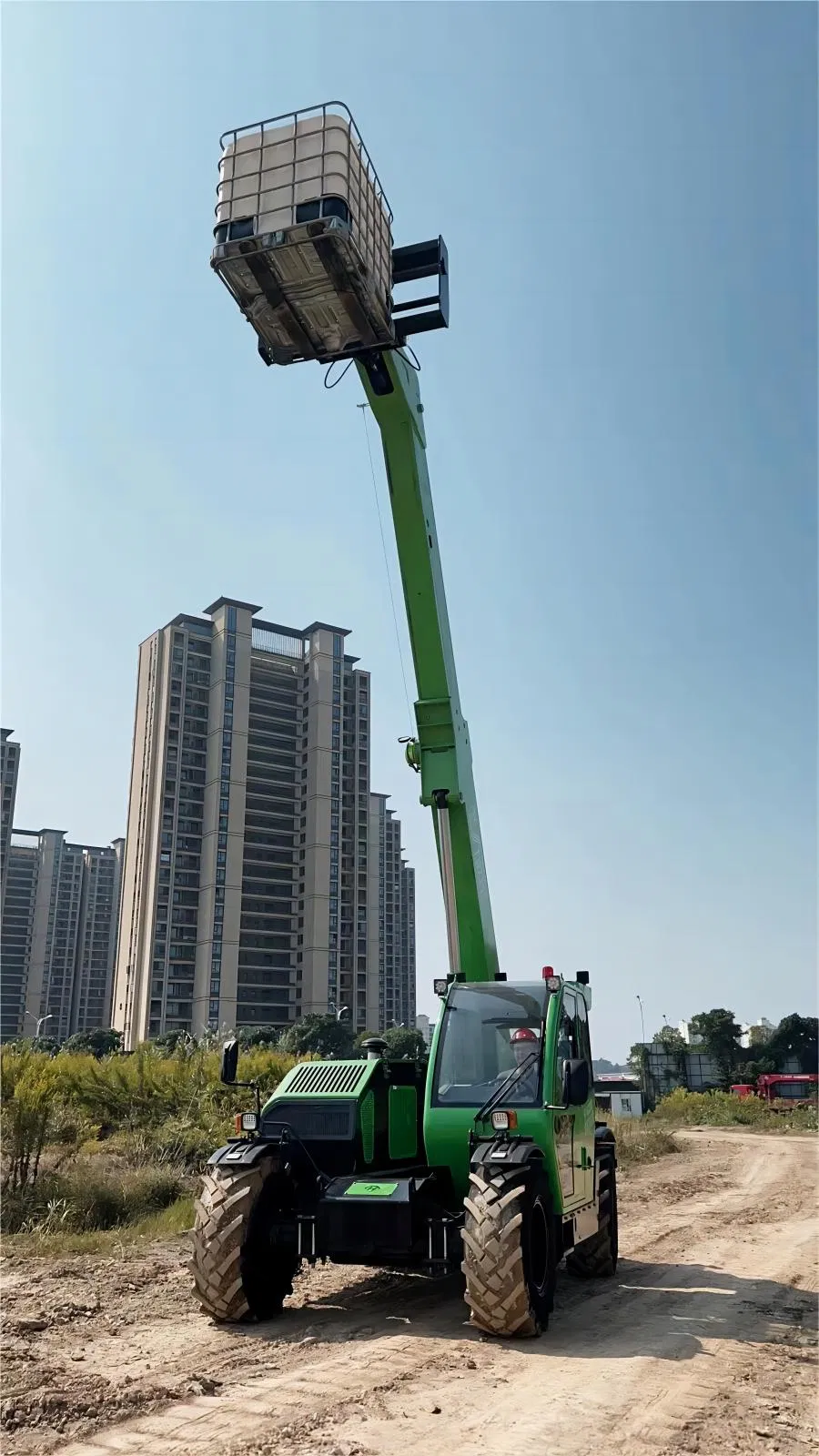

HZTH7110 is a high-performance telehandler designed for multi-functional agricultural and construction applications. With a 7-ton lifting capacity and reach heights ranging from 9m to 10m, it provides superior accessibility compared to conventional wheeled loaders or backhoe loaders.

  • Load limiter for enhanced safety operations.
  • Self-leveling forks and closed hydrostatic system.
  • Spacious cab with air conditioning, heating, and adjustable maglev seat.
  • Versatile 4WD drive and 4WS steering (including crab steering).
  • Extra hydraulic pipes for attachments like buckets, grabs, and crane jibs.

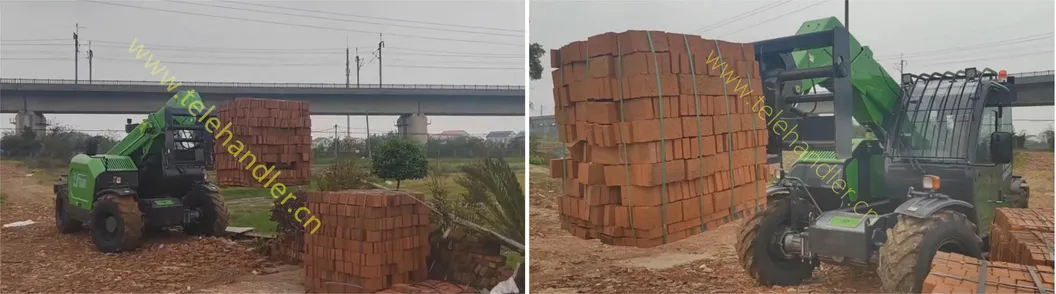

Telehandler Operation

Our telehandlers are built to withstand muddy road conditions and are powerful enough for heavy-duty material handling, such as moving bricks on-site or loading high-sided trailers.

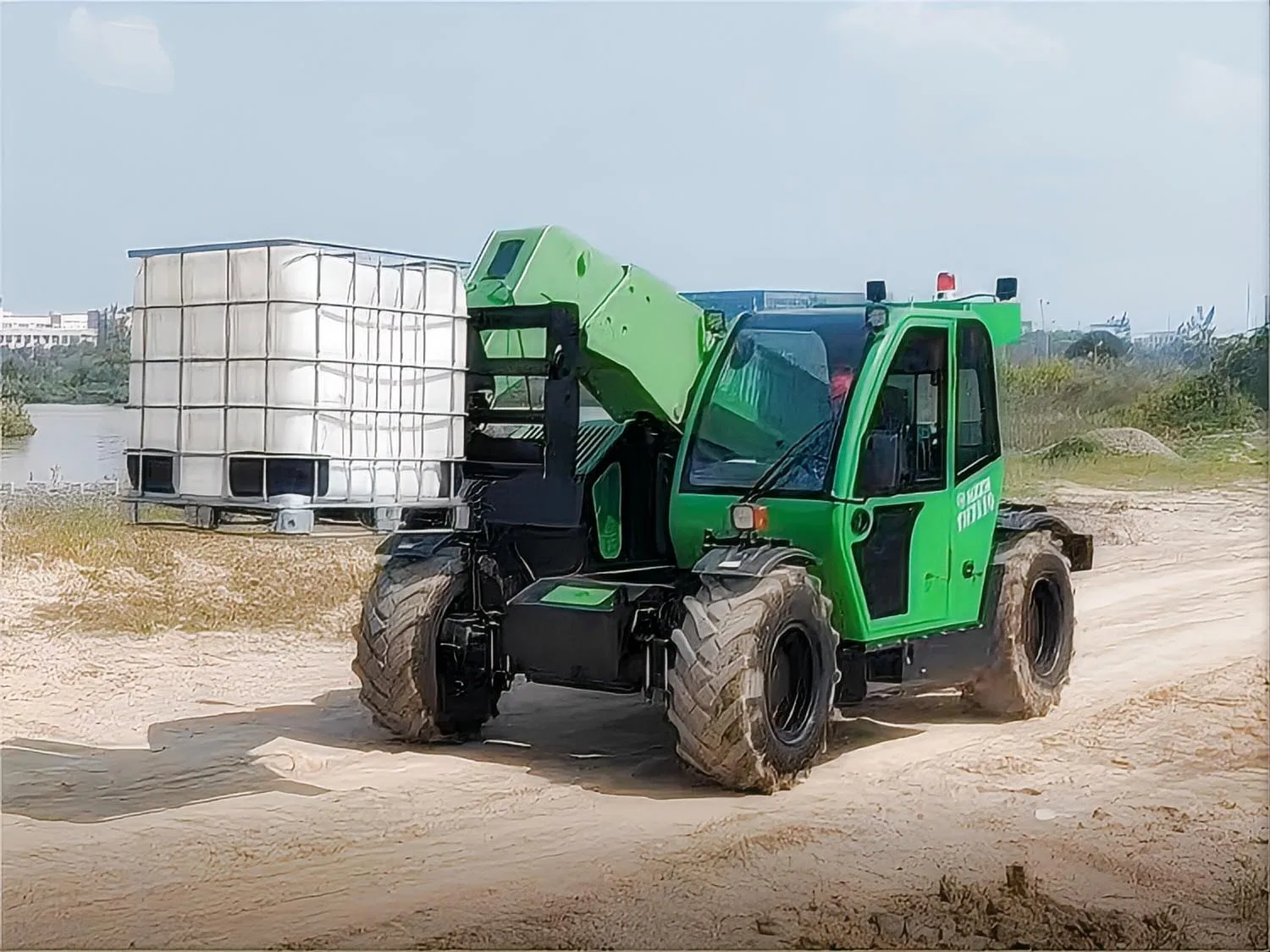

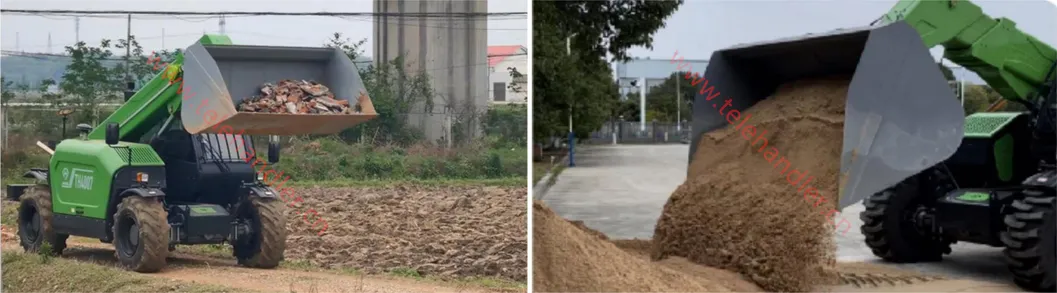

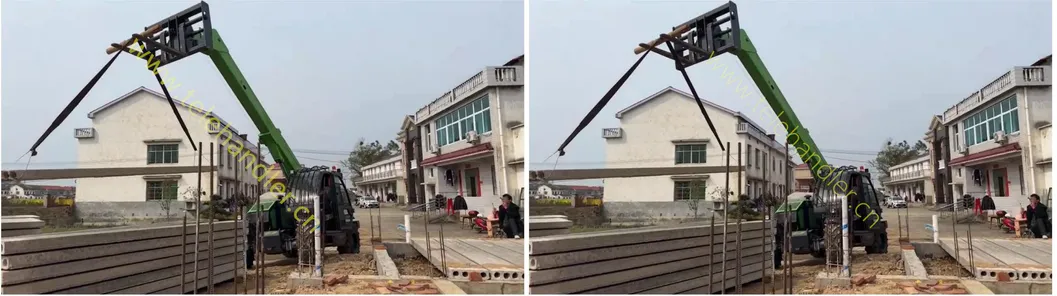

Telehandler with Bucket Telehandler Work Site
📸 Detailed Components

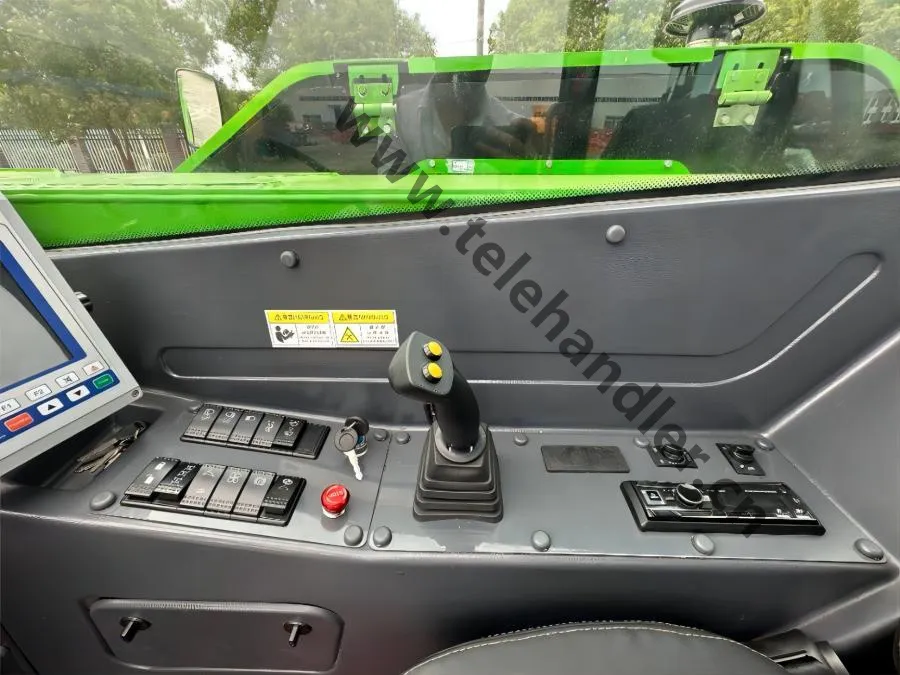

Joystick Control

Joystick Control

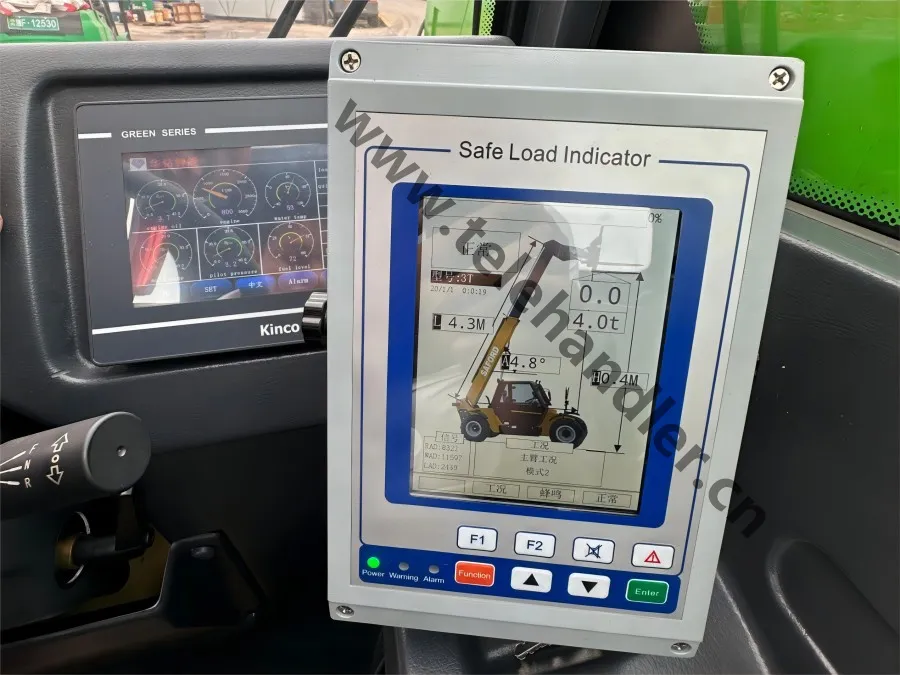

Load Limiter

Load Limiter

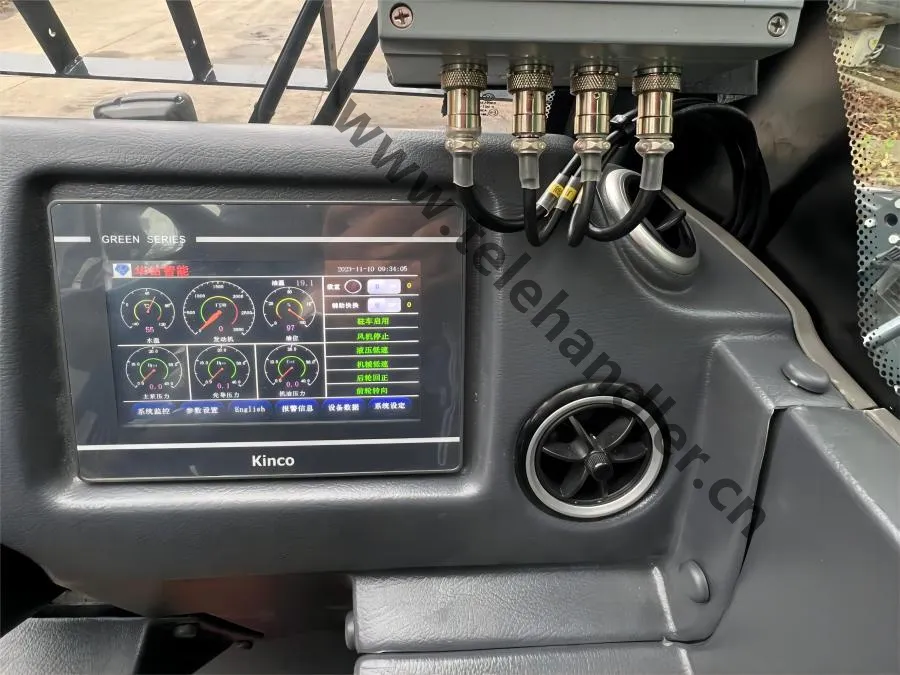

Monitoring Screen

Monitoring Screen

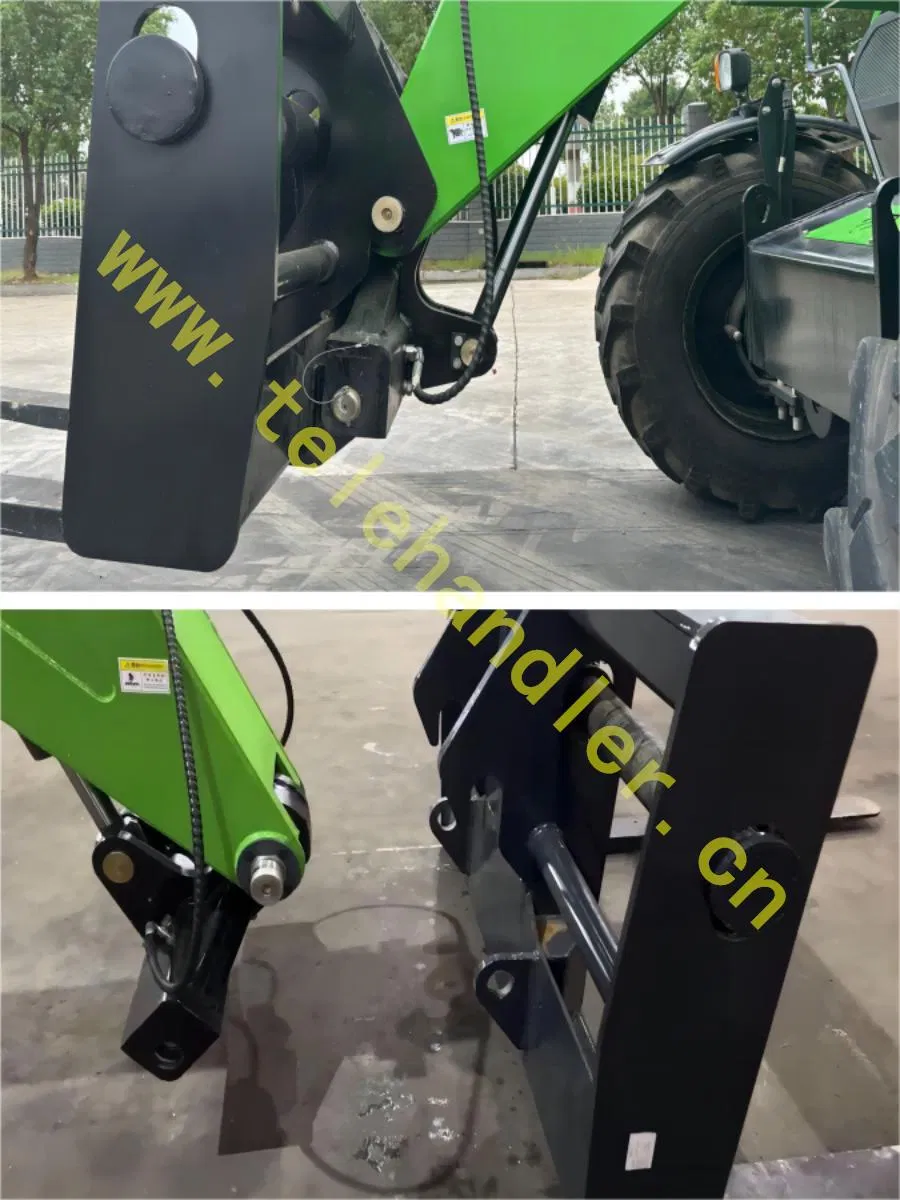

Quick Change Fork

Quick Change Fork

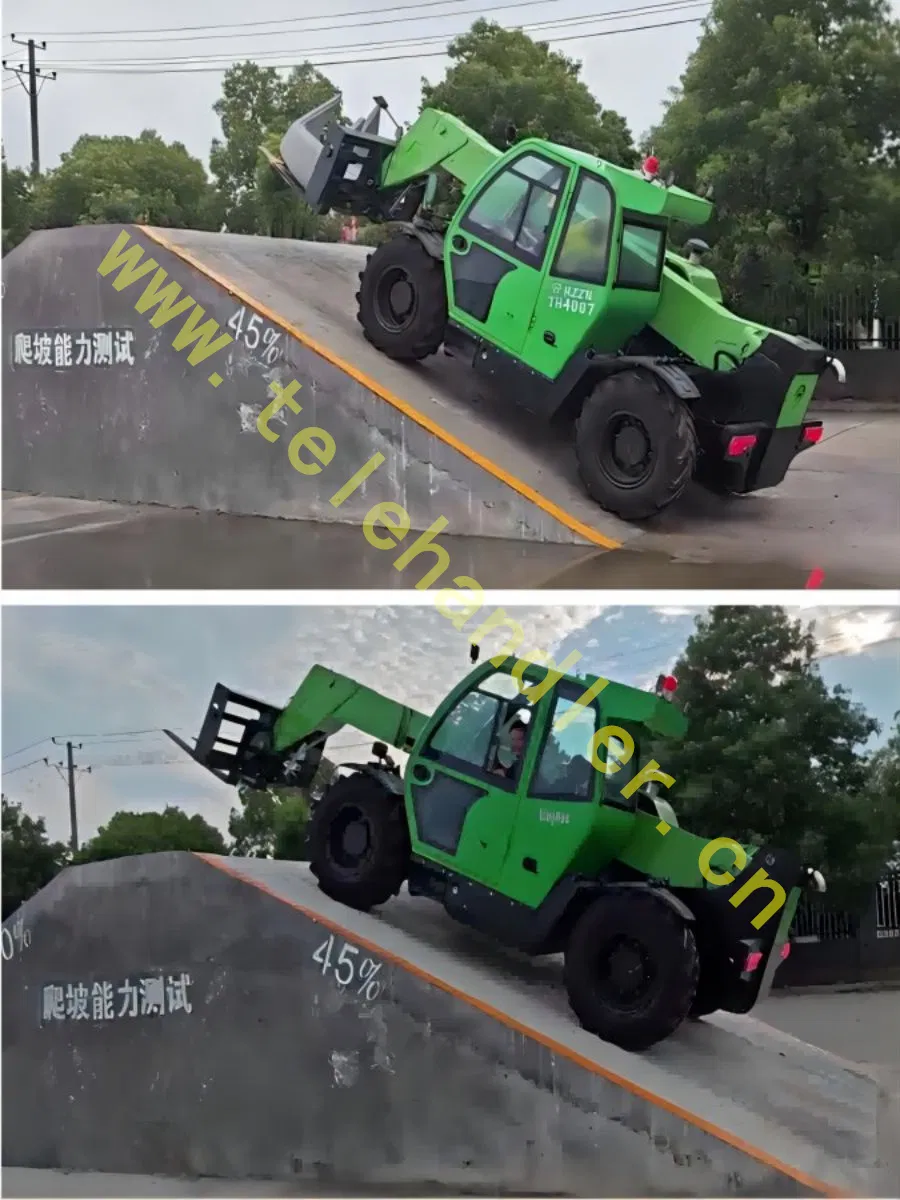

Grade Ability

45% Grade Ability

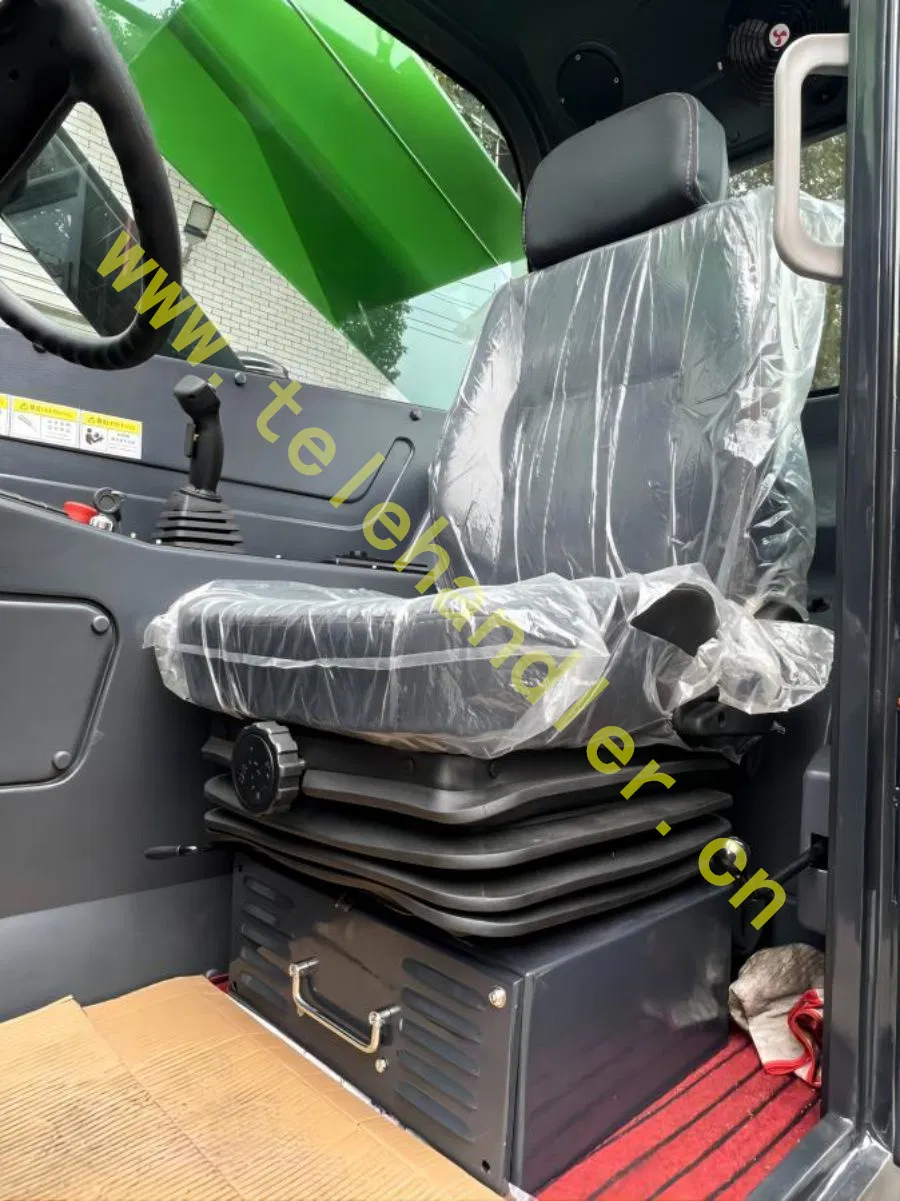

Adjustable Seat

Maglev Adjustable Seat

Steering Modes

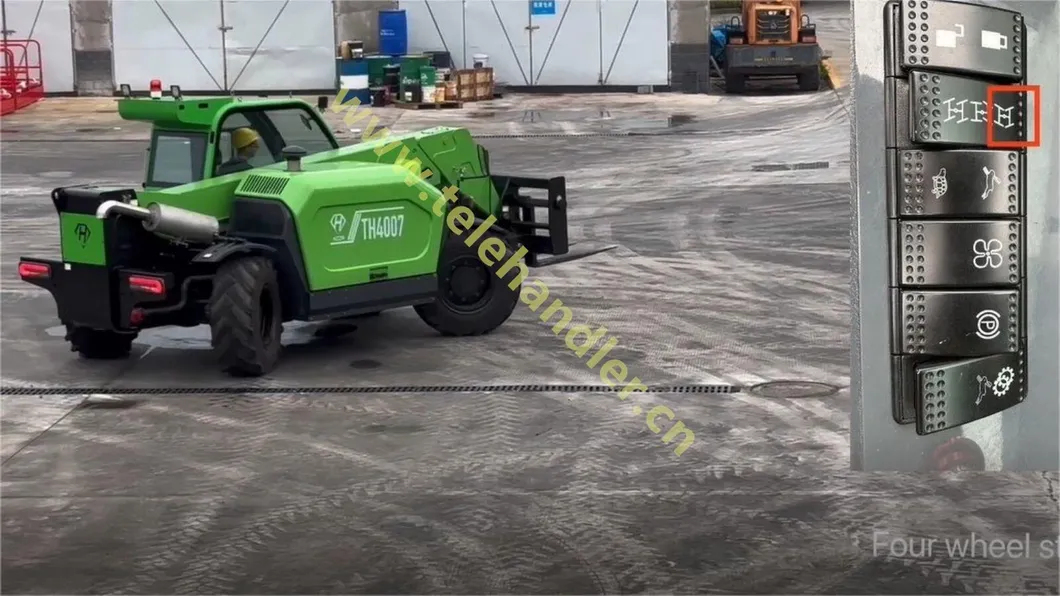

4WS

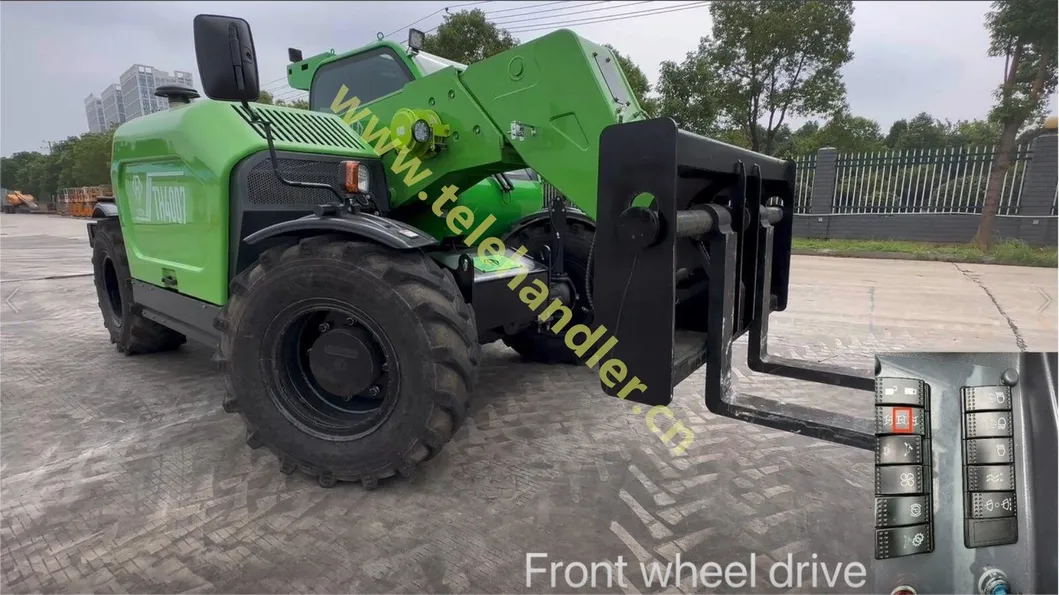

Front Steering

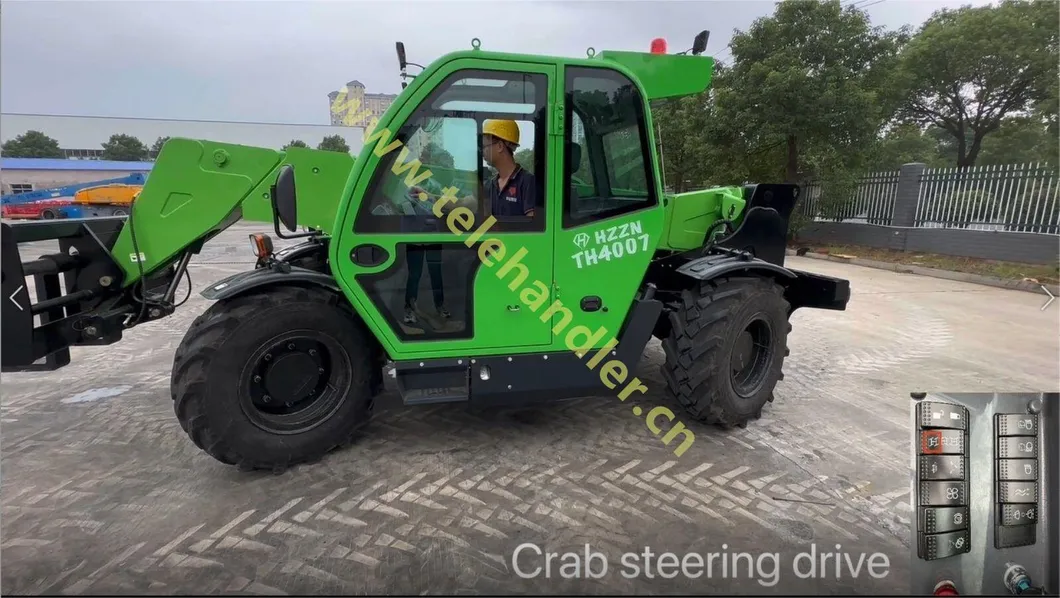

Crab Steering
📊 Technical Parameters

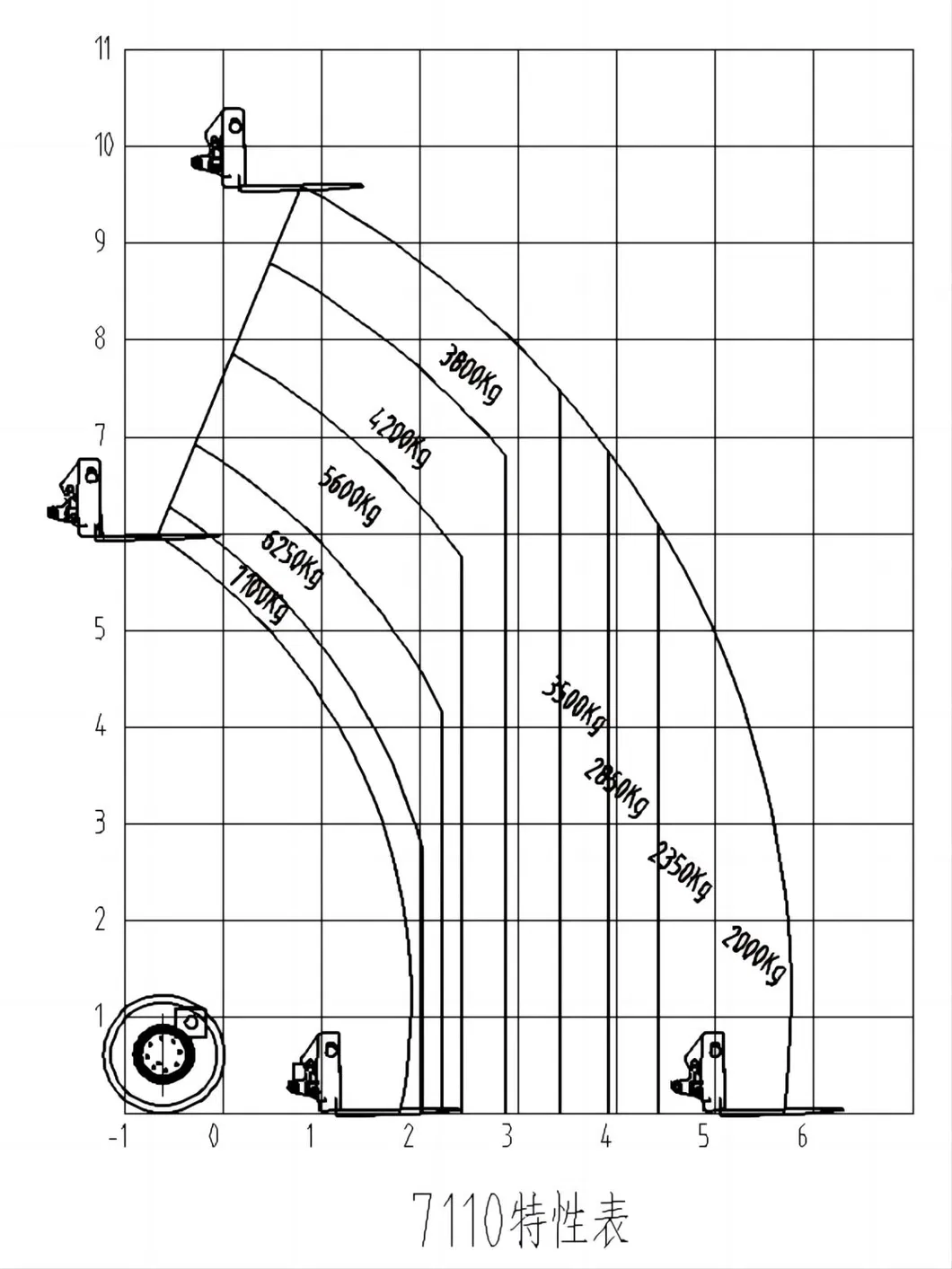

Load Chart
Item Parameter Details
Dead Weight 12500 kg Full operational weight
Hydraulic Pressure 26 MPa System efficiency
Engine Model QSB4.5 (97kw / 130HP) National Standard III
Max Speed 28 km/h Optional 40 km/h
Gradeability 32% - 45% High torque output
Tire Spec 18-24 Off-road pneumatic
Boom Lifting Speed 15.1 s Precision control
📜 Certifications

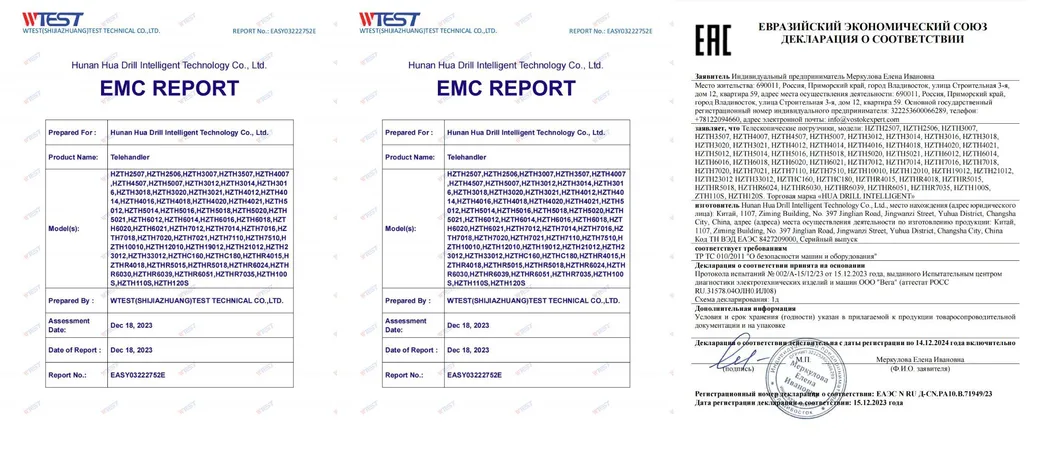

Cert 1
Cert 2
🏢 Company Profile

Established in 2017, the company focuses on the design, manufacturing, and maintenance services of high-end engineering machinery. With a robust R&D center comprising senior professional engineers, we are committed to creating advanced intelligent manufacturing solutions for global material handling needs.

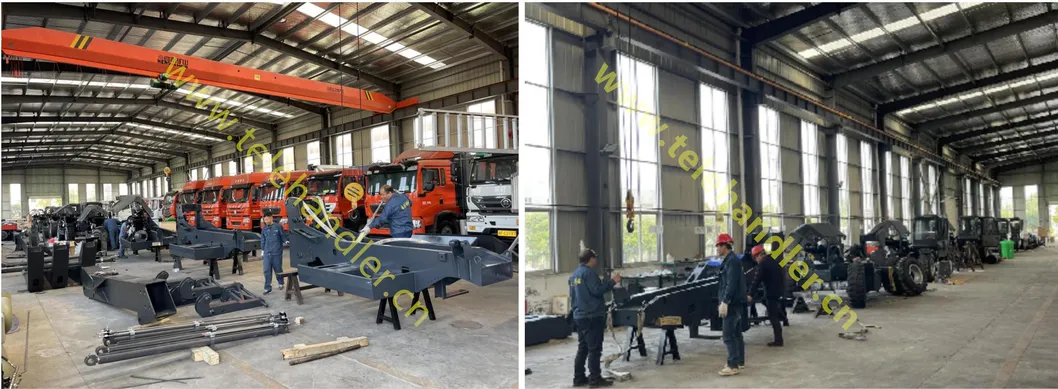

Facility 1

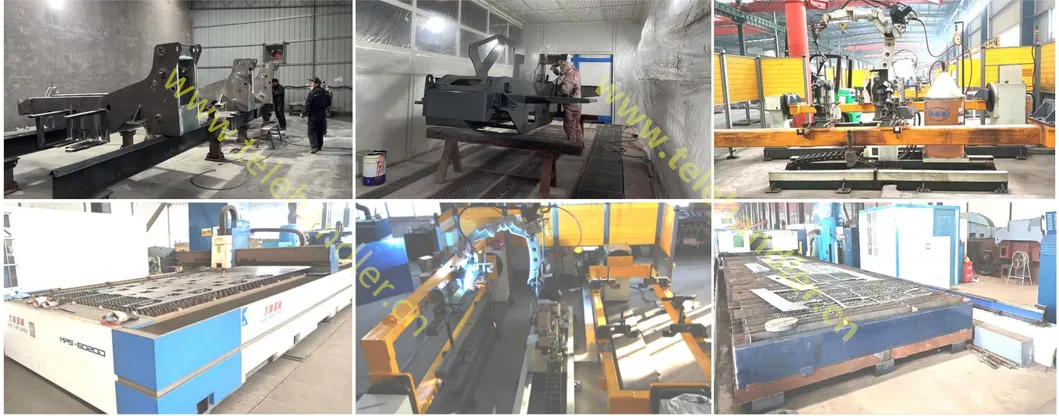

Facility 2
Production
Frequently Asked Questions
1. What is the delivery time for the telehandler? The standard delivery time is 60 days after receiving the initial deposit.
2. What kind of warranty do you provide? We offer a warranty of 12 months after shipment or 2500 working hours, whichever occurs first.
3. What is the maximum climbing capacity of this machine? The HZTH7110 has a maximum climbing capacity (gradeability) of 45%.
4. What type of transmission is used? It comes standard with a hydrostatic type transmission. An optional engine with a torque converter is also available.
5. What are the transport solutions for shipping? For models like the 4007 or 5007, we use 40HQ containers which can accommodate 2 units per container.
6. Is there international after-sales support? Yes, we have a network of dealers in several regions. In areas without a dealer, we provide video technical support and can ship necessary spare parts or send engineers if required.
