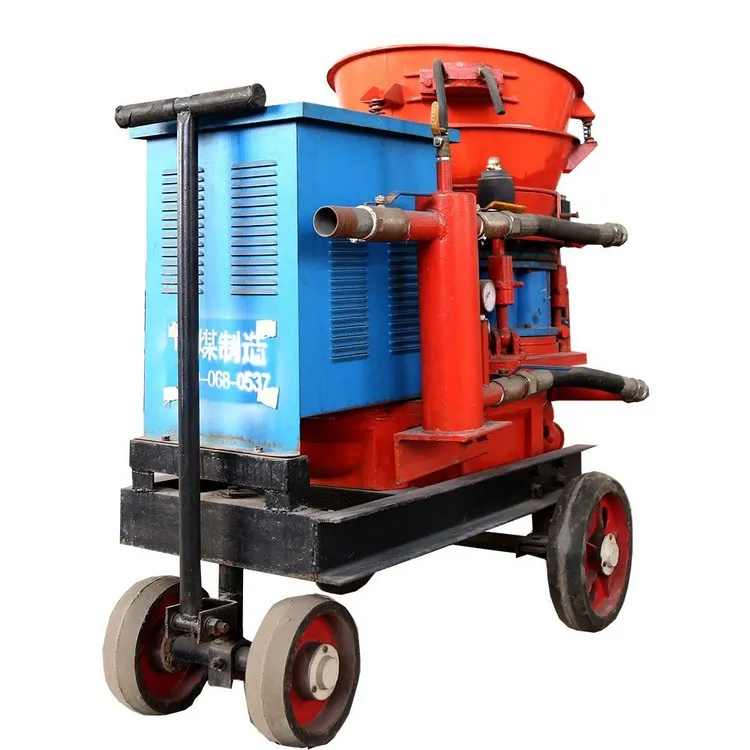

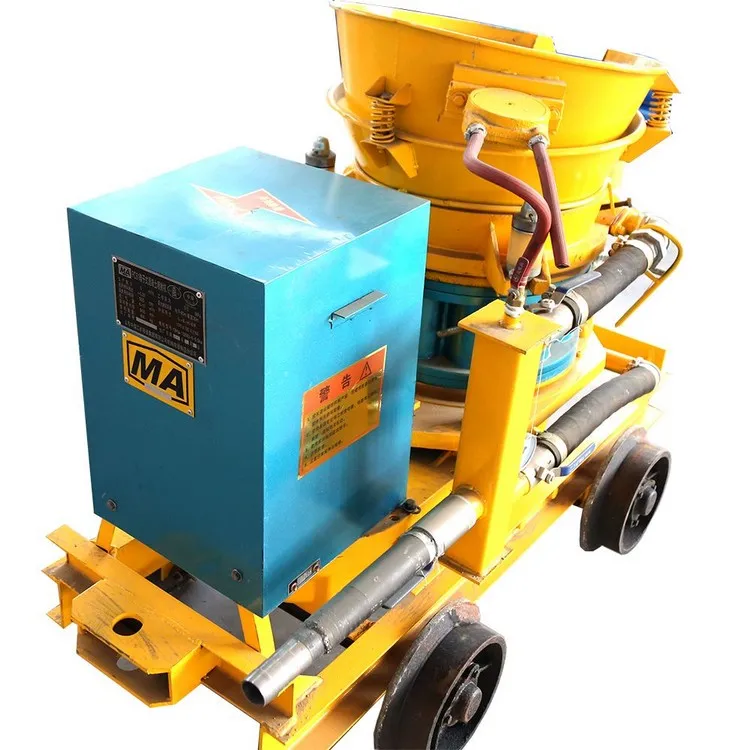

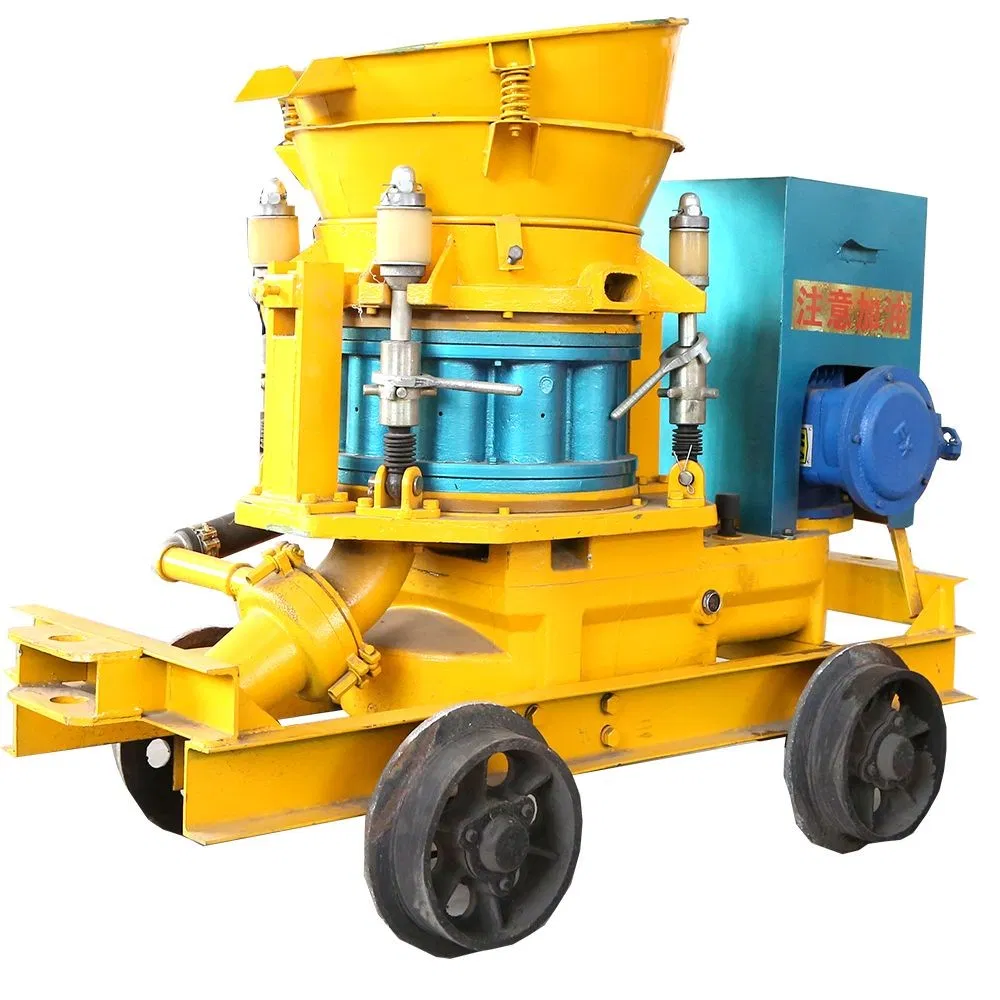

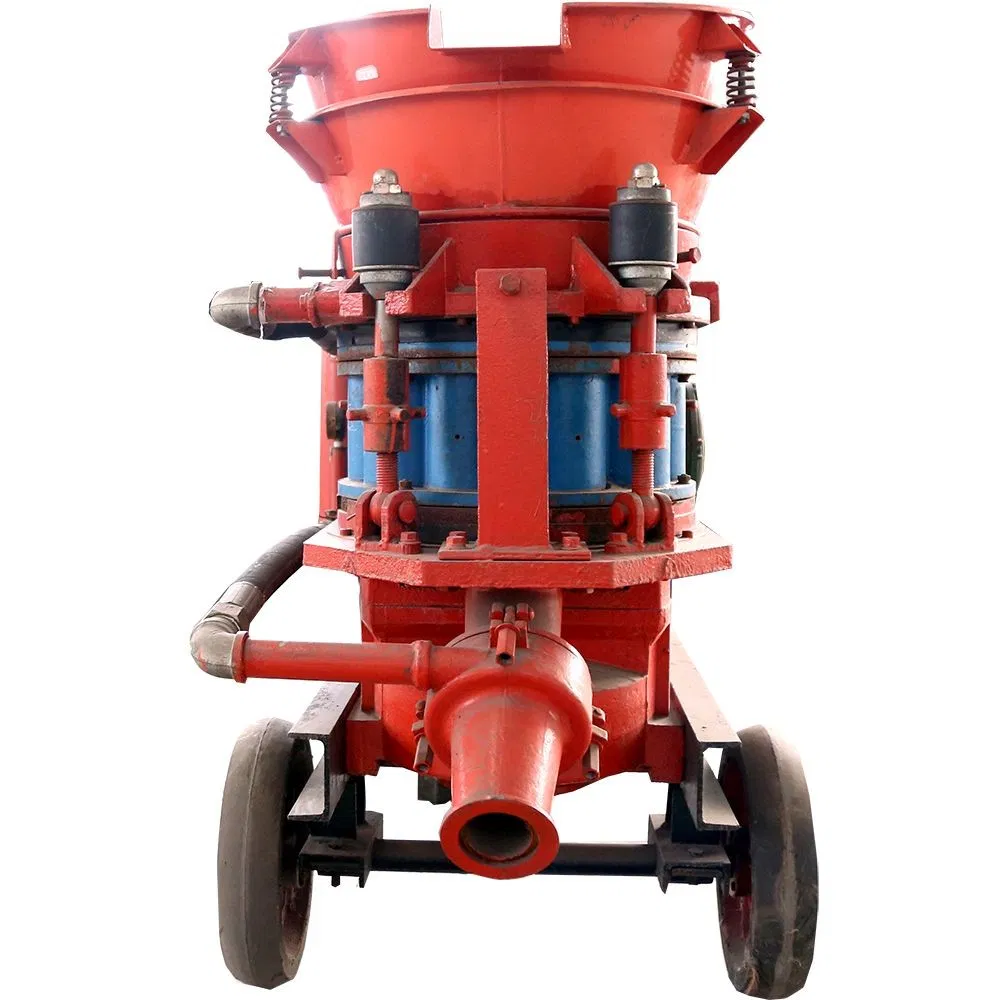

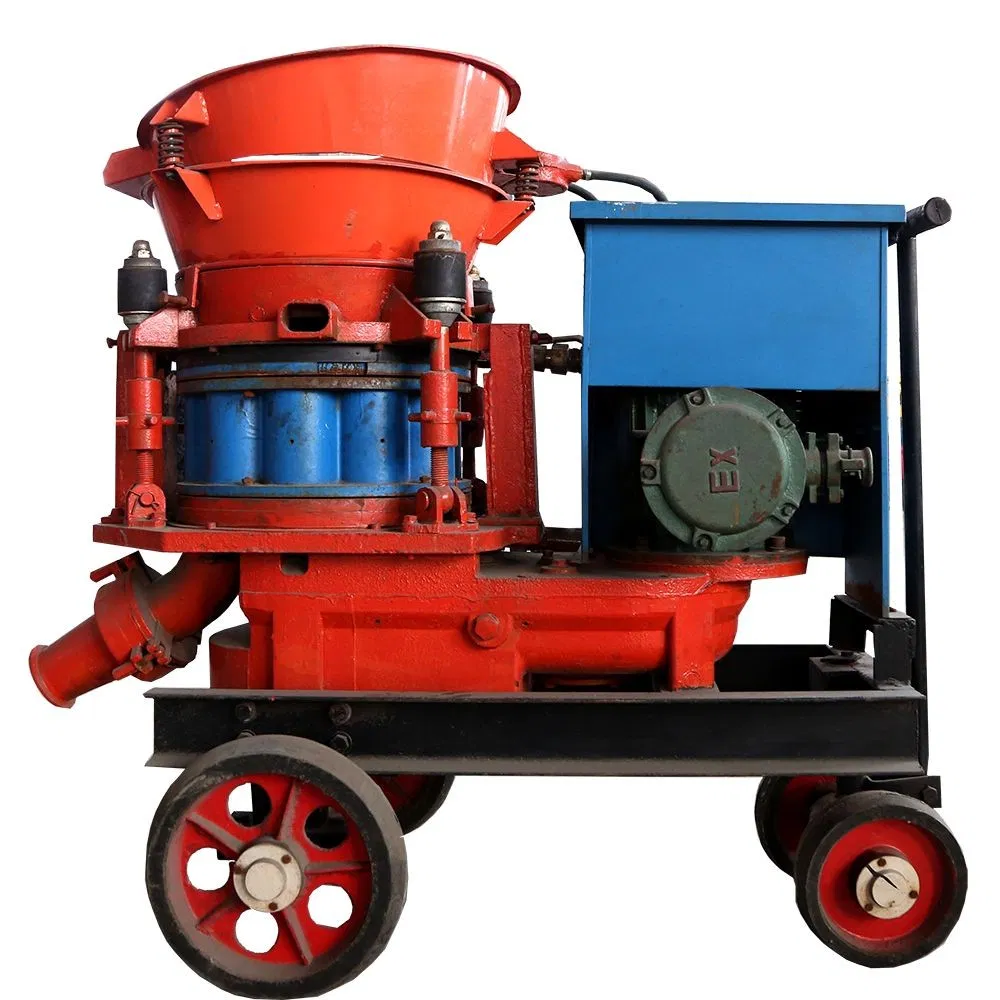

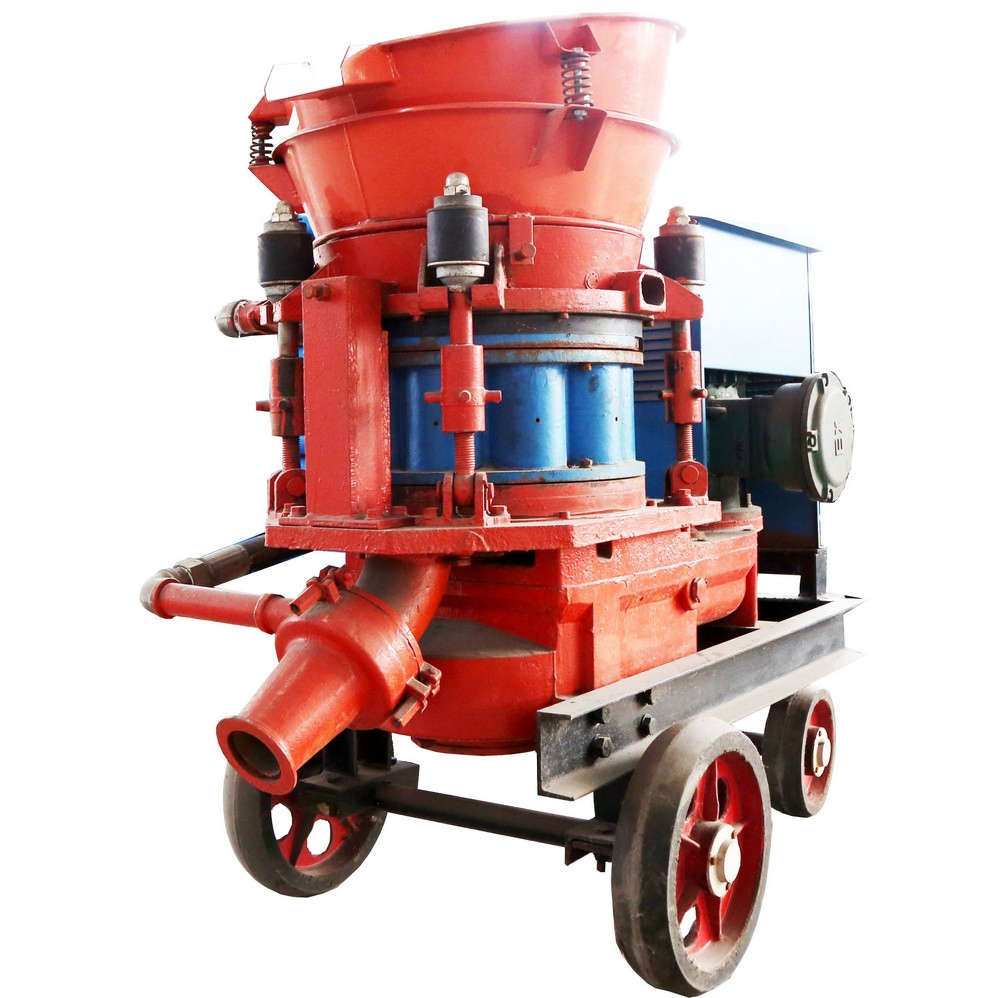

The concrete spraying machine is a specialized equipment designed for spraying concrete onto surfaces that require reinforcement or repair using high-pressure technology. These machines offer significant advantages, including rapid spraying speeds, high construction efficiency, and superior finish quality.

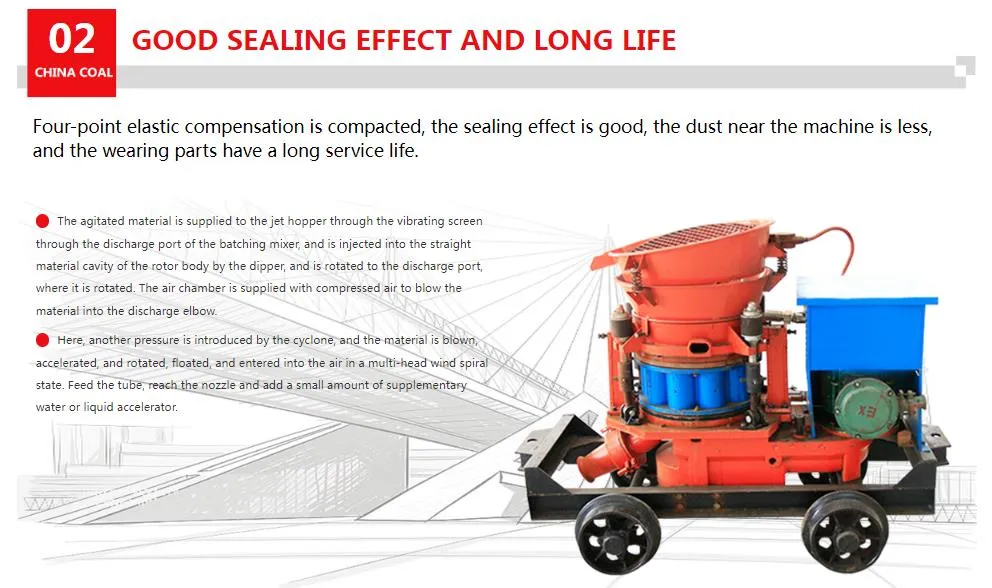

Commonly utilized in construction, tunnel engineering, and mining projects, the concrete spraying machine consists of a main body, a conveying system, and a control system. The core components include a high-performance compressor, a concrete mixer, and a specialized spraying pump.
| Model | PZ-3 | PZ-5 | PZ-7 | HSP-5 | HSP-7 | HSP-9 |
|---|---|---|---|---|---|---|
| Output | 3.5m3/h | 5m3/h | 7m3/h | 4.0-5.0m3/h | 5.0-7.0m3/h | 6.0-9.0m3/h |
| Horizontal Distance | 200m | 200m | 200m | 30-50m | 30-50m | 30-50m |
| Vertical Distance | 20m | 20m | 20m | 20m | 20m | 20m |
| Max Aggregate Size | Φ20mm | Φ20mm | Φ20mm | Φ15mm | Φ15mm | Φ15mm |
| Air Pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.3-0.6Mpa | 0.3-0.6Mpa | 0.3-0.6Mpa |
| Voltage | 380v or customized according to requirements | |||||
