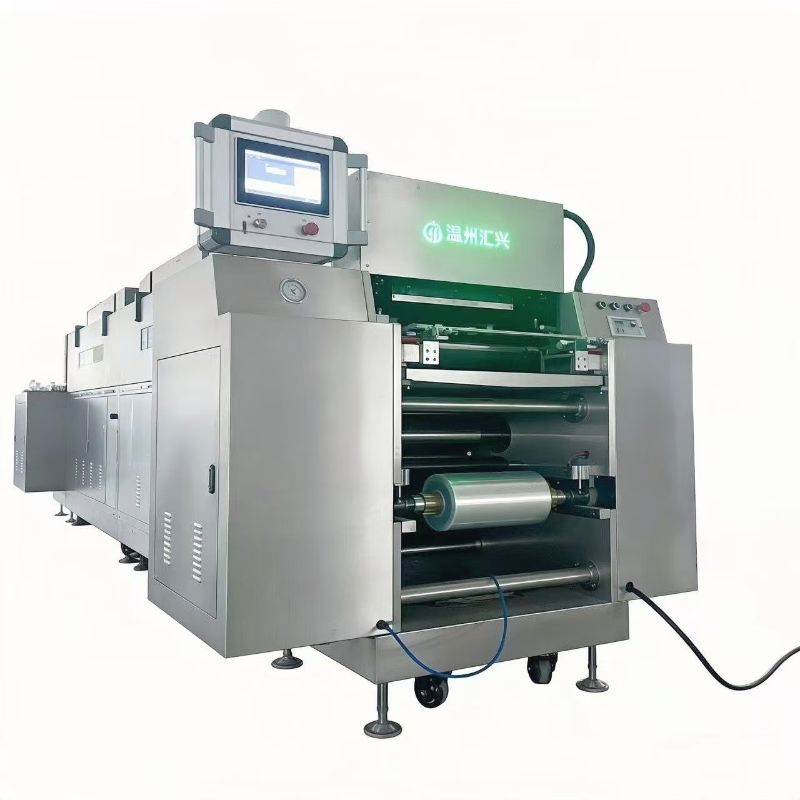

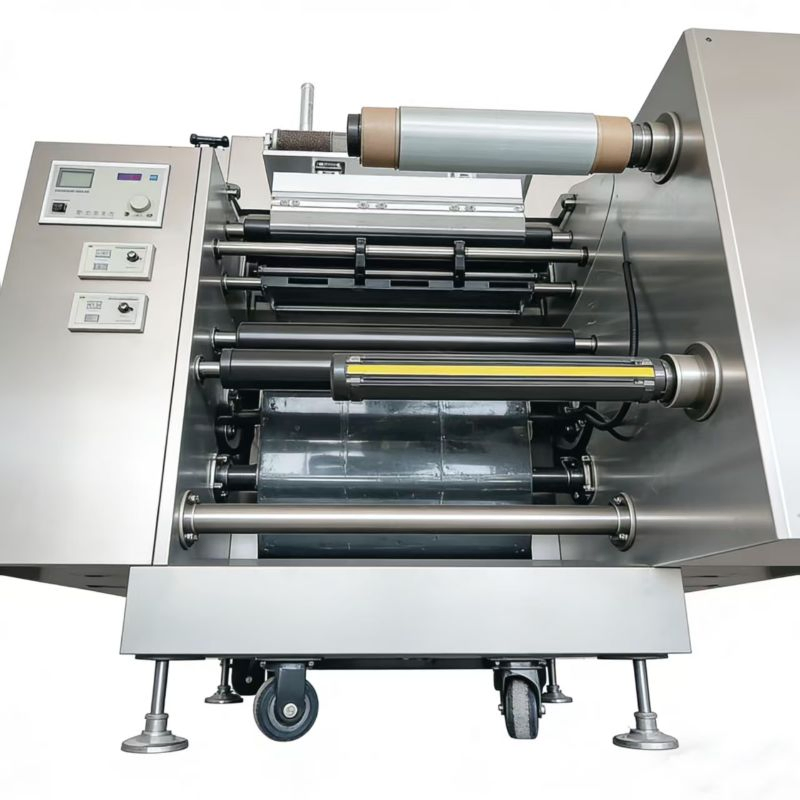

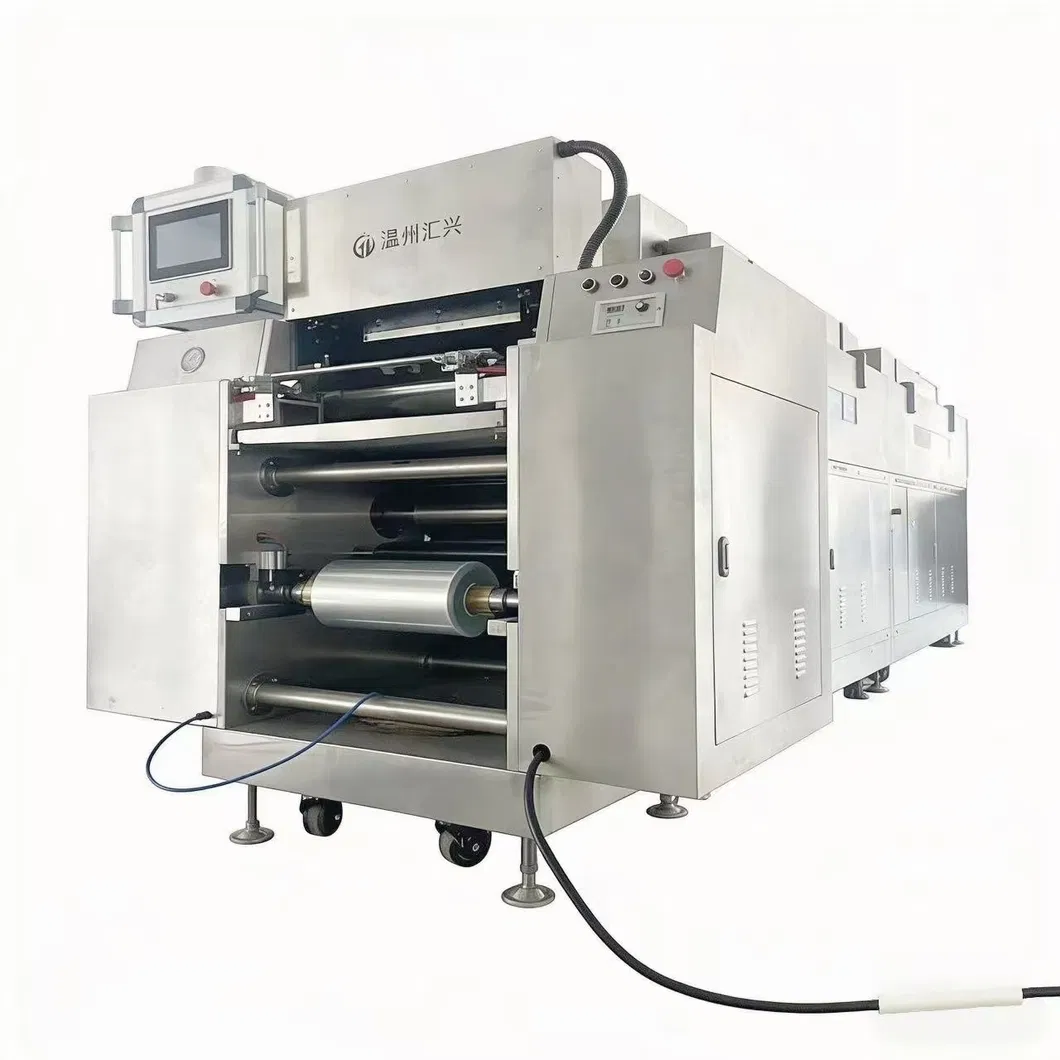

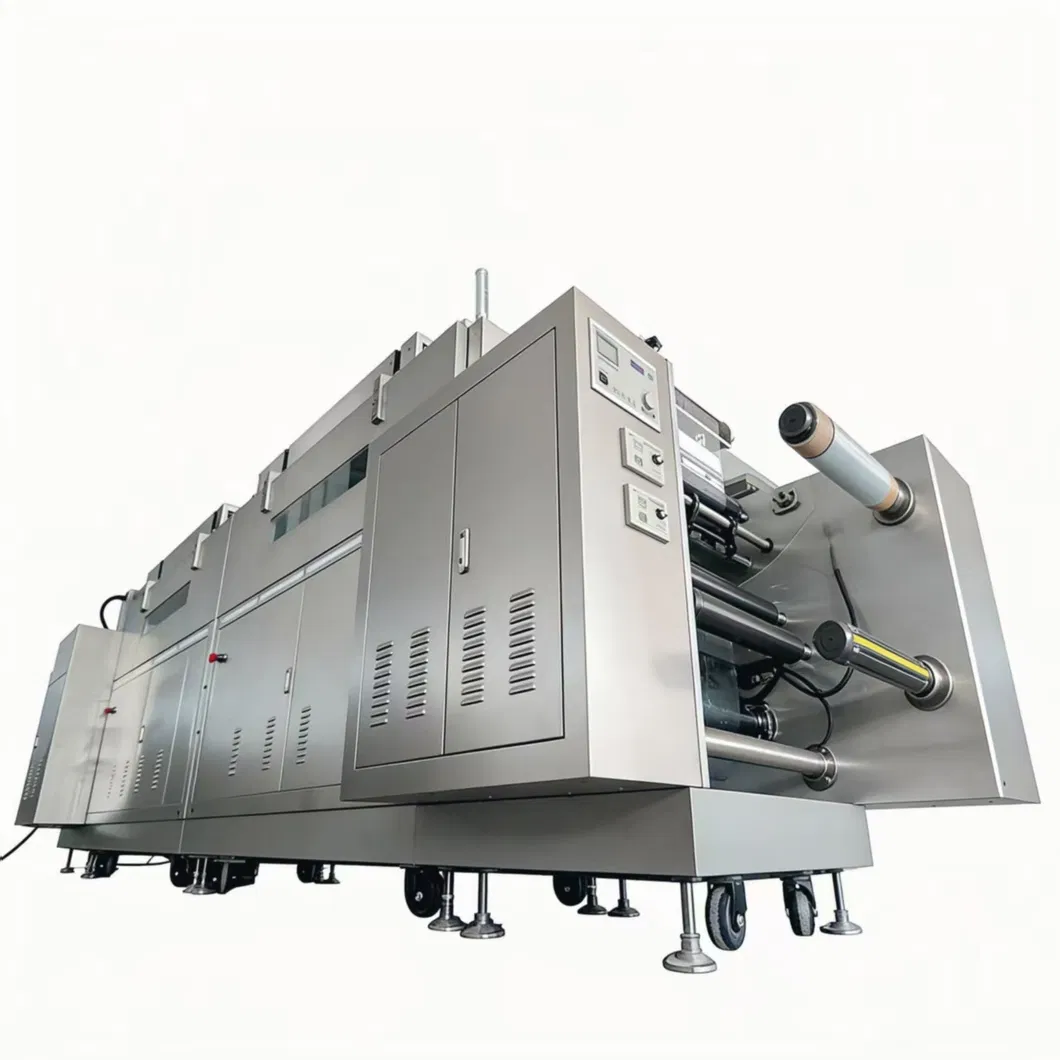

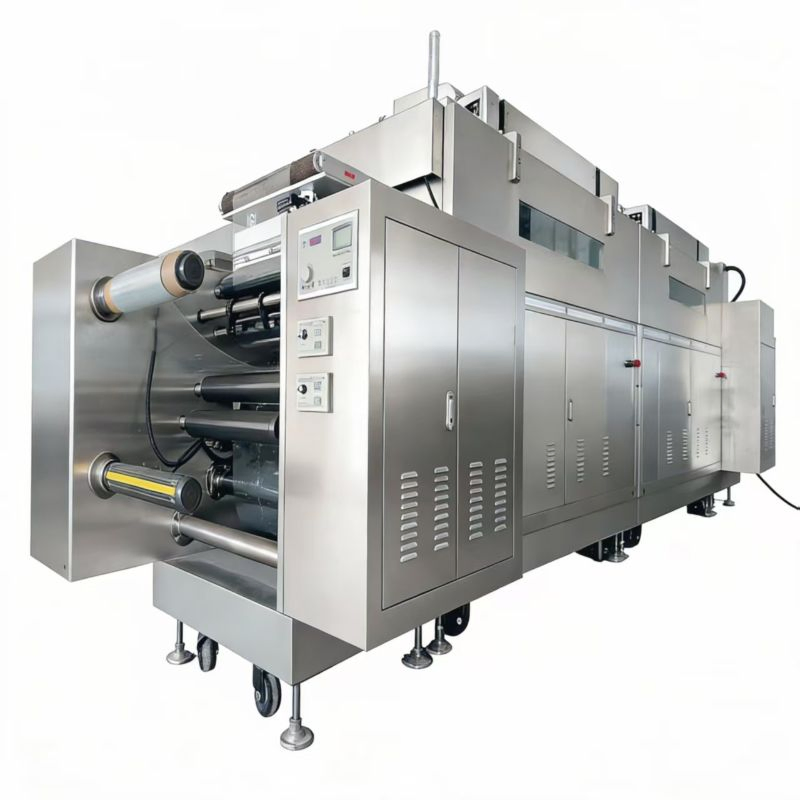

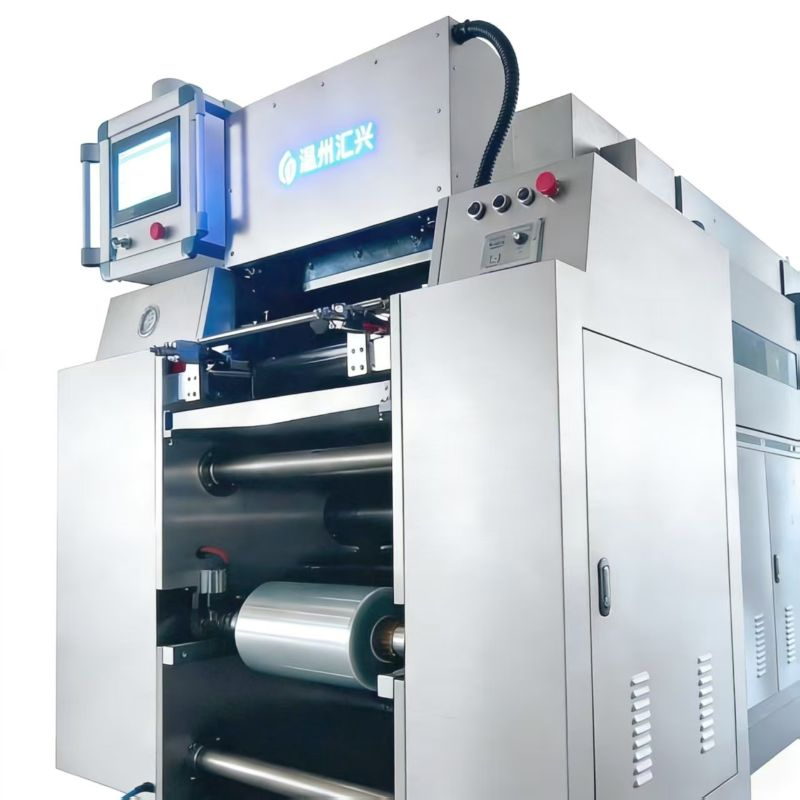

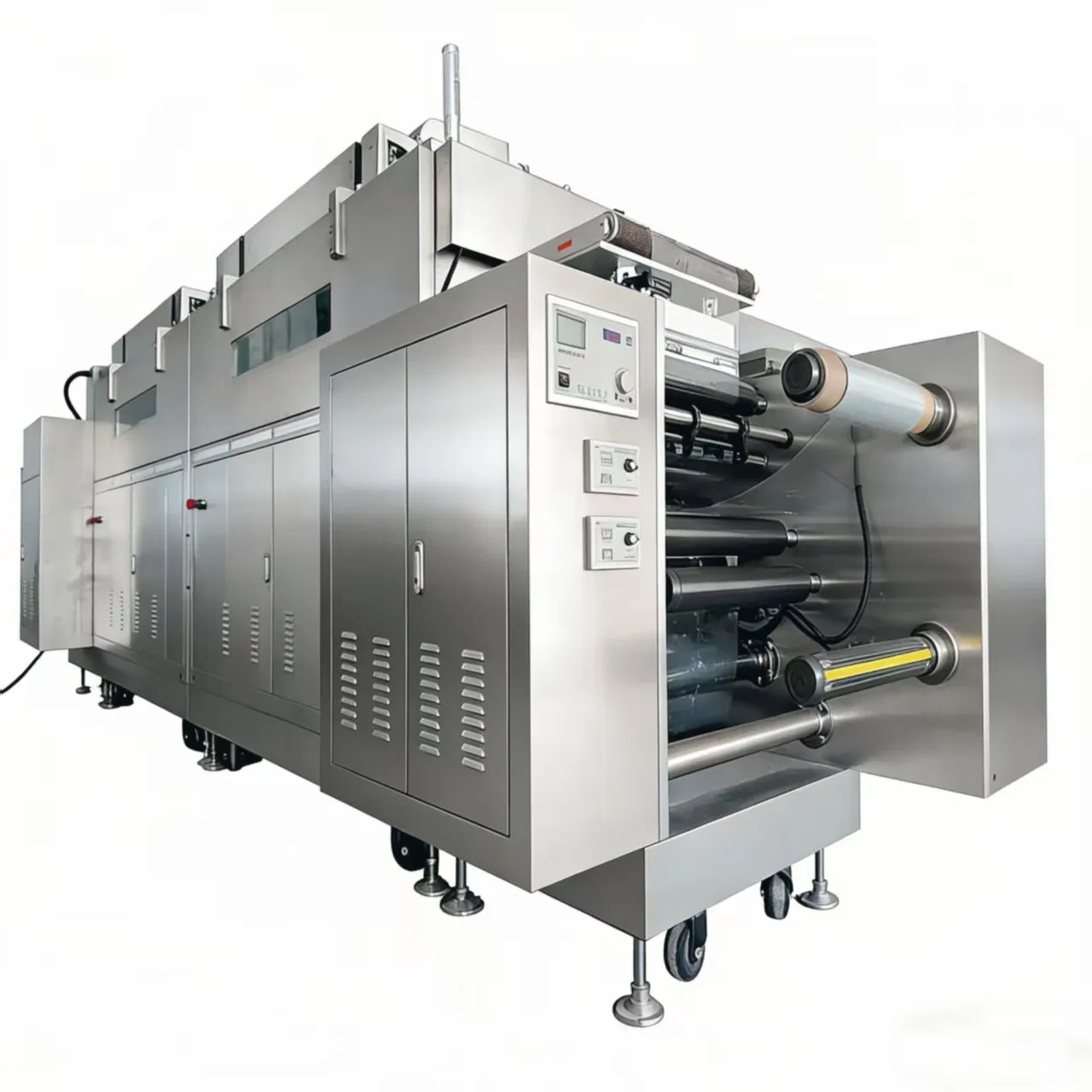

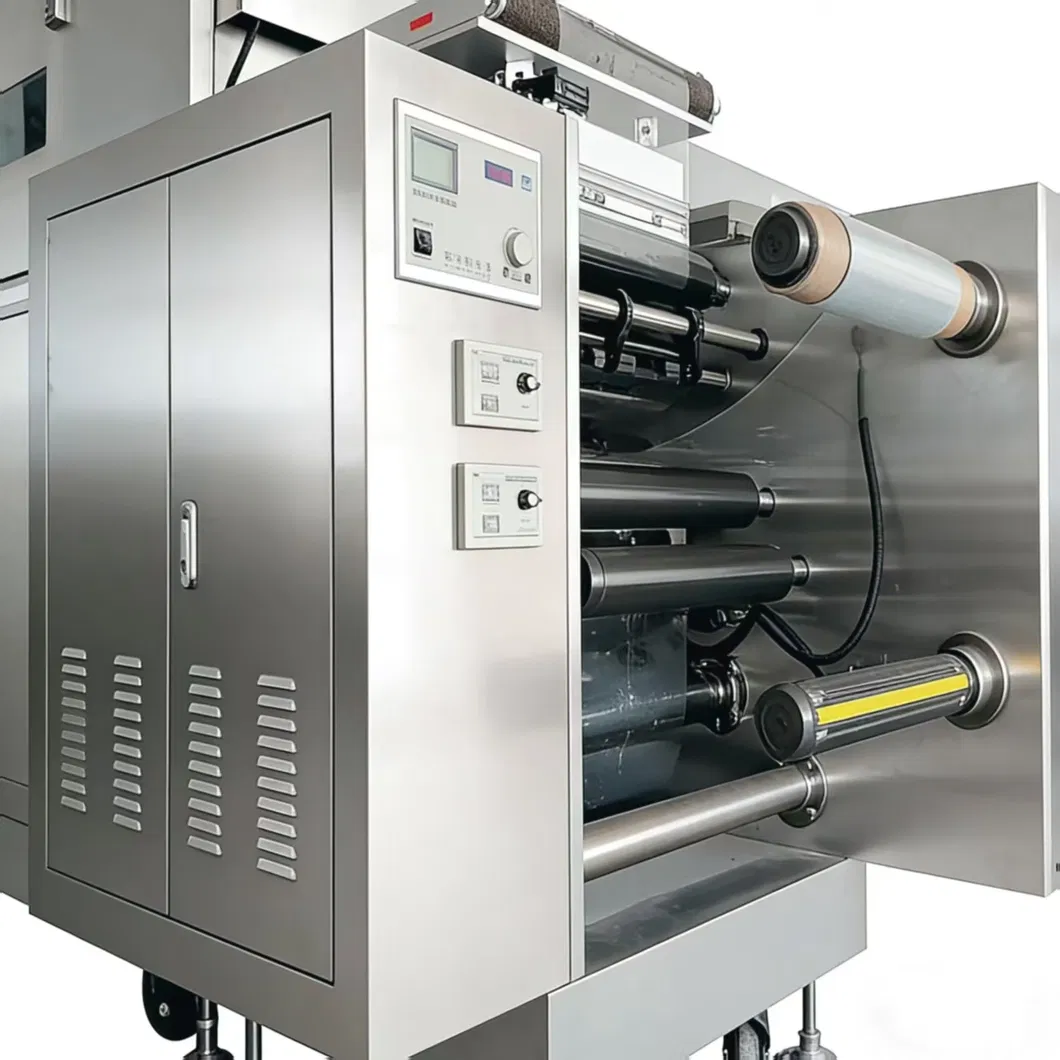

Amid the pharmaceutical and food industries' relentless pursuit of innovation and quality enhancement, oral dissolving films (ODFs) have garnered significant attention as a novel dosage form due to their unique advantages. This ODF film-making machine, leveraging cutting-edge technology and outstanding performance, empowers enterprises to efficiently produce high-quality oral dissolving films.
1. High-precision coating: Utilizing advanced blade coating and wire rod coating technologies, the coating accuracy can reach ±5μm, enabling precise control of film thickness to meet stringent requirements. Whether it's ultra-thin oral dissolving films or thicker specialty films, the system ensures consistent quality.
2. High-efficiency drying system: Equipped with an efficient hot air circulation system. Drying temperature range spans from RT+ to 120°C with a uniformity of ±2°C. Stable temperature control ensures the quality of oral films during the drying process.
3. Stable and reliable operation: Constructed with premium materials and components sourced from renowned brands to ensure stability. Rigorous testing guarantees stable operation during continuous production, minimizing failures.
4. Flexible customized design: Offers high customization capability including coating width, vacuum adsorption dimensions, and heating systems based on production site and capacity requirements.
5. Pharmaceutical industry: Used for producing various oral dissolving drug films, such as cold medicines, antipyretics, and vitamin supplements. Benefiting children, the elderly, and those with swallowing difficulties.
6. Food industry: Capable of manufacturing probiotic films, nutritional supplement films, and oral fresheners. Enriching food formulations and functionalities with convenient nutrient intake methods.
| Project | Technical Parameter |
|---|---|
| Max production width | 350mm |
| Roll Width | 450mm |
| Speed | 0.1-1.3m/min (Depending on materials) |
| Unwinding Diameter | ≤φ400mm |
| Winding Diameter | ≤φ400mm |
| Method of heat & dry | External stainless-steel heater, hot air circulation |
| Temperature control | 25-110ºC ±0.5ºC |
| Power Supply | 38KW |
| Overall dimension | 6000×1650×2000mm |
| Total weight | 4.2 tons |
Established in 2021, this enterprise has embarked on a remarkable journey in the field of oral dissolving film equipment. The company has resolutely pivoted to dedicating itself entirely to the research, development, and production of oral dissolving films, thus embarking on a path of focus and specialization.
As an innovative enterprise integrating R&D, production, sales, and service, it brings together industry elites to meticulously craft a range of equipment suitable for both experimentation and production. The pursuit of unity, innovation, pragmatism, and progress resonates like a powerful anthem of growth, adhering to the principles of "Quality first, customers supreme."
