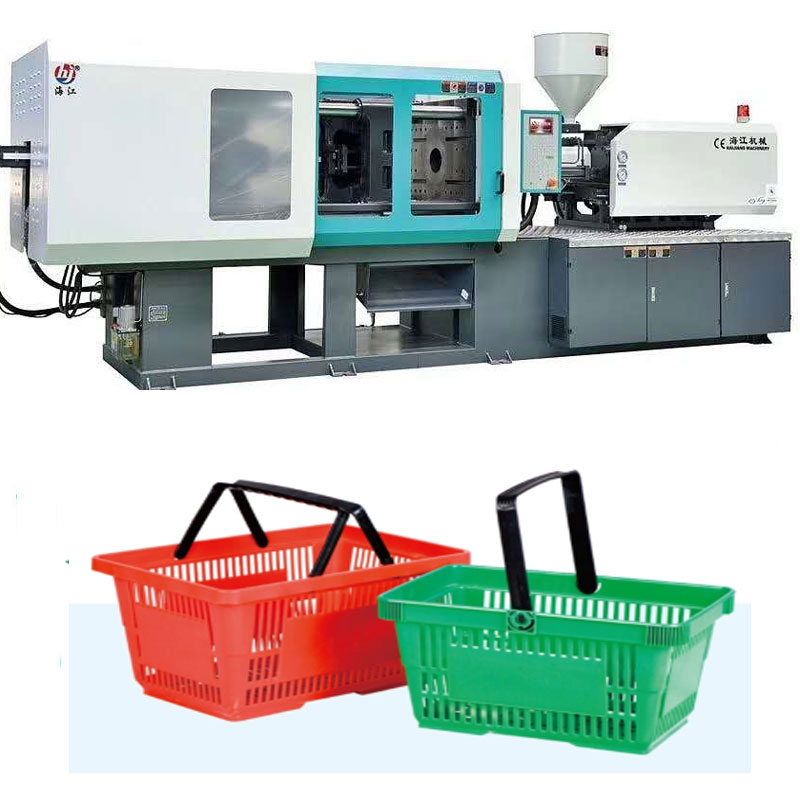

High-Efficiency Pharma Bottle Production Equipment for Global Markets

Customization:	Available
After-sales Service:	Online Service
Warranty:	18 Months

Basic Information

Model NO.

HJF-780

Type

Tube Shoulder Injection

Structure

Horizontal

Plastic Type

Thermoplastic

Plasticizing Way

Plunger Type

Clamping Way

Mechanical

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Specification

3.5 tons

Origin

China

HS Code

8477101090

Packaging & Delivery

Package Size

300.00cm * 400.00cm * 150.00cm

Package Weight

37000.000kg

Product Description

5 gallon pc water bottle making machine

Core Features:

Bigger space between tie-bars
Central-clamping structure
Famous components selection
Energy saving with servo motor
Low noise, fast response
High precision, stable and super long life
T-Slot Platen
Abundant Spare Parts

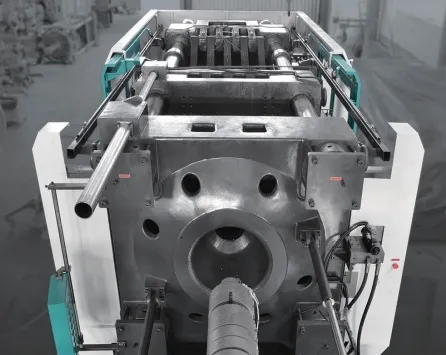

Clamping Unit:

Optimized Platen Design with high rigidity and enlarged space between tie bars
Euromap-based Platen Layout with both T-slot & tap holes
New ejection system design with longer ejection stroke and better rigidity
Hydraulic driven gear-type mold height adjustment mechanism
Linkage structure for front connecting rod increases strength and accuracy

Injection Unit:

High Quality Linear Motion Guide ensures smooth injection process
High Speed & Pressure injection structure
Twin nozzle cylinder ensures even & stable structure
Specialized screw barrel design for various appliances

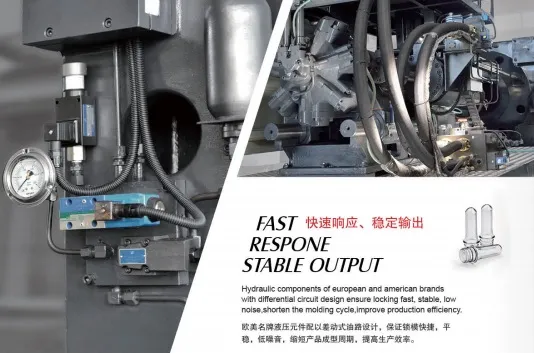

Hydraulic System:

Double proportional compound valve control system
Imported high quality Pump with low noise and long lifespan
Precise feedback control of servo system to pressure & flow
High performance hydraulic valve for fast switching
Low pressure mold protection system

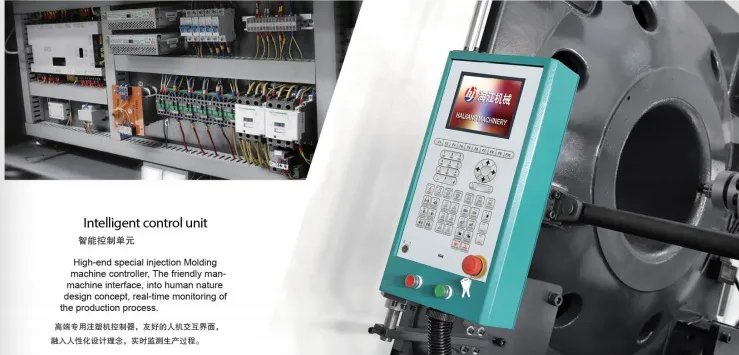

Electrical System:

Control by double CPU with high speed and noise-immunity
8.4" display screen with 800*600 resolution
Equipped with USB(2.0) and ethernet ports
120 technological parameters access storage
Dynamic recording and temperature tracking curve display

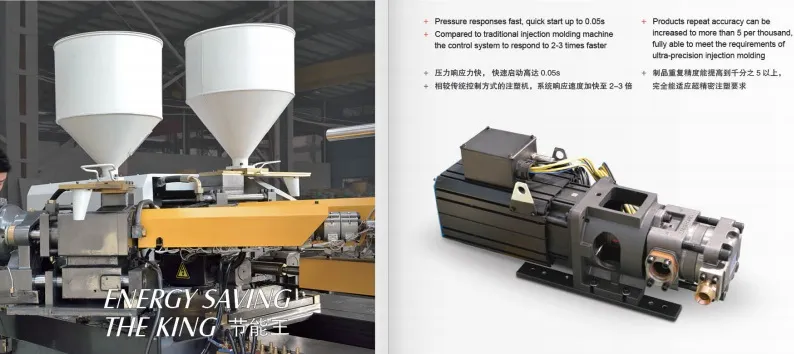

Servo Controller Part:

High Precise Control (repeatability precision <0.3%)
High sensitive response (0.5sec to max output)
Low noise (1/10 lower than traditional pumps)

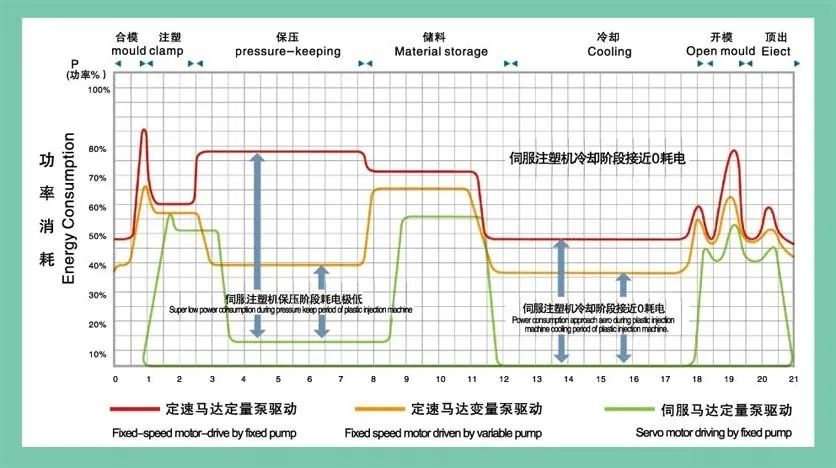

Energy Saving (40-80% saving compared to common machines)
Water cooling saving system

Technical Parameters:

Parameter	Unit	HJF118-F5
Screw diameter	mm	35 (A)	38 (B)	40 (C)
Screw L/D ratio	L/D	23.9	22	20.9
Shot volume	cm³	154	181	201
Injection weight(PS)	g	141	165	183
Clamp force	KN	1180
Space between tie bars	mm	370 * 370
Max mould height	mm	400
Machine dimension	M	4.2 * 1.25 * 1.8
Machine weight	T	3.5

Frequently Asked Questions

What is the warranty for this injection molding machine?

The total warranty period is 18 months, which includes the machine platen, base, injection unit, and clamping unit.

Do you provide overseas installation and training?

Yes, we can send engineers to the customer's factory to install the machine and train workers. The first week is free; after that, a daily fee applies.

What spare parts are included with the machine?

Spare parts include: mould clamps, nozzles, heating bands, wrenches, switches, thermocouples, operation manuals, tool boxes, sealing, and filters.

Can the computer system language be changed?

Yes, we can provide languages such as French, Spanish, Arabic, or Russian upon request. Standard options include English, Japanese, Chinese, and Korean.

Can you customize the power source (e.g., 3 Phase 220V 60HZ)?

Yes, please specify your power requirements when placing the order, and we will adjust the electrical system accordingly.

Is it possible to request a specific machine color?

Yes, if you provide a color sample, we can manufacture the machine in your required color (e.g., Green).
