Powerful Heavy-Duty Water Well Drilling Equipment for Deep Excavation/Water Well Drilling Machine

1 / 5

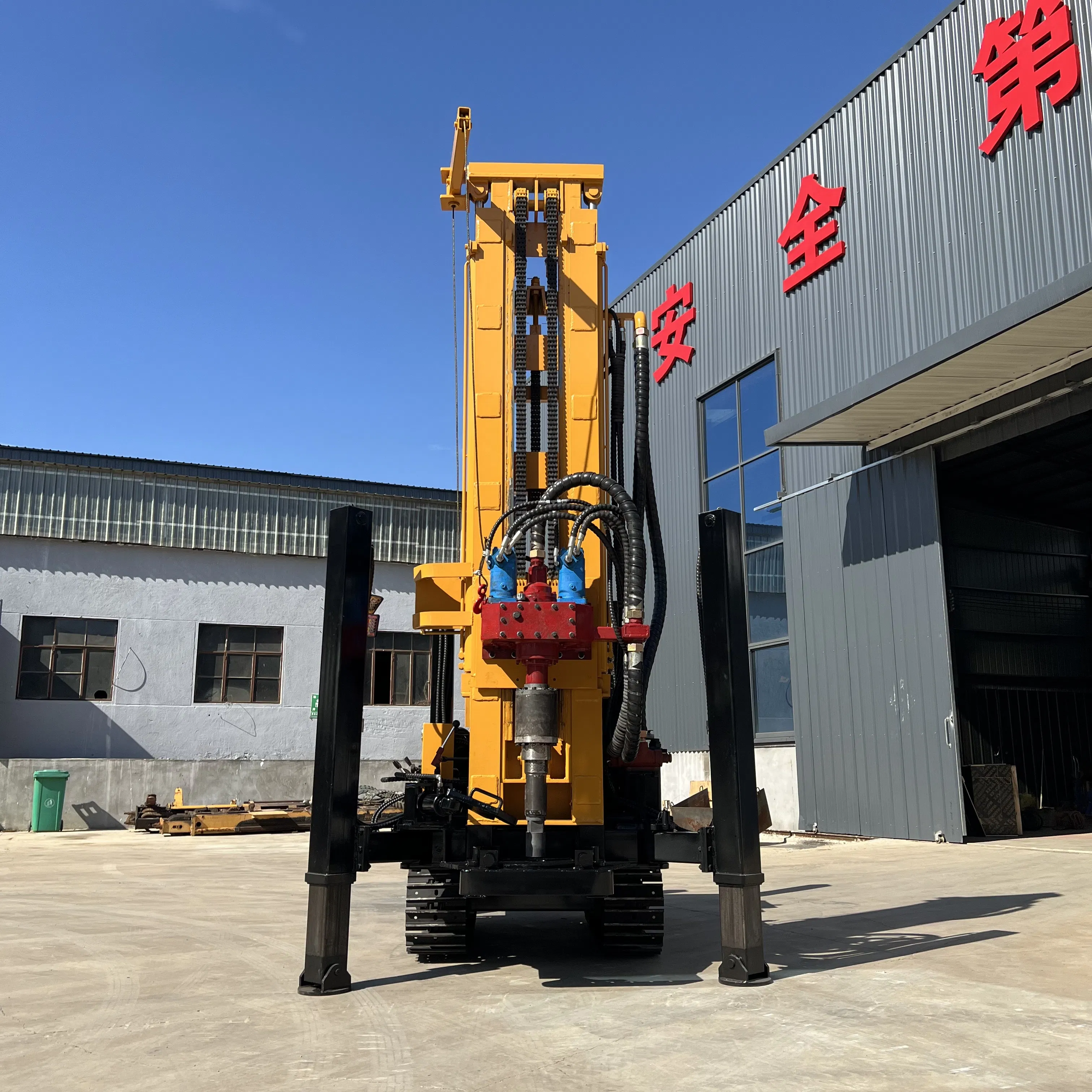

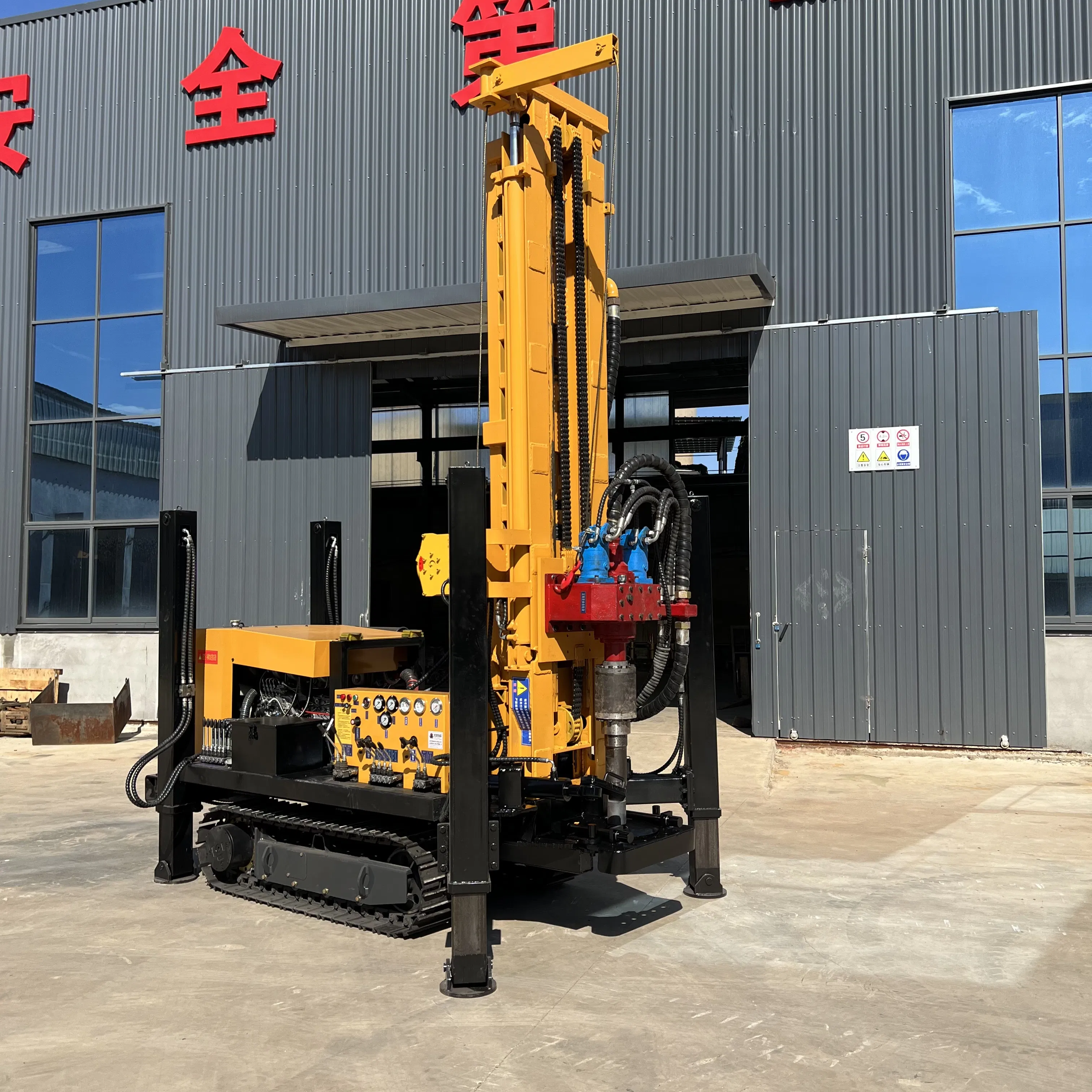

Powerful Heavy-Duty Water Well Drilling Equipment for Deep Excavation/Water Well Drilling Machine

After-sales Service:	Online Guidance/Installation and Commissioning Ser
Warranty:	1year
Certification:	CE, RoHS, ISO 9001:2000, ISO 9001:2008

Send Inquiry

Product Description

Basic Information

Model NO.GKL300

ConditionNew

MotorDiesel Engine

Drill Hole Diameter138-400mm

Drill Hole Depth400m

Drilling WayImpactor

Engine Power85kw

Rig Lifting Force19t

TypeFour-Wheel trailer / Crawler

Weight5200kg

HS Code8430412900

Capacity200 Units/Year

High-Performance Water Well Drilling Rig

Introducing the Versatile Water Well Drilling Rig: a powerhouse machine equipped with a mighty 85kw engine and an impressive 3.5-6.6m reach. Crafted with precision, this marvel of engineering is designed to excel in a wide array of applications, from water well drilling to general surveys, geophysical explorations, and construction investigations. Its outstanding capability extends to precision blasting hole projects, showcasing unparalleled expertise and versatility.

Step into the future of drilling technology with our cutting-edge water well drilling rig. This lightweight, efficient, and multifunctional masterpiece is tailored to meet the demands of industrial, civil, and geothermal drilling. With its remarkable large diameter capabilities, deep drilling potential, and swift progress, this rig is engineered to exceed your expectations.

Technical Specifications

Technical Parameters	Numerical Value	Technical Parameters	Numerical Value
The weight (T)	5.2	Air consumption (m³/min)	18-33
Hole diameter (mm)	138-300	Drill pipe diameter (mm)	φ89 φ102
Drill depth (m)	300	Drill pipe Length (m)	1.5/3.0
One-time advance length (m)	3.5	Rig lifting force (T)	19
Walking speed (km/H)	2.5	Swing speed (RPM)	40-80
Gradeability (Degree)	30	Swing torque (Nm)	5500-7500
Engine power (kw)	85	Dimension (LWH)	420019502600
Working pressure (Mpa)	1.8-3.0	Type	Crawler

Core System Features

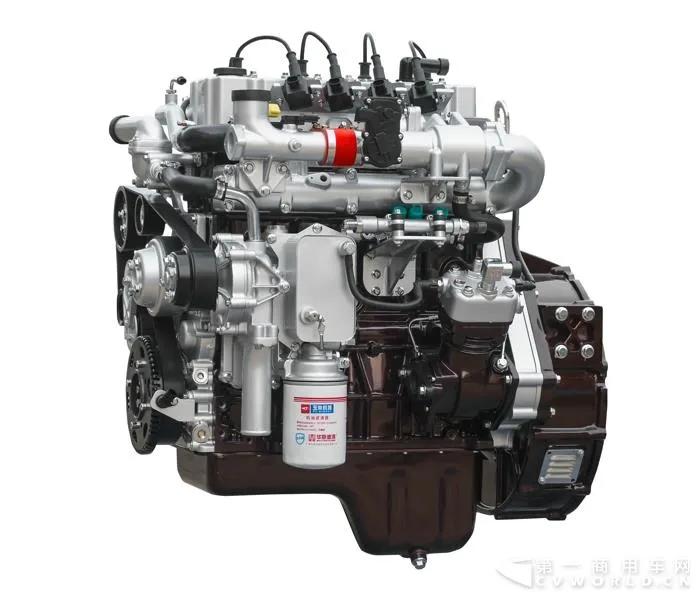

Powerful Power System

Features a high-performance diesel engine with 85kw of power, ensuring unmatched reliability. It easily conquers challenging environments, delivering steadfast and highly efficient performance.

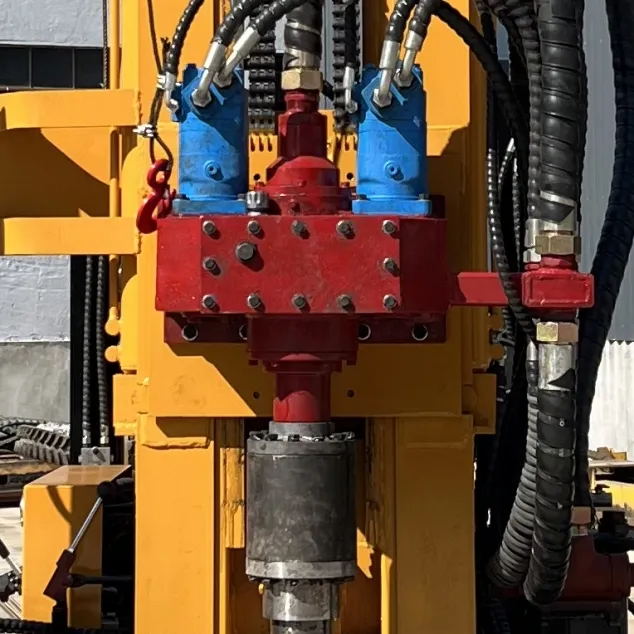

Dual-Pump Hydraulic Motor

Advanced dual-pump hydraulic system and cutting-head motors work in perfect harmony, ensuring optimal torque output and accelerating the drilling process.

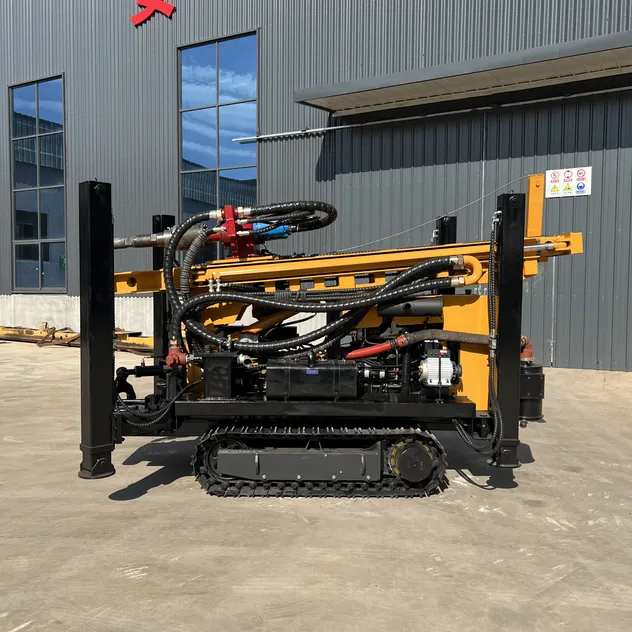

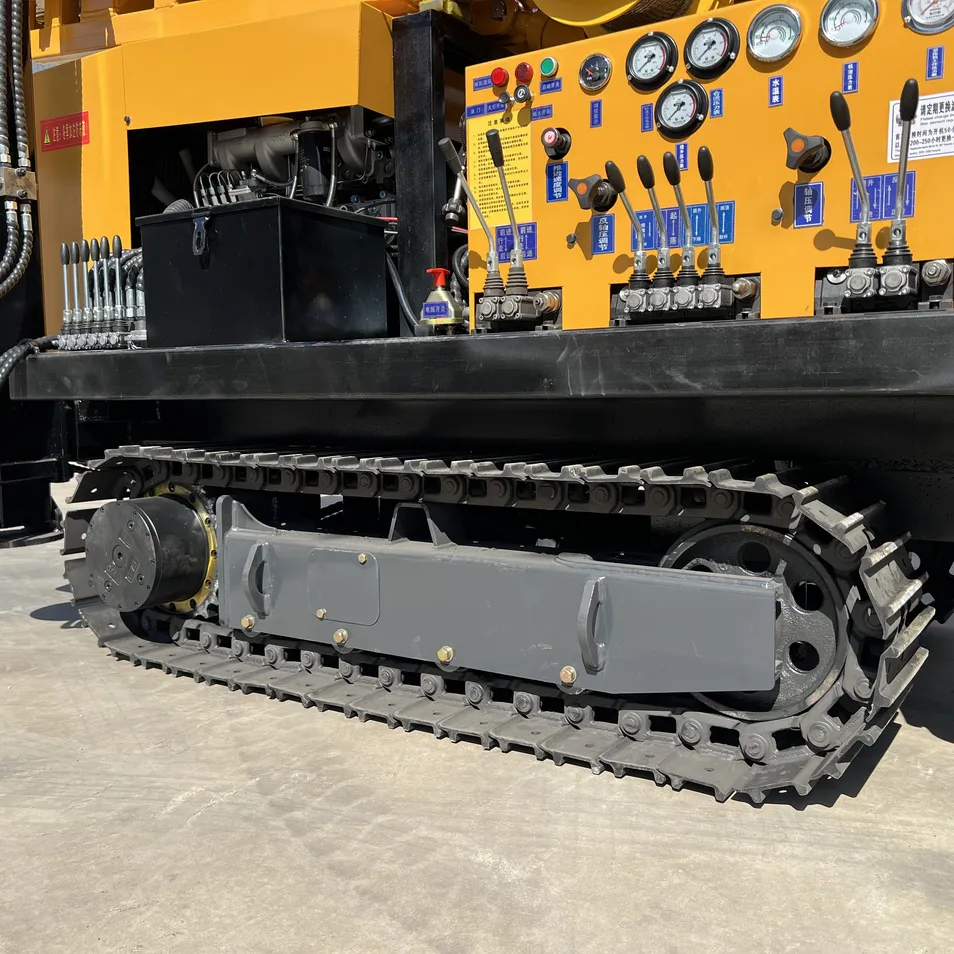

Sturdy Chassis & Tracks

Robust steel crawler tracks engineered for exceptional load-bearing, anti-slip, and wear-resistance, providing stability across complex terrains.

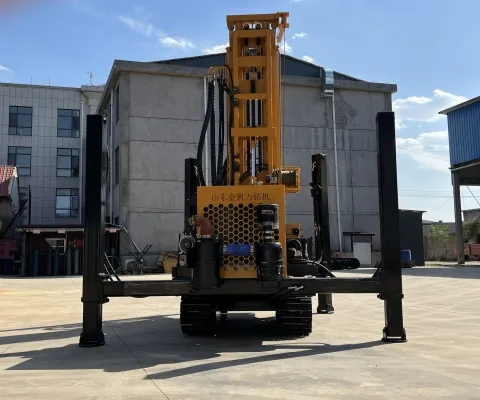

Retractable Hydraulic Legs

Equipped with four individually controllable hydraulic outriggers to navigate complex ground conditions and achieve optimal drilling accuracy.

Composite Tower

Crafted from high-strength steel, with standard 4-meter height and optional configurations up to 6.6 meters to meet specific site needs.

Service & Support

Why Choose Us?

OEM/ODM capabilities available.
Competitive pricing & bulk discounts.
Fast shipping & customs clearance support.
Comprehensive Turnkey Project Solutions.
Expert maintenance and standardized operation services.

Frequently Asked Questions

What is the maximum drilling depth of the GKL300?

The standard drilling depth is 300 meters, but it can reach up to 400 meters depending on geological conditions and configuration.

What type of engine powers this rig?

It is powered by a high-performance 85kw diesel engine, designed for heavy-duty industrial and civil applications.

Does the rig support both air and mud drilling?

Yes, it is a pneumatic drilling machine that integrates with an air compressor and offers options for mud and foam pump enhancements.

Is the tower height adjustable?

The tower comes with a standard height of 4 meters, with optional configurations of 5 meters and 6.6 meters available upon request.

Can this machine handle complex terrains?

Absolutely. The robust steel crawler tracks and four hydraulic outriggers provide exceptional stability and maneuverability in various challenging environments.

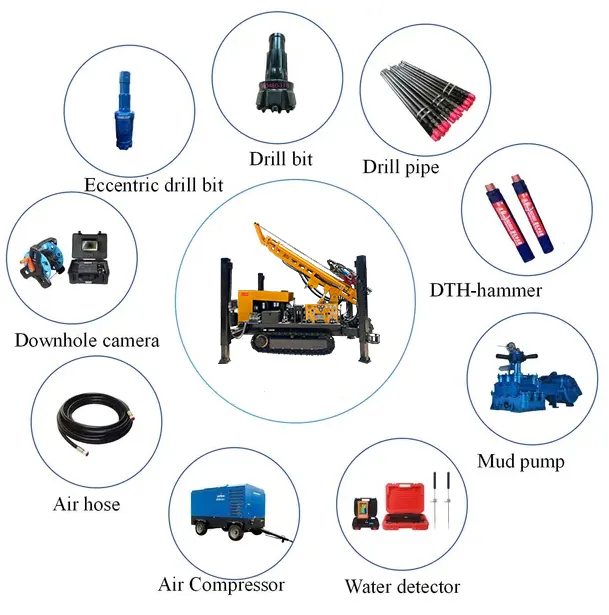

What drilling tools can be used with this rig?

It supports a wide range of tools, including DTH hammers, various rock drill bits, cone drill bits, and standard drilling rods.
