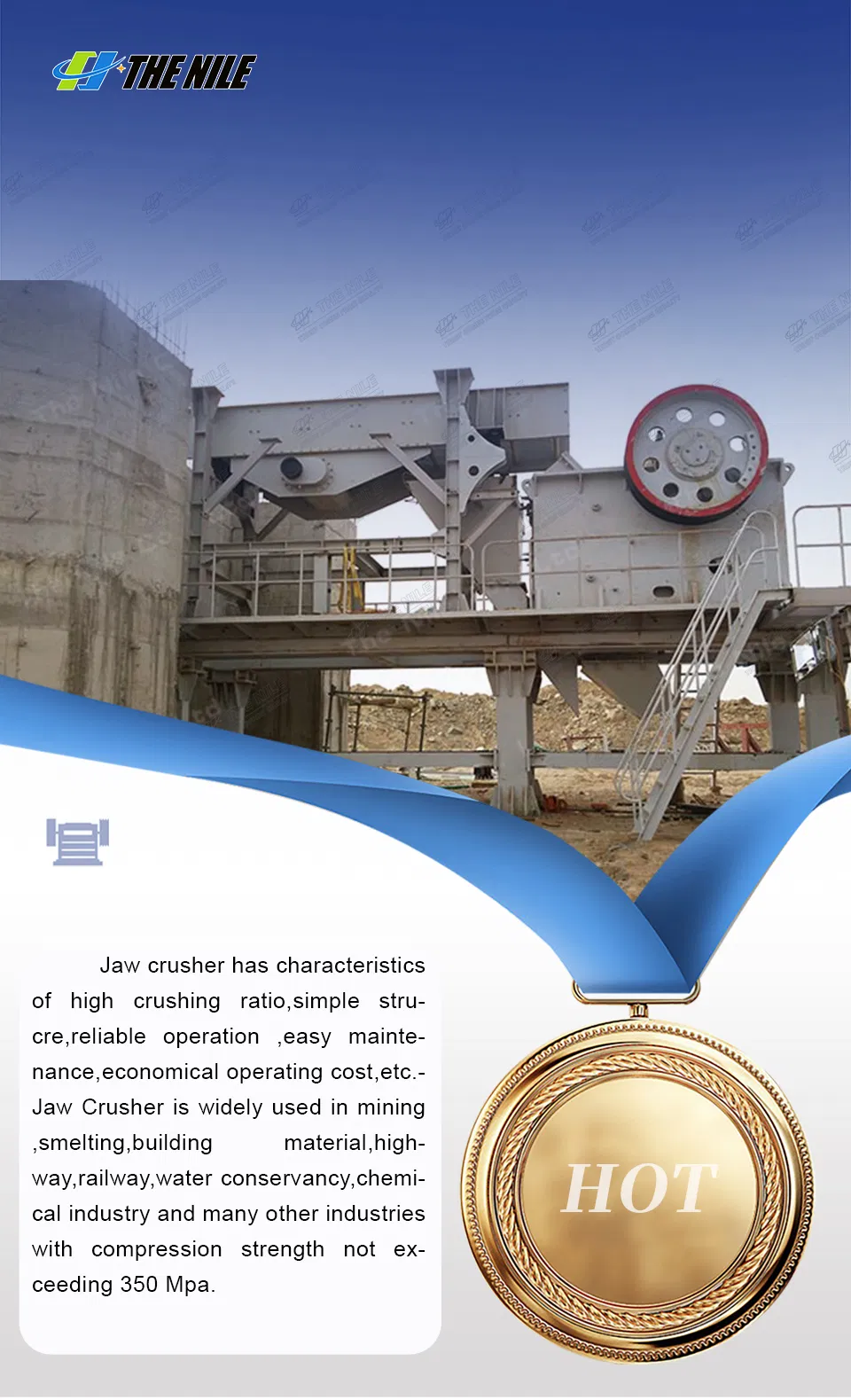

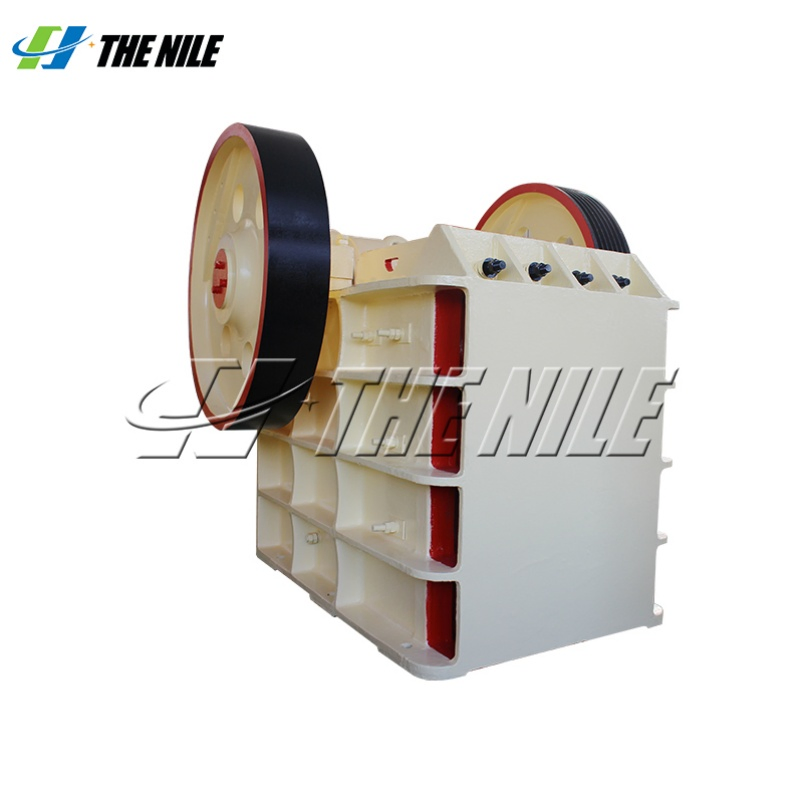

Jaw crusher has characteristics of high crushing ratio, simple structure, reliable operation, easy maintenance, and economical operating cost. It is widely used in mining, smelting, building material, highway, railway, water conservancy, chemical industry and many other industries with compression strength not exceeding 350 Mpa.
⚙ Structure & Working Principle

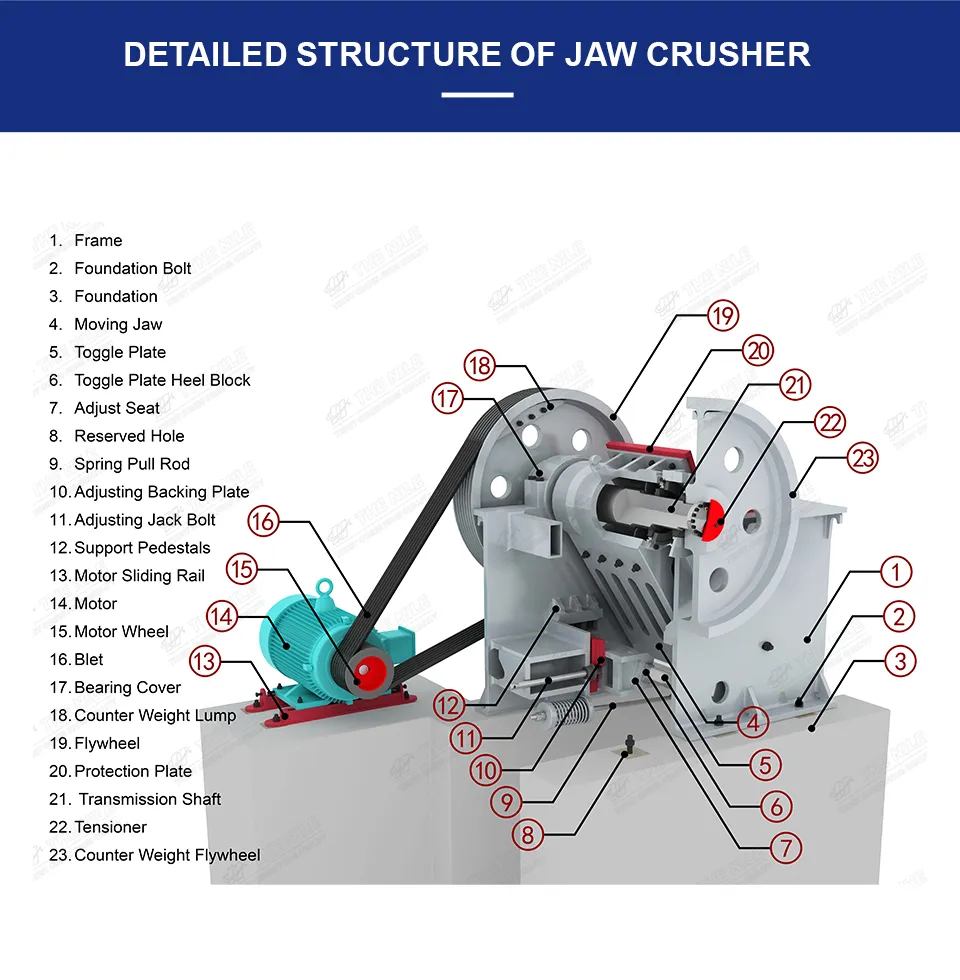

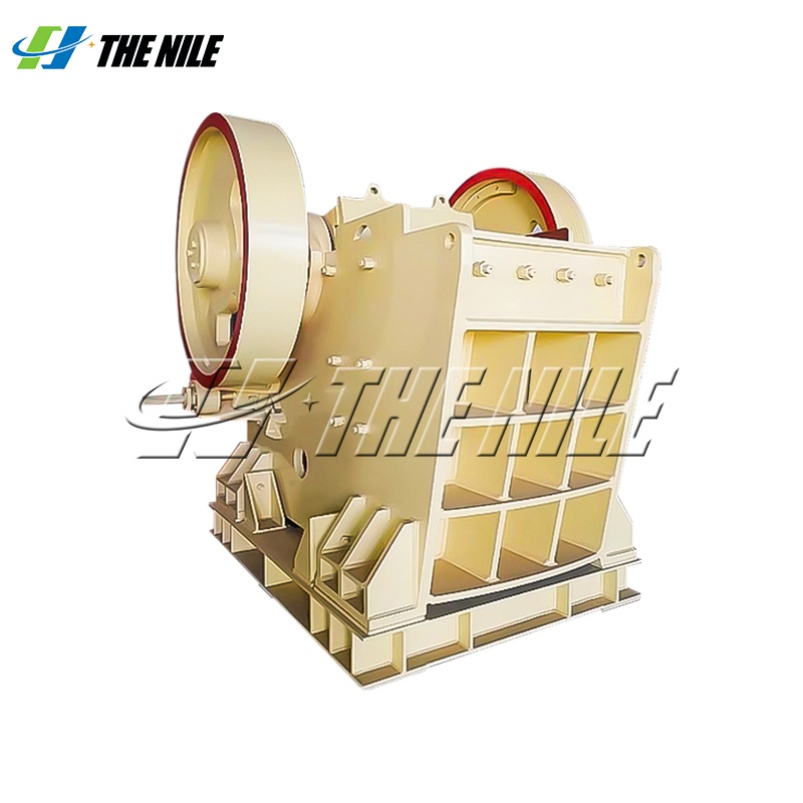

Detailed Structure: The jaw crusher consists of core components such as frame, eccentric shaft, large pulley, flywheel, movable jaw, side guard plate, toggle plate, and more.

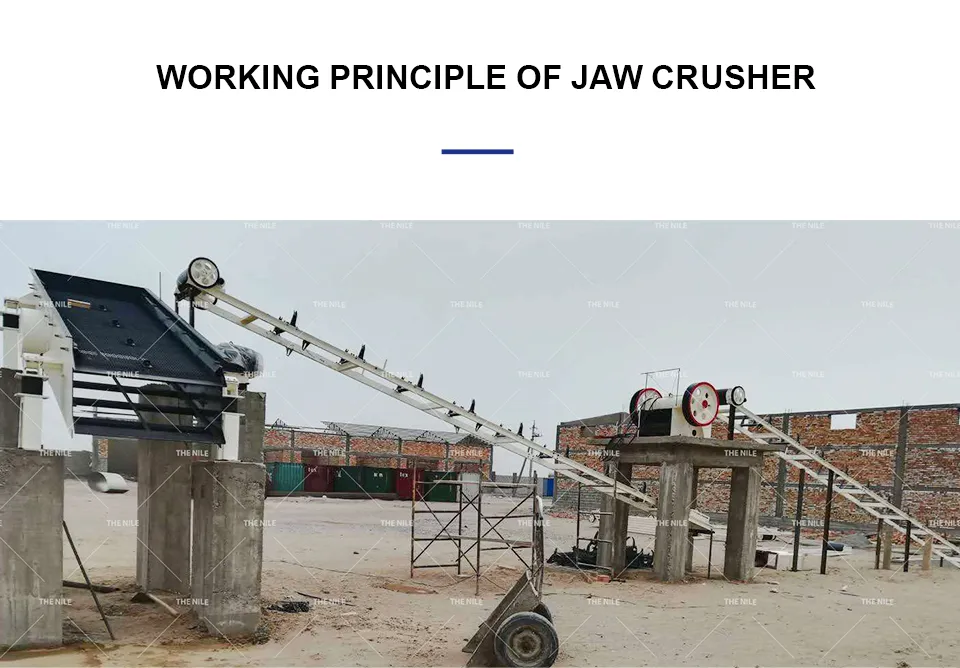

Operation Principle: An electric motor drives a belt and pulley, moving the eccentric shaft to cycle the movable jaw up and down. As it ascends, the angle between the toggle plate and movable jaw increases, pressing the jaw plate against the fixed plate to crush the material. As it descends, the material is discharged through the lower opening.
💻 Technical Parameters
Model
Max. Feeding (mm)
Discharging Size (mm)
Capacity (t/h)
Motor Power (kw)
Weight (t)
PE150*250
125
10-40
1-3
5.5
0.7
PE250*400
210
20-60
5-20
15
2.8
PE400*600
340
40-100
16-60
30
7
PE600*900
500
65-160
50-180
75
17
PE750*1060
630
80-140
110-320
90
31
PE900*1200
750
95-165
220-450
160
52
PE1200*1500
1020
150-350
400-800
220
93
PEX250*1000
210
15-60
16-52
37
7
🌐 Project Case Studies

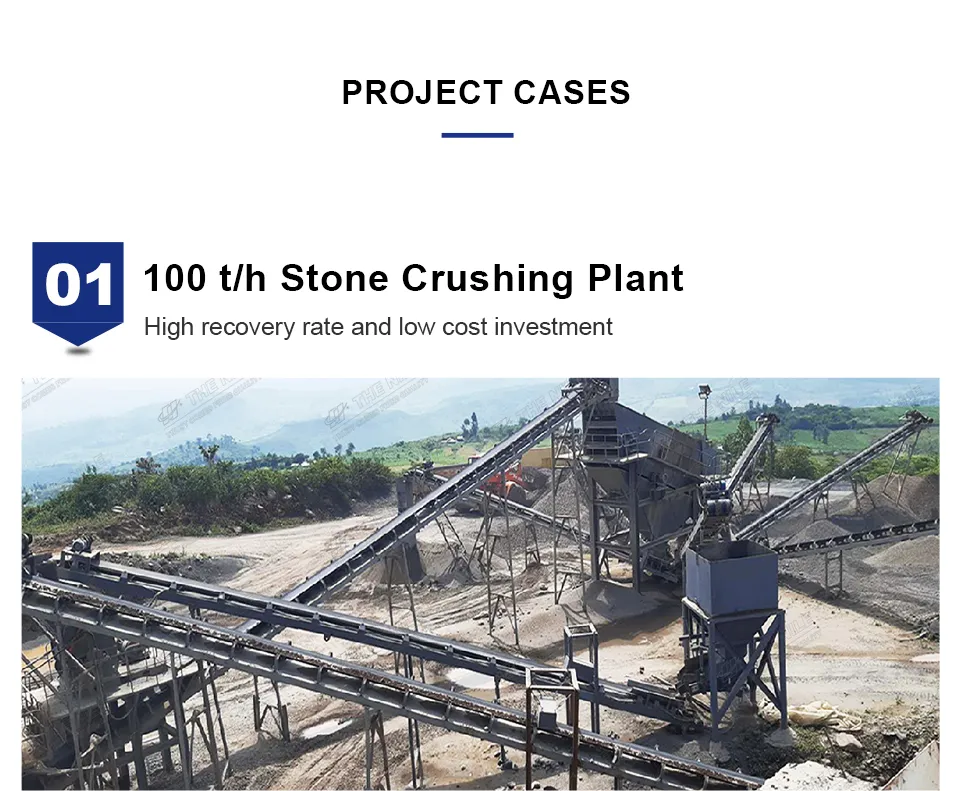

✔ 100t/h Stone Crushing Plant
Designed for a Southeast Asian project, this line features a high-performance jaw crusher as the primary stage. By utilizing a thickened frame and high-manganese steel jaw plates, we significantly improved wear resistance and production stability.

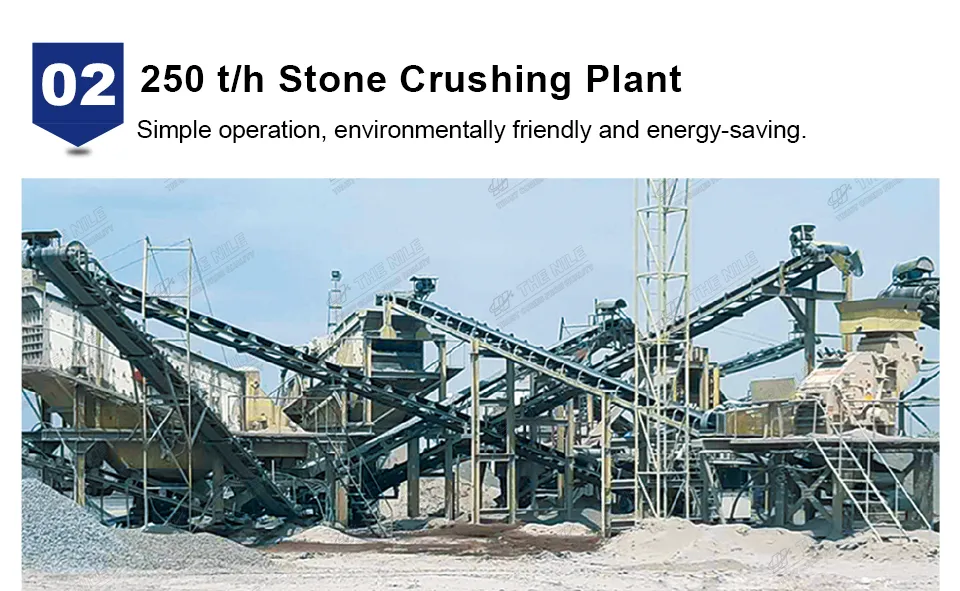

✔ 250t/h Granite Crushing Line
This project focuses on granite and hard ores. Combined with cone crushers and vibrating screens, the jaw crusher ensures uniform particle size. Energy consumption was reduced by approximately 15% through optimized eccentric shaft speeds.

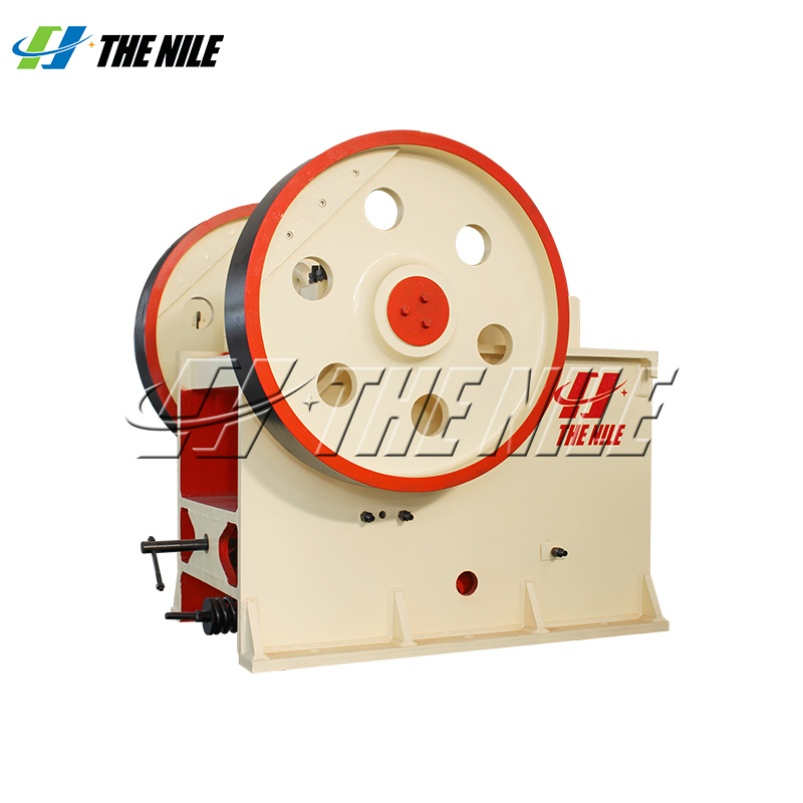

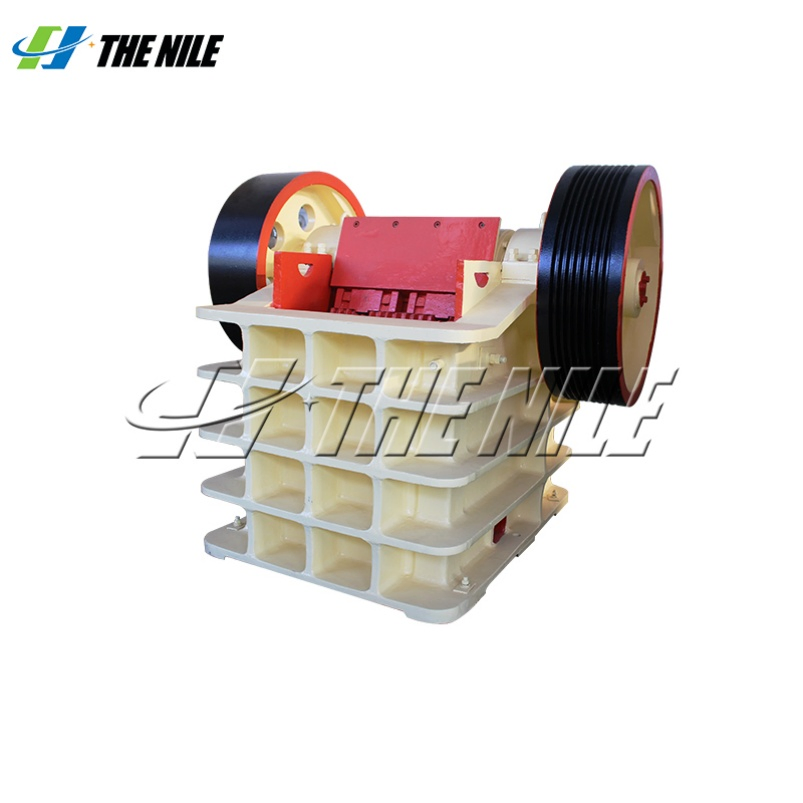

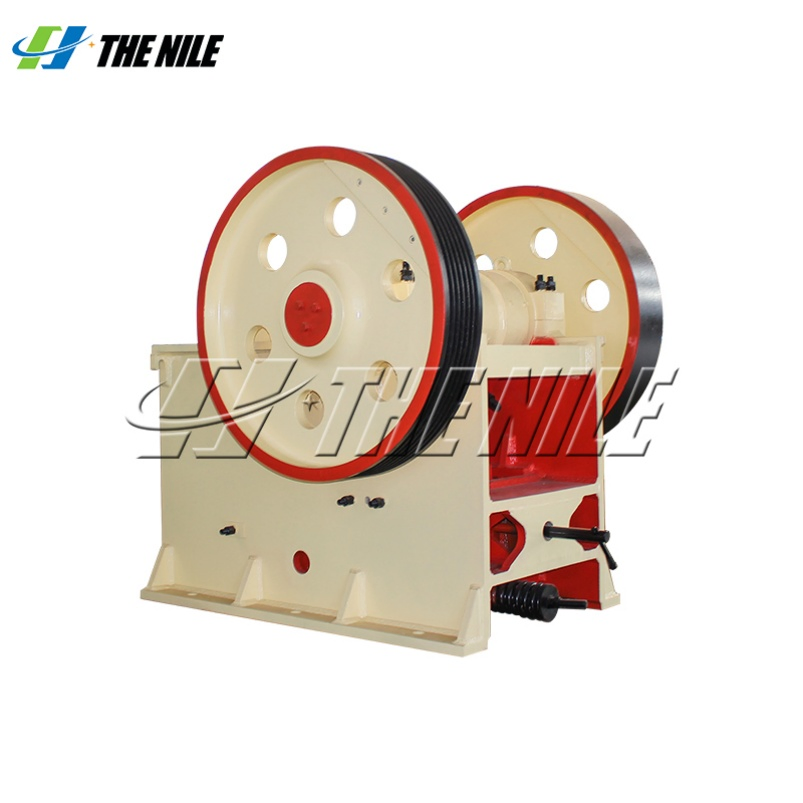

📷 Equipment Gallery
🎥 Operation Video
❓ Frequently Asked Questions
Q: What materials are suitable for the PE series jaw crusher?
A: It is designed for hard and medium-hard rocks and ores with a maximum compressive strength of 320-350 MPa, such as granite, basalt, and limestone.
Q: What is the typical warranty period for your mining machinery?
A: We provide a standard 2-year warranty on our jaw crushers, ensuring long-term reliability and peace of mind for our clients.
Q: Can the discharging size be adjusted?
A: Yes, the outlet size is customizable to meet specific project requirements for final product gradation.
Q: Do you provide installation and technical support?
A: Absolutely. We provide on-site equipment installation guidance, testing, technical training, and ongoing operational support.
Q: How does the energy-saving design benefit the operation?
A: Our optimized design can reduce energy consumption by approximately 15% while maintaining or increasing production capacity compared to traditional models.
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is 1 unit, making it accessible for both small-scale pilots and large industrial plants.
