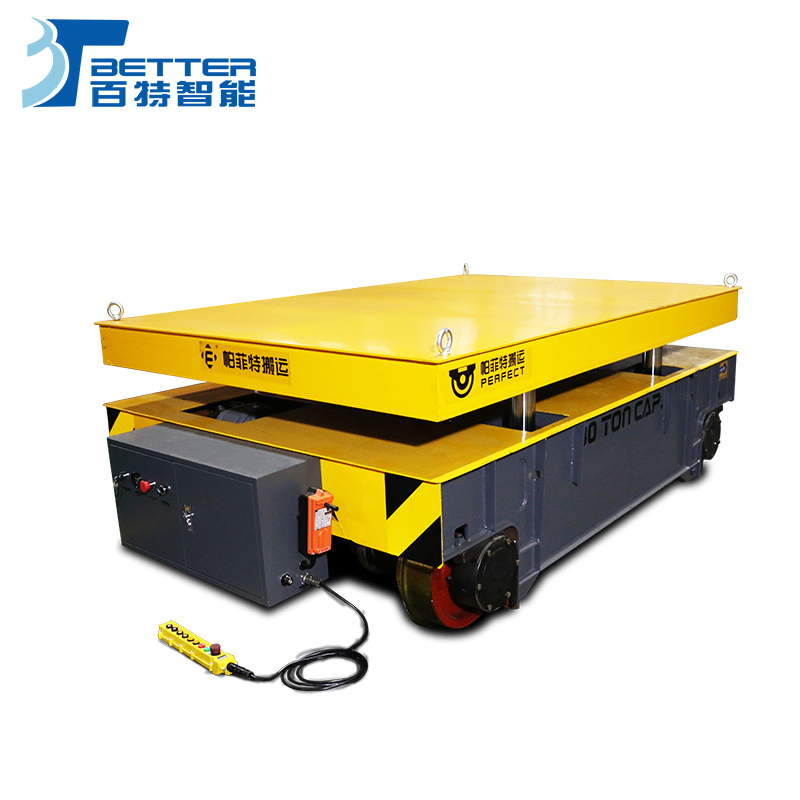

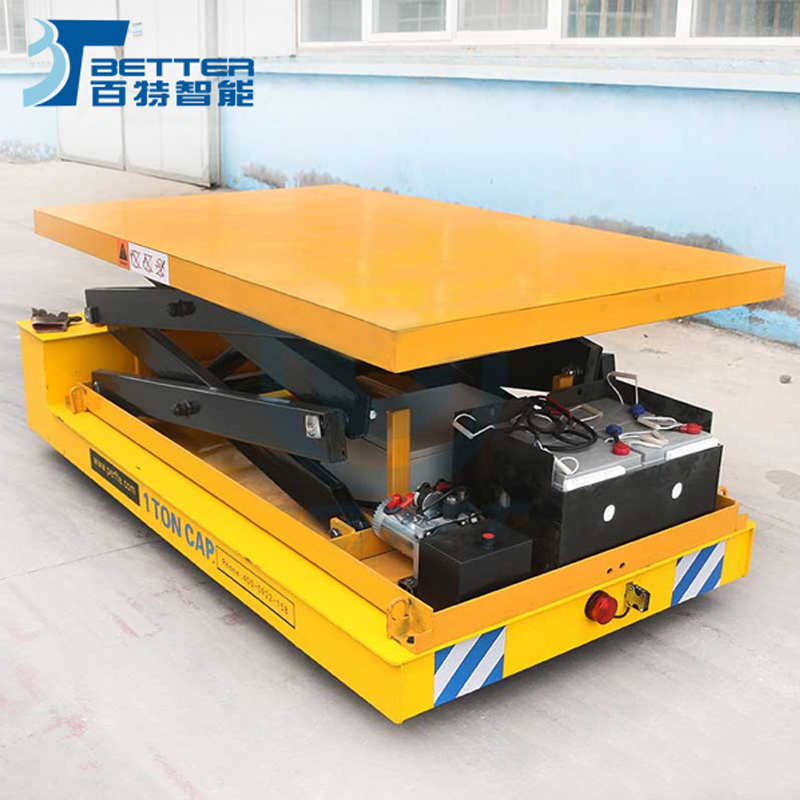

Factory Use Electric Material Handling Transfer Equipment with Hydraulic Lift

Customization:	Available
Color:	Customized
Warranty:	2 Years

📋

Basic Product Information

Model NO.

BXC

Product Name

Battery-Power Transfer Cart

Usage

Heavy Duty Material Transportation

Load Capacity

1-300ton

Special Function

Anti-Explosion, Heat-Resistant, Lifting, Customized

Material

Steel

Control Mode

Pendant/Remote/PLC Control

HS Code

84289090

Production Capacity

50 Sets/Month

Package Size

2000.00cm * 200.00cm * 100.00cm

⚙️

Product Description

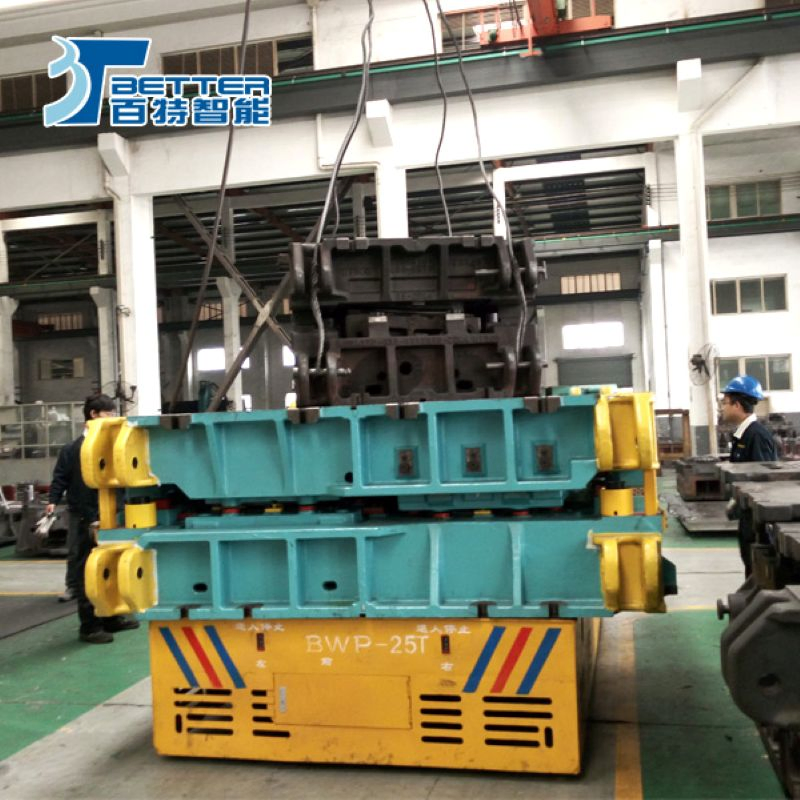

The electric handling transfer equipment is designed for factory use, with a load capacity up to 300 tons. It is widely utilized for transporting heavy-duty cargo and materials across various industrial environments.

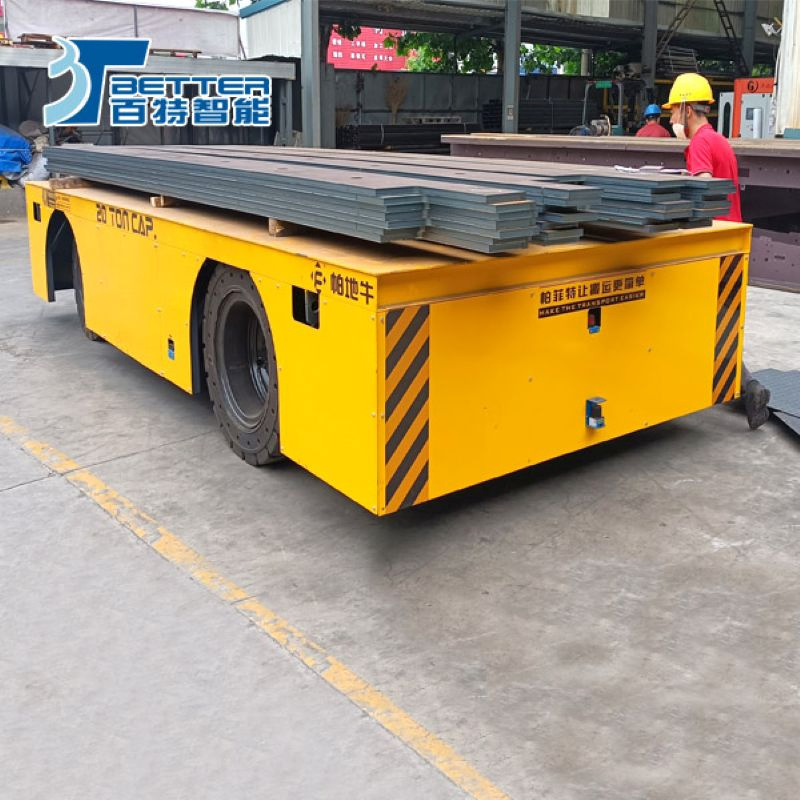

These units can operate efficiently on rails or concrete floors, depending on your specific workspace requirements. Unlike rail-guided equipment that requires fixed track routes, the trackless electric transport system offers superior flexibility. It features a small turning radius, allowing it to change directions easily in confined or narrow spaces.

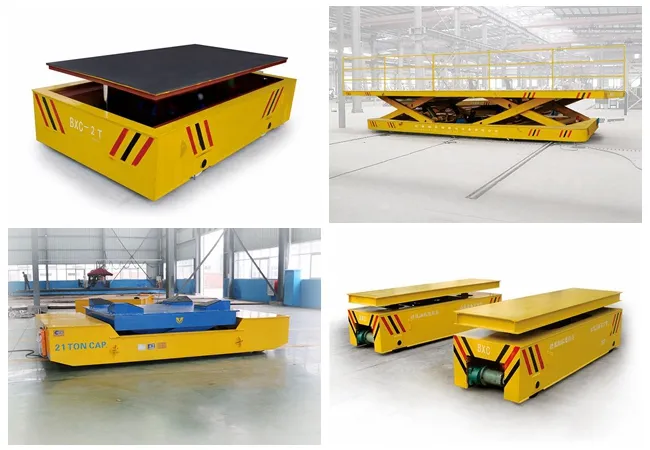

Customizable options include hydraulic lift systems, V or U-shaped table tops, anti-explosion features, and heat-resistant configurations to meet specialized task demands.

Electric Material Handling Transfer Equipment

📸

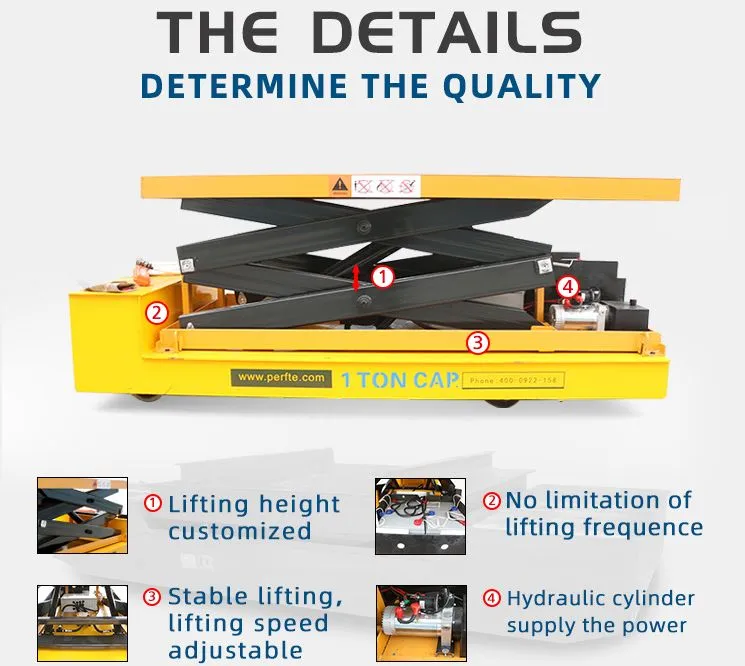

Detailed Photos

📊

Technical Parameters

Model (BXC)	2t	10t	20t	30t	50t	80t	100t	150t
Rated Load (t)	2	10	20	30	50	80	100	150
Length (mm)	2000	3600	4000	4500	5500	6000	6500	10000
Width (mm)	1500	2000	2200	2200	2500	2600	2800	3000
Height (mm)	450	500	550	600	650	800	900	1200
Wheel Diameter (mm)	270	300	350	400	500	600	600	600
Running Speed (m/min)	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-18
Battery Capacity (Ah)	150	180	220	260	330	400	440	600
Battery Voltage (V)	48	48	48	48	48	72	72	72

🏭

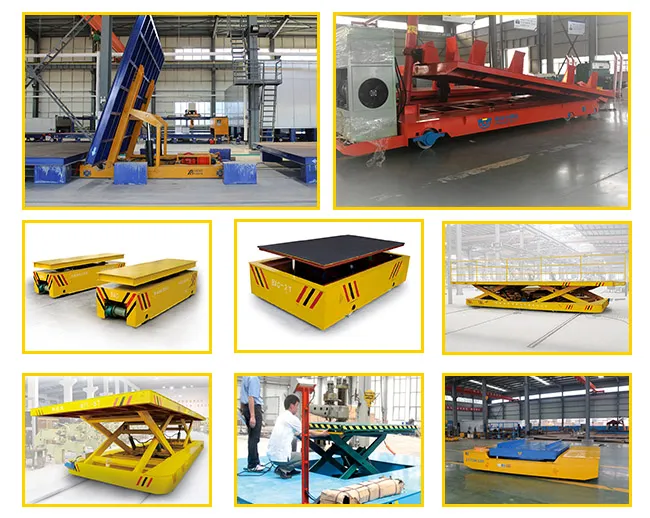

Industrial Application

Ideal for Steel Industries, Factories, and Warehouses. This equipment supports a variety of specialized handling tasks:

✅

Core Advantages

🔹Low Noise: Operates at a minimal sound level, improving the workspace environment.
🔹Maximum Safety: Built with integrated safety features to protect both operators and cargo.
🔹Easy Operation: User-friendly controls allow for quick deployment with minimal training.
🔹No Complex Installation: Operates on standard factory floors without requiring permanent modifications.
🔹High Capacity: Modular design supports payloads ranging from small loads up to 300 tons.

🚢

Packaging & Shipping

We ensure secure transportation based on the equipment dimensions:

📦Length < 6m, Width < 2.2m: Transported via 20ft container.
📦Length 6-12m: Transported via 40ft container or flat rack if width exceeds 2.2m.
📦Single units may be shipped via LCL; multiple units are shipped via FCL.

📜

Certifications

❓

Frequently Asked Questions

Q1: What are the primary advantages of using a transfer cart over a forklift? Transfer carts are more affordable for heavy loads, have a compact design for limited spaces, and can be customized with specific deck fixtures for unique cargo, unlike standard lift trucks.

Q2: Can the transfer cart handle outdoor terrain? Yes, the trackless version is suitable for both indoor and outdoor concrete floors. For unpaved or irregular surfaces, specialized wheel configurations can be provided.

Q3: How long can the battery operate on a single charge? Under full load, the cart typically operates for 3 to 5 hours of continuous movement, covering a distance of approximately 4 to 8 kilometers depending on the model.

Q4: What safety features are included in the transfer cart? The equipment includes emergency stop buttons, audible/visual alarms, and optional obstacle detection sensors to ensure a safe working environment.

Q5: Can the deck size be customized for oversized materials? Absolutely. Table dimensions (Length, Width, and Height) are fully customizable to accommodate specific loads like steel coils, large tanks, or sub-assembly fixtures.

Q6: What information is needed for a custom quote? To provide an accurate solution, please provide the load weight, material dimensions, travel distance, trip frequency per shift, and the type of floor (rail or concrete).
