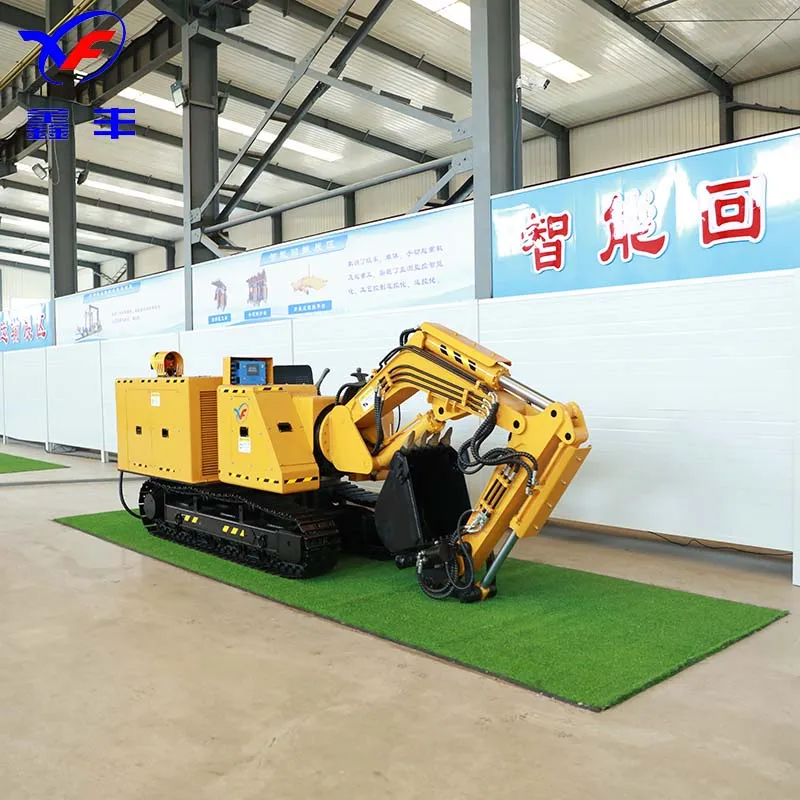

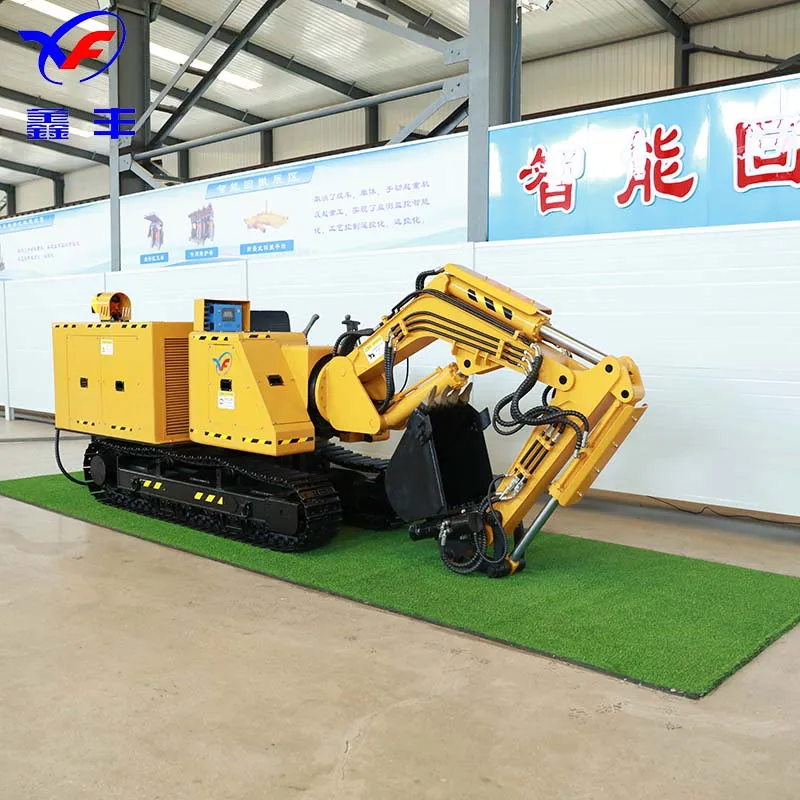

Prizor Excavator
1 / 5
| Item | Model: MWD6.1/0.13L | Unit |
|---|---|---|
| Track Ground Pressure Ratio | ≤0.0064 | Mpa |
| Rated Pressure | 24.5 | Mpa |
| Travel Speed | 17 | m/min |
| Ground Clearance | ≥210 | mm |
| Climbing Ability | 15 | ° |
| Travel Force | ≥30 | KN |
| Bucket Capacity | 0.13 | m3 |
| Digging Radius | ≥4300 | mm |
| Digging Height | ≥3180 | mm |
| Unloading Height | ≥1900 | mm |
| Digging Depth | ≥1040 | mm |
| Slewing Speed | 9 | r/min |
| Dimensions (L×W×H) | 5560x1150x2142 | mm |
| Total Weight | 6100 | KG |
1. Professional Training: Operators must be professionally trained and hold valid licenses. Operation without a license is strictly prohibited.
2. Pre-use Inspection: It is mandatory to check all systems and equipment for normal operation before starting official tasks.
3. Site Safety: Ensure the operating foundation is stable with no risk of landslides. Keep all personnel outside the machine's operating radius.
