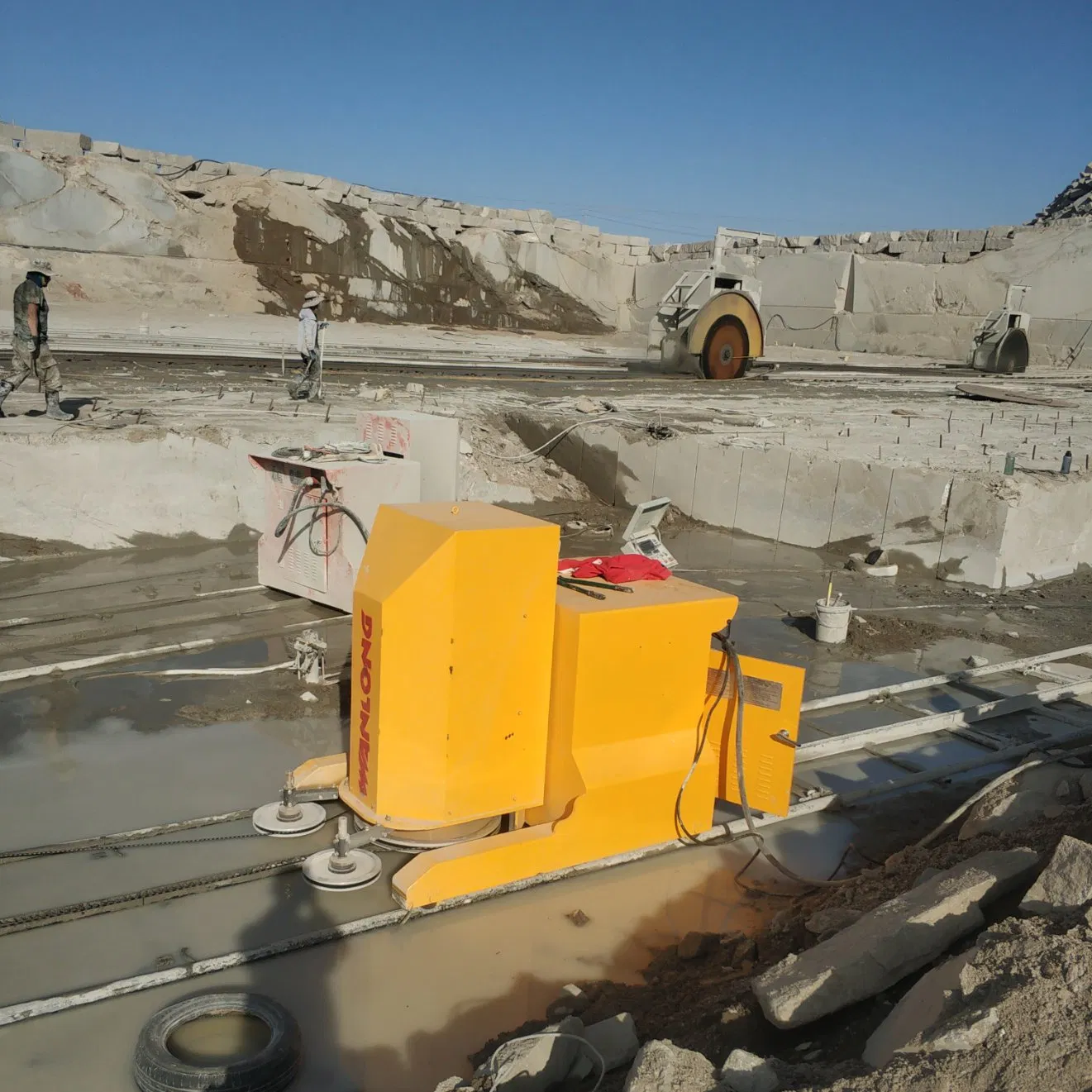

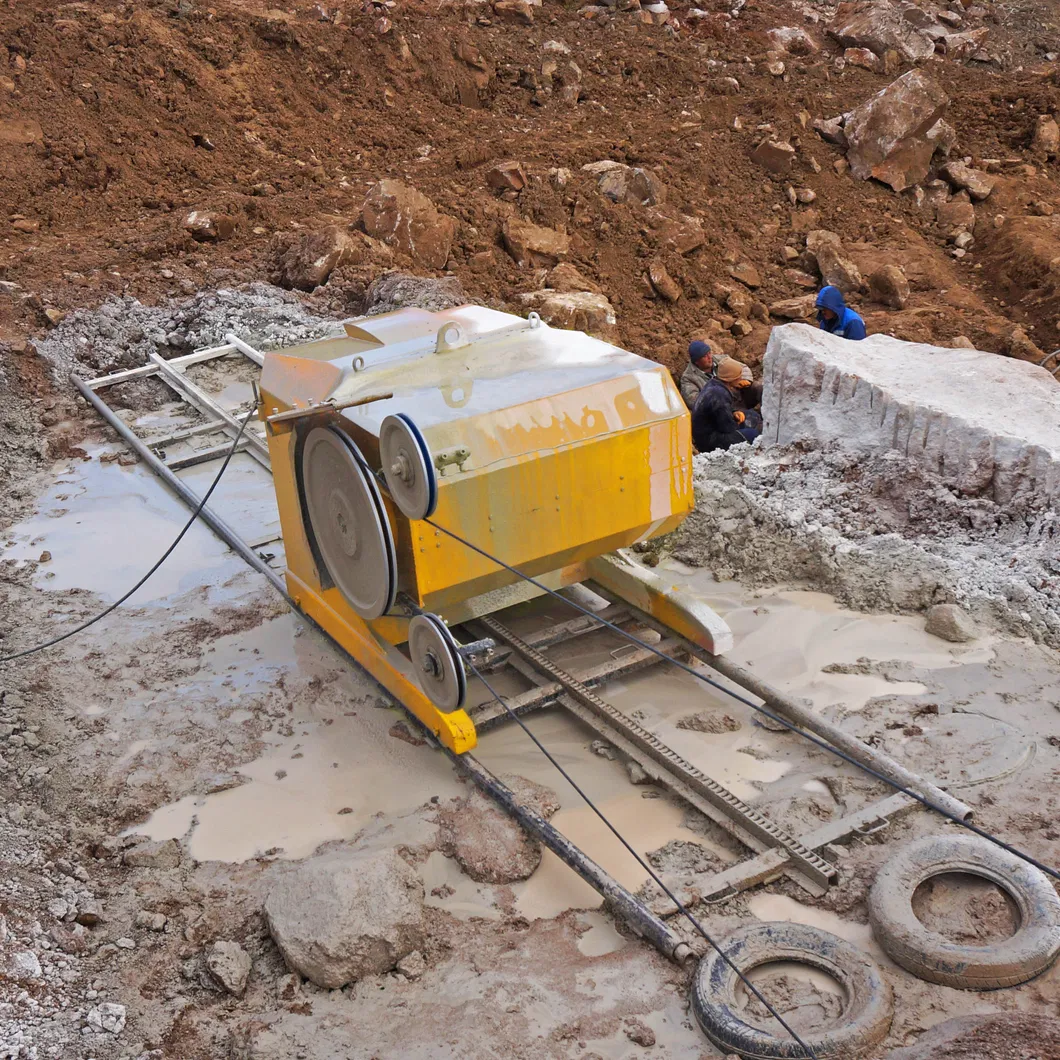

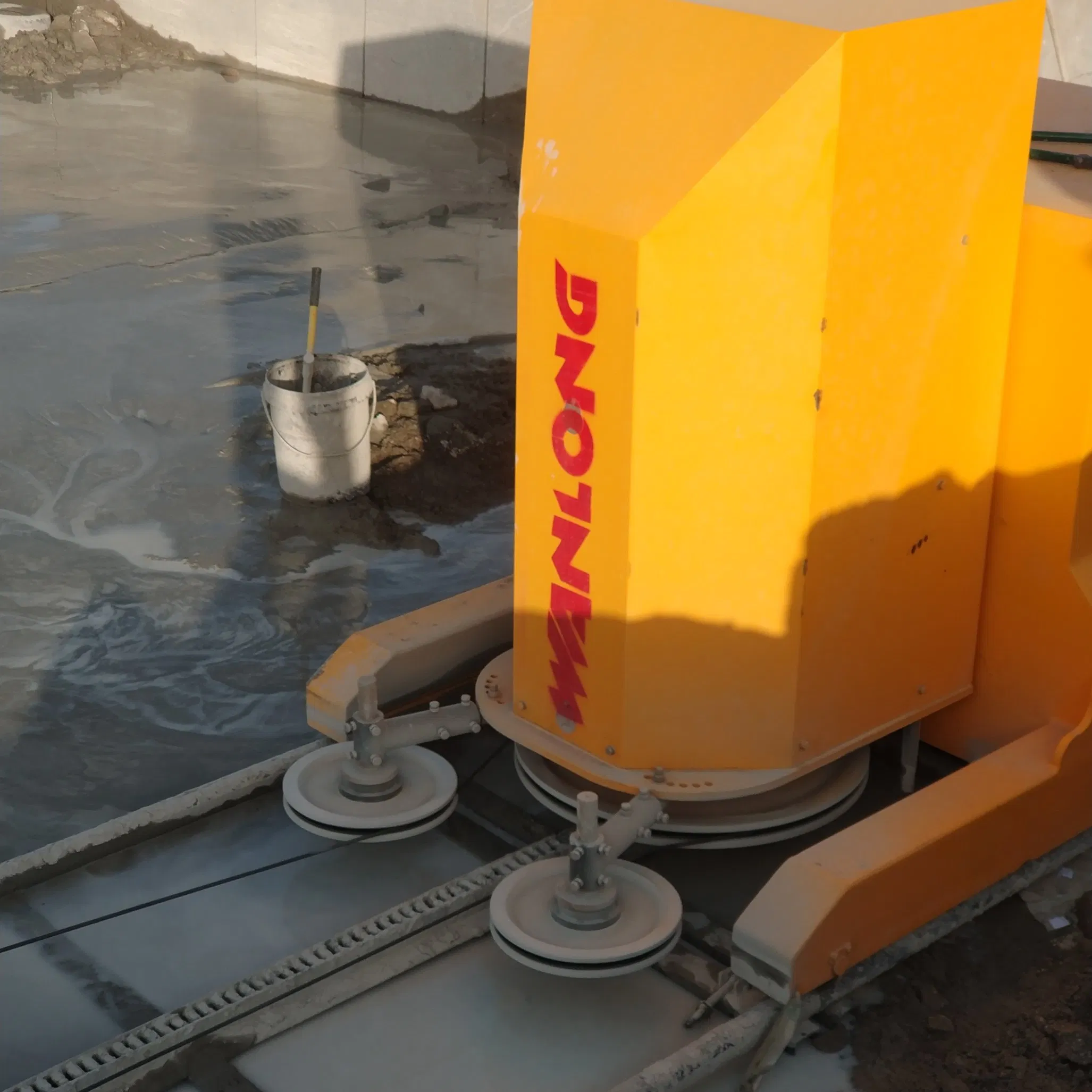

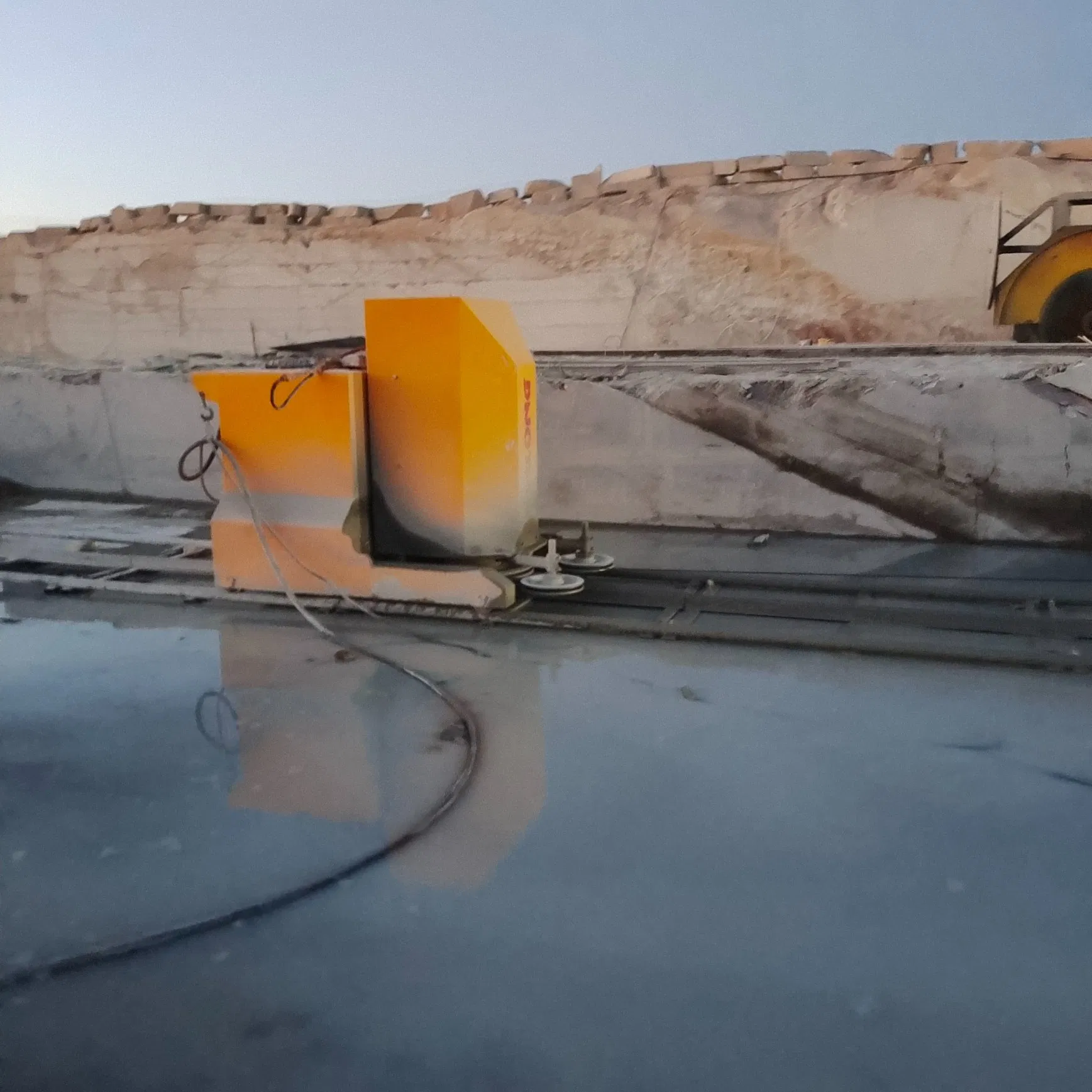

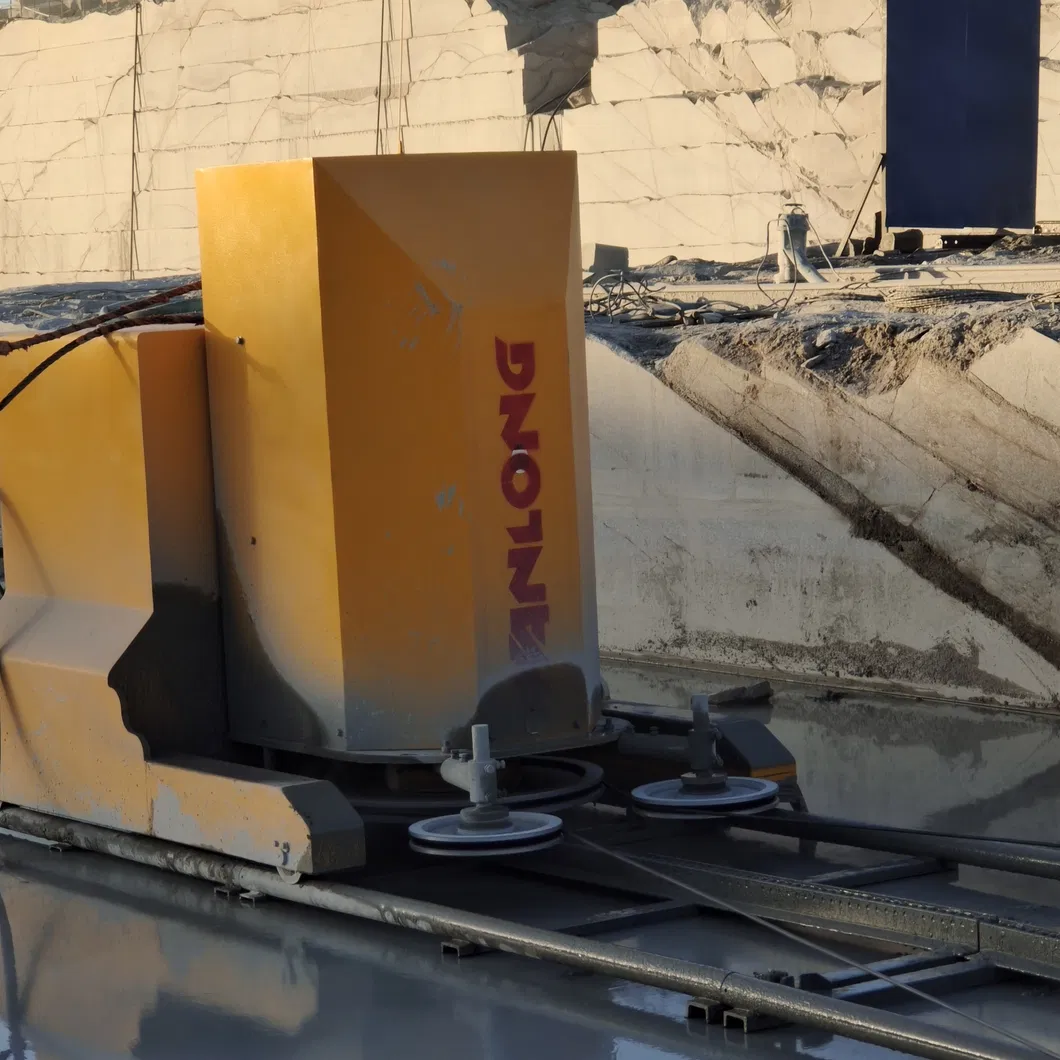

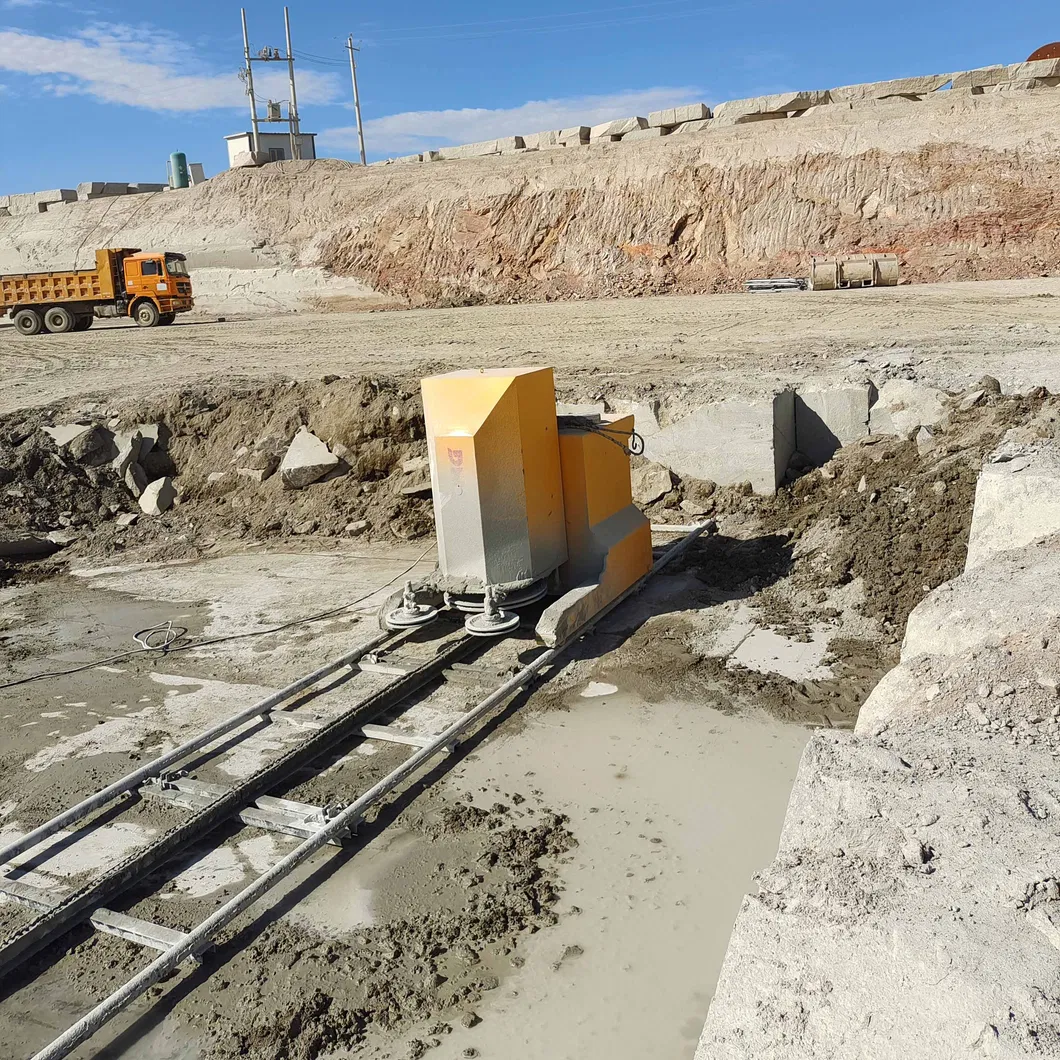

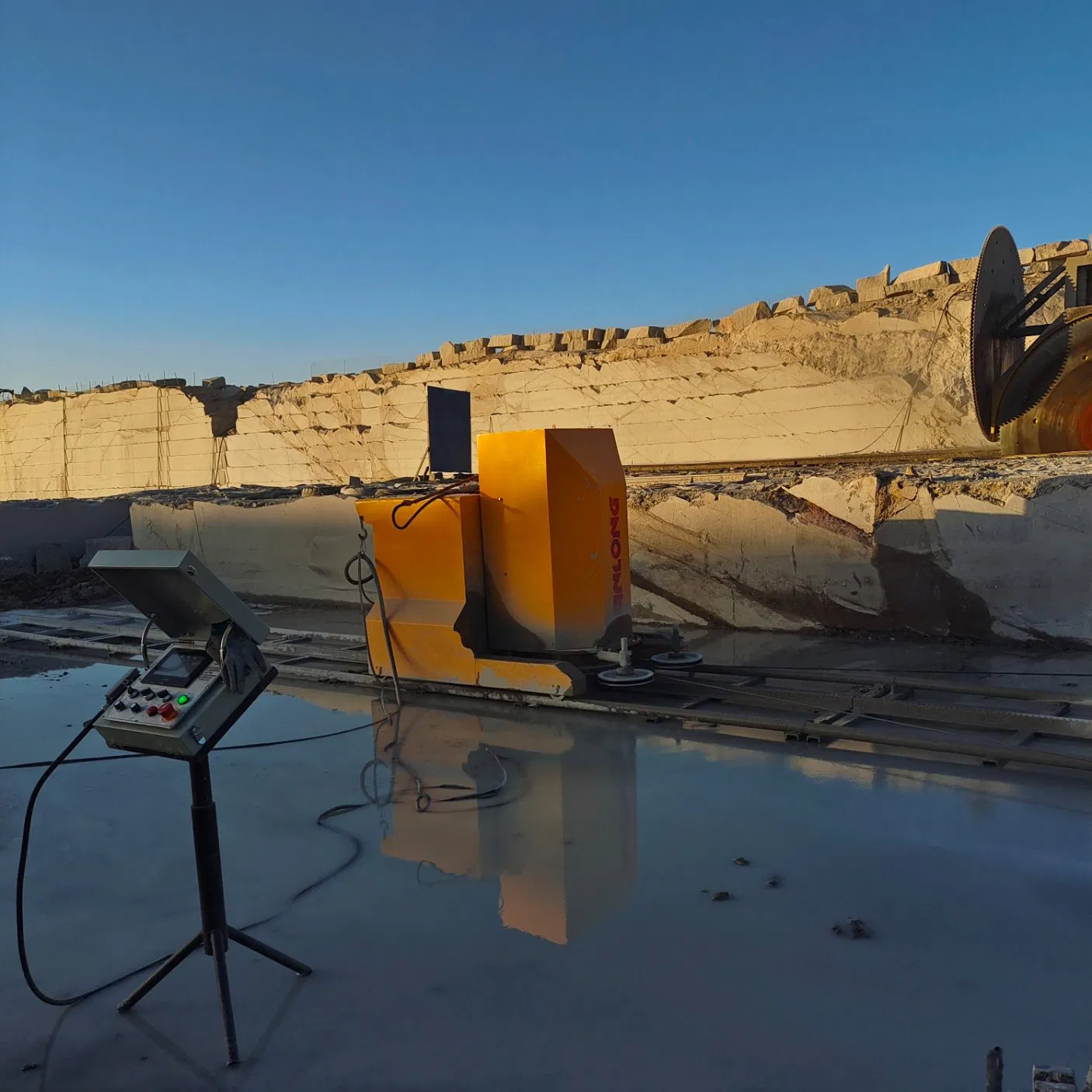

Diamond Wire Saw Machine Granite Marble Block Quarry Stone Cutting Machine:
The machine adopts the combination of Permanent Magnetic Synchronous Motor (PMSM) and Permanent Magnetic Synchronous drive, applying the principle of constant tension control. It automatically adjusts the traveling speed based on the cutting force, ensuring the wire saw remains in the optimal cutting state.
Compared to ordinary asynchronous motors, its energy consumption is reduced by over 30%, while cutting efficiency is improved by more than 50%. It supports low-speed starts with constant torque, making it both labor-saving and safe.
Smart Monitoring: The machine can be equipped with a network module connected via 4G, WIFI, or network cable. Operators can remotely control and monitor the equipment through a mobile APP or computer webpage via a cloud platform.
| Technical Specifications | |
|---|---|
| Model | KSJ-65 |
| Cutting Material | Block, Quarry, Granite |
| Main Motor Power | 65KW |
| Flywheel Diameter | Φ800mm |
| Head Rotation Degree | 0-360° |
| Max. Wire Saw Length | 20-120 meters |
| Main Flywheel Linear Speed | 0-31.4 m/s |
| Cutting Speed | 0-138 m/h |
| Max. Lateral Cutting Distance | 2000mm |
| Machine Walking Speed | 0-90m/h |
| Rail Length | 2m * 4 |
| Working Temperature | -15ºC ~ +40ºC |
| Net Weight | 3.5T |
