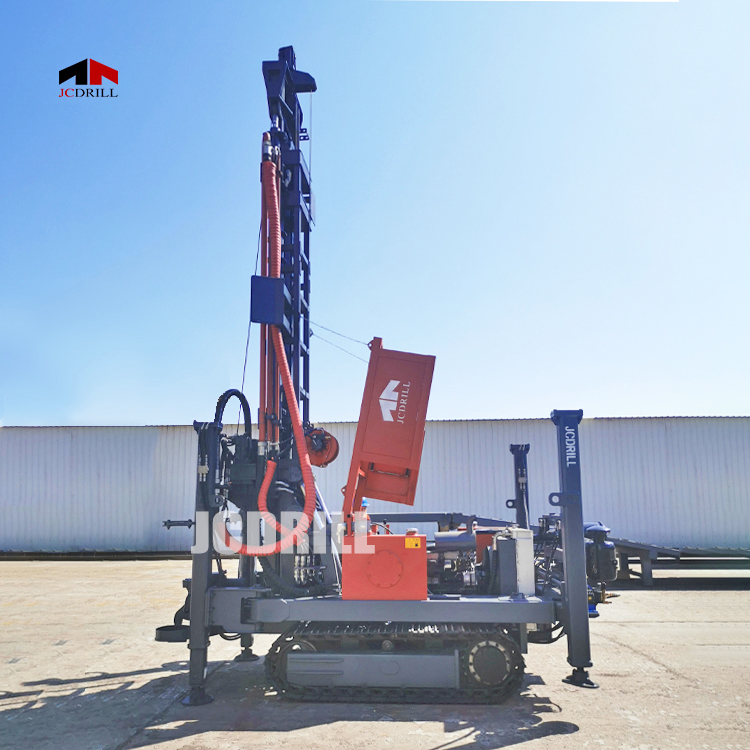

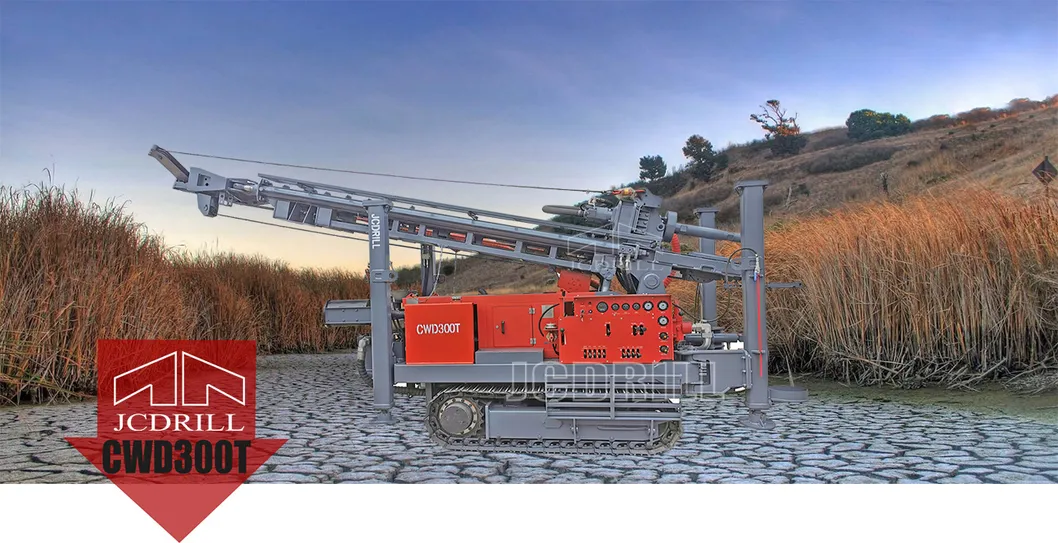

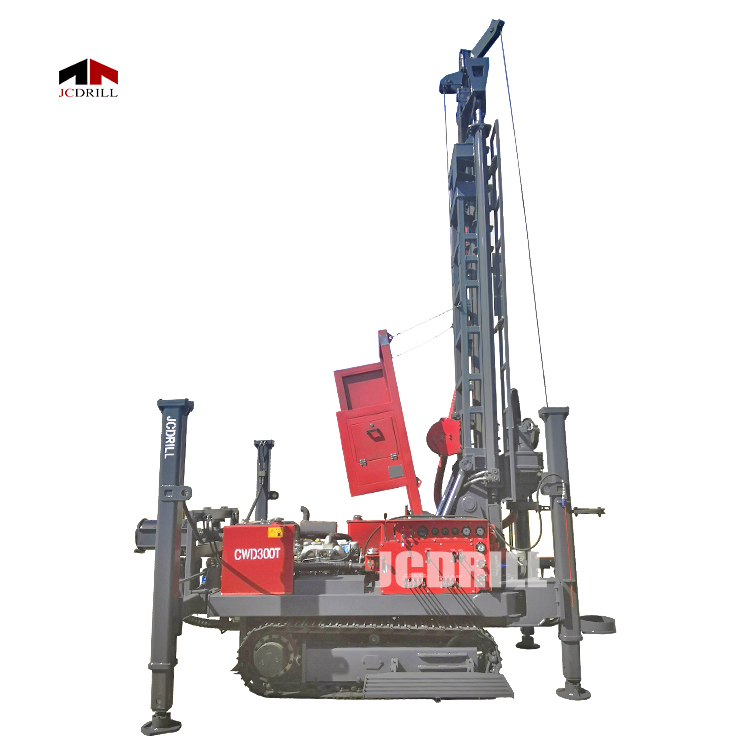

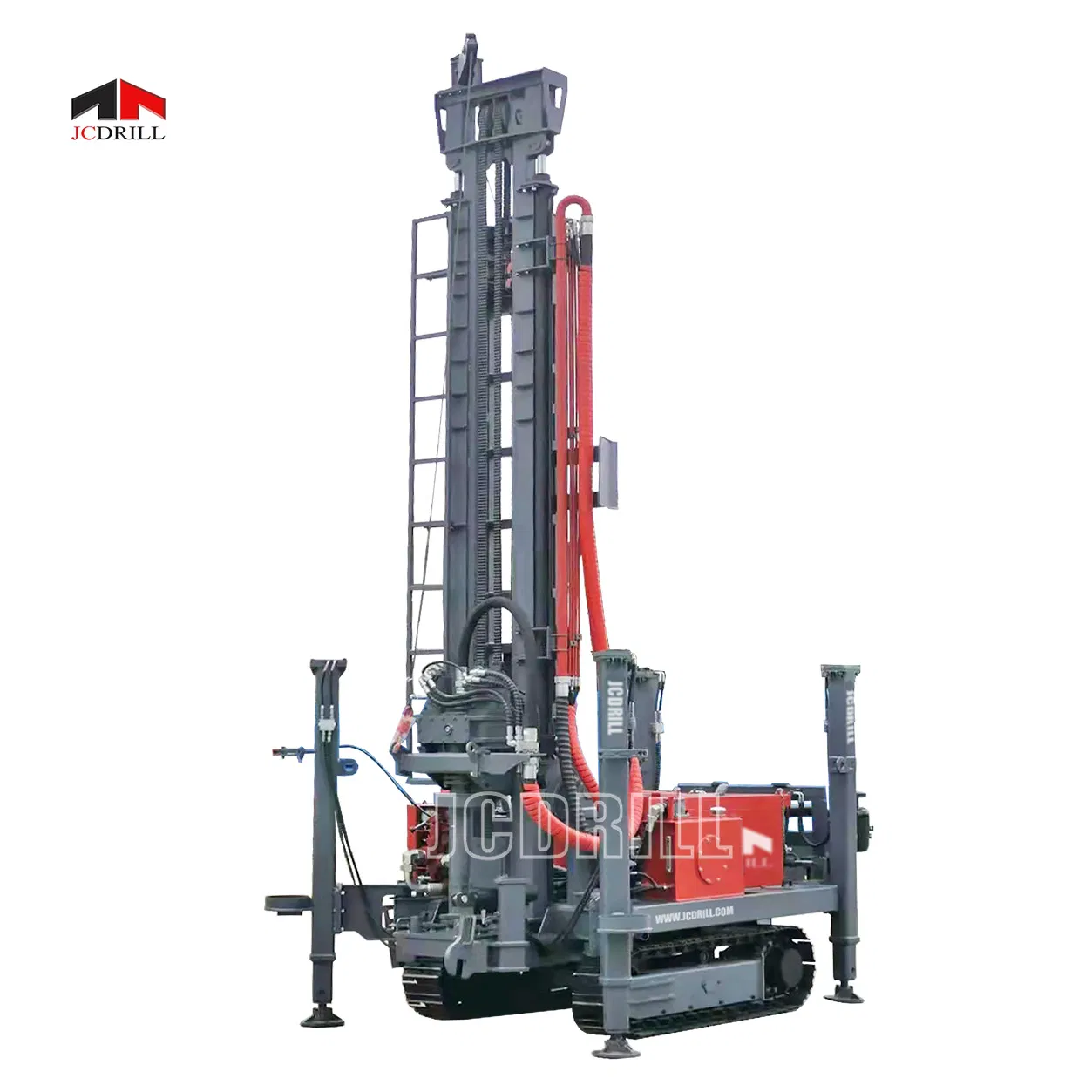

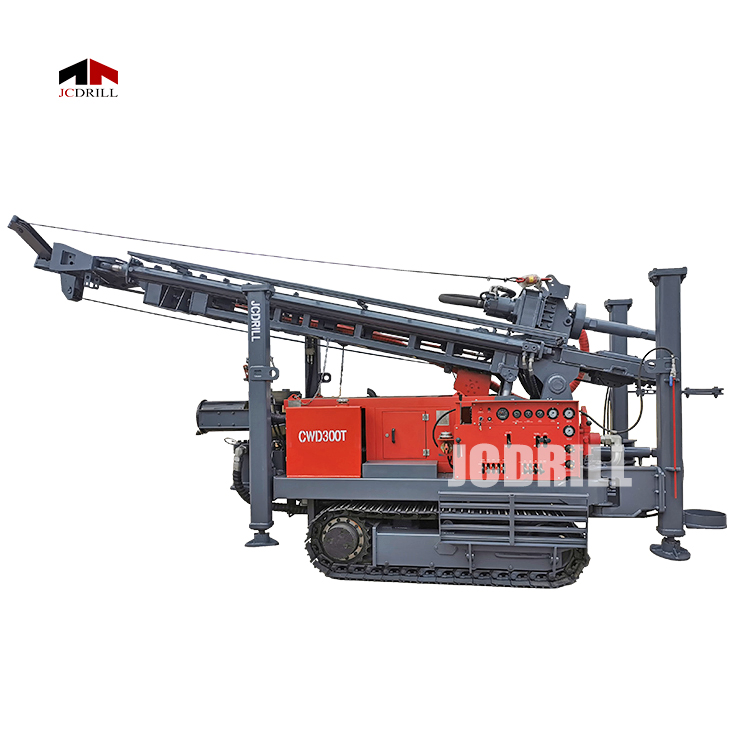

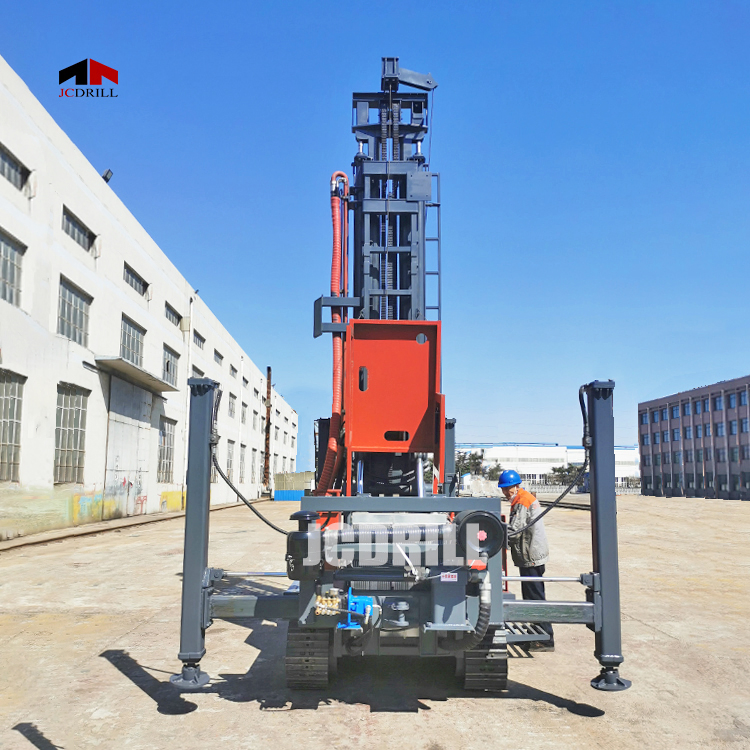

CWD300T Multi-functional track mounted water well drilling rig is an efficient, multi-function full hydraulic water well drilling rig. It features high efficiency due to a larger torque of the turntable and is primarily used for industrial and agricultural water wells, national defense building foundations, geological exploration, and geothermic wells.
This crawler-mounted rig can drill in various formations using mud drilling for soft layers and air DTH hammer for rock drilling. The DTH Hammer efficiency is ten times that of traditional rotary drilling in rock formations.
| Specification Item | Unit | CWD300T Data |
|---|---|---|
| Hole Diameter | mm | Φ90-Φ350 |
| Hole Depth | m | 300 |
| Rotation Torque | Nm | 5000-6500 |
| Rotation Speed | rpm | 70-140 |
| Drill Pipe Diameter | mm | 76/89/102 |
| Max. Lifting Speed | M/min | 30 |
| Feed Stroke | mm | 6600 |
| Max. Pull back Capacity | T | 16 |
| Engine Power | Kw | 80 |
| Net Weight | T | 7 |

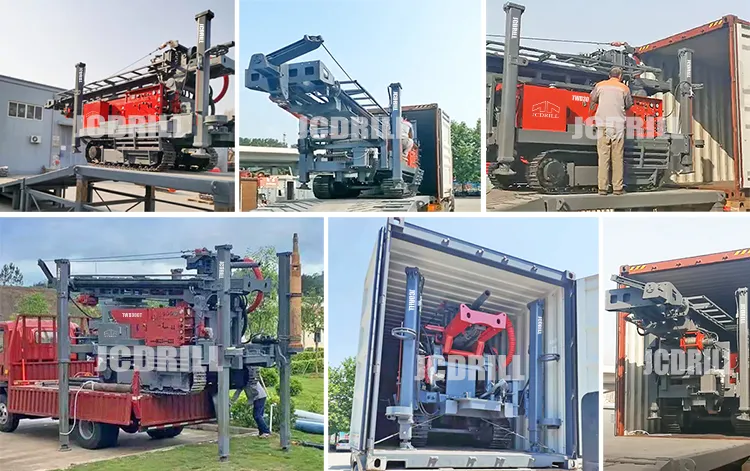

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Acting as a good adviser, proposing rational solutions per project requirements, selecting suitable models, and providing strong technical support within 24 hours.
Ensuring 100% pass rate from raw materials to finished products. Inspecting each machine strictly and keeping clients informed of production progress.
Providing year-round 24-hour service, onsite training for debugging, and prompt response via email or call for any operational support.
Focusing on the strategic conception of "Survival by quality, Development by credit," we specialize in the research and production of water well drilling rigs and relative accessories. Our products account for a significant market share and are exported to more than 40 countries.
